◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#47003) — 154 parça

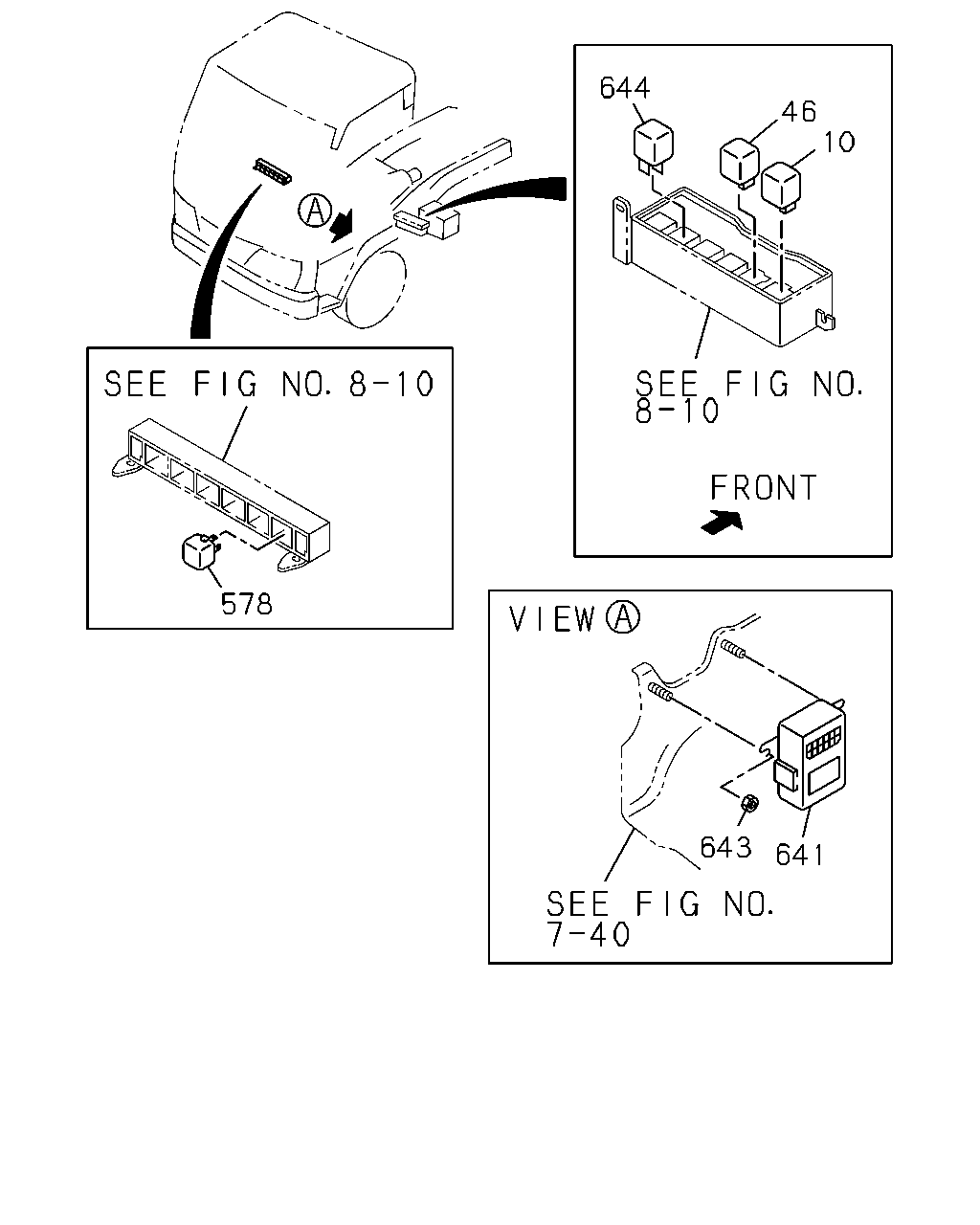

çizim 17568
644 46 10 578 643 641
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
12V 80A 		8-97036-358-1 02 1 9312-9406 ●
10 02.100 RELAY; STARTER
12V 80A 		8-97036-358-1 01 1 9407-9510 ●
10 02.100 RELAY; STARTER
12V 80A 		8-97036-358-1 01 1 9511-9704 ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 9705- ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 02 1 9312-9406 ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 01 1 9407-9503 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 02.100 12V 80A 		8-97036-358-1 01 1 9504-9608 ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&SGL CAB(NHB5S*) FAST GLOW SYSTEM<KM6> 02.100 12V 80A 		8-97036-358-1 02 1 9609-9704 ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&DBL CAB(NHB5WF) SMALL DUAL RR TIRE&RHD(NHN5SF) 02.100 12V 80A 		8-97036-358-1 02 1 9609-9704 ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&SGL CAB(NHB5S*) FAST GLOW SYSTEM<KM6> 12V 80A 		8-97173-951-0 02 1 9705- ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&DBL CAB(NHB5WF) SMALL DUAL RR TIRE&RHD(NHN5SF) 12V 80A 		8-97173-951-0 02 1 9705- ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&SGL CAB(NHB5S*) FAST GLOW SYSTEM<KM6> 02.100 12V 80A 		8-97036-358-1 01 1 9609-9704 ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&DBL CAB(NHB5WF) SGL TIRE&LHD&SGL CAB(NHB6SF) SGL TIRE&LHD&DBL CAB(NHB6WF) SMALL DUAL RR TIRE&RHD(NHN5SF) SMALL DUAL RR TIRE&LHD(NHN6SF) 02.100 12V 80A 		8-97036-358-1 01 1 9609-9704 ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&SGL CAB(NHB5S*) FAST GLOW SYSTEM<KM6> 12V 80A 		8-97173-951-0 01 1 9705- ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&DBL CAB(NHB5WF) SGL TIRE&LHD&SGL CAB(NHB6SF) SGL TIRE&LHD&DBL CAB(NHB6WF) SMALL DUAL RR TIRE&RHD(NHN5SF) SMALL DUAL RR TIRE&LHD(NHN6SF) 12V 80A 		8-97173-951-0 01 1 9705- ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-0 02 1 9312-9403 ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-0 01 1 9404-9510 ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9511- ● ●
641 02.510 TIMER; QOS 8-97047-027-0 01 1 9312-9503 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-027-0 01 1 9504-9608 ●
641 02.510 TIMER; QOS
SGL TIRE&RHD&SGL CAB(NHB5S*) FAST GLOW SYSTEM<KM6> 		8-97047-027-0 01 1 9609-9809 ●
641 02.510 TIMER; QOS
SGL TIRE&RHD&DBL CAB(NHB5WF) SGL TIRE&LHD&SGL CAB(NHB6SF) SGL TIRE&LHD&DBL CAB(NHB6WF) SMALL DUAL RR TIRE&RHD(NHN5SF) SMALL DUAL RR TIRE&LHD(NHN6SF) 		8-97047-027-0 01 1 9609-9809 ●
641 02.510 TIMER; QOS
SGL TIRE&RHD&SGL CAB(NHB5S*) FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 9810- ●
641 02.510 TIMER; QOS
SGL TIRE&RHD&DBL CAB(NHB5WF) SGL TIRE&LHD&SGL CAB(NHB6SF) SGL TIRE&LHD&DBL CAB(NHB6WF) SMALL DUAL RR TIRE&RHD(NHN5SF) SMALL DUAL RR TIRE&LHD(NHN6SF) 		8-97215-646-0 01 1 9810- ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9312-9503 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9504- ●
644 02.510 RELAY; COLD START DEVICE
08.852 12V 20A 		8-97060-926-0 02 1 9312-9406 ●
644 02.510 RELAY; COLD START DEVICE
08.852 12V 20A 		8-97060-926-1 01 1 9407- ●

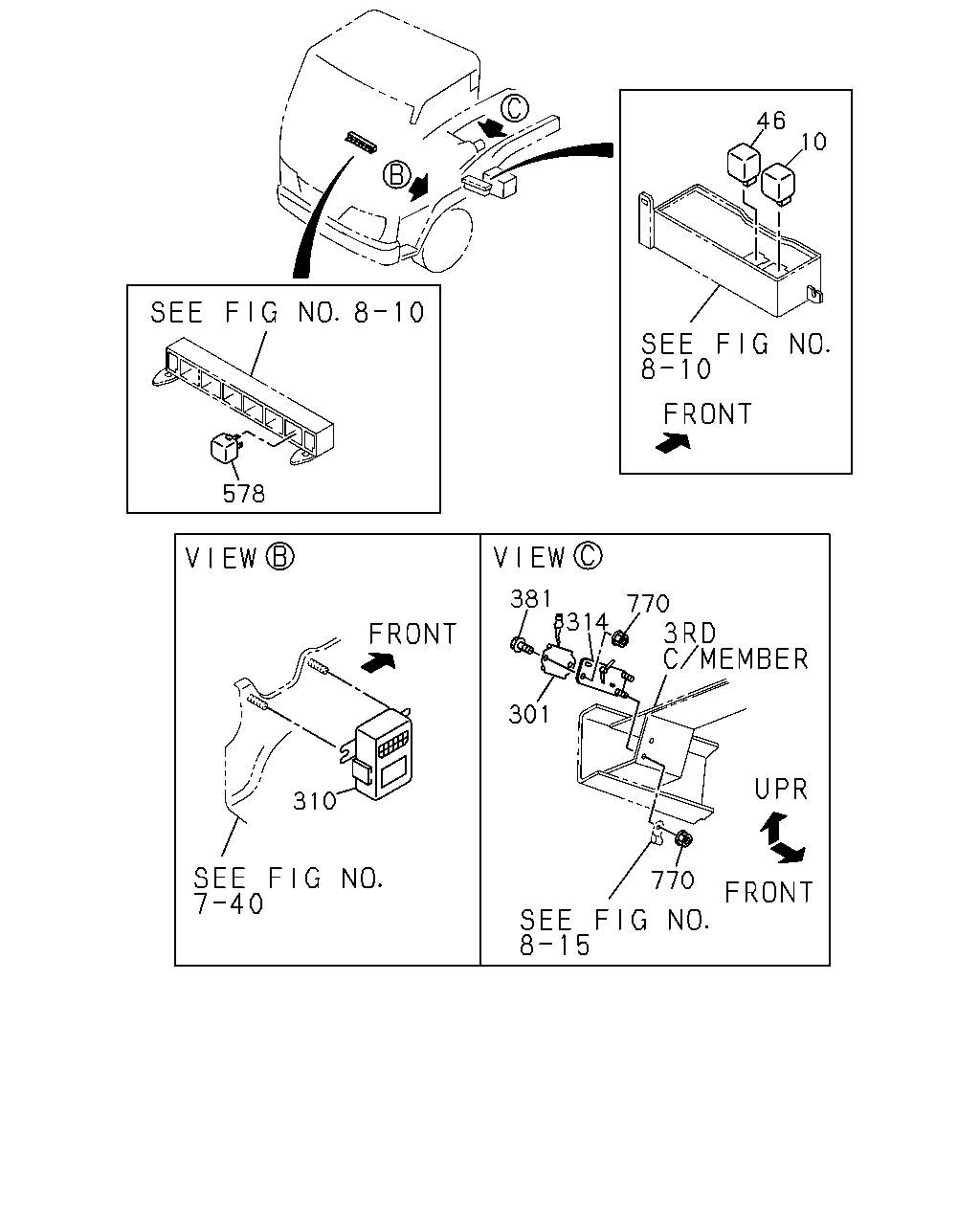

çizim 18169
46 10 578 381 314 770 301 310 770
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
12V 80A 		8-97036-358-1 02 1 9312-9406 ●
10 02.100 RELAY; STARTER
12V 80A 		8-97036-358-1 01 1 9407-9510 ●
10 02.100 RELAY; STARTER
12V 80A 		8-97036-358-1 01 1 9511-9704 ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 9705- ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 02 1 9312-9406 ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 01 1 9407-9503 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 02.100 12V 80A 		8-97036-358-1 01 1 9504-9608 ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&SGL CAB(NHB5S*) FAST GLOW SYSTEM<KM6> 02.100 12V 80A 		8-97036-358-1 02 1 9609-9704 ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&DBL CAB(NHB5WF) SMALL DUAL RR TIRE&RHD(NHN5SF) 02.100 12V 80A 		8-97036-358-1 02 1 9609-9704 ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&SGL CAB(NHB5S*) FAST GLOW SYSTEM<KM6> 12V 80A 		8-97173-951-0 02 1 9705- ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&DBL CAB(NHB5WF) SMALL DUAL RR TIRE&RHD(NHN5SF) 12V 80A 		8-97173-951-0 02 1 9705- ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&SGL CAB(NHB5S*) FAST GLOW SYSTEM<KM6> 02.100 12V 80A 		8-97036-358-1 01 1 9609-9704 ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&DBL CAB(NHB5WF) SGL TIRE&LHD&SGL CAB(NHB6SF) SGL TIRE&LHD&DBL CAB(NHB6WF) SMALL DUAL RR TIRE&RHD(NHN5SF) SMALL DUAL RR TIRE&LHD(NHN6SF) 02.100 12V 80A 		8-97036-358-1 01 1 9609-9704 ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&SGL CAB(NHB5S*) FAST GLOW SYSTEM<KM6> 12V 80A 		8-97173-951-0 01 1 9705- ●
46 02.510 RELAY; GLOW PLUG
SGL TIRE&RHD&DBL CAB(NHB5WF) SGL TIRE&LHD&SGL CAB(NHB6SF) SGL TIRE&LHD&DBL CAB(NHB6WF) SMALL DUAL RR TIRE&RHD(NHN5SF) SMALL DUAL RR TIRE&LHD(NHN6SF) 12V 80A 		8-97173-951-0 01 1 9705- ●
301 02.510 RESISTOR; DROPPING
SGL TIRE&RHD&SGL CAB(NHB5S*) FAST GLOW SYSTEM<KM6> 		8-94389-802-1 01 1 9609- ●
301 02.510 RESISTOR; DROPPING
SGL TIRE&RHD&DBL CAB(NHB5WF) SMALL DUAL RR TIRE&RHD(NHN5SF) 		8-94389-802-1 01 1 9609- ●
310 02.510 CONTROLLER; QOS
SGL TIRE&RHD&SGL CAB(NHB5S*) FAST GLOW SYSTEM<KM6> 		8-97047-029-0 01 1 9609- ●
310 02.510 CONTROLLER; QOS
SGL TIRE&RHD&DBL CAB(NHB5WF) SMALL DUAL RR TIRE&RHD(NHN5SF) 		8-97047-029-0 01 1 9609- ●
314 02.500 BRACKET; DROPPING RESISTOR 8-97061-910-2 01 1 9609- ●
381 02.183 BOLT; DROPPING RESISTOR
04.686 M6X25 FLANGE 		0-28080-625-0 02 1 9609-9702 ●
381 02.183 BOLT; DROPPING RESISTOR
02.334 M6X25 FLANGE 		0-28680-625-0 02 1 9703- ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-0 02 1 9312-9403 ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-0 01 1 9404-9510 ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9511- ● ●
770 02.183 NUT; DROPPING REGISTER
04.594 M6 FLANGE 		0-91150-106-0 04 1 9609- ●

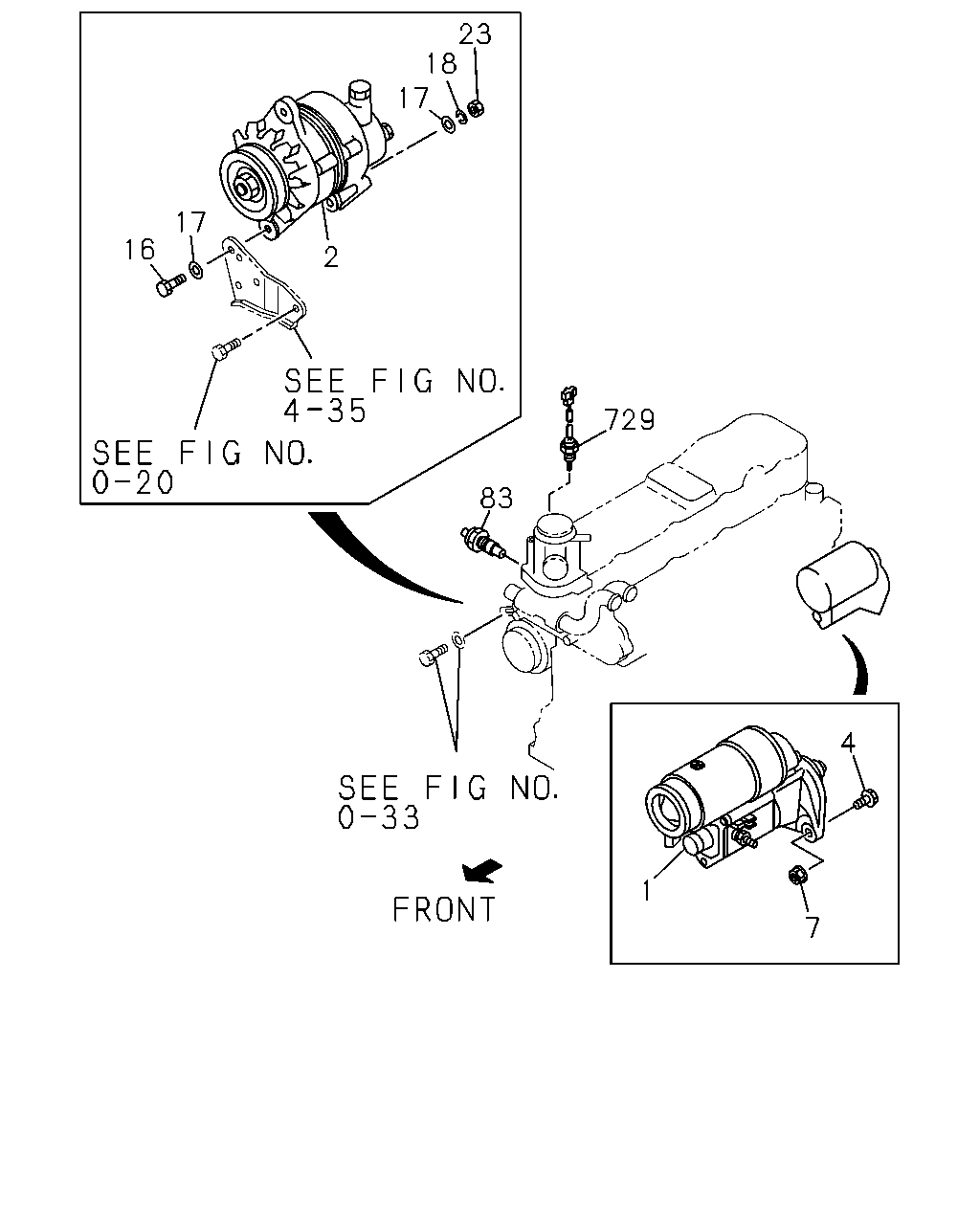

çizim 65573
23 18 17 17 16 2 729 83 4 1 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.2KW DENSO 		8-97042-997-0 01 1 9312-9603 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.0KW 		8-97120-356-0 01 1 9604-9608 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.0KW 		8-97120-356-1 01 1 9609-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-1 01 1 9609-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9709- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FRIGID ZONE(YL3) 12V 2.0KW 		8-94448-959-2 01 1 9312-9708 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) 12V 40A 		8-94310-379-0 01 1 9312-9406 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. WEST MALAYSIA EQUIPMENT(RWP) 12V 40A 		8-94310-379-0 01 1 9407-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S) 12V 50A 		8-97073-924-1 01 1 9312-9406 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. WEST MALAYSIA EQUIPMENT(RWP) 12V 50A 		8-97073-924-1 01 1 9407-9608 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. WEST MALAYSIA EQUIPMENT(RWP) 12V 50A 		8-97073-924-1 01 1 9609-9708 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. WEST MALAYSIA EQUIPMENT(RWP) 12V 50A 		8-97073-924-1 01 1 9709-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97073-924-1 01 1 9709-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97073-924-1 01 1 9712-9802 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9803- ● ●
4 02.042 BOLT; STARTER
FRIGID ZONE(YL3) 00.002 M12X84 		8-94107-769-2 02 1 9312-9608 ●
4 02.042 BOLT; STARTER
FRIGID ZONE(YL3) 00.002 M12X84 		8-94107-769-2 02 1 9609-9703 ●
4 02.042 BOLT; STARTER
00.002 M12X84 		8-94107-769-2 02 1 9609-9703 ●
4 02.042 BOLT; STARTER
FRIGID ZONE(YL3) M12X80 		0-28081-280-0 02 1 9704-9708 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9704-9708 ●
4 02.042 BOLT; STARTER
EXC. WEST MALAYSIA EQUIPMENT(RWP) M12X80 		0-28081-280-0 02 1 9709-9711 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9709-9711 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9712- ● ●
4 02.042 BOLT; STARTER
EXC. FRIGID ZONE(YL3) 05.383 		8-94478-186-1 02 1 9312-9708 ●
4 02.042 BOLT; STARTER
WEST MALAYSIA EQUIPMENT(RWP) 05.383 		8-94478-186-1 02 1 9709-9711 ●
4 02.042 BOLT; STARTER
04.898 M12X50 		0-10806-250-0 02 1 9609-9609 ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9312-9510 ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9511- ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9609-9609 ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9312-9608 ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9609-9612 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701-9711 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9712- ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9712- ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9312-9608 ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9609-9612 ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9312-9608 ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9609-9612 ● ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9312-9608 ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9609-9612 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9701-9711 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9712- ●
23 02.277 NUT; GEN
01.540 M8 FLANGE 		0-91150-208-0 01 1 9712- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9312-9608 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9609- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9312-9608 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9609- ● ●
729 01.150 SENSOR; QOS THERMO 8-97018-064-0 01 1 9609- ●

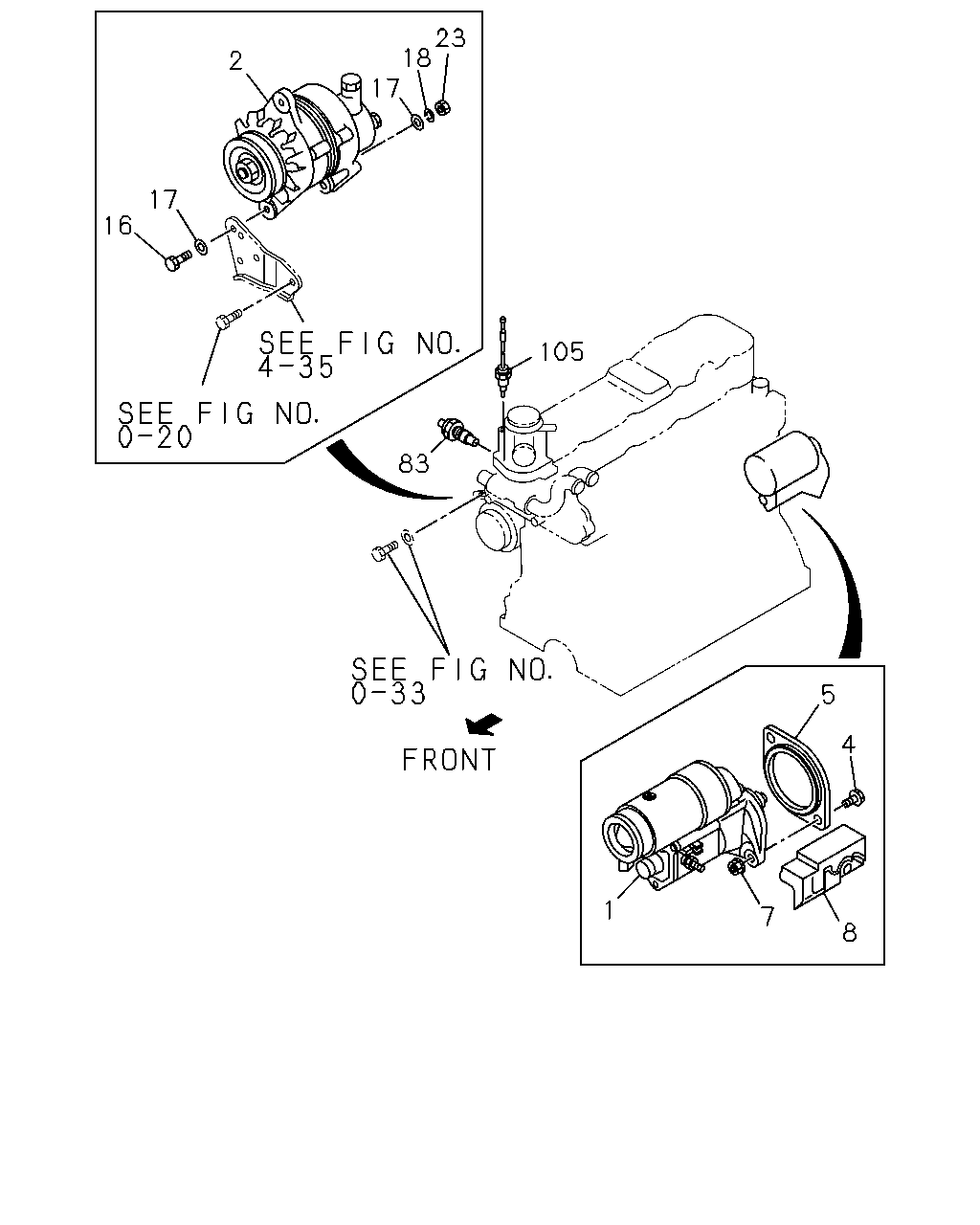

çizim 70908
23 18 17 2 17 16 105 83 5 4 1 7 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.2KW DENSO 		8-97042-997-0 01 1 9312-9603 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.0KW 		8-97120-356-0 01 1 9604-9608 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.0KW 		8-97120-356-1 01 1 9609-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-1 01 1 9609-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9709- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FRIGID ZONE(YL3) 12V 2.0KW 		8-94448-959-2 01 1 9312-9708 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) 12V 40A 		8-94310-379-0 01 1 9312-9406 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. WEST MALAYSIA EQUIPMENT(RWP) 12V 40A 		8-94310-379-0 01 1 9407-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S) 12V 50A 		8-97073-924-1 01 1 9312-9406 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. WEST MALAYSIA EQUIPMENT(RWP) 12V 50A 		8-97073-924-1 01 1 9407-9608 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. WEST MALAYSIA EQUIPMENT(RWP) 12V 50A 		8-97073-924-1 01 1 9609-9708 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. WEST MALAYSIA EQUIPMENT(RWP) 12V 50A 		8-97073-924-1 01 1 9709-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97073-924-1 01 1 9709-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97073-924-1 01 1 9712-9802 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9803- ● ●
4 02.042 BOLT; STARTER
FRIGID ZONE(YL3) 00.002 M12X84 		8-94107-769-2 02 1 9312-9608 ●
4 02.042 BOLT; STARTER
FRIGID ZONE(YL3) 00.002 M12X84 		8-94107-769-2 02 1 9609-9703 ●
4 02.042 BOLT; STARTER
00.002 M12X84 		8-94107-769-2 02 1 9609-9703 ●
4 02.042 BOLT; STARTER
FRIGID ZONE(YL3) M12X80 		0-28081-280-0 02 1 9704-9708 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9704-9708 ●
4 02.042 BOLT; STARTER
EXC. WEST MALAYSIA EQUIPMENT(RWP) M12X80 		0-28081-280-0 02 1 9709-9711 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9709-9711 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9712- ● ●
4 02.042 BOLT; STARTER
EXC. FRIGID ZONE(YL3) 05.383 		8-94478-186-1 02 1 9312-9708 ●
4 02.042 BOLT; STARTER
WEST MALAYSIA EQUIPMENT(RWP) 05.383 		8-94478-186-1 02 1 9709-9711 ●
4 02.042 BOLT; STARTER
04.898 M12X50 		0-10806-250-0 02 1 9609-9609 ●
5 02.042 DISTANCE; STARTER
EXC. FRIGID ZONE(YL3) 		8-97045-783-0 01 1 9312-9708 ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9312-9510 ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9511- ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9609-9609 ●
8 02.042 SPACER; STARTER
WEST MALAYSIA EQUIPMENT(RWP) 		8-94133-764-3 01 1 9312-9711 ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9312-9608 ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9609-9612 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701-9711 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9712- ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9712- ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9312-9608 ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9609-9612 ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9312-9608 ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9609-9612 ● ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9312-9608 ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9609-9612 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9701-9711 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9712- ●
23 02.277 NUT; GEN
01.540 M8 FLANGE 		0-91150-208-0 01 1 9712- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9312-9608 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9609- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9312-9608 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9609- ● ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9312-9503 ●
105 01.150 SWITCH; THERMO,QOS
EXC. INDONESIA EQUIPMENT(S4S) 		8-94121-152-1 01 1 9504-9710 ●
105 01.150 SWITCH; THERMO,QOS
EXC. INDONESIA EQUIPMENT(S4S) 		8-94457-511-0 01 1 9711- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
