0-51 — OIL PUMP AND OIL STRAINER (#47001) — 44 parça
çizim 20622
1 1 45 5 29 2 121 121 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.652 PUMP ASM; OIL 8-97033-175-2 01 1 9312-9608 ●
1 01.652 PUMP ASM; OIL 8-97033-175-3 01 1 9609- ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9312-9608 ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9609- ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9312-9608 ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9609- ● ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 9312-9608 ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 9609- ● ●
29 01.652 BOLT; OIL PUMP
01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9312-9608 ●
29 01.652 BOLT; OIL PUMP
01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9609-9612 ● ●
29 01.652 BOLT; OIL PUMP
01.531 M8X25 FLANGE 		0-28080-825-0 02 1 9701- ● ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 9312-9608 ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 9609- ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 (A) 		8-94235-567-1 01 1 9312-9608 ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 (A) 		8-94235-567-1 01 1 9609- ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.531 (B) 		8-97145-612-0 01 1 9609- ●

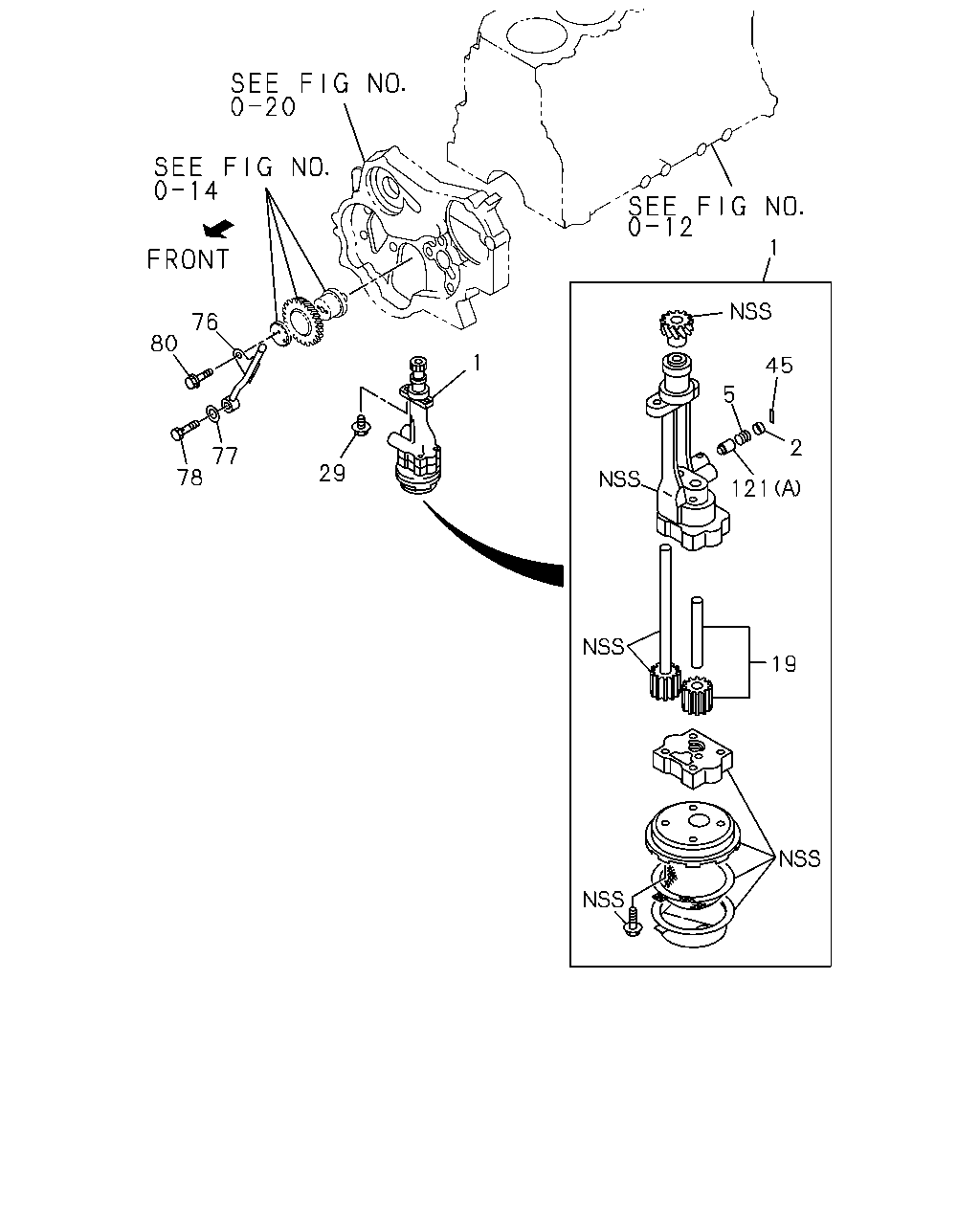

çizim 68023
1 76 80 1 45 5 2 77 78 29 121 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.652 PUMP ASM; OIL 8-97033-175-2 01 1 9312-9608 ●
1 01.652 PUMP ASM; OIL 8-97033-175-3 01 1 9609- ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9312-9608 ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9609- ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9312-9608 ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9609- ● ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 9312-9608 ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 9609- ● ●
29 01.652 BOLT; OIL PUMP
01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9312-9608 ●
29 01.652 BOLT; OIL PUMP
01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9609-9612 ● ●
29 01.652 BOLT; OIL PUMP
01.531 M8X25 FLANGE 		0-28080-825-0 02 1 9701- ● ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 9312-9608 ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 9609- ● ●
76 01.519 PIPE ASM; OIL 8-94139-747-1 01 1 9312-9409 ●
76 01.519 PIPE ASM; OIL
EXC. EURO1 SPECIFICATION<6YW> 		8-94139-747-1 01 1 9410-9504 ●
76 01.519 PIPE ASM; OIL
EURO1 SPECIFICATION<6YW> 		8-94453-548-0 01 1 9410-9504 ●
76 01.519 PIPE ASM; OIL 8-94453-548-1 01 1 9505-9605 ●
76 01.519 PIPE ASM; OIL 8-97160-706-0 01 1 9606- ●
77 01.531 GASKET; JOINT BOLT
05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 9312-9409 ●
77 01.531 GASKET; JOINT BOLT
EXC. EURO1 SPECIFICATION<6YW> 05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 9410-9504 ●
78 01.531 BOLT; EYE JOINT,OIL PIPE
M8X25 		8-94146-582-0 01 1 9312-9409 ●
78 01.531 BOLT; EYE JOINT,OIL PIPE
EXC. EURO1 SPECIFICATION<6YW> M8X25 		8-94146-582-0 01 1 9410-9504 ●
78 01.531 BOLT; EYE JOINT,OIL PIPE
EURO1 SPECIFICATION<6YW> M8X23 FLANGE 		8-94454-199-0 01 1 9410-9504 ●
78 01.531 BOLT; EYE JOINT,OIL PIPE
M8X23 FLANGE 		8-94454-199-0 01 1 9505- ●
80 01.531 BOLT; OIL PIPE FIX
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9312- ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 (A) 		8-94235-567-1 01 1 9312-9608 ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 (A) 		8-94235-567-1 01 1 9609- ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.531 (B) 		8-97145-612-0 01 1 9609- ●
