Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30A - AIR CLEANER
▶
1-30A — AIR CLEANER
(#470) — 46 parça
Tümü
A - 6RA1TC ENG
B - 6RB1TC ENG
C - 6RB1 TURBO ENG
◀

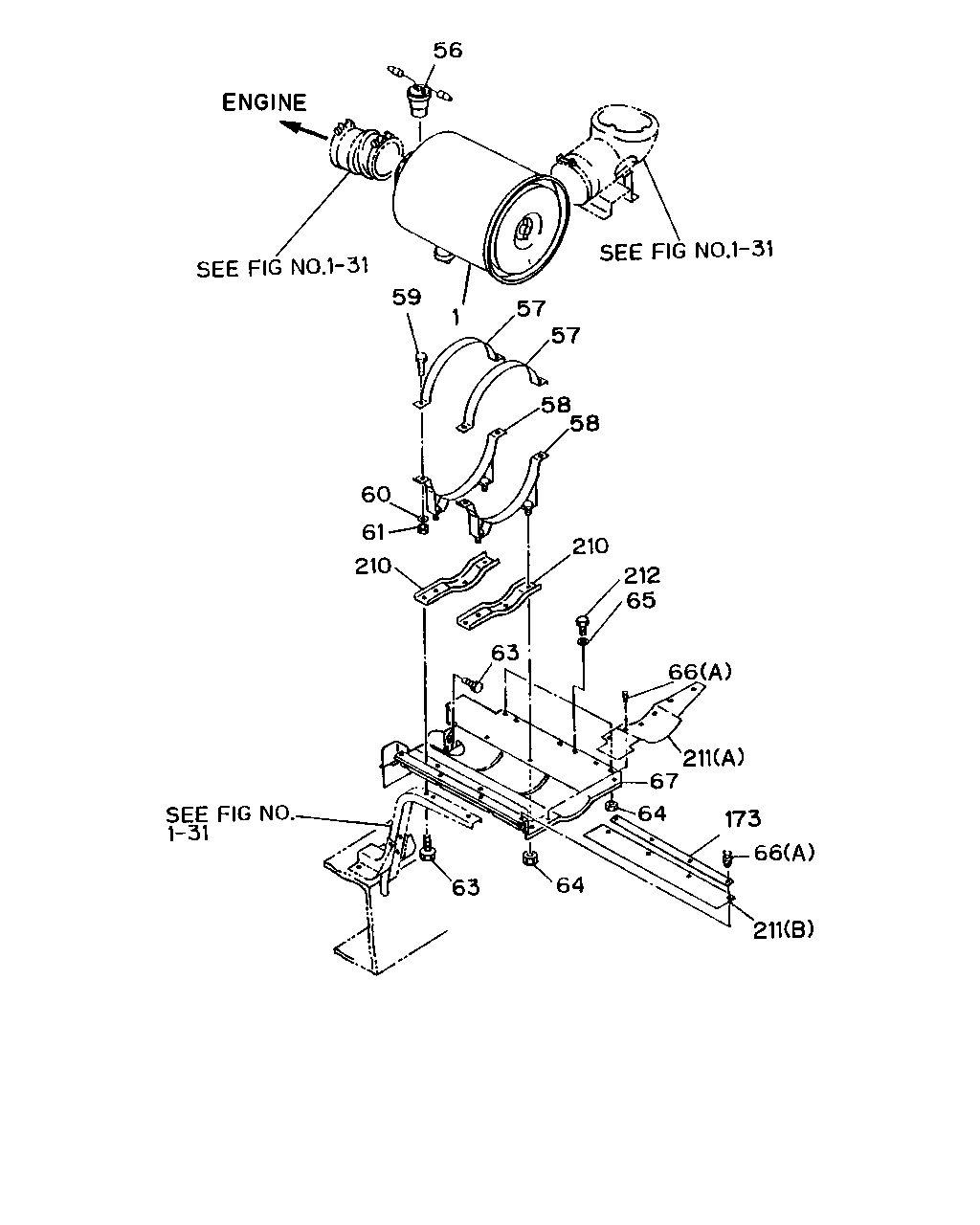

[130A] NO.1 (33 parça)

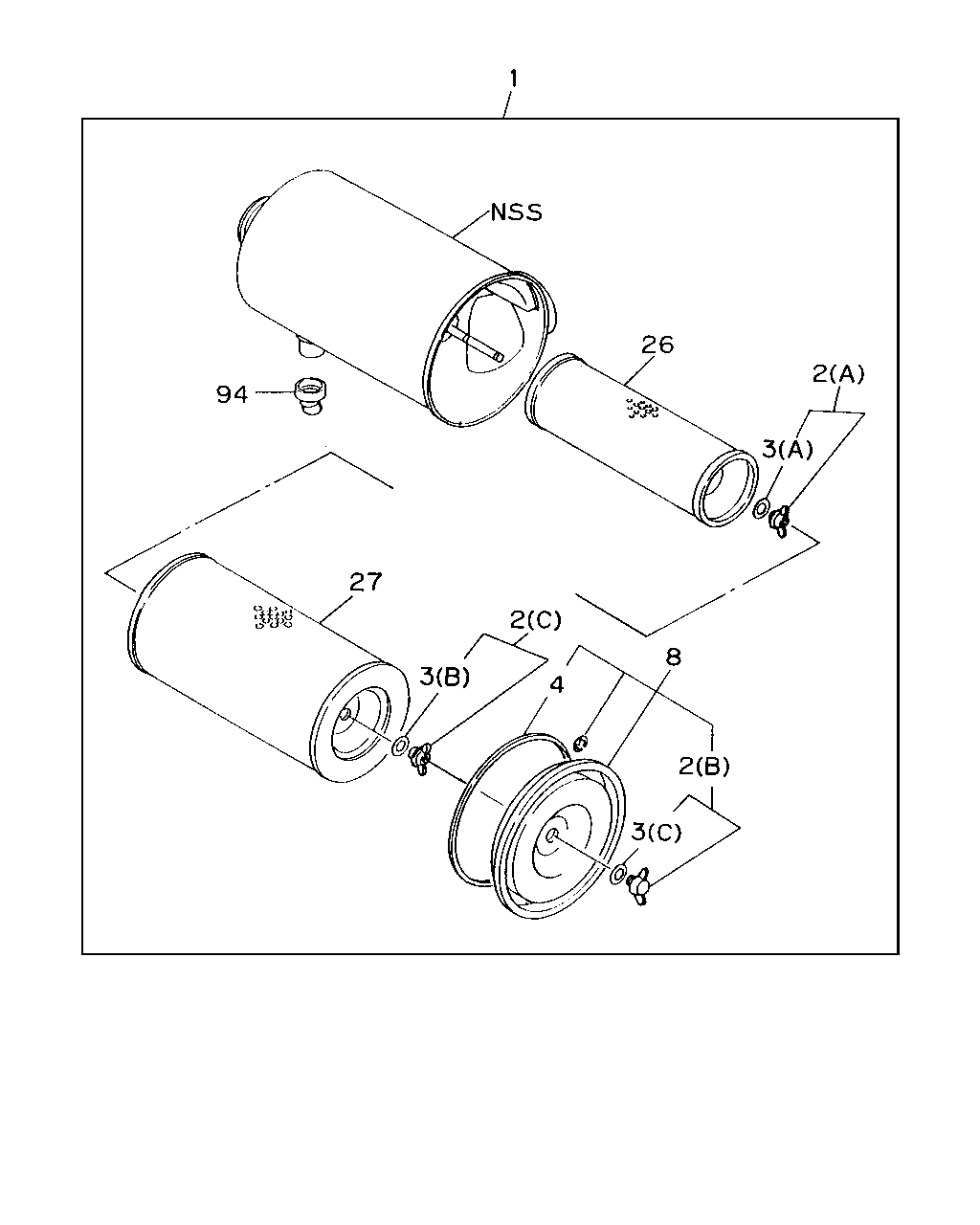

[130A] NO.2 (13 parça)
▶
56
59
1
57
57
58
58
210
212
65
66
211
67
64
173
66
211
64
63
63
210
61
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CLEANER ASM; AIR
1-14210-549-3
01
1
8712-
●
●
●
56
SWITCH; ACL
1-81530-011-0
01
1
8712-9306
●
●
●
56
SWITCH; ACL
1-81530-016-0
01
1
9307-
●
57
BAND; ACL
1-53419-131-1
02
1
8712-9304
●
●
●
57
BAND; ACL
1-53419-252-0
02
1
9305-
●
●
58
BRACKET; ACL BAND
1-53419-146-3
02
1
8712-9106
●
●
●
58
BRACKET; ACL BAND
1-53419-250-0
02
1
9107-
●
●
59
BOLT; BAND,ACL
M10X30 W/LK&PL WASHER
9-01961-030-0
04
1
8712-9204
●
●
●
59
BOLT; BAND,ACL
M10X30 W/LK&PL WASHER
0-50141-030-0
04
1
9205-
●
●
60
WASHER; PL,ACL BAND
ID=10.5 OD=22
9-09164-610-0
04
1
8712-
●
●
●
61
NUT; ACL BAND
M10
9-09110-510-0
04
1
8712-
●
●
●
63
BOLT; BRKT
M8X20 W/LK WASHER
9-01910-820-0
01
1
8712-9005
●
●
●
63
BOLT; BRKT
M8X20 W/LK WASHER
0-50040-820-0
01
1
9006-9302
●
●
63
BOLT; BRKT
M8X20 FLANGE
0-28080-820-0
01
1
9303-
●
●
64
NUT; BAND BRKT
M10 FLANGE
5-09440-006-0
04
1
8712-
●
●
●
64
NUT; BAND BRKT
M8
9-09110-408-0
01
1
8712-
●
●
●
64
NUT; BAND BRKT
M10
9-09110-510-0
05
1
8712-
●
●
●
65
WASHER; PL
ID=10.5 OD=22
9-09160-610-0
02
1
8712-
●
●
●
65
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
03
1
8712-
●
●
●
65
WASHER; PL
ID=8.4 OD=22
9-09160-708-0
01
1
9002-
●
●
66
CLIP; ACL
(A)
5-09987-033-0
08
1
8712-9412
●
●
●
66
CLIP; ACL
(A)
5-09987-033-0
08
1
9501-
●
67
COVER; ACL
1-53496-005-1
01
1
8712-9001
●
●
●
67
COVER; ACL
1-53496-010-0
01
1
9002-
●
●
173
RETAINER
1-79930-402-0
01
1
8712-9001
●
●
●
210
BRACKET; ACL MTG
1-53419-152-3
02
1
8712-9001
●
●
●
210
BRACKET; ACL MTG
1-53419-208-0
02
1
9002-9202
●
●
210
BRACKET; ACL MTG
1-53419-239-0
02
1
9203-
●
●
211
RUBBER; SEAL
(A)
1-53499-006-0
01
1
8712-
●
●
●
211
RUBBER; SEAL
(B)
1-79930-358-1
01
1
8712-
●
●
●
212
BOLT; MUD COVER
M10X25
9-01911-025-0
05
1
8712-9002
●
●
●
212
BOLT; MUD COVER
M10X25 W/LK WASHER
0-50041-025-0
05
1
9003-9506
●
●
212
BOLT; MUD COVER
M10X20 FLANGE
0-28081-020-0
05
1
9507-
●
●
1
26
2
3
8
4
3
2
2
3
27
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CLEANER ASM; AIR
1-14210-549-3
01
1
8712-
●
●
●
2
NUT; WING,ELEMENT
(A)
1-14217-003-0
01
1
8712-
●
●
●
2
NUT; WING,ELEMENT
(B)
1-14217-049-0
01
1
8712-
●
●
●
2
NUT; WING,ELEMENT
(C)
1-14217-050-0
01
1
8712-
●
●
●
3
WASHER; SEAL,WING NUT
(A)
1-14219-032-0
01
1
8712-
●
●
●
3
WASHER; SEAL,WING NUT
(B)
1-14219-118-0
01
1
8712-
●
●
●
3
WASHER; SEAL,WING NUT
(C)
1-14219-156-0
01
1
8712-
●
●
●
4
GASKET; COVER TO BODY
1-14219-130-0
01
1
8712-
●
●
●
8
COVER ASM; ACL
1-14212-091-0
01
1
8712-
●
●
●
26
FILTER; ACL,INNER
1-14215-129-0
01
1
8712-
●
●
●
27
FILTER; ACL,OUTER
1-14215-130-0
01
1
8712-8809
●
●
●
27
FILTER; ACL,OUTER
1-14215-193-0
01
1
8810-
●
●
●
94
VALVE; VACUATOR
1-14219-129-0
01
1
8712-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
