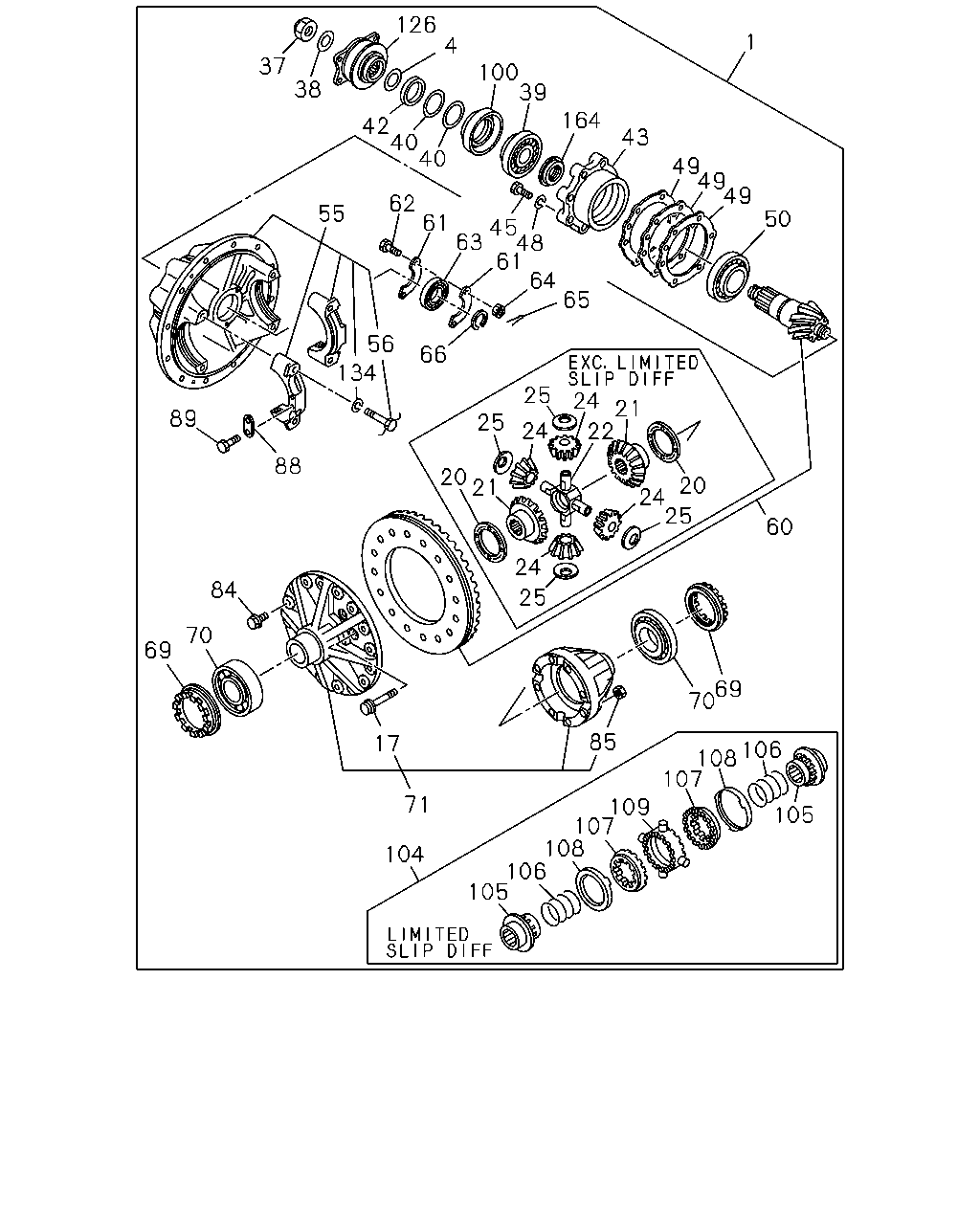

4-25A — REAR FINAL DRIVE (#47) — 155 parça

126 4 1 37 38 100 39 164 42 40 40 43 49 49 49 62 61 55 50 45 61 64 65 56 66 24 134 25 21 22 89 25 24 20 21 88 20 24 25 60 24 84 25 70 69 69 70 85 17 106 108 107 71 109 107 108 106 105 105 104 48 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) LIMITED SLIP DIFF(G86) 38/8	1-41001-579-0	01	1	9202-	●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) EXC. LIMITED SLIP DIFF(G86) 38/8	1-41001-461-0	01	1	9202-	●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) LIMITED SLIP DIFF(G86) 38/8	1-41001-583-0	01	1	9202-	●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) EXC. LIMITED SLIP DIFF(G86) 38/8	1-41001-326-0	01	1	9202-	●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) LIMITED SLIP DIFF(G86) 38/7	1-41001-577-0	01	1	9202-		●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) EXC. LIMITED SLIP DIFF(G86) 38/7	1-41001-463-0	01	1	9202-		●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) LIMITED SLIP DIFF(G86) 38/7	1-41001-581-0	01	1	9202-		●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) EXC. LIMITED SLIP DIFF(G86) 38/7	1-41001-375-0	01	1	9202-		●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) LIMITED SLIP DIFF(G86) 39/9	1-41001-580-0	01	1	9202-			●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) EXC. LIMITED SLIP DIFF(G86) 39/9	1-41001-460-0	01	1	9202-			●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) LIMITED SLIP DIFF(G86) 39/9	1-41001-584-0	01	1	9202-			●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) EXC. LIMITED SLIP DIFF(G86) 39/9	1-41001-320-0	01	1	9202-			●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) LIMITED SLIP DIFF(G86) 41/8	1-41001-578-0	01	1	9202-				●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-462-0	01	1	9202-				●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) LIMITED SLIP DIFF(G86) 41/8	1-41001-582-0	01	1	9202-				●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-374-0	01	1	9202-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/7	1-41001-608-0	01	1	9202-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/7	1-41001-030-0	01	1	9202-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/7	1-41001-585-0	01	1	9202-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/7	1-41001-133-0	01	1	9202-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/8	1-41001-586-0	01	1	9202-							●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/8	1-41001-241-0	01	1	9202-9205							●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/8	1-41001-683-0	01	1	9206-							●
4	GASKET; FLANGE,FINAL PINION ID=35.7 T=5	1-09623-379-0	01	1	9206-	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9206-					●	●	●
17	BOLT; DIFF CAGE SETTING M14X100	1-09070-006-0	08	1	9202-9204	●		●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF(G86) M14X100	1-09070-006-0	08	1	9202-9204				●
17	BOLT; DIFF CAGE SETTING M14X100	1-09070-006-0	08	1	9205-	●		●
17	BOLT; DIFF CAGE SETTING M14X85	1-09044-023-0	08	1	9202-9204		●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF(G86) M14X85	1-09044-023-0	08	1	9202-9204				●
17	BOLT; DIFF CAGE SETTING M14X85	1-09044-023-0	08	1	9205-		●		●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	04	1	9202-					●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9202-					●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-073-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-074-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-075-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-076-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-077-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-078-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-079-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-061-0	AR	1	9202-					●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-062-0	AR	1	9202-					●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-063-0	AR	1	9202-					●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-064-0	AR	1	9202-					●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-080-0	AR	1	9202-					●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-081-0	AR	1	9202-					●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-082-0	AR	1	9202-					●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-084-0	02	1	9202-	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-069-0	02	1	9202-9312					●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-107-0	02	1	9401-					●	●	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G86)	1-41521-035-0	01	1	9202-	●	●	●	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G86)	1-41521-018-1	01	1	9202-9311					●	●	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G86)	1-41521-050-0	01	1	9312-					●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-024-0	04	1	9202-	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-016-0	04	1	9202-9312					●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-032-0	04	1	9401-					●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86)	1-41552-020-0	04	1	9202-	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86) ID=29 OD=60	1-41562-119-0	04	1	9202-					●	●	●
37	NUT; DRIVING PINION	1-09449-068-0	01	1	9202-9203	●	●	●	●
37	NUT; DRIVING PINION M30 FLANGE	1-09449-066-1	01	1	9204-	●	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9202-					●	●	●
38	WASHER; PL,DRIVING PINION ID=30.5	1-09503-025-0	01	1	9202-9203	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9202-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	9202-					●	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	9202-					●	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	9202-					●	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	9202-					●	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	9202-					●	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	9202-					●	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	9202-					●	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	9202-					●	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	9202-					●	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	9202-					●	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	9202-					●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=15.75	1-41219-004-0	01	1	9202-	●	●	●	●
43	CAGE; FINAL PINION	1-41151-021-0	01	1	9202-	●	●	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9202-					●	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9202-	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9202-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9202-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9202-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9202-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9202-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9202-	●	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-088-1	01	1	9202-	●	●	●	●
55	CARRIER; DIFF	1-41110-048-0	01	1	9202-					●	●	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	9202-	●	●	●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9202-					●	●	●
60	GEAR SET; FINAL DRIVE,RR 38/8	1-41210-212-5	01	1	9202-	●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-210-5	01	1	9202-		●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-247-5	01	1	9202-			●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-260-5	01	1	9202-				●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-392-2	01	1	9202-					●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	9202-						●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-389-1	01	1	9202-9205							●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-454-0	01	1	9206-							●
61	RETAINER; PILOT BRG,PINION	9-41227-006-0	02	1	9202-	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9202-					●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9202-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-062-1	01	1	9202-	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-063-2	01	1	9202-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-1	01	1	9202-					●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-074-1	01	1	9202-					●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9202-	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9202-	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=32.2	1-09588-065-1	01	1	9202-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9202-					●	●	●
69	NUT; ADJ,DIFF CAGE M115 H=26	1-41121-028-0	01	1	9202-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-030-0	01	1	9202-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9202-					●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9202-					●	●	●
70	BEARING; DIFF CAGE KOYO ID=66.7 OD=113 T=30	9-00093-130-0	02	1	9202-	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-0	01	1	9202-					●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-0	01	1	9202-					●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-222-0	01	1	9202-9204	●		●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G86)	1-41510-222-0	01	1	9202-9204				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-222-0	01	1	9205-	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-207-0	01	1	9202-9204		●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF(G86)	1-41510-207-0	01	1	9202-9204				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-207-0	01	1	9205-		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9202-					●	●	●
84	BOLT; FINAL DRIVE GEAR M14X29.5 FLANGE	1-09070-085-0	16	1	9202-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-0	16	1	9202-					●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9202-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT 13.5"=RH & LH,14.5"=RH T=2.3	9-41124-015-0	02	1	9202-9307	●	●	●	●
88	PLATE; LK,ADJ NUT	9-41124-005-0	02	1	9202-					●	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	9202-					●	●	●
89	BOLT; LK PLATE M8X16	9-02040-816-0	04	1	9202-9204	●	●	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9205-	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9202-	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-0	01	1	9202-	●	●	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-042-0	01	1	9202-	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-025-0	01	1	9202-					●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41539-039-0	02	1	9202-	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41539-018-0	02	1	9202-					●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-09580-313-0	02	1	9202-	●	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-41539-006-0	02	1	9202-					●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41539-008-0	02	1	9202-	●	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41539-003-0	02	1	9202-					●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	1-41539-009-0	02	1	9202-	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	1-41539-004-0	02	1	9202-					●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41539-010-0	01	1	9202-	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41539-014-0	01	1	9202-					●	●	●
126	COUPLING; DRIVING PINION P30 PROP SHAFT(B2F)	1-37245-067-4	01	1	9202-	●	●	●	●
126	COUPLING; DRIVING PINION P46 PROP SHAFT(C4Z)	1-37245-069-5	01	1	9202-	●	●	●	●	●	●	●
134	WASHER; LK,BRG CAP ID=16.2	9-09150-516-0	04	1	9202-					●	●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	9202-					●	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9202-					●	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9202-					●	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9202-					●	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9202-					●	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9202-					●	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	9202-					●	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9202-					●	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9202-					●	●	●
