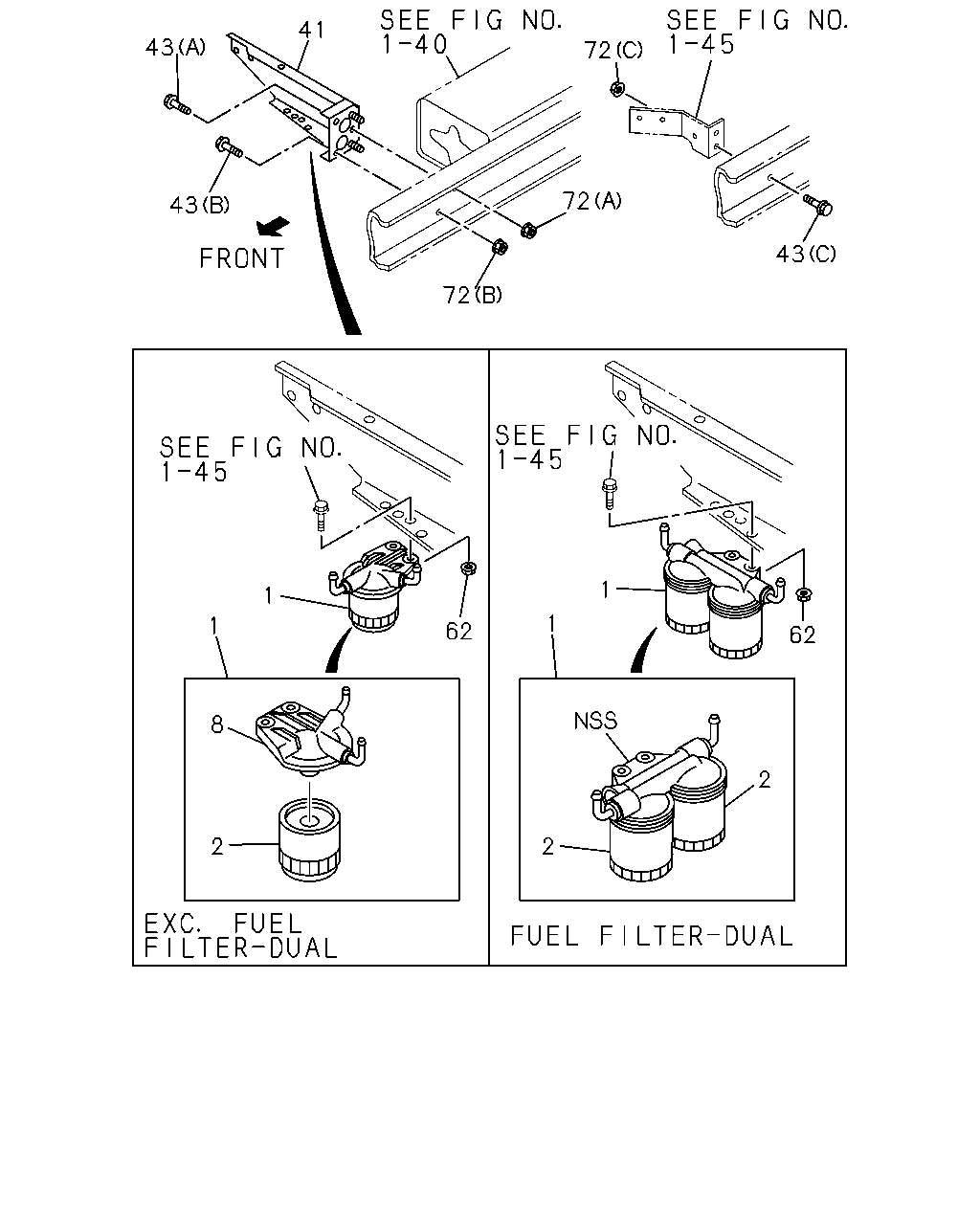

0-41 — FUEL FILTER AND BRACKET (#46998) — 38 parça

41 43 43 72 72 1 1 62 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9312-	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER-DUAL<S6B>	8-97070-865-0	01	1	9312-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9312-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER-DUAL<S6B>	8-94246-908-0	01	1	9312-	●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER-DUAL<S6B>	8-94254-730-0	01	1	9312-	●	●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S)	8-97090-294-3	01	1	9312-	●	●
41	03.890 BRACKET; FUEL FILTER DBL CAB(NH*W)	8-97103-345-1	01	1	9312-	●	●
43	03.890 BOLT; BRKT 01.531 (A) M8X25 FLANGE	0-28080-825-0	01	1	9312-9510		●
43	03.890 BOLT; BRKT 01.531 (A) M8X25 FLANGE	0-28080-825-0	01	1	9511-	●	●
43	03.890 BOLT; BRKT 00.685 (B) M10X30 FLANGE	0-28081-030-0	02	1	9312-9510		●
43	03.890 BOLT; BRKT 00.685 (B) M10X30 FLANGE	0-28081-030-0	02	1	9511-	●	●
43	03.890 BOLT; BRKT SMALL DUAL RR TIRE(NHN***) 01.531 (C) M8X25 FLANGE	0-28080-825-0	02	1	9312-	●	●
62	03.895 NUT; FUEL FILTER 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9510		●
62	03.895 NUT; FUEL FILTER 08.917 M10 FLANGE	0-91150-210-0	02	1	9511-	●	●
72	03.890 NUT; BRKT,FUEL FILTER 01.540 (A) M8 FLANGE	0-91150-208-0	01	1	9312-9510		●
72	03.890 NUT; BRKT,FUEL FILTER 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9511-	●	●
72	03.890 NUT; BRKT,FUEL FILTER 08.917 (B) M10 FLANGE	0-91150-210-0	02	1	9312-9510		●
72	03.890 NUT; BRKT,FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9511-	●	●
72	03.890 NUT; BRKT,FUEL FILTER SMALL DUAL RR TIRE(NHN***) 01.540 (C) M8 FLANGE	0-91150-208-0	02	1	9408-	●	●

41 43 72 72 43 43 72 1 1 1 1 62 62 8 2 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9312-	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER-DUAL<S6B>	8-97070-865-0	01	1	9312-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9312-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER-DUAL<S6B>	8-94246-908-0	01	1	9312-	●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER-DUAL<S6B>	8-94254-730-0	01	1	9312-	●	●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S)	8-97090-294-3	01	1	9312-	●	●
41	03.890 BRACKET; FUEL FILTER DBL CAB(NH*W)	8-97103-345-1	01	1	9312-	●	●
43	03.890 BOLT; BRKT 01.531 (A) M8X25 FLANGE	0-28080-825-0	01	1	9312-9510		●
43	03.890 BOLT; BRKT 01.531 (A) M8X25 FLANGE	0-28080-825-0	01	1	9511-	●	●
43	03.890 BOLT; BRKT 00.685 (B) M10X30 FLANGE	0-28081-030-0	02	1	9312-9510		●
43	03.890 BOLT; BRKT 00.685 (B) M10X30 FLANGE	0-28081-030-0	02	1	9511-	●	●
43	03.890 BOLT; BRKT SMALL DUAL RR TIRE(NHN***) 01.531 (C) M8X25 FLANGE	0-28080-825-0	02	1	9312-	●	●
62	03.895 NUT; FUEL FILTER 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9510		●
62	03.895 NUT; FUEL FILTER 08.917 M10 FLANGE	0-91150-210-0	02	1	9511-	●	●
72	03.890 NUT; BRKT,FUEL FILTER 01.540 (A) M8 FLANGE	0-91150-208-0	01	1	9312-9510		●
72	03.890 NUT; BRKT,FUEL FILTER 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9511-	●	●
72	03.890 NUT; BRKT,FUEL FILTER 08.917 (B) M10 FLANGE	0-91150-210-0	02	1	9312-9510		●
72	03.890 NUT; BRKT,FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9511-	●	●
72	03.890 NUT; BRKT,FUEL FILTER SMALL DUAL RR TIRE(NHN***) 01.540 (C) M8 FLANGE	0-91150-208-0	02	1	9408-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
