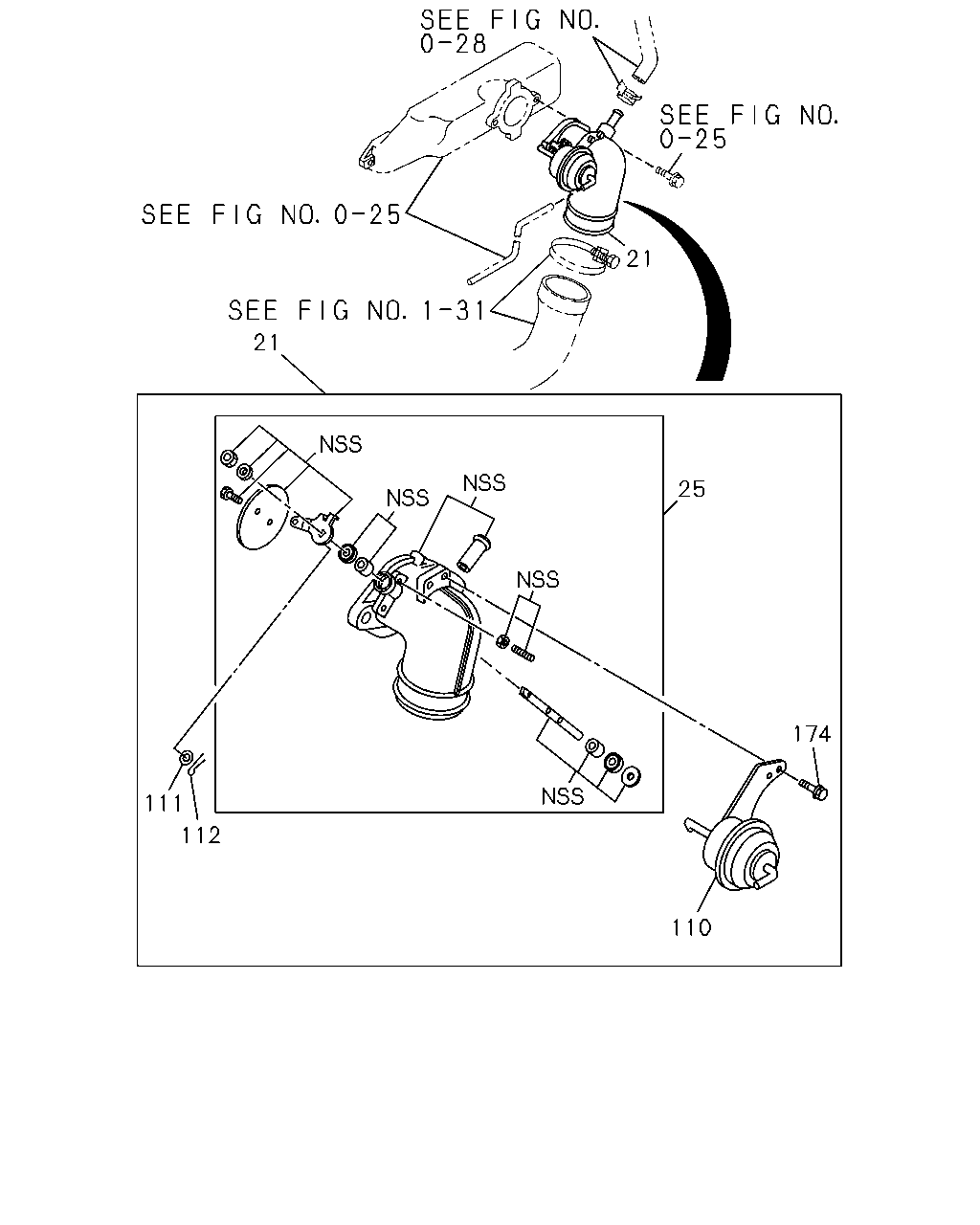

0-35 — ENGINE CONTROL VALVE AND LEVER (#46996) — 14 parça

21 21 25 174 112 110 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-0	01	1	9312-9406	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-0	01	1	9407-	●	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-0	01	1	9312-	●	●
25	03.440 BODY ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-94169-957-0	01	1	9312-9406	●
25	03.440 BODY ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-94169-957-0	01	1	9407-	●	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	9312-	●	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97103-169-0	01	1	9312-9406	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	9407-	●	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	9312-	●	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	9312-	●	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	9312-	●	●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9312-9406	●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9407-	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9312-	●	●
