0-33 — FAN AND FAN BELT (#46995) — 105 parça

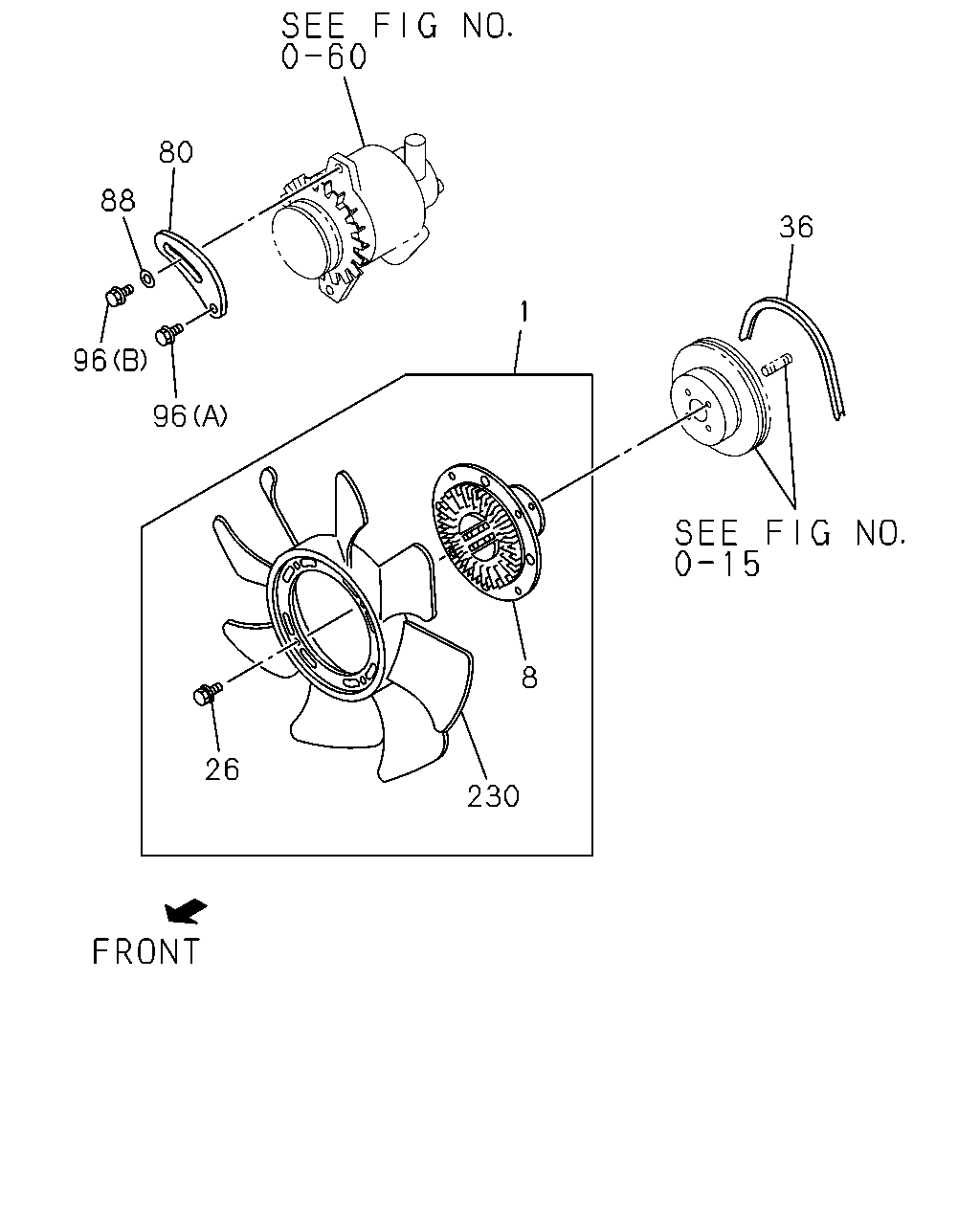

80 88 36 1 96 96 8 26 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> OD=390	8-94239-651-0	01	1	9312-	●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>	5-13660-285-0	01	1	9312-	●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> OD=410	8-97129-769-0	01	1	9609-		●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3>	8-94244-409-0	01	1	9312-	●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3>	8-97129-735-0	01	1	9609-		●
26	01.062 BOLT; FAN TO CLU FAN FLUID DRIVE<KA3>	8-94389-764-0	04	1	9609-		●
36	01.066 BELT; COOLING FAN WEST MALAYSIA EQUIPMENT(RWP) L=1065	8-94240-372-0	01	1	9511-9708	●
36	01.066 BELT; COOLING FAN WEST MALAYSIA EQUIPMENT(RWP) L=1051	8-94161-841-0	01	1	9709-9711	●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-9711	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-9711		●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9712-	●	●
36	01.066 BELT; COOLING FAN WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) L=1065	8-94240-372-0	01	1	9312-9406	●
36	01.066 BELT; COOLING FAN WEST MALAYSIA EQUIPMENT(RWP) L=1065	8-94240-372-0	01	1	9407-9510	●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9312-9406	●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9407-9409	●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9410-9701	●	●
80	02.317 PLATE; ADJ WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S)	8-94428-297-0	01	1	9312-9406	●
80	02.317 PLATE; ADJ WEST MALAYSIA EQUIPMENT(RWP)	8-94428-297-0	01	1	9407-9407	●
80	02.317 PLATE; ADJ WEST MALAYSIA EQUIPMENT(RWP)	8-97117-938-0	01	1	9408-9711	●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S)	8-97080-556-1	01	1	9312-9406	●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-97080-556-1	01	1	9407-9608	●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-97080-556-1	01	1	9609-9708	●	●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-97080-556-1	01	1	9709-9711	●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9709-9711		●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9712-	●	●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-9608	●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9609-	●	●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9312-9608	●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9609-	●	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9312-9608	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9609-	●	●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> 01.064	5-13660-300-0	01	1	9312-	●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> 01.064	8-97094-660-0	01	1	9609-		●

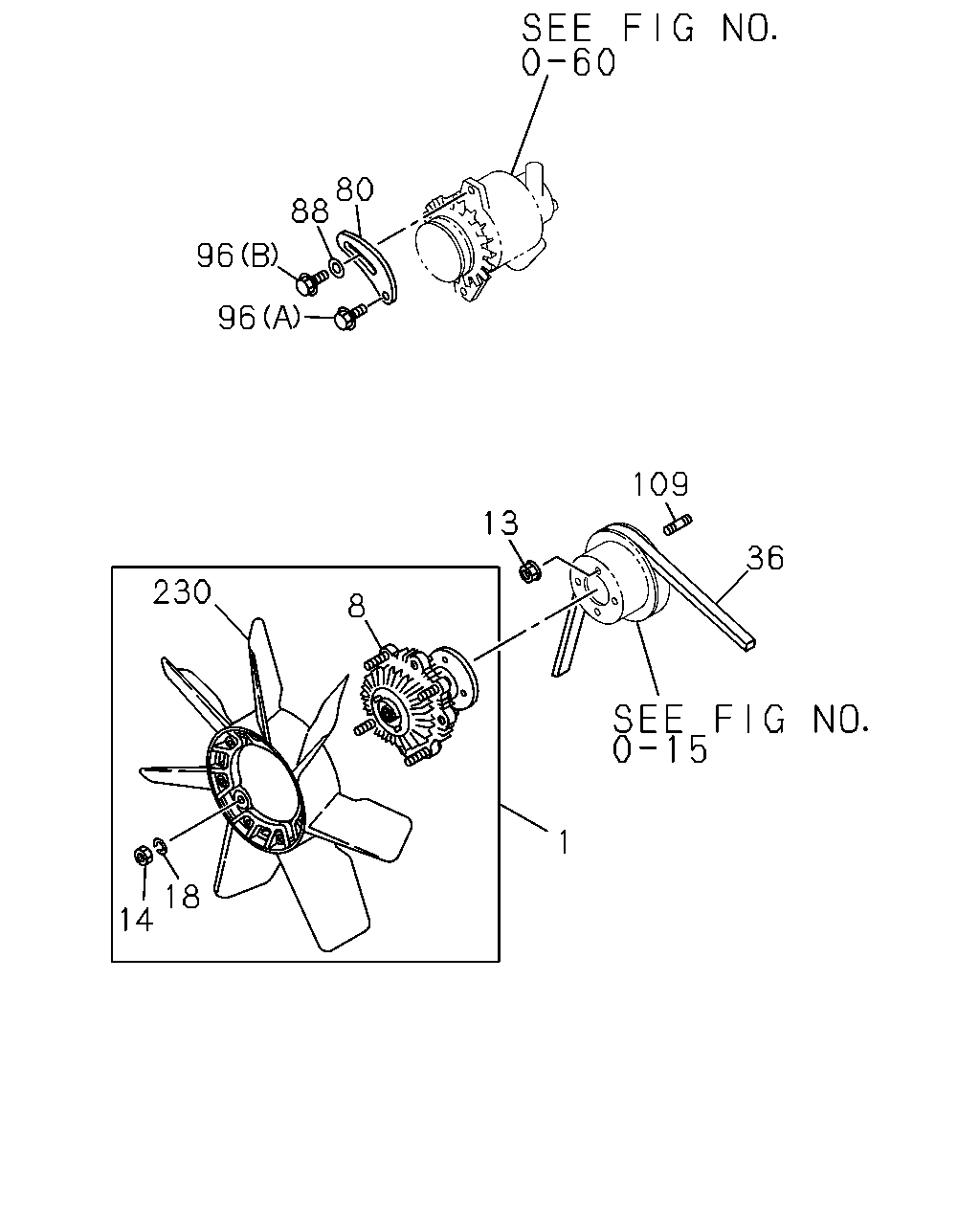

80 88 96 96 109 13 36 230 8 1 18 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> OD=390	8-94239-651-0	01	1	9312-	●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>	5-13660-285-0	01	1	9312-	●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> OD=410	8-97129-769-0	01	1	9609-		●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3>	8-94244-409-0	01	1	9312-	●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3>	8-97129-735-0	01	1	9609-		●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE	5-09440-004-0	04	1	9312-9712	●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE	5-09440-004-0	04	1	9801-	●
13	01.062 NUT; COOLING FAN SINGAPORE EQUIPMENT(S9Y) 07.829 M6 FLANGE	5-09440-004-0	04	1	9801-	●
14	01.062 NUT; FAN TO CLU FAN FLUID DRIVE<KA3> 00.413 M6	9-09110-506-0	04	1	9312-	●
18	01.062 WASHER; FAN TO CLU FAN FLUID DRIVE<KA3> 00.206 ID=6.1	9-09150-506-0	04	1	9312-	●
36	01.066 BELT; COOLING FAN WEST MALAYSIA EQUIPMENT(RWP) L=1065	8-94240-372-0	01	1	9511-9708	●
36	01.066 BELT; COOLING FAN WEST MALAYSIA EQUIPMENT(RWP) L=1051	8-94161-841-0	01	1	9709-9711	●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-9711	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-9711		●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9712-	●	●
36	01.066 BELT; COOLING FAN WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) L=1065	8-94240-372-0	01	1	9312-9406	●
36	01.066 BELT; COOLING FAN WEST MALAYSIA EQUIPMENT(RWP) L=1065	8-94240-372-0	01	1	9407-9510	●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9312-9406	●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9407-9409	●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9410-9701	●	●
80	02.317 PLATE; ADJ WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S)	8-94428-297-0	01	1	9312-9406	●
80	02.317 PLATE; ADJ WEST MALAYSIA EQUIPMENT(RWP)	8-94428-297-0	01	1	9407-9407	●
80	02.317 PLATE; ADJ WEST MALAYSIA EQUIPMENT(RWP)	8-97117-938-0	01	1	9408-9711	●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S)	8-97080-556-1	01	1	9312-9406	●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-97080-556-1	01	1	9407-9608	●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-97080-556-1	01	1	9609-9708	●	●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-97080-556-1	01	1	9709-9711	●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9709-9711		●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9712-	●	●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-9608	●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9609-	●	●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9312-9608	●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9609-	●	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9312-9608	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9609-	●	●
109	01.062 STUD; FAN CLU FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27	9-04110-618-0	04	1	9312-9712	●
109	01.062 STUD; FAN CLU FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27	9-04110-618-0	04	1	9801-	●
109	01.062 STUD; FAN CLU SINGAPORE EQUIPMENT(S9Y) 01.073 M6X18 L=27	9-04110-618-0	04	1	9801-	●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> 01.064	5-13660-300-0	01	1	9312-	●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> 01.064	8-97094-660-0	01	1	9609-		●

80 88 96 96 38 1 28 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> OD=390	8-94239-651-0	01	1	9312-	●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>	5-13660-285-0	01	1	9312-	●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> OD=410	8-97129-769-0	01	1	9609-		●
28	01.062 BOLT; COOLING FAN EXC. FAN FLUID DRIVE<KA3> M6X45 W/LK WASHER	0-50040-645-0	04	1	9312-9712	●
28	01.062 BOLT; COOLING FAN EXC. FAN FLUID DRIVE<KA3>,SINGAPORE EQUIPMENT(S9Y) M6X45 W/LK WASHER	0-50040-645-0	04	1	9801-	●
36	01.066 BELT; COOLING FAN WEST MALAYSIA EQUIPMENT(RWP) L=1065	8-94240-372-0	01	1	9511-9708	●
36	01.066 BELT; COOLING FAN WEST MALAYSIA EQUIPMENT(RWP) L=1051	8-94161-841-0	01	1	9709-9711	●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-9711	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-9711		●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9712-	●	●
36	01.066 BELT; COOLING FAN WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) L=1065	8-94240-372-0	01	1	9312-9406	●
36	01.066 BELT; COOLING FAN WEST MALAYSIA EQUIPMENT(RWP) L=1065	8-94240-372-0	01	1	9407-9510	●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9312-9406	●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9407-9409	●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9410-9701	●	●
38	01.062 SPACER; FAN EXC. FAN FLUID DRIVE<KA3> 01.064	9-13642-078-0	01	1	9312-9712	●
38	01.062 SPACER; FAN EXC. FAN FLUID DRIVE<KA3>,SINGAPORE EQUIPMENT(S9Y) 01.064	9-13642-078-0	01	1	9801-	●
80	02.317 PLATE; ADJ WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S)	8-94428-297-0	01	1	9312-9406	●
80	02.317 PLATE; ADJ WEST MALAYSIA EQUIPMENT(RWP)	8-94428-297-0	01	1	9407-9407	●
80	02.317 PLATE; ADJ WEST MALAYSIA EQUIPMENT(RWP)	8-97117-938-0	01	1	9408-9711	●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S)	8-97080-556-1	01	1	9312-9406	●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-97080-556-1	01	1	9407-9608	●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-97080-556-1	01	1	9609-9708	●	●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-97080-556-1	01	1	9709-9711	●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9709-9711		●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9712-	●	●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-9608	●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9609-	●	●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9312-9608	●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9609-	●	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9312-9608	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9609-	●	●
