0-32 — WATER PIPING; ENGINE (#46994) — 65 parça

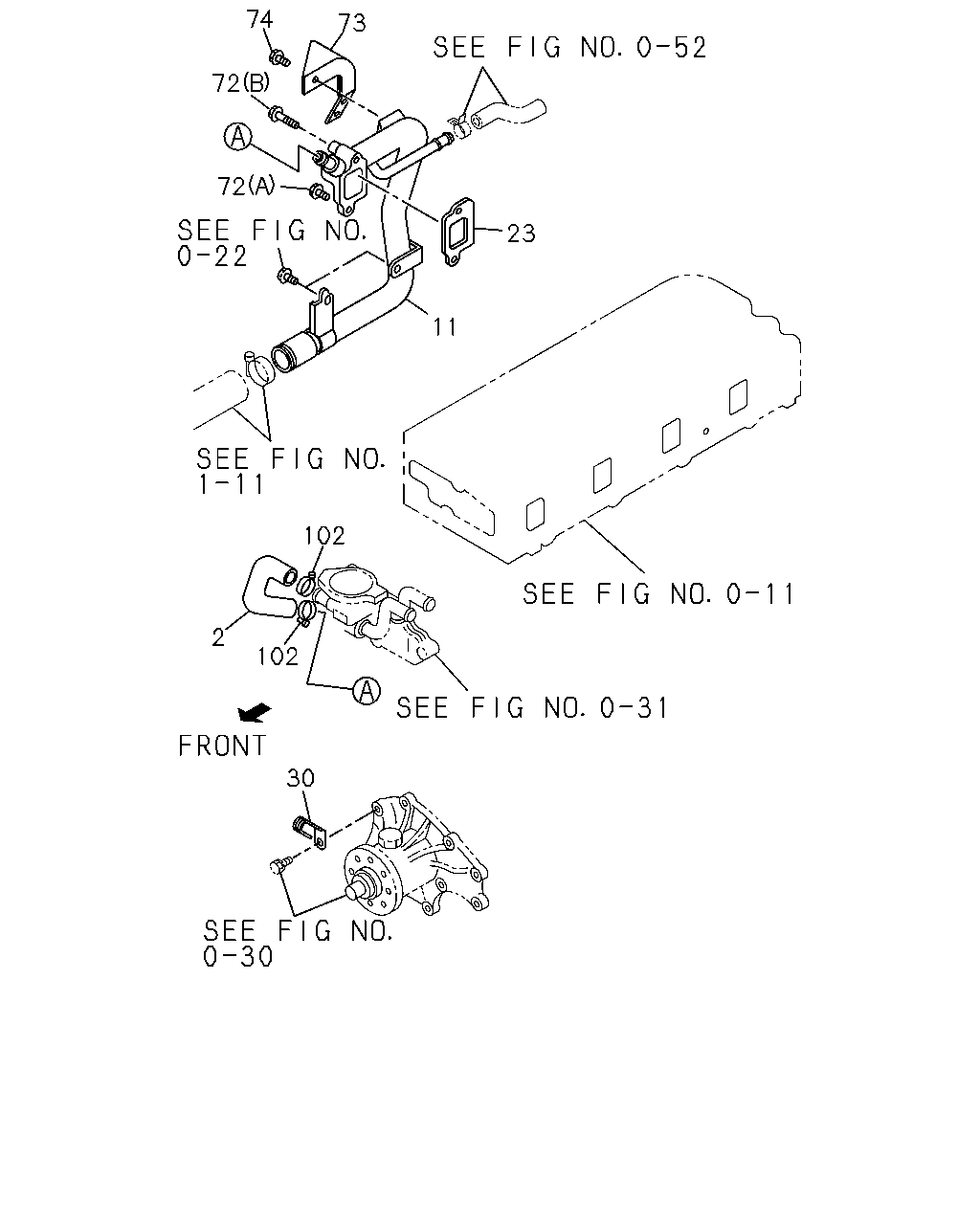

74 73 72 72 23 11 102 2 102 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	9312-9608	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	9609-	●	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4>	8-97063-639-1	01	1	9312-9406	●
11	01.097 PIPE; INL,WATER PUMP FRT INDEPENDENT SUSPENSION(6PP) EXC. OIL COOLER<KC4>	8-97063-639-1	01	1	9312-9406	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4>	8-97063-639-2	01	1	9407-9510	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW>	8-97063-639-2	01	1	9511-9608	●
11	01.097 PIPE; INL,WATER PUMP EURO1 SPECIFICATION<6YW>	8-97063-639-2	01	1	9511-9608	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW>	8-97063-639-2	01	1	9609-9712	●
11	01.097 PIPE; INL,WATER PUMP EURO1 SPECIFICATION<6YW>	8-97063-639-2	01	1	9609-9712	●
11	01.097 PIPE; INL,WATER PUMP	8-97063-639-2	01	1	9609-9712		●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> SINGAPORE EQUIPMENT(S9Y)	8-97063-639-2	01	1	9801-	●
11	01.097 PIPE; INL,WATER PUMP	8-97063-639-2	01	1	9801-		●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP)	8-97070-871-0	01	1	9312-9406	●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>	8-97070-871-1	01	1	9407-9510	●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW>	8-97070-871-1	01	1	9511-9711	●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>	8-97070-871-1	01	1	9712-9712	●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>,SINGAPORE EQUIPMENT(S9Y)	8-97070-871-1	01	1	9801-	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9312-9608	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9609-	●	●
30	01.150 CLIP; HARNESS 02.559 ID=12	5-09700-331-0	01	1	9312-9608	●
30	01.150 CLIP; HARNESS 02.559 ID=12	5-09700-331-0	01	1	9609-	●	●
72	00.206 BOLT; WATER PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9312-9608	●
72	00.206 BOLT; WATER PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9609-	●	●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9312-9608	●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9609-	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-0	01	1	9312-9608	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-0	01	1	9609-	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	9312-9608	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	9609-	●	●
102	01.252 CLIP; WATER HOSE 01.166 ID=20.8	8-94125-862-0	02	1	9312-9608	●
102	01.252 CLIP; WATER HOSE 01.166 ID=20.8	8-94125-862-0	02	1	9609-	●	●

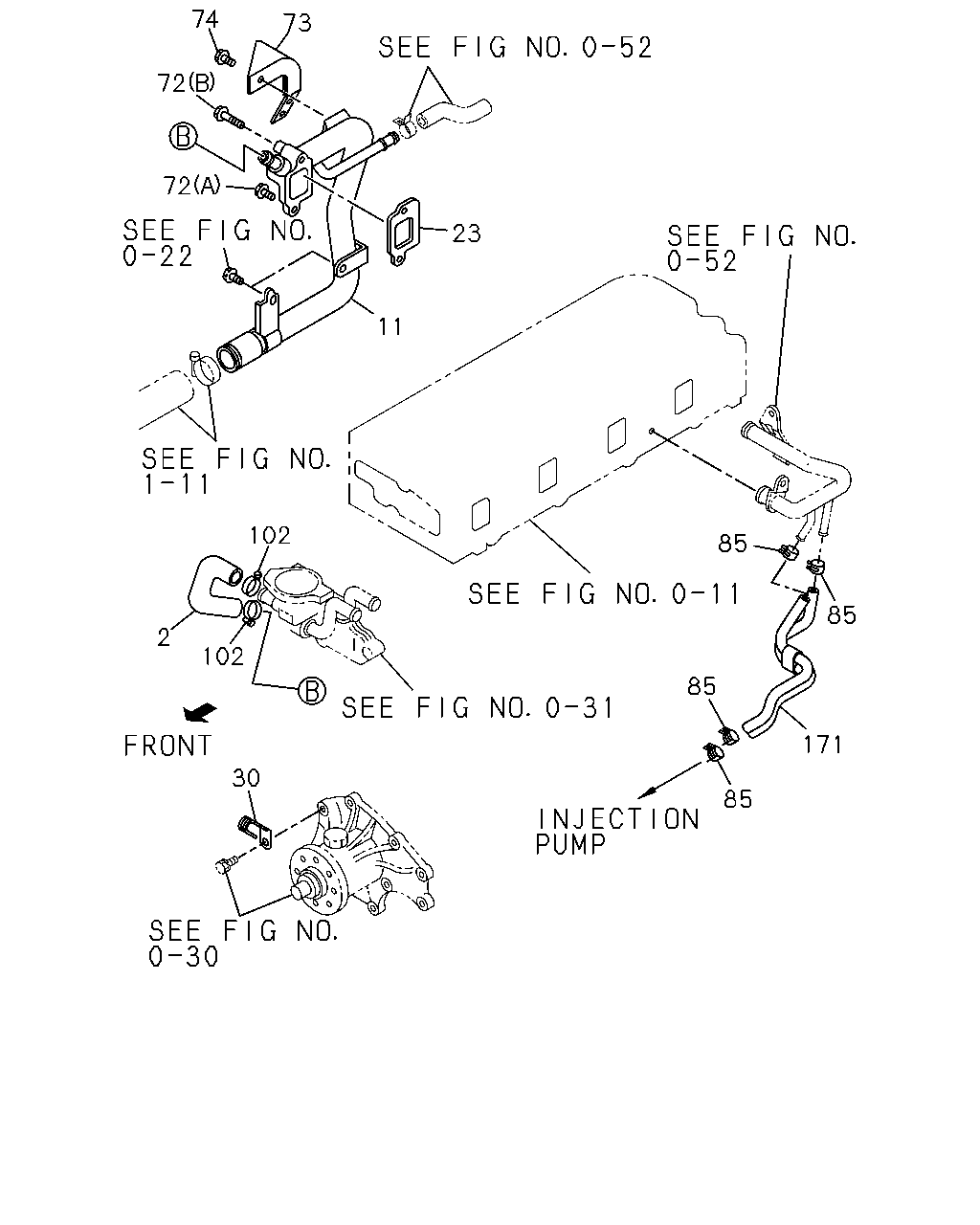

74 73 72 72 23 11 102 85 85 2 102 85 171 30 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	9312-9608	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	9609-	●	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4>	8-97063-639-1	01	1	9312-9406	●
11	01.097 PIPE; INL,WATER PUMP FRT INDEPENDENT SUSPENSION(6PP) EXC. OIL COOLER<KC4>	8-97063-639-1	01	1	9312-9406	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4>	8-97063-639-2	01	1	9407-9510	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW>	8-97063-639-2	01	1	9511-9608	●
11	01.097 PIPE; INL,WATER PUMP EURO1 SPECIFICATION<6YW>	8-97063-639-2	01	1	9511-9608	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW>	8-97063-639-2	01	1	9609-9712	●
11	01.097 PIPE; INL,WATER PUMP EURO1 SPECIFICATION<6YW>	8-97063-639-2	01	1	9609-9712	●
11	01.097 PIPE; INL,WATER PUMP	8-97063-639-2	01	1	9609-9712		●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> SINGAPORE EQUIPMENT(S9Y)	8-97063-639-2	01	1	9801-	●
11	01.097 PIPE; INL,WATER PUMP	8-97063-639-2	01	1	9801-		●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP)	8-97070-871-0	01	1	9312-9406	●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>	8-97070-871-1	01	1	9407-9510	●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW>	8-97070-871-1	01	1	9511-9711	●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>	8-97070-871-1	01	1	9712-9712	●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>,SINGAPORE EQUIPMENT(S9Y)	8-97070-871-1	01	1	9801-	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9312-9608	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9609-	●	●
30	01.150 CLIP; HARNESS 02.559 ID=12	5-09700-331-0	01	1	9312-9608	●
30	01.150 CLIP; HARNESS 02.559 ID=12	5-09700-331-0	01	1	9609-	●	●
72	00.206 BOLT; WATER PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9312-9608	●
72	00.206 BOLT; WATER PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9609-	●	●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9312-9608	●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9609-	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-0	01	1	9312-9608	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-0	01	1	9609-	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	9312-9608	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	9609-	●	●
85	01.240 CLIP; RUBBER,WAX CSD 03.162 ID=15.5	8-94221-519-0	04	1	9609-		●
102	01.252 CLIP; WATER HOSE 01.166 ID=20.8	8-94125-862-0	02	1	9312-9608	●
102	01.252 CLIP; WATER HOSE 01.166 ID=20.8	8-94125-862-0	02	1	9609-	●	●
171	01.240 HOSE; RUBBER,WAX CSD	8-97089-269-0	01	1	9609-9710		●
171	01.240 HOSE; RUBBER,WAX CSD	8-97189-478-0	01	1	9711-		●
