0-31 — THERMOSTAT AND HOUSING (#46993) — 117 parça

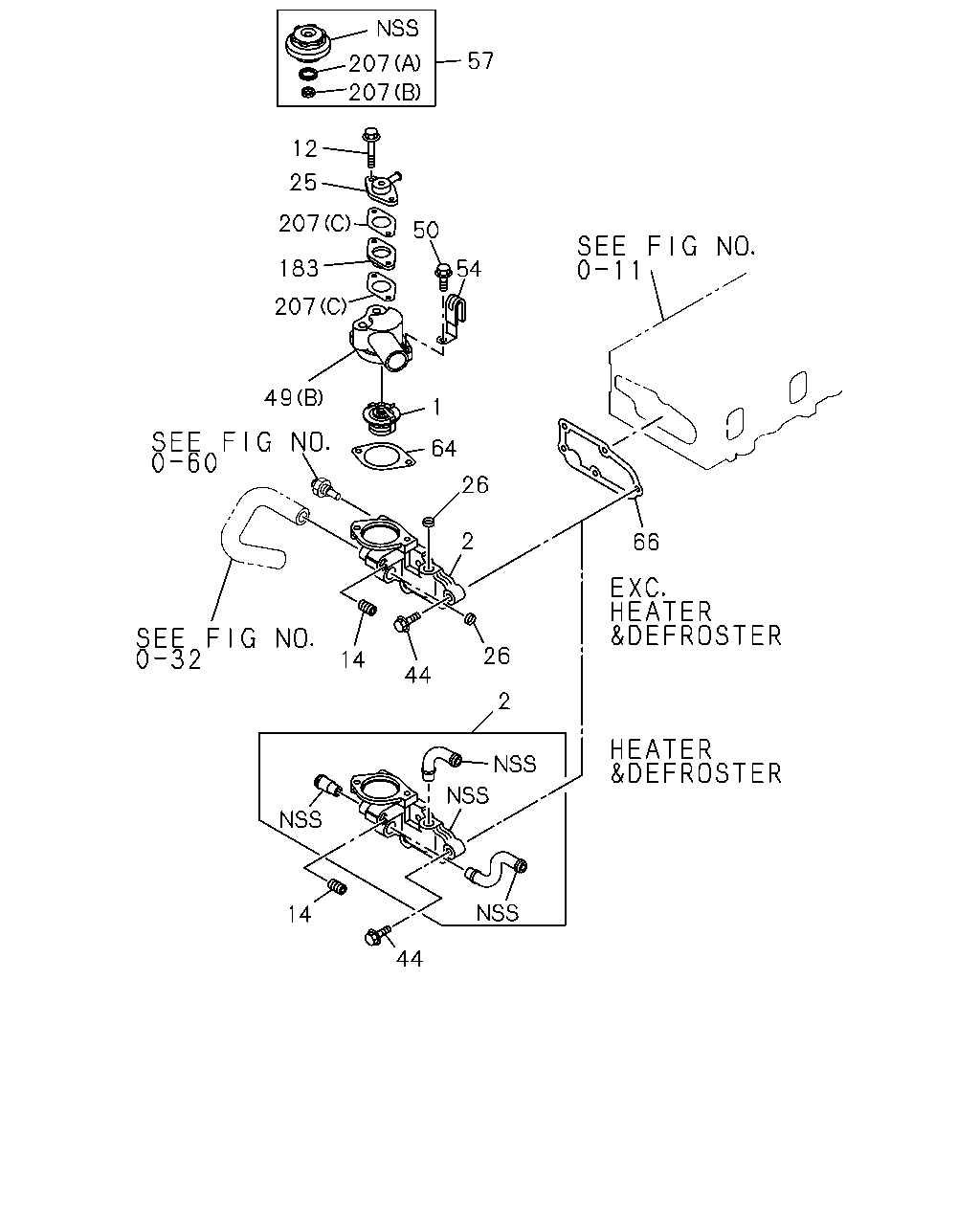

çizim 68019
57 207 207 12 25 207 50 183 54 207 49 1 64 26 2 66 26 14 44 2 14 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9312-9507 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82?C 		8-97089-891-0 01 1 9508-9608 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82?C 		8-97089-891-0 01 1 9609-9712 ●
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9609-9712 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82?C 		8-97089-891-0 01 1 9801- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82?C 		8-94482-277-0 01 1 9508-9712 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82?C 		8-94482-277-0 01 1 9801- ● ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) 		8-97034-443-3 01 1 9312-9606 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) 		8-97139-602-0 01 1 9607-9608 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) 		8-97139-602-0 01 1 9609-9712 ●
2 01.251 HOUSING; THERMOSTAT 8-97139-602-0 01 1 9609-9712 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) 		8-97139-602-0 01 1 9801- ● ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 		8-97091-304-1 01 1 9312-9406 ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 		8-97090-819-2 01 1 9407-9606 ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 		8-97139-604-0 01 1 9607-9712 ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 		8-97139-604-0 01 1 9801- ● ●
12 01.252 BOLT; HSG
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9609-9711 ●
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 02 1 9312-9503 ●
14 01.252 PLUG; SW
EXC. HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 01 1 9504- ●
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 02 1 9504-9608 ●
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 02 1 9609- ●
14 01.252 PLUG; SW
INDONESIA EQUIPMENT(S4S) EXC. HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 02 1 9609- ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9609- ●
25 01.240 VALVE; VENTILATION
01.271 		8-97129-063-0 01 1 9609-9711 ●
26 01.251 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41) 		9-11129-082-0 02 1 9312-9712 ●
26 01.251 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41) 		9-11129-082-0 02 1 9801- ● ●
44 01.252 BOLT; HSG TO HD
HEATER & DEFROSTER(C41) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 9312-9403 ●
44 01.252 BOLT; HSG TO HD
EXC. HEATER & DEFROSTER(C41) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 03 1 9312-9403 ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 9404-9608 ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 9609- ● ●
44 01.252 BOLT; HSG TO HD
EXC. HEATER & DEFROSTER(C41) 01.840 M8X70 W/LK WASHER 		0-50040-870-0 02 1 9312-9403 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97034-445-0 01 1 9312-9602 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97147-001-2 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-94254-601-1 01 1 9608-9608 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-94254-601-1 01 1 9609- ● ●
50 01.252 BOLT; OUTLET PIPE
01.531 M8X45 W/LK&PL WASHER 		0-50140-845-0 02 1 9312-9602 ●
50 01.252 BOLT; OUTLET PIPE
03.704 M8X40 FLANGE 		0-28680-840-0 02 1 9603-9607 ●
50 01.252 BOLT; OUTLET PIPE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9608-9608 ●
50 01.252 BOLT; OUTLET PIPE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9609-9708 ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9709- ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 9312-9608 ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 9609- ● ●
57 01.252 CAP
EXC. EURO1 SPECIFICATION<6YW> 		8-97146-740-0 01 1 9608-9608 ●
57 01.252 CAP
EXC. EURO1 SPECIFICATION<6YW> 		8-97146-740-0 01 1 9609-9711 ●
57 01.252 CAP 8-97146-740-0 01 1 9609-9711 ●
57 01.252 CAP 8-97146-740-0 01 1 9603-9607 ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-1 01 1 9312-9608 ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-1 01 1 9609- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94365-675-1 01 1 9312-9608 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94365-675-1 01 1 9609- ● ●
183 08.845 FLANGE; WATER DUCT 8-97145-821-0 01 1 9609-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97146-741-0 01 1 9603-9607 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO1 SPECIFICATION<6YW> (A) 		8-97146-739-0 01 1 9603-9608 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO1 SPECIFICATION<6YW>. (A) 		8-97146-739-0 01 1 9609-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97146-739-0 01 1 9609-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97146-739-0 01 1 9603-9607 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO1 SPECIFICATION<6YW> (B) 		8-97146-741-0 01 1 9603-9608 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO1 SPECIFICATION<6YW>. (B) 		8-97146-741-0 01 1 9609-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97146-741-0 01 1 9609-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.271 (C) 		8-97129-600-0 02 1 9609-9711 ●

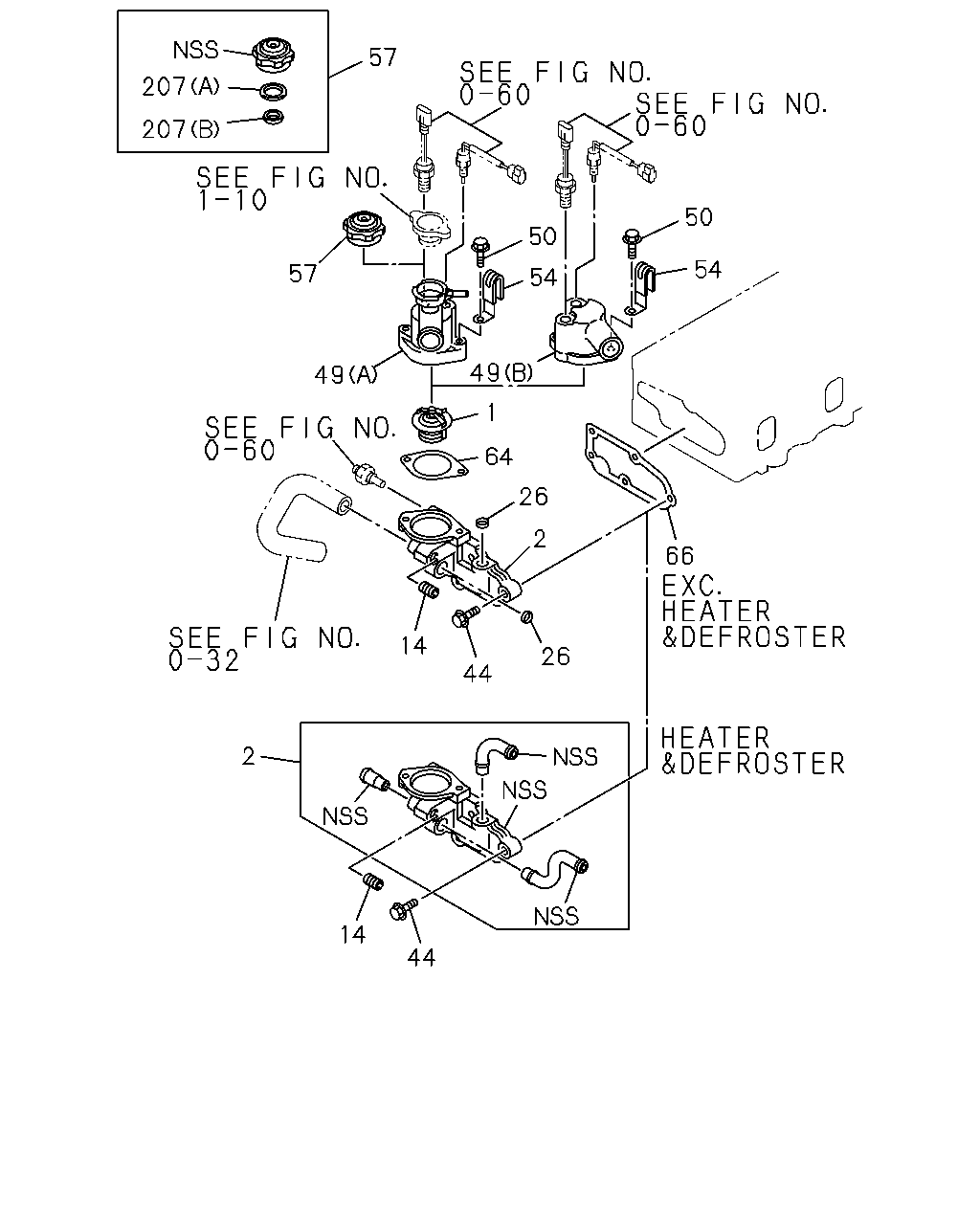

çizim 68630
57 207 207 50 50 54 57 54 49 49 1 64 26 2 66 14 26 44 2 14 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9312-9507 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82?C 		8-97089-891-0 01 1 9508-9608 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82?C 		8-97089-891-0 01 1 9609-9712 ●
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9609-9712 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82?C 		8-97089-891-0 01 1 9801- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82?C 		8-94482-277-0 01 1 9508-9712 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82?C 		8-94482-277-0 01 1 9801- ● ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) 		8-97034-443-3 01 1 9312-9606 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) 		8-97139-602-0 01 1 9607-9608 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) 		8-97139-602-0 01 1 9609-9712 ●
2 01.251 HOUSING; THERMOSTAT 8-97139-602-0 01 1 9609-9712 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) 		8-97139-602-0 01 1 9801- ● ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 		8-97091-304-1 01 1 9312-9406 ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 		8-97090-819-2 01 1 9407-9606 ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 		8-97139-604-0 01 1 9607-9712 ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 		8-97139-604-0 01 1 9801- ● ●
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 02 1 9312-9503 ●
14 01.252 PLUG; SW
EXC. HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 01 1 9504- ●
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 02 1 9504-9608 ●
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 02 1 9609- ●
14 01.252 PLUG; SW
INDONESIA EQUIPMENT(S4S) EXC. HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 02 1 9609- ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9609- ●
26 01.251 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41) 		9-11129-082-0 02 1 9312-9712 ●
26 01.251 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41) 		9-11129-082-0 02 1 9801- ● ●
44 01.252 BOLT; HSG TO HD
HEATER & DEFROSTER(C41) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 9312-9403 ●
44 01.252 BOLT; HSG TO HD
EXC. HEATER & DEFROSTER(C41) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 03 1 9312-9403 ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 9404-9608 ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 9609- ● ●
44 01.252 BOLT; HSG TO HD
EXC. HEATER & DEFROSTER(C41) 01.840 M8X70 W/LK WASHER 		0-50040-870-0 02 1 9312-9403 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97034-445-0 01 1 9312-9602 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97147-001-2 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-94254-601-1 01 1 9608-9608 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-94254-601-1 01 1 9609- ● ●
50 01.252 BOLT; OUTLET PIPE
01.531 M8X45 W/LK&PL WASHER 		0-50140-845-0 02 1 9312-9602 ●
50 01.252 BOLT; OUTLET PIPE
03.704 M8X40 FLANGE 		0-28680-840-0 02 1 9603-9607 ●
50 01.252 BOLT; OUTLET PIPE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9608-9608 ●
50 01.252 BOLT; OUTLET PIPE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9609-9708 ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9709- ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 9312-9608 ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 9609- ● ●
57 01.252 CAP
EXC. EURO1 SPECIFICATION<6YW> 		8-97146-740-0 01 1 9608-9608 ●
57 01.252 CAP
EXC. EURO1 SPECIFICATION<6YW> 		8-97146-740-0 01 1 9609-9711 ●
57 01.252 CAP 8-97146-740-0 01 1 9609-9711 ●
57 01.252 CAP 8-97146-740-0 01 1 9603-9607 ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-1 01 1 9312-9608 ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-1 01 1 9609- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94365-675-1 01 1 9312-9608 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94365-675-1 01 1 9609- ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97146-741-0 01 1 9603-9607 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO1 SPECIFICATION<6YW> (A) 		8-97146-739-0 01 1 9603-9608 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO1 SPECIFICATION<6YW>. (A) 		8-97146-739-0 01 1 9609-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97146-739-0 01 1 9609-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97146-739-0 01 1 9603-9607 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO1 SPECIFICATION<6YW> (B) 		8-97146-741-0 01 1 9603-9608 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO1 SPECIFICATION<6YW>. (B) 		8-97146-741-0 01 1 9609-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97146-741-0 01 1 9609-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.271 (C) 		8-97129-600-0 02 1 9609-9711 ●
