0-39B — AIR COMPRESSOR; BRAKE (#4699) — 142 parça

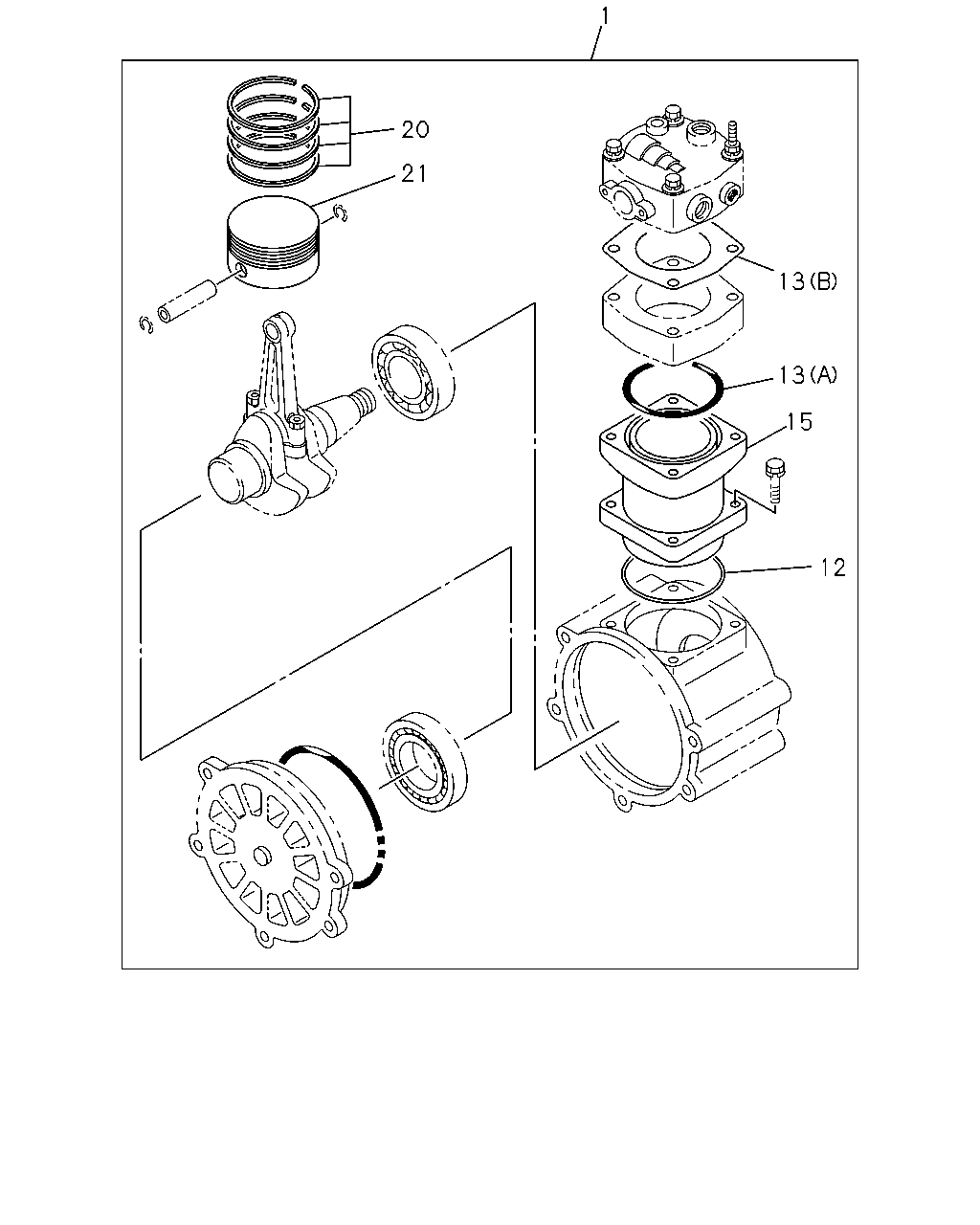

çizim 8222
1 20 21 13 13 15 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINER KIT; CYL,AIR CMPR 1-19163-056-1 01 1 9603-9904 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-061-0 01 1 9905- ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9603-9904 ●
12 GASKET; AIR CMPR 1-09623-614-0 01 1 9905- ● ● ●
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9603-9804 ●
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9603-9903 ●
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9805-9904 ●
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9904-9904 ●
13 GASKET; AIR CMPR
(A) 		1-09623-615-0 01 1 9905- ● ● ●
13 GASKET; AIR CMPR
(B) 		1-19115-012-0 01 1 9905- ● ● ●
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9603-9904 ●
15 CYLINDER; AIR CMPR 1-19151-279-0 01 1 9905- ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-055-1 01 1 9603-9904 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 9905- ● ● ●
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9603-9904 ●
21 PISTON; AIR CMPR 1-19161-022-0 01 1 9905- ● ● ●

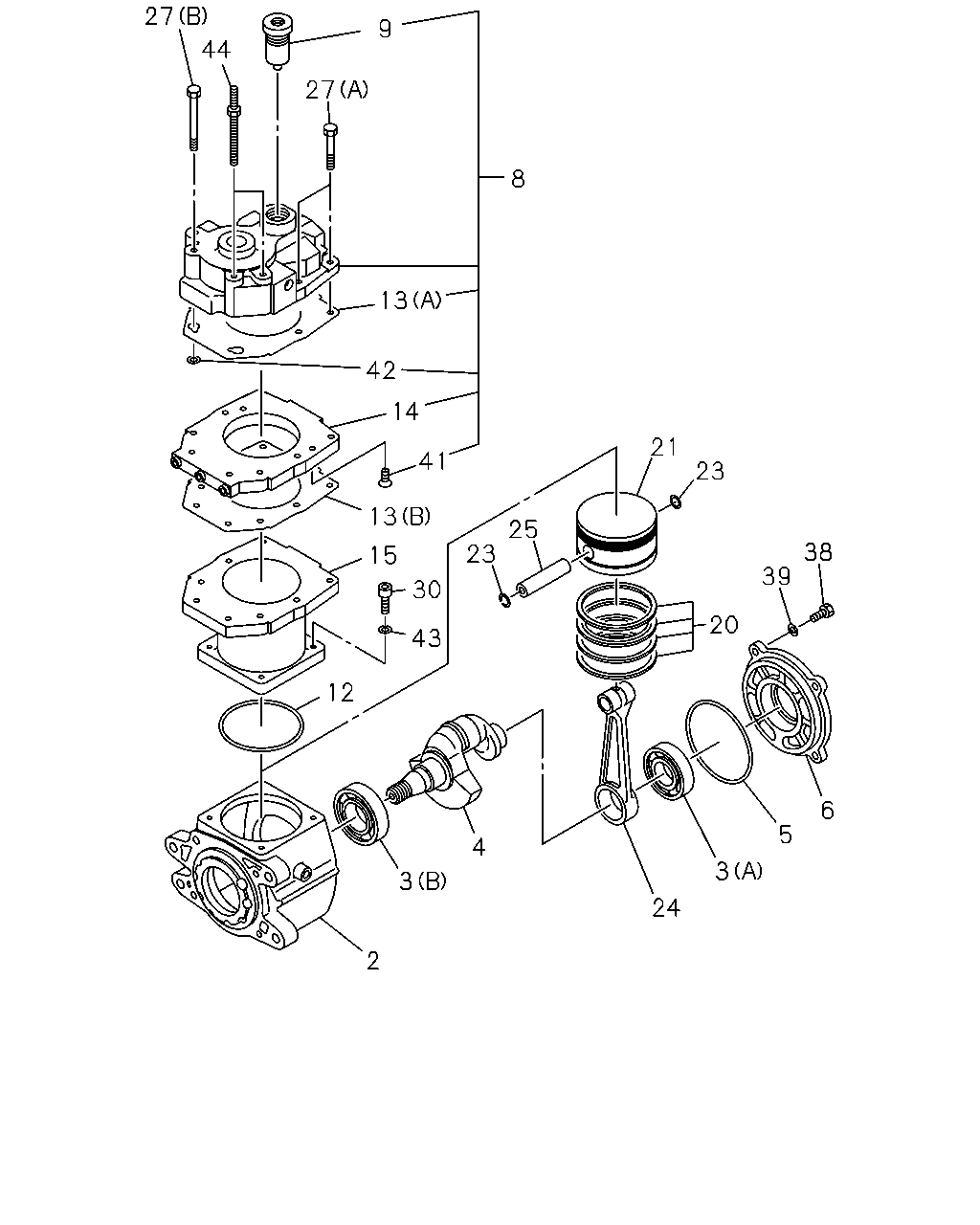

çizim 40484
27 9 44 27 8 13 42 14 21 41 23 13 25 38 23 15 39 30 20 43 12 6 5 4 3 3 24 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CRANKCASE; AIR CMPR 1-19151-238-0 01 1 9603-9904 ●
2 CRANKCASE; AIR CMPR 1-19151-281-0 01 1 9905- ● ● ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 9603-9603 ●
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 9603-9603 ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 9604-9606 ●
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 9604-9606 ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 9607-9611 ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 9612-9904 ●
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 9607-9904 ●
3 BEARING; AIR CMPR
(A) 		1-09800-268-0 01 1 9905- ● ● ●
3 BEARING; AIR CMPR
(B) 		1-09800-269-0 01 1 9905- ● ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-031-0 01 1 9603-9904 ●
4 CRANKSHAFT; AIR CMPR 1-19171-071-0 01 1 9905- ● ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9603-9904 ●
5 GASKET; AIR CMPR 1-09623-624-0 01 1 9905- ● ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 9603-9904 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-074-0 01 1 9905- ● ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-049-3 01 1 9603-9904 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-061-0 01 1 9905- ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-018-1 01 1 9603-9904 ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9603-9904 ●
12 GASKET; AIR CMPR 1-09623-614-0 01 1 9905- ● ● ●
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9603-9804 ●
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9603-9903 ●
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9805-9904 ●
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9904-9904 ●
13 GASKET; AIR CMPR
(A) 		1-09623-615-0 01 1 9905- ● ● ●
13 GASKET; AIR CMPR
(B) 		1-19115-012-0 01 1 9905- ● ● ●
14 PLATE; AIR CMPR 1-19111-017-3 01 1 9603-9904 ●
14 PLATE; AIR CMPR 1-19130-008-0 01 1 9905- ● ● ●
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9603-9904 ●
15 CYLINDER; AIR CMPR 1-19151-279-0 01 1 9905- ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-055-1 01 1 9603-9904 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 9905- ● ● ●
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9603-9904 ●
21 PISTON; AIR CMPR 1-19161-022-0 01 1 9905- ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-005-0 02 1 9603-9904 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-003-0 02 1 9905- ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-012-0 01 1 9603-9904 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-019-0 01 1 9905- ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-007-0 01 1 9603-9904 ●
25 PIN; PISTON,AIR CMPR 1-19167-004-0 01 1 9905- ● ● ●
27 BOLT; HD
(A) 		1-19119-013-0 04 1 9603-9904 ●
27 BOLT; HD
(B) 		1-19119-014-0 02 1 9603-9904 ●
27 BOLT; HD
(A) 		1-19119-024-0 02 1 9905-0002 ● ● ●
30 BOLT; CYL TO CRANKCASE 1-19159-007-0 04 1 9603-9904 ●
30 BOLT; CYL TO CRANKCASE
M10X30 		1-19119-026-0 05 1 9905- ● ● ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 9603-9904 ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9603-9904 ●
41 SCREW; PLATE TO HD,AIR CMPR 1-09100-018-0 02 1 9603-9904 ●
42 GASKET; PLATE TO HD,AIR CMPR 1-09623-402-0 02 1 9603-9904 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9603-9904 ●
44 STUD; CYL HD,AIR CMPR 1-19119-002-0 02 1 9603-9904 ●
44 STUD; CYL HD,AIR CMPR 1-19119-025-0 02 1 9905-0002 ● ● ●
44 STUD; CYL HD,AIR CMPR 1-19119-025-0 04 1 0003- ● ● ●

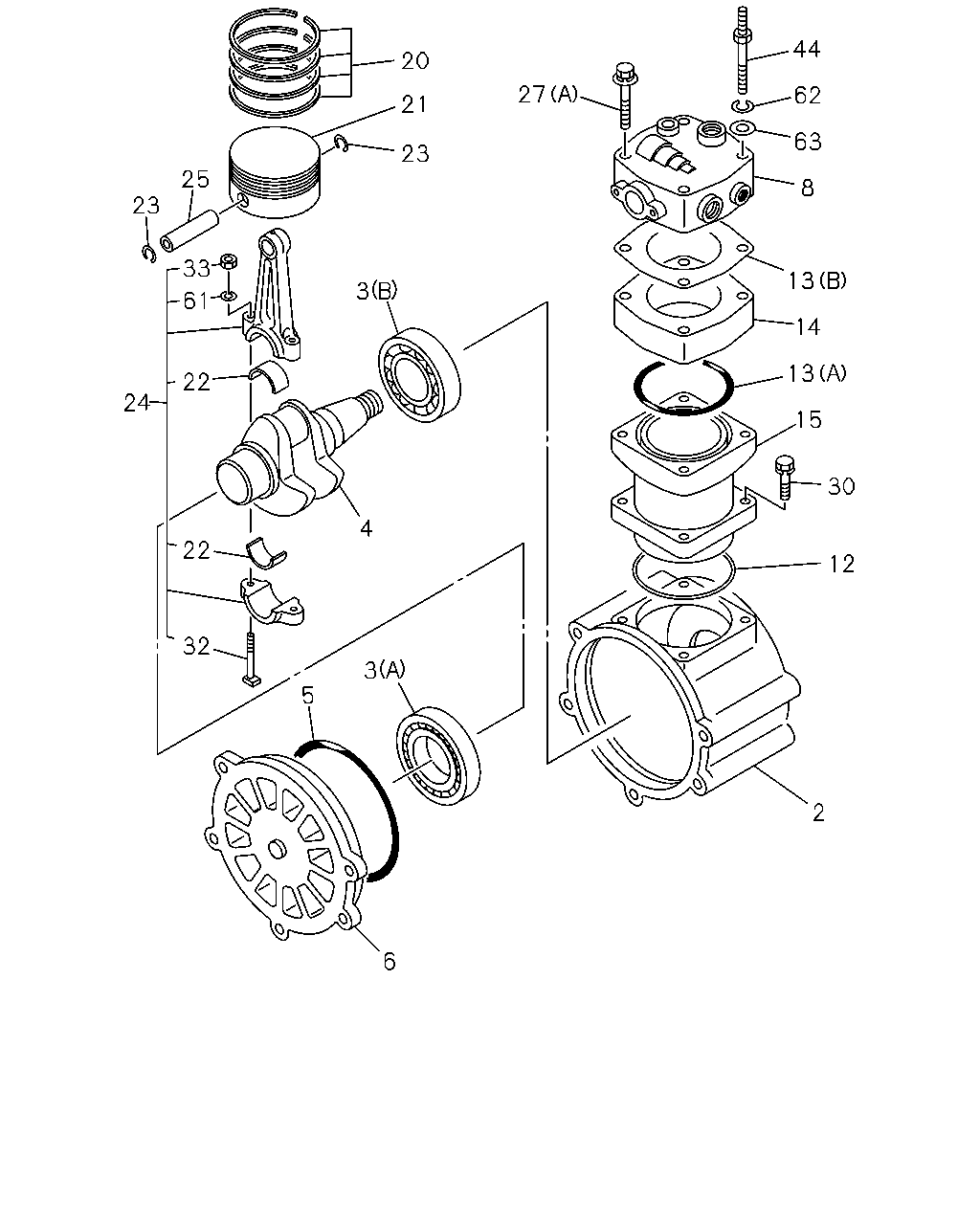

çizim 41008
44 20 27 62 21 63 23 25 8 23 33 13 3 61 14 13 22 24 15 30 4 22 12 32 3 5 2 6
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CRANKCASE; AIR CMPR 1-19151-238-0 01 1 9603-9904 ●
2 CRANKCASE; AIR CMPR 1-19151-281-0 01 1 9905- ● ● ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 9603-9603 ●
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 9603-9603 ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 9604-9606 ●
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 9604-9606 ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 9607-9611 ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 9612-9904 ●
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 9607-9904 ●
3 BEARING; AIR CMPR
(A) 		1-09800-268-0 01 1 9905- ● ● ●
3 BEARING; AIR CMPR
(B) 		1-09800-269-0 01 1 9905- ● ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-031-0 01 1 9603-9904 ●
4 CRANKSHAFT; AIR CMPR 1-19171-071-0 01 1 9905- ● ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9603-9904 ●
5 GASKET; AIR CMPR 1-09623-624-0 01 1 9905- ● ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 9603-9904 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-074-0 01 1 9905- ● ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-049-3 01 1 9603-9904 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-061-0 01 1 9905- ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9603-9904 ●
12 GASKET; AIR CMPR 1-09623-614-0 01 1 9905- ● ● ●
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9603-9804 ●
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9603-9903 ●
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9805-9904 ●
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9904-9904 ●
13 GASKET; AIR CMPR
(A) 		1-09623-615-0 01 1 9905- ● ● ●
13 GASKET; AIR CMPR
(B) 		1-19115-012-0 01 1 9905- ● ● ●
14 PLATE; AIR CMPR 1-19111-017-3 01 1 9603-9904 ●
14 PLATE; AIR CMPR 1-19130-008-0 01 1 9905- ● ● ●
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9603-9904 ●
15 CYLINDER; AIR CMPR 1-19151-279-0 01 1 9905- ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-055-1 01 1 9603-9904 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 9905- ● ● ●
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9603-9904 ●
21 PISTON; AIR CMPR 1-19161-022-0 01 1 9905- ● ● ●
22 METAL; CONNROD,AIR CMPR 1-19177-008-0 02 1 9905- ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-005-0 02 1 9603-9904 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-003-0 02 1 9905- ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-012-0 01 1 9603-9904 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-019-0 01 1 9905- ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-007-0 01 1 9603-9904 ●
25 PIN; PISTON,AIR CMPR 1-19167-004-0 01 1 9905- ● ● ●
27 BOLT; HD
(A) 		1-19119-013-0 04 1 9603-9904 ●
27 BOLT; HD
(B) 		1-19119-014-0 02 1 9603-9904 ●
27 BOLT; HD
(A) 		1-19119-024-0 02 1 9905-0002 ● ● ●
30 BOLT; CYL TO CRANKCASE 1-19159-007-0 04 1 9603-9904 ●
30 BOLT; CYL TO CRANKCASE
M10X30 		1-19119-026-0 05 1 9905- ● ● ●
32 BOLT; CONNROD 1-19179-021-0 02 1 9905- ● ● ●
33 NUT; CONNROD BOLT 1-19179-023-0 02 1 9905- ● ● ●
44 STUD; CYL HD,AIR CMPR 1-19119-002-0 02 1 9603-9904 ●
44 STUD; CYL HD,AIR CMPR 1-19119-025-0 02 1 9905-0002 ● ● ●
44 STUD; CYL HD,AIR CMPR 1-19119-025-0 04 1 0003- ● ● ●
61 WASHER; LK,CONNROD BOLT 1-19179-022-0 02 1 9905- ● ● ●
62 WASHER; LK,STUD
ID=10.2 		9-09150-510-0 02 1 9905- ● ● ●
63 WASHER; PL,STUD
ID=10.5 OD=18 		9-09160-510-0 02 1 9905- ● ● ●

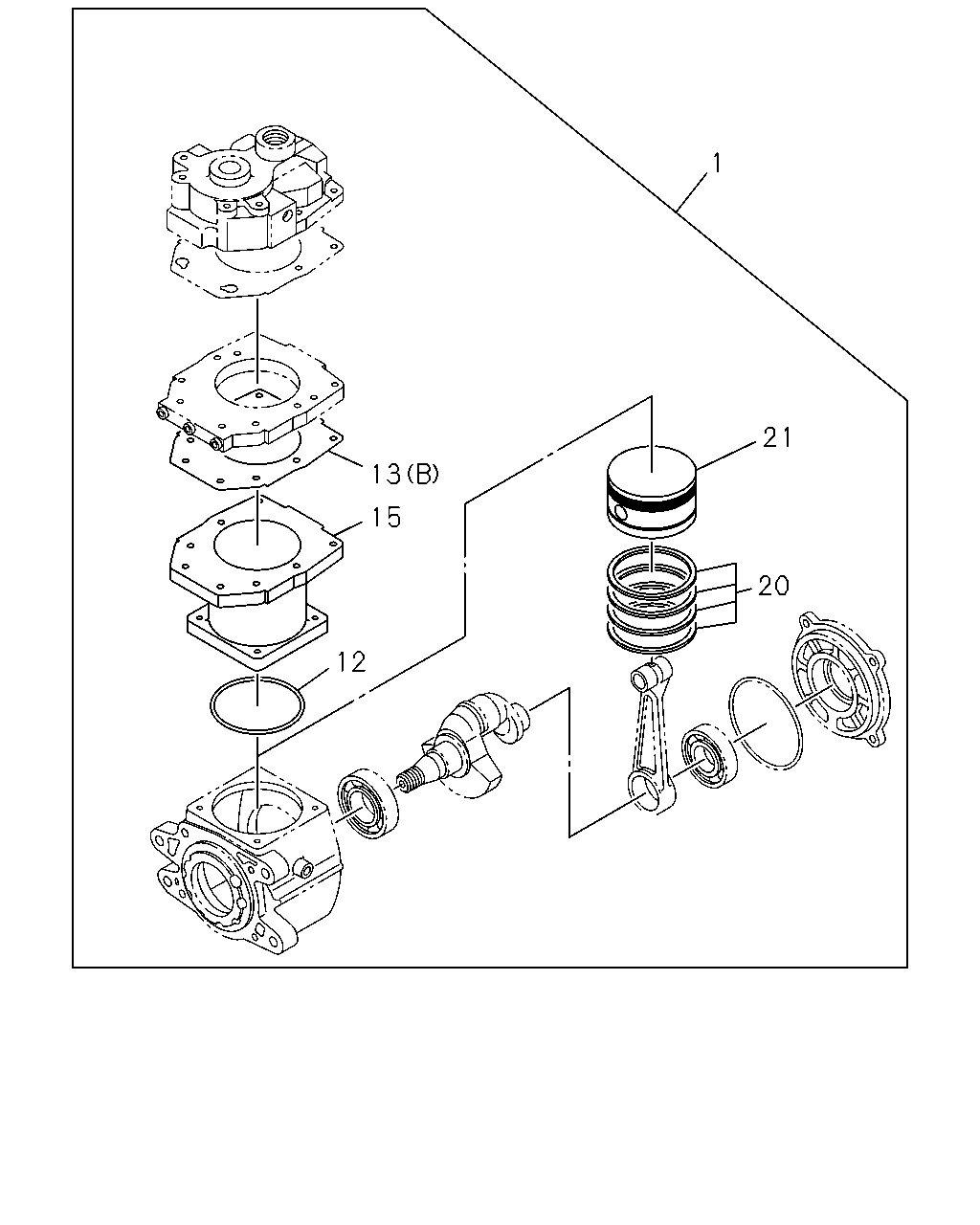

çizim 45619
1 21 13 15 20 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINER KIT; CYL,AIR CMPR 1-19163-056-1 01 1 9603-9904 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-061-0 01 1 9905- ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9603-9904 ●
12 GASKET; AIR CMPR 1-09623-614-0 01 1 9905- ● ● ●
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9603-9804 ●
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9603-9903 ●
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9805-9904 ●
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9904-9904 ●
13 GASKET; AIR CMPR
(A) 		1-09623-615-0 01 1 9905- ● ● ●
13 GASKET; AIR CMPR
(B) 		1-19115-012-0 01 1 9905- ● ● ●
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9603-9904 ●
15 CYLINDER; AIR CMPR 1-19151-279-0 01 1 9905- ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-055-1 01 1 9603-9904 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 9905- ● ● ●
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9603-9904 ●
21 PISTON; AIR CMPR 1-19161-022-0 01 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
