◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#46989) — 194 parça

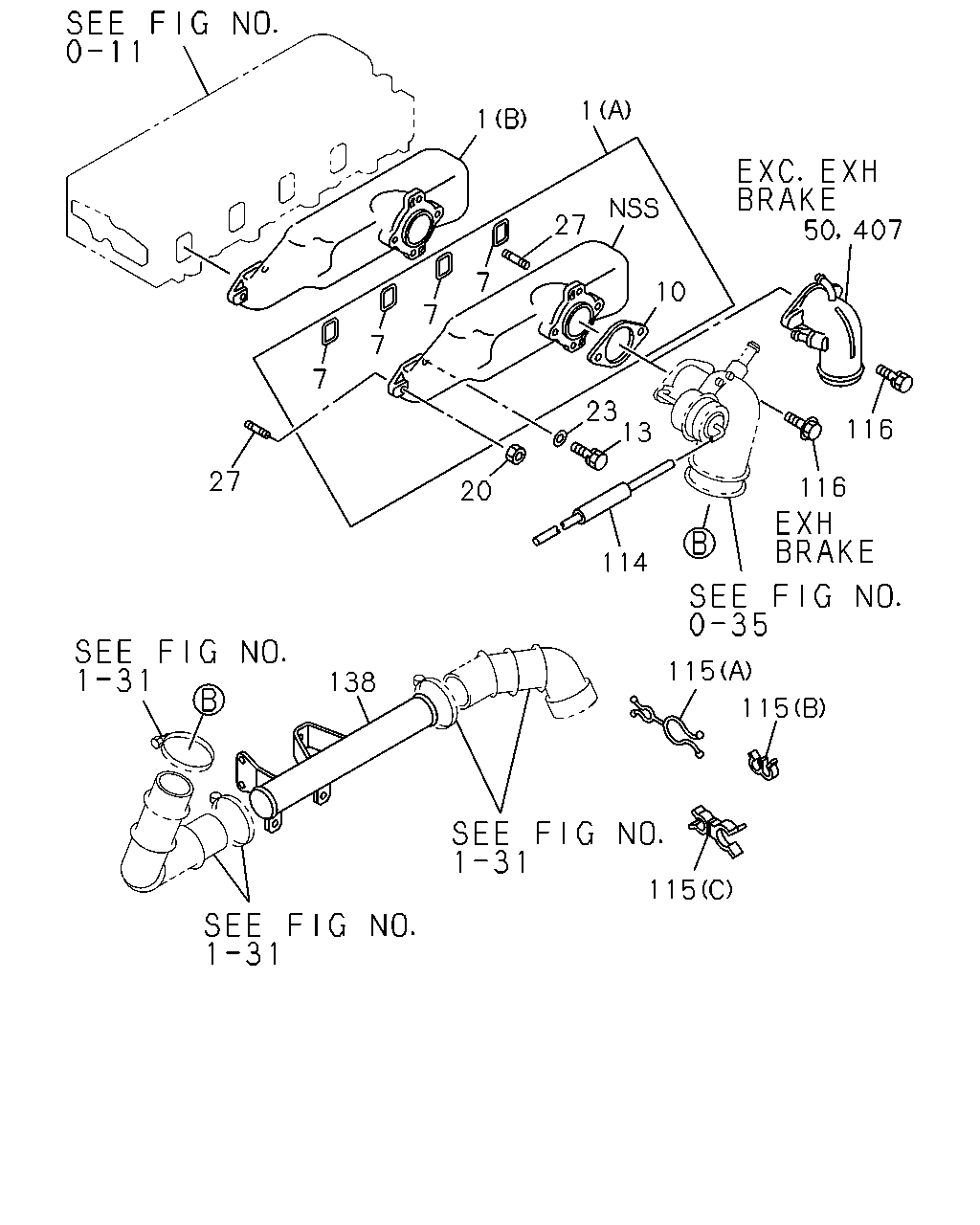

çizim 68018
27 50 407 10 23 116 13 116 20 115 138 115 115 1 1 114 7 7 7 7 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.265 MANIFOLD; INL 8-97107-744-0 01 1 9312-9712 ●
1 03.265 MANIFOLD; INL 8-97107-744-0 01 1 9801-9804 ●
1 03.265 MANIFOLD; INL
EXC. EURO2 SPECIFICATION<7AF> 		8-97107-744-0 01 1 9801-9804 ●
1 03.265 MANIFOLD; INL 8-97107-744-1 01 1 9805- ●
1 03.265 MANIFOLD; INL
(A) 		8-97141-689-1 01 1 9609-9701 ●
1 03.265 MANIFOLD; INL
(B) 		8-97147-920-0 01 1 9702-9711 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<7AF> (B) 		8-97147-920-0 01 1 9712-9804 ●
1 03.265 MANIFOLD; INL
(B) 		8-97147-920-0 01 1 9805- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97066-741-1 01 1 9312-9712 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97066-741-1 01 1 9801-9804 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<7AF> 		8-97066-741-1 01 1 9801-9804 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97066-741-1 01 1 9805- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97144-623-0 04 1 9609-9701 ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97035-883-0 01 1 9312-9510 ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97035-883-0 01 1 9511-9608 ● ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97035-883-0 01 1 9609- ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97144-622-0 01 1 9609-9701 ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 9312-9608 ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 9609- ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 9312-9608 ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 9609- ● ●
23 03.275 WASHER; PL,INL MANIF
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9312-9608 ●
23 03.275 WASHER; PL,INL MANIF
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9609- ● ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9312-9406 ●
27 03.275 STUD; INL MANIF
FRT INDEPENDENT SUSPENSION(6PP) EXC. OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9312-9406 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9407-9510 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9511-9608 ●
27 03.275 STUD; INL MANIF
EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9511-9608 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9712-9712 ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 9712-9712 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> SINGAPORE EQUIPMENT(S9Y) 03.901 M8X25 L=37 		9-04110-825-0 01 1 9801- ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 9801- ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9312-9406 ●
27 03.275 STUD; INL MANIF
FRT INDEPENDENT SUSPENSION(6PP) EXC. OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9312-9406 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9407-9510 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9511-9608 ●
27 03.275 STUD; INL MANIF
EURO1 SPECIFICATION<6YW> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9511-9608 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
EURO1 SPECIFICATION<6YW> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9712-9712 ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 9712-9712 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> SINGAPORE EQUIPMENT(S9Y) 00.219 M8X35 L=46 		9-09630-034-1 01 1 9801- ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 9801- ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 03.901 M8X25 L=37 		9-04110-825-0 02 1 9312-9406 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 02 1 9407-9510 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 02 1 9511-9711 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 02 1 9712-9712 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>,SINGAPORE EQUIPMENT(S9Y) 03.901 M8X25 L=37 		9-04110-825-0 02 1 9801- ●
50 03.265 PIPE; INL
AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8> 		8-97078-858-0 01 1 9312- ● ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> L=1320 		8-97096-148-1 01 1 9312- ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23 		5-09707-002-0 01 1 9312- ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 16 		5-09707-032-0 03 1 9312- ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 03.278 (B) ID=37 		8-94481-468-0 01 1 9312- ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 03.430 (C) ID=6 & 6 		8-94400-853-0 01 1 9312-9706 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 03.483 (C) ID=6 & 6 		8-94463-708-0 01 1 9707- ● ●
116 03.275 BOLT; MANIF TO INL PIPE
09.173 M10X25 W/LK WASHER 		0-50051-025-0 02 1 9312-9510 ●
116 03.275 BOLT; MANIF TO INL PIPE
09.173 M10X25 W/LK WASHER 		0-50051-025-0 02 1 9511-9706 ● ●
116 03.275 BOLT; MANIF TO INL PIPE
01.540 M10X20 FLANGE 		0-28181-020-0 02 1 9707- ● ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> 03.417 		8-94417-173-1 01 1 9312- ● ●
407 03.265 PIPE; INL,REAR
AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8> 		8-94152-318-0 01 1 9312- ● ●

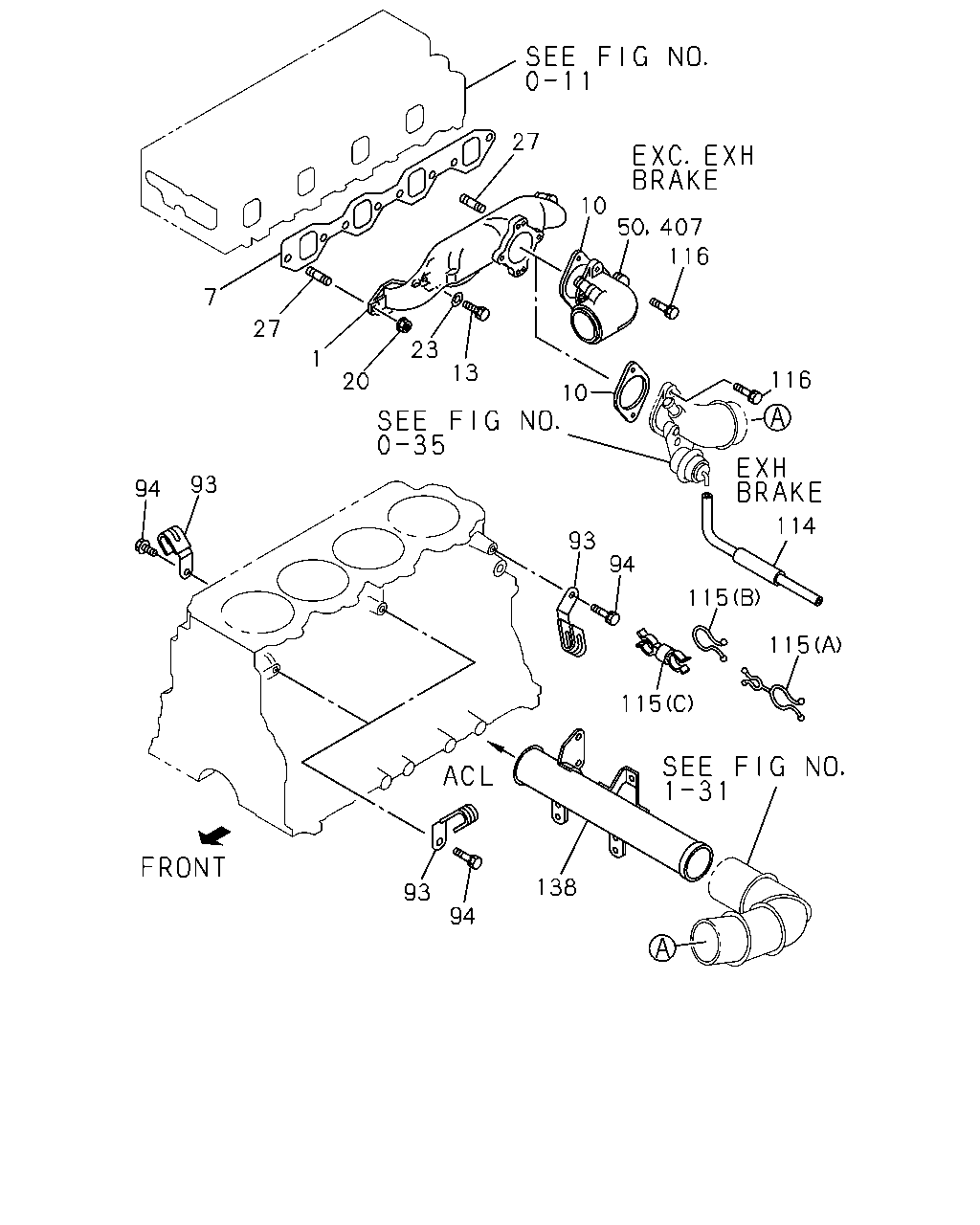

çizim 69107
27 10 50 407 116 27 23 116 20 93 94 93 94 115 115 115 138 93 94 13 10 1 7 114
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.265 MANIFOLD; INL 8-97107-744-0 01 1 9312-9712 ●
1 03.265 MANIFOLD; INL 8-97107-744-0 01 1 9801-9804 ●
1 03.265 MANIFOLD; INL
EXC. EURO2 SPECIFICATION<7AF> 		8-97107-744-0 01 1 9801-9804 ●
1 03.265 MANIFOLD; INL 8-97107-744-1 01 1 9805- ●
1 03.265 MANIFOLD; INL
(A) 		8-97141-689-1 01 1 9609-9701 ●
1 03.265 MANIFOLD; INL
(B) 		8-97147-920-0 01 1 9702-9711 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<7AF> (B) 		8-97147-920-0 01 1 9712-9804 ●
1 03.265 MANIFOLD; INL
(B) 		8-97147-920-0 01 1 9805- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97066-741-1 01 1 9312-9712 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97066-741-1 01 1 9801-9804 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<7AF> 		8-97066-741-1 01 1 9801-9804 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97066-741-1 01 1 9805- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97144-623-0 04 1 9609-9701 ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97035-883-0 01 1 9312-9510 ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97035-883-0 01 1 9511-9608 ● ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97035-883-0 01 1 9609- ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97144-622-0 01 1 9609-9701 ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 9312-9608 ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 9609- ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 9312-9608 ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 9609- ● ●
23 03.275 WASHER; PL,INL MANIF
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9312-9608 ●
23 03.275 WASHER; PL,INL MANIF
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9609- ● ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9312-9406 ●
27 03.275 STUD; INL MANIF
FRT INDEPENDENT SUSPENSION(6PP) EXC. OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9312-9406 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9407-9510 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9511-9608 ●
27 03.275 STUD; INL MANIF
EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9511-9608 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9712-9712 ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 9712-9712 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> SINGAPORE EQUIPMENT(S9Y) 03.901 M8X25 L=37 		9-04110-825-0 01 1 9801- ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 9801- ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9312-9406 ●
27 03.275 STUD; INL MANIF
FRT INDEPENDENT SUSPENSION(6PP) EXC. OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9312-9406 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9407-9510 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9511-9608 ●
27 03.275 STUD; INL MANIF
EURO1 SPECIFICATION<6YW> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9511-9608 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
EURO1 SPECIFICATION<6YW> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9712-9712 ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 9712-9712 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> SINGAPORE EQUIPMENT(S9Y) 00.219 M8X35 L=46 		9-09630-034-1 01 1 9801- ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 9801- ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 03.901 M8X25 L=37 		9-04110-825-0 02 1 9312-9406 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 02 1 9407-9510 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 02 1 9511-9711 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 02 1 9712-9712 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>,SINGAPORE EQUIPMENT(S9Y) 03.901 M8X25 L=37 		9-04110-825-0 02 1 9801- ●
50 03.265 PIPE; INL
AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8> 		8-97078-858-0 01 1 9312- ● ●
93 02.559 CLIP; HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9312-9407 ●
94 02.559 BOLT
08.900 M8X12 FLANGE 		0-28080-812-0 03 1 9312-9407 ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> L=1320 		8-97096-148-1 01 1 9312- ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23 		5-09707-002-0 01 1 9312- ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 16 		5-09707-032-0 03 1 9312- ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 03.278 (B) ID=37 		8-94481-468-0 01 1 9312- ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 03.430 (C) ID=6 & 6 		8-94400-853-0 01 1 9312-9706 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 03.483 (C) ID=6 & 6 		8-94463-708-0 01 1 9707- ● ●
116 03.275 BOLT; MANIF TO INL PIPE
09.173 M10X25 W/LK WASHER 		0-50051-025-0 02 1 9312-9510 ●
116 03.275 BOLT; MANIF TO INL PIPE
09.173 M10X25 W/LK WASHER 		0-50051-025-0 02 1 9511-9706 ● ●
116 03.275 BOLT; MANIF TO INL PIPE
01.540 M10X20 FLANGE 		0-28181-020-0 02 1 9707- ● ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> 03.417 		8-94417-173-1 01 1 9312- ● ●
407 03.265 PIPE; INL,REAR
AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8> 		8-94152-318-0 01 1 9312- ● ●

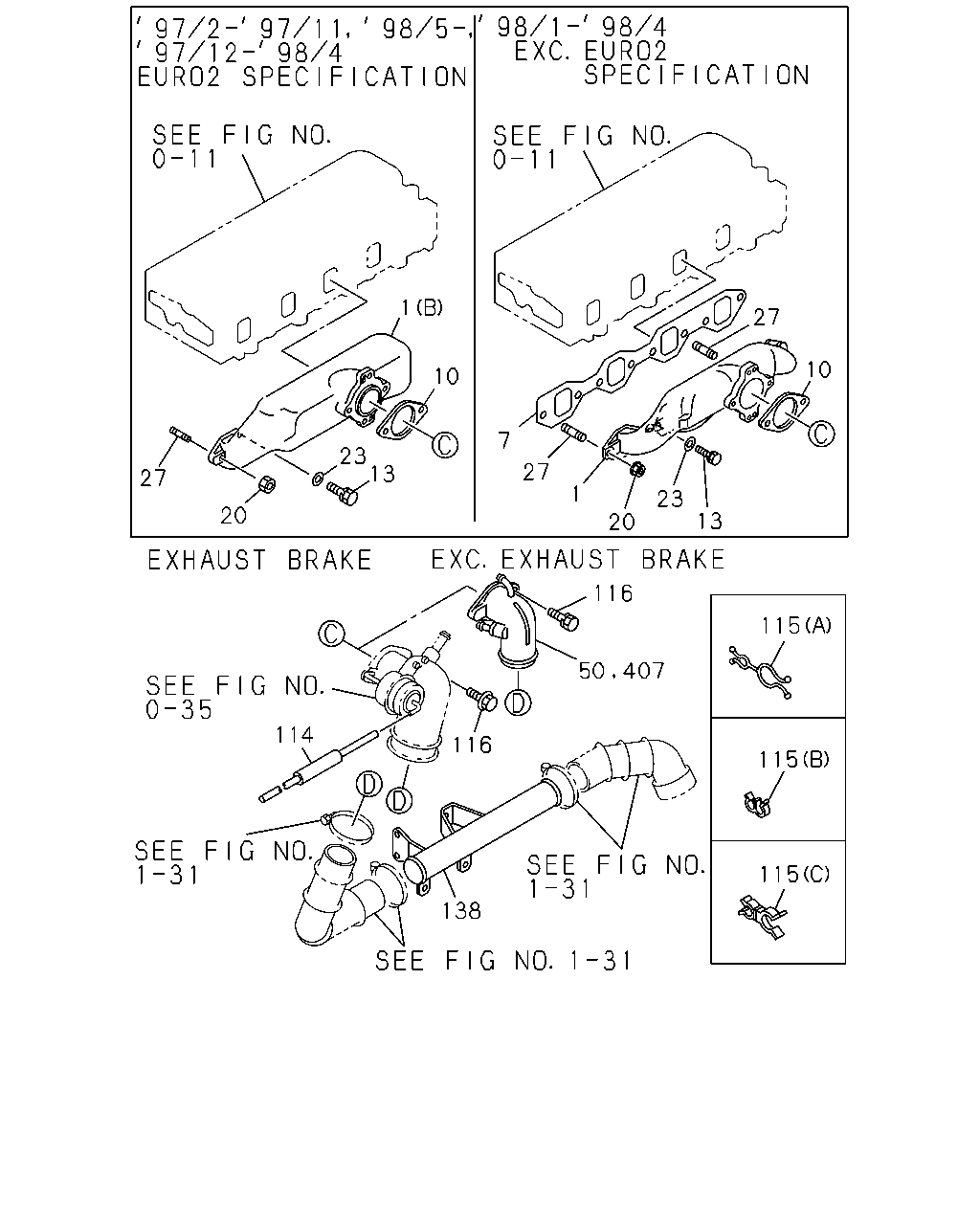

çizim 69230
27 1 10 10 7 23 13 27 27 1 23 20 13 20 116 115 114 116 115 115 138 50 407
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.265 MANIFOLD; INL 8-97107-744-0 01 1 9312-9712 ●
1 03.265 MANIFOLD; INL 8-97107-744-0 01 1 9801-9804 ●
1 03.265 MANIFOLD; INL
EXC. EURO2 SPECIFICATION<7AF> 		8-97107-744-0 01 1 9801-9804 ●
1 03.265 MANIFOLD; INL 8-97107-744-1 01 1 9805- ●
1 03.265 MANIFOLD; INL
(A) 		8-97141-689-1 01 1 9609-9701 ●
1 03.265 MANIFOLD; INL
(B) 		8-97147-920-0 01 1 9702-9711 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<7AF> (B) 		8-97147-920-0 01 1 9712-9804 ●
1 03.265 MANIFOLD; INL
(B) 		8-97147-920-0 01 1 9805- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97066-741-1 01 1 9312-9712 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97066-741-1 01 1 9801-9804 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<7AF> 		8-97066-741-1 01 1 9801-9804 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97066-741-1 01 1 9805- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97144-623-0 04 1 9609-9701 ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97035-883-0 01 1 9312-9510 ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97035-883-0 01 1 9511-9608 ● ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97035-883-0 01 1 9609- ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97144-622-0 01 1 9609-9701 ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 9312-9608 ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 9609- ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 9312-9608 ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 9609- ● ●
23 03.275 WASHER; PL,INL MANIF
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9312-9608 ●
23 03.275 WASHER; PL,INL MANIF
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9609- ● ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9312-9406 ●
27 03.275 STUD; INL MANIF
FRT INDEPENDENT SUSPENSION(6PP) EXC. OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9312-9406 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9407-9510 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9511-9608 ●
27 03.275 STUD; INL MANIF
EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9511-9608 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 9712-9712 ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 9712-9712 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> SINGAPORE EQUIPMENT(S9Y) 03.901 M8X25 L=37 		9-04110-825-0 01 1 9801- ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 9801- ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9312-9406 ●
27 03.275 STUD; INL MANIF
FRT INDEPENDENT SUSPENSION(6PP) EXC. OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9312-9406 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9407-9510 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9511-9608 ●
27 03.275 STUD; INL MANIF
EURO1 SPECIFICATION<6YW> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9511-9608 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
EURO1 SPECIFICATION<6YW> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 9609-9711 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 9712-9712 ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 9712-9712 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> SINGAPORE EQUIPMENT(S9Y) 00.219 M8X35 L=46 		9-09630-034-1 01 1 9801- ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 9801- ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 03.901 M8X25 L=37 		9-04110-825-0 02 1 9312-9406 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 02 1 9407-9510 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW> 03.901 M8X25 L=37 		9-04110-825-0 02 1 9511-9711 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 02 1 9712-9712 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>,SINGAPORE EQUIPMENT(S9Y) 03.901 M8X25 L=37 		9-04110-825-0 02 1 9801- ●
50 03.265 PIPE; INL
AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8> 		8-97078-858-0 01 1 9312- ● ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> L=1320 		8-97096-148-1 01 1 9312- ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23 		5-09707-002-0 01 1 9312- ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 16 		5-09707-032-0 03 1 9312- ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 03.278 (B) ID=37 		8-94481-468-0 01 1 9312- ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 03.430 (C) ID=6 & 6 		8-94400-853-0 01 1 9312-9706 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 03.483 (C) ID=6 & 6 		8-94463-708-0 01 1 9707- ● ●
116 03.275 BOLT; MANIF TO INL PIPE
09.173 M10X25 W/LK WASHER 		0-50051-025-0 02 1 9312-9510 ●
116 03.275 BOLT; MANIF TO INL PIPE
09.173 M10X25 W/LK WASHER 		0-50051-025-0 02 1 9511-9706 ● ●
116 03.275 BOLT; MANIF TO INL PIPE
01.540 M10X20 FLANGE 		0-28181-020-0 02 1 9707- ● ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> 03.417 		8-94417-173-1 01 1 9312- ● ●
407 03.265 PIPE; INL,REAR
AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8> 		8-94152-318-0 01 1 9312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
