Sayfa 0-22 - Isuzu EPC

0-22 — ENGINE MOUNTING (#46988) — 186 parça

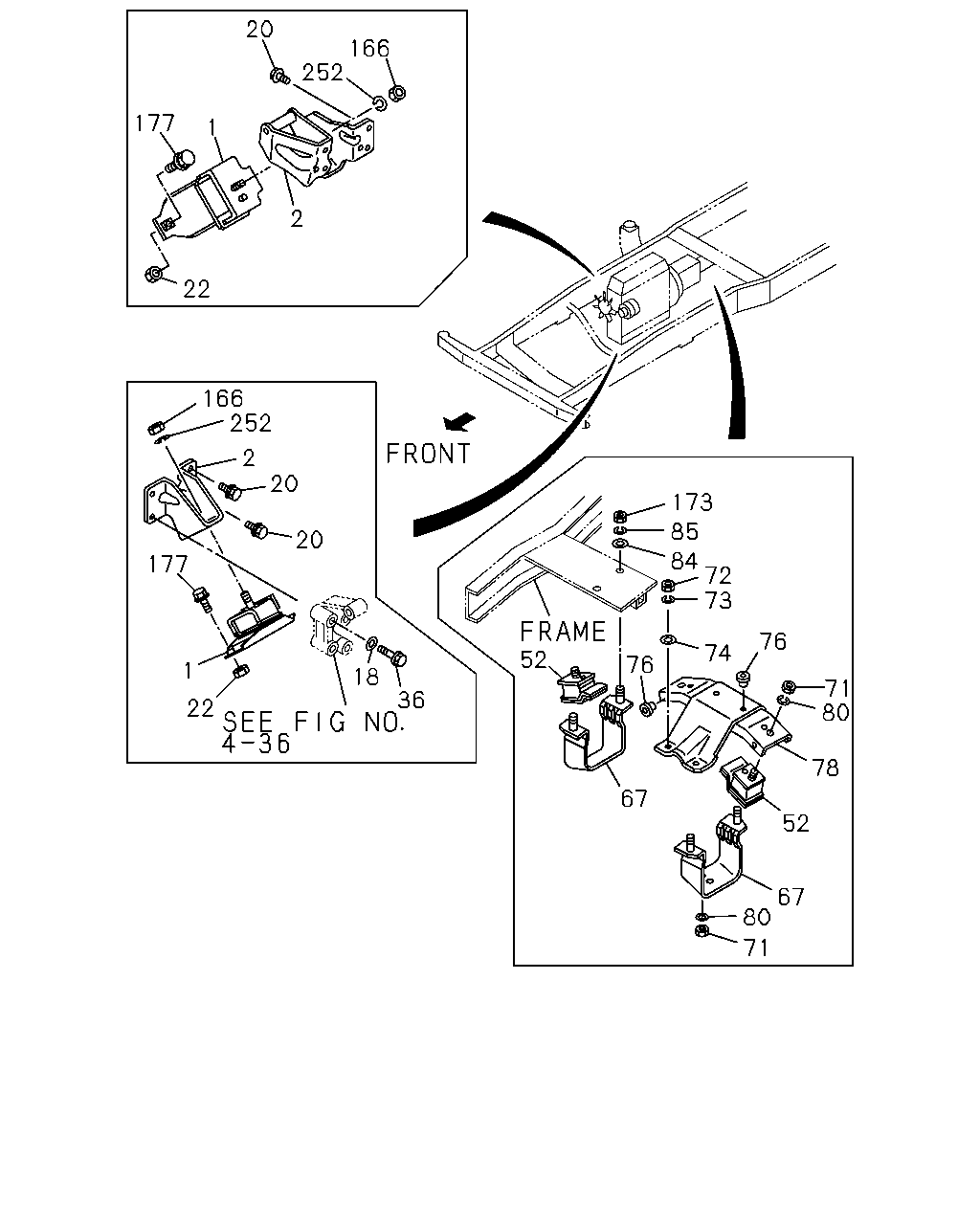

20 166 252 177 1 2 22 166 252 2 20 173 85 20 84 72 73 177 76 74 52 76 1 18 71 80 36 22 78 67 52 67 80 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-123-0	01	1	9312-9711	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-122-0	01	1	9312-9711	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-621-0	01	1	9312-9608	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-621-0	01	1	9609-9711	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	9712-	●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-620-0	01	1	9312-9608	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-620-0	01	1	9609-9711	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	9712-	●	●
2	00.029 FOOT; ENG	8-94122-052-1	01	1	9312-9608	●
2	00.029 FOOT; ENG	8-94122-052-1	01	1	9609-	●	●
2	00.029 FOOT; ENG	8-97073-922-1	01	1	9312-9608	●
2	00.029 FOOT; ENG	8-97073-922-1	01	1	9609-	●	●
18	00.002 WASHER; PL,ENG FOOT POWER STEERING<N40> 00.029 ID=10.5 OD=22 T=4	1-09503-045-0	02	1	9312-9403	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	01	1	9312-9403	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9312-9403	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9407-9711	●
20	00.029 BOLT; ENG FOOT EXC. AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9712-9712	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9801-	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,SINGAPORE EQUIPMENT(S9Y) 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9801-	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9407-9608	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9609-	●	●
20	00.029 BOLT; ENG FOOT EURO1 SPECIFICATION<6YW> 02.277 M10X22 W/LK WASHER	0-50041-022-0	05	1	9410-9608	●
20	00.029 BOLT; ENG FOOT EURO1 SPECIFICATION<6YW> 02.277 M10X22 W/LK WASHER	0-50041-022-0	05	1	9609-9711	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	05	1	9609-9711		●
20	00.029 BOLT; ENG FOOT EURO2 SPECIFICATION<7AF> 02.277 M10X22 W/LK WASHER	0-50041-022-0	05	1	9712-9712		●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	05	1	9801-		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 M10X28	8-94329-952-1	02	1	9312-9403	●
20	00.029 BOLT; ENG FOOT FRT INDEPENDENT SUSPENSION(6PP) EXC. OIL COOLER<KC4> 00.034 M10X28	8-94329-952-1	02	1	9312-9403	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9407-9608	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9609-9711	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9712-9712	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. SINGAPORE EQUIPMENT(S9Y) 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9801-	●
20	00.029 BOLT; ENG FOOT SINGAPORE EQUIPMENT(S9Y) 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9801-	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 M10X28	8-94329-952-1	02	1	9407-9510	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 00.034 M10X28	8-94329-952-1	02	1	9511-9608	●
20	00.029 BOLT; ENG FOOT EURO1 SPECIFICATION<6YW> 00.034 M10X28	8-94329-952-1	02	1	9511-9608	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 00.034 M10X28	8-94329-952-1	02	1	9609-9711	●
20	00.029 BOLT; ENG FOOT EURO1 SPECIFICATION<6YW> 00.034 M10X28	8-94329-952-1	02	1	9609-9711	●
20	00.029 BOLT; ENG FOOT 00.034 M10X28	8-94329-952-1	02	1	9609-9711		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 M10X28	8-94329-952-1	02	1	9712-9712	●
20	00.029 BOLT; ENG FOOT 00.034 M10X28	8-94329-952-1	02	1	9712-9712		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 M10X28	8-94329-952-1	02	1	9801-9801	●
20	00.029 BOLT; ENG FOOT SINGAPORE EQUIPMENT(S9Y) 00.034 M10X28	8-94329-952-1	02	1	9801-9801	●
20	00.029 BOLT; ENG FOOT 00.034 M10X28	8-94329-952-1	02	1	9801-9801		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> SINGAPORE EQUIPMENT(S9Y) 00.034 M10X28	8-94329-952-1	02	1	9801-	●
20	00.029 BOLT; ENG FOOT 00.034 M10X28	8-94329-952-1	02	1	9801-		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9403	●
20	00.029 BOLT; ENG FOOT FRT INDEPENDENT SUSPENSION(6PP) 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9403	●
20	00.029 BOLT; ENG FOOT EXC. POWER STEERING<N40> 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9403	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9404-9404	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 00.034 M10X28	8-94329-952-1	01	1	9407-9510	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW> 00.034 M10X28	8-94329-952-1	01	1	9511-9711	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 00.034 M10X28	8-94329-952-1	01	1	9712-9712	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,SINGAPORE EQUIPMENT(S9Y) 00.034 M10X28	8-94329-952-1	01	1	9801-	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9312-9403	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 00.034 M10X28	8-94329-952-1	01	1	9312-9403	●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	02	1	9312-9608	●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	9609-9711	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	04	1	9312-9608	●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	04	1	9609-9711	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 M10 FLANGE	0-91150-210-0	04	1	9712-	●	●
36	00.002 BOLT; MTG RUBBER POWER STEERING<N40> 00.785 M10X65	5-09030-024-1	02	1	9312-9403	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	9312-9510	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	9511-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	9312-9510	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	9511-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	9312-9510	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	9511-	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 09.011 M10	9-09110-410-0	04	1	9312-9407	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	9408-9510	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	04	1	9312-9510	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	04	1	9511-	●	●
73	00.002 WASHER; LK,CUSHION RUBBER TO FRA ID=10.2	9-09150-610-0	04	1	9312-9510	●
73	00.002 WASHER; LK,CUSHION RUBBER TO FRA ID=10.2	9-09150-610-0	04	1	9511-	●	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9312-9510	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9511-	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027	8-94111-904-0	04	1	9312-9510	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027	8-94111-904-0	04	1	9511-	●	●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-1	01	1	9312-9510	●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-1	01	1	9511-	●	●
80	00.002 WASHER; LK,SUPPORT RUBBER TO BRK ID=10.2	9-09150-510-0	04	1	9312-9407	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9312-9510	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9511-	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	9312-9510	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	9511-	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME 06.515 ID=12.2	9-09150-612-0	02	1	9609-		●
166	00.002 NUT; SUPPORT RUBBER 05.816 M12	9-99110-412-0	02	1	9312-	●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9312-9510	●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9511-	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9312-9406	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5	8-94468-733-1	04	1	9407-9711	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9712-	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) M10X32.5	8-97090-761-0	04	1	9407-9711	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9312-	●

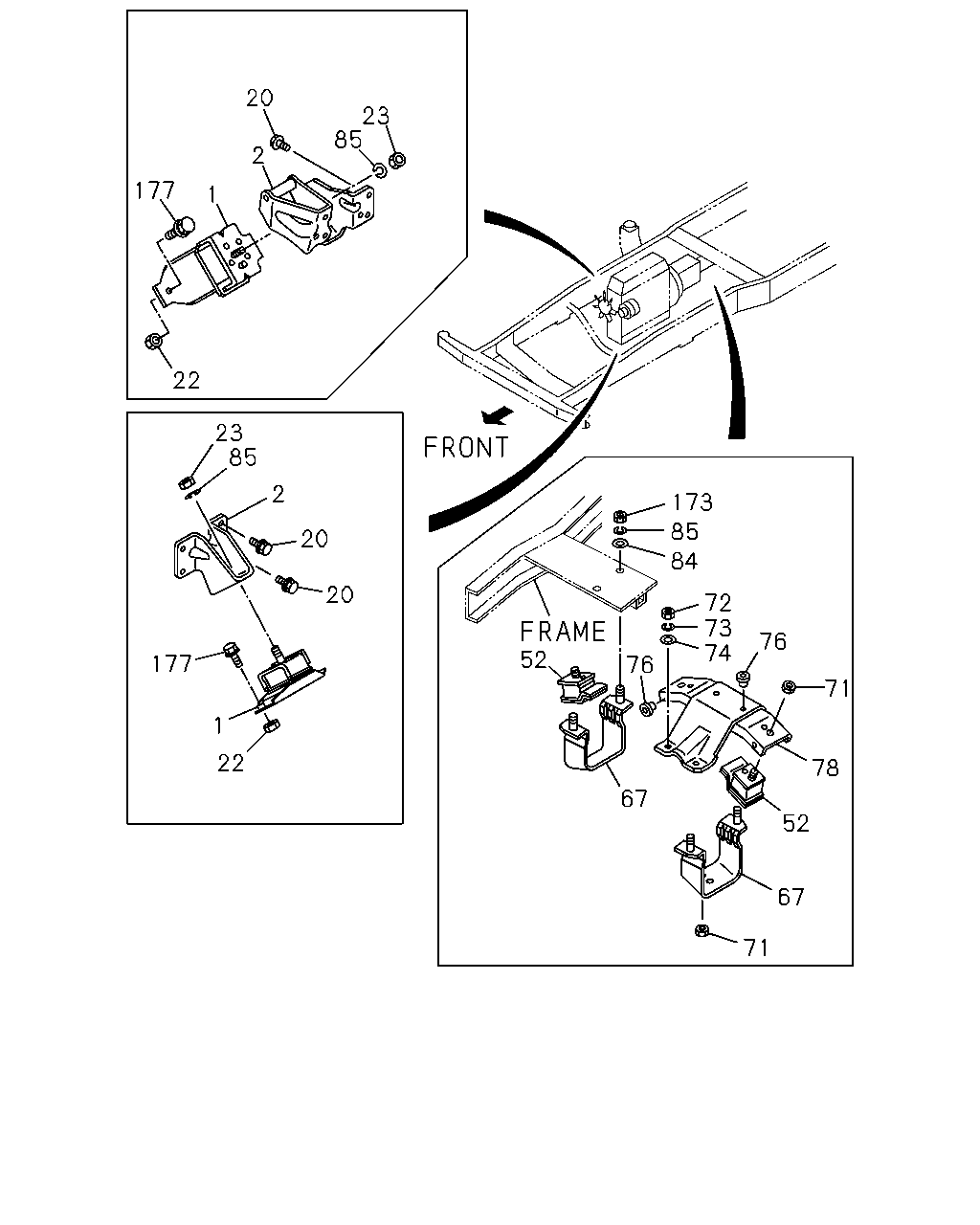

20 23 85 2 177 1 22 23 85 2 173 85 20 84 20 72 73 74 76 52 177 76 71 1 22 78 67 52 67 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-123-0	01	1	9312-9711	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-122-0	01	1	9312-9711	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-621-0	01	1	9312-9608	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-621-0	01	1	9609-9711	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	9712-	●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-620-0	01	1	9312-9608	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-620-0	01	1	9609-9711	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	9712-	●	●
2	00.029 FOOT; ENG	8-94122-052-1	01	1	9312-9608	●
2	00.029 FOOT; ENG	8-94122-052-1	01	1	9609-	●	●
2	00.029 FOOT; ENG	8-97073-922-1	01	1	9312-9608	●
2	00.029 FOOT; ENG	8-97073-922-1	01	1	9609-	●	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	01	1	9312-9403	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9312-9403	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9407-9711	●
20	00.029 BOLT; ENG FOOT EXC. AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9712-9712	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9801-	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,SINGAPORE EQUIPMENT(S9Y) 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9801-	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9407-9608	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9609-	●	●
20	00.029 BOLT; ENG FOOT EURO1 SPECIFICATION<6YW> 02.277 M10X22 W/LK WASHER	0-50041-022-0	05	1	9410-9608	●
20	00.029 BOLT; ENG FOOT EURO1 SPECIFICATION<6YW> 02.277 M10X22 W/LK WASHER	0-50041-022-0	05	1	9609-9711	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	05	1	9609-9711		●
20	00.029 BOLT; ENG FOOT EURO2 SPECIFICATION<7AF> 02.277 M10X22 W/LK WASHER	0-50041-022-0	05	1	9712-9712		●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	05	1	9801-		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 M10X28	8-94329-952-1	02	1	9312-9403	●
20	00.029 BOLT; ENG FOOT FRT INDEPENDENT SUSPENSION(6PP) EXC. OIL COOLER<KC4> 00.034 M10X28	8-94329-952-1	02	1	9312-9403	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9407-9608	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9609-9711	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9712-9712	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. SINGAPORE EQUIPMENT(S9Y) 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9801-	●
20	00.029 BOLT; ENG FOOT SINGAPORE EQUIPMENT(S9Y) 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9801-	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 M10X28	8-94329-952-1	02	1	9407-9510	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 00.034 M10X28	8-94329-952-1	02	1	9511-9608	●
20	00.029 BOLT; ENG FOOT EURO1 SPECIFICATION<6YW> 00.034 M10X28	8-94329-952-1	02	1	9511-9608	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 00.034 M10X28	8-94329-952-1	02	1	9609-9711	●
20	00.029 BOLT; ENG FOOT EURO1 SPECIFICATION<6YW> 00.034 M10X28	8-94329-952-1	02	1	9609-9711	●
20	00.029 BOLT; ENG FOOT 00.034 M10X28	8-94329-952-1	02	1	9609-9711		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 M10X28	8-94329-952-1	02	1	9712-9712	●
20	00.029 BOLT; ENG FOOT 00.034 M10X28	8-94329-952-1	02	1	9712-9712		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 M10X28	8-94329-952-1	02	1	9801-9801	●
20	00.029 BOLT; ENG FOOT SINGAPORE EQUIPMENT(S9Y) 00.034 M10X28	8-94329-952-1	02	1	9801-9801	●
20	00.029 BOLT; ENG FOOT 00.034 M10X28	8-94329-952-1	02	1	9801-9801		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> SINGAPORE EQUIPMENT(S9Y) 00.034 M10X28	8-94329-952-1	02	1	9801-	●
20	00.029 BOLT; ENG FOOT 00.034 M10X28	8-94329-952-1	02	1	9801-		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9403	●
20	00.029 BOLT; ENG FOOT FRT INDEPENDENT SUSPENSION(6PP) 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9403	●
20	00.029 BOLT; ENG FOOT EXC. POWER STEERING<N40> 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9403	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9404-9404	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 00.034 M10X28	8-94329-952-1	01	1	9407-9510	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW> 00.034 M10X28	8-94329-952-1	01	1	9511-9711	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 00.034 M10X28	8-94329-952-1	01	1	9712-9712	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,SINGAPORE EQUIPMENT(S9Y) 00.034 M10X28	8-94329-952-1	01	1	9801-	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9312-9403	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 00.034 M10X28	8-94329-952-1	01	1	9312-9403	●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	02	1	9312-9608	●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	9609-9711	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	04	1	9312-9608	●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	04	1	9609-9711	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 M10 FLANGE	0-91150-210-0	04	1	9712-	●	●
23	00.002 NUT; SUPPORT RUBBER,ENG FOOT 05.816 M12	9-99110-412-0	02	1	9609-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	9312-9510	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	9511-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	9312-9510	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	9511-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	9312-9510	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	9511-	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 09.011 M10	9-09110-410-0	04	1	9312-9407	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	9408-9510	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	04	1	9312-9510	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	04	1	9511-	●	●
73	00.002 WASHER; LK,CUSHION RUBBER TO FRA ID=10.2	9-09150-610-0	04	1	9312-9510	●
73	00.002 WASHER; LK,CUSHION RUBBER TO FRA ID=10.2	9-09150-610-0	04	1	9511-	●	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9312-9510	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9511-	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027	8-94111-904-0	04	1	9312-9510	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027	8-94111-904-0	04	1	9511-	●	●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-1	01	1	9312-9510	●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-1	01	1	9511-	●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9312-9510	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9511-	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	9312-9510	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	9511-	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME 06.515 ID=12.2	9-09150-612-0	02	1	9609-		●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9312-9510	●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9511-	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9312-9406	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5	8-94468-733-1	04	1	9407-9711	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9712-	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) M10X32.5	8-97090-761-0	04	1	9407-9711	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
