0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#46987) — 80 parça

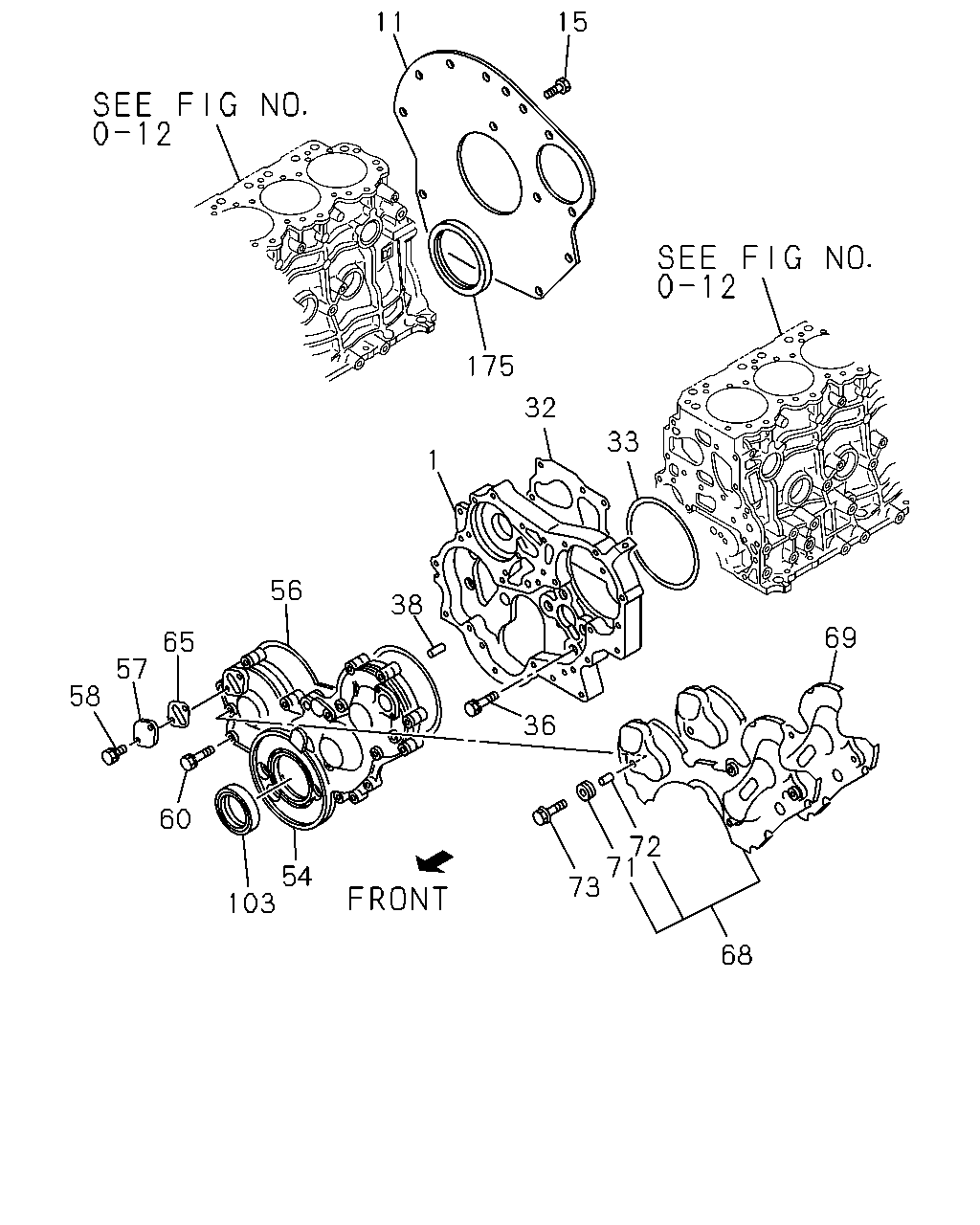

çizim 68097
15 11 175 32 33 1 56 38 69 65 57 58 36 60 72 71 73 54 103 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.206 CASE; TIMING GEAR 8-94155-361-3 01 1 9312-9506 ●
1 00.206 CASE; TIMING GEAR 8-97129-982-1 01 1 9507- ●
1 00.206 CASE; TIMING GEAR 8-97141-532-1 01 1 9609-9711 ●
1 00.206 CASE; TIMING GEAR
EURO2 SPECIFICATION<7AF> 		8-97141-532-1 01 1 9712-9804 ●
1 00.206 CASE; TIMING GEAR 8-97141-532-1 01 1 9805- ●
1 00.206 CASE; TIMING GEAR
EXC. EURO2 SPECIFICATION<7AF> 		8-97160-960-0 01 1 9712-9804 ●
11 00.683 PLATE; RR,C/BL 8-94437-923-2 01 1 9312-9608 ●
11 00.683 PLATE; RR,C/BL 8-94437-923-2 01 1 9609- ● ●
15 00.683 BOLT; RR PLATE TO C/BL
M12X25 		5-09000-227-0 03 1 9312-9608 ●
15 00.683 BOLT; RR PLATE TO C/BL
M12X25 		5-09000-227-0 03 1 9609- ● ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97046-469-1 01 1 9312-9507 ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97129-427-0 01 1 9508- ●
33 00.207 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94109-707-0 01 1 9312- ●
36 00.206 BOLT; GEAR CASE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 06 1 9312- ●
36 00.206 BOLT; GEAR CASE
POWER STEERING<N40> 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9312-9708 ●
36 00.206 BOLT; GEAR CASE
EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9709-9712 ●
36 00.206 BOLT; GEAR CASE
EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9801- ●
36 00.206 BOLT; GEAR CASE
EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9312-9708 ●
36 00.206 BOLT; GEAR CASE
POWER STEERING<N40> 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9709-9712 ●
36 00.206 BOLT; GEAR CASE
POWER STEERING<N40> 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9801- ●
38 00.685 PIN; GEAR CASE COVER
00.669 OD=10 L=20 		9-08151-020-0 02 1 9312- ●
54 00.206 COVER; GEAR CASE 8-94155-360-2 01 1 9312- ●
56 00.207 GASKET; GEAR CASE TO COVER 8-94140-117-1 01 1 9312- ●
57 00.206 COVER; TIMING CHECK HOLE 5-11321-009-0 02 1 9312- ●
58 00.206 BOLT; CHECK HOLE COVER
M6X14 W/LK WASHER 		0-50040-614-0 04 1 9312- ●
60 00.206 BOLT; COVER TO CASE
00.727 M8X32 W/LK WASHER 		0-50040-832-0 08 1 9312- ●
60 00.206 BOLT; COVER TO CASE
01.252 M8X60 W/LK WASHER 		0-50040-860-0 01 1 9312- ●
60 00.206 BOLT; COVER TO CASE
M8X65 W/LK WASHER 		8-94205-986-1 06 1 9312- ●
60 00.206 BOLT; COVER TO CASE
M12X55 W/HEX-SOCKET 		9-95821-255-0 01 1 9312- ●
62 00.206 BOLT; COVER
WEST MALAYSIA EQUIPMENT(RWP) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9312-9406 ●
62 00.206 BOLT; COVER
WEST MALAYSIA EQUIPMENT(RWP) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9312-9406 ●
65 00.207 GASKET; COVER,TIMING CHECK HOLE 8-97045-362-1 02 1 9312-9409 ●
65 00.207 GASKET; COVER,TIMING CHECK HOLE
EXC. EURO1 SPECIFICATION<6YW> 		8-97045-362-1 02 1 9410-9412 ●
65 00.207 GASKET; COVER,TIMING CHECK HOLE
EURO1 SPECIFICATION<6YW> 		8-97118-698-0 02 1 9410-9412 ●
65 00.207 GASKET; COVER,TIMING CHECK HOLE 8-97118-698-0 02 1 9501- ●
68 00.206 COVER ASM; GEAR CASE COVER 8-94155-721-1 01 1 9312- ●
69 00.206 SEAL; RUBBER,COVER TO COVER 8-94155-722-3 01 1 9312- ●
71 00.206 RUBBER; MTG,COVER 5-19389-002-0 04 1 9312- ●
72 00.206 BUSHING; SPACER,COVER TO COVER 5-19389-009-0 04 1 9312- ●
73 00.206 BOLT; COVER FIX
08.900 M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9312- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97049-145-0 01 1 9312- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97071-560-1 01 1 9609- ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97071-561-1 01 1 9312-9608 ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97071-561-1 01 1 9609- ● ●

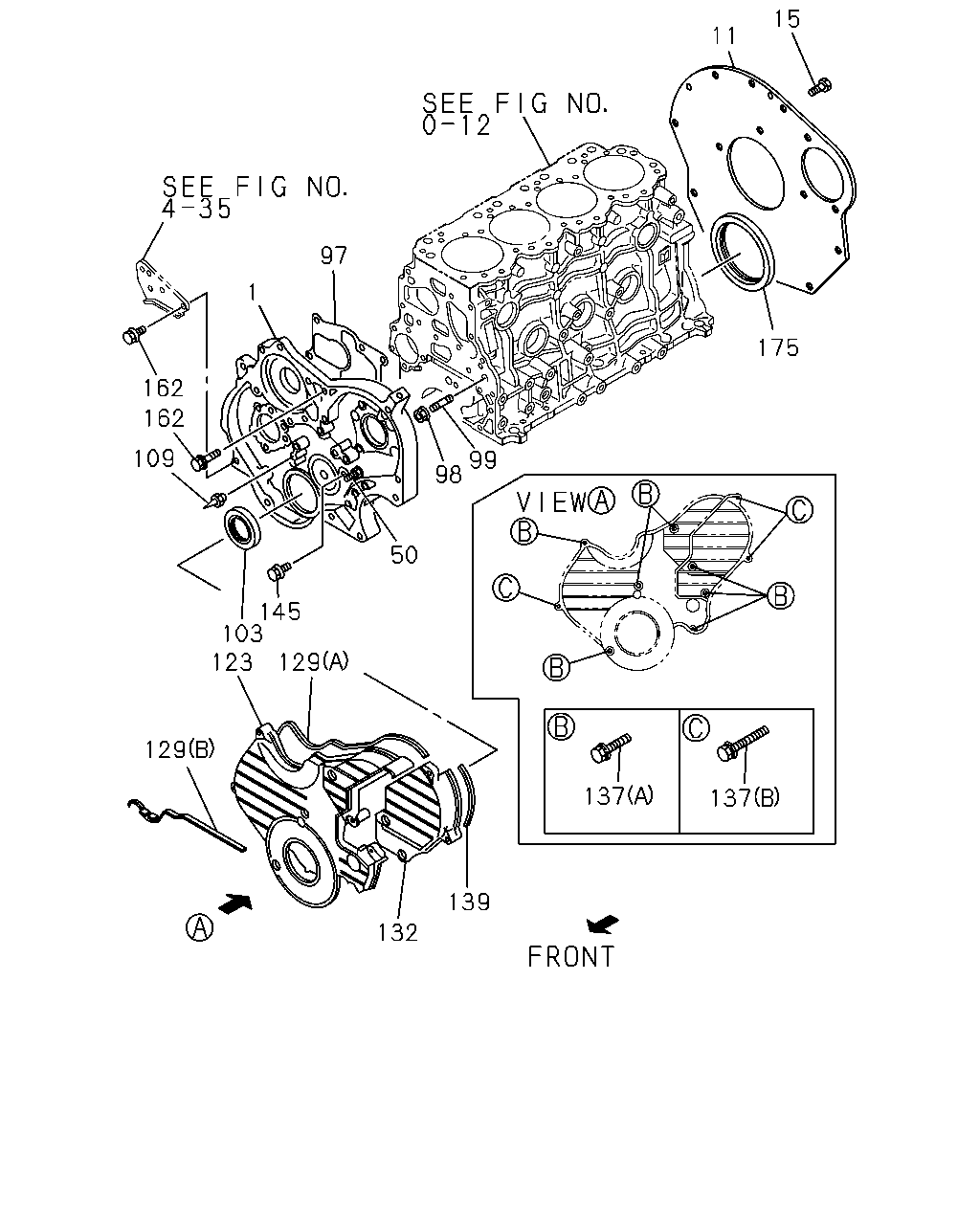

çizim 68631
15 97 1 175 162 162 109 98 50 145 103 123 129 129 137 137 139 132 11 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.206 CASE; TIMING GEAR 8-94155-361-3 01 1 9312-9506 ●
1 00.206 CASE; TIMING GEAR 8-97129-982-1 01 1 9507- ●
1 00.206 CASE; TIMING GEAR 8-97141-532-1 01 1 9609-9711 ●
1 00.206 CASE; TIMING GEAR
EURO2 SPECIFICATION<7AF> 		8-97141-532-1 01 1 9712-9804 ●
1 00.206 CASE; TIMING GEAR 8-97141-532-1 01 1 9805- ●
1 00.206 CASE; TIMING GEAR
EXC. EURO2 SPECIFICATION<7AF> 		8-97160-960-0 01 1 9712-9804 ●
11 00.683 PLATE; RR,C/BL 8-94437-923-2 01 1 9312-9608 ●
11 00.683 PLATE; RR,C/BL 8-94437-923-2 01 1 9609- ● ●
15 00.683 BOLT; RR PLATE TO C/BL
M12X25 		5-09000-227-0 03 1 9312-9608 ●
15 00.683 BOLT; RR PLATE TO C/BL
M12X25 		5-09000-227-0 03 1 9609- ● ●
50 00.206 STUD
M8X42.5 L=69 		8-97148-539-0 01 1 9609- ●
62 00.206 BOLT; COVER
WEST MALAYSIA EQUIPMENT(RWP) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9312-9406 ●
62 00.206 BOLT; COVER
WEST MALAYSIA EQUIPMENT(RWP) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9312-9406 ●
97 00.206 GASKET; BLOCK TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97129-429-0 01 1 9609- ●
98 00.206 NUT; STUD,INJ PUMP
03.340 M8 		8-94224-829-0 02 1 9609-9711 ●
98 00.206 NUT; STUD,INJ PUMP
EURO2 SPECIFICATION<7AF> 03.340 M8 		8-94224-829-0 02 1 9712-9804 ●
98 00.206 NUT; STUD,INJ PUMP
03.340 M8 		8-94224-829-0 02 1 9805- ●
98 00.206 NUT; STUD,INJ PUMP
EXC. EURO2 SPECIFICATION<7AF> 03.340 M8 		8-94224-829-0 03 1 9712-9804 ●
99 00.206 STUD; INJ PUMP
00.004 M8X28 L=44 		9-04020-828-0 02 1 9609-9711 ●
99 00.206 STUD; INJ PUMP
EURO2 SPECIFICATION<7AF> 00.004 M8X28 L=44 		9-04020-828-0 02 1 9712-9804 ●
99 00.206 STUD; INJ PUMP
00.004 M8X28 L=44 		9-04020-828-0 02 1 9805- ●
99 00.206 STUD; INJ PUMP
EXC. EURO2 SPECIFICATION<7AF> 00.004 M8X28 L=44 		9-04020-828-0 03 1 9712-9804 ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97049-145-0 01 1 9312- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97071-560-1 01 1 9609- ●
109 00.219 POINTER; TIMING
M5X7.5 		8-94133-500-0 01 1 9609- ●
123 00.206 COVER; TIMING,LWR 8-97038-105-1 01 1 9609- ●
129 00.207 GASKET; TIMING COVER,LWR
ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560 		8-94464-695-1 01 1 9609- ●
129 00.207 GASKET; TIMING COVER,LWR
ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=366 		8-94464-696-0 01 1 9609- ●
132 00.206 COVER; TIMING,UPR 8-97038-103-1 01 1 9609- ●
137 00.206 BOLT; FRT PLATE
(A) M6X35 W/LK&PL WASHER 		0-50140-635-0 07 1 9609- ●
137 00.206 BOLT; FRT PLATE
(B) M6X50 W/LK WASHER 		8-94152-616-1 03 1 9609- ●
139 00.207 GASKET; TIMING COVER,UPR
ALSO INCLUDED IN GASKET SET(ENGINE). L=215 		8-94139-961-0 01 1 9609- ●
145 00.206 BOLT; TENSIONER GUIDE
M8X20 		8-94152-617-1 01 1 9609- ●
162 00.206 BOLT; FRT PLATE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 03 1 9609- ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97071-561-1 01 1 9312-9608 ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97071-561-1 01 1 9609- ● ●
