0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#46986) — 143 parça

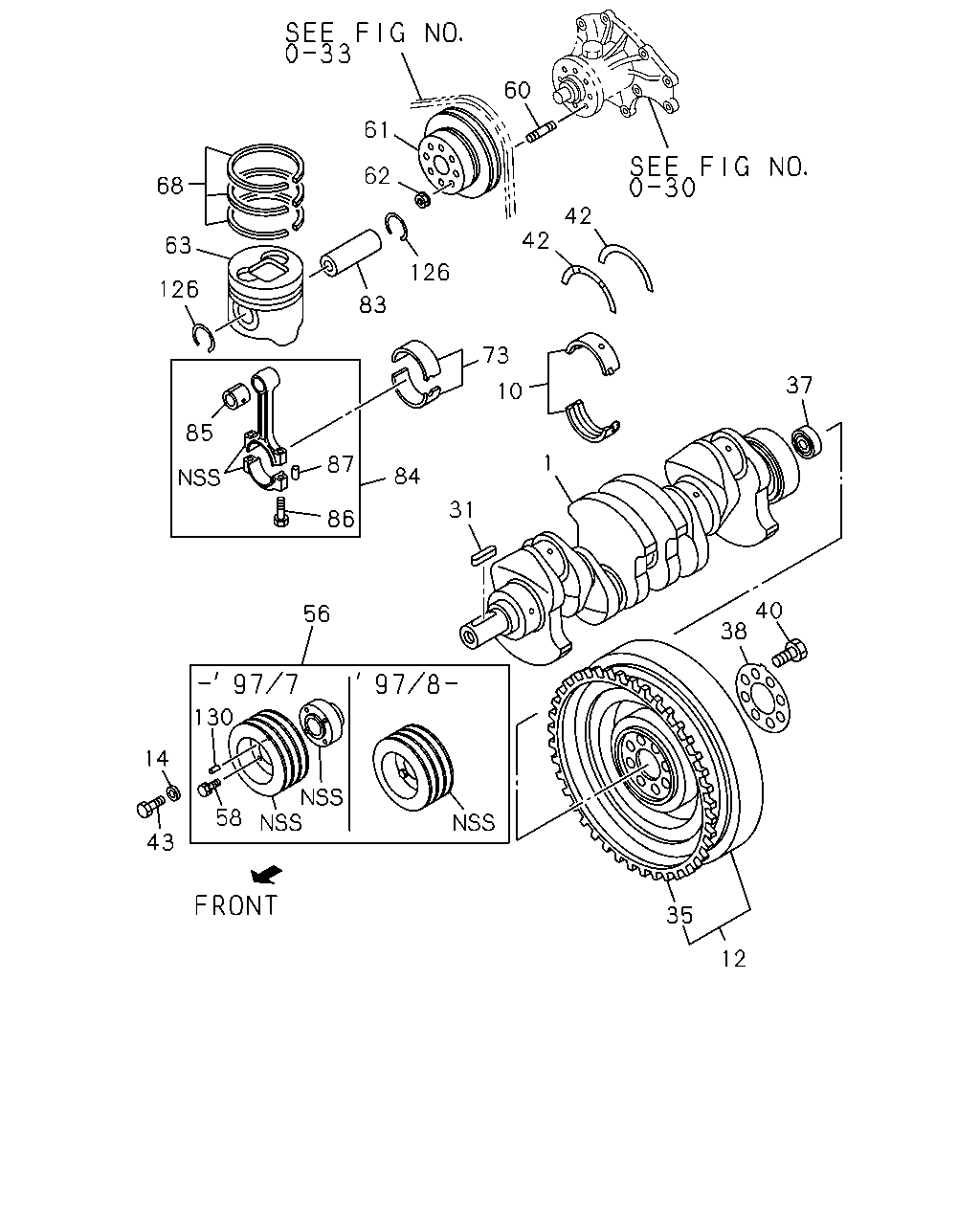

60 61 62 68 42 42 63 126 126 83 73 37 85 87 84 31 86 40 56 38 130 58 43 35 12 1 10 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.646 CRANKSHAFT	8-94443-662-0	01	1	9312-	●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9609-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9312-9608	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9609-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9312-9608	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9609-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9312-9608	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9609-	●	●
12	00.666 FLYWHEEL	8-94125-761-4	01	1	9312-	●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9609-		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9407-9608	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9609-	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9312-9608	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9609-	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9312-9608	●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9609-9712	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9801-9801	●
35	00.673 GEAR; RING EURO2 SPECIFICATION<7AF> Z=108	8-94419-602-0	01	1	9801-9801		●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9801-	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9312-9608	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9609-	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9312-9608	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9609-	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9312-9608	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9609-	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9312-9608	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9609-	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X29 FLANGE	8-94433-406-0	01	1	9312-9312	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9401-9608	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9609-	●	●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9312-	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE	8-94453-552-2	01	1	9312-	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-94460-623-1	01	1	9609-9707		●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9708-		●
58	00.659 BOLT; CR/SHF PULLEY 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9609-9707		●
60	01.060 STUD; FAN FIX 01.073 M6X18 L=27	9-04110-618-0	04	1	9609-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9312-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9609-		●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	9609-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> GRADE=AX	8-97176-606-0	04	1	9410-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-606-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> GRADE=CX	8-97176-607-0	04	1	9410-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-607-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> GRADE=AX	8-97176-604-0	04	1	9312-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> GRADE=CX	8-97176-605-0	04	1	9312-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9609-9711		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-618-0	04	1	9712-9804		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9805-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9609-9711		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-619-0	04	1	9712-9804		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9805-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-616-0	04	1	9712-9804		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-617-0	04	1	9712-9804		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9312-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9609-9611		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9612-		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9312-9608	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9609-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9312-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9609-		●
84	00.603 ROD ASM; CONN	8-94329-692-1	04	1	9312-	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9609-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9312-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9609-		●
86	00.623 BOLT; CONNROD M11X59	8-94419-729-1	08	1	9312-9408	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9409-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9609-		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9609-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	9312-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9609-9711		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF>	8-94460-687-0	08	1	9712-9712		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9801-		●
130	00.662 PIN; STRAIGHT 08.939 OD=4 L=12	9-08160-412-0	01	1	9609-9707		●

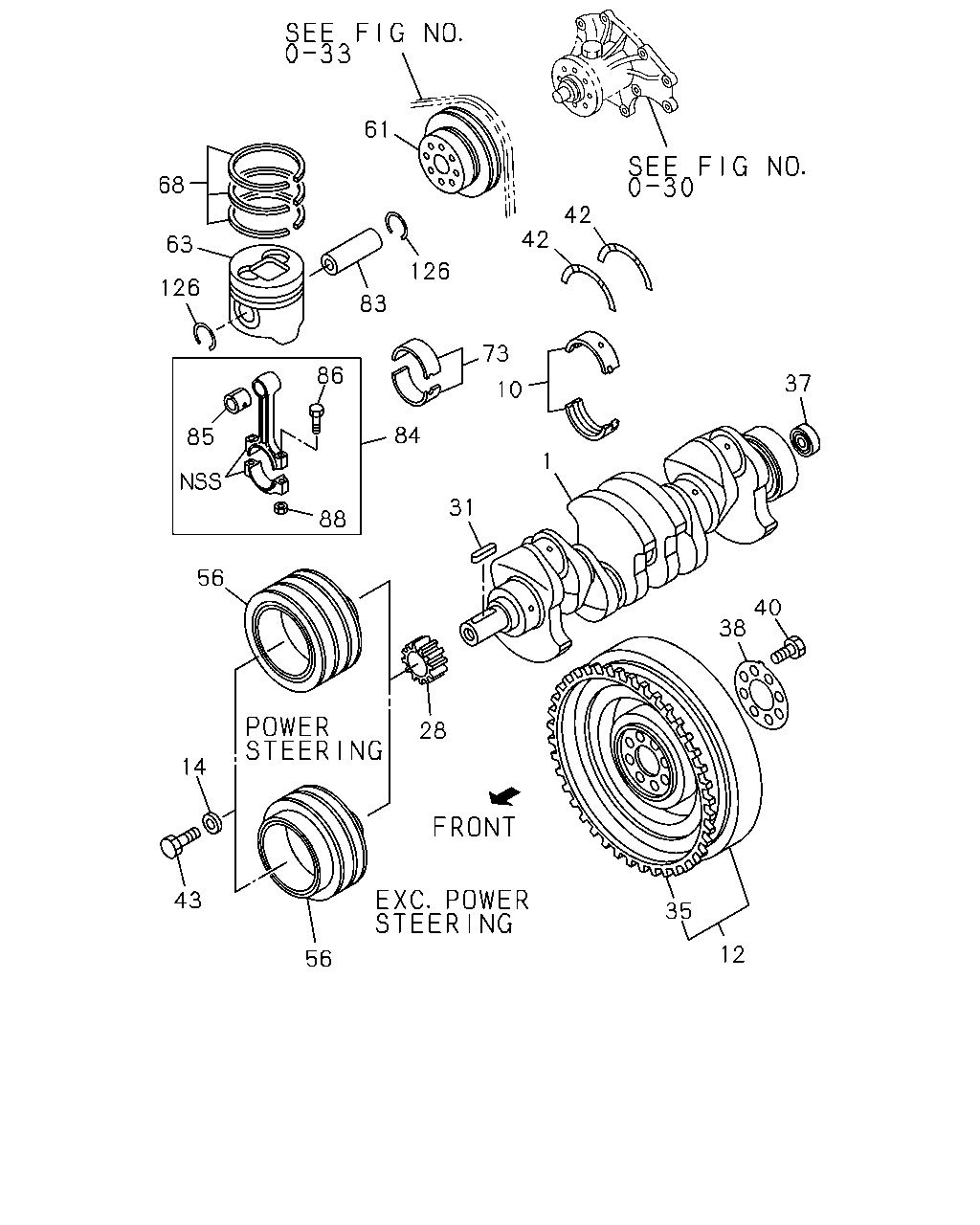

61 68 42 42 63 126 126 83 73 86 37 10 84 85 1 31 88 56 40 38 28 14 43 35 12 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.646 CRANKSHAFT	8-94443-662-0	01	1	9312-	●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9609-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9312-9608	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9609-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9312-9608	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9609-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9312-9608	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9609-	●	●
12	00.666 FLYWHEEL	8-94125-761-4	01	1	9312-	●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9609-		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9407-9608	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9609-	●	●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9312-	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9312-9608	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9609-	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9312-9608	●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9609-9712	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9801-9801	●
35	00.673 GEAR; RING EURO2 SPECIFICATION<7AF> Z=108	8-94419-602-0	01	1	9801-9801		●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9801-	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9312-9608	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9609-	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9312-9608	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9609-	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9312-9608	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9609-	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9312-9608	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9609-	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X29 FLANGE	8-94433-406-0	01	1	9312-9312	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9401-9608	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9609-	●	●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9312-	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE	8-94453-552-2	01	1	9312-	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-94460-623-1	01	1	9609-9707		●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9708-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9312-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9609-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> GRADE=AX	8-97176-606-0	04	1	9410-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-606-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> GRADE=CX	8-97176-607-0	04	1	9410-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-607-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> GRADE=AX	8-97176-604-0	04	1	9312-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> GRADE=CX	8-97176-605-0	04	1	9312-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9609-9711		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-618-0	04	1	9712-9804		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9805-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9609-9711		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-619-0	04	1	9712-9804		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9805-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-616-0	04	1	9712-9804		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-617-0	04	1	9712-9804		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9312-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9609-9611		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9612-		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9312-9608	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9609-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9312-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9609-		●
84	00.603 ROD ASM; CONN	8-94329-692-1	04	1	9312-	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9609-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9312-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9609-		●
86	00.623 BOLT; CONNROD M11X59	8-94419-729-1	08	1	9312-9408	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9409-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9609-		●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	9312-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	9312-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9609-9711		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF>	8-94460-687-0	08	1	9712-9712		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9801-		●
