0-14 — CAMSHAFT AND VALVE (#46985) — 139 parça

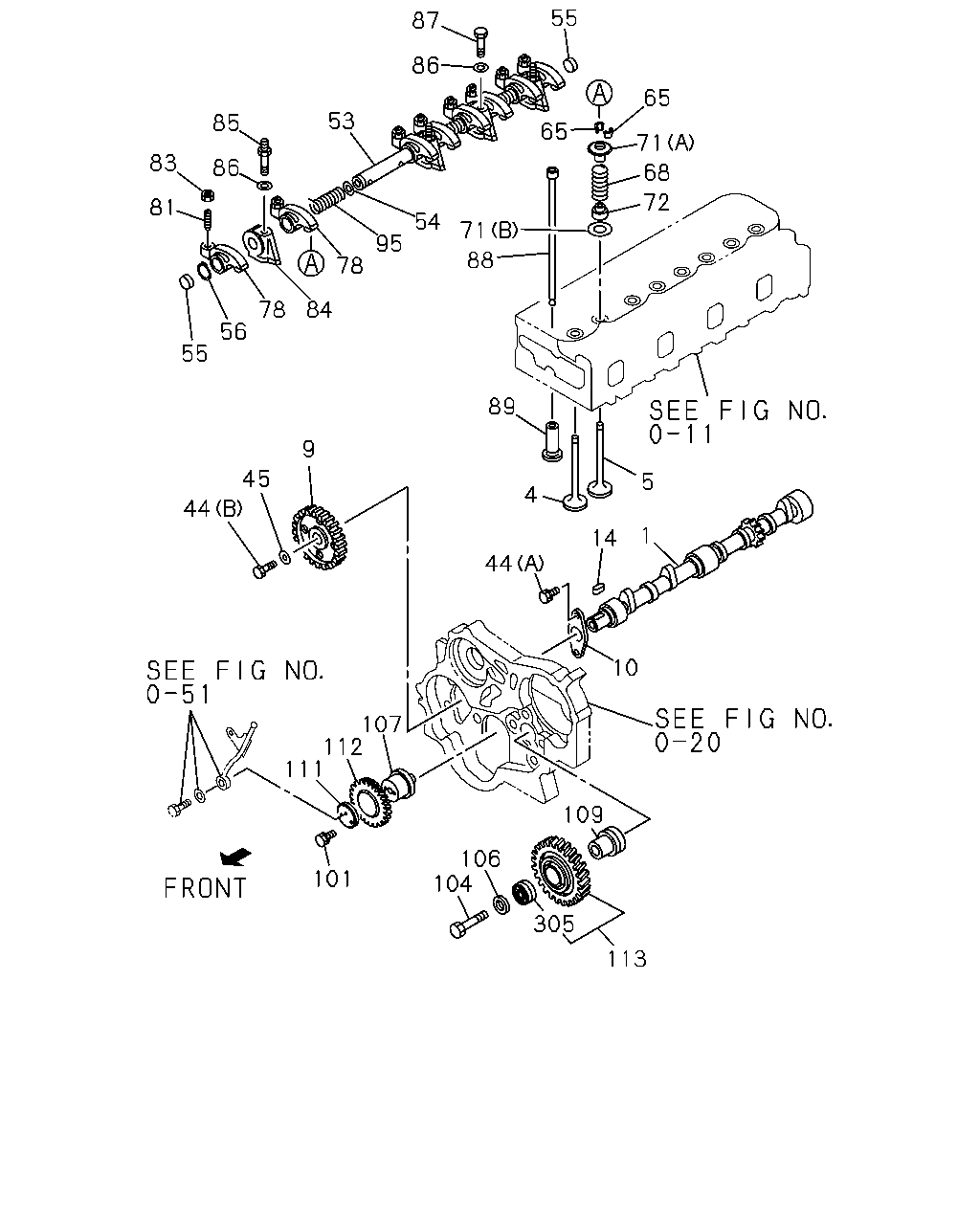

55 87 86 65 53 85 65 71 83 86 68 72 81 54 71 95 88 78 78 84 56 55 89 9 45 5 4 44 1 14 44 10 107 109 106 104 101 305 112 111 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9312-9608	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9609-	●	●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9312-	●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9609-		●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9312-	●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9609-		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9312-	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9312-	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9312-9608	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9609-	●	●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9312-	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9312-9608	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9609-	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9312-9608	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9609-	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9312-9608	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9609-	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9312-9608	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9609-	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9312-9608	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9609-	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9312-9608	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9609-	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9312-9608	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9609-	●	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9312-9608	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9609-	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9312-9608	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9609-	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9312-9608	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9609-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 00.283	5-12569-006-0	08	1	9312-9604	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9605-9608	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9609-	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9312-9608	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9609-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-0	08	1	9312-9608	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9609-	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9312-9608	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9609-	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9312-9608	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9609-	●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9312-9608	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9609-	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9312-9608	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9609-	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9312-9608	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9609-	●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9312-9608	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9609-	●	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9312-9608	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9609-	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9312-9608	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9609-	●	●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9312-	●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9312-	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9312-	●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9312-	●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	9312-	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9312-	●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9312-9611	●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	9612-	●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	9312-	●
305	00.724 BEARING; IDLE GEAR	8-94110-271-0	01	1	9712-	●

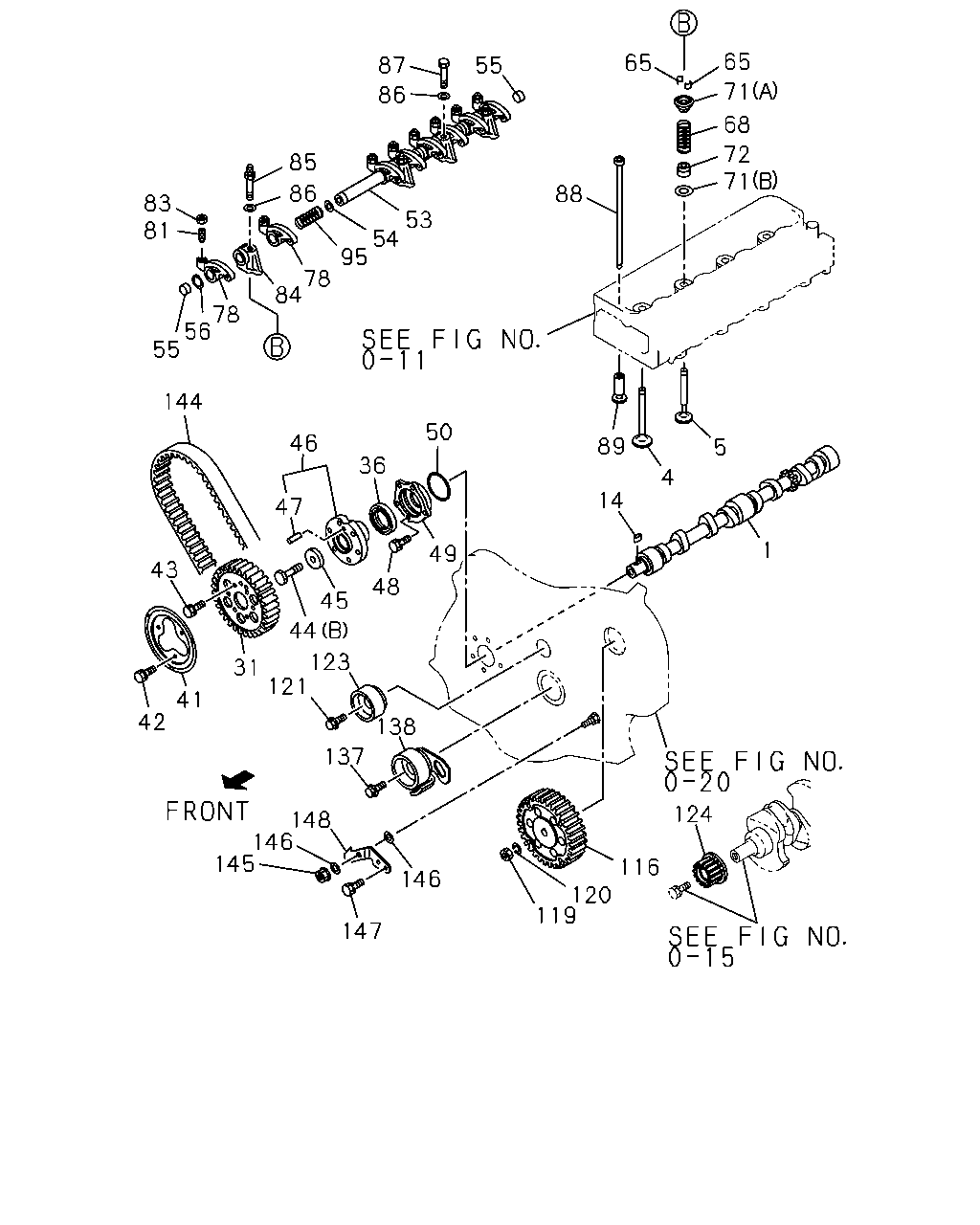

65 65 87 55 71 86 68 72 85 71 86 88 83 53 81 54 95 78 84 78 56 55 50 46 89 5 36 47 49 43 48 45 44 123 31 121 42 138 137 124 148 146 145 116 146 120 119 147 4 14 1 41 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9312-9608	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9609-	●	●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9312-	●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9609-		●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9312-	●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9609-		●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9312-9608	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9609-	●	●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	9612-		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=7.0	8-97080-562-0	01	1	9609-		●
41	00.662 FLANGE; CAM PULLEY	8-94157-492-0	01	1	9609-		●
42	00.662 BOLT; FLANGE CAM 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9609-		●
43	00.662 BOLT; PULLEY 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9609-		●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9312-	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9312-9608	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9609-	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9312-9608	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9609-	●	●
46	00.736 CENTER ASM; TIMING PULLEY	8-97118-491-0	01	1	9609-		●
47	00.662 PIN; STRAIGHT,CENTER 08.939 OD=4 L=12	9-08160-412-0	01	1	9609-		●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9609-		●
49	00.724 RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	9609-		●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97080-893-0	01	1	9609-		●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9312-9608	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9609-	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9312-9608	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9609-	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9312-9608	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9609-	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9312-9608	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9609-	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9312-9608	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9609-	●	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9312-9608	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9609-	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9312-9608	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9609-	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9312-9608	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9609-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 00.283	5-12569-006-0	08	1	9312-9604	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9605-9608	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9609-	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9312-9608	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9609-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-0	08	1	9312-9608	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9609-	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9312-9608	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9609-	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9312-9608	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9609-	●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9312-9608	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9609-	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9312-9608	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9609-	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9312-9608	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9609-	●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9312-9608	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9609-	●	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9312-9608	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9609-	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9312-9608	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9609-	●	●
116	00.659 PULLEY; TIMING,INJ PUMP Z=44 B=37.7	8-97043-289-0	01	1	9609-		●
119	00.662 NUT; PULLEY 03.340 M14	8-94226-565-0	01	1	9609-		●
120	00.662 WASHER; LK,PULLEY,INJ PUMP 03.340	8-94226-554-0	01	1	9609-		●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	9609-		●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	9609-		●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	9609-		●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	9609-		●
138	00.724 TENSIONER; TIMING BELT	8-94382-214-1	01	1	9609-		●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	9609-		●
145	00.724 NUT; FLANGE 01.540 M8 FLANGE	0-91150-208-0	01	1	9609-		●
146	00.724 WASHER; PL,TENSION LEVER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9609-		●
147	00.724 BOLT; TENSION LEVER 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9609-		●
148	00.724 LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	9609-		●
