Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#46983) — 439 parça

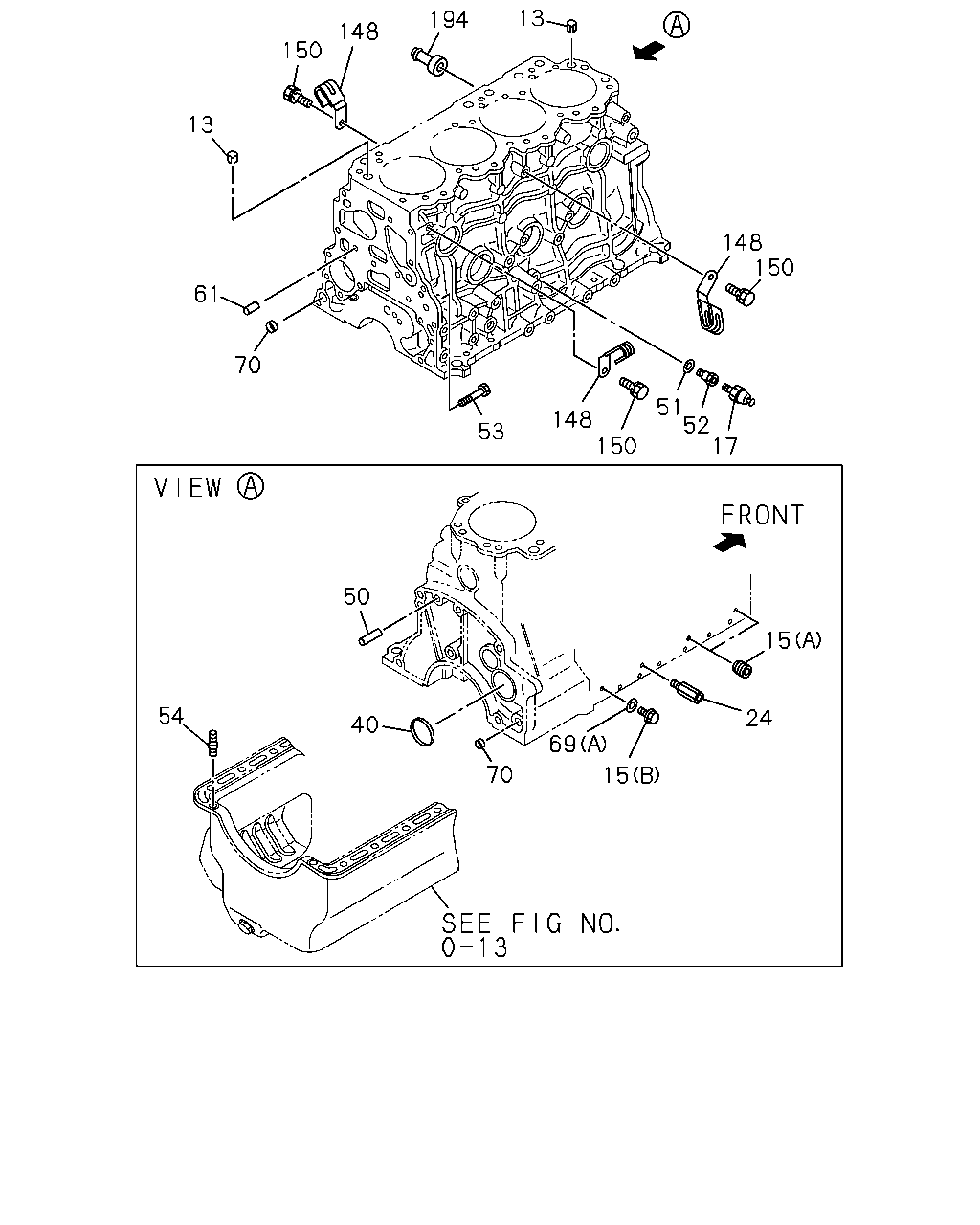

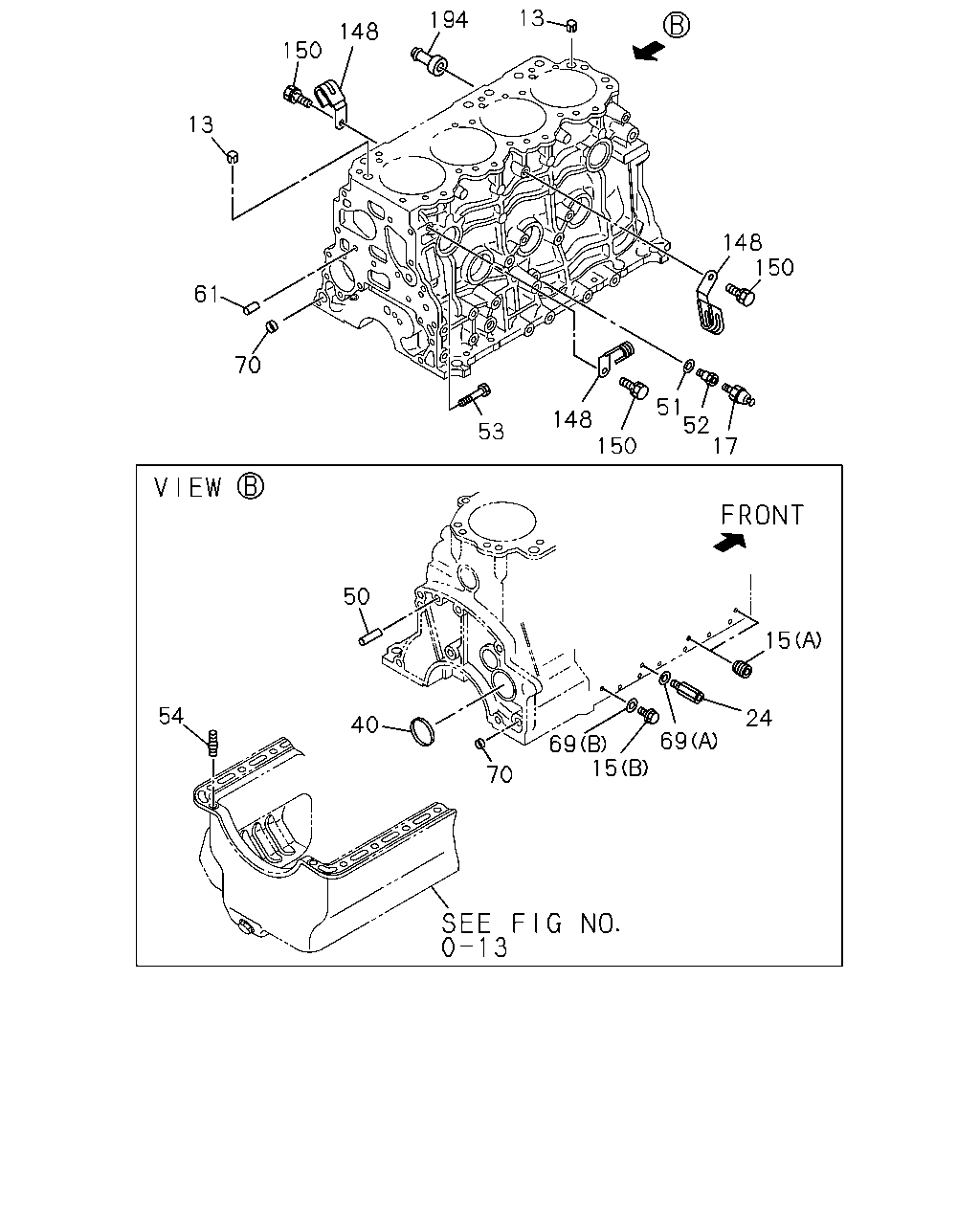

13 194 148 150 13 148 150 61 70 51 52 17 148 53 150 50 15 54 24 40 69 70 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9312-9608	●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9609-	●	●
15	01.531 PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	9312-9608	●
15	01.531 PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	9609-	●	●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	9312-9608	●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	9609-9712	●	●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	9801-9801	●
15	01.531 PLUG; OIL GALLERY EURO2 SPECIFICATION<7AF> 03.001 (B) M14X14	8-94152-613-0	01	1	9801-9801		●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	9801-	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9312-9608	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9609-	●	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9312-9608	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9609-	●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9312-9608	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9609-	●	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9312-9608	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9609-	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9312-9608	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9609-	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B WEST MALAYSIA EQUIPMENT(RWP)	8-94167-750-1	01	1	9312-9409	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B WEST MALAYSIA EQUIPMENT(RWP)	8-94167-750-1	01	1	9410-9510	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EURO1 SPECIFICATION<6YW>	8-94167-750-1	01	1	9410-9510	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94167-749-1	01	1	9511-9711	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-2	01	1	9712-9712	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-2	01	1	9801-	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. EURO2 SPECIFICATION<7AF>	8-94167-749-2	01	1	9801-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-94167-749-1	01	1	9312-9409	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. WEST MALAYSIA EQUIPMENT(RWP),EURO1 SPECIFICATION<6YW>	8-94167-749-1	01	1	9410-9510	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94167-750-1	01	1	9511-9608	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94167-750-2	01	1	9609-9711	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	9609-9711		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EURO2 SPECIFICATION<7AF>	8-94167-750-2	01	1	9712-		●
53	00.862 BOLT; REAMER M10X60	8-94200-831-2	01	1	9312-9403	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9404-9608	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9609-	●	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9312-9403	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	08	1	9404-9409	●
54	01.428 STUD; OIL PAN TO BLOCK EXC. EURO1 SPECIFICATION<6YW>	8-94133-974-2	08	1	9410-9410	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9411-9608	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9609-	●	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9312-9608	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9609-	●	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	9312-9608	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	9609-9712	●	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-414-0	01	1	9801-9801	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<7AF> 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	9801-9801		●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	9801-	●	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. WEST MALAYSIA EQUIPMENT(RWP) 05.398 (B) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9312-9409	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. WEST MALAYSIA EQUIPMENT(RWP),EURO1 SPECIFICATION<6YW> 05.398 (B) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9410-9502	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9312-9608	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9609-	●	●
148	02.313 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9407-9608	●
148	02.313 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9609-	●	●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9407-9608	●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9609-	●	●

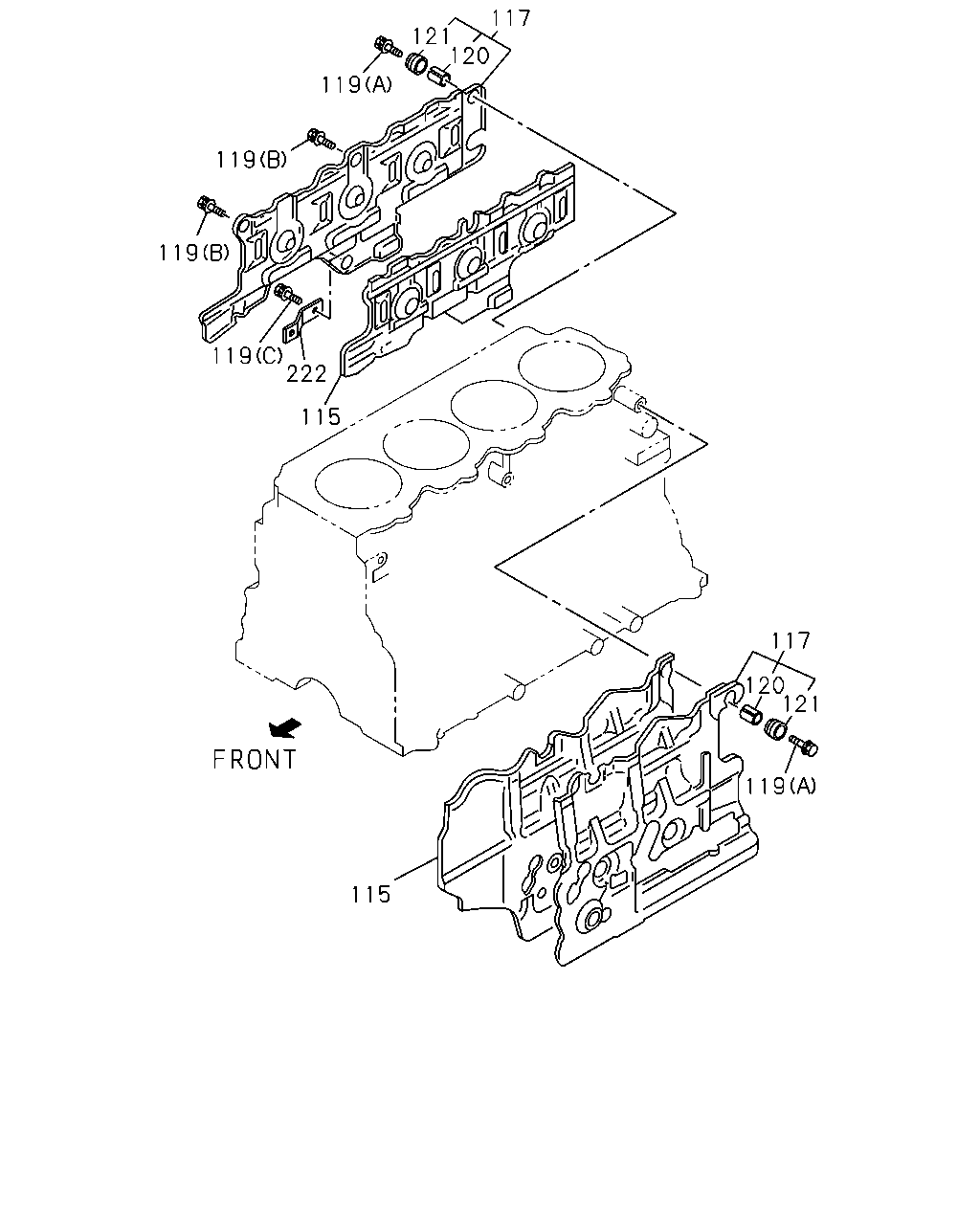

119 121 120 119 119 222 115 120 121 119 115 119 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	00.034 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-97106-521-1	01	1	9511-9711	●
115	00.034 RUBBER; SPACE WEST MALAYSIA EQUIPMENT(RWP)	8-94460-510-0	01	1	9312-9409	●
115	00.034 RUBBER; SPACE WEST MALAYSIA EQUIPMENT(RWP)	8-94460-510-0	01	1	9410-9510	●
115	00.034 RUBBER; SPACE EURO1 SPECIFICATION<6YW>	8-94460-510-0	01	1	9410-9510	●
115	00.034 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94460-510-0	01	1	9511-9711	●
115	00.034 RUBBER; SPACE WEST MALAYSIA EQUIPMENT(RWP)	8-94460-511-0	01	1	9312-9406	●
115	00.034 RUBBER; SPACE WEST MALAYSIA EQUIPMENT(RWP)	8-97106-521-1	01	1	9407-9409	●
115	00.034 RUBBER; SPACE WEST MALAYSIA EQUIPMENT(RWP)	8-97106-521-1	01	1	9410-9510	●
115	00.034 RUBBER; SPACE EURO1 SPECIFICATION<6YW>	8-97106-521-1	01	1	9410-9510	●
115	00.034 RUBBER; SPACE	8-97141-688-2	01	1	9610-9711		●
115	00.034 RUBBER; SPACE EURO2 SPECIFICATION<7AF>	8-97141-688-2	01	1	9712-		●
115	00.034 RUBBER; SPACE	8-97141-687-0	01	1	9610-9711		●
115	00.034 RUBBER; SPACE EURO2 SPECIFICATION<7AF>	8-97141-687-0	01	1	9712-		●
117	00.030 COVER ASM; C/BL HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94460-509-4	01	1	9511-9711	●
117	00.030 COVER ASM; C/BL WEST MALAYSIA EQUIPMENT(RWP)	8-97020-126-0	01	1	9312-9409	●
117	00.030 COVER ASM; C/BL WEST MALAYSIA EQUIPMENT(RWP)	8-97020-126-0	01	1	9410-9510	●
117	00.030 COVER ASM; C/BL EURO1 SPECIFICATION<6YW>	8-97020-126-0	01	1	9410-9510	●
117	00.030 COVER ASM; C/BL HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-97020-126-0	01	1	9511-9711	●
117	00.030 COVER ASM; C/BL WEST MALAYSIA EQUIPMENT(RWP)	8-94460-509-4	01	1	9312-9409	●
117	00.030 COVER ASM; C/BL WEST MALAYSIA EQUIPMENT(RWP)	8-94460-509-4	01	1	9410-9510	●
117	00.030 COVER ASM; C/BL EURO1 SPECIFICATION<6YW>	8-94460-509-4	01	1	9410-9510	●
117	00.030 COVER ASM; C/BL	8-97141-686-0	01	1	9610-9711		●
117	00.030 COVER ASM; C/BL EURO2 SPECIFICATION<7AF>	8-97141-686-0	01	1	9712-		●
117	00.030 COVER ASM; C/BL	8-97141-685-1	01	1	9610-9711		●
117	00.030 COVER ASM; C/BL EURO2 SPECIFICATION<7AF>	8-97141-685-1	01	1	9712-		●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) (A) M10X28	8-94329-952-1	01	1	9312-9409	●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) (A) M10X28	8-94329-952-1	01	1	9410-9510	●
119	00.034 BOLT; COVER FIX EURO1 SPECIFICATION<6YW> (A) M10X28	8-94329-952-1	01	1	9410-9510	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) (A) M10X28	8-94329-952-1	01	1	9511-9609	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) (A) M10X28	8-94329-952-1	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	9610-9711		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> (A) M10X28	8-94329-952-1	01	1	9712-		●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9312-9409	●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9410-9510	●
119	00.034 BOLT; COVER FIX EURO1 SPECIFICATION<6YW> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9410-9510	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9511-9609	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9610-9711	●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9610-9711		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9712-		●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9407-9409	●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9410-9510	●
119	00.034 BOLT; COVER FIX EURO1 SPECIFICATION<6YW> 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9410-9510	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9511-9609	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9610-9711		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9712-9804		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	9805-		●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9407-9409	●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9410-9510	●
119	00.034 BOLT; COVER FIX EURO1 SPECIFICATION<6YW> 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9410-9510	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9511-9609	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9610-9711		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9712-		●
120	00.034 BUSHING; MTG RUBBER HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) OD=13 T=9.5	8-94140-427-1	03	1	9511-9610	●
120	00.034 BUSHING; MTG RUBBER HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) OD=13 T=9.5	8-94140-427-1	06	1	9611-9701	●
120	00.034 BUSHING; MTG RUBBER HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) OD=13 T=9.5	8-94140-427-1	06	1	9702-9711	●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	06	1	9702-9711		●
120	00.034 BUSHING; MTG RUBBER EURO2 SPECIFICATION<7AF> OD=13 T=9.5	8-94140-427-1	06	1	9712-		●
120	00.034 BUSHING; MTG RUBBER WEST MALAYSIA EQUIPMENT(RWP) OD=13 T=9.5	8-94140-427-1	06	1	9312-9409	●
120	00.034 BUSHING; MTG RUBBER WEST MALAYSIA EQUIPMENT(RWP) OD=13 T=9.5	8-94140-427-1	06	1	9410-9510	●
120	00.034 BUSHING; MTG RUBBER EURO1 SPECIFICATION<6YW> OD=13 T=9.5	8-94140-427-1	06	1	9410-9510	●
121	00.034 RUBBER; MTG,COVER HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) OD=22	8-94140-428-1	03	1	9511-9610	●
121	00.034 RUBBER; MTG,COVER HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) OD=22	8-94140-428-1	06	1	9611-9701	●
121	00.034 RUBBER; MTG,COVER HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) OD=22	8-94140-428-1	06	1	9702-9711	●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	06	1	9702-9711		●
121	00.034 RUBBER; MTG,COVER EURO2 SPECIFICATION<7AF> OD=22	8-94140-428-1	06	1	9712-		●
121	00.034 RUBBER; MTG,COVER WEST MALAYSIA EQUIPMENT(RWP) OD=22	8-94140-428-1	06	1	9312-9409	●
121	00.034 RUBBER; MTG,COVER WEST MALAYSIA EQUIPMENT(RWP) OD=22	8-94140-428-1	06	1	9410-9510	●
121	00.034 RUBBER; MTG,COVER EURO1 SPECIFICATION<6YW> OD=22	8-94140-428-1	06	1	9410-9510	●
222	00.340 BRACKET; COVER,C/BL WEST MALAYSIA EQUIPMENT(RWP)	8-94460-512-0	01	1	9312-9409	●
222	00.340 BRACKET; COVER,C/BL WEST MALAYSIA EQUIPMENT(RWP)	8-94460-512-0	01	1	9410-9510	●
222	00.340 BRACKET; COVER,C/BL EURO1 SPECIFICATION<6YW>	8-94460-512-0	01	1	9410-9510	●
222	00.340 BRACKET; COVER,C/BL HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94460-512-0	01	1	9511-9609	●
222	00.340 BRACKET; COVER,C/BL HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94460-512-0	01	1	9610-9711	●
222	00.340 BRACKET; COVER,C/BL	8-94460-512-0	01	1	9610-9711		●
222	00.340 BRACKET; COVER,C/BL EURO2 SPECIFICATION<7AF>	8-94460-512-0	01	1	9712-		●

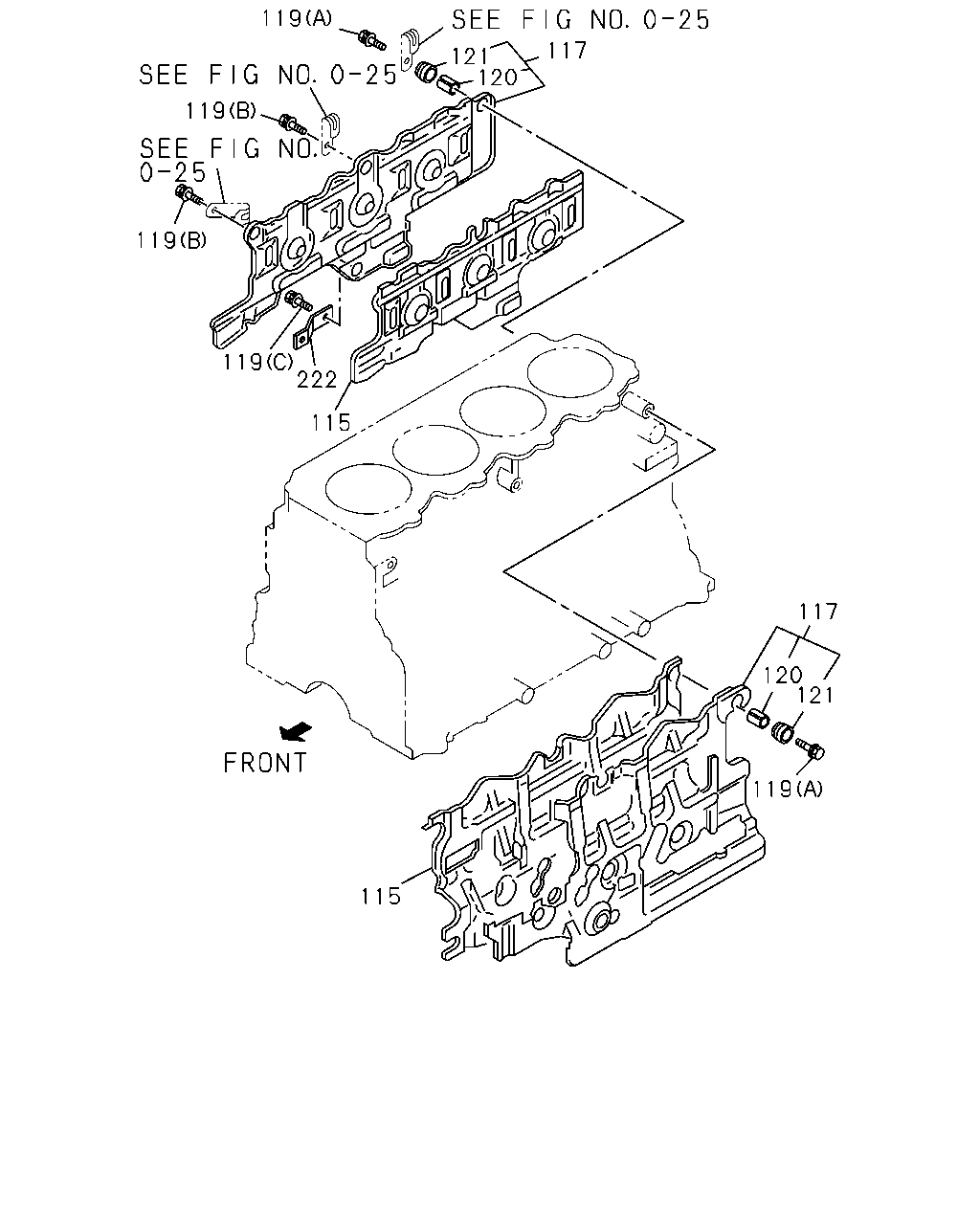

117 121 120 119 119 119 222 115 117 120 121 119 115 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	00.034 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-97106-521-1	01	1	9511-9711	●
115	00.034 RUBBER; SPACE WEST MALAYSIA EQUIPMENT(RWP)	8-94460-510-0	01	1	9312-9409	●
115	00.034 RUBBER; SPACE WEST MALAYSIA EQUIPMENT(RWP)	8-94460-510-0	01	1	9410-9510	●
115	00.034 RUBBER; SPACE EURO1 SPECIFICATION<6YW>	8-94460-510-0	01	1	9410-9510	●
115	00.034 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94460-510-0	01	1	9511-9711	●
115	00.034 RUBBER; SPACE WEST MALAYSIA EQUIPMENT(RWP)	8-94460-511-0	01	1	9312-9406	●
115	00.034 RUBBER; SPACE WEST MALAYSIA EQUIPMENT(RWP)	8-97106-521-1	01	1	9407-9409	●
115	00.034 RUBBER; SPACE WEST MALAYSIA EQUIPMENT(RWP)	8-97106-521-1	01	1	9410-9510	●
115	00.034 RUBBER; SPACE EURO1 SPECIFICATION<6YW>	8-97106-521-1	01	1	9410-9510	●
115	00.034 RUBBER; SPACE	8-97141-688-2	01	1	9610-9711		●
115	00.034 RUBBER; SPACE EURO2 SPECIFICATION<7AF>	8-97141-688-2	01	1	9712-		●
115	00.034 RUBBER; SPACE	8-97141-687-0	01	1	9610-9711		●
115	00.034 RUBBER; SPACE EURO2 SPECIFICATION<7AF>	8-97141-687-0	01	1	9712-		●
117	00.030 COVER ASM; C/BL HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94460-509-4	01	1	9511-9711	●
117	00.030 COVER ASM; C/BL WEST MALAYSIA EQUIPMENT(RWP)	8-97020-126-0	01	1	9312-9409	●
117	00.030 COVER ASM; C/BL WEST MALAYSIA EQUIPMENT(RWP)	8-97020-126-0	01	1	9410-9510	●
117	00.030 COVER ASM; C/BL EURO1 SPECIFICATION<6YW>	8-97020-126-0	01	1	9410-9510	●
117	00.030 COVER ASM; C/BL HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-97020-126-0	01	1	9511-9711	●
117	00.030 COVER ASM; C/BL WEST MALAYSIA EQUIPMENT(RWP)	8-94460-509-4	01	1	9312-9409	●
117	00.030 COVER ASM; C/BL WEST MALAYSIA EQUIPMENT(RWP)	8-94460-509-4	01	1	9410-9510	●
117	00.030 COVER ASM; C/BL EURO1 SPECIFICATION<6YW>	8-94460-509-4	01	1	9410-9510	●
117	00.030 COVER ASM; C/BL	8-97141-686-0	01	1	9610-9711		●
117	00.030 COVER ASM; C/BL EURO2 SPECIFICATION<7AF>	8-97141-686-0	01	1	9712-		●
117	00.030 COVER ASM; C/BL	8-97141-685-1	01	1	9610-9711		●
117	00.030 COVER ASM; C/BL EURO2 SPECIFICATION<7AF>	8-97141-685-1	01	1	9712-		●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) (A) M10X28	8-94329-952-1	01	1	9312-9409	●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) (A) M10X28	8-94329-952-1	01	1	9410-9510	●
119	00.034 BOLT; COVER FIX EURO1 SPECIFICATION<6YW> (A) M10X28	8-94329-952-1	01	1	9410-9510	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) (A) M10X28	8-94329-952-1	01	1	9511-9609	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) (A) M10X28	8-94329-952-1	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	9610-9711		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> (A) M10X28	8-94329-952-1	01	1	9712-		●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9312-9409	●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9410-9510	●
119	00.034 BOLT; COVER FIX EURO1 SPECIFICATION<6YW> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9410-9510	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9511-9609	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9610-9711	●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9610-9711		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9712-		●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9407-9409	●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9410-9510	●
119	00.034 BOLT; COVER FIX EURO1 SPECIFICATION<6YW> 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9410-9510	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9511-9609	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9610-9711		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9712-9804		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	9805-		●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9407-9409	●
119	00.034 BOLT; COVER FIX WEST MALAYSIA EQUIPMENT(RWP) 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9410-9510	●
119	00.034 BOLT; COVER FIX EURO1 SPECIFICATION<6YW> 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9410-9510	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9511-9609	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9610-9711		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9712-		●
120	00.034 BUSHING; MTG RUBBER HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) OD=13 T=9.5	8-94140-427-1	03	1	9511-9610	●
120	00.034 BUSHING; MTG RUBBER HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) OD=13 T=9.5	8-94140-427-1	06	1	9611-9701	●
120	00.034 BUSHING; MTG RUBBER HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) OD=13 T=9.5	8-94140-427-1	06	1	9702-9711	●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	06	1	9702-9711		●
120	00.034 BUSHING; MTG RUBBER EURO2 SPECIFICATION<7AF> OD=13 T=9.5	8-94140-427-1	06	1	9712-		●
120	00.034 BUSHING; MTG RUBBER WEST MALAYSIA EQUIPMENT(RWP) OD=13 T=9.5	8-94140-427-1	06	1	9312-9409	●
120	00.034 BUSHING; MTG RUBBER WEST MALAYSIA EQUIPMENT(RWP) OD=13 T=9.5	8-94140-427-1	06	1	9410-9510	●
120	00.034 BUSHING; MTG RUBBER EURO1 SPECIFICATION<6YW> OD=13 T=9.5	8-94140-427-1	06	1	9410-9510	●
121	00.034 RUBBER; MTG,COVER HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) OD=22	8-94140-428-1	03	1	9511-9610	●
121	00.034 RUBBER; MTG,COVER HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) OD=22	8-94140-428-1	06	1	9611-9701	●
121	00.034 RUBBER; MTG,COVER HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) OD=22	8-94140-428-1	06	1	9702-9711	●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	06	1	9702-9711		●
121	00.034 RUBBER; MTG,COVER EURO2 SPECIFICATION<7AF> OD=22	8-94140-428-1	06	1	9712-		●
121	00.034 RUBBER; MTG,COVER WEST MALAYSIA EQUIPMENT(RWP) OD=22	8-94140-428-1	06	1	9312-9409	●
121	00.034 RUBBER; MTG,COVER WEST MALAYSIA EQUIPMENT(RWP) OD=22	8-94140-428-1	06	1	9410-9510	●
121	00.034 RUBBER; MTG,COVER EURO1 SPECIFICATION<6YW> OD=22	8-94140-428-1	06	1	9410-9510	●
222	00.340 BRACKET; COVER,C/BL WEST MALAYSIA EQUIPMENT(RWP)	8-94460-512-0	01	1	9312-9409	●
222	00.340 BRACKET; COVER,C/BL WEST MALAYSIA EQUIPMENT(RWP)	8-94460-512-0	01	1	9410-9510	●
222	00.340 BRACKET; COVER,C/BL EURO1 SPECIFICATION<6YW>	8-94460-512-0	01	1	9410-9510	●
222	00.340 BRACKET; COVER,C/BL HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94460-512-0	01	1	9511-9609	●
222	00.340 BRACKET; COVER,C/BL HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94460-512-0	01	1	9610-9711	●
222	00.340 BRACKET; COVER,C/BL	8-94460-512-0	01	1	9610-9711		●
222	00.340 BRACKET; COVER,C/BL EURO2 SPECIFICATION<7AF>	8-94460-512-0	01	1	9712-		●

1 21 21 4 22 23 23 23 23 25 137 114 7 7 63 2 8 60 4

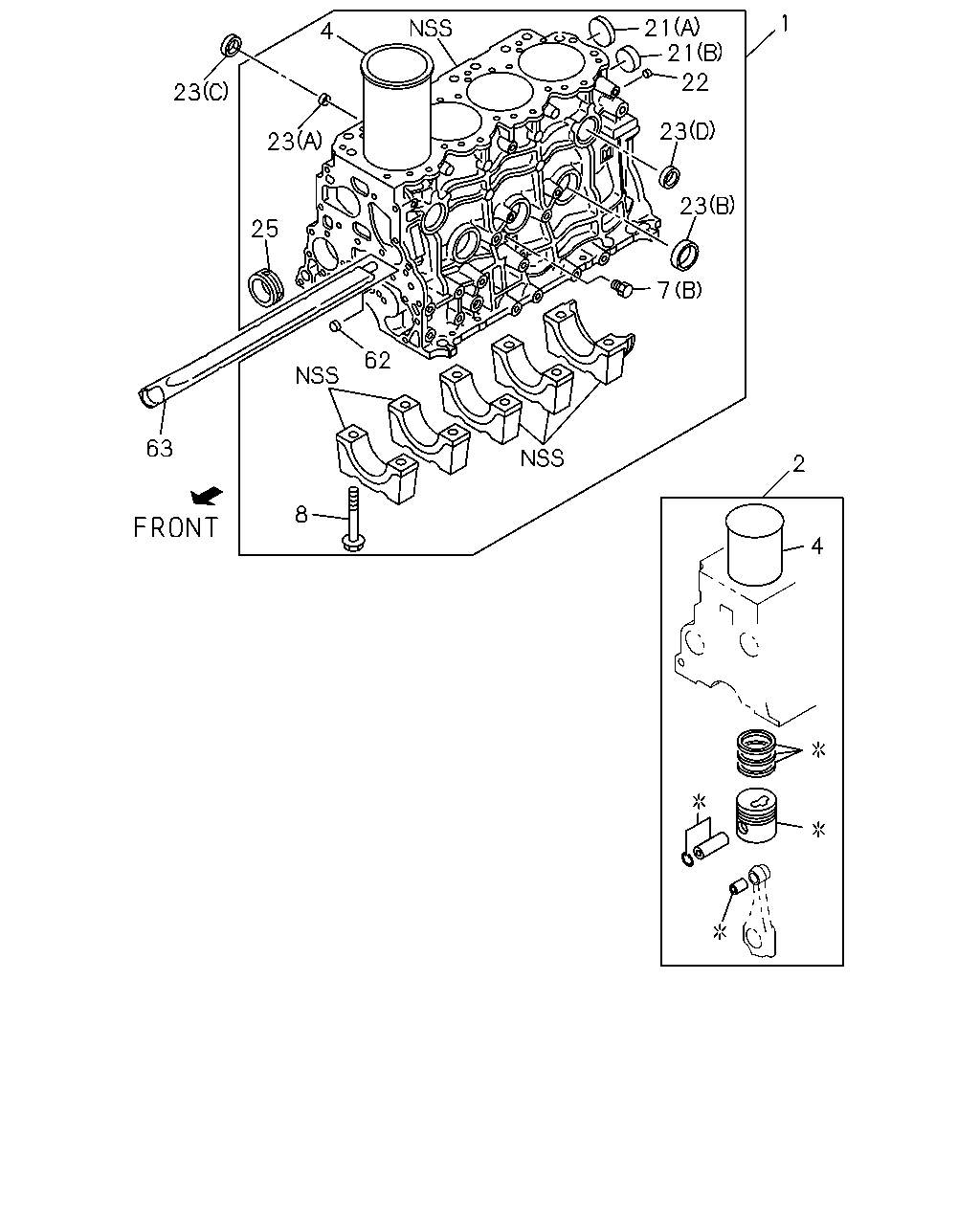

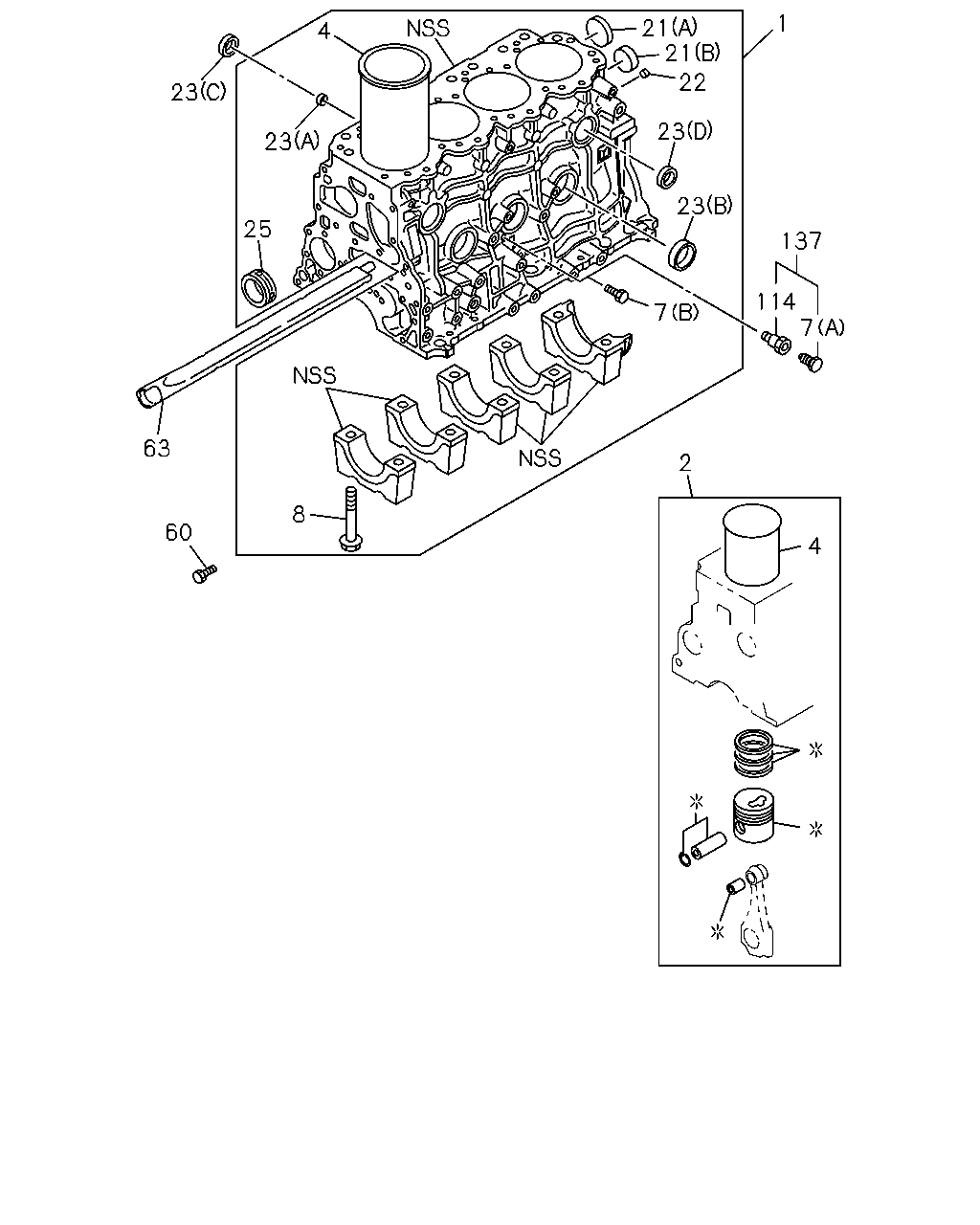

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9312-	●
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9609-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-177-0	04	1	9312-9409	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-178-0	04	1	9312-9409	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-179-0	04	1	9312-9409	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-180-0	04	1	9312-9409	●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-181-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-181-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-182-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-182-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-183-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-183-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-184-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-184-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-177-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-178-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-179-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-180-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-209-0	04	1	9609-9711		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-209-0	04	1	9712-9804		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-209-0	04	1	9805-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-210-0	04	1	9609-9711		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9712-9804		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-210-0	04	1	9805-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-211-0	04	1	9609-9711		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9712-9804		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-211-0	04	1	9805-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-212-0	04	1	9609-9711		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9712-9804		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-212-0	04	1	9805-		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-205-0	04	1	9801-9804		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-206-0	04	1	9801-9804		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-207-0	04	1	9801-9804		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-208-0	04	1	9801-9804		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9609-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9609-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9609-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9609-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9609-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9609-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9609-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9609-		●
7	00.034 PLUG; WATER DRAIN (B) PT1/4	9-09664-001-0	01	1	9312-9608	●
7	00.034 PLUG; WATER DRAIN (B) PT1/4	9-09664-001-0	01	1	9609-	●	●
7	00.034 PLUG; WATER DRAIN WEST MALAYSIA EQUIPMENT(RWP) (A) M10X30	9-09809-097-0	01	1	9312-9409	●
7	00.034 PLUG; WATER DRAIN WEST MALAYSIA EQUIPMENT(RWP) (A) M10X30	9-09809-097-0	01	1	9410-9510	●
7	00.034 PLUG; WATER DRAIN EURO1 SPECIFICATION<6YW> (A) M10X30	9-09809-097-0	01	1	9410-9510	●
7	00.034 PLUG; WATER DRAIN HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) (A) M10X30	9-09809-097-0	01	1	9511-9711	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9312-9608	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9609-	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9312-9608	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9609-	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9312-9608	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9609-	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9312-9608	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9609-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9312-9608	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9609-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9312-9608	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9609-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9312-9608	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9609-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9312-9608	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9609-9712	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9801-9801	●
23	00.034 CUP; SEALING,C/BL FRT & RR EURO2 SPECIFICATION<7AF> (C) OD=36	5-11219-018-0	03	1	9801-9801		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9801-	●	●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9312-9608	●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9609-	●	●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9312-9608	●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9609-	●	●
60	01.531 BOLT; OIL JET 04.520 M16X8 PLUG	9-09661-005-0	01	1	9312-9409	●
60	01.531 BOLT; OIL JET EXC. EURO1 SPECIFICATION<6YW> 04.520 M16X8 PLUG	9-09661-005-0	01	1	9410-9503	●
60	01.531 BOLT; OIL JET EURO1 SPECIFICATION<6YW> 04.105 M16X12	9-99202-316-0	01	1	9410-9503	●
60	01.531 BOLT; OIL JET 04.105 M16X12	9-99202-316-0	01	1	9504-	●
63	01.153 DUCT; WATER,C/BL	8-94419-436-1	01	1	9312-	●
63	01.153 DUCT; WATER,C/BL	8-94456-794-2	01	1	9609-		●
114	01.153 NIPPLE; WATER DRAIN WEST MALAYSIA EQUIPMENT(RWP)	8-94133-968-1	01	1	9312-9409	●
114	01.153 NIPPLE; WATER DRAIN WEST MALAYSIA EQUIPMENT(RWP)	8-94133-968-1	01	1	9410-9510	●
114	01.153 NIPPLE; WATER DRAIN EURO1 SPECIFICATION<6YW>	8-94133-968-1	01	1	9410-9510	●
114	01.153 NIPPLE; WATER DRAIN HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94133-968-1	01	1	9511-9711	●
137	00.034 COCK; DRAIN,WATER WEST MALAYSIA EQUIPMENT(RWP)	8-94422-600-0	01	1	9312-9409	●
137	00.034 COCK; DRAIN,WATER WEST MALAYSIA EQUIPMENT(RWP)	8-94422-600-0	01	1	9410-9510	●
137	00.034 COCK; DRAIN,WATER EURO1 SPECIFICATION<6YW>	8-94422-600-0	01	1	9410-9510	●
137	00.034 COCK; DRAIN,WATER HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94422-600-0	01	1	9511-9711	●

13 194 148 150 13 148 150 61 70 51 52 17 148 53 150 50 15 54 24 40 69 15 69 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9312-9608	●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9609-	●	●
15	01.531 PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	9312-9608	●
15	01.531 PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	9609-	●	●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	9312-9608	●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	9609-9712	●	●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	9801-9801	●
15	01.531 PLUG; OIL GALLERY EURO2 SPECIFICATION<7AF> 03.001 (B) M14X14	8-94152-613-0	01	1	9801-9801		●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	9801-	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9312-9608	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9609-	●	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9312-9608	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9609-	●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9312-9608	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9609-	●	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9312-9608	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9609-	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9312-9608	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9609-	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B WEST MALAYSIA EQUIPMENT(RWP)	8-94167-750-1	01	1	9312-9409	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B WEST MALAYSIA EQUIPMENT(RWP)	8-94167-750-1	01	1	9410-9510	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EURO1 SPECIFICATION<6YW>	8-94167-750-1	01	1	9410-9510	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94167-749-1	01	1	9511-9711	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-2	01	1	9712-9712	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-2	01	1	9801-	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. EURO2 SPECIFICATION<7AF>	8-94167-749-2	01	1	9801-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-94167-749-1	01	1	9312-9409	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. WEST MALAYSIA EQUIPMENT(RWP),EURO1 SPECIFICATION<6YW>	8-94167-749-1	01	1	9410-9510	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94167-750-1	01	1	9511-9608	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP)	8-94167-750-2	01	1	9609-9711	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	9609-9711		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EURO2 SPECIFICATION<7AF>	8-94167-750-2	01	1	9712-		●
53	00.862 BOLT; REAMER M10X60	8-94200-831-2	01	1	9312-9403	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9404-9608	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9609-	●	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9312-9403	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	08	1	9404-9409	●
54	01.428 STUD; OIL PAN TO BLOCK EXC. EURO1 SPECIFICATION<6YW>	8-94133-974-2	08	1	9410-9410	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9411-9608	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9609-	●	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9312-9608	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9609-	●	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	9312-9608	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	9609-9712	●	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-414-0	01	1	9801-9801	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<7AF> 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	9801-9801		●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	9801-	●	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. WEST MALAYSIA EQUIPMENT(RWP) 05.398 (B) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9312-9409	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. WEST MALAYSIA EQUIPMENT(RWP),EURO1 SPECIFICATION<6YW> 05.398 (B) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9410-9502	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9312-9608	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9609-	●	●
148	02.313 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9407-9608	●
148	02.313 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9609-	●	●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9407-9608	●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9609-	●	●

1 21 21 4 22 23 23 23 23 25 7 62 63 2 8 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9312-	●
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9609-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-177-0	04	1	9312-9409	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-178-0	04	1	9312-9409	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-179-0	04	1	9312-9409	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-180-0	04	1	9312-9409	●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-181-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-181-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-182-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-182-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-183-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-183-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-184-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-184-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-177-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-178-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-179-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-180-0	04	1	9410-9711	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-209-0	04	1	9609-9711		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-209-0	04	1	9712-9804		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-209-0	04	1	9805-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-210-0	04	1	9609-9711		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9712-9804		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-210-0	04	1	9805-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-211-0	04	1	9609-9711		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9712-9804		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-211-0	04	1	9805-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-212-0	04	1	9609-9711		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9712-9804		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-212-0	04	1	9805-		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-205-0	04	1	9801-9804		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-206-0	04	1	9801-9804		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-207-0	04	1	9801-9804		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-208-0	04	1	9801-9804		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9609-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9609-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9609-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9609-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9609-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9609-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9609-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9609-		●
7	00.034 PLUG; WATER DRAIN (B) PT1/4	9-09664-001-0	01	1	9312-9608	●
7	00.034 PLUG; WATER DRAIN (B) PT1/4	9-09664-001-0	01	1	9609-	●	●
7	00.034 PLUG; WATER DRAIN WEST MALAYSIA EQUIPMENT(RWP) (A) M10X30	9-09809-097-0	01	1	9312-9409	●
7	00.034 PLUG; WATER DRAIN WEST MALAYSIA EQUIPMENT(RWP) (A) M10X30	9-09809-097-0	01	1	9410-9510	●
7	00.034 PLUG; WATER DRAIN EURO1 SPECIFICATION<6YW> (A) M10X30	9-09809-097-0	01	1	9410-9510	●
7	00.034 PLUG; WATER DRAIN HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) (A) M10X30	9-09809-097-0	01	1	9511-9711	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9312-9608	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9609-	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9312-9608	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9609-	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9312-9608	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9609-	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9312-9608	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9609-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9312-9608	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9609-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9312-9608	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9609-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9312-9608	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9609-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9312-9608	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9609-9712	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9801-9801	●
23	00.034 CUP; SEALING,C/BL FRT & RR EURO2 SPECIFICATION<7AF> (C) OD=36	5-11219-018-0	03	1	9801-9801		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9801-	●	●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9312-9608	●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9609-	●	●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9312-9608	●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9609-	●	●
62	00.034 CUP; SEALING,C/BL FRT OD=14	5-11219-011-0	01	1	9609-		●
63	01.153 DUCT; WATER,C/BL	8-94419-436-1	01	1	9312-	●
63	01.153 DUCT; WATER,C/BL	8-94456-794-2	01	1	9609-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
