0-11 — CYLINDER HEAD (#46982) — 155 parça

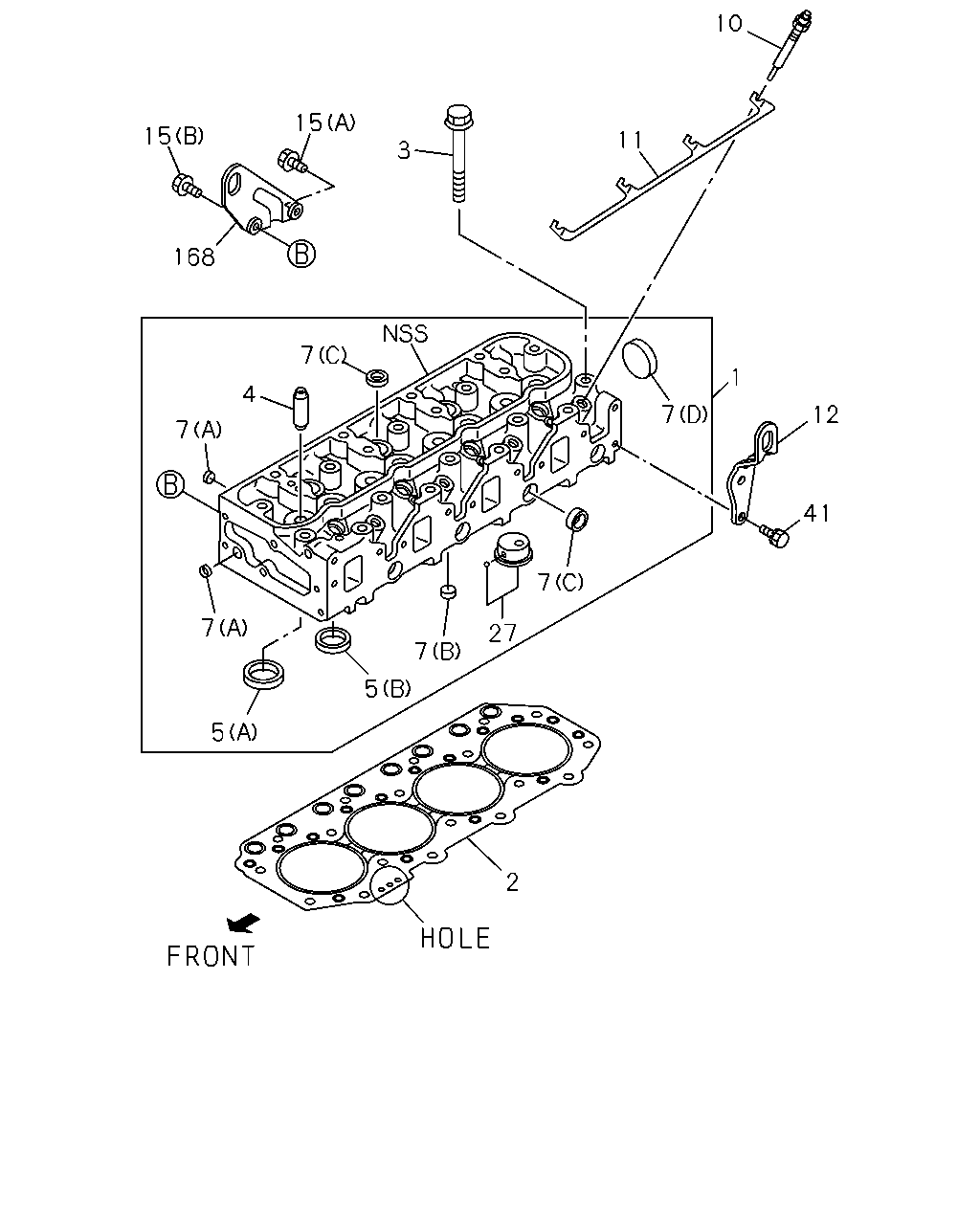

çizim 68021
15 15 3 168 12 27 5 5 2 10 11 1 7 41 7 7 7 7 4 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> 		8-97120-178-0 01 1 9410-9711 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-97120-178-0 01 1 9712-9712 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. SINGAPORE EQUIPMENT(S9Y) 		8-97120-178-0 01 1 9801- ●
1 00.269 HEAD ASM; CYL
SINGAPORE EQUIPMENT(S9Y) 		8-97120-178-0 01 1 9801- ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-94327-269-0 01 1 9312-9406 ●
1 00.269 HEAD ASM; CYL
FRT INDEPENDENT SUSPENSION(6PP) EXC. OIL COOLER<KC4> 		8-94327-269-0 01 1 9312-9406 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-94327-269-0 01 1 9407-9608 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 		8-94327-269-0 01 1 9609-9711 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94431-523-0 01 1 9312-9406 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-94431-523-0 01 1 9407-9510 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW> 		8-94431-523-0 01 1 9511-9711 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-97109-642-0 01 1 9712-9712 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,SINGAPORE EQUIPMENT(S9Y) 		8-97109-642-0 01 1 9801- ●
1 00.269 HEAD ASM; CYL 8-97120-278-0 01 1 9609-9711 ●
1 00.269 HEAD ASM; CYL
EURO2 SPECIFICATION<7AF> 		8-97120-278-0 01 1 9712-9804 ●
1 00.269 HEAD ASM; CYL 8-97120-278-2 01 1 9805- ●
1 00.269 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<7AF> 		8-97089-280-1 01 1 9712-9804 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9609- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9609- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9609- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9312-9608 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9609-9701 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702- ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9312-9608 ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9609- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-94130-558-0 04 1 9312- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9312-9608 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9609- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9609- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9312-9608 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9609- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9312-9608 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9609- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9312-9608 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9609- ● ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 06 1 9312-9406 ●
7 00.253 CUP; SEALING,CYL HEAD
FRT INDEPENDENT SUSPENSION(6PP) EXC. OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 06 1 9312-9406 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 06 1 9407-9510 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> (B) OD=22 		1-09600-011-2 06 1 9511-9608 ●
7 00.253 CUP; SEALING,CYL HEAD
EURO1 SPECIFICATION<6YW> (B) OD=22 		1-09600-011-2 06 1 9511-9608 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> (B) OD=22 		1-09600-011-2 06 1 9609-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
EURO1 SPECIFICATION<6YW> (B) OD=22 		1-09600-011-2 06 1 9609-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		1-09600-011-2 06 1 9609-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		1-09600-011-2 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) (B) OD=22 		1-09600-011-2 07 1 9312-9406 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 07 1 9407-9510 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW> (B) OD=22 		1-09600-011-2 07 1 9511-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 07 1 9712-9712 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,SINGAPORE EQUIPMENT(S9Y) (B) OD=22 		1-09600-011-2 07 1 9801- ●
10 02.270 PLUG; GLOW
JKC/BOSCH 		8-94133-759-6 04 1 9312-9503 ●
10 02.270 PLUG; GLOW
EXC. INDONESIA EQUIPMENT(S4S) JKC/BOSCH 		8-94133-759-7 04 1 9504- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 9410-9503 ●
10 02.270 PLUG; GLOW
EXC. INDONESIA EQUIPMENT(S4S) NGK 		8-94175-158-1 04 1 9504- ●
10 02.270 PLUG; GLOW
NGK 		8-97043-744-1 04 1 9609- ●
11 02.251 CONNECTOR; GLOW PLUG
T=1.0 		8-94133-760-0 01 1 9312-9503 ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. INDONESIA EQUIPMENT(S4S) T=1.0 		8-94133-760-0 01 1 9504-9602 ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. INDONESIA EQUIPMENT(S4S) 		8-97146-517-0 01 1 9603- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9609- ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 9312-9608 ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 9609- ● ●
15 00.004 BOLT; HANGER,FRT
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9608 ●
15 00.004 BOLT; HANGER,FRT
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9609- ● ●
15 00.004 BOLT; HANGER,FRT
00.029 (B) M10X28 W/LK WASHER 		0-50041-028-0 01 1 9312-9608 ●
15 00.004 BOLT; HANGER,FRT
00.029 (B) M10X28 W/LK WASHER 		0-50041-028-0 01 1 9609-9803 ● ●
15 00.004 BOLT; HANGER,FRT
03.417 (B) M10X25 FLANGE 		0-28081-025-0 01 1 9804- ● ●
27 00.253 PLUG; HOT 8-97120-280-0 04 1 9609-9711 ●
27 00.253 PLUG; HOT
EURO2 SPECIFICATION<7AF> 		8-97120-280-0 04 1 9712-9804 ●
27 00.253 PLUG; HOT 8-97120-280-0 04 1 9805- ●
27 00.253 PLUG; HOT
EXC. EURO2 SPECIFICATION<7AF> 		8-97089-278-0 04 1 9801-9804 ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9312-9608 ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9609- ● ●
168 00.004 HANGER; ENG,FRT 8-94379-714-0 01 1 9312-9409 ●
168 00.004 HANGER; ENG,FRT
EXC. EURO1 SPECIFICATION<6YW> 		8-94379-714-0 01 1 9410-9412 ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 9501-9608 ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 9609- ● ●

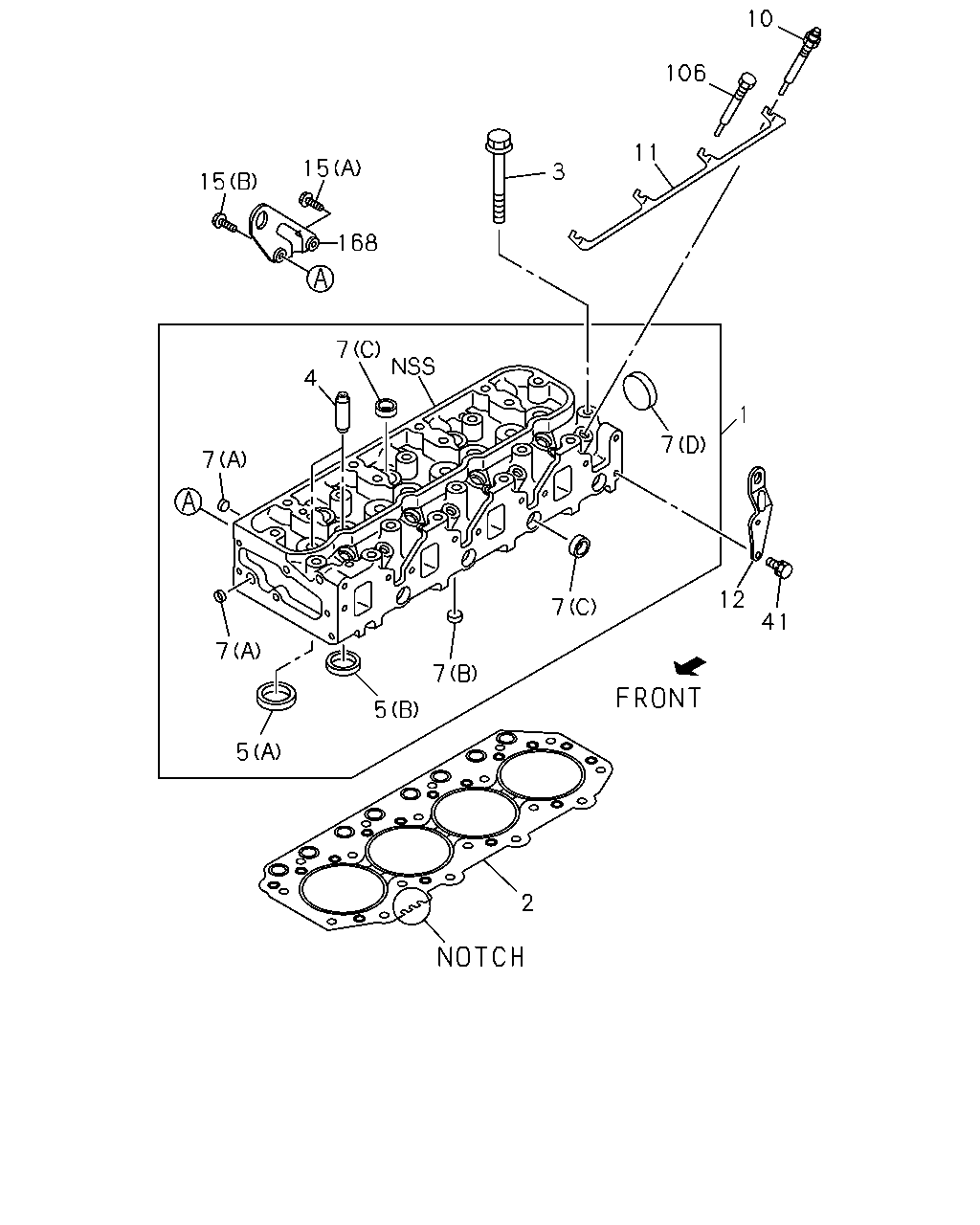

çizim 69232
15 3 15 168 12 5 5 10 106 11 7 4 7 7 7 7 7 1 41 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> 		8-97120-178-0 01 1 9410-9711 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-97120-178-0 01 1 9712-9712 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. SINGAPORE EQUIPMENT(S9Y) 		8-97120-178-0 01 1 9801- ●
1 00.269 HEAD ASM; CYL
SINGAPORE EQUIPMENT(S9Y) 		8-97120-178-0 01 1 9801- ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-94327-269-0 01 1 9312-9406 ●
1 00.269 HEAD ASM; CYL
FRT INDEPENDENT SUSPENSION(6PP) EXC. OIL COOLER<KC4> 		8-94327-269-0 01 1 9312-9406 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-94327-269-0 01 1 9407-9608 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 		8-94327-269-0 01 1 9609-9711 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94431-523-0 01 1 9312-9406 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-94431-523-0 01 1 9407-9510 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW> 		8-94431-523-0 01 1 9511-9711 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-97109-642-0 01 1 9712-9712 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,SINGAPORE EQUIPMENT(S9Y) 		8-97109-642-0 01 1 9801- ●
1 00.269 HEAD ASM; CYL 8-97120-278-0 01 1 9609-9711 ●
1 00.269 HEAD ASM; CYL
EURO2 SPECIFICATION<7AF> 		8-97120-278-0 01 1 9712-9804 ●
1 00.269 HEAD ASM; CYL 8-97120-278-2 01 1 9805- ●
1 00.269 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<7AF> 		8-97089-280-1 01 1 9712-9804 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9609- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9609- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9609- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9312-9608 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9609-9701 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702- ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9312-9608 ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9609- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-94130-558-0 04 1 9312- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9312-9608 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9609- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9609- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9312-9608 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9609- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9312-9608 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9609- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9312-9608 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9609- ● ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 06 1 9312-9406 ●
7 00.253 CUP; SEALING,CYL HEAD
FRT INDEPENDENT SUSPENSION(6PP) EXC. OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 06 1 9312-9406 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 06 1 9407-9510 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> (B) OD=22 		1-09600-011-2 06 1 9511-9608 ●
7 00.253 CUP; SEALING,CYL HEAD
EURO1 SPECIFICATION<6YW> (B) OD=22 		1-09600-011-2 06 1 9511-9608 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> (B) OD=22 		1-09600-011-2 06 1 9609-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
EURO1 SPECIFICATION<6YW> (B) OD=22 		1-09600-011-2 06 1 9609-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		1-09600-011-2 06 1 9609-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		1-09600-011-2 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) (B) OD=22 		1-09600-011-2 07 1 9312-9406 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 07 1 9407-9510 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW> (B) OD=22 		1-09600-011-2 07 1 9511-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 07 1 9712-9712 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,SINGAPORE EQUIPMENT(S9Y) (B) OD=22 		1-09600-011-2 07 1 9801- ●
10 02.270 PLUG; GLOW
JKC/BOSCH 		8-94133-759-6 04 1 9312-9503 ●
10 02.270 PLUG; GLOW
EXC. INDONESIA EQUIPMENT(S4S) JKC/BOSCH 		8-94133-759-7 04 1 9504- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 9410-9503 ●
10 02.270 PLUG; GLOW
EXC. INDONESIA EQUIPMENT(S4S) NGK 		8-94175-158-1 04 1 9504- ●
10 02.270 PLUG; GLOW
NGK 		8-97043-744-1 04 1 9609- ●
11 02.251 CONNECTOR; GLOW PLUG
T=1.0 		8-94133-760-0 01 1 9312-9503 ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. INDONESIA EQUIPMENT(S4S) T=1.0 		8-94133-760-0 01 1 9504-9602 ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. INDONESIA EQUIPMENT(S4S) 		8-97146-517-0 01 1 9603- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9609- ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 9312-9608 ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 9609- ● ●
15 00.004 BOLT; HANGER,FRT
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9608 ●
15 00.004 BOLT; HANGER,FRT
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9609- ● ●
15 00.004 BOLT; HANGER,FRT
00.029 (B) M10X28 W/LK WASHER 		0-50041-028-0 01 1 9312-9608 ●
15 00.004 BOLT; HANGER,FRT
00.029 (B) M10X28 W/LK WASHER 		0-50041-028-0 01 1 9609-9803 ● ●
15 00.004 BOLT; HANGER,FRT
03.417 (B) M10X25 FLANGE 		0-28081-025-0 01 1 9804- ● ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9312-9608 ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9609- ● ●
106 00.293 PLUG; GLOW PLUG HOLE
INDONESIA EQUIPMENT(S4S) DUMMY PLUG 		5-11119-007-1 04 1 9504- ●
168 00.004 HANGER; ENG,FRT 8-94379-714-0 01 1 9312-9409 ●
168 00.004 HANGER; ENG,FRT
EXC. EURO1 SPECIFICATION<6YW> 		8-94379-714-0 01 1 9410-9412 ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 9501-9608 ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 9609- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
