◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶

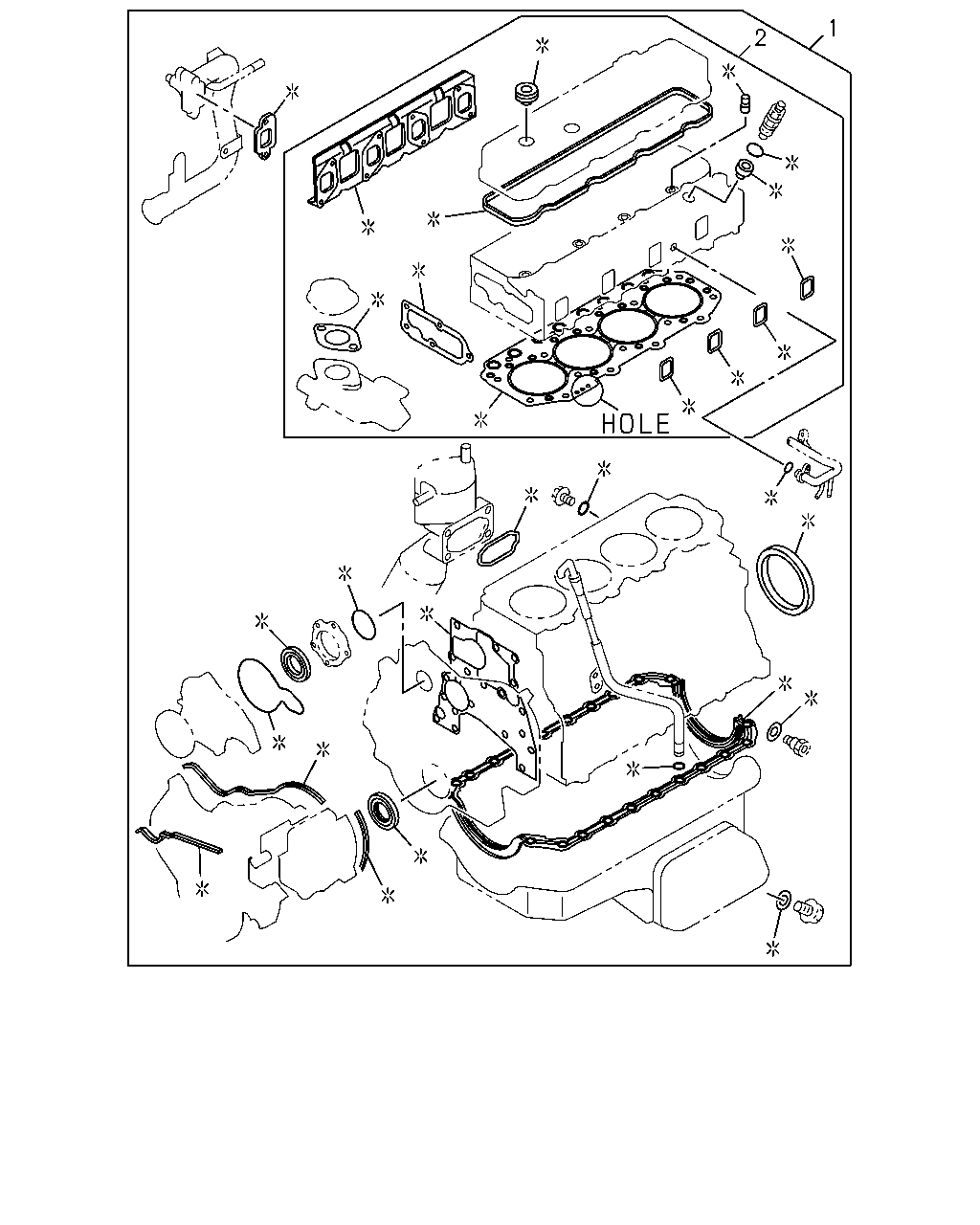

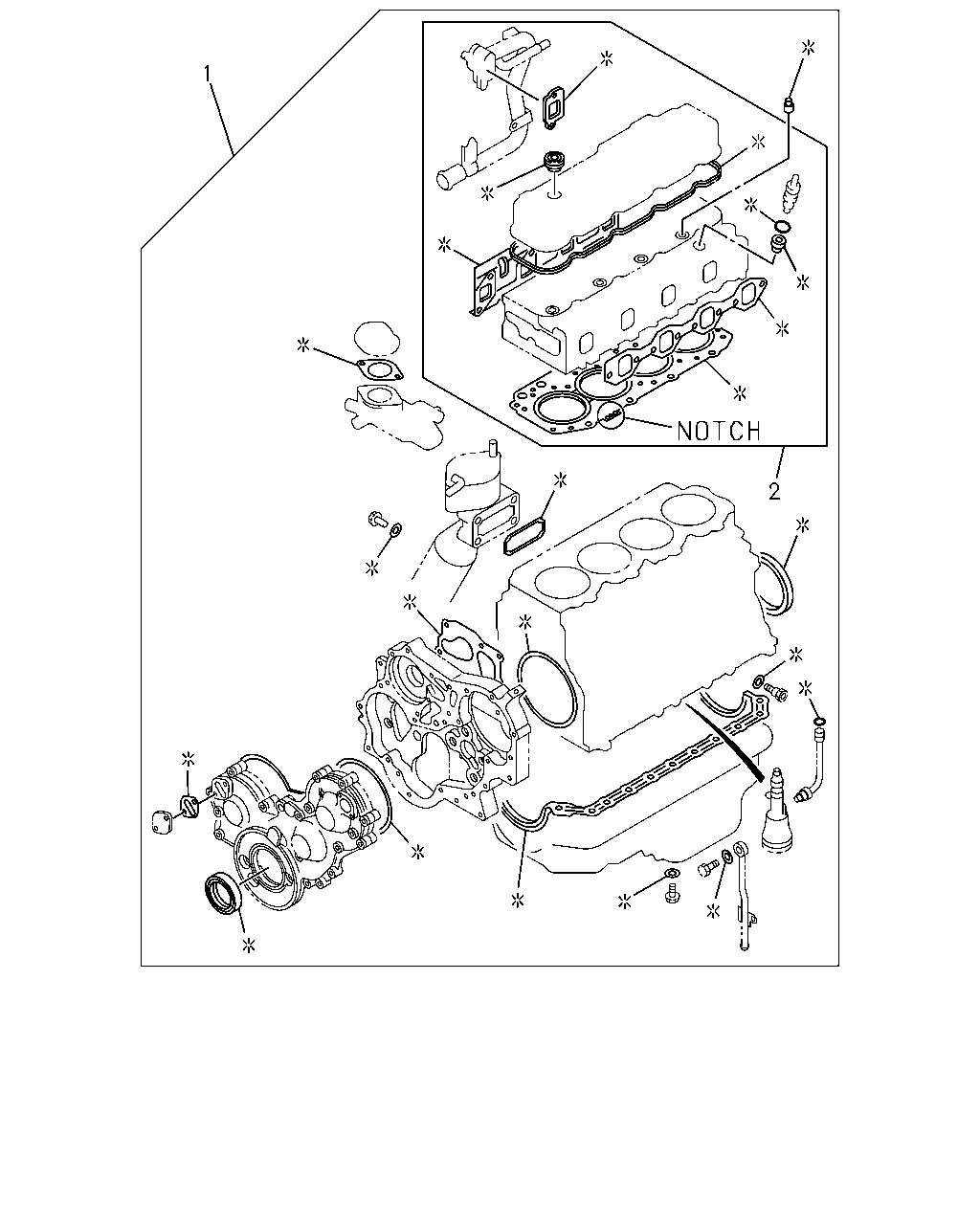

0-05 — ENGINE GASKET KIT (#46980) — 120 parça

1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-NOTCH	5-87811-616-0	01	1	9312-9408	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-NOTCH	5-87811-617-0	01	1	9312-9408	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-NOTCH	5-87811-618-0	01	1	9312-9408	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.50 1-NOTCH	5-87812-206-0	01	1	9409-9409	●
1	00.010 GASKET SET; ENG OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.50 1-NOTCH	5-87812-206-0	01	1	9410-9502	●
1	00.010 GASKET SET; ENG OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.50 1-NOTCH	5-87812-591-0	01	1	9503-9505	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.55 2-NOTCH	5-87812-207-0	01	1	9409-9409	●
1	00.010 GASKET SET; ENG OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.55 2-NOTCH	5-87812-207-0	01	1	9410-9502	●
1	00.010 GASKET SET; ENG OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.55 2-NOTCH	5-87812-592-0	01	1	9503-9505	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-NOTCH	5-87812-208-0	01	1	9409-9409	●
1	00.010 GASKET SET; ENG OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.70 3-NOTCH	5-87812-208-0	01	1	9410-9502	●
1	00.010 GASKET SET; ENG OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.70 3-NOTCH	5-87812-593-0	01	1	9503-9505	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-NOTCH	5-87812-595-0	01	1	9511-9604	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-NOTCH	5-87812-892-1	01	1	9605-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-NOTCH	5-87812-596-0	01	1	9511-9604	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-NOTCH	5-87812-893-1	01	1	9605-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-NOTCH	5-87812-597-0	01	1	9511-9604	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-NOTCH	5-87812-894-1	01	1	9605-	●
1	00.010 GASKET SET; ENG OVERHAUL EURO1 SPECIFICATION<6YW> T=1.60 1-NOTCH	5-87812-595-0	01	1	9502-9505	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-NOTCH	5-87812-595-0	01	1	9506-9510	●
1	00.010 GASKET SET; ENG OVERHAUL EURO1 SPECIFICATION<6YW> T=1.65 2-NOTCH	5-87812-596-0	01	1	9502-9505	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-NOTCH	5-87812-596-0	01	1	9506-9510	●
1	00.010 GASKET SET; ENG OVERHAUL EURO1 SPECIFICATION<6YW> T=1.70 3-NOTCH	5-87812-597-0	01	1	9502-9505	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-NOTCH	5-87812-597-0	01	1	9506-9510	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-HOLE	5-87812-904-0	01	1	9609-9711		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-HOLE	5-87812-905-0	01	1	9609-9711		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-HOLE	5-87812-906-0	01	1	9609-9711		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-HOLE	5-87812-913-1	01	1	9712-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-HOLE	5-87812-914-1	01	1	9712-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-HOLE	5-87812-915-1	01	1	9712-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.60 1-NOTCH	5-87811-731-0	01	1	9312-9408	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.65 2-NOTCH	5-87811-732-0	01	1	9312-9408	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-NOTCH	5-87811-733-0	01	1	9312-9408	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.60 1-NOTCH	5-87812-203-0	01	1	9409-9409	●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.60 1-NOTCH	5-87812-203-0	01	1	9410-9501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.65 2-NOTCH	5-87812-204-0	01	1	9409-9409	●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.65 2-NOTCH	5-87812-204-0	01	1	9410-9501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-NOTCH	5-87812-205-0	01	1	9409-9409	●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.70 3-NOTCH	5-87812-205-0	01	1	9410-9501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.50 1-NOTCH	5-87812-520-0	01	1	9502-9510	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.55 2-NOTCH	5-87812-521-0	01	1	9502-9510	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-NOTCH	5-87812-522-0	01	1	9502-9510	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.50 1-NOTCH	5-87812-520-0	01	1	9511-9604	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.60 1-NOTCH	5-87812-898-1	01	1	9605-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.55 2-NOTCH	5-87812-521-0	01	1	9511-9604	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.65 2-NOTCH	5-87812-899-1	01	1	9605-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-NOTCH	5-87812-522-0	01	1	9511-9604	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-NOTCH	5-87812-900-1	01	1	9605-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.60 1-HOLE	5-87813-021-0	01	1	9609-9711		●
2	00.010 GASKET SET; ENG HD OVERHAUL EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE	5-87813-021-0	01	1	9712-9804		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.60 1-HOLE	5-87813-021-1	01	1	9805-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.65 2-HOLE	5-87813-022-0	01	1	9609-9711		●
2	00.010 GASKET SET; ENG HD OVERHAUL EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE	5-87813-022-0	01	1	9712-9804		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.65 2-HOLE	5-87813-022-1	01	1	9805-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-HOLE	5-87813-023-0	01	1	9609-9711		●
2	00.010 GASKET SET; ENG HD OVERHAUL EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE	5-87813-023-0	01	1	9712-9804		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-HOLE	5-87813-023-1	01	1	9805-		●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE	5-87812-907-0	01	1	9801-9804		●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE	5-87812-908-0	01	1	9801-9804		●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE	5-87812-909-0	01	1	9801-9804		●

1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-NOTCH	5-87811-616-0	01	1	9312-9408	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-NOTCH	5-87811-617-0	01	1	9312-9408	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-NOTCH	5-87811-618-0	01	1	9312-9408	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.50 1-NOTCH	5-87812-206-0	01	1	9409-9409	●
1	00.010 GASKET SET; ENG OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.50 1-NOTCH	5-87812-206-0	01	1	9410-9502	●
1	00.010 GASKET SET; ENG OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.50 1-NOTCH	5-87812-591-0	01	1	9503-9505	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.55 2-NOTCH	5-87812-207-0	01	1	9409-9409	●
1	00.010 GASKET SET; ENG OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.55 2-NOTCH	5-87812-207-0	01	1	9410-9502	●
1	00.010 GASKET SET; ENG OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.55 2-NOTCH	5-87812-592-0	01	1	9503-9505	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-NOTCH	5-87812-208-0	01	1	9409-9409	●
1	00.010 GASKET SET; ENG OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.70 3-NOTCH	5-87812-208-0	01	1	9410-9502	●
1	00.010 GASKET SET; ENG OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.70 3-NOTCH	5-87812-593-0	01	1	9503-9505	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-NOTCH	5-87812-595-0	01	1	9511-9604	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-NOTCH	5-87812-892-1	01	1	9605-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-NOTCH	5-87812-596-0	01	1	9511-9604	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-NOTCH	5-87812-893-1	01	1	9605-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-NOTCH	5-87812-597-0	01	1	9511-9604	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-NOTCH	5-87812-894-1	01	1	9605-	●
1	00.010 GASKET SET; ENG OVERHAUL EURO1 SPECIFICATION<6YW> T=1.60 1-NOTCH	5-87812-595-0	01	1	9502-9505	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-NOTCH	5-87812-595-0	01	1	9506-9510	●
1	00.010 GASKET SET; ENG OVERHAUL EURO1 SPECIFICATION<6YW> T=1.65 2-NOTCH	5-87812-596-0	01	1	9502-9505	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-NOTCH	5-87812-596-0	01	1	9506-9510	●
1	00.010 GASKET SET; ENG OVERHAUL EURO1 SPECIFICATION<6YW> T=1.70 3-NOTCH	5-87812-597-0	01	1	9502-9505	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-NOTCH	5-87812-597-0	01	1	9506-9510	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-HOLE	5-87812-904-0	01	1	9609-9711		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-HOLE	5-87812-905-0	01	1	9609-9711		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-HOLE	5-87812-906-0	01	1	9609-9711		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-HOLE	5-87812-913-1	01	1	9712-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-HOLE	5-87812-914-1	01	1	9712-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-HOLE	5-87812-915-1	01	1	9712-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.60 1-NOTCH	5-87811-731-0	01	1	9312-9408	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.65 2-NOTCH	5-87811-732-0	01	1	9312-9408	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-NOTCH	5-87811-733-0	01	1	9312-9408	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.60 1-NOTCH	5-87812-203-0	01	1	9409-9409	●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.60 1-NOTCH	5-87812-203-0	01	1	9410-9501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.65 2-NOTCH	5-87812-204-0	01	1	9409-9409	●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.65 2-NOTCH	5-87812-204-0	01	1	9410-9501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-NOTCH	5-87812-205-0	01	1	9409-9409	●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. EURO1 SPECIFICATION<6YW> T=1.70 3-NOTCH	5-87812-205-0	01	1	9410-9501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.50 1-NOTCH	5-87812-520-0	01	1	9502-9510	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.55 2-NOTCH	5-87812-521-0	01	1	9502-9510	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-NOTCH	5-87812-522-0	01	1	9502-9510	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.50 1-NOTCH	5-87812-520-0	01	1	9511-9604	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.60 1-NOTCH	5-87812-898-1	01	1	9605-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.55 2-NOTCH	5-87812-521-0	01	1	9511-9604	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.65 2-NOTCH	5-87812-899-1	01	1	9605-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-NOTCH	5-87812-522-0	01	1	9511-9604	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-NOTCH	5-87812-900-1	01	1	9605-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.60 1-HOLE	5-87813-021-0	01	1	9609-9711		●
2	00.010 GASKET SET; ENG HD OVERHAUL EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE	5-87813-021-0	01	1	9712-9804		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.60 1-HOLE	5-87813-021-1	01	1	9805-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.65 2-HOLE	5-87813-022-0	01	1	9609-9711		●
2	00.010 GASKET SET; ENG HD OVERHAUL EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE	5-87813-022-0	01	1	9712-9804		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.65 2-HOLE	5-87813-022-1	01	1	9805-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-HOLE	5-87813-023-0	01	1	9609-9711		●
2	00.010 GASKET SET; ENG HD OVERHAUL EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE	5-87813-023-0	01	1	9712-9804		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-HOLE	5-87813-023-1	01	1	9805-		●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE	5-87812-907-0	01	1	9801-9804		●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE	5-87812-908-0	01	1	9801-9804		●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE	5-87812-909-0	01	1	9801-9804		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
