8-85 — REAR WIPER AND WASHER (#46976) — 46 parça

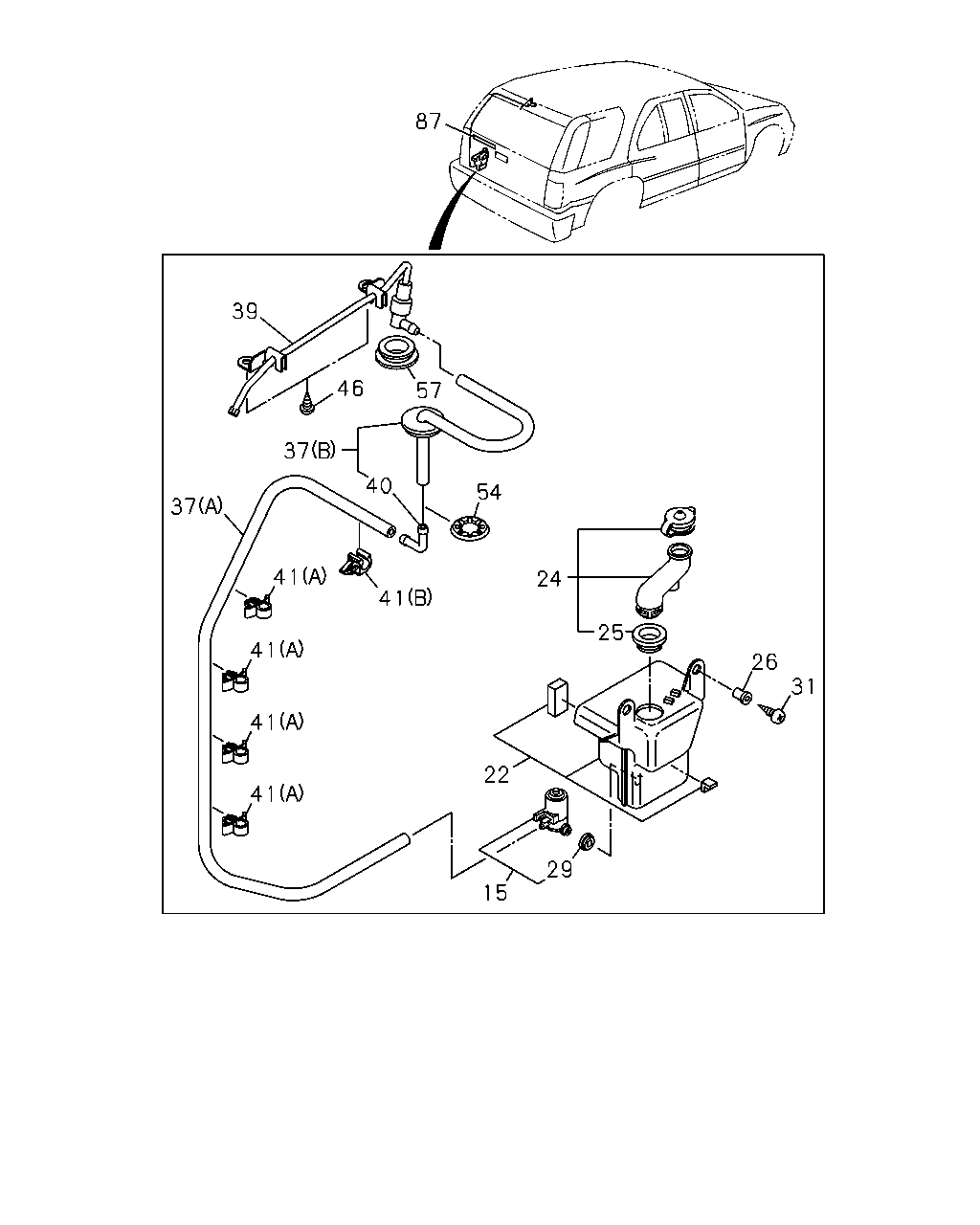

çizim 67968
87 39 46 57 40 54 37 37 41 41 24 25 26 31 29 22 15 41 41 41
BalonParca AdiParca NoAdetTipApplied Date
15 MOTOR ASM; RR,WASHER TANK
RR WIPER<C25> 		8-94377-700-1 01 1 9301-
22 TANK ASM; RR WASHER
RR WIPER<C25> 		8-97074-819-1 01 1 9301-
24 CAP; WASHER TANK,RR
RR WIPER<C25> 		8-97074-440-0 01 1 9301-
25 GASKET; TANK TO HOLDER
RR WIPER<C25> 		8-94380-533-0 01 1 9301-
26 RUBBER; CUSHION,RR WASHER TANK
RR WIPER<C25> M6 RUBBER NUT 		8-97023-281-0 02 1 9301-
29 GASKET; TANK TO MOTOR
RR WIPER<C25> 		8-94352-050-0 01 1 9301-
31 SCREW; RR WASHER TANK TO BODY
RR WIPER<C25> M6X25 		9-03920-625-0 02 1 9301-
37 HOSE; WASHER TANK,RR
RR WIPER<C25> (B) 		8-97109-207-0 01 1 9301-
37 HOSE; WASHER TANK,RR
RR WIPER<C25> (A) SERVICED BY L=10000 		9-09914-906-0 01 1 9301-
39 NOZZLE; RR WINDSHIELD,WASHER
RR WIPER<C25> 		8-97066-391-2 01 1 9301-9511
39 NOZZLE; RR WINDSHIELD,WASHER
RR WIPER<C25> 		8-97139-106-0 01 1 9512-
40 JOINT; RR WASHER TANK HOSE
RR WIPER<C25> 		8-97026-291-0 01 1 9301-
41 CLIP; RR WASHER TANK HOSE
RR WIPER<C25> (A) ID=6 		8-94417-625-0 04 1 9301-
41 CLIP; RR WASHER TANK HOSE
RR WIPER<C25> (B) ID=7 		8-97014-713-0 01 1 9505-9505
41 CLIP; RR WASHER TANK HOSE
RR WIPER<C25> (B) ID=6.8 		8-97134-154-0 01 1 9506-
46 SCREW; NOZZLE,RR WASHER
RR WIPER<C25> 		8-94198-480-0 02 1 9301-
54 PLUG; ROOF
EXC. RR WIPER<C25> 		8-94370-152-0 01 1 9301-
57 GROMMET; NOZZLE HOLE
RR WIPER<C25> 		8-97022-573-0 01 1 9301-
87 SEAL; PROTECT,RR WIPER BLADE
RR WIPER<C25> 		8-97065-246-1 01 1 9301-

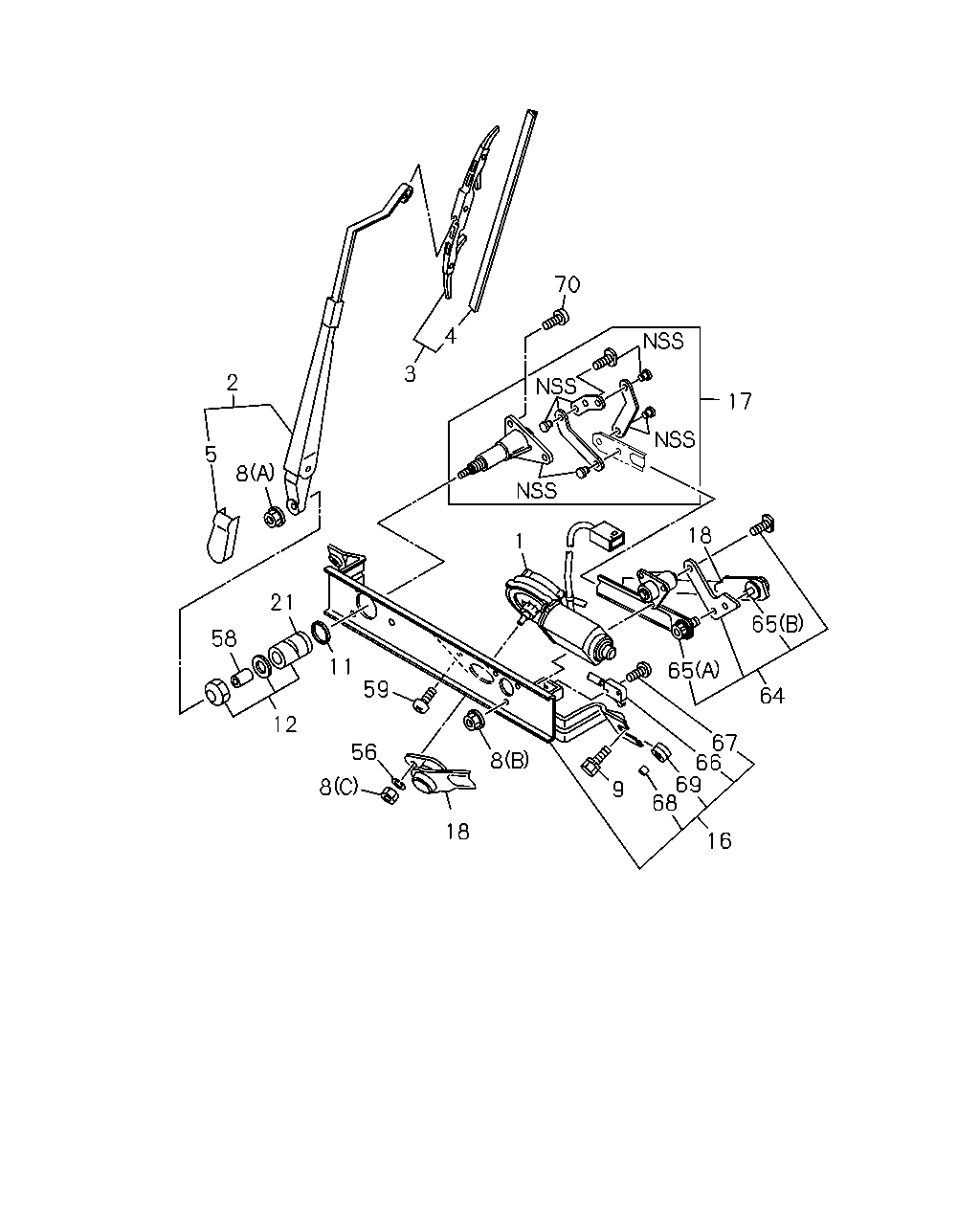

çizim 67971
70 17 18 65 64 65 67 66 69 68 16 9 8 18 8 56 59 11 12 58 21 8 5 2 3 4 1
BalonParca AdiParca NoAdetTipApplied Date
1 MOTOR ASM; RR WIPER
RR WIPER<C25> 		8-97024-318-1 01 1 9301-
2 ARM ASM; REAR WIPER
RR WIPER<C25> 		8-94334-767-0 01 1 9301-
3 BLADE ASM; REAR WIPER
RR WIPER<C25> 		8-94334-768-0 01 1 9301-
4 RUBBER; BLADE,RR WIPER
RR WIPER<C25> 		8-97024-311-0 01 1 9301-
5 COVER; REAR WIPER ARM
RR WIPER<C25> 		8-94466-632-0 01 1 9301-
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER<C25> (C) 		8-97024-321-0 01 1 9301-
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER<C25> (B) 		8-97024-327-0 03 1 9301-
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER<C25> (A) M8 FLANGE 		9-09844-190-0 01 1 9301-
9 BOLT; BRKT,WIPER MOTOR
RR WIPER<C25> M6X25 W/LK&PL WASHER 		8-94416-136-0 04 1 9301-
11 WASHER; REAR WIPER
RR WIPER<C25> 		8-97024-314-0 01 1 9301-
12 ATTACHMENT KIT; REAR WIPER MOTOR
RR WIPER<C25> 		8-97024-312-0 01 1 9301-
16 BRACKET; RR WIPER MOTOR
RR WIPER<C25> 		8-97024-320-0 01 1 9301-9306
16 BRACKET; RR WIPER MOTOR
RR WIPER<C25> 		8-97092-859-0 01 1 9307-
17 PIVOT; WIPER LINK
RR WIPER<C25> 		8-97024-328-0 01 1 9301-
18 LINK; RR WIPER
RR WIPER<C25> 		8-97024-323-0 01 1 9301-
21 SEAL; PIVOT,RR WIPER
RR WIPER<C25> 		8-97024-313-0 01 1 9301-
56 WASHER; LK,WIPER MOTOR,RR
RR WIPER<C25> ID=8.2 		9-09150-508-0 01 1 9301-
58 SEAL; SHAFT,RR WIPER
RR WIPER<C25> 		8-97024-315-0 01 1 9301-
59 SCREW; REAR WIPER MOTOR
RR WIPER<C25> 		8-97024-319-0 03 1 9301-
64 IDLER ASM; RR WIPER
RR WIPER<C25> 		8-97024-326-0 01 1 9301-
65 RETAINER; BALL,RR WIPER
RR WIPER<C25> (A) 		8-97024-322-0 01 1 9301-
65 RETAINER; BALL,RR WIPER
RR WIPER<C25> (B) 		8-97024-325-0 01 1 9301-
66 SWITCH; MICRO,RR WIPER
RR WIPER<C25> 		8-97024-330-0 01 1 9301-
67 SCREW; MICRO SW,RR WIPER
RR WIPER<C25> 		8-97024-331-0 01 1 9301-
68 BUSHING; CUSHION,RR WIPER
RR WIPER<C25> 		8-97024-317-0 04 1 9301-
69 RUBBER; CUSHION,RR,WIPER
RR WIPER<C25> 		8-97024-316-0 04 1 9301-
70 SCREW; PIVOT,RR WIPER
RR WIPER<C25> 		8-97024-329-0 03 1 9301-
