50688 - UC-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

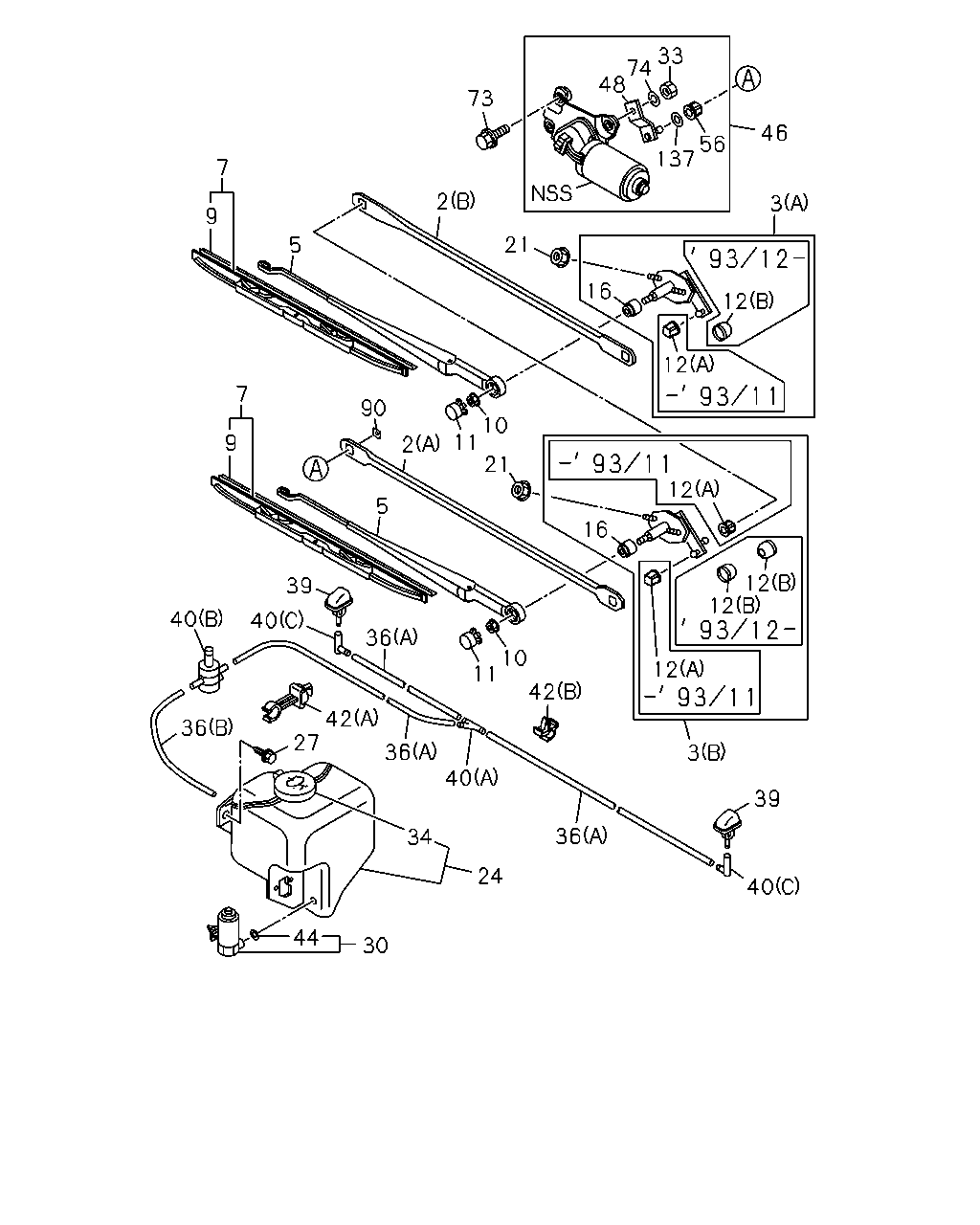

8-80 — WINDSHIELD WIPER AND WASHER
(#46975) — 50 parça
73
2
21
16
12
12
3
46
56
137
48
74
33
12
12
12
12
3
39
40
36
24
34
30
44
27
36
40
40
39
36
11
10
42
42
36
40
16
5
2
90
7
9
11
10
21
5
7
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LINK; FRT WIPER
(A)
8-94319-012-0
01
1
9301-9311
2
LINK; FRT WIPER
(A)
8-97110-242-0
01
1
9312-
2
LINK; FRT WIPER
(B)
8-94319-013-0
01
1
9301-9311
2
LINK; FRT WIPER
(B)
8-97110-243-0
01
1
9312-
3
PIVOT ASM; FRT WIPER
(A)
8-94319-014-0
01
1
9301-9308
3
PIVOT ASM; FRT WIPER
(A)
8-97103-347-0
01
1
9309-9311
3
PIVOT ASM; FRT WIPER
(A)
8-97110-241-0
01
1
9312-
3
PIVOT ASM; FRT WIPER
(B)
8-94319-015-0
01
1
9301-9311
3
PIVOT ASM; FRT WIPER
(B)
8-97110-240-0
01
1
9312-
5
ARM; WIPER
L=468
8-94317-667-0
01
1
9301-9603
5
ARM; WIPER
L=468
8-97149-375-0
01
1
9604-
5
ARM; WIPER
L=495
8-94317-668-0
01
1
9301-9603
5
ARM; WIPER
L=495
8-97149-376-0
01
1
9604-
7
BLADE; WIPER
8-94317-671-0
02
1
9301-9603
7
BLADE; WIPER
8-97136-364-0
02
1
9604-
9
RUBBER; FRT WIPER BLADE
8-94317-675-0
02
1
9301-
10
NUT; WIPER ARM TO WIPER PIVOT
M8 FLANGE
9-09844-190-0
02
1
9301-
11
COVER; WIPER ARM
8-94460-965-0
02
1
9301-
12
RETAINER; BALL JOINT,FRT WIPER LINK
(A)
5-83318-029-0
03
1
9301-9311
12
RETAINER; BALL JOINT,FRT WIPER LINK
(B)
8-97025-889-0
03
1
9312-
16
SEAL; BALL JOINT
8-94319-016-0
02
1
9301-
21
NUT; WIPER LINK PIVOT
M6 W/DISHED WASHER
8-94423-325-0
04
1
9301-
24
TANK ASM; WASHER
8-94335-626-0
01
1
9301-9511
24
TANK ASM; WASHER
8-94381-128-1
01
1
9512-
27
BOLT; WASHER TANK
M6X20
8-94412-422-0
02
1
9301-
30
MOTOR ASM; FRT WASHER TANK
8-94335-625-1
01
1
9301-
33
NUT; MOTOR TO ARM
M8
9-09111-408-0
01
1
9301-
34
CAP; WASHER TANK
8-94436-369-0
01
1
9301-
36
HOSE; WASHER
(B) L=1340
8-97085-163-0
01
1
9301-9308
36
HOSE; WASHER
(B) L=1340 SERVICED BY L=10000
8-94153-780-0
01
1
9309-9504
36
HOSE; WASHER
(B) SERVICED BY L=10000
8-94389-303-0
01
1
9505-
36
HOSE; WASHER
(A) L=230, L=570, L=1260 SERVICED BY L=10000
9-09914-906-0
01
1
9301-
39
NOZZLE; WINDSHIELD WASHER
8-94447-235-0
02
1
9301-
40
JOINT; WASHER HOSE
(A) 3WAY
5-83363-003-0
01
1
9301-
40
JOINT; WASHER HOSE
(C)
8-94335-628-0
02
1
9301-
40
JOINT; WASHER HOSE
(B)
8-97039-660-0
01
1
9301-
42
CLIP; WASHER HOSE
(A) L=46
8-94154-654-1
01
1
9301-
42
CLIP; WASHER HOSE
(B) ID=5.8 L=8
8-94155-681-0
03
1
9301-
44
GASKET; MOTOR TO TANK
8-94352-050-0
01
1
9301-
46
MOTOR ASM; FRT WINDSHIELD WIPER
8-94318-806-1
01
1
9301-9504
46
MOTOR ASM; FRT WINDSHIELD WIPER
8-97118-073-0
01
1
9505-9601
46
MOTOR ASM; FRT WINDSHIELD WIPER
8-97146-293-0
01
1
9602-
48
ARM; WIPER MOTOR
8-94323-720-0
01
1
9301-9601
48
ARM; WIPER MOTOR
8-97129-962-0
01
1
9602-
56
JOINT; OUTER,WIPER MOTOR
8-94323-719-0
01
1
9301-
73
BOLT
M6X25 W/LK&PL WASHER
8-94416-136-0
04
1
9301-
74
WASHER; ARM TO MOTOR
ID=8.2
9-09150-508-0
01
1
9301-9601
74
WASHER; ARM TO MOTOR
ID=8.2
9-09150-608-0
01
1
9602-
90
SEAL; WIPER PIVOT HOLE
8-97016-564-0
01
1
9301-
137
SEAL; JOINT,WIPER MOTOR
8-94167-624-0
01
1
9301-
