8-75 — CONDENSER (#46974) — 123 parça

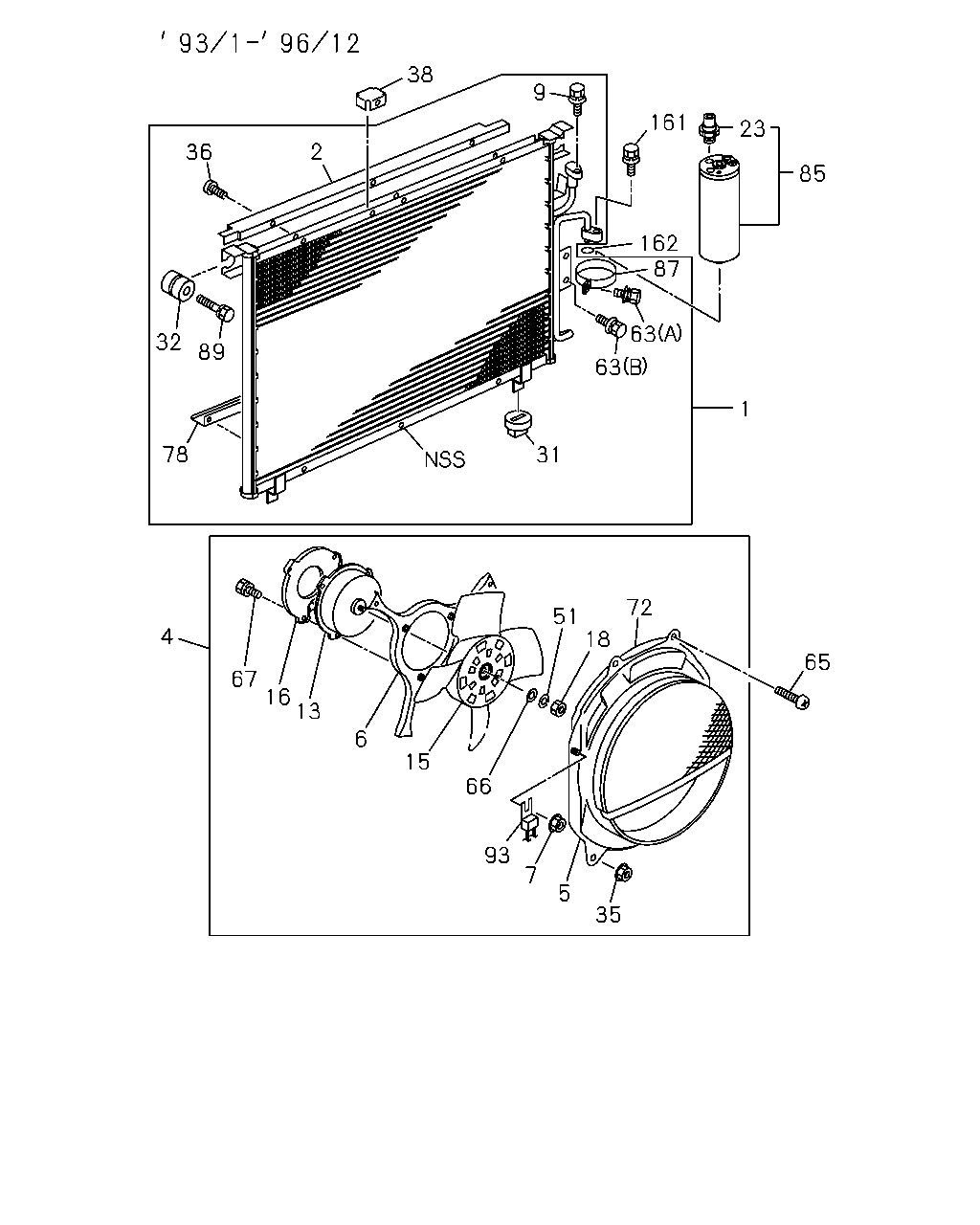

38 9 161 23 85 162 87 63 63 1 31 78 89 32 36 2 4 67 16 13 6 15 66 93 7 5 35 65 72 18 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER(C60)	8-97096-991-0	01	1	9301-9302
1	CONDENSER; A/C AIR CONDITIONER(C60) "R-134A"	8-97094-874-0	01	1	9303-
2	PLATE; UPR,CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60)	8-97093-673-0	01	1	9301-9302
2	PLATE; UPR,CONDENSER AIR CONDITIONER(C60)	8-97093-673-0	01	1	9303-
4	MOTOR ASM; FAN A/T THM(RMQ) AIR CONDITIONER(C60)	8-97074-707-0	01	1	9301-9612
4	MOTOR ASM; FAN A/T THM(RMQ) AIR CONDITIONER(C60)	8-97171-653-0	01	1	9701-
5	SHROUD; FAN MOTOR A/T THM(RMQ) AIR CONDITIONER(C60)	8-97074-708-0	01	1	9301-9612
5	SHROUD; FAN MOTOR A/T THM(RMQ) AIR CONDITIONER(C60)	8-97139-118-0	01	1	9701-
6	STAY; FAN MOTOR A/T THM(RMQ) AIR CONDITIONER(C60)	8-94373-180-0	01	1	9301-9302
6	STAY; FAN MOTOR A/T THM(RMQ) AIR CONDITIONER(C60)	8-94373-187-0	01	1	9303-9612
7	NUT; FAN A/T THM(RMQ) AIR CONDITIONER(C60)	8-97049-266-0	03	1	9301-9612
7	NUT; FAN A/T THM(RMQ) AIR CONDITIONER(C60) M6 FLANGE	5-09440-004-0	03	1	9701-
9	BOLT; BRKT A/T THM(RMQ) AIR CONDITIONER(C60)	8-97093-510-0	01	1	9301-9302
9	BOLT; BRKT AIR CONDITIONER(C60)	8-97093-510-0	01	1	9303-
13	MOTOR; FAN A/T THM(RMQ) AIR CONDITIONER(C60) "R-134A"	8-97049-261-0	01	1	9301-9612
13	MOTOR; FAN A/T THM(RMQ) AIR CONDITIONER(C60)	8-97171-654-0	01	1	9701-
15	FAN; MOTOR A/T THM(RMQ) AIR CONDITIONER(C60)	8-94130-009-0	01	1	9301-9612
15	FAN; MOTOR A/T THM(RMQ) AIR CONDITIONER(C60)	8-97091-323-0	01	1	9701-
16	COVER; FAN MOTOR A/T THM(RMQ) AIR CONDITIONER(C60)	8-94438-206-0	01	1	9301-9612
18	NUT; FAN,CENTER A/T THM(RMQ) AIR CONDITIONER(C60)	8-94438-210-0	01	1	9301-9612
18	NUT; FAN,CENTER A/T THM(RMQ) AIR CONDITIONER(C60) M6	9-09110-406-0	01	1	9701-
23	SWITCH; PRESSURE,CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60)	8-97042-385-0	01	1	9301-9302
23	SWITCH; PRESSURE,CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60) "R-134A"	8-97083-344-0	01	1	9303-9304
23	SWITCH; PRESSURE,CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60) "R-134A"	8-97093-509-0	01	1	9305-
23	SWITCH; PRESSURE,CONDENSER M/T MUA 5 SPEED(RMN) AIR CONDITIONER(C60)	8-97049-271-0	01	1	9301-9302
23	SWITCH; PRESSURE,CONDENSER M/T MUA 5 SPEED(RMN) AIR CONDITIONER(C60) "R-134A"	8-97087-579-0	01	1	9303-9304
23	SWITCH; PRESSURE,CONDENSER M/T MUA 5 SPEED(RMN) AIR CONDITIONER(C60) "R-134A"	8-97095-659-0	01	1	9305-
31	RUBBER; MTG,CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60)	8-97018-673-0	02	1	9301-9302
31	RUBBER; MTG,CONDENSER AIR CONDITIONER(C60)	8-97018-673-0	02	1	9303-
32	GROMMET; CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60) "R-134A"	8-94481-685-1	02	1	9301-9302
32	GROMMET; CONDENSER AIR CONDITIONER(C60) "R-134A"	8-94481-685-1	02	1	9303-
35	NUT; CONDENSER,A/C A/T THM(RMQ) AIR CONDITIONER(C60)	8-97049-266-0	01	1	9301-9612
36	SCREW; PLATE TO CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60) M5X14 TAPPING	8-97049-258-0	04	1	9301-9302
36	SCREW; PLATE TO CONDENSER AIR CONDITIONER(C60) M5X14 TAPPING	8-97049-258-0	04	1	9303-9304
36	SCREW; PLATE TO CONDENSER AIR CONDITIONER(C60)	8-97101-324-0	04	1	9305-
38	PLATE; CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60)	8-97049-267-0	03	1	9301-9612
38	PLATE; CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60)	8-97049-267-0	04	1	9701-
51	WASHER; LK,FAN A/T THM(RMQ) AIR CONDITIONER(C60)	8-94438-209-0	01	1	9301-9612
63	BOLT; RECEIVER TANK A/T THM(RMQ) AIR CONDITIONER(C60) (B) M5X14 TAPPING	8-97049-258-0	02	1	9301-9302
63	BOLT; RECEIVER TANK AIR CONDITIONER(C60) (B) M5X14 TAPPING	8-97049-258-0	02	1	9303-9304
63	BOLT; RECEIVER TANK AIR CONDITIONER(C60) (B) M5X14	8-97101-325-0	02	1	9305-
63	BOLT; RECEIVER TANK AIR CONDITIONER(C60) (A) M6X20	8-97049-253-0	01	1	9301-9304
63	BOLT; RECEIVER TANK AIR CONDITIONER(C60) (A) M6X25	8-97095-660-0	01	1	9305-
65	BOLT; SHROUD A/T THM(RMQ) AIR CONDITIONER(C60) M5X35 TAPPING	8-97071-786-0	04	1	9301-
66	WASHER; PL,CONDENSER,A/C A/T THM(RMQ) AIR CONDITIONER(C60)	8-94438-208-0	01	1	9301-9612
67	SCREW; COVER A/T THM(RMQ) AIR CONDITIONER(C60)	8-97049-262-0	03	1	9301-9612
72	LINING; SHROUD A/T THM(RMQ) AIR CONDITIONER(C60)	8-97049-264-0	01	1	9301-9612
78	PLATE; LWR,CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60) "R-134A"	8-97093-674-0	01	1	9301-9302
78	PLATE; LWR,CONDENSER AIR CONDITIONER(C60) "R-134A"	8-97093-674-0	01	1	9303-
85	DRYER; RECEIVER A/T THM(RMQ) AIR CONDITIONER(C60)	8-97071-776-0	01	1	9301-9302
85	DRYER; RECEIVER A/T THM(RMQ) AIR CONDITIONER(C60) "R-134A"	8-97094-876-0	01	1	9303-
85	DRYER; RECEIVER M/T MUA 5 SPEED(RMN) AIR CONDITIONER(C60)	8-97049-251-0	01	1	9301-9302
85	DRYER; RECEIVER M/T MUA 5 SPEED(RMN) AIR CONDITIONER(C60) "R-134A"	8-97094-875-0	01	1	9303-9504
85	DRYER; RECEIVER M/T MUA 5 SPEED(RMN) AIR CONDITIONER(C60) "R-134A"	8-97094-875-0	01	1	9505-
87	BRACKET; RECEIVER DRYER AIR CONDITIONER(C60) "R-134A"	8-97093-672-0	01	1	9301-
89	BOLT; CONDENSER TO BODY A/T THM(RMQ) AIR CONDITIONER(C60)	8-97049-255-0	02	1	9301-9302
89	BOLT; CONDENSER TO BODY AIR CONDITIONER(C60)	8-97049-255-0	02	1	9303-
93	CONDENSER; ELEC A/T THM(RMQ) AIR CONDITIONER(C60)	8-97049-265-0	01	1	9301-9612
93	CONDENSER; ELEC A/T THM(RMQ) AIR CONDITIONER(C60)	8-94150-133-0	01	1	9701-
161	BOLT; PIPE AIR CONDITIONER(C60)	8-97049-254-0	01	1	9301-9304
161	BOLT; PIPE AIR CONDITIONER(C60) M6X25	8-97095-660-0	01	1	9305-
162	GASKET; PIPE TO DRYER AIR CONDITIONER(C60) ID=6	8-94481-700-0	01	1	9301-

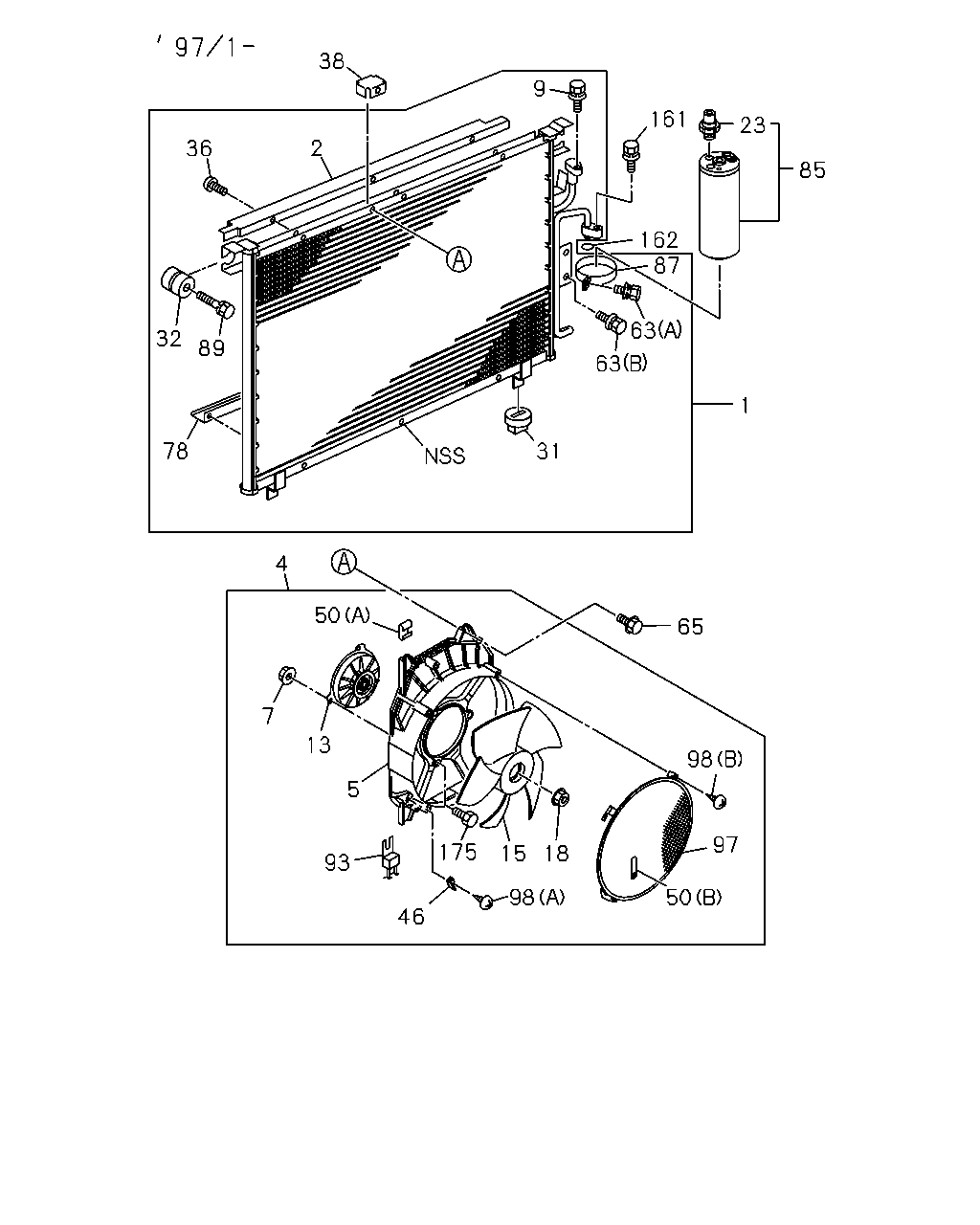

38 9 161 23 85 162 87 63 63 1 31 78 89 32 36 2 4 50 7 13 5 93 46 175 15 18 98 50 97 98 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER(C60)	8-97096-991-0	01	1	9301-9302
1	CONDENSER; A/C AIR CONDITIONER(C60) "R-134A"	8-97094-874-0	01	1	9303-
2	PLATE; UPR,CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60)	8-97093-673-0	01	1	9301-9302
2	PLATE; UPR,CONDENSER AIR CONDITIONER(C60)	8-97093-673-0	01	1	9303-
4	MOTOR ASM; FAN A/T THM(RMQ) AIR CONDITIONER(C60)	8-97074-707-0	01	1	9301-9612
4	MOTOR ASM; FAN A/T THM(RMQ) AIR CONDITIONER(C60)	8-97171-653-0	01	1	9701-
5	SHROUD; FAN MOTOR A/T THM(RMQ) AIR CONDITIONER(C60)	8-97074-708-0	01	1	9301-9612
5	SHROUD; FAN MOTOR A/T THM(RMQ) AIR CONDITIONER(C60)	8-97139-118-0	01	1	9701-
7	NUT; FAN A/T THM(RMQ) AIR CONDITIONER(C60)	8-97049-266-0	03	1	9301-9612
7	NUT; FAN A/T THM(RMQ) AIR CONDITIONER(C60) M6 FLANGE	5-09440-004-0	03	1	9701-
9	BOLT; BRKT A/T THM(RMQ) AIR CONDITIONER(C60)	8-97093-510-0	01	1	9301-9302
9	BOLT; BRKT AIR CONDITIONER(C60)	8-97093-510-0	01	1	9303-
13	MOTOR; FAN A/T THM(RMQ) AIR CONDITIONER(C60) "R-134A"	8-97049-261-0	01	1	9301-9612
13	MOTOR; FAN A/T THM(RMQ) AIR CONDITIONER(C60)	8-97171-654-0	01	1	9701-
15	FAN; MOTOR A/T THM(RMQ) AIR CONDITIONER(C60)	8-94130-009-0	01	1	9301-9612
15	FAN; MOTOR A/T THM(RMQ) AIR CONDITIONER(C60)	8-97091-323-0	01	1	9701-
18	NUT; FAN,CENTER A/T THM(RMQ) AIR CONDITIONER(C60)	8-94438-210-0	01	1	9301-9612
18	NUT; FAN,CENTER A/T THM(RMQ) AIR CONDITIONER(C60) M6	9-09110-406-0	01	1	9701-
23	SWITCH; PRESSURE,CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60)	8-97042-385-0	01	1	9301-9302
23	SWITCH; PRESSURE,CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60) "R-134A"	8-97083-344-0	01	1	9303-9304
23	SWITCH; PRESSURE,CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60) "R-134A"	8-97093-509-0	01	1	9305-
23	SWITCH; PRESSURE,CONDENSER M/T MUA 5 SPEED(RMN) AIR CONDITIONER(C60)	8-97049-271-0	01	1	9301-9302
23	SWITCH; PRESSURE,CONDENSER M/T MUA 5 SPEED(RMN) AIR CONDITIONER(C60) "R-134A"	8-97087-579-0	01	1	9303-9304
23	SWITCH; PRESSURE,CONDENSER M/T MUA 5 SPEED(RMN) AIR CONDITIONER(C60) "R-134A"	8-97095-659-0	01	1	9305-
31	RUBBER; MTG,CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60)	8-97018-673-0	02	1	9301-9302
31	RUBBER; MTG,CONDENSER AIR CONDITIONER(C60)	8-97018-673-0	02	1	9303-
32	GROMMET; CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60) "R-134A"	8-94481-685-1	02	1	9301-9302
32	GROMMET; CONDENSER AIR CONDITIONER(C60) "R-134A"	8-94481-685-1	02	1	9303-
36	SCREW; PLATE TO CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60) M5X14 TAPPING	8-97049-258-0	04	1	9301-9302
36	SCREW; PLATE TO CONDENSER AIR CONDITIONER(C60) M5X14 TAPPING	8-97049-258-0	04	1	9303-9304
36	SCREW; PLATE TO CONDENSER AIR CONDITIONER(C60)	8-97101-324-0	04	1	9305-
38	PLATE; CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60)	8-97049-267-0	03	1	9301-9612
38	PLATE; CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60)	8-97049-267-0	04	1	9701-
46	BRACKET; SHROUD A/T THM(RMQ) AIR CONDITIONER(C60)	8-97139-122-0	01	1	9701-
50	CLIP; CABLE A/T THM(RMQ) AIR CONDITIONER(C60) (B)	8-97139-126-0	01	1	9701-
50	CLIP; CABLE A/T THM(RMQ) AIR CONDITIONER(C60) (A)	8-97171-656-0	01	1	9701-
63	BOLT; RECEIVER TANK A/T THM(RMQ) AIR CONDITIONER(C60) (B) M5X14 TAPPING	8-97049-258-0	02	1	9301-9302
63	BOLT; RECEIVER TANK AIR CONDITIONER(C60) (B) M5X14 TAPPING	8-97049-258-0	02	1	9303-9304
63	BOLT; RECEIVER TANK AIR CONDITIONER(C60) (B) M5X14	8-97101-325-0	02	1	9305-
63	BOLT; RECEIVER TANK AIR CONDITIONER(C60) (A) M6X20	8-97049-253-0	01	1	9301-9304
63	BOLT; RECEIVER TANK AIR CONDITIONER(C60) (A) M6X25	8-97095-660-0	01	1	9305-
65	BOLT; SHROUD A/T THM(RMQ) AIR CONDITIONER(C60) M5X35 TAPPING	8-97071-786-0	04	1	9301-
78	PLATE; LWR,CONDENSER A/T THM(RMQ) AIR CONDITIONER(C60) "R-134A"	8-97093-674-0	01	1	9301-9302
78	PLATE; LWR,CONDENSER AIR CONDITIONER(C60) "R-134A"	8-97093-674-0	01	1	9303-
85	DRYER; RECEIVER A/T THM(RMQ) AIR CONDITIONER(C60)	8-97071-776-0	01	1	9301-9302
85	DRYER; RECEIVER A/T THM(RMQ) AIR CONDITIONER(C60) "R-134A"	8-97094-876-0	01	1	9303-
85	DRYER; RECEIVER M/T MUA 5 SPEED(RMN) AIR CONDITIONER(C60)	8-97049-251-0	01	1	9301-9302
85	DRYER; RECEIVER M/T MUA 5 SPEED(RMN) AIR CONDITIONER(C60) "R-134A"	8-97094-875-0	01	1	9303-9504
85	DRYER; RECEIVER M/T MUA 5 SPEED(RMN) AIR CONDITIONER(C60) "R-134A"	8-97094-875-0	01	1	9505-
87	BRACKET; RECEIVER DRYER AIR CONDITIONER(C60) "R-134A"	8-97093-672-0	01	1	9301-
89	BOLT; CONDENSER TO BODY A/T THM(RMQ) AIR CONDITIONER(C60)	8-97049-255-0	02	1	9301-9302
89	BOLT; CONDENSER TO BODY AIR CONDITIONER(C60)	8-97049-255-0	02	1	9303-
93	CONDENSER; ELEC A/T THM(RMQ) AIR CONDITIONER(C60)	8-97049-265-0	01	1	9301-9612
93	CONDENSER; ELEC A/T THM(RMQ) AIR CONDITIONER(C60)	8-94150-133-0	01	1	9701-
97	NET; CONDENSER UNIT A/T THM(RMQ) AIR CONDITIONER(C60)	8-97171-655-0	01	1	9701-
98	SCREW; NET TO SHROUD A/T THM(RMQ) AIR CONDITIONER(C60) (A) M5X10 TAPPING W/PL WASHER	0-74300-510-0	03	1	9701-
98	SCREW; NET TO SHROUD A/T THM(RMQ) AIR CONDITIONER(C60) (B)	1-83579-423-0	04	1	9701-
161	BOLT; PIPE AIR CONDITIONER(C60)	8-97049-254-0	01	1	9301-9304
161	BOLT; PIPE AIR CONDITIONER(C60) M6X25	8-97095-660-0	01	1	9305-
162	GASKET; PIPE TO DRYER AIR CONDITIONER(C60) ID=6	8-94481-700-0	01	1	9301-
175	BOLT; FAN MOTOR A/T THM(RMQ) AIR CONDITIONER(C60)	5-83569-122-0	03	1	9701-
