8-74 — EVAPORATOR (#46973) — 79 parça

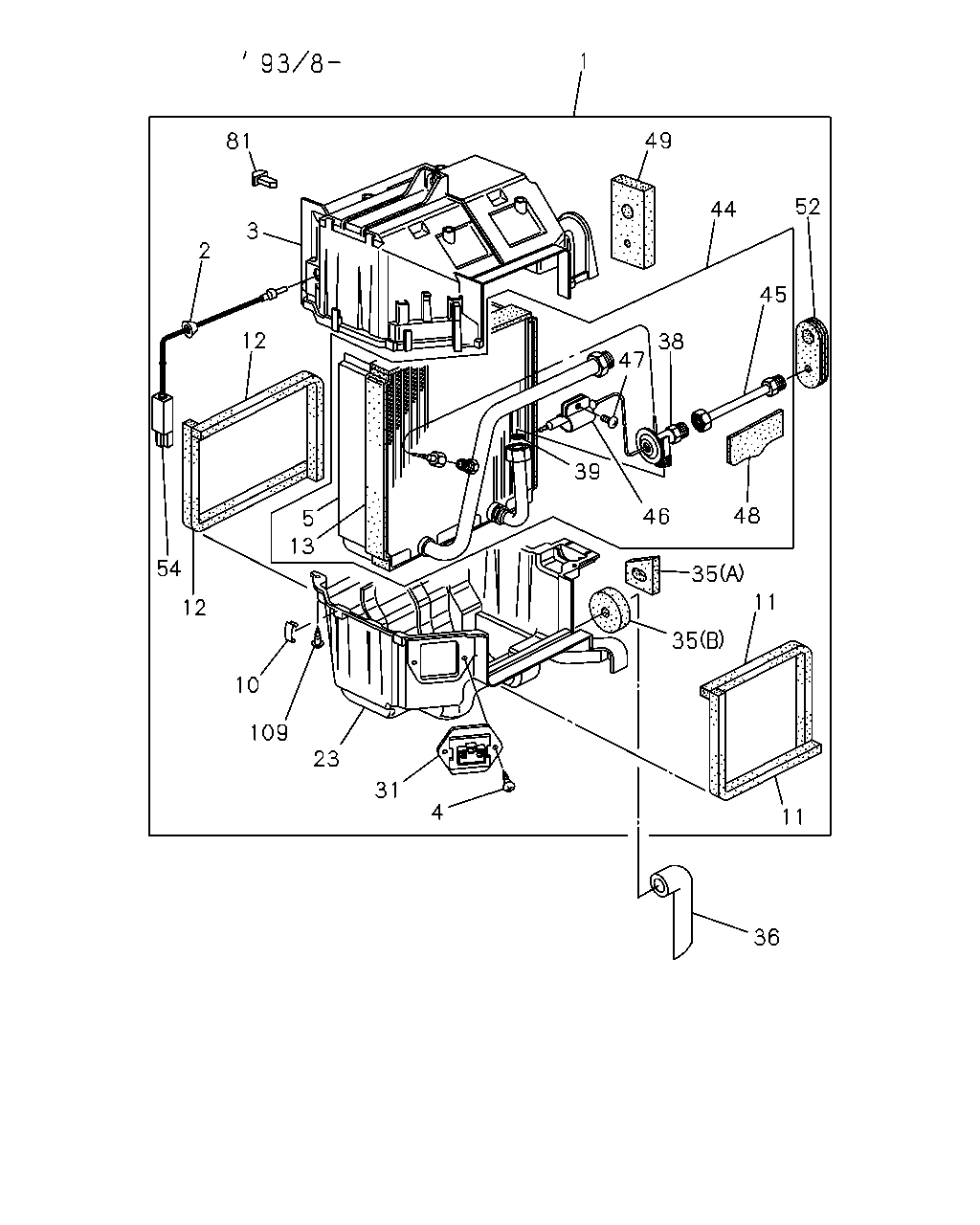

1 49 44 52 45 38 47 39 46 48 35 11 35 11 36 4 31 23 109 10 12 54 13 5 12 2 3 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	EVAPORATOR ASM AIR CONDITIONER(C60)	8-94380-197-1	01	1	9301-9302
1	EVAPORATOR ASM AIR CONDITIONER(C60) "R-134A"	8-97085-869-0	01	1	9303-9307
1	EVAPORATOR ASM AIR CONDITIONER(C60) "R-134A"	8-97104-481-1	01	1	9308-
2	GROMMET; CASE,EVAP AIR CONDITIONER(C60)	8-94380-565-0	01	1	9308-
3	CASE; EVAP,UPR AIR CONDITIONER(C60)	8-97046-485-0	01	1	9301-
4	SCREW; RESISTOR TO CASE AIR CONDITIONER(C60)	8-94248-807-0	02	1	9301-
5	EVAPORATOR AIR CONDITIONER(C60)	8-97046-488-0	01	1	9301-
10	CLIP; EVAP CASE AIR CONDITIONER(C60)	8-94315-776-0	03	1	9301-
11	LINING; EVAP A/C AIR CONDITIONER(C60)	8-94324-805-0	02	1	9301-9302
11	LINING; EVAP A/C AIR CONDITIONER(C60) "R-134A"	8-97094-796-0	02	1	9303-
12	LINING; EVAP AIR CONDITIONER(C60)	8-94324-804-0	02	1	9301-9302
12	LINING; EVAP AIR CONDITIONER(C60) "R-134A"	8-97094-797-0	02	1	9303-
13	SEAL; EVAP AIR CONDITIONER(C60) T=5.0	8-97069-402-0	04	1	9301-9607
13	SEAL; EVAP AIR CONDITIONER(C60) UPPER AND SIDE	8-97184-910-0	03	1	9608-
13	SEAL; EVAP AIR CONDITIONER(C60) LOWER	8-97184-909-0	01	1	9608-
23	CASE; EVAP,LWR AIR CONDITIONER(C60)	8-97046-486-0	01	1	9301-
31	RESISTOR; POWER EVAP AIR CONDITIONER(C60)	8-97078-452-0	01	1	9301-
35	GROMMET; EVAP,LOW AIR CONDITIONER(C60) (B)	8-97069-405-0	01	1	9301-
35	GROMMET; EVAP,LOW AIR CONDITIONER(C60) (A)	8-97083-221-0	01	1	9301-9308
36	HOSE; DRAIN EVAP AIR CONDITIONER(C60)	8-94446-972-1	01	1	9301-
38	VALVE; EXPANSION AIR CONDITIONER(C60)	8-97083-220-0	01	1	9301-9302
38	VALVE; EXPANSION AIR CONDITIONER(C60) "R-134A"	8-97094-795-0	01	1	9303-9307
38	VALVE; EXPANSION AIR CONDITIONER(C60) "R-134A"	8-97105-823-0	01	1	9308-
39	GASKET; EVAP AIR CONDITIONER(C60) ID=10.8	8-94113-331-0	01	1	9301-9307
39	GASKET; EVAP AIR CONDITIONER(C60)	8-94481-717-0	01	1	9308-
44	EVAPORATOR ASM; A/C AIR CONDITIONER(C60) "R-134A"	8-97083-219-0	01	1	9303-9307
44	EVAPORATOR ASM; A/C AIR CONDITIONER(C60) "R-134A"	8-97105-822-0	01	1	9308-
45	PIPE; EXPANSION VLV AIR CONDITIONER(C60)	8-97046-489-0	01	1	9301-
46	CLIP; EXPANSION VLV AIR CONDITIONER(C60)	8-94334-784-0	01	1	9301-
47	SCREW; EVAP AIR CONDITIONER(C60) M5X14	8-94244-002-0	01	1	9301-
48	INSULATOR; EVAP AIR CONDITIONER(C60)	5-83579-024-0	01	1	9301-9307
48	INSULATOR; EVAP AIR CONDITIONER(C60) T=3.0	5-83569-104-0	01	1	9308-9504
48	INSULATOR; EVAP AIR CONDITIONER(C60) T=3.0	5-83569-104-0	02	1	9505-
49	GROMMET; EVAP AIR CONDITIONER(C60)	8-97069-404-0	01	1	9301-
52	GROMMET; EVAP,A/C AIR CONDITIONER(C60)	8-94324-801-0	01	1	9301-
54	THERMOSTAT; A/C AIR CONDITIONER(C60)	8-97046-491-0	01	1	9301-9307
54	THERMOSTAT; A/C AIR CONDITIONER(C60) "R-134A"	8-97087-577-0	01	1	9308-
81	CLIP; THERMOSTAT A/C AIR CONDITIONER(C60)	8-94481-724-0	01	1	9301-
109	BOLT; EVAP AIR CONDITIONER(C60) M4X16	8-94324-850-0	04	1	9301-

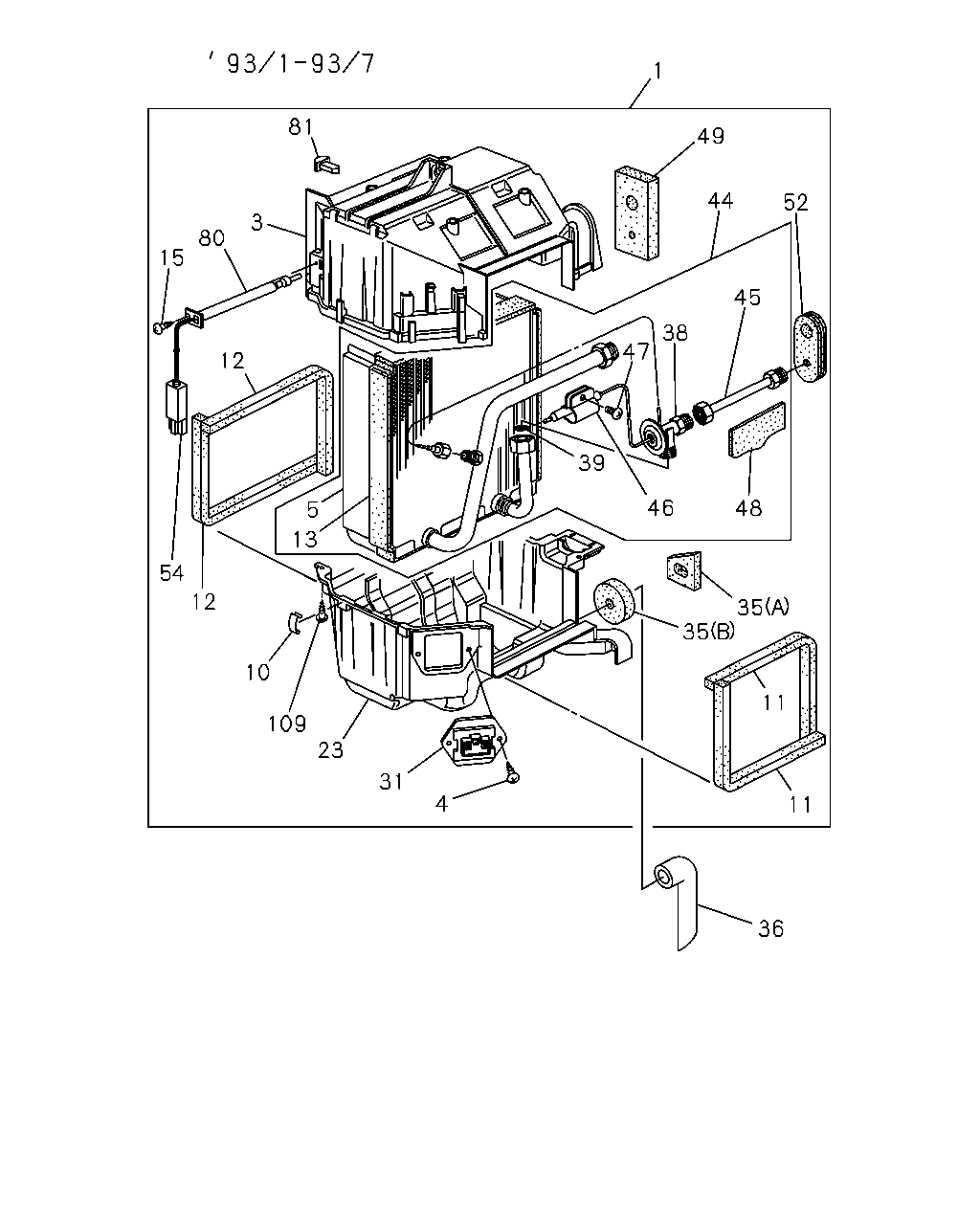

1 49 44 52 45 38 47 39 46 48 35 35 11 11 36 4 31 23 109 10 12 54 13 5 12 15 80 3 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	EVAPORATOR ASM AIR CONDITIONER(C60)	8-94380-197-1	01	1	9301-9302
1	EVAPORATOR ASM AIR CONDITIONER(C60) "R-134A"	8-97085-869-0	01	1	9303-9307
1	EVAPORATOR ASM AIR CONDITIONER(C60) "R-134A"	8-97104-481-1	01	1	9308-
3	CASE; EVAP,UPR AIR CONDITIONER(C60)	8-97046-485-0	01	1	9301-
4	SCREW; RESISTOR TO CASE AIR CONDITIONER(C60)	8-94248-807-0	02	1	9301-
5	EVAPORATOR AIR CONDITIONER(C60)	8-97046-488-0	01	1	9301-
10	CLIP; EVAP CASE AIR CONDITIONER(C60)	8-94315-776-0	03	1	9301-
11	LINING; EVAP A/C AIR CONDITIONER(C60)	8-94324-805-0	02	1	9301-9302
11	LINING; EVAP A/C AIR CONDITIONER(C60) "R-134A"	8-97094-796-0	02	1	9303-
12	LINING; EVAP AIR CONDITIONER(C60)	8-94324-804-0	02	1	9301-9302
12	LINING; EVAP AIR CONDITIONER(C60) "R-134A"	8-97094-797-0	02	1	9303-
13	SEAL; EVAP AIR CONDITIONER(C60) T=5.0	8-97069-402-0	04	1	9301-9607
13	SEAL; EVAP AIR CONDITIONER(C60) UPPER AND SIDE	8-97184-910-0	03	1	9608-
13	SEAL; EVAP AIR CONDITIONER(C60) LOWER	8-97184-909-0	01	1	9608-
15	SCREW; BRKT TO CASE AIR CONDITIONER(C60) M4X16	8-94324-850-0	01	1	9301-9307
23	CASE; EVAP,LWR AIR CONDITIONER(C60)	8-97046-486-0	01	1	9301-
31	RESISTOR; POWER EVAP AIR CONDITIONER(C60)	8-97078-452-0	01	1	9301-
35	GROMMET; EVAP,LOW AIR CONDITIONER(C60) (B)	8-97069-405-0	01	1	9301-
35	GROMMET; EVAP,LOW AIR CONDITIONER(C60) (A)	8-97083-221-0	01	1	9301-9308
36	HOSE; DRAIN EVAP AIR CONDITIONER(C60)	8-94446-972-1	01	1	9301-
38	VALVE; EXPANSION AIR CONDITIONER(C60)	8-97083-220-0	01	1	9301-9302
38	VALVE; EXPANSION AIR CONDITIONER(C60) "R-134A"	8-97094-795-0	01	1	9303-9307
38	VALVE; EXPANSION AIR CONDITIONER(C60) "R-134A"	8-97105-823-0	01	1	9308-
39	GASKET; EVAP AIR CONDITIONER(C60) ID=10.8	8-94113-331-0	01	1	9301-9307
39	GASKET; EVAP AIR CONDITIONER(C60)	8-94481-717-0	01	1	9308-
44	EVAPORATOR ASM; A/C AIR CONDITIONER(C60) "R-134A"	8-97083-219-0	01	1	9303-9307
44	EVAPORATOR ASM; A/C AIR CONDITIONER(C60) "R-134A"	8-97105-822-0	01	1	9308-
45	PIPE; EXPANSION VLV AIR CONDITIONER(C60)	8-97046-489-0	01	1	9301-
46	CLIP; EXPANSION VLV AIR CONDITIONER(C60)	8-94334-784-0	01	1	9301-
47	SCREW; EVAP AIR CONDITIONER(C60) M5X14	8-94244-002-0	01	1	9301-
48	INSULATOR; EVAP AIR CONDITIONER(C60)	5-83579-024-0	01	1	9301-9307
48	INSULATOR; EVAP AIR CONDITIONER(C60) T=3.0	5-83569-104-0	01	1	9308-9504
48	INSULATOR; EVAP AIR CONDITIONER(C60) T=3.0	5-83569-104-0	02	1	9505-
49	GROMMET; EVAP AIR CONDITIONER(C60)	8-97069-404-0	01	1	9301-
52	GROMMET; EVAP,A/C AIR CONDITIONER(C60)	8-94324-801-0	01	1	9301-
54	THERMOSTAT; A/C AIR CONDITIONER(C60)	8-97046-491-0	01	1	9301-9307
54	THERMOSTAT; A/C AIR CONDITIONER(C60) "R-134A"	8-97087-577-0	01	1	9308-
80	BRACKET AIR CONDITIONER(C60)	8-97046-494-0	01	1	9301-9307
81	CLIP; THERMOSTAT A/C AIR CONDITIONER(C60)	8-94481-724-0	01	1	9301-
109	BOLT; EVAP AIR CONDITIONER(C60) M4X16	8-94324-850-0	04	1	9301-
