50688 - UC-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

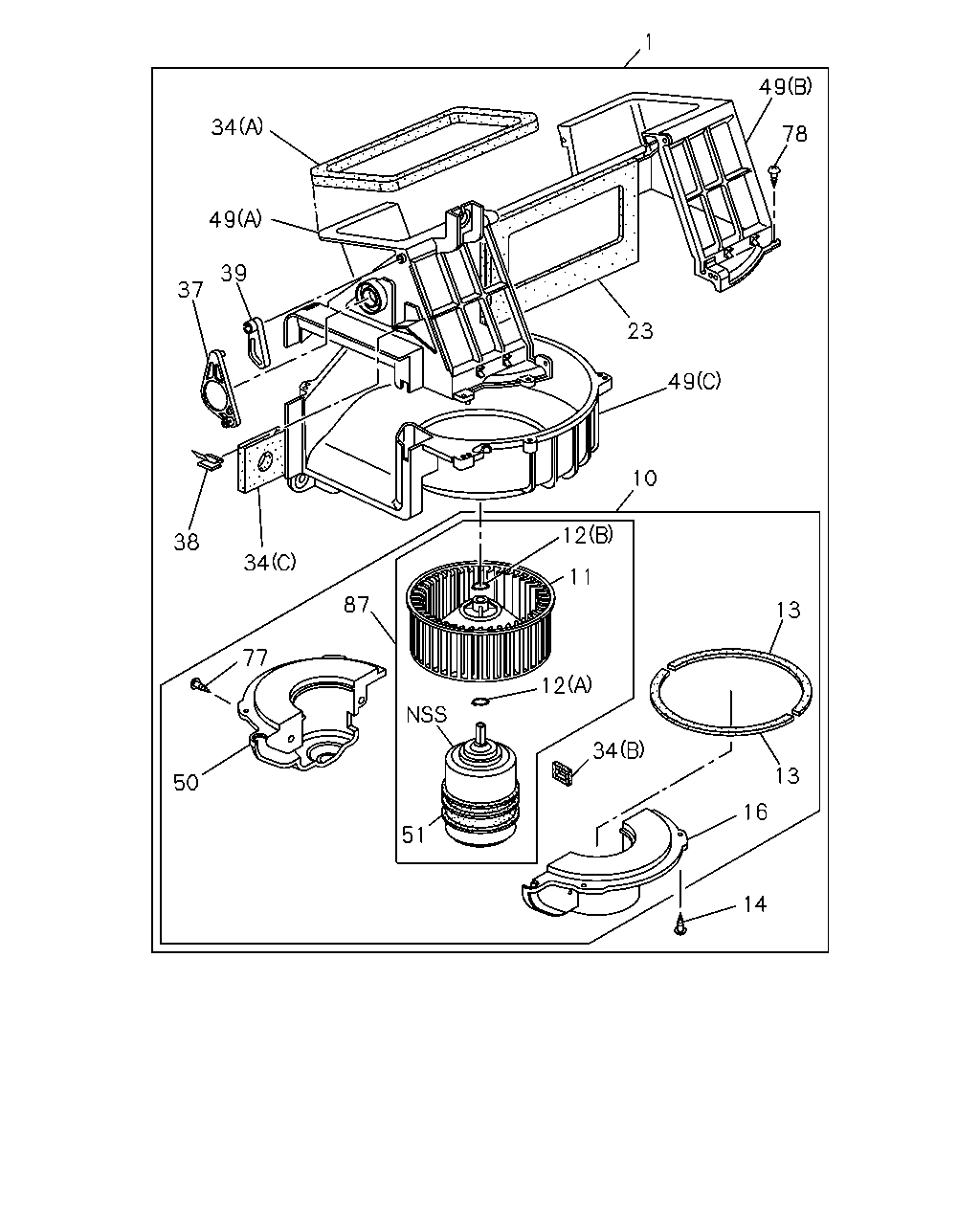

8-73 — BLOWER UNIT
(#46972) — 26 parça
1
49
78
23
49
10
12
11
13
13
16
14
34
12
51
50
77
87
34
38
37
39
49
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOWER ASM
8-97078-970-3
01
1
9301-
10
MOTOR ASM; FAN,BLOWER UNIT
8-97046-497-0
01
1
9301-9308
10
MOTOR ASM; FAN,BLOWER UNIT
8-97113-433-1
01
1
9309-9506
10
MOTOR ASM; FAN,BLOWER UNIT
8-97103-727-0
01
1
9507-
11
IMPELLER; FAN MOTOR
8-94324-812-0
01
1
9301-
12
RING; SNAP,FAN MOTOR
(A)
5-83569-088-0
01
1
9301-9506
12
RING; SNAP,FAN MOTOR
(B)
8-94243-962-0
01
1
9301-
13
LINING; BLOWER UNIT
8-94324-816-0
02
1
9301-
14
SCREW; COVER TO CASE
M5X16
8-94248-820-0
04
1
9301-
16
COVER; BLOWER UNIT
8-94387-040-0
01
1
9301-9506
23
SHUTTER; BLOWER UNIT
8-94387-043-1
01
1
9301-
34
LINING; BLOWER UNIT
(B)
8-97027-786-0
01
1
9301-9506
34
LINING; BLOWER UNIT
(A)
8-97069-409-0
01
1
9301-9405
34
LINING; BLOWER UNIT
(A)
8-94324-821-0
01
1
9406-
34
LINING; BLOWER UNIT
(C)
8-97069-410-0
01
1
9309-9405
37
LEVER; MODE LEVER
8-94387-044-0
01
1
9301-
38
CLIP; BLOWER UNIT
8-94337-654-0
01
1
9301-
39
LEVER; SHUTTER,BLOWER UNIT
8-94387-045-0
01
1
9301-
49
CASE; BLOWER UNIT
(A)
8-94387-035-0
01
1
9301-
49
CASE; BLOWER UNIT
(B)
8-94387-036-0
01
1
9301-
49
CASE; BLOWER UNIT
(C)
8-94387-037-0
01
1
9301-
50
COVER; BLOWER UNIT
8-94387-039-0
01
1
9301-9506
51
ISOLATOR; BLOWER UNIT
8-94324-815-0
01
1
9301-9506
77
SCREW; COVER TO COVER,BLOWER UNIT
M5X16
8-94248-820-0
02
1
9301-9506
78
SCREW; CASE TO CASE
M4X16
8-94324-850-0
10
1
9301-
87
MOTOR ASM; FAN
8-97069-411-1
01
1
9301-9506
