8-60 — HEATER UNIT; FRONT (#46969) — 49 parça

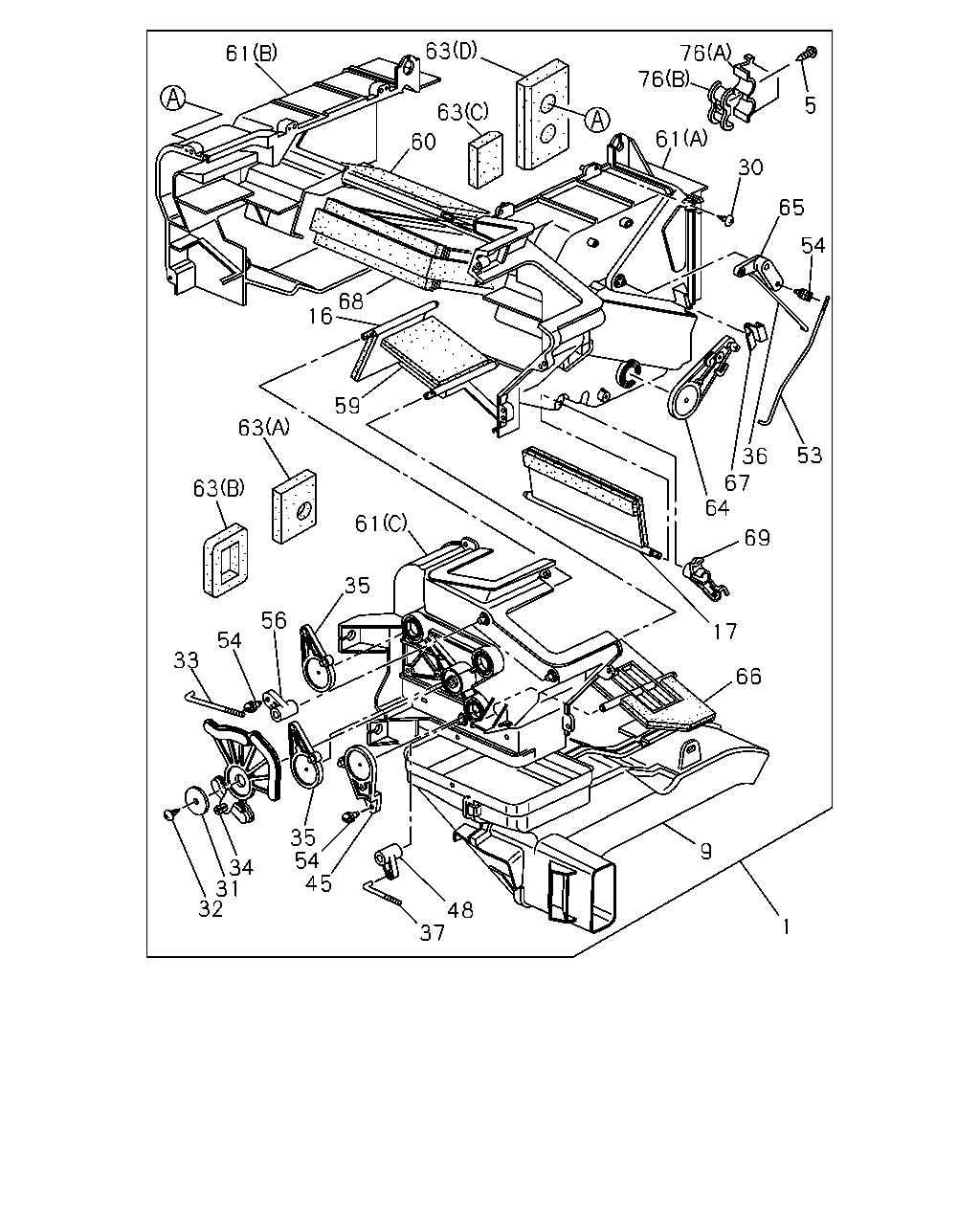

çizim 16492
61 63 63 60 61 76 76 5 30 65 54 53 36 67 64 69 17 66 9 1 48 37 45 54 35 34 31 32 33 54 56 35 61 63 63 59 16 68
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 8-97044-175-2 01 1 9301-9504
1 HEATER UNIT 8-97107-479-3 01 1 9505-9603
1 HEATER UNIT 8-97149-514-0 01 1 9604-
5 SCREW; BRKT
M5X12 TAPPING 		9-07076-512-0 01 1 9604-
9 DUCT; HTR UNIT 8-94387-013-0 01 1 9301-9504
9 DUCT; HTR UNIT 8-97120-509-1 01 1 9505-
16 SHUTTER; HTR UNIT,CENTER UPR 8-94387-019-0 01 1 9301-
17 SHUTTER; HTR UNIT,CENTER 8-94387-016-0 01 1 9301-
30 SCREW; HTR UNIT
M4X16 		8-94324-850-0 14 1 9301-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9301-
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 9301-
33 ROD; SHUTTER LEVER 8-94324-849-0 02 1 9301-
34 LEVER; SHUTTER,HTR UNIT 8-94387-027-0 01 1 9301-9510
34 LEVER; SHUTTER,HTR UNIT 8-97142-572-0 01 1 9511-9603
34 LEVER; SHUTTER,HTR UNIT 8-97143-254-0 01 1 9604-
35 LEVER; SHUTTER,HTR UNIT 8-94387-025-0 02 1 9301-
36 ROD; HTR UNIT 8-94324-847-0 01 1 9301-
37 ROD; LEVER 8-94324-848-0 01 1 9301-
45 LEVER; SHUTTER,HTR UNIT 8-94387-026-0 01 1 9301-
48 LEVER; HTR UNIT 8-94387-024-0 01 1 9301-
53 ROD; SHUTTER LEVER 8-94324-846-0 01 1 9301-9510
53 ROD; SHUTTER LEVER 8-94324-846-0 01 1 9512-
54 CLIP; SHUTTER LEVER 8-94248-794-0 04 1 9301-
56 LEVER; SHUTTER,HTR UNIT 8-94387-023-0 02 1 9301-
59 SHUTTER; HTR UNIT,SIDE 8-94387-017-0 01 1 9301-
60 DOOR; MIX,HTR UNIT 8-94387-015-0 01 1 9301-
61 CASE; HTR UNIT
(A) 		8-94387-010-0 01 1 9301-9603
61 CASE; HTR UNIT
(A) 		8-97149-512-0 01 1 9604-
61 CASE; HTR UNIT
(C) 		8-94387-012-0 01 1 9301-
61 CASE; HTR UNIT
(B) 		8-97074-118-0 01 1 9301-9405
61 CASE; HTR UNIT
(B) 		8-97083-211-0 01 1 9406-9603
61 CASE; HTR UNIT
(B) 		8-97149-513-0 01 1 9604-
63 LINING; HTR UNIT
(B) 		8-97069-413-0 01 1 9301-9405
63 LINING; HTR UNIT
(D) 		8-97069-416-0 01 1 9301-
63 LINING; HTR UNIT
(A) 		8-97069-417-0 01 1 9301-9405
63 LINING; HTR UNIT
(C) 		8-97083-609-0 01 1 9301-9408
63 LINING; HTR UNIT
(C) 		8-97115-729-0 01 1 9409-9603
63 LINING; HTR UNIT
(C) 		8-97167-329-0 01 1 9604-
64 LEVER; MIX,DOOR 8-94387-022-0 01 1 9301-
65 LEVER; MIX,DOOR 8-94387-020-0 01 1 9301-
66 SHUTTER; HTR UNIT,CENTER LWR 8-94387-018-0 01 1 9301-
67 CLIP; HTR UNIT 8-94337-654-0 02 1 9301-
68 CORE; HTR UNIT 8-97074-119-0 01 1 9301-9408
68 CORE; HTR UNIT 8-97115-728-0 01 1 9409-9603
68 CORE; HTR UNIT 8-97161-841-0 01 1 9604-9607
68 CORE; HTR UNIT 8-97165-535-0 01 1 9608-
69 LEVER; SHUTTER,HTR UNIT 8-94387-021-0 01 1 9301-
76 BRACKET; HTR UNIT
(A) 		8-97167-324-0 01 1 9604-
76 BRACKET; HTR UNIT
(B) 		8-97167-325-0 01 1 9604-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
