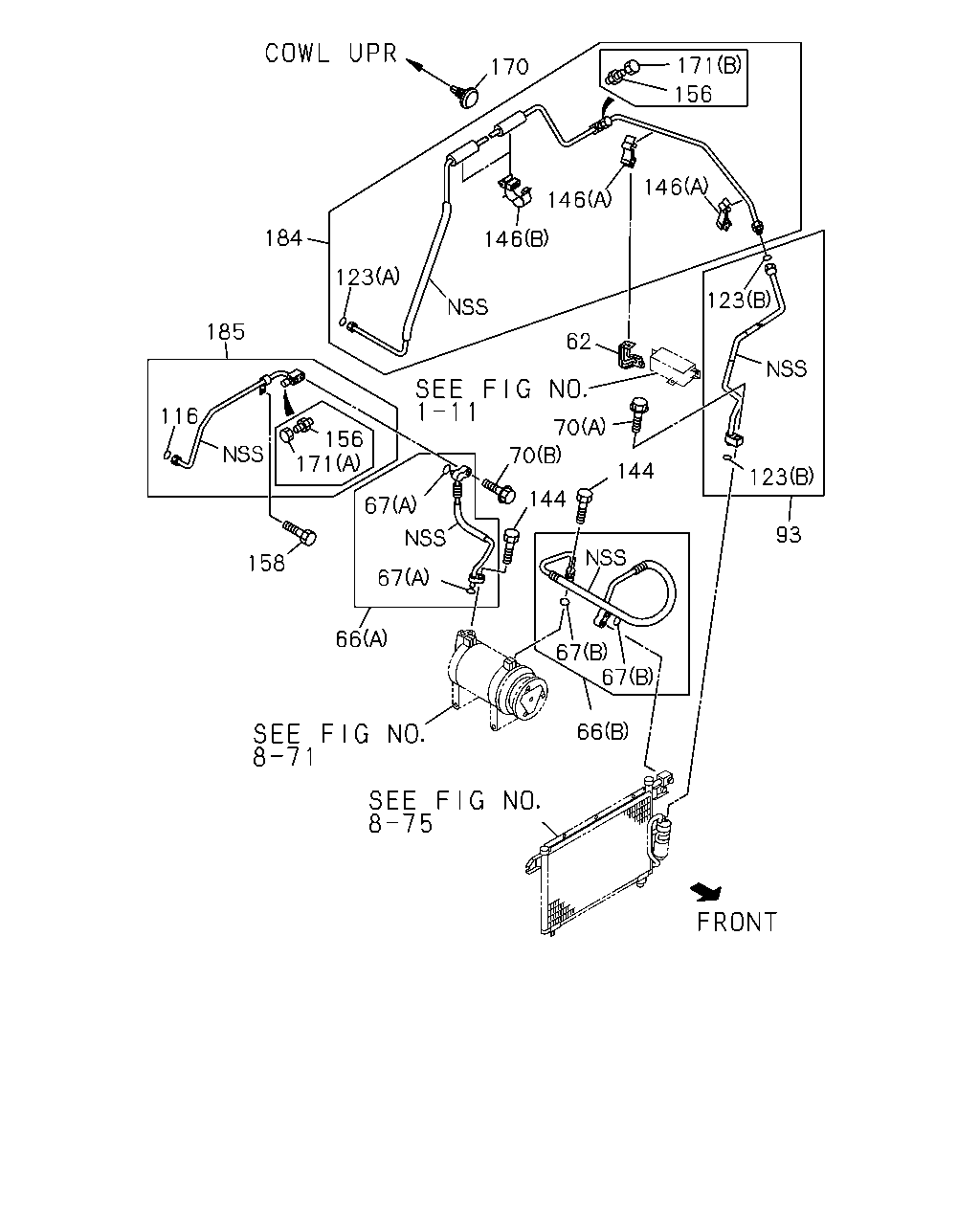

8-52 — PIPING; AIR CONDITIONING (#46968) — 39 parça

171 156 170 146 146 146 123 184 185 116 156 171 67 67 66 158 144 70 70 62 123 123 93 67 67 66 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER(C60)	8-94462-279-1	01	1	9301-
66	HOSE; FLEX,A/C AIR CONDITIONER(C60) (B)	8-97046-328-1	01	1	9301-9308
66	HOSE; FLEX,A/C AIR CONDITIONER(C60) (B)	8-97086-211-1	01	1	9309-
66	HOSE; FLEX,A/C AIR CONDITIONER(C60) (A)	8-97063-883-2	01	1	9301-
67	GASKET; FLEX HOSE AIR CONDITIONER(C60) (A) ID=13.9	8-94113-330-0	02	1	9301-
67	GASKET; FLEX HOSE AIR CONDITIONER(C60) (B) ID=10.8	8-94113-331-0	02	1	9301-
70	BOLT; PIPE TO BODY AIR CONDITIONER(C60) (A) M6X25 FLANGE	0-28080-625-0	01	1	9301-9607
70	BOLT; PIPE TO BODY AIR CONDITIONER(C60) (A) M6X25 FLANGE	0-28680-625-0	01	1	9608-
70	BOLT; PIPE TO BODY AIR CONDITIONER(C60) (B) M8X25 FLANGE	0-28080-825-0	01	1	9301-9607
70	BOLT; PIPE TO BODY AIR CONDITIONER(C60) (B) M8X25 FLANGE	0-28680-825-0	01	1	9608-
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER(C60)	8-97044-167-1	01	1	9301-9302
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER(C60) "R-134A"	8-97085-865-1	01	1	9303-
116	GASKET; PIPE AIR CONDITIONER(C60) ID=13.9	8-94113-330-0	01	1	9301-9504
116	GASKET; PIPE AIR CONDITIONER(C60)	8-94113-530-0	01	1	9505-9511
116	GASKET; PIPE AIR CONDITIONER(C60) ID=13.9	8-94113-330-0	01	1	9512-
123	GASKET; RECEIVER PIPE AIR CONDITIONER(C60) (A) ID=6.07	8-94461-902-0	01	1	9301-
123	GASKET; RECEIVER PIPE AIR CONDITIONER(C60) (B) ID=6.07	8-94461-902-0	02	1	9301-
144	BOLT; CONN TO CMPR AIR CONDITIONER(C60) M8X25 FLANGE	0-28680-825-0	02	1	9607-9607
144	BOLT; CONN TO CMPR AIR CONDITIONER(C60) M8X25 FLANGE	0-28680-825-0	02	1	9608-
144	BOLT; CONN TO CMPR AIR CONDITIONER(C60) M8X25 FLANGE	0-28680-825-0	02	1	9608-
146	CLIP; RECEIVER PIPE AIR CONDITIONER(C60) (A)	8-94457-163-0	02	1	9301-9302
146	CLIP; RECEIVER PIPE AIR CONDITIONER(C60) (A) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9303-
146	CLIP; RECEIVER PIPE AIR CONDITIONER(C60) (B) ID=17 H=13.9 BLACK	8-97064-671-0	02	1	9301-
156	VALVE; PIPE AIR CONDITIONER(C60)	8-94121-731-0	02	1	9301-9302
156	VALVE; PIPE AIR CONDITIONER(C60)	8-97094-695-0	02	1	9303-
158	BOLT; PIPE FIX AIR CONDITIONER(C60)	0-51240-616-0	01	1	9301-
170	PLUG; HOLE EXC. AIR CONDITIONER(C60)	8-94279-922-0	01	1	9301-
171	CAP; PIPE AIR CONDITIONER(C60) (A)	8-94324-069-0	01	1	9301-9302
171	CAP; PIPE AIR CONDITIONER(C60) (A)	8-97094-745-0	01	1	9303-9405
171	CAP; PIPE AIR CONDITIONER(C60) (A)	8-97113-884-0	01	1	9406-9504
171	CAP; PIPE AIR CONDITIONER(C60) (A)	8-97113-684-0	01	1	9505-
171	CAP; PIPE AIR CONDITIONER(C60) (B)	8-97094-731-0	01	1	9303-9405
171	CAP; PIPE AIR CONDITIONER(C60) (B)	8-97113-883-0	01	1	9406-
184	PIPE; PIPE TO EVAP AIR CONDITIONER(C60)	8-97089-193-0	01	1	9301-9302
184	PIPE; PIPE TO EVAP AIR CONDITIONER(C60) "R-134A"	8-97085-867-2	01	1	9303-9504
184	PIPE; PIPE TO EVAP AIR CONDITIONER(C60) "R-134A"	8-97107-494-1	01	1	9505-
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER(C60)	8-97063-964-2	01	1	9301-9302
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER(C60) "R-134A"	8-97085-868-1	01	1	9303-9504
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER(C60) "R-134A"	8-97116-608-0	01	1	9505-
