Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶

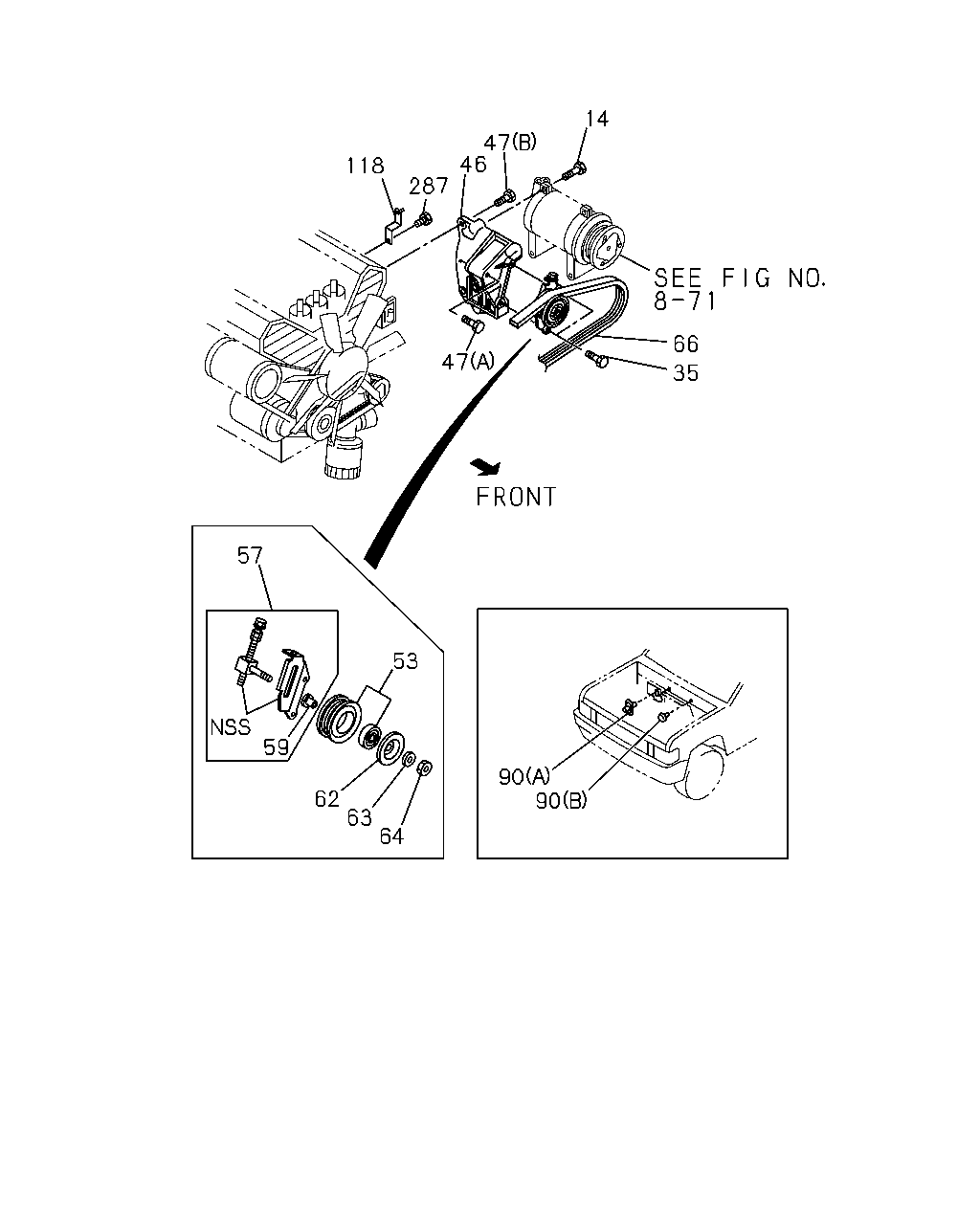

8-50 — AIR CONDITIONING SYSTEM; FRONT
(#46967) — 18 parça
14
47
46
287
118
47
35
66
90
90
64
63
62
53
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
BOLT; CMPR
AIR CONDITIONER(C60) M8X65
8-94158-393-1
02
1
9301-9402
14
BOLT; CMPR
AIR CONDITIONER(C60) M8X65 FLANGE
1-09044-072-1
02
1
9403-
14
BOLT; CMPR
AIR CONDITIONER(C60) M8X75
8-94239-147-0
02
1
9301-
35
BOLT; IDLER PULLEY TO C/BL
AIR CONDITIONER(C60) M8X16 FLANGE
0-28080-816-0
02
1
9301-
46
BRACKET; CMPR
AIR CONDITIONER(C60)
8-94374-507-5
01
1
9301-
47
BOLT; BRKT TO BODY
AIR CONDITIONER(C60) (B) M10X25 FLANGE
0-28181-025-0
03
1
9301-
47
BOLT; BRKT TO BODY
AIR CONDITIONER(C60) (A) M10X75 FLANGE
8-94399-669-1
01
1
9301-
53
PULLEY; IDLER WITH COVER
AIR CONDITIONER(C60)
8-97061-667-0
01
1
9301-
57
BRACKET; IDLER PULLEY
AIR CONDITIONER(C60)
8-97061-670-0
01
1
9301-
59
COLLAR; IDLER PULLEY
AIR CONDITIONER(C60)
8-97061-669-0
01
1
9301-
62
COVER; IDLER PULLEY
AIR CONDITIONER(C60)
8-97061-671-0
01
1
9301-
63
WASHER; SHAFT,IDLER PULLEY
AIR CONDITIONER(C60)
8-97061-672-0
01
1
9301-
64
NUT; SHAFT,IDLER PULLEY
AIR CONDITIONER(C60)
8-97061-668-0
01
1
9301-
66
BELT; A/C CMPR
AIR CONDITIONER(C60)
8-97064-556-0
01
1
9301-
90
PLUG; PIPE HOLE
EXC. AIR CONDITIONER(C60) (B)
8-94222-310-1
01
1
9301-
90
PLUG; PIPE HOLE
EXC. AIR CONDITIONER(C60) (A) OD=12
9-09956-122-0
02
1
9301-
118
BRACKET; HARNESS CLIP,A/C
EXC. AIR CONDITIONER(C60)
8-97039-000-0
01
1
9301-
287
BOLT; BRKT,HARNESS
EXC. AIR CONDITIONER(C60) M10X16 FLANGE
0-28181-016-0
01
1
9301-
