Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶

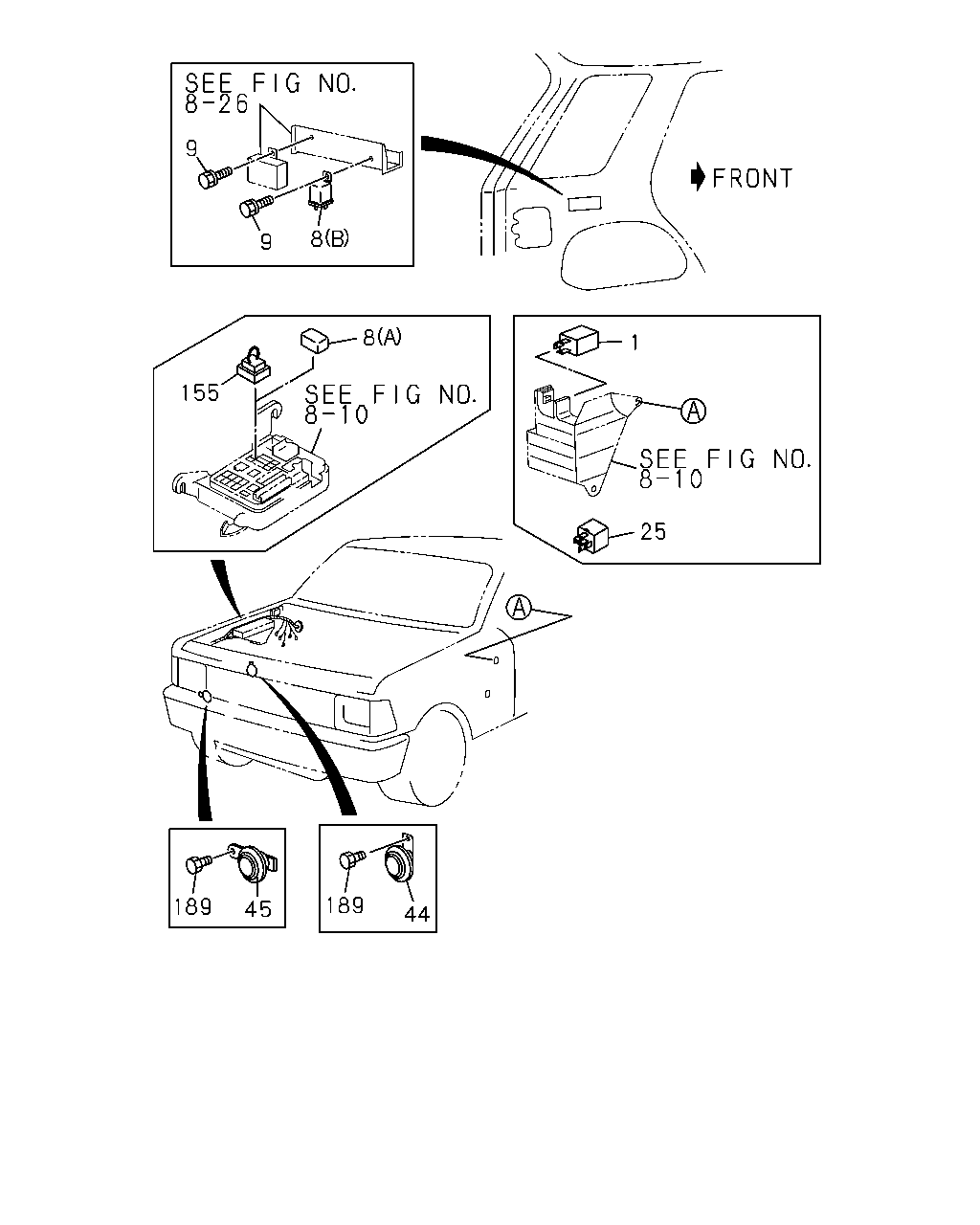

8-28 — CHASSIS ELECTRICAL
(#46964) — 31 parça
◀
[828A] NO.2 CONTROL MODULE (14 parça)
[828A] NO.1 OTHER PARTS (17 parça)
▶
275
278
475
471
475
475
474
441
475
474
441
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
275
BOLT; BRKT
M6X16 W/LK&PL WASHER
0-50140-616-0
01
1
9301-9302
275
BOLT; BRKT
M6X12 FLANGE
0-28080-612-0
01
1
9303-9408
275
BOLT; BRKT
M6X16
8-97069-289-0
03
1
9409-
278
NUT; CONT UNIT
D=9X9 L=8 M6
8-94222-314-0
03
1
9512-
441
SCREW; CONT UNIT
M4X10 TAPPING W/PL WASHER
0-74100-410-0
04
1
9512-
471
CONTROL MODULE; POWER TRAIN
A/T THM(RMQ)
8-16215-239-3
01
1
9512-9602
471
CONTROL MODULE; POWER TRAIN
A/T THM(RMQ)
8-16244-049-0
01
1
9603-9607
471
CONTROL MODULE; POWER TRAIN
A/T THM(RMQ)
8-16243-269-0
01
1
9608-
471
CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN)
8-16215-199-3
01
1
9512-9602
471
CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN)
8-16244-019-0
01
1
9603-9607
471
CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN)
8-16243-279-0
01
1
9608-
474
BRACKET; PCM
8-97101-906-0
01
1
9512-
474
BRACKET; PCM
8-97101-905-0
01
1
9512-
475
GROMMET; PCM
8-97110-216-1
04
1
9512-
9
9
8
8
155
1
25
44
189
45
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
DENSO
8-97038-317-0
01
1
9301-
1
UNIT; FLASHER
NILES
8-97039-288-0
01
1
9301-9407
1
UNIT; FLASHER
NILES
8-97105-453-0
01
1
9408-
8
RELAY; WIPER
INTERMITTENT WIPER<C13> (A)
8-94434-674-1
01
1
9301-9504
8
RELAY; WIPER
INTERMITTENT WIPER<C13> (A)
8-97096-762-1
01
1
9505-
8
RELAY; WIPER
RR WIPER<C25> (B)
5-82550-035-0
01
1
9301-9511
8
RELAY; WIPER
RR WIPER<C25> (B)
5-82550-035-0
01
1
9512-
9
SCREW; WIPER RELAY
RR WIPER<C25> M6X12 TAPPING
9-07076-612-0
02
1
9301-9511
9
SCREW; WIPER RELAY
RR WIPER<C25> M6X12 TAPPING
9-07076-612-0
02
1
9512-
25
RELAY; TAIL LAMP
12V 20A
8-97060-926-1
01
1
9505-
44
HORN; HIGH NOTE
DUAL TONE HORN<U05>
8-94329-560-0
01
1
9301-
45
HORN; LOW NOTE
8-94329-561-0
01
1
9301-
155
CONNECTOR; SHORT
EXC. INTERMITTENT WIPER<C13>
8-94442-562-0
01
1
9301-9504
189
BOLT; HORN
DUAL TONE HORN<U05> M8X12
8-94148-422-1
02
1
9301-9607
189
BOLT; HORN
DUAL TONE HORN<U05> M8X12 FLANGE
0-28080-812-0
02
1
9608-
189
BOLT; HORN
EXC. DUAL TONE HORN<U05> M8X12
8-94148-422-1
01
1
9301-9607
189
BOLT; HORN
EXC. DUAL TONE HORN<U05> M8X12 FLANGE
0-28080-812-0
01
1
9608-
