8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#46962) — 110 parça
çizim 16904
389 524
BalonParca AdiParca NoAdetTipApplied Date
389 GASKET; SWITCH
ID=14.2 OD=20.0 		9-09571-414-0 01 1 9512-9611
389 GASKET; SWITCH
ID=14.2 OD=20.0 		9-09571-414-0 01 1 9612-
524 SWITCH; DIFF 8-97101-956-2 01 1 9512-9611
524 SWITCH; DIFF 8-97101-956-2 01 1 9612-

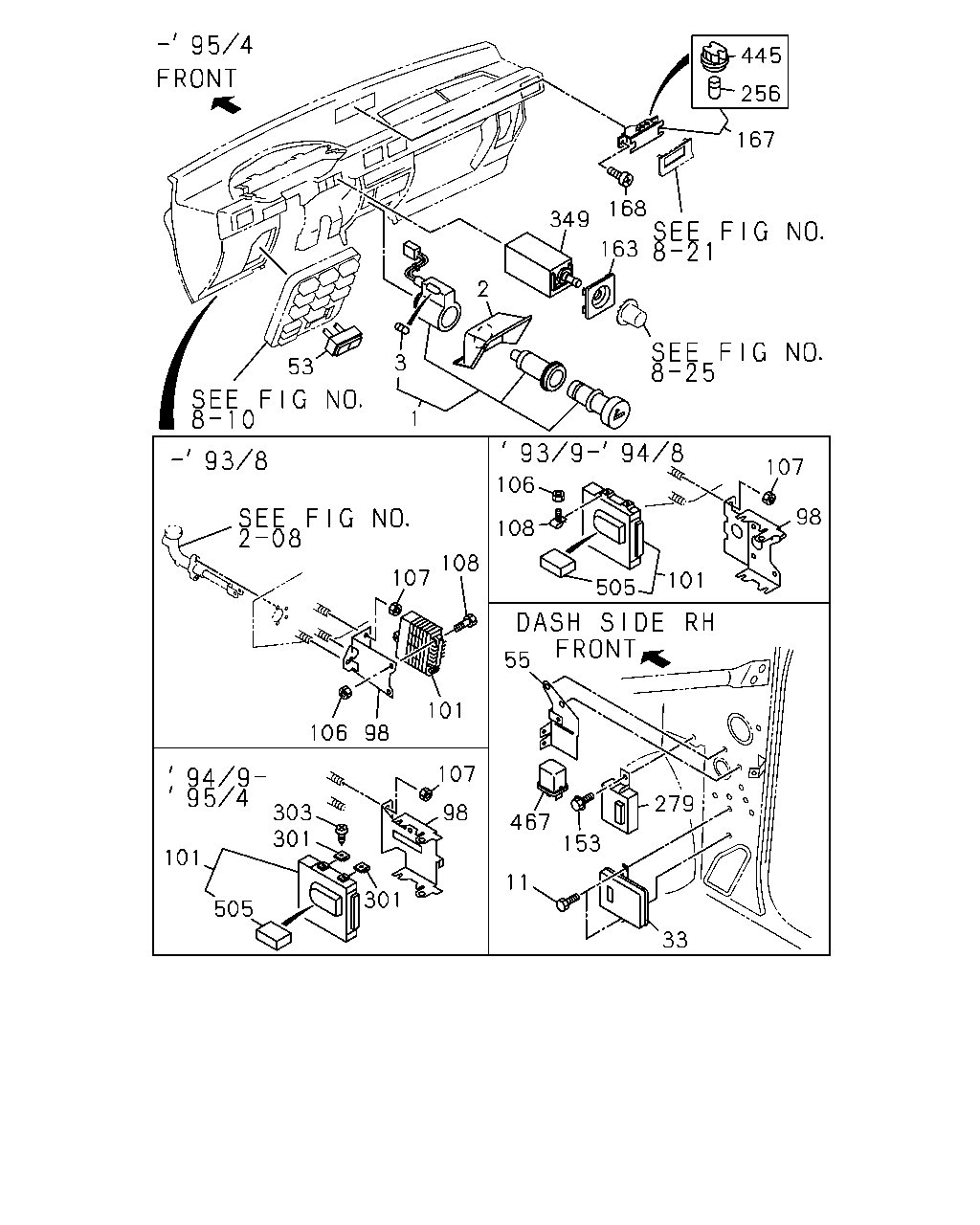

çizim 16906
445 256 167 168 349 163 2 3 53 1 108 107 101 98 106 107 98 301 301 303 505 101 11 467 153 279 33 55 505 101 98 107 108 106
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
GRADE LS(RBD) 		8-94442-590-0 01 1 9301-9504
1 LIGHTER; CIGAR
GRADE LS(RBD) 		8-97094-468-1 01 1 9505-
1 LIGHTER; CIGAR
GRADE S(RBA) 		8-94442-589-1 01 1 9301-9504
1 LIGHTER; CIGAR
GRADE S(RBA) 		8-97100-029-0 01 1 9505-
2 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) GRAY 		8-94482-848-0 01 1 9301-9504
2 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) BLACK 		8-97000-043-0 01 1 9505-
2 BEZEL; CIGAR LIGHTER
GRADE S(RBA) GRAY 		8-94482-846-0 01 1 9301-9504
2 BEZEL; CIGAR LIGHTER
GRADE S(RBA) BLACK 		8-94333-793-0 01 1 9505-
3 BULB; CIGAR LIGHTER
GRADE LS(RBD) 14V 1.4W WO/CAP 		5-82194-026-0 01 1 9301-
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> M6X16 FLANGE 		0-28480-616-0 02 1 9301-
33 CONTROL UNIT; AUTO CRUISE
AUTO CRUISE CONT<K30> 		8-97074-915-0 01 1 9301-9504
33 CONTROL UNIT; AUTO CRUISE
AUTO CRUISE CONT<K30> 		8-97129-719-1 01 1 9505-9511
33 CONTROL UNIT; AUTO CRUISE
AUTO CRUISE CONT<K30> 		8-97134-943-0 01 1 9512-
53 BREAKER; ELEC CIRCUIT
POWER WINDOW<A30> 		8-94332-278-0 01 1 9301-9504
53 BREAKER; ELEC CIRCUIT
POWER WINDOW<A30> 		8-97106-113-0 01 1 9505-
55 BRACKET; RELAY 8-97038-455-0 01 1 9301-9504
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) 		8-94375-127-1 01 1 9301-9308
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) 		8-97101-501-0 01 1 9309-9408
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) 		8-97110-211-0 01 1 9409-9511
101 CONTROL UNIT; ELEC,A/T
A/T THM(RMQ) 		8-96017-064-1 01 1 9301-9308
101 CONTROL UNIT; ELEC,A/T
A/T THM(RMQ) 		8-16202-559-0 01 1 9309-9311
101 CONTROL UNIT; ELEC,A/T
A/T THM(RMQ) 		8-16205-429-0 01 1 9312-9408
101 CONTROL UNIT; ELEC,A/T
A/T THM(RMQ) 		8-16210-629-0 01 1 9409-9504
101 CONTROL UNIT; ELEC,A/T
A/T THM(RMQ) 		8-16218-419-0 01 1 9505-9511
106 NUT; ELEC CONT UNIT
A/T THM(RMQ) M5 FLANGE 		8-94178-699-0 03 1 9301-9308
106 NUT; ELEC CONT UNIT
A/T THM(RMQ) M5 FLANGE 		8-94178-699-0 04 1 9309-9408
107 NUT; BRKT,ELEC CONT UNIT
A/T THM(RMQ) M8 FLANGE 		5-09440-005-0 03 1 9301-9308
107 NUT; BRKT,ELEC CONT UNIT
A/T THM(RMQ) M8 FLANGE 		5-09440-005-0 02 1 9309-9504
107 NUT; BRKT,ELEC CONT UNIT
A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 02 1 9505-9511
108 BOLT; TRANS CONT MODULE
A/T THM(RMQ) M6X16 		8-94206-784-0 03 1 9301-9308
108 BOLT; TRANS CONT MODULE
A/T THM(RMQ) M5X12 W/CLIP 		8-94443-197-0 04 1 9309-9408
153 BOLT; BUZZER FIX
M6X16 FLANGE 		0-28480-616-0 01 1 9301-
163 BEZEL; RHEOSTAT
L=130.0 		8-94434-436-1 01 1 9301-
167 INDICATOR ASM; TRANS
A/T THM(RMQ) 		8-97020-479-0 01 1 9301-9308
167 INDICATOR ASM; TRANS
A/T THM(RMQ) 		8-97096-311-0 01 1 9309-9504
168 SCREW; WARNING LAMP
A/T THM(RMQ) M5X16 TAPPING 		9-09829-323-1 02 1 9301-9504
256 BULB; TRANS INDICATOR
A/T THM(RMQ) 12V 1.4W 		8-94152-313-0 04 1 9309-9504
279 BUZZER ASM; SEAT BELT WARNING 8-94385-489-1 01 1 9301-9504
279 BUZZER ASM; SEAT BELT WARNING 8-97113-143-0 01 1 9505-9601
279 BUZZER ASM; SEAT BELT WARNING 8-97135-562-0 01 1 9602-
301 GROMMET; CONT UNIT BRKT
A/T THM(RMQ) 		8-97110-216-1 04 1 9409-9511
303 SCREW; CONT UNIT
A/T THM(RMQ) M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 9409-9511
349 CONTROL; ILLUMINATION 8-94361-873-0 01 1 9301-9504
349 CONTROL; ILLUMINATION 8-97130-283-0 01 1 9505-
445 SOCKET; BULB
A/T THM(RMQ) 12V 1.4W BLACK 		8-94114-138-0 04 1 9309-9504
467 RELAY; UP-SHIFT
M/T MUA 5 SPEED(RMN) 12V 20A 		8-94218-497-0 01 1 9301-9504
467 RELAY; UP-SHIFT
M/T MUA 5 SPEED(RMN) 12V 20A 		8-97060-926-1 01 1 9505-
505 CALIBRATION; A/T CONTROL UNIT
A/T THM(RMQ) 		8-16202-531-0 01 1 9309-9311
505 CALIBRATION; A/T CONTROL UNIT
A/T THM(RMQ) 		8-16205-428-0 01 1 9312-9408
505 CALIBRATION; A/T CONTROL UNIT
A/T THM(RMQ) 		8-16210-598-0 01 1 9409-9504
505 CALIBRATION; A/T CONTROL UNIT
A/T THM(RMQ) 		8-16218-425-0 01 1 9505-9511

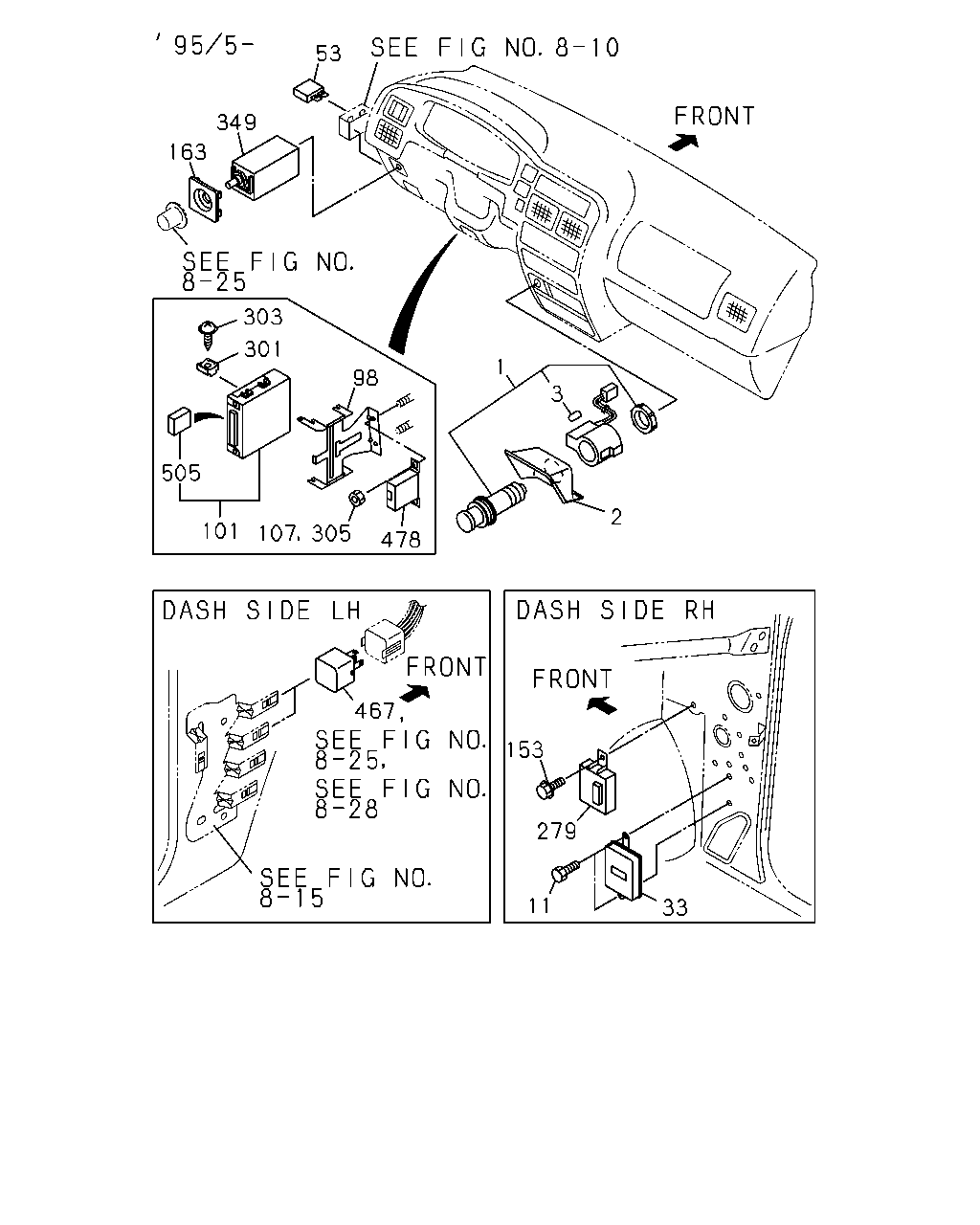

çizim 65950
53 349 163 303 301 98 478 305 107 101 505 1 3 2 153 279 11 33 467
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
GRADE LS(RBD) 		8-94442-590-0 01 1 9301-9504
1 LIGHTER; CIGAR
GRADE LS(RBD) 		8-97094-468-1 01 1 9505-
1 LIGHTER; CIGAR
GRADE S(RBA) 		8-94442-589-1 01 1 9301-9504
1 LIGHTER; CIGAR
GRADE S(RBA) 		8-97100-029-0 01 1 9505-
2 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) GRAY 		8-94482-848-0 01 1 9301-9504
2 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) BLACK 		8-97000-043-0 01 1 9505-
2 BEZEL; CIGAR LIGHTER
GRADE S(RBA) GRAY 		8-94482-846-0 01 1 9301-9504
2 BEZEL; CIGAR LIGHTER
GRADE S(RBA) BLACK 		8-94333-793-0 01 1 9505-
3 BULB; CIGAR LIGHTER
GRADE LS(RBD) 14V 1.4W WO/CAP 		5-82194-026-0 01 1 9301-
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> M6X16 FLANGE 		0-28480-616-0 02 1 9301-
33 CONTROL UNIT; AUTO CRUISE
AUTO CRUISE CONT<K30> 		8-97074-915-0 01 1 9301-9504
33 CONTROL UNIT; AUTO CRUISE
AUTO CRUISE CONT<K30> 		8-97129-719-1 01 1 9505-9511
33 CONTROL UNIT; AUTO CRUISE
AUTO CRUISE CONT<K30> 		8-97134-943-0 01 1 9512-
53 BREAKER; ELEC CIRCUIT
POWER WINDOW<A30> 		8-94332-278-0 01 1 9301-9504
53 BREAKER; ELEC CIRCUIT
POWER WINDOW<A30> 		8-97106-113-0 01 1 9505-
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) 		8-94375-127-1 01 1 9301-9308
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) 		8-97101-501-0 01 1 9309-9408
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) 		8-97110-211-0 01 1 9409-9511
101 CONTROL UNIT; ELEC,A/T
A/T THM(RMQ) 		8-96017-064-1 01 1 9301-9308
101 CONTROL UNIT; ELEC,A/T
A/T THM(RMQ) 		8-16202-559-0 01 1 9309-9311
101 CONTROL UNIT; ELEC,A/T
A/T THM(RMQ) 		8-16205-429-0 01 1 9312-9408
101 CONTROL UNIT; ELEC,A/T
A/T THM(RMQ) 		8-16210-629-0 01 1 9409-9504
101 CONTROL UNIT; ELEC,A/T
A/T THM(RMQ) 		8-16218-419-0 01 1 9505-9511
107 NUT; BRKT,ELEC CONT UNIT
A/T THM(RMQ) M8 FLANGE 		5-09440-005-0 03 1 9301-9308
107 NUT; BRKT,ELEC CONT UNIT
A/T THM(RMQ) M8 FLANGE 		5-09440-005-0 02 1 9309-9504
107 NUT; BRKT,ELEC CONT UNIT
A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 02 1 9505-9511
153 BOLT; BUZZER FIX
M6X16 FLANGE 		0-28480-616-0 01 1 9301-
163 BEZEL; RHEOSTAT
L=130.0 		8-94434-436-1 01 1 9301-
279 BUZZER ASM; SEAT BELT WARNING 8-94385-489-1 01 1 9301-9504
279 BUZZER ASM; SEAT BELT WARNING 8-97113-143-0 01 1 9505-9601
279 BUZZER ASM; SEAT BELT WARNING 8-97135-562-0 01 1 9602-
301 GROMMET; CONT UNIT BRKT
A/T THM(RMQ) 		8-97110-216-1 04 1 9409-9511
303 SCREW; CONT UNIT
A/T THM(RMQ) M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 9409-9511
305 NUT; CONT UNIT
A/T THM(RMQ) M8 FLANGE 		5-09440-005-0 02 1 9512-
349 CONTROL; ILLUMINATION 8-94361-873-0 01 1 9301-9504
349 CONTROL; ILLUMINATION 8-97130-283-0 01 1 9505-
467 RELAY; UP-SHIFT
M/T MUA 5 SPEED(RMN) 12V 20A 		8-94218-497-0 01 1 9301-9504
467 RELAY; UP-SHIFT
M/T MUA 5 SPEED(RMN) 12V 20A 		8-97060-926-1 01 1 9505-
478 CONTROLLER; INDICATOR,A/T
A/T THM(RMQ) 		8-97106-313-0 01 1 9505-
505 CALIBRATION; A/T CONTROL UNIT
A/T THM(RMQ) 		8-16202-531-0 01 1 9309-9311
505 CALIBRATION; A/T CONTROL UNIT
A/T THM(RMQ) 		8-16205-428-0 01 1 9312-9408
505 CALIBRATION; A/T CONTROL UNIT
A/T THM(RMQ) 		8-16210-598-0 01 1 9409-9504
505 CALIBRATION; A/T CONTROL UNIT
A/T THM(RMQ) 		8-16218-425-0 01 1 9505-9511
çizim 70689
234 468 13 276 64 63
BalonParca AdiParca NoAdetTipApplied Date
13 PLUG; CONTROLLER,CRUISE
EXC. AUTO CRUISE CONT<K30> 		8-94147-164-1 01 1 9301-
63 CONTROLLER; RR WIPER
RR WIPER<C25> 		8-94316-966-2 01 1 9301-9511
63 CONTROLLER; RR WIPER
RR WIPER<C25> 		8-94316-966-2 01 1 9512-
64 BRACKET; CONTROLLER
RR WIPER<C25> 		8-94369-591-0 01 1 9301-9511
64 BRACKET; CONTROLLER
RR WIPER<C25> 		8-94369-591-0 01 1 9512-
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN DARK GRAY 		8-97065-834-0 01 1 9301-9504
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9505-
276 SCREW; BRKT
RR WIPER<C25> M5X12 		8-94120-094-0 02 1 9301-9511
276 SCREW; BRKT
RR WIPER<C25> M5X12 		8-94120-094-0 02 1 9512-
468 GROMMET; HOLE,METER CABLE 1-09332-019-0 01 1 9301-9308
468 GROMMET; HOLE,METER CABLE 8-94289-283-0 01 1 9309-9504
468 GROMMET; HOLE,METER CABLE
OD=31.6 		8-94198-177-0 01 1 9505-
