8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#46961) — 138 parça
◀

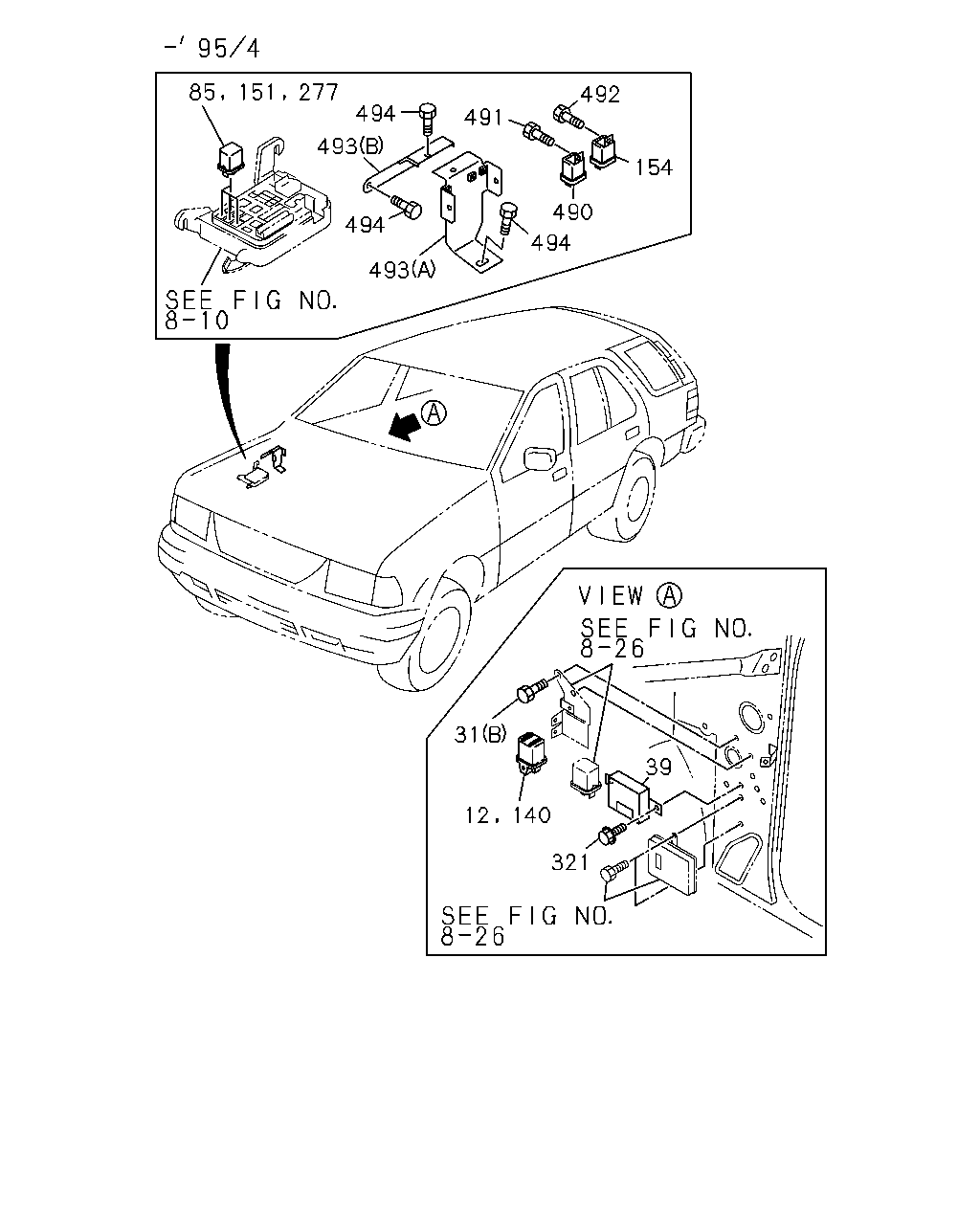

[825A] NO.1 RELAY; -'95/4 (24 parça)

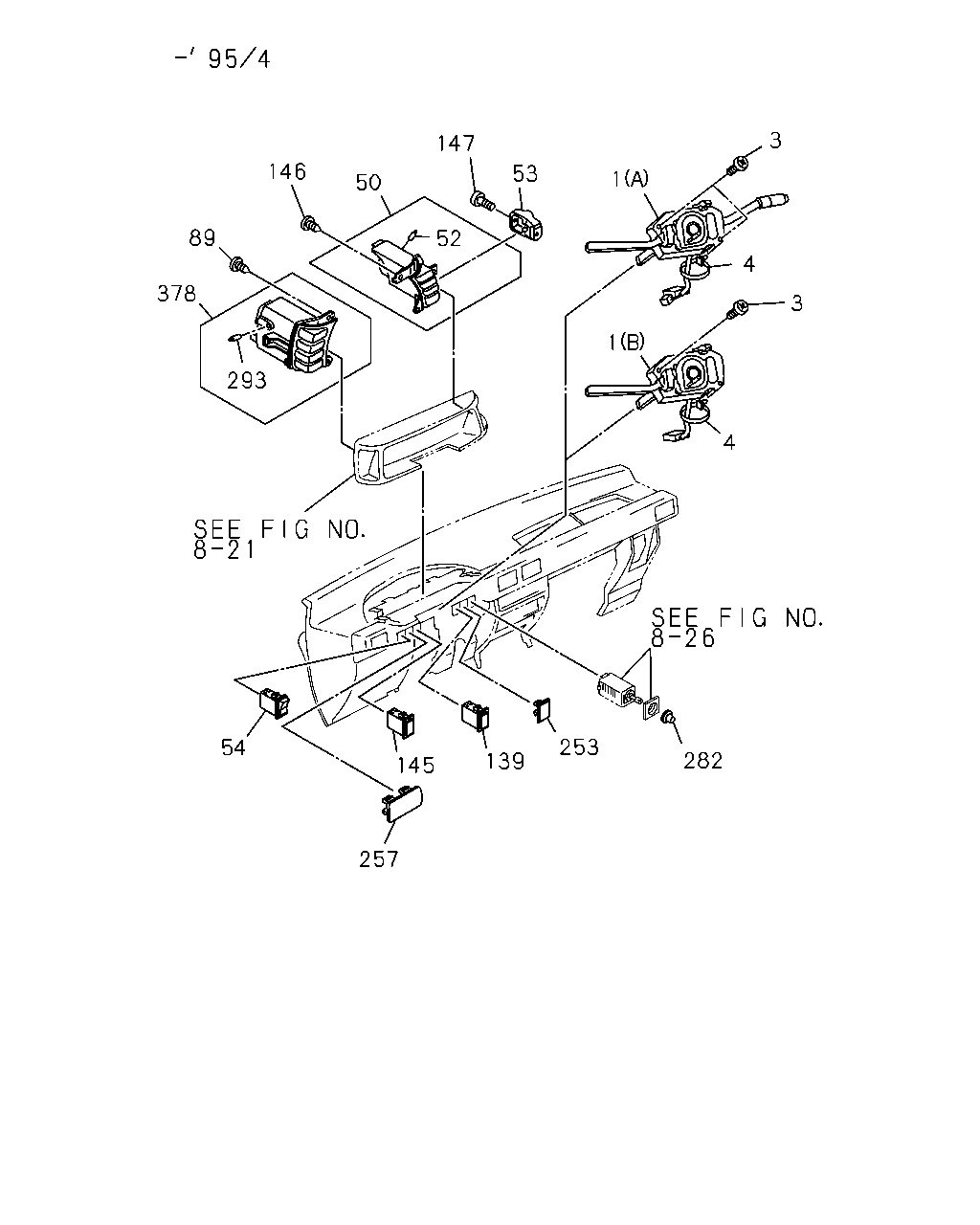

[825A] NO.3 SWITCH; INSTRUMENT PANEL (36 parça)

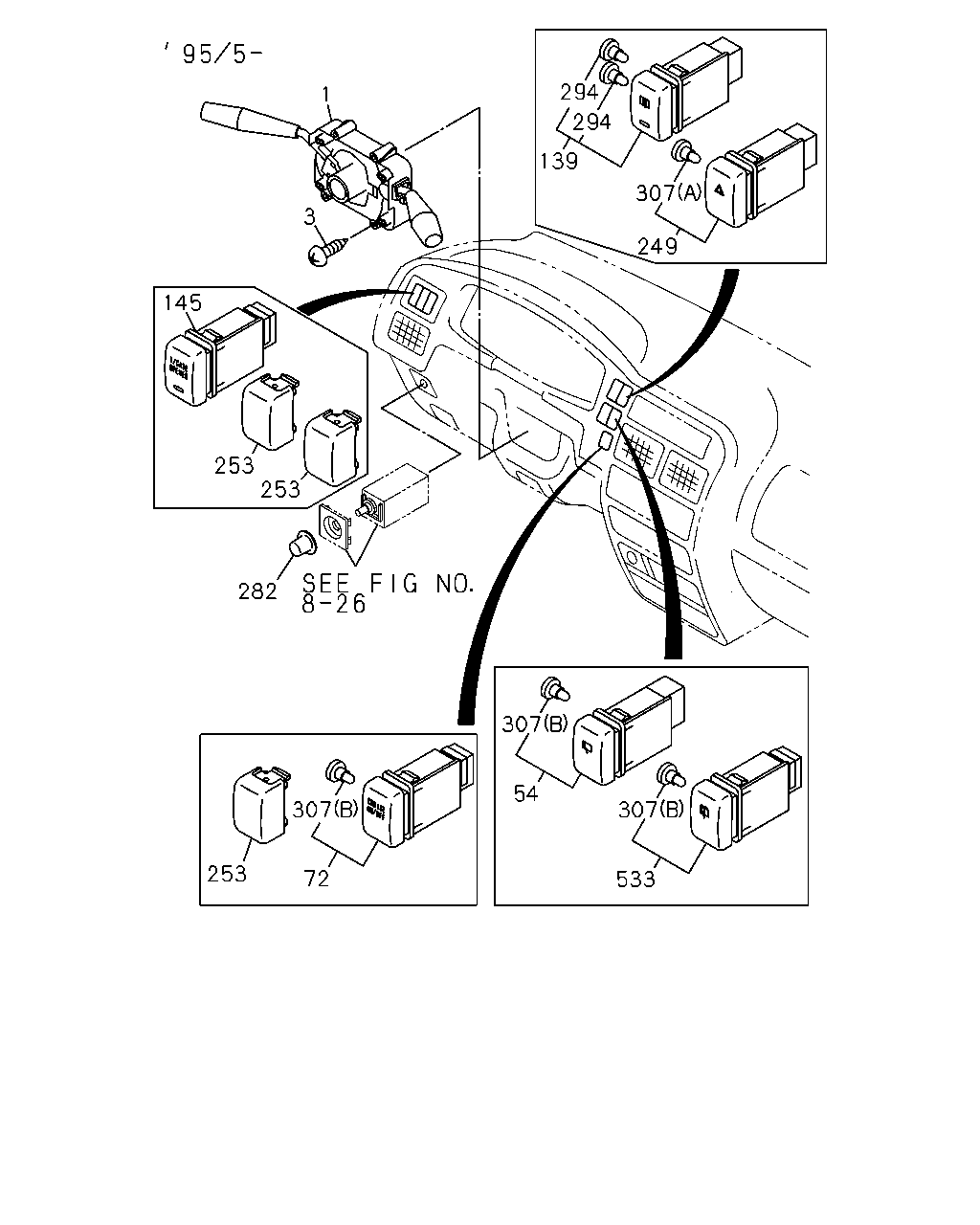

[825A] NO.4 SWITCH; INSTRUMENT PANEL (35 parça)

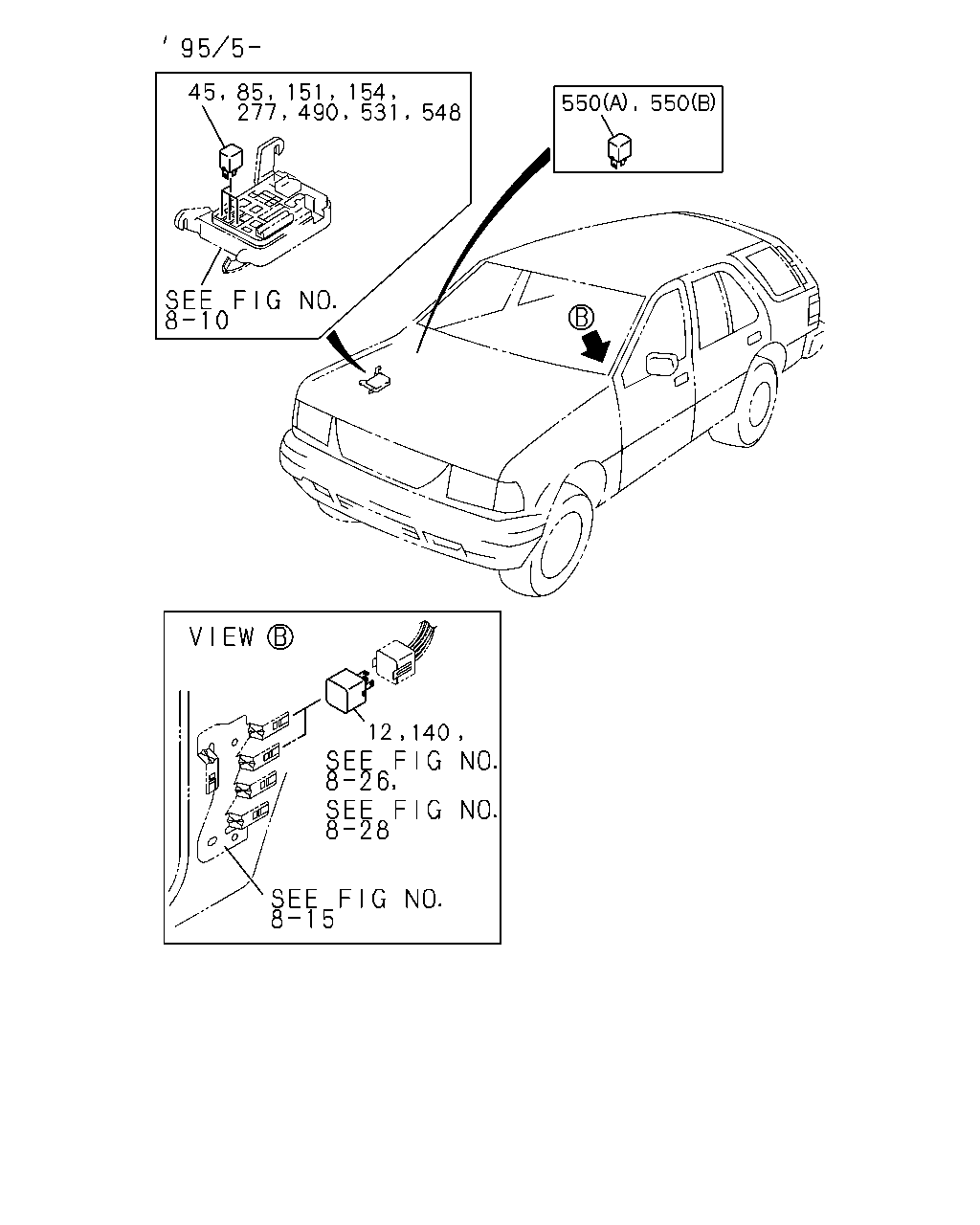

[825A] NO.2 RELAY; '95/5- (19 parça)

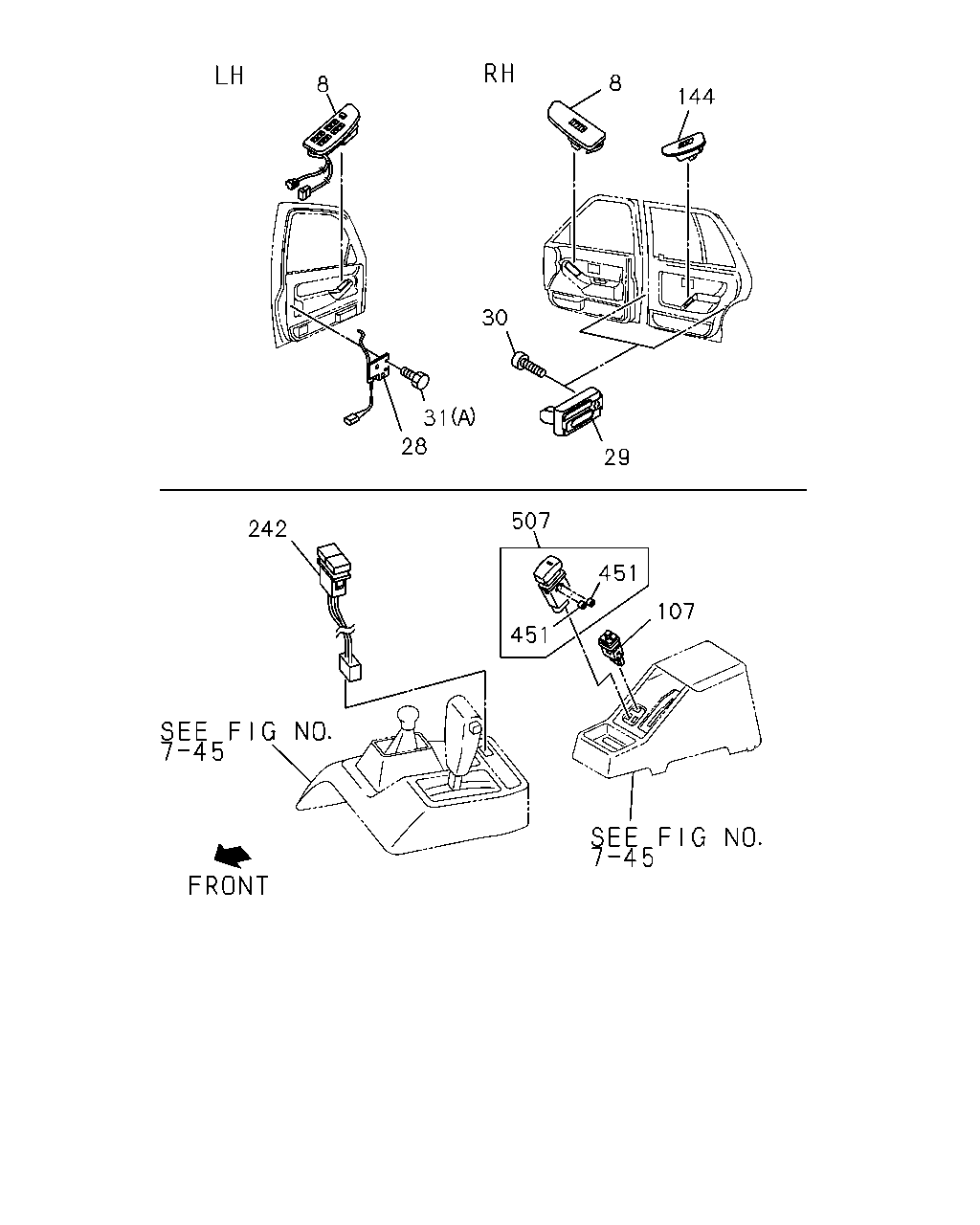

[825A] NO.5 SWITCH; DOOR AND CONSOLE (24 parça)
▶
85
151
277
494
493
494
493
494
490
154
492
491
31
12
140
321
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
RELAY; POWER WINDOW
POWER WINDOW<A30>
8-94112-911-0
01
1
9301-9504
12
RELAY; POWER WINDOW
POWER WINDOW<A30> 12V 20A
8-97060-926-1
01
1
9505-
31
BOLT; DOOR LK SW
(B) M6X16 FLANGE
0-28480-616-0
02
1
9301-9504
31
BOLT; DOOR LK SW
(A) M6X14
9-03810-614-0
02
1
9301-9408
31
BOLT; DOOR LK SW
(A) M6X14
8-97046-332-0
02
1
9409-9504
39
RELAY; DOOR LK
AUTO DOOR LOCK<AU4>
8-94385-490-0
01
1
9301-9504
85
RELAY; HEADLAMP
12V 20A
8-94218-497-0
01
1
9301-9504
85
RELAY; HEADLAMP
12V 20A
8-97060-926-1
01
1
9505-
140
RELAY; RR DEFOGGER
8-94112-911-0
01
1
9301-9504
140
RELAY; RR DEFOGGER
12V 20A
8-97060-926-1
01
1
9505-
151
RELAY; HTR & A/C
12V 20A
8-94218-497-0
01
1
9301-9504
151
RELAY; HTR & A/C
12V 20A
8-97060-926-1
01
1
9505-
154
RELAY; CONDENSER FAN
A/T THM(RMQ) AIR CONDITIONER(C60) 12V
8-94112-912-0
01
1
9301-9504
154
RELAY; CONDENSER FAN
A/T THM(RMQ) AIR CONDITIONER(C60) 12V 20A
8-97060-926-1
01
1
9505-
277
RELAY; FUEL PUMP
12V 20A
8-94218-497-0
01
1
9301-9504
277
RELAY; FUEL PUMP
12V 20A
8-97060-926-1
01
1
9505-
321
BOLT; RELAY
AUTO DOOR LOCK<AU4> M6X16 FLANGE
0-28480-616-0
01
1
9301-9504
490
RELAY; THERMO
AIR CONDITIONER(C60) 12V
8-94112-912-0
01
1
9301-9504
490
RELAY; THERMO
AIR CONDITIONER(C60) 12V 20A
8-97060-926-1
01
1
9505-
491
BOLT; RELAY FIX
AIR CONDITIONER(C60) M6X12 W/LK&PL WASHER
0-50140-612-0
01
1
9301-9504
492
BOLT; RELAY,BRKT
A/T THM(RMQ) AIR CONDITIONER(C60) M6X12 W/LK&PL WASHER
0-50140-612-0
01
1
9301-9504
493
BRACKET
AIR CONDITIONER(C60) (B)
8-94479-552-2
01
1
9301-9504
493
BRACKET
AIR CONDITIONER(C60) (A)
8-97074-308-1
01
1
9301-9504
494
BOLT; BRKT,RELAY
AIR CONDITIONER(C60) M6X12 W/LK&PL WASHER
0-50140-612-0
04
1
9301-9504
3
4
3
1
4
282
253
139
145
257
54
293
378
89
146
50
147
53
1
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
AUTO CRUISE CONT<K30> (A)
8-97068-774-2
01
1
9301-9504
1
SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>
8-97117-640-2
01
1
9505-9505
1
SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> 950522-
8-97134-297-0
01
1
9505-9511
1
SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>
8-97120-338-3
01
1
9512-
1
SWITCH; COMB
AUTO CRUISE CONT<K30> EXC. INTERMITTENT WIPER<C13>
8-97117-641-2
01
1
9505-9505
1
SWITCH; COMB
AUTO CRUISE CONT<K30> EXC. INTERMITTENT WIPER<C13> 950522-
8-97134-298-0
01
1
9505-9511
1
SWITCH; COMB
AUTO CRUISE CONT<K30> EXC. INTERMITTENT WIPER<C13>
8-97120-335-3
01
1
9512-
1
SWITCH; COMB
EXC. AUTO CRUISE CONT<K30> (B)
8-94375-479-3
01
1
9301-9504
1
SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>
8-97117-639-2
01
1
9505-9505
1
SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30> 950522-
8-97134-296-0
01
1
9505-9511
1
SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>
8-97120-336-3
01
1
9512-
1
SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30>
8-97117-638-2
01
1
9505-9505
1
SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30> 950522-
8-97134-295-0
01
1
9505-9511
1
SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30>
8-97120-337-3
01
1
9512-
3
SCREW; COMB SW
M5X14 W/LK WASHER
9-03910-514-0
02
1
9301-9504
3
SCREW; COMB SW
M5X14 W/LK WASHER
9-03910-514-0
04
1
9505-
4
CLIP; COMB SW
L=250
5-09707-030-0
02
1
9301-9504
50
SWITCH; FRT WIPER
INTERMITTENT WIPER<C13>
8-94332-532-2
01
1
9301-9504
50
SWITCH; FRT WIPER
EXC. INTERMITTENT WIPER<C13>
8-94332-533-2
01
1
9301-9504
52
BULB ASM; WIPER & WASHER SW
8-94389-079-0
01
1
9301-9504
53
LEVER; WINDSHIELD WASHER SW
8-94332-535-0
01
1
9301-9504
54
SWITCH; RR WIPER
RR WIPER<C25>
8-94317-597-0
01
1
9301-9504
54
SWITCH; RR WIPER
RR WIPER<C25>
8-97094-078-1
01
1
9505-
89
SCREW; LIGHTING SW
M5X16 TAPPING
9-09829-323-1
03
1
9301-9504
139
SWITCH; RR DEFOGGER
8-94450-651-1
01
1
9301-9504
139
SWITCH; RR DEFOGGER
8-97094-074-2
01
1
9505-
145
SWITCH; TAIL GATE OPENER
AUTO DOOR LOCK<AU4>
8-94337-586-2
01
1
9301-9504
145
SWITCH; TAIL GATE OPENER
8-97093-960-3
01
1
9505-
146
SCREW; SW
M5X16 TAPPING
9-09829-323-1
03
1
9301-9504
147
SCREW; WASHER SW LEVER
8-94318-778-0
01
1
9301-9504
253
COVER; SW HOLE
BLACK
8-94417-418-2
AR
1
9301-9504
253
COVER; SW HOLE
8-97081-617-1
AR
1
9505-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4>,RR WIPER<C25> GRAY
8-94477-561-0
01
1
9301-9504
282
KNOB; ILLUMINATION CONT
8-94361-874-0
01
1
9301-
293
BULB; LIGHTING SW
8-94389-079-0
01
1
9301-9504
378
SWITCH; LIGHTING
8-94332-534-2
01
1
9301-9504
294
294
139
307
249
1
3
145
253
253
282
253
307
72
54
307
307
533
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
AUTO CRUISE CONT<K30> (A)
8-97068-774-2
01
1
9301-9504
1
SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>
8-97117-640-2
01
1
9505-9505
1
SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> 950522-
8-97134-297-0
01
1
9505-9511
1
SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>
8-97120-338-3
01
1
9512-
1
SWITCH; COMB
AUTO CRUISE CONT<K30> EXC. INTERMITTENT WIPER<C13>
8-97117-641-2
01
1
9505-9505
1
SWITCH; COMB
AUTO CRUISE CONT<K30> EXC. INTERMITTENT WIPER<C13> 950522-
8-97134-298-0
01
1
9505-9511
1
SWITCH; COMB
AUTO CRUISE CONT<K30> EXC. INTERMITTENT WIPER<C13>
8-97120-335-3
01
1
9512-
1
SWITCH; COMB
EXC. AUTO CRUISE CONT<K30> (B)
8-94375-479-3
01
1
9301-9504
1
SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>
8-97117-639-2
01
1
9505-9505
1
SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30> 950522-
8-97134-296-0
01
1
9505-9511
1
SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>
8-97120-336-3
01
1
9512-
1
SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30>
8-97117-638-2
01
1
9505-9505
1
SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30> 950522-
8-97134-295-0
01
1
9505-9511
1
SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30>
8-97120-337-3
01
1
9512-
3
SCREW; COMB SW
M5X14 W/LK WASHER
9-03910-514-0
02
1
9301-9504
3
SCREW; COMB SW
M5X14 W/LK WASHER
9-03910-514-0
04
1
9505-
54
SWITCH; RR WIPER
RR WIPER<C25>
8-94317-597-0
01
1
9301-9504
54
SWITCH; RR WIPER
RR WIPER<C25>
8-97094-078-1
01
1
9505-
72
SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30>
8-97116-755-1
01
1
9505-
139
SWITCH; RR DEFOGGER
8-94450-651-1
01
1
9301-9504
139
SWITCH; RR DEFOGGER
8-97094-074-2
01
1
9505-
145
SWITCH; TAIL GATE OPENER
AUTO DOOR LOCK<AU4>
8-94337-586-2
01
1
9301-9504
145
SWITCH; TAIL GATE OPENER
8-97093-960-3
01
1
9505-
249
SWITCH; HAZARD
8-97093-961-1
01
1
9505-
253
COVER; SW HOLE
BLACK
8-94417-418-2
AR
1
9301-9504
253
COVER; SW HOLE
8-97081-617-1
AR
1
9505-
282
KNOB; ILLUMINATION CONT
8-94361-874-0
01
1
9301-
294
BULB; DEFOGGER SW
14V 0.84W
8-97102-440-0
01
1
9505-
294
BULB; DEFOGGER SW
14V 0.84W
8-97117-108-0
01
1
9505-
307
BULB ASM; SW
(A)
8-97130-932-0
01
1
9505-
307
BULB ASM; SW
AUTO CRUISE CONT<K30> (B) 14V 0.84W
8-97117-108-0
01
1
9505-
307
BULB ASM; SW
RR WIPER<C25> (B) 14V 0.84W
8-97117-108-0
02
1
9505-9511
307
BULB ASM; SW
RR WIPER<C25> (B) 14V 0.84W
8-97117-108-0
02
1
9512-
533
SWITCH; WASHER
RR WIPER<C25>
8-97094-080-1
01
1
9505-9511
533
SWITCH; WASHER
RR WIPER<C25>
8-97094-080-1
01
1
9512-
45
85
151
154
277
490
531
548
550
550
12
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
RELAY; POWER WINDOW
POWER WINDOW<A30>
8-94112-911-0
01
1
9301-9504
12
RELAY; POWER WINDOW
POWER WINDOW<A30> 12V 20A
8-97060-926-1
01
1
9505-
45
RELAY; HORN
12V 20A
8-97060-926-1
01
1
9505-
85
RELAY; HEADLAMP
12V 20A
8-94218-497-0
01
1
9301-9504
85
RELAY; HEADLAMP
12V 20A
8-97060-926-1
01
1
9505-
140
RELAY; RR DEFOGGER
8-94112-911-0
01
1
9301-9504
140
RELAY; RR DEFOGGER
12V 20A
8-97060-926-1
01
1
9505-
151
RELAY; HTR & A/C
12V 20A
8-94218-497-0
01
1
9301-9504
151
RELAY; HTR & A/C
12V 20A
8-97060-926-1
01
1
9505-
154
RELAY; CONDENSER FAN
A/T THM(RMQ) AIR CONDITIONER(C60) 12V
8-94112-912-0
01
1
9301-9504
154
RELAY; CONDENSER FAN
A/T THM(RMQ) AIR CONDITIONER(C60) 12V 20A
8-97060-926-1
01
1
9505-
277
RELAY; FUEL PUMP
12V 20A
8-94218-497-0
01
1
9301-9504
277
RELAY; FUEL PUMP
12V 20A
8-97060-926-1
01
1
9505-
490
RELAY; THERMO
AIR CONDITIONER(C60) 12V
8-94112-912-0
01
1
9301-9504
490
RELAY; THERMO
AIR CONDITIONER(C60) 12V 20A
8-97060-926-1
01
1
9505-
531
RELAY; ECU
12V 20A
8-97060-926-0
01
1
9505-9511
548
RELAY; AXLE DISCONNECT
12V 20A
8-97060-926-1
01
1
9512-
550
RELAY; ABS
4 WHEEL ANTI-LOCK BRAKE(JE5) (A) 12V 20A
8-97060-926-1
01
1
9512-
550
RELAY; ABS
4 WHEEL ANTI-LOCK BRAKE(JE5) (B)
8-97060-962-0
01
1
9512-
8
8
144
30
29
31
28
242
507
451
451
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> BLACK
8-97002-238-1
01
1
9301-9504
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> BLACK
8-97002-237-0
01
1
9301-9504
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> BLACK
8-97150-643-3
01
1
9505-9511
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> BLACK
8-97153-186-0
01
1
9512-
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> BLACK
8-97150-642-3
01
1
9505-9511
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> BLACK
8-97153-185-0
01
1
9512-
28
SWITCH ASM; DOOR LOCK
AUTO DOOR LOCK<AU4>
8-94450-809-1
01
1
9301-9504
29
SWITCH; DOOR
8-97077-712-0
04
1
9301-9605
29
SWITCH; DOOR
8-97146-196-0
04
1
9606-
30
SCREW; DOOR SW
M5X14
8-94120-095-0
04
1
9301-
31
BOLT; DOOR LK SW
(B) M6X16 FLANGE
0-28480-616-0
02
1
9301-9504
31
BOLT; DOOR LK SW
(A) M6X14
9-03810-614-0
02
1
9301-9408
31
BOLT; DOOR LK SW
(A) M6X14
8-97046-332-0
02
1
9409-9504
107
SWITCH; REMOTE CONT,MIRROR
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>,DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU>
8-97060-167-1
01
1
9309-
144
SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK
8-97000-022-0
01
1
9301-9504
144
SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK
8-97098-342-2
01
1
9505-9511
144
SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK
8-97153-996-0
01
1
9512-
144
SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK
8-94378-045-0
01
1
9301-9504
144
SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK
8-97098-341-2
01
1
9505-9511
144
SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK
8-97153-997-0
01
1
9512-
242
SWITCH
A/T THM(RMQ)
8-94368-568-1
01
1
9301-
451
BULB; MIRROR HTR SW
DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU> 14V 0.7W
8-97102-439-0
01
1
9309-
451
BULB; MIRROR HTR SW
DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU> 14V 0.84W
8-97102-440-0
01
1
9309-
507
SWITCH; MIRROR HEATER
DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU>
8-97081-763-4
01
1
9309-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
