◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#46960) — 193 parça

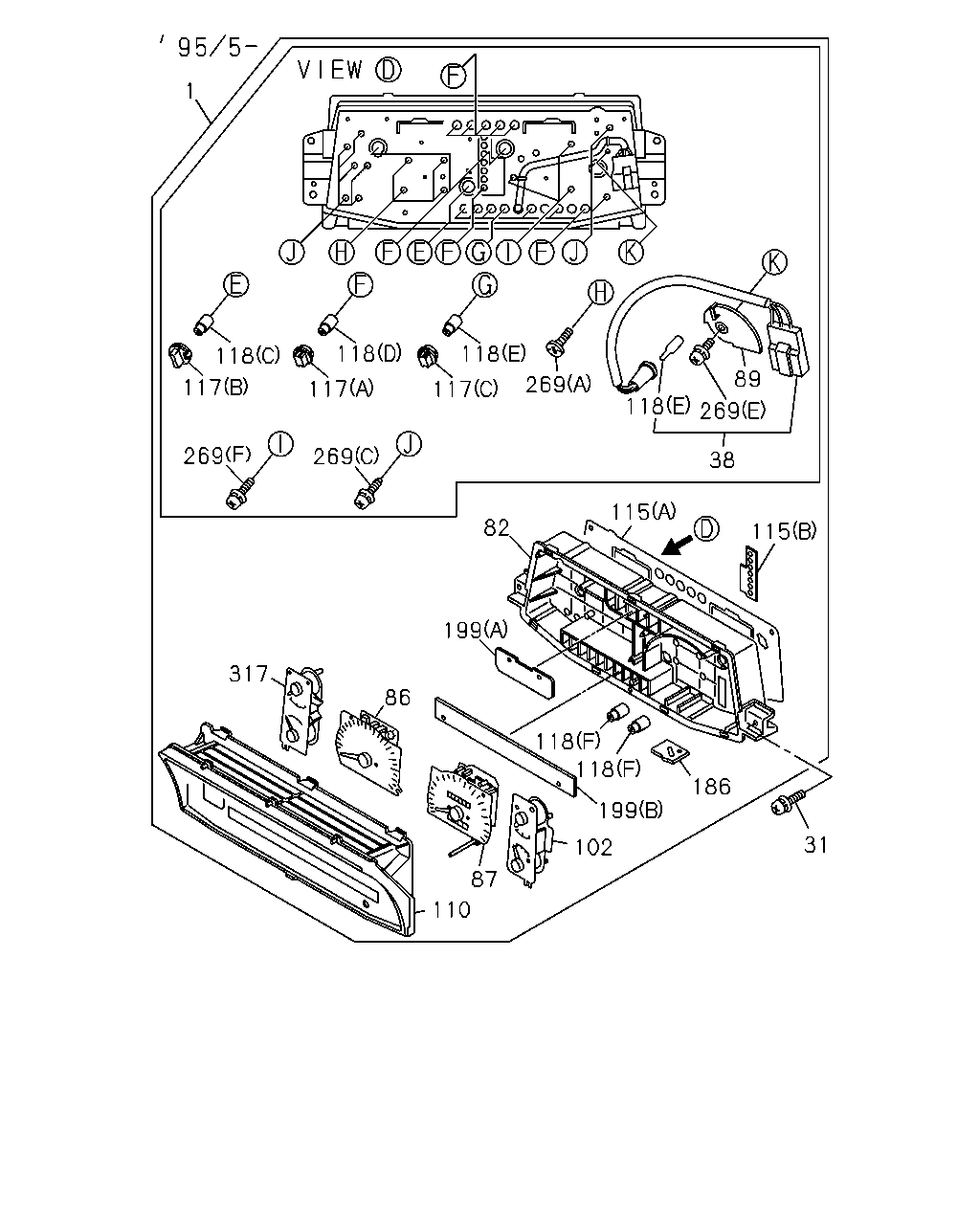

çizim 67660
1 118 117 117 118 118 117 269 118 269 89 38 269 269 317 86 110 87 102 199 118 118 186 31 199 82 115 115
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 8-97088-078-0 01 1 9301-9308
1 METER COMPL; CLUSTER 8-97101-561-0 01 1 9309-9504
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> 		8-97096-941-2 01 1 9505-9511
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED(RMN) 		8-97101-692-1 01 1 9512-
1 METER COMPL; CLUSTER
A/T THM(RMQ) AUTO CRUISE CONT<K30> 		8-97096-945-2 01 1 9505-9511
1 METER COMPL; CLUSTER
A/T THM(RMQ) 		8-97101-694-1 01 1 9512-
1 METER COMPL; CLUSTER
A/T THM(RMQ) EXC. AUTO CRUISE CONT<K30> 		8-97096-943-2 01 1 9505-9511
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED(RMN) EXC. AUTO CRUISE CONT<K30> 		8-97096-940-2 01 1 9505-9511
31 SCREW; METER,INST PANEL
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9301-9404
31 SCREW; METER,INST PANEL
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9405-9504
31 SCREW; METER,INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 9505-
31 SCREW; METER,INST PANEL
(B) M5X16 TAPPING 		9-09829-323-1 02 1 9301-9504
38 HARNESS; METER 8-97119-926-0 01 1 9505-
82 CASE ASM; CLUSTER METER 8-97080-610-0 01 1 9301-9504
82 CASE ASM; CLUSTER METER
M/T MUA 5 SPEED(RMN) 		8-97104-695-0 01 1 9505-9511
82 CASE ASM; CLUSTER METER
M/T MUA 5 SPEED(RMN) 		8-97126-273-0 01 1 9512-
82 CASE ASM; CLUSTER METER
A/T THM(RMQ) 		8-97104-694-0 01 1 9505-9511
82 CASE ASM; CLUSTER METER
A/T THM(RMQ) 		8-97126-272-0 01 1 9512-
86 TACHOMETER; CLUSTER METER 8-97080-602-0 01 1 9301-9308
86 TACHOMETER; CLUSTER METER 8-97045-561-0 01 1 9309-9504
86 TACHOMETER; CLUSTER METER 8-97126-789-0 01 1 9505-9511
86 TACHOMETER; CLUSTER METER 8-97131-135-0 01 1 9512-
87 SPEEDOMETER 8-97078-440-0 01 1 9301-9308
87 SPEEDOMETER 8-97096-282-0 01 1 9309-9504
87 SPEEDOMETER 8-97126-786-0 01 1 9505-
89 CLIP; HARNESS 8-97104-698-0 01 1 9505-
102 GAUGE; FUEL & OIL,CLUSTER METER 8-97080-908-1 01 1 9301-9504
102 GAUGE; FUEL & OIL,CLUSTER METER 8-97126-795-0 01 1 9505-9511
102 GAUGE; FUEL & OIL,CLUSTER METER 8-97126-015-0 01 1 9512-
110 GLASS; CLUSTER METER 8-97080-609-0 01 1 9301-9504
110 GLASS; CLUSTER METER
M/T MUA 5 SPEED(RMN) 		8-97109-331-1 01 1 9505-9511
110 GLASS; CLUSTER METER
M/T MUA 5 SPEED(RMN) 		8-97080-609-0 01 1 9512-
110 GLASS; CLUSTER METER
A/T THM(RMQ) 		8-97109-332-1 01 1 9505-9511
110 GLASS; CLUSTER METER
A/T THM(RMQ) 		8-97131-132-0 01 1 9512-
115 CIRCUIT; PRINTED,CLUSTER METER 8-97080-605-0 01 1 9301-9308
115 CIRCUIT; PRINTED,CLUSTER METER 8-97096-932-0 01 1 9309-9504
115 CIRCUIT; PRINTED,CLUSTER METER
M/T MUA 5 SPEED(RMN) (A) 		8-97109-315-0 01 1 9505-9511
115 CIRCUIT; PRINTED,CLUSTER METER
M/T MUA 5 SPEED(RMN) (A) 		8-97131-114-0 01 1 9512-
115 CIRCUIT; PRINTED,CLUSTER METER
A/T THM(RMQ) (B) 		8-97104-684-0 01 1 9505-9511
115 CIRCUIT; PRINTED,CLUSTER METER
A/T THM(RMQ) (B) 		8-97126-274-0 01 1 9512-
115 CIRCUIT; PRINTED,CLUSTER METER
A/T THM(RMQ) (A) 		8-97109-316-0 01 1 9505-9511
115 CIRCUIT; PRINTED,CLUSTER METER
A/T THM(RMQ) (A) 		8-97131-115-0 01 1 9512-
117 SOCKET; BULB,GAUGE & CLOCK
(B) 		8-97080-614-0 04 1 9301-9504
117 SOCKET; BULB,GAUGE & CLOCK
(B) 12V 3.4W 		8-94383-614-0 04 1 9505-
117 SOCKET; BULB,GAUGE & CLOCK
(A) 		8-97080-797-0 14 1 9301-9308
117 SOCKET; BULB,GAUGE & CLOCK
(A) 		8-97080-797-0 13 1 9309-9504
117 SOCKET; BULB,GAUGE & CLOCK
(C) 12V 2W GRAY 		8-97031-180-0 01 1 9505-
117 SOCKET; BULB,GAUGE & CLOCK
A/T THM(RMQ) (A) 12V 1.4W BLACK 		8-94114-138-0 12 1 9505-9511
117 SOCKET; BULB,GAUGE & CLOCK
A/T THM(RMQ) (A) 12V 1.4W BLACK 		8-94114-138-0 13 1 9512-
117 SOCKET; BULB,GAUGE & CLOCK
M/T MUA 5 SPEED(RMN) (A) 12V 1.4W BLACK 		8-94114-138-0 11 1 9505-9511
117 SOCKET; BULB,GAUGE & CLOCK
M/T MUA 5 SPEED(RMN) (A) 12V 1.4W BLACK 		8-94114-138-0 12 1 9512-
118 BULB; CLUSTER METER
(A) 12V 3.4W 		8-97080-613-0 04 1 9301-9504
118 BULB; CLUSTER METER
(C) 12V 3.4W 		8-94383-616-0 02 1 9505-9511
118 BULB; CLUSTER METER
(C) 12V 3.4W 		8-94383-616-0 04 1 9512-
118 BULB; CLUSTER METER
(B) 12V 2W 		8-97080-796-0 14 1 9301-9308
118 BULB; CLUSTER METER
(B) 12V 2W 		8-97080-796-0 13 1 9309-9504
118 BULB; CLUSTER METER
(E) 12V 2W 		8-97031-178-0 02 1 9505-
118 BULB; CLUSTER METER
A/T THM(RMQ) (D) 12V 1.4W 		8-94152-313-0 12 1 9505-9511
118 BULB; CLUSTER METER
A/T THM(RMQ) (D) 12V 1.4W 		8-94152-313-0 13 1 9512-
118 BULB; CLUSTER METER
M/T MUA 5 SPEED(RMN) (D) 12V 1.4W 		8-94152-313-0 11 1 9505-9511
118 BULB; CLUSTER METER
M/T MUA 5 SPEED(RMN) (D) 12V 1.4W 		8-94152-313-0 12 1 9512-
118 BULB; CLUSTER METER
A/T THM(RMQ) (F) 14V 0.84W 		8-97109-336-0 11 1 9512-
118 BULB; CLUSTER METER
M/T MUA 5 SPEED(RMN) (F) 14V 0.84W 		8-97109-336-0 02 1 9512-
186 LAMP; WARNING,MONITOR
A/T THM(RMQ) AUTO CRUISE CONT<K30> 		8-97109-335-0 01 1 9505-9511
186 LAMP; WARNING,MONITOR
A/T THM(RMQ) 		8-97109-335-0 01 1 9512-
186 LAMP; WARNING,MONITOR
A/T THM(RMQ) EXC. AUTO CRUISE CONT<K30> 		8-97109-334-0 01 1 9505-9511
186 LAMP; WARNING,MONITOR
M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> 		8-97109-333-0 01 1 9505-9511
186 LAMP; WARNING,MONITOR
M/T MUA 5 SPEED(RMN) 		8-97109-333-0 01 1 9512-
199 LENS; WARNING LAMP
(B) 		8-97080-606-0 01 1 9301-9308
199 LENS; WARNING LAMP
(B) 		8-97102-829-0 01 1 9309-9504
199 LENS; WARNING LAMP
(A) 		8-97080-909-0 01 1 9301-9308
199 LENS; WARNING LAMP
(A) 		8-97102-830-0 01 1 9309-9504
199 LENS; WARNING LAMP
M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> (B) 		8-97109-323-0 01 1 9505-9511
199 LENS; WARNING LAMP
M/T MUA 5 SPEED(RMN) (B) 		8-97109-323-0 01 1 9512-
199 LENS; WARNING LAMP
(A) 		8-97126-937-0 01 1 9505-
199 LENS; WARNING LAMP
A/T THM(RMQ) (B) 		8-97109-324-0 01 1 9505-
199 LENS; WARNING LAMP
M/T MUA 5 SPEED(RMN) EXC. AUTO CRUISE CONT<K30> (B) 		8-97118-778-0 01 1 9505-9511
269 SCREW; METER CLUSTER
(A) 		8-97080-611-0 04 1 9301-9308
269 SCREW; METER CLUSTER
(A) 		8-97045-595-0 04 1 9309-
269 SCREW; METER CLUSTER
(B) 		8-97080-612-0 03 1 9301-9308
269 SCREW; METER CLUSTER
(B) M3X20 		8-94326-743-0 03 1 9309-9504
269 SCREW; METER CLUSTER
(C) 		8-97080-798-0 11 1 9301-9308
269 SCREW; METER CLUSTER
(C) 		8-97045-596-0 09 1 9309-9504
269 SCREW; METER CLUSTER
(C) 		8-97069-348-0 08 1 9505-
269 SCREW; METER CLUSTER
(D) M5X16 TAPPING 		9-09829-323-1 04 1 9301-9504
269 SCREW; METER CLUSTER
(D) M5X16 TAPPING 		9-09829-323-1 03 1 9505-
269 SCREW; METER CLUSTER
(E) M4 TAPPING 		8-94325-271-0 01 1 9505-
269 SCREW; METER CLUSTER
(F) 		8-97126-796-0 03 1 9505-
317 GAUGE; TEMP & VOLT 8-97080-603-1 01 1 9301-9504
317 GAUGE; TEMP & VOLT 8-97109-313-0 01 1 9505-

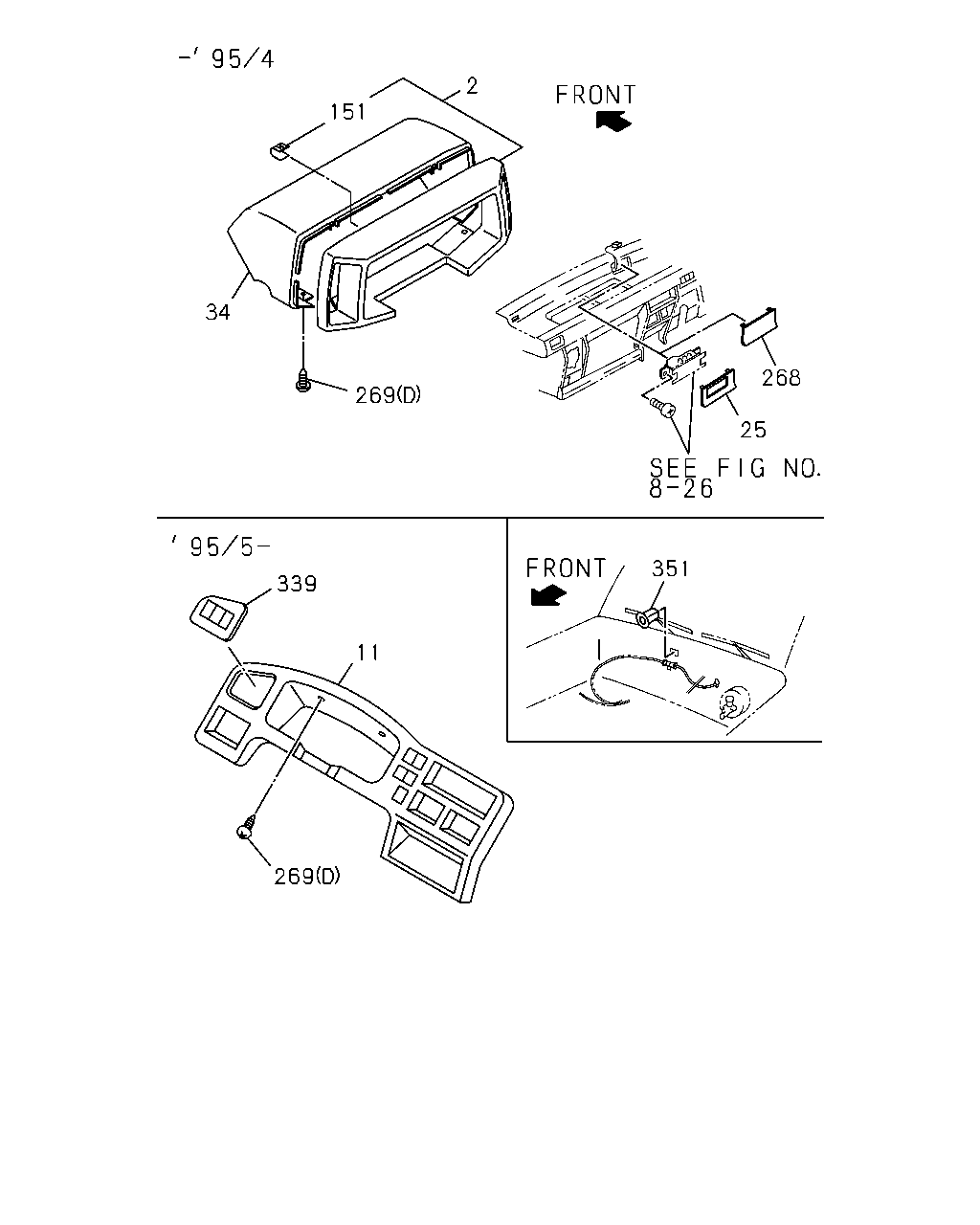

çizim 67721
2 151 34 269 268 25 351 11 339 269
BalonParca AdiParca NoAdetTipApplied Date
2 PANEL; CLUSTER
GRAY 		8-97082-876-0 01 1 9301-9504
11 CLUSTER ASM; METER
BLACK 		8-97150-717-4 01 1 9505-
25 BEZEL; WARNING BOX
A/T THM(RMQ) 		8-97020-780-1 01 1 9301-9504
34 HOOD; CLUSTER METER
GRAY 		8-97082-873-1 01 1 9301-9504
151 CLIP; METER CLUSTER 8-94384-492-0 02 1 9309-9504
268 BEZEL; CLOCK
M/T MUA 5 SPEED(RMN) GRAY 		8-94373-607-0 01 1 9301-9504
269 SCREW; METER CLUSTER
(A) 		8-97080-611-0 04 1 9301-9308
269 SCREW; METER CLUSTER
(A) 		8-97045-595-0 04 1 9309-
269 SCREW; METER CLUSTER
(B) 		8-97080-612-0 03 1 9301-9308
269 SCREW; METER CLUSTER
(B) M3X20 		8-94326-743-0 03 1 9309-9504
269 SCREW; METER CLUSTER
(C) 		8-97080-798-0 11 1 9301-9308
269 SCREW; METER CLUSTER
(C) 		8-97045-596-0 09 1 9309-9504
269 SCREW; METER CLUSTER
(C) 		8-97069-348-0 08 1 9505-
269 SCREW; METER CLUSTER
(D) M5X16 TAPPING 		9-09829-323-1 04 1 9301-9504
269 SCREW; METER CLUSTER
(D) M5X16 TAPPING 		9-09829-323-1 03 1 9505-
269 SCREW; METER CLUSTER
(E) M4 TAPPING 		8-94325-271-0 01 1 9505-
269 SCREW; METER CLUSTER
(F) 		8-97126-796-0 03 1 9505-
339 BEZEL; SW,CLUSTER METER 8-97107-569-0 01 1 9505-
351 GROMMET; HOLE 8-97801-635-1 01 1 9310-9512

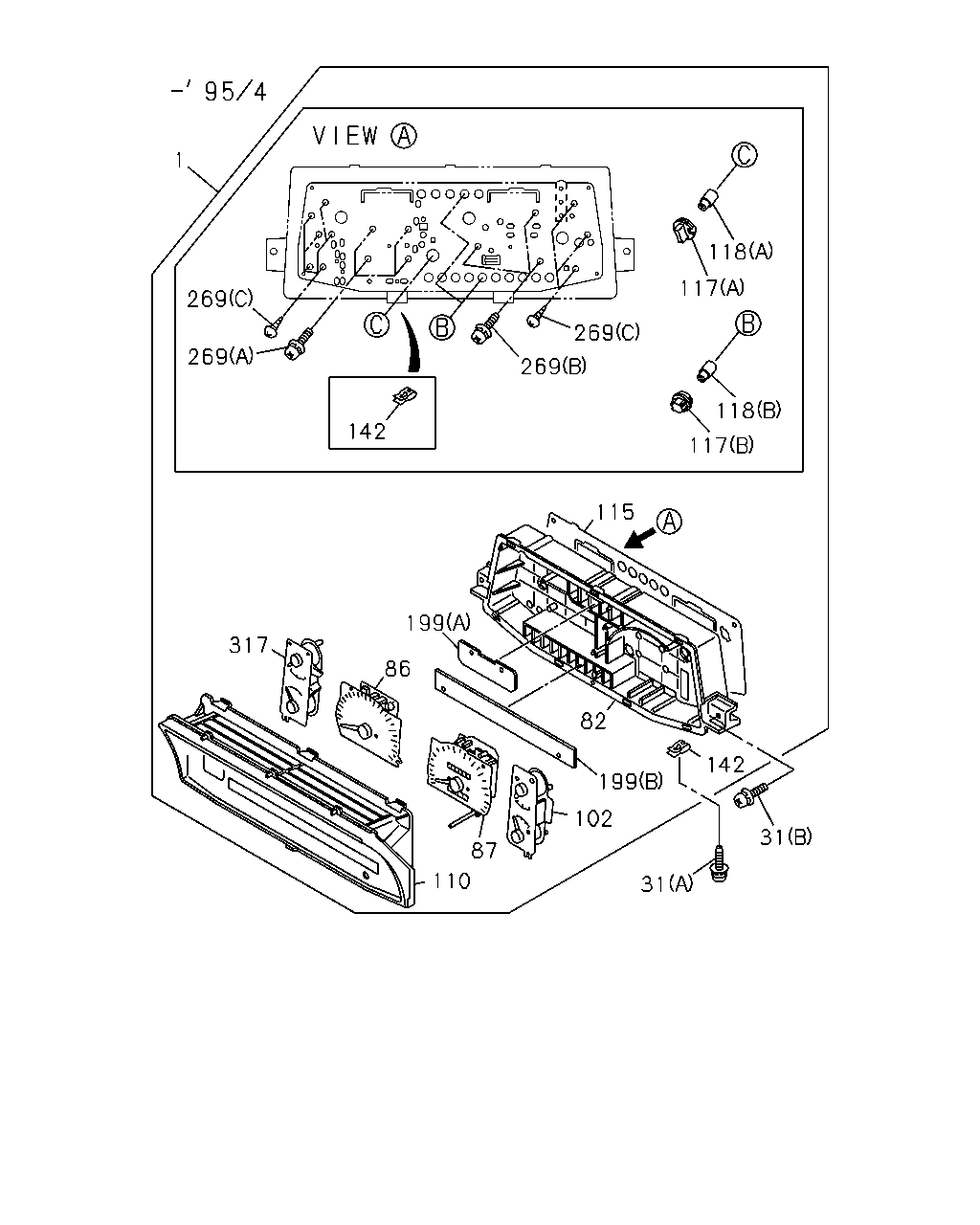

çizim 68263
269 269 142 269 269 117 118 117 118 1 115 199 86 317 110 87 102 199 82 142 31 31
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 8-97088-078-0 01 1 9301-9308
1 METER COMPL; CLUSTER 8-97101-561-0 01 1 9309-9504
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> 		8-97096-941-2 01 1 9505-9511
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED(RMN) 		8-97101-692-1 01 1 9512-
1 METER COMPL; CLUSTER
A/T THM(RMQ) AUTO CRUISE CONT<K30> 		8-97096-945-2 01 1 9505-9511
1 METER COMPL; CLUSTER
A/T THM(RMQ) 		8-97101-694-1 01 1 9512-
1 METER COMPL; CLUSTER
A/T THM(RMQ) EXC. AUTO CRUISE CONT<K30> 		8-97096-943-2 01 1 9505-9511
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED(RMN) EXC. AUTO CRUISE CONT<K30> 		8-97096-940-2 01 1 9505-9511
31 SCREW; METER,INST PANEL
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9301-9404
31 SCREW; METER,INST PANEL
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9405-9504
31 SCREW; METER,INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 9505-
31 SCREW; METER,INST PANEL
(B) M5X16 TAPPING 		9-09829-323-1 02 1 9301-9504
82 CASE ASM; CLUSTER METER 8-97080-610-0 01 1 9301-9504
82 CASE ASM; CLUSTER METER
M/T MUA 5 SPEED(RMN) 		8-97104-695-0 01 1 9505-9511
82 CASE ASM; CLUSTER METER
M/T MUA 5 SPEED(RMN) 		8-97126-273-0 01 1 9512-
82 CASE ASM; CLUSTER METER
A/T THM(RMQ) 		8-97104-694-0 01 1 9505-9511
82 CASE ASM; CLUSTER METER
A/T THM(RMQ) 		8-97126-272-0 01 1 9512-
86 TACHOMETER; CLUSTER METER 8-97080-602-0 01 1 9301-9308
86 TACHOMETER; CLUSTER METER 8-97045-561-0 01 1 9309-9504
86 TACHOMETER; CLUSTER METER 8-97126-789-0 01 1 9505-9511
86 TACHOMETER; CLUSTER METER 8-97131-135-0 01 1 9512-
87 SPEEDOMETER 8-97078-440-0 01 1 9301-9308
87 SPEEDOMETER 8-97096-282-0 01 1 9309-9504
87 SPEEDOMETER 8-97126-786-0 01 1 9505-
102 GAUGE; FUEL & OIL,CLUSTER METER 8-97080-908-1 01 1 9301-9504
102 GAUGE; FUEL & OIL,CLUSTER METER 8-97126-795-0 01 1 9505-9511
102 GAUGE; FUEL & OIL,CLUSTER METER 8-97126-015-0 01 1 9512-
110 GLASS; CLUSTER METER 8-97080-609-0 01 1 9301-9504
110 GLASS; CLUSTER METER
M/T MUA 5 SPEED(RMN) 		8-97109-331-1 01 1 9505-9511
110 GLASS; CLUSTER METER
M/T MUA 5 SPEED(RMN) 		8-97080-609-0 01 1 9512-
110 GLASS; CLUSTER METER
A/T THM(RMQ) 		8-97109-332-1 01 1 9505-9511
110 GLASS; CLUSTER METER
A/T THM(RMQ) 		8-97131-132-0 01 1 9512-
115 CIRCUIT; PRINTED,CLUSTER METER 8-97080-605-0 01 1 9301-9308
115 CIRCUIT; PRINTED,CLUSTER METER 8-97096-932-0 01 1 9309-9504
115 CIRCUIT; PRINTED,CLUSTER METER
M/T MUA 5 SPEED(RMN) (A) 		8-97109-315-0 01 1 9505-9511
115 CIRCUIT; PRINTED,CLUSTER METER
M/T MUA 5 SPEED(RMN) (A) 		8-97131-114-0 01 1 9512-
115 CIRCUIT; PRINTED,CLUSTER METER
A/T THM(RMQ) (B) 		8-97104-684-0 01 1 9505-9511
115 CIRCUIT; PRINTED,CLUSTER METER
A/T THM(RMQ) (B) 		8-97126-274-0 01 1 9512-
115 CIRCUIT; PRINTED,CLUSTER METER
A/T THM(RMQ) (A) 		8-97109-316-0 01 1 9505-9511
115 CIRCUIT; PRINTED,CLUSTER METER
A/T THM(RMQ) (A) 		8-97131-115-0 01 1 9512-
117 SOCKET; BULB,GAUGE & CLOCK
(B) 		8-97080-614-0 04 1 9301-9504
117 SOCKET; BULB,GAUGE & CLOCK
(B) 12V 3.4W 		8-94383-614-0 04 1 9505-
117 SOCKET; BULB,GAUGE & CLOCK
(A) 		8-97080-797-0 14 1 9301-9308
117 SOCKET; BULB,GAUGE & CLOCK
(A) 		8-97080-797-0 13 1 9309-9504
117 SOCKET; BULB,GAUGE & CLOCK
(C) 12V 2W GRAY 		8-97031-180-0 01 1 9505-
117 SOCKET; BULB,GAUGE & CLOCK
A/T THM(RMQ) (A) 12V 1.4W BLACK 		8-94114-138-0 12 1 9505-9511
117 SOCKET; BULB,GAUGE & CLOCK
A/T THM(RMQ) (A) 12V 1.4W BLACK 		8-94114-138-0 13 1 9512-
117 SOCKET; BULB,GAUGE & CLOCK
M/T MUA 5 SPEED(RMN) (A) 12V 1.4W BLACK 		8-94114-138-0 11 1 9505-9511
117 SOCKET; BULB,GAUGE & CLOCK
M/T MUA 5 SPEED(RMN) (A) 12V 1.4W BLACK 		8-94114-138-0 12 1 9512-
118 BULB; CLUSTER METER
(A) 12V 3.4W 		8-97080-613-0 04 1 9301-9504
118 BULB; CLUSTER METER
(C) 12V 3.4W 		8-94383-616-0 02 1 9505-9511
118 BULB; CLUSTER METER
(C) 12V 3.4W 		8-94383-616-0 04 1 9512-
118 BULB; CLUSTER METER
(B) 12V 2W 		8-97080-796-0 14 1 9301-9308
118 BULB; CLUSTER METER
(B) 12V 2W 		8-97080-796-0 13 1 9309-9504
118 BULB; CLUSTER METER
(E) 12V 2W 		8-97031-178-0 02 1 9505-
118 BULB; CLUSTER METER
A/T THM(RMQ) (D) 12V 1.4W 		8-94152-313-0 12 1 9505-9511
118 BULB; CLUSTER METER
A/T THM(RMQ) (D) 12V 1.4W 		8-94152-313-0 13 1 9512-
118 BULB; CLUSTER METER
M/T MUA 5 SPEED(RMN) (D) 12V 1.4W 		8-94152-313-0 11 1 9505-9511
118 BULB; CLUSTER METER
M/T MUA 5 SPEED(RMN) (D) 12V 1.4W 		8-94152-313-0 12 1 9512-
118 BULB; CLUSTER METER
A/T THM(RMQ) (F) 14V 0.84W 		8-97109-336-0 11 1 9512-
118 BULB; CLUSTER METER
M/T MUA 5 SPEED(RMN) (F) 14V 0.84W 		8-97109-336-0 02 1 9512-
142 NUT; HOOD FIX,CLUSTER METER 8-94325-265-0 02 1 9301-9504
199 LENS; WARNING LAMP
(B) 		8-97080-606-0 01 1 9301-9308
199 LENS; WARNING LAMP
(B) 		8-97102-829-0 01 1 9309-9504
199 LENS; WARNING LAMP
(A) 		8-97080-909-0 01 1 9301-9308
199 LENS; WARNING LAMP
(A) 		8-97102-830-0 01 1 9309-9504
199 LENS; WARNING LAMP
M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> (B) 		8-97109-323-0 01 1 9505-9511
199 LENS; WARNING LAMP
M/T MUA 5 SPEED(RMN) (B) 		8-97109-323-0 01 1 9512-
199 LENS; WARNING LAMP
(A) 		8-97126-937-0 01 1 9505-
199 LENS; WARNING LAMP
A/T THM(RMQ) (B) 		8-97109-324-0 01 1 9505-
199 LENS; WARNING LAMP
M/T MUA 5 SPEED(RMN) EXC. AUTO CRUISE CONT<K30> (B) 		8-97118-778-0 01 1 9505-9511
269 SCREW; METER CLUSTER
(A) 		8-97080-611-0 04 1 9301-9308
269 SCREW; METER CLUSTER
(A) 		8-97045-595-0 04 1 9309-
269 SCREW; METER CLUSTER
(B) 		8-97080-612-0 03 1 9301-9308
269 SCREW; METER CLUSTER
(B) M3X20 		8-94326-743-0 03 1 9309-9504
269 SCREW; METER CLUSTER
(C) 		8-97080-798-0 11 1 9301-9308
269 SCREW; METER CLUSTER
(C) 		8-97045-596-0 09 1 9309-9504
269 SCREW; METER CLUSTER
(C) 		8-97069-348-0 08 1 9505-
269 SCREW; METER CLUSTER
(D) M5X16 TAPPING 		9-09829-323-1 04 1 9301-9504
269 SCREW; METER CLUSTER
(D) M5X16 TAPPING 		9-09829-323-1 03 1 9505-
269 SCREW; METER CLUSTER
(E) M4 TAPPING 		8-94325-271-0 01 1 9505-
269 SCREW; METER CLUSTER
(F) 		8-97126-796-0 03 1 9505-
317 GAUGE; TEMP & VOLT 8-97080-603-1 01 1 9301-9504
317 GAUGE; TEMP & VOLT 8-97109-313-0 01 1 9505-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
