◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#46959) — 307 parça

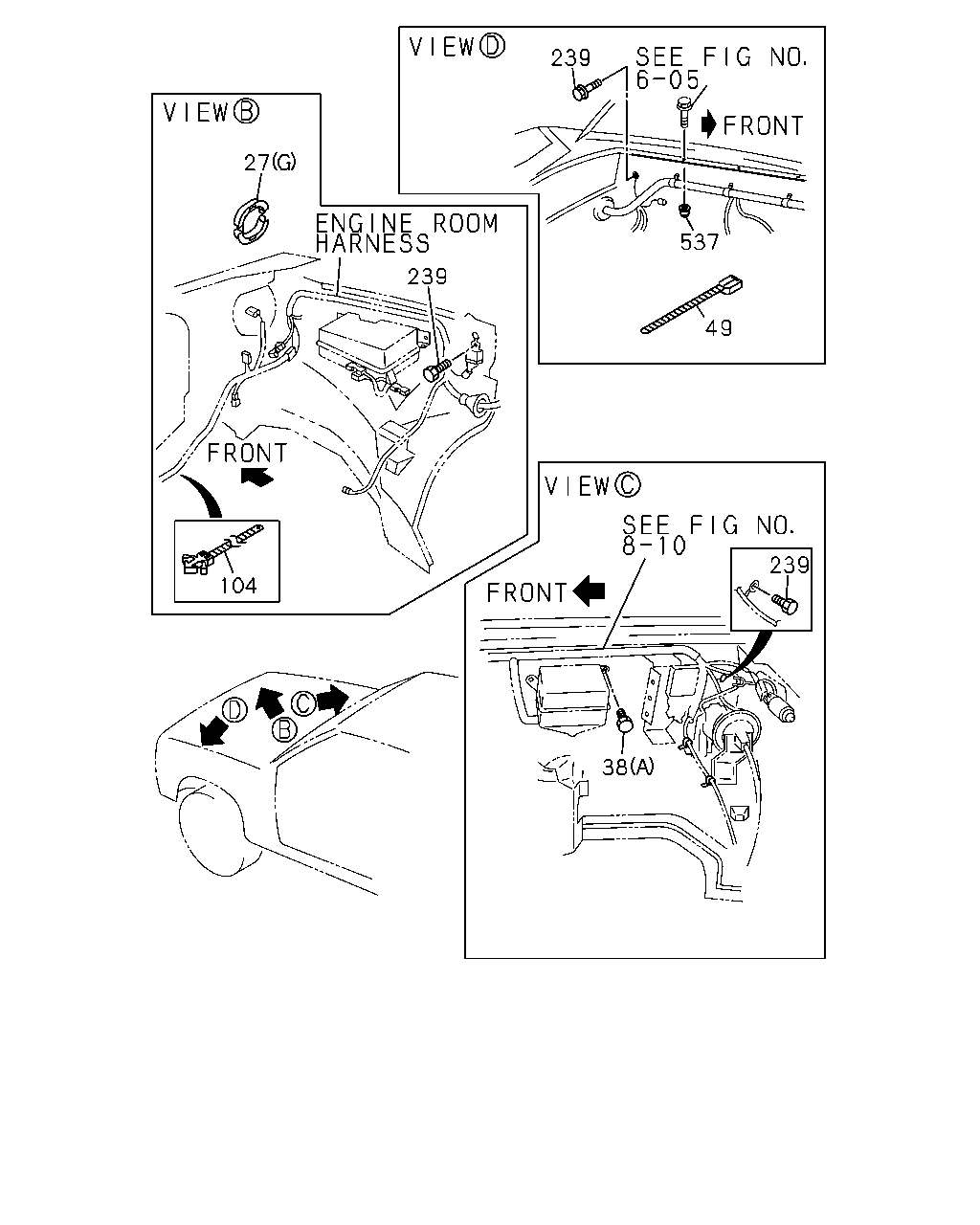

çizim 16903
239 537 49 239 27 104 239 38
BalonParca AdiParca NoAdetTipApplied Date
27 PROTECTOR; EDGE
(E) L=80 		5-22439-006-0 01 1 9301-
27 PROTECTOR; EDGE
(A) 		8-94115-120-0 02 1 9301-9504
27 PROTECTOR; EDGE
(A) L=105 		8-97109-036-0 02 1 9505-
27 PROTECTOR; EDGE
(C) ID=34.7 		8-94365-780-0 02 1 9301-
27 PROTECTOR; EDGE
(B) 		8-94369-906-1 02 1 9301-
27 PROTECTOR; EDGE
(D) 		8-97014-418-0 01 1 9301-
27 PROTECTOR; EDGE
(G) 		8-94340-075-0 02 1 9505-
27 PROTECTOR; EDGE
(F) L=105 		8-97109-036-0 01 1 9505-
38 BOLT; CLIP,HARNESS
(D) M8X12 FLANGE 		0-28080-812-0 01 1 9301-9511
38 BOLT; CLIP,HARNESS
(C) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9301-9607
38 BOLT; CLIP,HARNESS
(C) M6X16 FLANGE 		0-28080-616-0 01 1 9608-
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK WASHER 		0-50040-620-0 02 1 9301-9308
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9301-9308
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 9309-9504
38 BOLT; CLIP,HARNESS
(E) M6X16 FLANGE 		0-28480-616-0 02 1 9505-9511
38 BOLT; CLIP,HARNESS
EXC. AIR CONDITIONER(C60) (E) M10X16 FLANGE 		0-28181-016-0 01 1 9301-9511
38 BOLT; CLIP,HARNESS
(E) M10X16 FLANGE 		0-28181-016-0 01 1 9512-
38 BOLT; CLIP,HARNESS
(A) M6X20 		8-94412-422-0 02 1 9301-
38 BOLT; CLIP,HARNESS
(F) M6X25 FLANGE 		0-28480-625-0 01 1 9505-
38 BOLT; CLIP,HARNESS
(G) M5X14 		8-94120-095-0 02 1 9505-
49 CLIP; GEN HARNESS
L=140 		5-09707-031-0 01 1 9301-9510
104 CLIP; HEADLAMP HARNESS
L=172 		8-94232-620-0 02 1 9304-9511
104 CLIP; HEADLAMP HARNESS
L=172 		8-94232-620-0 01 1 9512-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9301-
239 BOLT; GRAND
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-
239 BOLT; GRAND
A/T THM(RMQ) M6X14 		8-94153-946-0 01 1 9301-9308
239 BOLT; GRAND
A/T THM(RMQ) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9309-
537 CAP; THREAD 8-97146-861-0 01 1 9603-

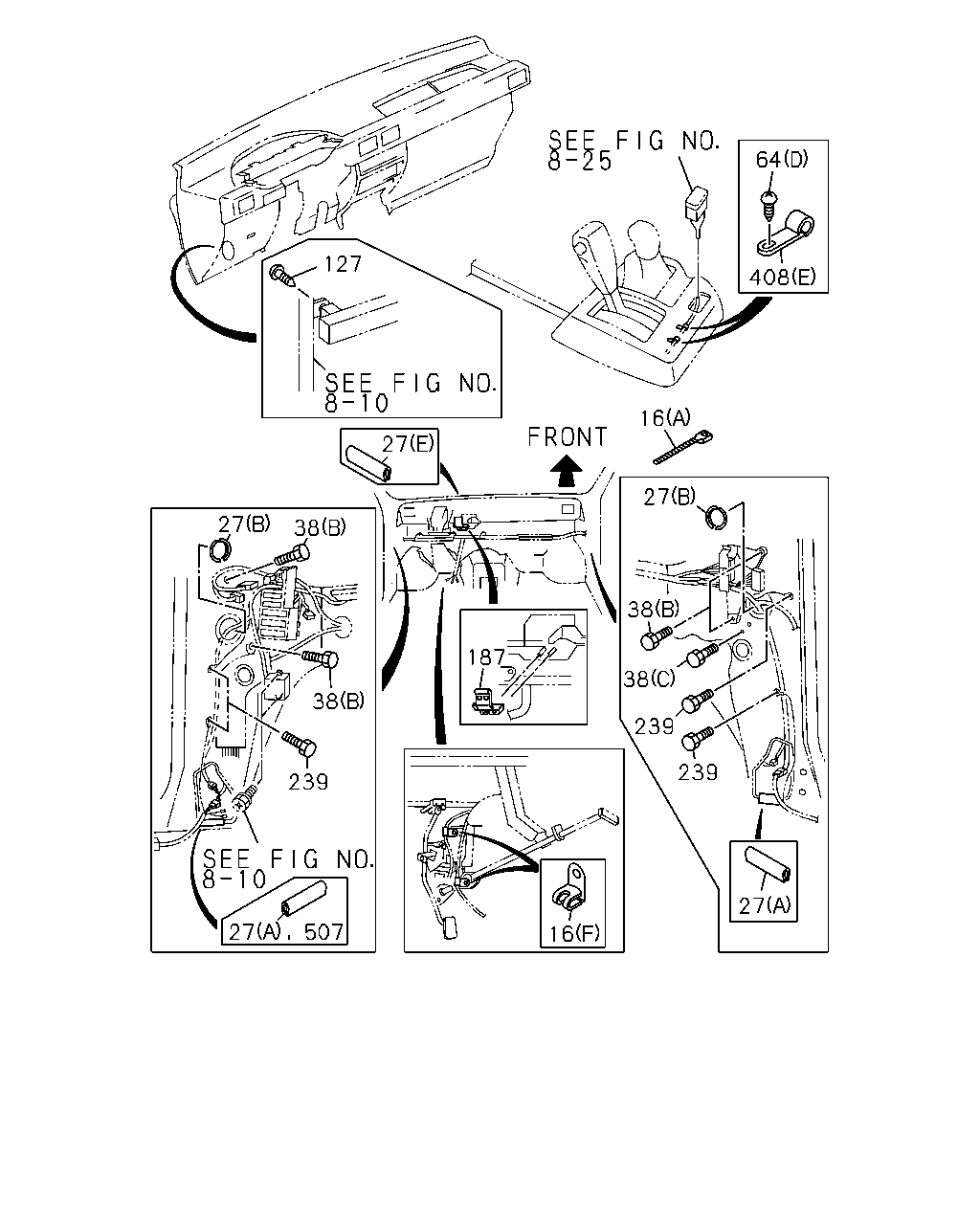

çizim 66735
16 27 127 64 408 27 38 38 239 239 27 16 187 507 27 239 38 38 27
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(F) 		5-09700-275-0 01 1 9301-9504
16 CLIP; HARNESS
A/T THM(RMQ) (F) 		5-09700-275-0 01 1 9301-9504
16 CLIP; HARNESS
(B) 		8-94138-987-0 03 1 9301-9504
16 CLIP; HARNESS
(B) 		8-94138-987-0 04 1 9505-9511
16 CLIP; HARNESS
(B) 		8-94138-987-0 06 1 9512-
16 CLIP; HARNESS
(E) 		8-97032-822-1 01 1 9301-9511
16 CLIP; HARNESS
(A) L=140 		5-09707-031-0 01 1 9505-
16 CLIP; HARNESS
(H) L=104 		8-94433-185-0 02 1 9505-
16 CLIP; HARNESS
A/T THM(RMQ) (I) L=100 		5-09707-036-0 01 1 9601-
16 CLIP; HARNESS
CONVENIENT PACKAGE<6QZ> (C) 		8-94449-752-0 08 1 9309-9504
16 CLIP; HARNESS
CONVENIENT PACKAGE<6QZ> (C) L=60 		8-94449-752-0 04 1 9505-9511
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=60 		8-94449-752-0 04 1 9512-
16 CLIP; HARNESS
CONVENIENT PACKAGE<6QZ> (G) L=60 		8-94457-053-0 04 1 9505-9511
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=60 		8-94457-053-0 04 1 9512-
16 CLIP; HARNESS
EXC. CONVENIENT PACKAGE<6QZ> (G) L=60 		8-94457-053-0 02 1 9505-9511
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (G) L=60 		8-94457-053-0 02 1 9512-
16 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (D) 		9-09525-522-0 01 1 9301-9511
16 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (D) ID=19 L=20 		9-09525-832-0 01 1 9512-9512
16 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (D) ID=18 		8-94329-853-0 01 1 9601-
27 PROTECTOR; EDGE
(E) L=80 		5-22439-006-0 01 1 9301-
27 PROTECTOR; EDGE
(A) 		8-94115-120-0 02 1 9301-9504
27 PROTECTOR; EDGE
(A) L=105 		8-97109-036-0 02 1 9505-
27 PROTECTOR; EDGE
(C) ID=34.7 		8-94365-780-0 02 1 9301-
27 PROTECTOR; EDGE
(B) 		8-94369-906-1 02 1 9301-
27 PROTECTOR; EDGE
(D) 		8-97014-418-0 01 1 9301-
27 PROTECTOR; EDGE
(G) 		8-94340-075-0 02 1 9505-
27 PROTECTOR; EDGE
(F) L=105 		8-97109-036-0 01 1 9505-
38 BOLT; CLIP,HARNESS
(D) M8X12 FLANGE 		0-28080-812-0 01 1 9301-9511
38 BOLT; CLIP,HARNESS
(C) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9301-9607
38 BOLT; CLIP,HARNESS
(C) M6X16 FLANGE 		0-28080-616-0 01 1 9608-
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK WASHER 		0-50040-620-0 02 1 9301-9308
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9301-9308
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 9309-9504
38 BOLT; CLIP,HARNESS
(E) M6X16 FLANGE 		0-28480-616-0 02 1 9505-9511
38 BOLT; CLIP,HARNESS
EXC. AIR CONDITIONER(C60) (E) M10X16 FLANGE 		0-28181-016-0 01 1 9301-9511
38 BOLT; CLIP,HARNESS
(E) M10X16 FLANGE 		0-28181-016-0 01 1 9512-
38 BOLT; CLIP,HARNESS
(A) M6X20 		8-94412-422-0 02 1 9301-
38 BOLT; CLIP,HARNESS
(F) M6X25 FLANGE 		0-28480-625-0 01 1 9505-
38 BOLT; CLIP,HARNESS
(G) M5X14 		8-94120-095-0 02 1 9505-
64 SCREW; CLIP
(E) M4X12 TAPPING W/PL WASHER 		0-74130-412-0 06 1 9301-9304
64 SCREW; CLIP
(E) 		8-94198-480-0 06 1 9305-
64 SCREW; CLIP
(A) M5X14 		8-94120-095-0 02 1 9301-
64 SCREW; CLIP
(B) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 9301-
64 SCREW; CLIP
A/T THM(RMQ) (C) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9301-
64 SCREW; CLIP
A/T THM(RMQ) (D) M6X12 TAPPING 		9-07065-612-0 02 1 9301-
127 SCREW; FACIA HARNESS CLIP
M5X16 TAPPING 		9-09829-323-1 01 1 9301-9504
187 CLIP; CHAS HARN TO DASH 8-94474-013-2 01 1 9301-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9301-
239 BOLT; GRAND
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-
239 BOLT; GRAND
A/T THM(RMQ) M6X14 		8-94153-946-0 01 1 9301-9308
239 BOLT; GRAND
A/T THM(RMQ) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9309-
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (C) L=250 		5-09707-030-0 02 1 9301-9504
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (C) L=200 		8-94464-835-0 02 1 9505-
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (D) 		8-97022-809-0 01 1 9301-
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (E) ID=9 L=16 		9-09524-822-0 02 1 9301-
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (B) ID=16 		9-09525-522-0 01 1 9301-
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) (A) ID=24 		8-97022-568-3 01 1 9301-
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) FLOOR REMOTE SHIFT<M11> (F) ID=12 		5-09700-350-0 04 1 9301-9511
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) (F) ID=12 		5-09700-350-0 02 1 9512-
507 FINISHER
L=30 SERVICED BY L=880 		1-73948-003-0 01 1 9410-9504
çizim 67159
532 38 38 524 242 532 38 53 480 100 53 27
BalonParca AdiParca NoAdetTipApplied Date
27 PROTECTOR; EDGE
(E) L=80 		5-22439-006-0 01 1 9301-
27 PROTECTOR; EDGE
(A) 		8-94115-120-0 02 1 9301-9504
27 PROTECTOR; EDGE
(A) L=105 		8-97109-036-0 02 1 9505-
27 PROTECTOR; EDGE
(C) ID=34.7 		8-94365-780-0 02 1 9301-
27 PROTECTOR; EDGE
(B) 		8-94369-906-1 02 1 9301-
27 PROTECTOR; EDGE
(D) 		8-97014-418-0 01 1 9301-
27 PROTECTOR; EDGE
(G) 		8-94340-075-0 02 1 9505-
27 PROTECTOR; EDGE
(F) L=105 		8-97109-036-0 01 1 9505-
38 BOLT; CLIP,HARNESS
(D) M8X12 FLANGE 		0-28080-812-0 01 1 9301-9511
38 BOLT; CLIP,HARNESS
(C) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9301-9607
38 BOLT; CLIP,HARNESS
(C) M6X16 FLANGE 		0-28080-616-0 01 1 9608-
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK WASHER 		0-50040-620-0 02 1 9301-9308
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9301-9308
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 9309-9504
38 BOLT; CLIP,HARNESS
(E) M6X16 FLANGE 		0-28480-616-0 02 1 9505-9511
38 BOLT; CLIP,HARNESS
EXC. AIR CONDITIONER(C60) (E) M10X16 FLANGE 		0-28181-016-0 01 1 9301-9511
38 BOLT; CLIP,HARNESS
(E) M10X16 FLANGE 		0-28181-016-0 01 1 9512-
38 BOLT; CLIP,HARNESS
(A) M6X20 		8-94412-422-0 02 1 9301-
38 BOLT; CLIP,HARNESS
(F) M6X25 FLANGE 		0-28480-625-0 01 1 9505-
38 BOLT; CLIP,HARNESS
(G) M5X14 		8-94120-095-0 02 1 9505-
53 BRACKET; HARNESS
(A) 		8-97071-807-1 01 1 9301-9511
53 BRACKET; HARNESS
(A) 		8-97138-889-1 01 1 9512-
53 BRACKET; HARNESS
(B) 		8-97108-538-1 01 1 9505-
53 BRACKET; HARNESS
(C) 		8-97108-539-1 01 1 9505-
100 CLIP; PROTECTOR TO BODY 8-94340-315-0 01 1 9505-
242 BOLT; BRKT,HARNESS
M6X16 FLANGE 		0-28480-616-0 02 1 9505-
480 BOLT; BRKT
M8X18 		0-28480-818-0 02 1 9505-
480 BOLT; BRKT
M6X16 FLANGE 		0-28480-616-0 02 1 9512-
480 BOLT; BRKT
4 WHEEL ANTI-LOCK BRAKE(JE5) M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9512-9607
480 BOLT; BRKT
4 WHEEL ANTI-LOCK BRAKE(JE5) M6X10 FLANGE 		0-28080-610-0 04 1 9608-9608
480 BOLT; BRKT
4 WHEEL ANTI-LOCK BRAKE(JE5) M6X10 FLANGE 		0-28080-610-0 01 1 9609-
480 BOLT; BRKT
4 WHEEL ANTI-LOCK BRAKE(JE5) M6X12 FLANGE 		0-28480-612-0 03 1 9609-
524 NUT; HARNESS
M6 FLANGE 		8-97063-399-0 01 1 9505-9601
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9602-
532 BRACKET; HARNESS,DASH SIDE
(A) 		8-97108-537-1 01 1 9505-
532 BRACKET; HARNESS,DASH SIDE
(B) 		8-97125-413-0 01 1 9505-

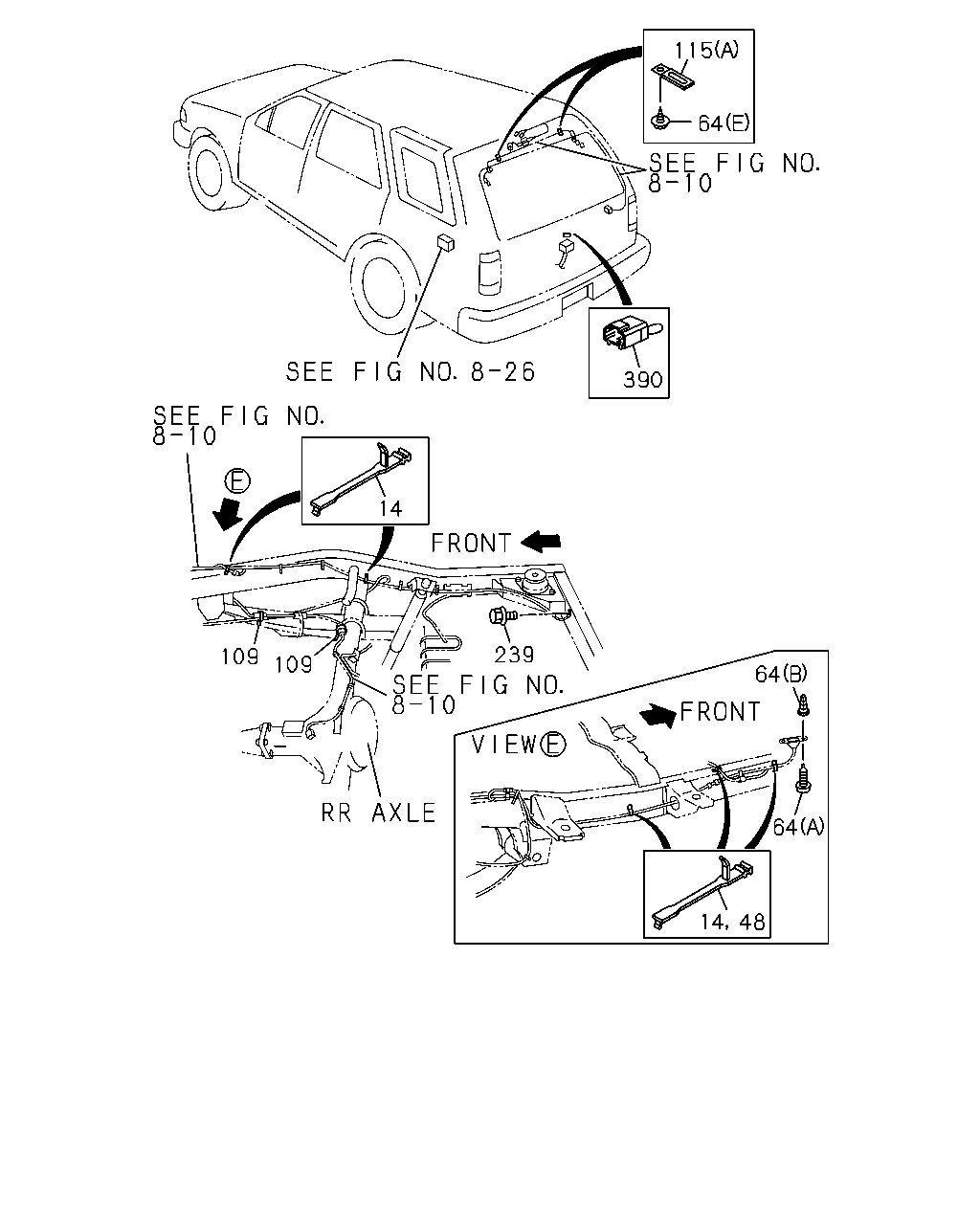

çizim 67685
115 64 390 14 109 109 239 64 64 14 48
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=55 		8-94473-398-0 12 1 9301-9511
14 CLIP; BAND,HARNESS
L=55 		8-94473-398-0 08 1 9512-
48 CLIP; FRAME HARNESS
L=96 		8-94243-268-0 03 1 9512-
64 SCREW; CLIP
(E) M4X12 TAPPING W/PL WASHER 		0-74130-412-0 06 1 9301-9304
64 SCREW; CLIP
(E) 		8-94198-480-0 06 1 9305-
64 SCREW; CLIP
(A) M5X14 		8-94120-095-0 02 1 9301-
64 SCREW; CLIP
(B) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 9301-
64 SCREW; CLIP
A/T THM(RMQ) (C) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9301-
64 SCREW; CLIP
A/T THM(RMQ) (D) M6X12 TAPPING 		9-07065-612-0 02 1 9301-
109 CLIP; SENSOR CABLE
L=140 		5-09707-031-0 03 1 9301-9504
109 CLIP; SENSOR CABLE
4 WHEEL ANTI-LOCK BRAKE(JE5) L=100 		5-09707-036-0 01 1 9512-
115 CLIP; DOOR HARNESS
(A) 		8-94211-973-0 06 1 9301-
115 CLIP; DOOR HARNESS
CONVENIENT PACKAGE<6QZ> (B) 		8-94423-045-0 04 1 9301-9506
115 CLIP; DOOR HARNESS
CONVENIENT PACKAGE<6QZ> (B) ID=12 		8-94423-045-0 06 1 9507-9511
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=12 		8-94423-045-0 04 1 9512-
115 CLIP; DOOR HARNESS
EXC. CONVENIENT PACKAGE<6QZ> (B) ID=12 		8-94423-045-0 02 1 9505-9511
115 CLIP; DOOR HARNESS
EXC. POWER WINDOW<A30> (B) ID=12 		8-94423-045-0 02 1 9512-
115 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. CONVENIENT PACKAGE<6QZ> (B) 		5-09709-107-0 04 1 9301-9308
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) 		8-94218-436-0 02 1 9301-9308
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9301-
239 BOLT; GRAND
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-
239 BOLT; GRAND
A/T THM(RMQ) M6X14 		8-94153-946-0 01 1 9301-9308
239 BOLT; GRAND
A/T THM(RMQ) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9309-
390 CONNECTOR; SHORT CIRCUIT
AUTO DOOR LOCK<AU4> EXC. RR WIPER<C25> 		8-97104-874-0 01 1 9601-

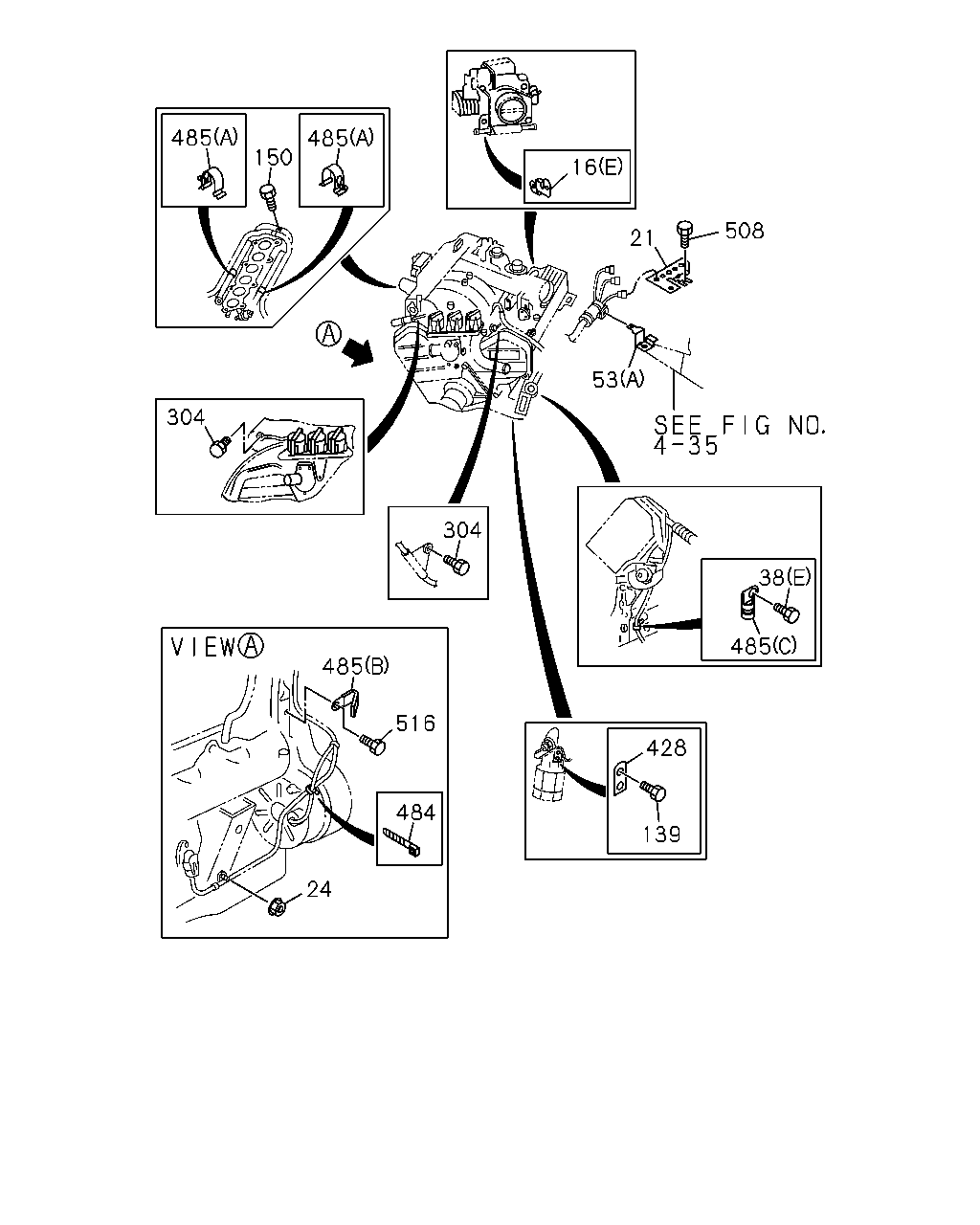

çizim 67724
485 150 485 16 21 508 53 304 304 38 485 428 139 484 516 485 24
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(F) 		5-09700-275-0 01 1 9301-9504
16 CLIP; HARNESS
A/T THM(RMQ) (F) 		5-09700-275-0 01 1 9301-9504
16 CLIP; HARNESS
(B) 		8-94138-987-0 03 1 9301-9504
16 CLIP; HARNESS
(B) 		8-94138-987-0 04 1 9505-9511
16 CLIP; HARNESS
(B) 		8-94138-987-0 06 1 9512-
16 CLIP; HARNESS
(E) 		8-97032-822-1 01 1 9301-9511
16 CLIP; HARNESS
(A) L=140 		5-09707-031-0 01 1 9505-
16 CLIP; HARNESS
(H) L=104 		8-94433-185-0 02 1 9505-
16 CLIP; HARNESS
A/T THM(RMQ) (I) L=100 		5-09707-036-0 01 1 9601-
16 CLIP; HARNESS
CONVENIENT PACKAGE<6QZ> (C) 		8-94449-752-0 08 1 9309-9504
16 CLIP; HARNESS
CONVENIENT PACKAGE<6QZ> (C) L=60 		8-94449-752-0 04 1 9505-9511
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=60 		8-94449-752-0 04 1 9512-
16 CLIP; HARNESS
CONVENIENT PACKAGE<6QZ> (G) L=60 		8-94457-053-0 04 1 9505-9511
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=60 		8-94457-053-0 04 1 9512-
16 CLIP; HARNESS
EXC. CONVENIENT PACKAGE<6QZ> (G) L=60 		8-94457-053-0 02 1 9505-9511
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (G) L=60 		8-94457-053-0 02 1 9512-
16 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (D) 		9-09525-522-0 01 1 9301-9511
16 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (D) ID=19 L=20 		9-09525-832-0 01 1 9512-9512
16 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (D) ID=18 		8-94329-853-0 01 1 9601-
21 BRACKET; ENG HARNESS 8-97069-938-1 01 1 9301-9408
21 BRACKET; ENG HARNESS 8-97108-281-0 01 1 9409-
24 NUT; HARNESS
M8 W/LK WASHER 		8-94327-073-0 01 1 9301-
38 BOLT; CLIP,HARNESS
(D) M8X12 FLANGE 		0-28080-812-0 01 1 9301-9511
38 BOLT; CLIP,HARNESS
(C) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9301-9607
38 BOLT; CLIP,HARNESS
(C) M6X16 FLANGE 		0-28080-616-0 01 1 9608-
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK WASHER 		0-50040-620-0 02 1 9301-9308
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9301-9308
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 9309-9504
38 BOLT; CLIP,HARNESS
(E) M6X16 FLANGE 		0-28480-616-0 02 1 9505-9511
38 BOLT; CLIP,HARNESS
EXC. AIR CONDITIONER(C60) (E) M10X16 FLANGE 		0-28181-016-0 01 1 9301-9511
38 BOLT; CLIP,HARNESS
(E) M10X16 FLANGE 		0-28181-016-0 01 1 9512-
38 BOLT; CLIP,HARNESS
(A) M6X20 		8-94412-422-0 02 1 9301-
38 BOLT; CLIP,HARNESS
(F) M6X25 FLANGE 		0-28480-625-0 01 1 9505-
38 BOLT; CLIP,HARNESS
(G) M5X14 		8-94120-095-0 02 1 9505-
53 BRACKET; HARNESS
(A) 		8-97071-807-1 01 1 9301-9511
53 BRACKET; HARNESS
(A) 		8-97138-889-1 01 1 9512-
53 BRACKET; HARNESS
(B) 		8-97108-538-1 01 1 9505-
53 BRACKET; HARNESS
(C) 		8-97108-539-1 01 1 9505-
139 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 9301-9706
139 BOLT; BRKT
M8X10 FLANGE 		0-28080-810-0 01 1 9707-
150 BOLT; CLIP
M6X12 FLANGE 		0-28080-612-0 01 1 9304-9308
304 BOLT; ENG HARNESS CLIP
M6X12 FLANGE 		0-28080-612-0 02 1 9301-9408
428 BRACKET 8-97032-701-0 01 1 9301-
484 CLIP; ECGI HARNESS TO C/MBR
L=100 		5-09707-036-0 02 1 9301-9409
484 CLIP; ECGI HARNESS TO C/MBR
L=100 		5-09707-036-0 01 1 9410-
485 CLIP; HARNESS,ECGI
(C) ID=12 		5-09700-331-0 01 1 9301-
485 CLIP; HARNESS,ECGI
(A) 		8-94386-489-0 02 1 9301-9408
485 CLIP; HARNESS,ECGI
EXC. AIR CONDITIONER(C60) (B) 		8-94327-574-0 01 1 9301-9511
485 CLIP; HARNESS,ECGI
(B) 		8-94327-574-0 01 1 9512-
508 BOLT; BRKT,ENG HARNESS
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9301-
516 BOLT; HARNESS
M8X12 FLANGE 		0-28080-812-0 01 1 9301-9408
516 BOLT; HARNESS
A/T THM(RMQ) M10X16 FLANGE 		0-28081-016-0 01 1 9512-

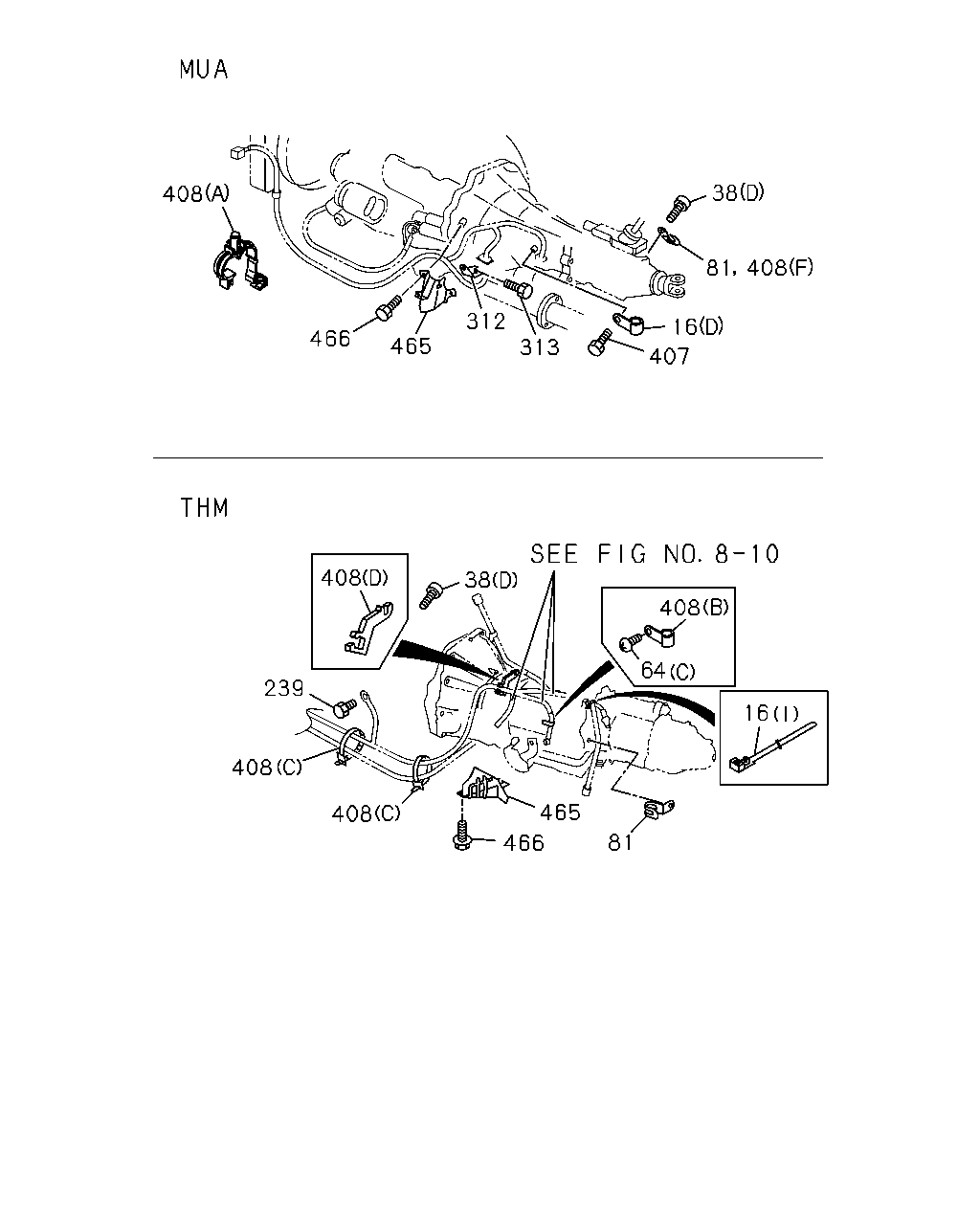

çizim 67725
408 466 465 312 313 407 16 81 408 38 38 408 239 408 408 466 465 81 16 64 408
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(F) 		5-09700-275-0 01 1 9301-9504
16 CLIP; HARNESS
A/T THM(RMQ) (F) 		5-09700-275-0 01 1 9301-9504
16 CLIP; HARNESS
(B) 		8-94138-987-0 03 1 9301-9504
16 CLIP; HARNESS
(B) 		8-94138-987-0 04 1 9505-9511
16 CLIP; HARNESS
(B) 		8-94138-987-0 06 1 9512-
16 CLIP; HARNESS
(E) 		8-97032-822-1 01 1 9301-9511
16 CLIP; HARNESS
(A) L=140 		5-09707-031-0 01 1 9505-
16 CLIP; HARNESS
(H) L=104 		8-94433-185-0 02 1 9505-
16 CLIP; HARNESS
A/T THM(RMQ) (I) L=100 		5-09707-036-0 01 1 9601-
16 CLIP; HARNESS
CONVENIENT PACKAGE<6QZ> (C) 		8-94449-752-0 08 1 9309-9504
16 CLIP; HARNESS
CONVENIENT PACKAGE<6QZ> (C) L=60 		8-94449-752-0 04 1 9505-9511
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=60 		8-94449-752-0 04 1 9512-
16 CLIP; HARNESS
CONVENIENT PACKAGE<6QZ> (G) L=60 		8-94457-053-0 04 1 9505-9511
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=60 		8-94457-053-0 04 1 9512-
16 CLIP; HARNESS
EXC. CONVENIENT PACKAGE<6QZ> (G) L=60 		8-94457-053-0 02 1 9505-9511
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (G) L=60 		8-94457-053-0 02 1 9512-
16 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (D) 		9-09525-522-0 01 1 9301-9511
16 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (D) ID=19 L=20 		9-09525-832-0 01 1 9512-9512
16 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (D) ID=18 		8-94329-853-0 01 1 9601-
38 BOLT; CLIP,HARNESS
(D) M8X12 FLANGE 		0-28080-812-0 01 1 9301-9511
38 BOLT; CLIP,HARNESS
(C) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9301-9607
38 BOLT; CLIP,HARNESS
(C) M6X16 FLANGE 		0-28080-616-0 01 1 9608-
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK WASHER 		0-50040-620-0 02 1 9301-9308
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9301-9308
38 BOLT; CLIP,HARNESS
(B) M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 9309-9504
38 BOLT; CLIP,HARNESS
(E) M6X16 FLANGE 		0-28480-616-0 02 1 9505-9511
38 BOLT; CLIP,HARNESS
EXC. AIR CONDITIONER(C60) (E) M10X16 FLANGE 		0-28181-016-0 01 1 9301-9511
38 BOLT; CLIP,HARNESS
(E) M10X16 FLANGE 		0-28181-016-0 01 1 9512-
38 BOLT; CLIP,HARNESS
(A) M6X20 		8-94412-422-0 02 1 9301-
38 BOLT; CLIP,HARNESS
(F) M6X25 FLANGE 		0-28480-625-0 01 1 9505-
38 BOLT; CLIP,HARNESS
(G) M5X14 		8-94120-095-0 02 1 9505-
64 SCREW; CLIP
(E) M4X12 TAPPING W/PL WASHER 		0-74130-412-0 06 1 9301-9304
64 SCREW; CLIP
(E) 		8-94198-480-0 06 1 9305-
64 SCREW; CLIP
(A) M5X14 		8-94120-095-0 02 1 9301-
64 SCREW; CLIP
(B) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 9301-
64 SCREW; CLIP
A/T THM(RMQ) (C) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9301-
64 SCREW; CLIP
A/T THM(RMQ) (D) M6X12 TAPPING 		9-07065-612-0 02 1 9301-
81 CLIP; HARNESS
L=212 		8-94107-652-0 01 1 9512-
81 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) ID=12 		5-09700-350-0 01 1 9301-9511
81 CLIP; HARNESS
A/T THM(RMQ) ID=13.0 		5-09709-095-0 01 1 9512-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9301-
239 BOLT; GRAND
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-
239 BOLT; GRAND
A/T THM(RMQ) M6X14 		8-94153-946-0 01 1 9301-9308
239 BOLT; GRAND
A/T THM(RMQ) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9309-
312 BRACKET; CLIP HARNESS
M/T MUA 5 SPEED(RMN) 		8-94359-008-1 01 1 9301-
313 BOLT; BRKT
M/T MUA 5 SPEED(RMN) M8X40 FLANGE 		0-28080-840-0 01 1 9301-
407 BOLT; HARNESS TO TRANS
M/T MUA 5 SPEED(RMN) M6X12 FLANGE 		0-28080-612-0 01 1 9301-9512
407 BOLT; HARNESS TO TRANS
M/T MUA 5 SPEED(RMN) 		1-09044-063-0 01 1 9601-
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (C) L=250 		5-09707-030-0 02 1 9301-9504
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (C) L=200 		8-94464-835-0 02 1 9505-
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (D) 		8-97022-809-0 01 1 9301-
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (E) ID=9 L=16 		9-09524-822-0 02 1 9301-
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (B) ID=16 		9-09525-522-0 01 1 9301-
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) (A) ID=24 		8-97022-568-3 01 1 9301-
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) FLOOR REMOTE SHIFT<M11> (F) ID=12 		5-09700-350-0 04 1 9301-9511
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) (F) ID=12 		5-09700-350-0 02 1 9512-
465 PROTECTOR; HEAT,HARNESS
A/T THM(RMQ) 		8-97029-511-1 01 1 9301-
465 PROTECTOR; HEAT,HARNESS
M/T MUA 5 SPEED(RMN) 		8-97809-116-1 01 1 9301-9408
465 PROTECTOR; HEAT,HARNESS
M/T MUA 5 SPEED(RMN) 		8-97108-280-0 01 1 9409-
466 BOLT; HEAT PROTECTOR
A/T THM(RMQ) M6X12 FLANGE 		0-28080-612-0 02 1 9301-
466 BOLT; HEAT PROTECTOR
M/T MUA 5 SPEED(RMN) M6X12 FLANGE 		0-28080-612-0 03 1 9301-

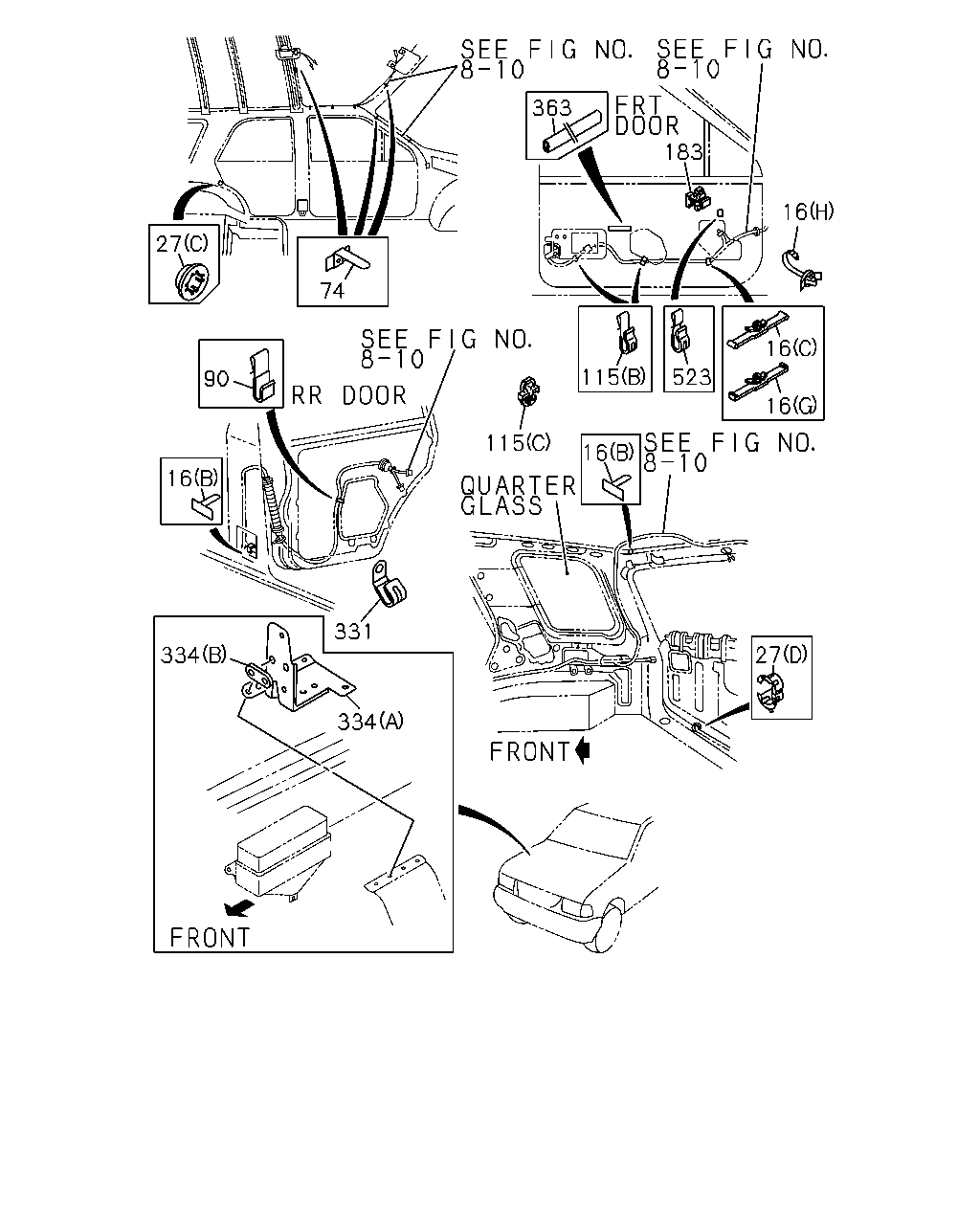

çizim 68225
363 183 16 16 16 523 115 115 16 27 334 331 334 16 90 27 74
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(F) 		5-09700-275-0 01 1 9301-9504
16 CLIP; HARNESS
A/T THM(RMQ) (F) 		5-09700-275-0 01 1 9301-9504
16 CLIP; HARNESS
(B) 		8-94138-987-0 03 1 9301-9504
16 CLIP; HARNESS
(B) 		8-94138-987-0 04 1 9505-9511
16 CLIP; HARNESS
(B) 		8-94138-987-0 06 1 9512-
16 CLIP; HARNESS
(E) 		8-97032-822-1 01 1 9301-9511
16 CLIP; HARNESS
(A) L=140 		5-09707-031-0 01 1 9505-
16 CLIP; HARNESS
(H) L=104 		8-94433-185-0 02 1 9505-
16 CLIP; HARNESS
A/T THM(RMQ) (I) L=100 		5-09707-036-0 01 1 9601-
16 CLIP; HARNESS
CONVENIENT PACKAGE<6QZ> (C) 		8-94449-752-0 08 1 9309-9504
16 CLIP; HARNESS
CONVENIENT PACKAGE<6QZ> (C) L=60 		8-94449-752-0 04 1 9505-9511
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=60 		8-94449-752-0 04 1 9512-
16 CLIP; HARNESS
CONVENIENT PACKAGE<6QZ> (G) L=60 		8-94457-053-0 04 1 9505-9511
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=60 		8-94457-053-0 04 1 9512-
16 CLIP; HARNESS
EXC. CONVENIENT PACKAGE<6QZ> (G) L=60 		8-94457-053-0 02 1 9505-9511
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (G) L=60 		8-94457-053-0 02 1 9512-
16 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (D) 		9-09525-522-0 01 1 9301-9511
16 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (D) ID=19 L=20 		9-09525-832-0 01 1 9512-9512
16 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (D) ID=18 		8-94329-853-0 01 1 9601-
27 PROTECTOR; EDGE
(E) L=80 		5-22439-006-0 01 1 9301-
27 PROTECTOR; EDGE
(A) 		8-94115-120-0 02 1 9301-9504
27 PROTECTOR; EDGE
(A) L=105 		8-97109-036-0 02 1 9505-
27 PROTECTOR; EDGE
(C) ID=34.7 		8-94365-780-0 02 1 9301-
27 PROTECTOR; EDGE
(B) 		8-94369-906-1 02 1 9301-
27 PROTECTOR; EDGE
(D) 		8-97014-418-0 01 1 9301-
27 PROTECTOR; EDGE
(G) 		8-94340-075-0 02 1 9505-
27 PROTECTOR; EDGE
(F) L=105 		8-97109-036-0 01 1 9505-
74 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 10 1 9301-
74 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 08 1 9301-
90 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> 		5-09709-107-0 04 1 9301-
115 CLIP; DOOR HARNESS
(A) 		8-94211-973-0 06 1 9301-
115 CLIP; DOOR HARNESS
CONVENIENT PACKAGE<6QZ> (B) 		8-94423-045-0 04 1 9301-9506
115 CLIP; DOOR HARNESS
CONVENIENT PACKAGE<6QZ> (B) ID=12 		8-94423-045-0 06 1 9507-9511
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=12 		8-94423-045-0 04 1 9512-
115 CLIP; DOOR HARNESS
EXC. CONVENIENT PACKAGE<6QZ> (B) ID=12 		8-94423-045-0 02 1 9505-9511
115 CLIP; DOOR HARNESS
EXC. POWER WINDOW<A30> (B) ID=12 		8-94423-045-0 02 1 9512-
115 CLIP; DOOR HARNESS
GRADE LS(RBD) EXC. CONVENIENT PACKAGE<6QZ> (B) 		5-09709-107-0 04 1 9301-9308
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) 		8-94218-436-0 02 1 9301-9308
183 CLIP; CONNECTOR
CONVENIENT PACKAGE<6QZ> L=15 		8-94315-436-1 02 1 9309-9504
183 CLIP; CONNECTOR
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>,DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU> L=15 		8-94315-436-1 02 1 9505-
331 CLIP; HARNESS BRKT
POWER WINDOW<A30> ID=8.5 		5-09700-275-0 02 1 9301-
334 BRACKET
4 WHEEL ANTI-LOCK BRAKE(JE5) (A) 		8-94479-552-2 01 1 9512-
334 BRACKET
4 WHEEL ANTI-LOCK BRAKE(JE5) (B) 		8-97100-533-1 01 1 9512-
363 FINISHER; PROTECTOR
POWER WINDOW<A30> L=190 SERVICED BY L=880 		1-71997-513-1 02 1 9301-9502
523 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> ID=9 		8-94177-914-0 02 1 9309-9504
523 CLIP; HARNESS,WINDOW REG
ID=9 		8-94177-914-0 02 1 9505-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
