◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#46958) — 216 parça

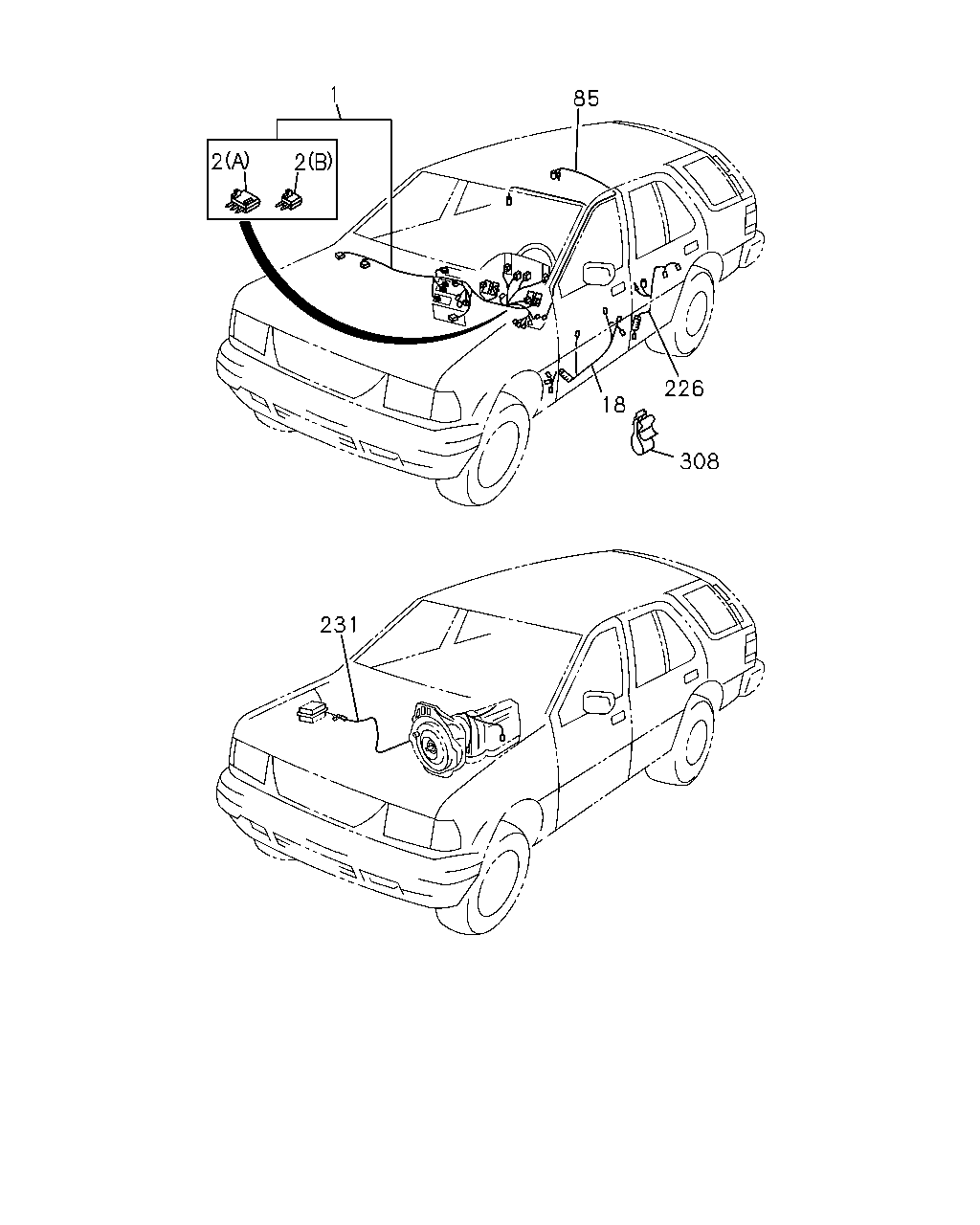

çizim 17380
85 226 18 308 231 1 2 2
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-97064-203-3 01 1 9301-9308
1 HARNESS; CAB 8-97095-435-2 01 1 9309-9504
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) 		8-97129-459-0 01 1 9505-9511
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) GRADE S(RBA) EXC. POWER WINDOW<A30>,RR WIPER<C25> 		8-97138-991-1 01 1 9512-
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) GRADE S(RBA) RR WIPER<C25> 		8-97138-991-1 01 1 9512-
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) GRADE LS(RBD) 		8-97138-991-1 01 1 9512-
1 HARNESS; CAB
A/T THM(RMQ) 		8-97129-460-0 01 1 9505-9511
1 HARNESS; CAB
A/T THM(RMQ) GRADE S(RBA) EXC. POWER WINDOW<A30>,RR WIPER<C25> 		8-97138-993-1 01 1 9512-
1 HARNESS; CAB
A/T THM(RMQ) GRADE S(RBA) RR WIPER<C25> 		8-97138-993-1 01 1 9512-
1 HARNESS; CAB
A/T THM(RMQ) GRADE LS(RBD) 		8-97138-993-1 01 1 9512-
1 HARNESS; CAB
A/T THM(RMQ) GRADE S(RBA) POWER WINDOW<A30> EXC. RR WIPER<C25> 		8-97138-994-1 01 1 9512-
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) GRADE S(RBA) POWER WINDOW<A30> EXC. RR WIPER<C25> 		8-97138-992-1 01 1 9512-
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94416-438-1 AR 1 9301-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9301-
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9301-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-2.0A 		8-97138-524-0 AR 1 9608-
18 HARNESS; DOOR
CONVENIENT PACKAGE<6QZ> 		8-97066-220-1 01 1 9301-9308
18 HARNESS; DOOR
CONVENIENT PACKAGE<6QZ> 		8-97095-369-3 01 1 9309-9504
18 HARNESS; DOOR
CONVENIENT PACKAGE<6QZ> 		8-97108-528-7 01 1 9505-9511
18 HARNESS; DOOR
POWER WINDOW<A30> 		8-97138-907-0 01 1 9512-9604
18 HARNESS; DOOR
POWER WINDOW<A30> 		8-97146-579-0 01 1 9605-
18 HARNESS; DOOR
CONVENIENT PACKAGE<6QZ> 		8-97063-285-1 01 1 9301-9308
18 HARNESS; DOOR
CONVENIENT PACKAGE<6QZ> 		8-97095-375-3 01 1 9309-9504
18 HARNESS; DOOR
CONVENIENT PACKAGE<6QZ> 		8-97108-530-7 01 1 9505-9511
18 HARNESS; DOOR
POWER WINDOW<A30> 		8-97138-909-0 01 1 9512-9604
18 HARNESS; DOOR
POWER WINDOW<A30> 		8-97146-580-0 01 1 9605-
18 HARNESS; DOOR
EXC. CONVENIENT PACKAGE<6QZ> 		8-97108-527-4 01 1 9505-9511
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		8-97138-906-0 01 1 9512-
18 HARNESS; DOOR
EXC. CONVENIENT PACKAGE<6QZ> 		8-97108-529-4 01 1 9505-9511
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		8-97138-908-0 01 1 9512-
18 HARNESS; DOOR
GRADE LS(RBD) EXC. CONVENIENT PACKAGE<6QZ> 		8-97066-221-1 01 1 9301-9308
18 HARNESS; DOOR
GRADE LS(RBD) EXC. CONVENIENT PACKAGE<6QZ> 		8-97063-283-1 01 1 9301-9308
18 HARNESS; DOOR
GRADE S(RBA) DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2> EXC. CONVENIENT PACKAGE<6QZ> 		8-97095-379-1 02 1 9309-9504
18 HARNESS; DOOR
GRADE LS(RBD) EXC. CONVENIENT PACKAGE<6QZ> 		8-97095-379-1 02 1 9309-9504
85 HARNESS; ROOM LAMP
MAP LAMP<UF3> 		8-94369-825-0 01 1 9301-9504
85 HARNESS; ROOM LAMP
MAP LAMP<UF3> 		8-97102-022-1 01 1 9505-
85 HARNESS; ROOM LAMP
EXC. MAP LAMP<UF3> 		8-94369-824-0 01 1 9301-9504
85 HARNESS; ROOM LAMP
EXC. MAP LAMP<UF3> 		8-97102-021-1 01 1 9505-
226 HARNESS; RR DOOR
CONVENIENT PACKAGE<6QZ> 		8-97012-609-4 02 1 9301-9504
226 HARNESS; RR DOOR
CONVENIENT PACKAGE<6QZ> 		8-97108-531-4 02 1 9505-9511
226 HARNESS; RR DOOR
POWER WINDOW<A30> 		8-97138-910-0 02 1 9512-9604
226 HARNESS; RR DOOR
POWER WINDOW<A30> 		8-97146-581-0 02 1 9605-
226 HARNESS; RR DOOR
GRADE LS(RBD) EXC. CONVENIENT PACKAGE<6QZ> 		8-97012-610-3 02 1 9301-9308
231 HARNESS; TRANS
A/T THM(RMQ) 		8-97074-061-2 01 1 9301-9511
231 HARNESS; TRANS
A/T THM(RMQ) 		8-97138-971-2 01 1 9512-9701
231 HARNESS; TRANS
A/T THM(RMQ) 		8-97174-079-0 01 1 9702-
231 HARNESS; TRANS
M/T MUA 5 SPEED(RMN) 		8-97084-594-2 01 1 9301-9504
231 HARNESS; TRANS
M/T MUA 5 SPEED(RMN) 		8-97108-522-1 01 1 9505-9511
231 HARNESS; TRANS
M/T MUA 5 SPEED(RMN) 		8-97138-959-1 01 1 9512-9702
231 HARNESS; TRANS
M/T MUA 5 SPEED(RMN) 		8-97174-077-0 01 1 9703-
308 BRACKET; CONNECTOR
POWER WINDOW<A30> 		8-97102-552-0 02 1 9505-

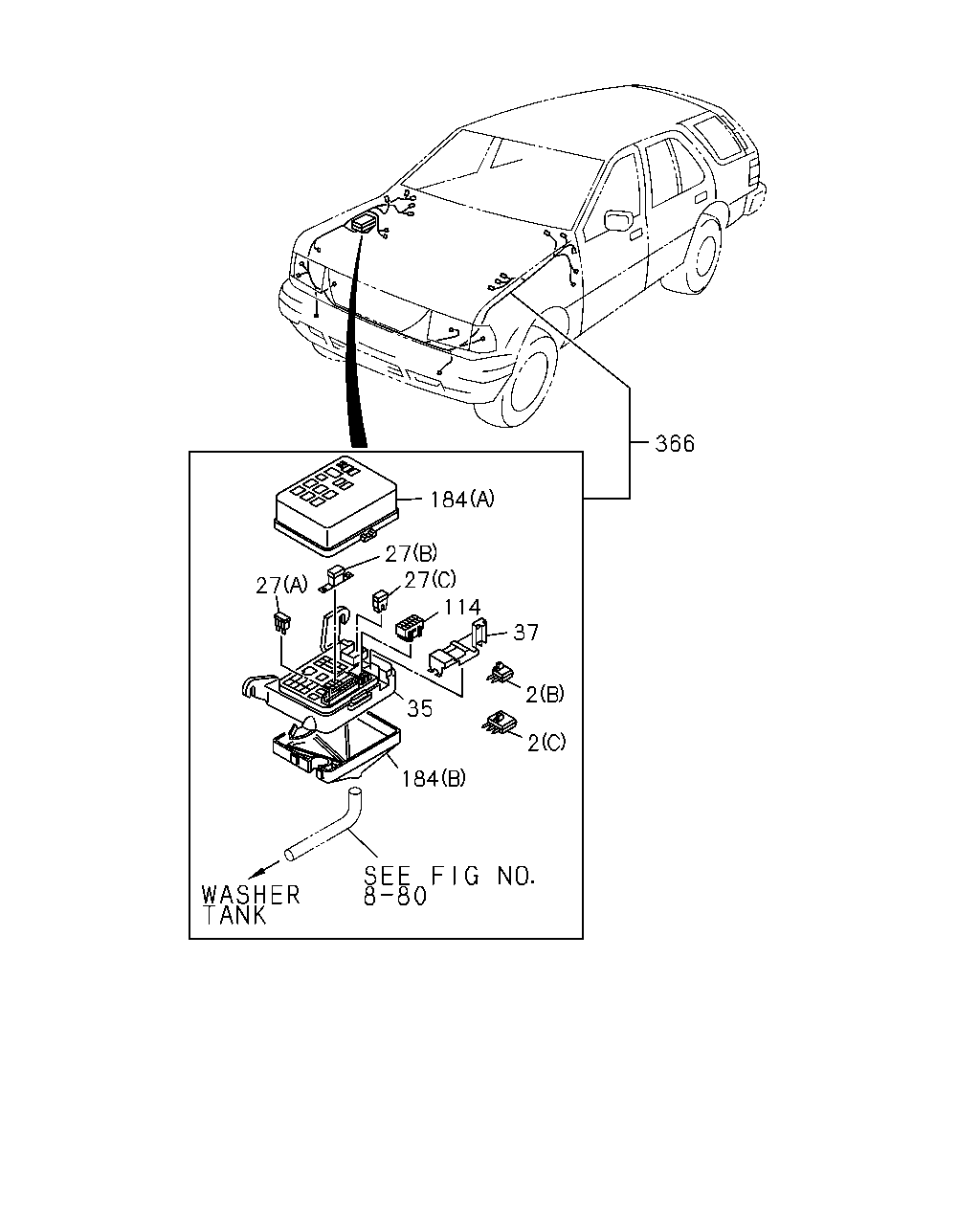

çizim 65710
366 184 27 27 114 37 2 2 35 184 27
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94416-438-1 AR 1 9301-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9301-
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9301-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-2.0A 		8-97138-524-0 AR 1 9608-
27 FUSE UNIT
(A) 10A RED 		5-82516-002-0 AR 1 9301-9504
27 FUSE UNIT
(A) 10A RED 		8-97103-481-0 AR 1 9505-
27 FUSE UNIT
(A) 15A BLUE 		5-82516-003-0 AR 1 9301-9504
27 FUSE UNIT
(A) 15A BLUE 		8-97103-482-0 AR 1 9505-
27 FUSE UNIT
(A) 20A YELLOW 		5-82516-004-0 AR 1 9301-9504
27 FUSE UNIT
(A) 20A YELLOW 		8-97103-483-0 AR 1 9505-
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 AR 1 9512-
27 FUSE UNIT
(C) 30A PINK 		8-94468-661-0 AR 1 9301-
27 FUSE UNIT
(B) 30A PINK 		8-94480-379-0 AR 1 9301-9504
27 FUSE UNIT
(B) 60A YELLOW 		8-94480-382-0 AR 1 9301-9504
27 FUSE UNIT
(B) 60A YELLOW 		8-94388-303-0 AR 1 9505-
27 FUSE UNIT
(B) 100A BLUE 		8-94388-306-0 AR 1 9505-
35 BOX; RELAY & FUSE 8-94362-096-1 01 1 9301-9308
35 BOX; RELAY & FUSE 8-94315-204-1 01 1 9309-9504
35 BOX; RELAY & FUSE 8-97104-108-2 01 1 9505-
37 COVER; FUSE,RELAY & FUSE BOX 8-94315-216-0 01 1 9301-9504
37 COVER; FUSE,RELAY & FUSE BOX 8-97104-120-0 01 1 9505-
114 BOX ASM; FUSE 8-97104-121-0 01 1 9505-
184 COVER; RELAY & FUSE BOX
(A) 		8-97082-016-1 01 1 9301-9308
184 COVER; RELAY & FUSE BOX
(A) 		8-97094-802-0 01 1 9309-9504
184 COVER; RELAY & FUSE BOX
(A) 		8-97115-367-3 01 1 9505-9511
184 COVER; RELAY & FUSE BOX
(A) 		8-97124-232-1 01 1 9512-
184 COVER; RELAY & FUSE BOX
(B) 		8-94315-208-0 01 1 9301-9408
184 COVER; RELAY & FUSE BOX
(B) 		8-94315-207-1 01 1 9409-9504
184 COVER; RELAY & FUSE BOX
(B) 		8-97104-115-1 01 1 9505-
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97064-197-6 01 1 9301-9308
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97095-427-1 01 1 9309-9309
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97105-923-0 01 1 9310-9504
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97129-455-1 01 1 9505-9511
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-948-3 01 1 9512-9604
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97176-510-0 01 1 9605-
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-947-3 01 1 9512-9604
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97176-509-0 01 1 9605-
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) 		8-97064-196-6 01 1 9301-9308
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) 		8-97095-431-1 01 1 9309-9309
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) 		8-97105-924-0 01 1 9310-9504
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) 		8-97129-454-1 01 1 9505-9511
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-946-3 01 1 9512-9604
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97176-508-0 01 1 9605-
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-945-3 01 1 9512-9604
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97176-507-0 01 1 9605-

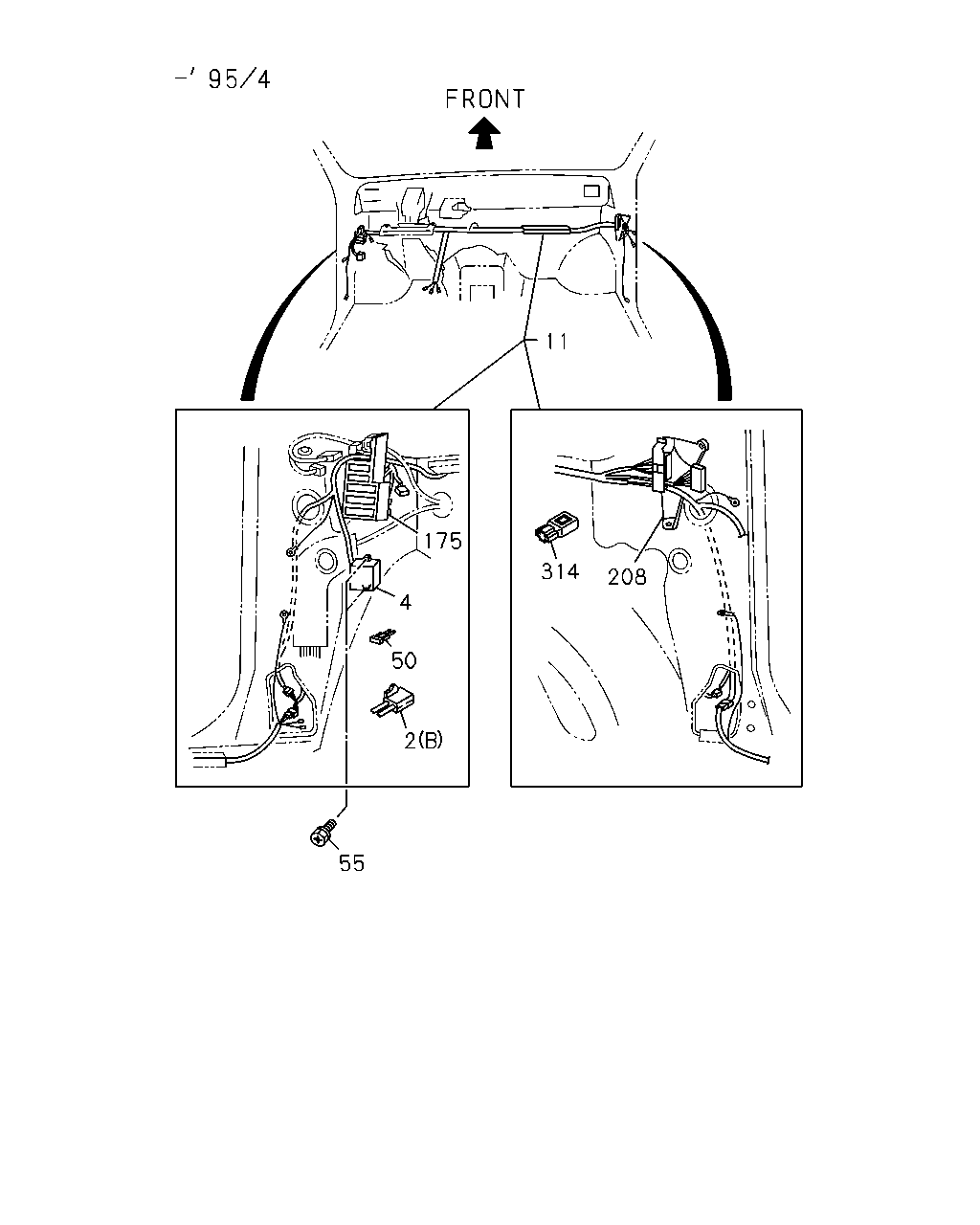

çizim 67729
11 314 208 175 4 50 2 55
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94416-438-1 AR 1 9301-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9301-
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9301-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-2.0A 		8-97138-524-0 AR 1 9608-
4 BOX ASM; FUSE,HARNESS 8-94323-889-0 01 1 9301-9504
4 BOX ASM; FUSE,HARNESS 8-97102-735-3 01 1 9505-
11 HARNESS; BODY
A/T THM(RMQ) 		8-97064-206-3 01 1 9301-9308
11 HARNESS; BODY
A/T THM(RMQ) 		8-97095-433-2 01 1 9309-9504
11 HARNESS; BODY
A/T THM(RMQ) 		8-97129-465-3 01 1 9505-9511
11 HARNESS; BODY
A/T THM(RMQ) 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-968-1 01 1 9512-
11 HARNESS; BODY
A/T THM(RMQ) EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-967-1 01 1 9512-
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) 		8-97064-205-3 01 1 9301-9308
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) 		8-97095-437-2 01 1 9309-9504
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) 		8-97129-464-3 01 1 9505-9511
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-966-1 01 1 9512-
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-965-1 01 1 9512-
50 FUSE; BODY HARNESS
10A RED 		5-82516-002-0 AR 1 9301-9504
50 FUSE; BODY HARNESS
10A RED 		8-97103-481-0 AR 1 9505-
50 FUSE; BODY HARNESS
15A BLUE 		5-82516-003-0 AR 1 9301-9504
50 FUSE; BODY HARNESS
15A BLUE 		8-97103-482-0 AR 1 9505-
50 FUSE; BODY HARNESS
20A YELLOW 		5-82516-004-0 AR 1 9301-9504
50 FUSE; BODY HARNESS
20A YELLOW 		8-97103-483-0 AR 1 9505-
50 FUSE; BODY HARNESS
25A CLEAR 		5-82516-005-0 AR 1 9301-9504
55 SCREW; FUSE BOX BRKT 8-94453-777-0 02 1 9301-9504
175 BOX; CONNECTOR 8-94452-698-1 01 1 9301-9504
208 HOLDER; CONNECTOR 8-97012-684-2 01 1 9301-9504
208 HOLDER; CONNECTOR
(A) 		8-97102-731-2 01 1 9505-
208 HOLDER; CONNECTOR
(B) 		8-97102-734-0 01 1 9505-
208 HOLDER; CONNECTOR
(C) 		8-97110-341-1 01 1 9505-
314 RESISTOR; HARNESS
M/T MUA 5 SPEED(RMN) 		8-97039-689-0 01 1 9301-9607
314 RESISTOR; HARNESS
M/T MUA 5 SPEED(RMN) 		8-97039-689-0 01 1 9608-

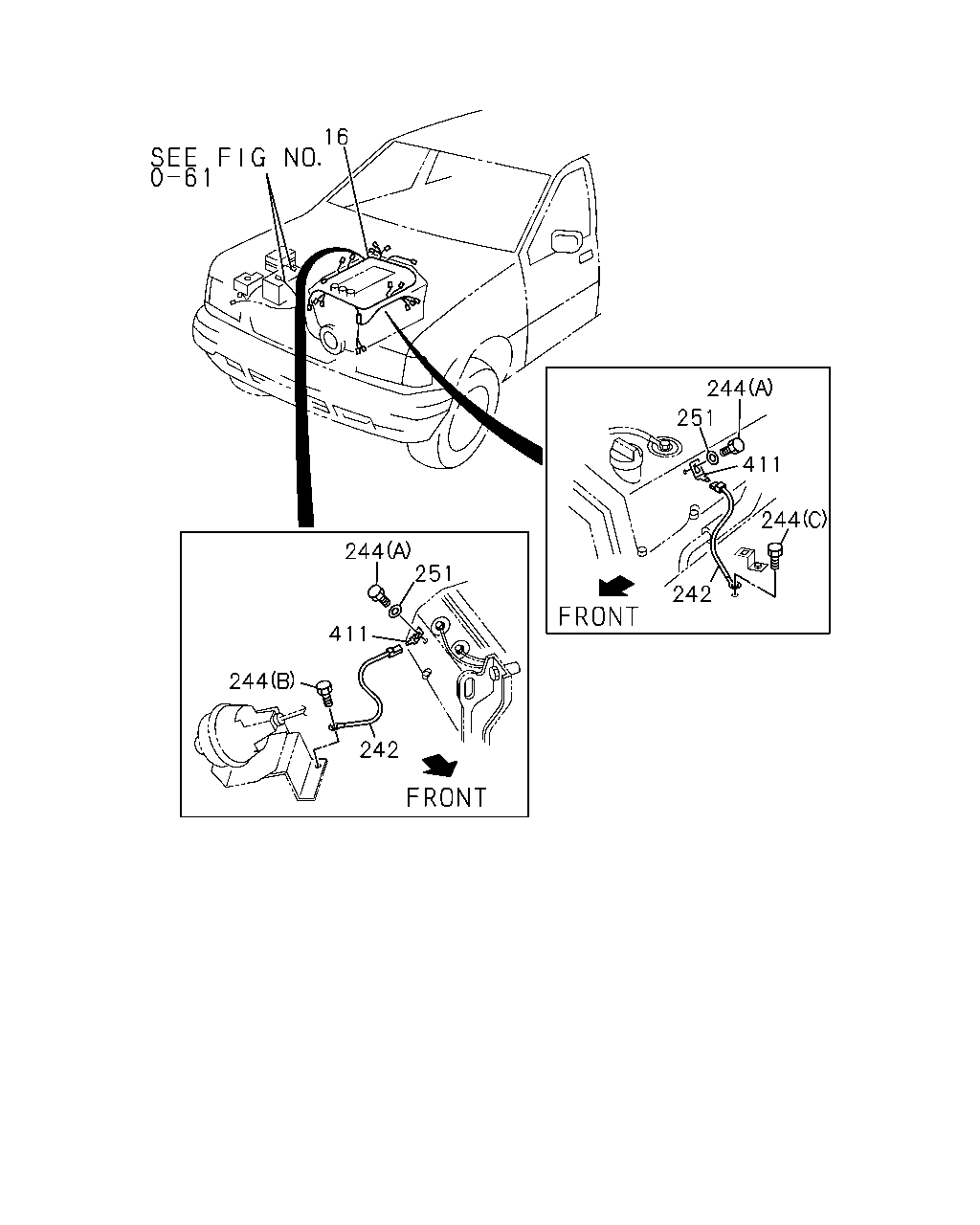

çizim 67730
16 244 251 411 244 242 251 244 411 244 242
BalonParca AdiParca NoAdetTipApplied Date
16 HARNESS; ENG,ECGI 8-97080-170-3 01 1 9301-9308
16 HARNESS; ENG,ECGI 8-97093-359-4 01 1 9309-9504
16 HARNESS; ENG,ECGI 8-97109-124-1 01 1 9505-9511
16 HARNESS; ENG,ECGI 8-97117-230-6 01 1 9512-
242 CABLE; BONDING,ENG TO BODY 8-97091-683-0 02 1 9301-
244 BOLT; GRAND BONDING CABLE
(A) M6X12 FLANGE 		0-28080-612-0 02 1 9301-
244 BOLT; GRAND BONDING CABLE
(B) M8X22 		8-94122-771-0 01 1 9301-9308
244 BOLT; GRAND BONDING CABLE
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9309-9503
244 BOLT; GRAND BONDING CABLE
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9504-9504
244 BOLT; GRAND BONDING CABLE
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9505-9511
244 BOLT; GRAND BONDING CABLE
EXC. AUTO CRUISE CONT<K30> (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9505-9511
244 BOLT; GRAND BONDING CABLE
EXC. AUTO CRUISE CONT<K30> (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9512-
244 BOLT; GRAND BONDING CABLE
AUTO CRUISE CONT<K30> (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9505-
244 BOLT; GRAND BONDING CABLE
(C) M6X14 		8-94153-946-0 01 1 9301-9308
244 BOLT; GRAND BONDING CABLE
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9309-
251 WASHER; PL,BONDING CABLE
ID=6.4 OD=18 		9-09160-706-0 02 1 9301-
411 TERMINAL; MALE,EARTH BONDING CABLE 8-94102-644-0 02 1 9301-

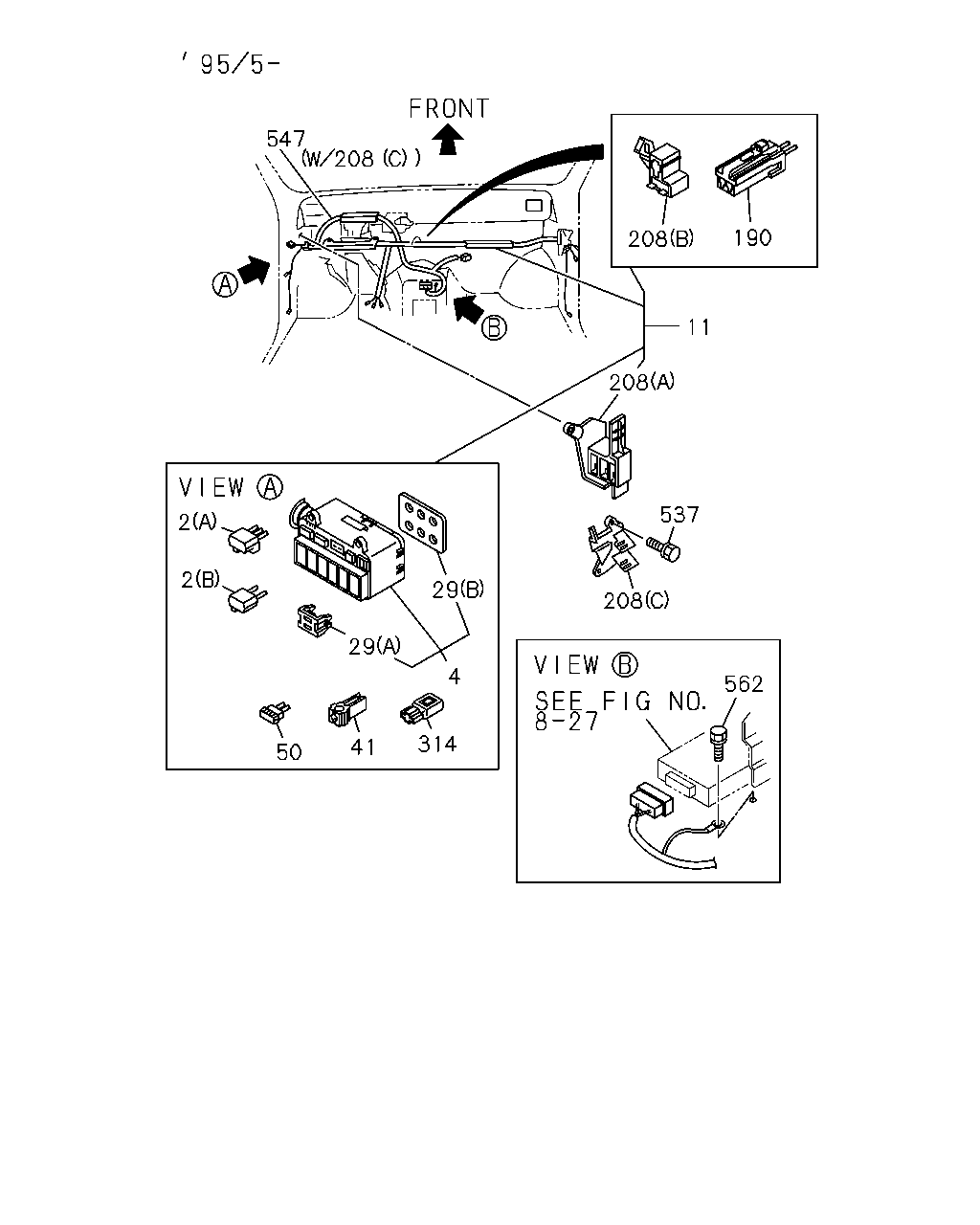

çizim 67766
547 208 190 11 208 537 208 562 4 29 314 41 50 29 2 2
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94416-438-1 AR 1 9301-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9301-
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9301-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-2.0A 		8-97138-524-0 AR 1 9608-
4 BOX ASM; FUSE,HARNESS 8-94323-889-0 01 1 9301-9504
4 BOX ASM; FUSE,HARNESS 8-97102-735-3 01 1 9505-
11 HARNESS; BODY
A/T THM(RMQ) 		8-97064-206-3 01 1 9301-9308
11 HARNESS; BODY
A/T THM(RMQ) 		8-97095-433-2 01 1 9309-9504
11 HARNESS; BODY
A/T THM(RMQ) 		8-97129-465-3 01 1 9505-9511
11 HARNESS; BODY
A/T THM(RMQ) 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-968-1 01 1 9512-
11 HARNESS; BODY
A/T THM(RMQ) EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-967-1 01 1 9512-
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) 		8-97064-205-3 01 1 9301-9308
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) 		8-97095-437-2 01 1 9309-9504
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) 		8-97129-464-3 01 1 9505-9511
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-966-1 01 1 9512-
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-965-1 01 1 9512-
29 COVER; FUSE BOX
(A) 		8-97103-389-0 01 1 9505-
29 COVER; FUSE BOX
(B) 		8-97110-118-0 01 1 9505-
41 PULLER; FUSE 8-97103-388-0 01 1 9505-
50 FUSE; BODY HARNESS
10A RED 		5-82516-002-0 AR 1 9301-9504
50 FUSE; BODY HARNESS
10A RED 		8-97103-481-0 AR 1 9505-
50 FUSE; BODY HARNESS
15A BLUE 		5-82516-003-0 AR 1 9301-9504
50 FUSE; BODY HARNESS
15A BLUE 		8-97103-482-0 AR 1 9505-
50 FUSE; BODY HARNESS
20A YELLOW 		5-82516-004-0 AR 1 9301-9504
50 FUSE; BODY HARNESS
20A YELLOW 		8-97103-483-0 AR 1 9505-
50 FUSE; BODY HARNESS
25A CLEAR 		5-82516-005-0 AR 1 9301-9504
190 CONNECTOR; SHORT CIRCUIT
SDL-2F-B 		8-94328-700-0 01 1 9512-
190 CONNECTOR; SHORT CIRCUIT
SDL-3F-B 		8-94328-702-0 01 1 9512-
208 HOLDER; CONNECTOR 8-97012-684-2 01 1 9301-9504
208 HOLDER; CONNECTOR
(A) 		8-97102-731-2 01 1 9505-
208 HOLDER; CONNECTOR
(B) 		8-97102-734-0 01 1 9505-
208 HOLDER; CONNECTOR
(C) 		8-97110-341-1 01 1 9505-
314 RESISTOR; HARNESS
M/T MUA 5 SPEED(RMN) 		8-97039-689-0 01 1 9301-9607
314 RESISTOR; HARNESS
M/T MUA 5 SPEED(RMN) 		8-97039-689-0 01 1 9608-
537 BOLT
M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9505-9511
537 BOLT
M6X20 FLANGE 		0-28480-620-0 02 1 9512-
547 HARNESS; CABLE,SRS 8-97108-526-5 01 1 9505-
562 BOLT; GRAND,SRS
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9512-

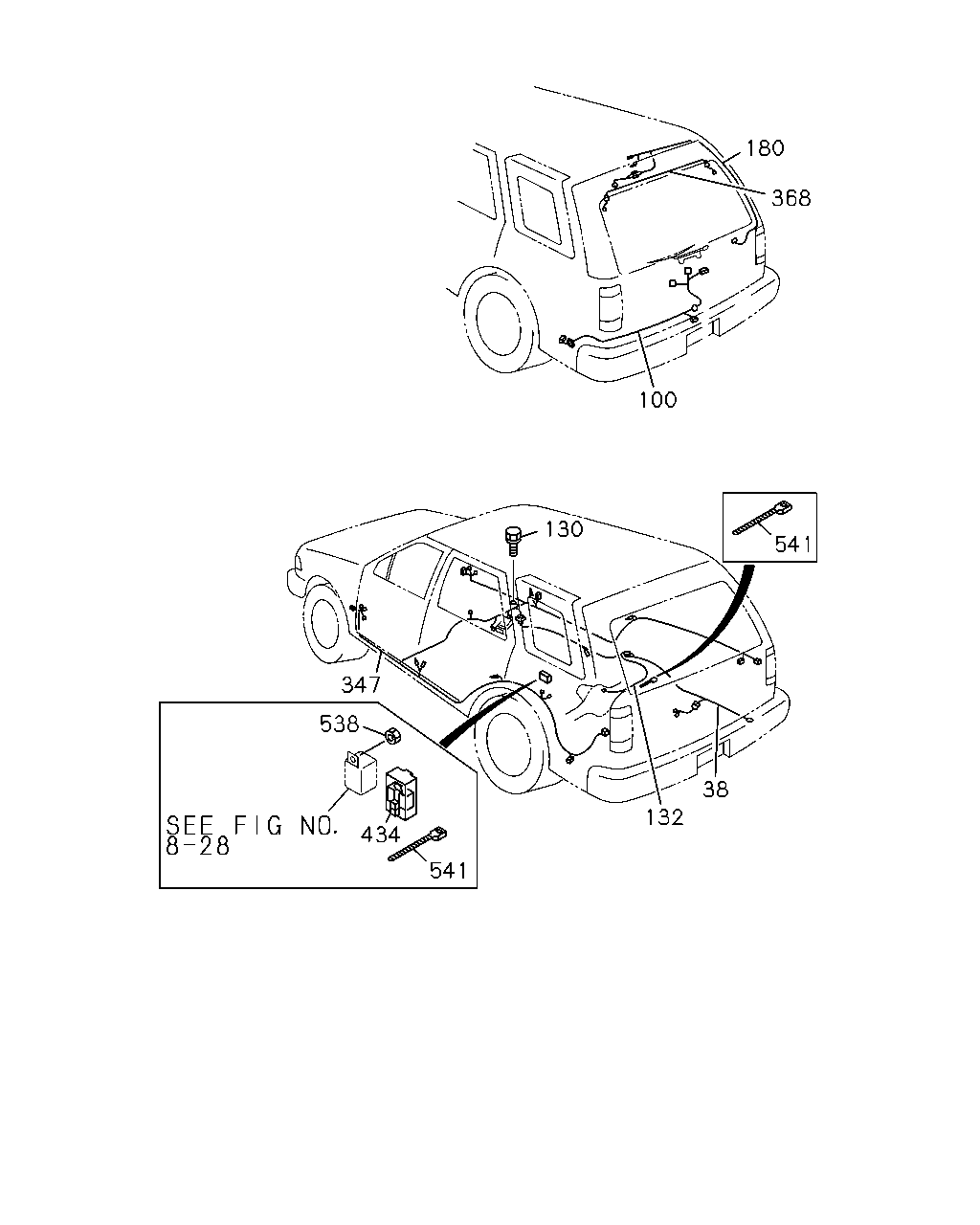

çizim 67805
180 368 100 541 130 38 132 541 434 538 347
BalonParca AdiParca NoAdetTipApplied Date
38 HARNESS; CHAS 8-97071-055-4 01 1 9301-9308
38 HARNESS; CHAS 8-97086-791-2 01 1 9309-9504
38 HARNESS; CHAS 8-97108-514-2 01 1 9505-9511
38 HARNESS; CHAS
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97134-349-1 01 1 9512-
38 HARNESS; CHAS
4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97134-351-1 01 1 9512-
100 HARNESS; RR GATE
EXC. AUTO DOOR LOCK<AU4>,RR WIPER<C25> 		8-97036-799-0 01 1 9301-9308
100 HARNESS; RR GATE
RR WIPER<C25> 		8-97036-798-2 01 1 9301-9308
100 HARNESS; RR GATE 8-97036-798-2 01 1 9309-9504
100 HARNESS; RR GATE 8-97102-023-5 01 1 9505-
130 BOLT; HARNESS EARTH
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9301-9511
130 BOLT; HARNESS EARTH
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9512-
132 HARNESS; RR WHEEL ANTI LOCK 8-94370-979-2 01 1 9301-9504
132 HARNESS; RR WHEEL ANTI LOCK 8-97102-285-4 01 1 9505-9511
132 HARNESS; RR WHEEL ANTI LOCK
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97102-285-4 01 1 9512-
180 HARNESS; CABLE 8-97064-595-3 01 1 9301-9504
180 HARNESS; CABLE 8-97100-492-6 01 1 9505-
347 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-97122-586-2 01 1 9505-9511
347 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-976-0 01 1 9512-9604
347 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97146-582-0 01 1 9605-
347 HARNESS; CABLE,RR BODY
EXC. POWER WINDOW<A30>,4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-974-0 01 1 9512-
347 HARNESS; CABLE,RR BODY
RR WIPER<C25> 		8-97064-208-3 01 1 9301-9308
347 HARNESS; CABLE,RR BODY 8-97086-789-4 01 1 9309-9504
347 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> 		8-97122-587-2 01 1 9505-9511
347 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97138-977-0 01 1 9512-9604
347 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> 4 WHEEL ANTI-LOCK BRAKE(JE5) 		8-97146-583-0 01 1 9605-
347 HARNESS; CABLE,RR BODY
EXC. RR WIPER<C25> 		8-97064-597-3 01 1 9301-9308
347 HARNESS; CABLE,RR BODY
4 WHEEL ANTI-LOCK BRAKE(JE5) EXC. POWER WINDOW<A30> 		8-97138-975-0 01 1 9512-
368 HARNESS; CABLE,RR DEFOGGER 8-97064-596-3 01 1 9301-9504
368 HARNESS; CABLE,RR DEFOGGER 8-97102-025-1 01 1 9505-
434 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> 		8-97114-443-0 01 1 9505-
538 NUT
INTERMITTENT WIPER<C13> M6 W/DISHED WASHER 		8-94423-325-0 01 1 9505-
541 CLIP
L=140 		5-09707-031-0 03 1 9505-9511
541 CLIP
L=140 		5-09707-031-0 01 1 9512-
541 CLIP
EXC. INTERMITTENT WIPER<C13> L=250 		5-09707-030-0 01 1 9505-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
