◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-55 - REAR SEAT ▶
7-55 — REAR SEAT (#46953) — 318 parça
çizim 65692
82 81 58 207 336 287 91
BalonParca AdiParca NoAdetTipApplied Date A B
58 RUBBER; STOPPER,RR SEAT 8-97095-132-0 02 1 9306-9308 ● ●
58 RUBBER; STOPPER,RR SEAT 8-97103-116-0 01 1 9309- ● ●
58 RUBBER; STOPPER,RR SEAT 8-97103-032-0 01 1 9309- ● ●
81 BAND; RR SEAT BACK
GRAY 		8-97005-756-1 02 1 9301-9504 ● ●
81 BAND; RR SEAT BACK
GRAY 		8-97150-913-1 02 1 9505- ● ●
82 SCREW; BAND TO SEAT
M5X10 		9-09829-320-1 04 1 9301- ● ●
91 COVER; RR SEAT BACK
GRAY 		8-97002-022-0 01 1 9301-9504 ● ●
91 COVER; RR SEAT BACK
GRAY 		8-97150-909-0 01 1 9505- ● ●
91 COVER; RR SEAT BACK
GRAY 		8-97002-019-0 01 1 9301-9308 ● ●
91 COVER; RR SEAT BACK
GRAY 		8-97002-019-0 01 1 9405-9408 ● ●
91 COVER; RR SEAT BACK
GRAY 		8-97002-019-0 01 1 9309-9404 ● ●
91 COVER; RR SEAT BACK
GRAY 		8-97002-019-0 01 1 9409-9504 ● ●
91 COVER; RR SEAT BACK
GRAY 		8-97150-908-0 01 1 9505- ● ●
207 LOCK ASM; RR SEAT 8-97084-267-0 01 1 9301-9308 ● ●
207 LOCK ASM; RR SEAT 8-97103-030-0 01 1 9309-9512 ● ●
207 LOCK ASM; RR SEAT
951225- 		8-97128-721-0 01 1 9512- ● ●
207 LOCK ASM; RR SEAT 8-97084-266-0 01 1 9301-9308 ● ●
207 LOCK ASM; RR SEAT 8-97103-029-0 01 1 9309-9512 ● ●
207 LOCK ASM; RR SEAT
951225- 		8-97128-720-0 01 1 9512- ● ●
287 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9603- ● ●
336 BOLT; RR SEAT BACK
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9301- ● ●

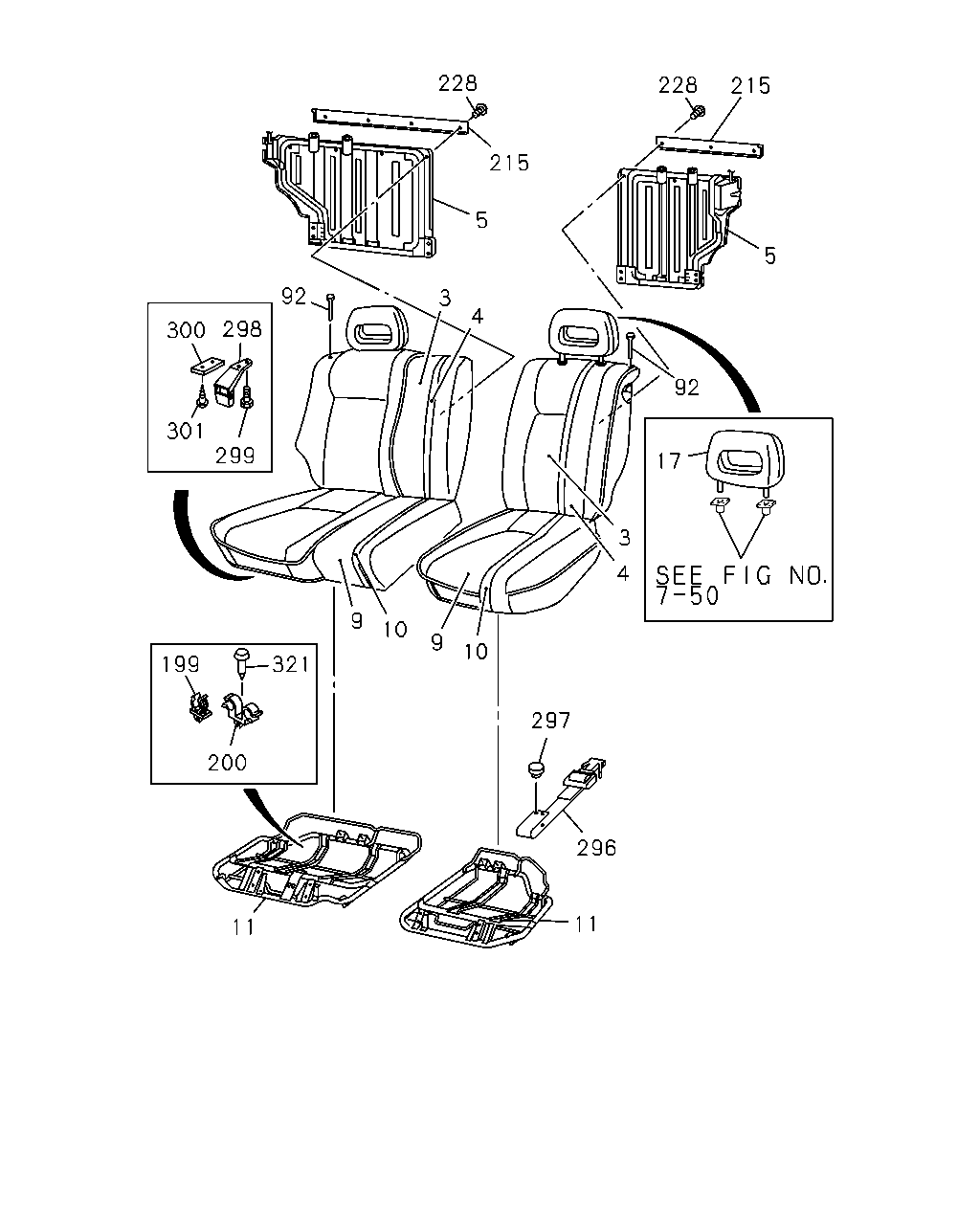

çizim 67220
228 215 5 3 4 92 298 300 301 299 9 10 9 10 297 296 11 11 200 321 199 4 3 17 92 5 215 228
BalonParca AdiParca NoAdetTipApplied Date A B
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97007-595-1 01 1 9301-9308 ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97097-397-1 01 1 9309-9504 ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97150-904-0 01 1 9505-9511 ●
3 COVER; TRIM,RR SEAT BACK
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-904-0 01 1 9512- ●
3 COVER; TRIM,RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-790-0 01 1 9512- ●
3 COVER; TRIM,RR SEAT BACK
LEATHER SEAT<6TB> GRAY 		8-97154-790-0 01 1 9512- ●
3 COVER; TRIM,RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-786-0 01 1 9512- ●
3 COVER; TRIM,RR SEAT BACK
LEATHER SEAT<6TB> GRAY 		8-97154-786-0 01 1 9512- ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97007-593-1 01 1 9301-9308 ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97097-396-1 01 1 9309-9504 ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97150-902-1 01 1 9505-9511 ●
3 COVER; TRIM,RR SEAT BACK
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-902-1 01 1 9512- ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97007-597-1 01 1 9301-9308 ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97097-398-1 01 1 9309-9504 ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97150-906-1 01 1 9505-9511 ●
3 COVER; TRIM,RR SEAT BACK
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-906-1 01 1 9512- ●
4 PAD; RR,SEAT BACK 8-94373-790-3 01 1 9301-9511 ●
4 PAD; RR,SEAT BACK
EXC. LEATHER SEAT<6TB> 		8-94373-790-3 01 1 9512- ●
4 PAD; RR,SEAT BACK 8-94373-836-4 01 1 9301-9511 ●
4 PAD; RR,SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94373-836-4 01 1 9512- ●
4 PAD; RR,SEAT BACK 8-94373-836-4 01 1 9512- ●
4 PAD; RR,SEAT BACK 8-94373-805-4 01 1 9301-9511 ●
4 PAD; RR,SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94373-805-4 01 1 9512- ●
4 PAD; RR,SEAT BACK 8-94373-805-4 01 1 9512- ●
5 FRAME ASM; RR SEAT BACK 8-97084-582-1 01 1 9301-9511 ●
5 FRAME ASM; RR SEAT BACK
EXC. LEATHER SEAT<6TB> 		8-97084-582-1 01 1 9512-9512 ●
5 FRAME ASM; RR SEAT BACK
EXC. LEATHER SEAT<6TB> 		8-97128-715-0 01 1 9512- ●
5 FRAME ASM; RR SEAT BACK 8-97084-585-1 01 1 9301-9511 ●
5 FRAME ASM; RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97084-585-1 01 1 9512-9512 ●
5 FRAME ASM; RR SEAT BACK 8-97084-585-1 01 1 9512-9512 ●
5 FRAME ASM; RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97128-719-0 01 1 9512- ●
5 FRAME ASM; RR SEAT BACK 8-97128-719-0 01 1 9512- ●
5 FRAME ASM; RR SEAT BACK 8-97084-584-1 01 1 9301-9511 ●
5 FRAME ASM; RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97084-584-1 01 1 9512-9512 ●
5 FRAME ASM; RR SEAT BACK 8-97084-584-1 01 1 9512-9512 ●
5 FRAME ASM; RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97128-717-0 01 1 9512- ●
5 FRAME ASM; RR SEAT BACK 8-97128-717-0 01 1 9512- ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97007-583-1 01 1 9301-9308 ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97097-389-0 01 1 9309-9504 ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97150-884-0 01 1 9505-9511 ●
9 COVER ASM; TRIM,RR,CUSHION
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-884-0 01 1 9512- ●
9 COVER ASM; TRIM,RR,CUSHION
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-792-0 01 1 9512- ●
9 COVER ASM; TRIM,RR,CUSHION
LEATHER SEAT<6TB> GRAY 		8-97154-792-0 01 1 9512- ●
9 COVER ASM; TRIM,RR,CUSHION
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-788-0 01 1 9512- ●
9 COVER ASM; TRIM,RR,CUSHION
LEATHER SEAT<6TB> GRAY 		8-97154-788-0 01 1 9512- ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97007-581-1 01 1 9301-9308 ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97097-388-0 01 1 9309-9504 ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97150-880-1 01 1 9505-9511 ●
9 COVER ASM; TRIM,RR,CUSHION
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-880-1 01 1 9512- ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97007-585-1 01 1 9301-9308 ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97097-390-0 01 1 9309-9504 ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97150-882-1 01 1 9505-9511 ●
9 COVER ASM; TRIM,RR,CUSHION
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-882-1 01 1 9512- ●
10 PAD; CUSHION,RR SEAT 8-94373-793-3 01 1 9301-9511 ●
10 PAD; CUSHION,RR SEAT
EXC. LEATHER SEAT<6TB> 		8-94373-793-3 01 1 9512- ●
10 PAD; CUSHION,RR SEAT 8-94373-839-3 01 1 9301-9511 ●
10 PAD; CUSHION,RR SEAT
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94373-839-3 01 1 9512- ●
10 PAD; CUSHION,RR SEAT 8-94373-839-3 01 1 9512- ●
10 PAD; CUSHION,RR SEAT 8-94373-808-3 01 1 9301-9511 ●
10 PAD; CUSHION,RR SEAT
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94373-808-3 01 1 9512- ●
10 PAD; CUSHION,RR SEAT 8-94373-808-3 01 1 9512- ●
11 FRAME ASM; CUSHION,RR SEAT 8-97084-257-0 01 1 9301-9511 ●
11 FRAME ASM; CUSHION,RR SEAT
EXC. LEATHER SEAT<6TB> 		8-97084-257-0 01 1 9512- ●
11 FRAME ASM; CUSHION,RR SEAT 8-94373-840-4 01 1 9301-9511 ●
11 FRAME ASM; CUSHION,RR SEAT
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94373-840-4 01 1 9512- ●
11 FRAME ASM; CUSHION,RR SEAT 8-94373-840-4 01 1 9512- ●
11 FRAME ASM; CUSHION,RR SEAT 8-94373-807-4 01 1 9301-9511 ●
11 FRAME ASM; CUSHION,RR SEAT
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94373-807-4 01 1 9512- ●
11 FRAME ASM; CUSHION,RR SEAT 8-94373-807-4 01 1 9512- ●
17 REST; HD,RR SEAT
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-779-0 02 1 9512- ●
17 REST; HD,RR SEAT
LEATHER SEAT<6TB> GRAY 		8-97154-779-0 02 1 9512- ●
17 REST; HD,RR SEAT
GRAY 		8-97008-835-0 02 1 9301-9504 ● ●
17 REST; HD,RR SEAT
GRAY 		8-97150-846-0 02 1 9505-9511 ● ●
17 REST; HD,RR SEAT
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-846-0 02 1 9512- ● ●
92 KNOB; RR SEAT BACK,LK
GRAY 		8-97005-753-0 02 1 9301-9504 ● ●
92 KNOB; RR SEAT BACK,LK
GRAY 		8-97150-912-0 02 1 9505- ● ●
199 HOLDER; WHEEL WRENCH 8-97074-760-0 02 1 9301- ● ●
200 HOLDER; JACK 8-97074-761-0 02 1 9301- ● ●
215 RETAINER; RR SEAT BACK 8-94320-868-4 01 1 9301-9511 ●
215 RETAINER; RR SEAT BACK
EXC. LEATHER SEAT<6TB> 		8-94320-868-4 01 1 9512- ●
215 RETAINER; RR SEAT BACK 8-94320-870-4 01 1 9301-9511 ●
215 RETAINER; RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94320-870-4 01 1 9512- ●
215 RETAINER; RR SEAT BACK 8-94320-870-4 01 1 9512- ●
215 RETAINER; RR SEAT BACK 8-94320-869-4 01 1 9301-9511 ●
215 RETAINER; RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94320-869-4 01 1 9512- ●
215 RETAINER; RR SEAT BACK 8-94320-869-4 01 1 9512- ●
228 SCREW; RET TO BODY
M5X20 TAPPING OVAL-HEAD 		0-70580-520-0 06 1 9301- ●
228 SCREW; RET TO BODY
M5X20 TAPPING OVAL-HEAD 		0-70580-520-0 07 1 9301- ●
296 BAND; RR SEAT CUSHION
GRAY 		8-97082-287-0 02 1 9301-9504 ● ●
296 BAND; RR SEAT CUSHION
GRAY 		8-97150-910-0 02 1 9505- ● ●
297 RIVET; BAND 8-97083-327-0 04 1 9301- ● ●
298 LEG ASM; RR SEAT CUSHION 8-97084-271-0 02 1 9301-9511 ●
298 LEG ASM; RR SEAT CUSHION
EXC. LEATHER SEAT<6TB> 		8-97084-271-0 02 1 9512- ●
298 LEG ASM; RR SEAT CUSHION 8-97083-581-0 01 1 9301-9511 ●
298 LEG ASM; RR SEAT CUSHION
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97083-581-0 01 1 9512-9706 ●
298 LEG ASM; RR SEAT CUSHION 8-97083-581-0 01 1 9512-9706 ●
298 LEG ASM; RR SEAT CUSHION 8-97084-271-0 01 1 9301-9511 ●
298 LEG ASM; RR SEAT CUSHION
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97084-271-0 01 1 9512-9706 ●
298 LEG ASM; RR SEAT CUSHION 8-97084-271-0 01 1 9512-9706 ●
298 LEG ASM; RR SEAT CUSHION
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97084-271-0 02 1 9707- ●
298 LEG ASM; RR SEAT CUSHION 8-97084-271-0 02 1 9707- ●
299 BOLT; LEG
EXC. LEATHER SEAT<6TB> 		8-97084-137-0 04 1 9707- ●
299 BOLT; LEG 8-97084-137-0 04 1 9301-9706 ● ●
299 BOLT; LEG
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97084-137-0 04 1 9707- ●
299 BOLT; LEG 8-97084-137-0 04 1 9707- ●
300 RUBBER; RR SEAT CUSHION 8-97083-582-0 02 1 9301- ● ●
301 SCREW; RUBBER
M4X12 TAPPING 		0-71080-412-0 04 1 9301-9511 ●
301 SCREW; RUBBER
EXC. LEATHER SEAT<6TB> M4X12 TAPPING 		0-71080-412-0 04 1 9512- ●
301 SCREW; RUBBER
M4X12 TAPPING 		0-71080-412-0 02 1 9301-9511 ●
301 SCREW; RUBBER
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> M4X12 TAPPING 		0-71080-412-0 02 1 9512- ●
301 SCREW; RUBBER
M4X12 TAPPING 		0-71080-412-0 02 1 9512- ●
321 SCREW; W/WRENCH
M4X12 TAPPING 		0-71080-412-0 04 1 9603- ● ●

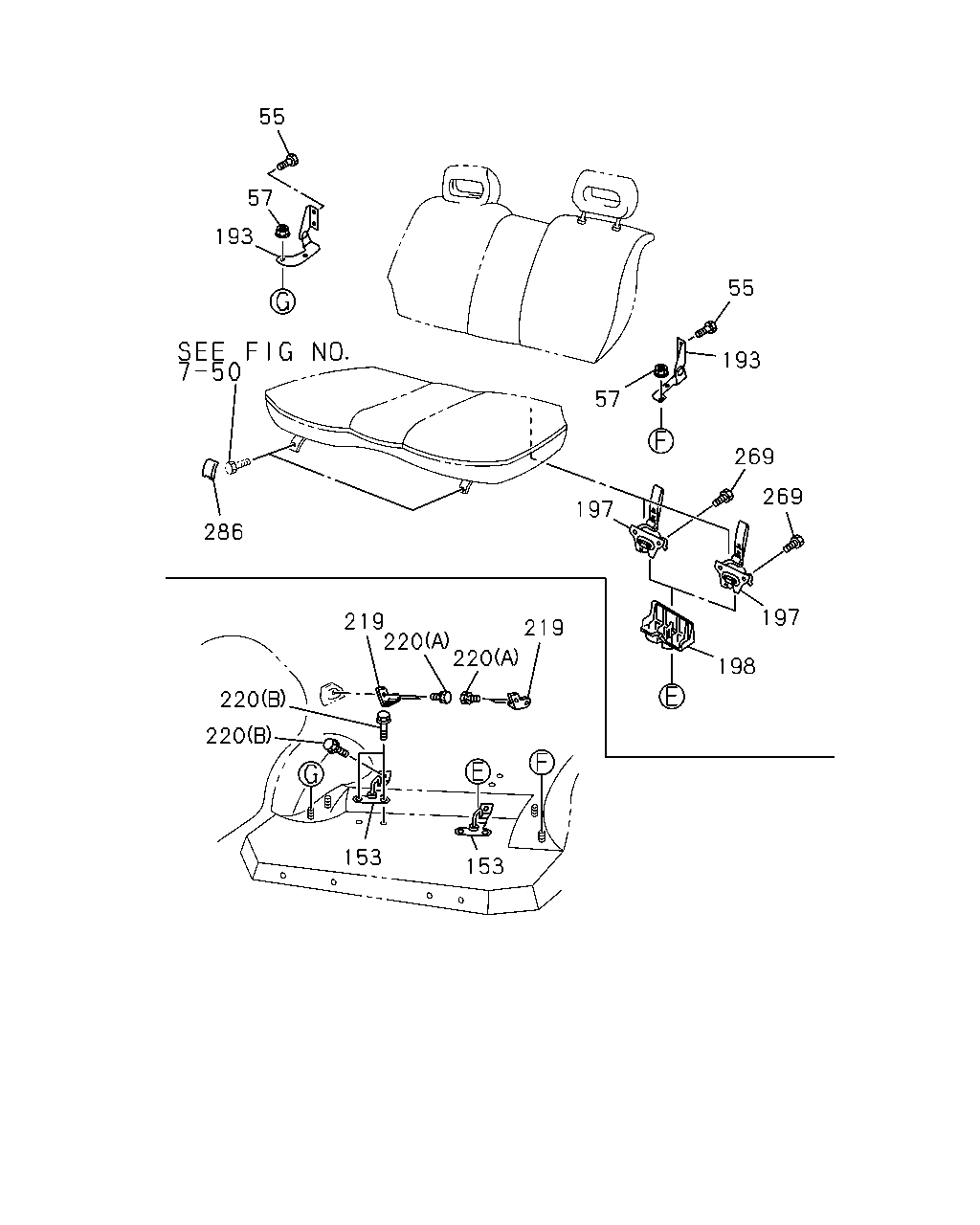

çizim 70937
55 57 193 286 197 57 55 193 269 269 197 198 219 220 220 219 220 220 153 153
BalonParca AdiParca NoAdetTipApplied Date A B
55 BOLT; HINGE,RR SEAT
M10X25 		8-97045-551-0 04 1 9301-9511 ●
55 BOLT; HINGE,RR SEAT
EXC. LEATHER SEAT<6TB> M10X25 		8-97045-551-0 04 1 9512- ●
55 BOLT; HINGE,RR SEAT
M10X25 		8-97045-551-0 06 1 9301-9511 ●
55 BOLT; HINGE,RR SEAT
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> M10X25 		8-97045-551-0 06 1 9512- ●
55 BOLT; HINGE,RR SEAT
M10X25 		8-97045-551-0 06 1 9512- ●
57 NUT; RR SEAT STOPPER
M10 FLANGE 		0-91150-110-0 04 1 9301- ● ●
153 STRIKER; SEAT LOCK 8-94370-187-4 02 1 9301- ● ●
193 HINGE; RR BACK OUTER 8-97084-269-1 01 1 9301- ● ●
193 HINGE; RR BACK OUTER 8-97084-268-1 01 1 9301- ● ●
197 LOCK; FLOOR,RR CUSHION
GRAY 		8-97098-269-0 01 1 9312-9504 ● ●
197 LOCK; FLOOR,RR CUSHION
GRAY 		8-97150-887-0 01 1 9505- ● ●
197 LOCK; FLOOR,RR CUSHION
GRAY 		8-97098-268-0 01 1 9312-9504 ● ●
197 LOCK; FLOOR,RR CUSHION
GRAY 		8-97150-886-0 01 1 9505- ● ●
198 COVER; LOCK,RR CUSHION
GRAY 		8-97002-016-0 01 1 9301-9504 ● ●
198 COVER; LOCK,RR CUSHION
GRAY 		8-97150-889-0 01 1 9505- ● ●
198 COVER; LOCK,RR CUSHION
GRAY 		8-97002-013-0 01 1 9301-9504 ● ●
198 COVER; LOCK,RR CUSHION
GRAY 		8-97150-888-0 01 1 9505- ● ●
219 STRIKER ASM; RR SEAT BACK 8-94370-186-2 01 1 9301-9512 ● ●
219 STRIKER ASM; RR SEAT BACK
951225- 		8-97128-277-0 01 1 9512- ● ●
219 STRIKER ASM; RR SEAT BACK 8-94370-185-2 01 1 9301-9512 ● ●
219 STRIKER ASM; RR SEAT BACK
951225- 		8-97128-276-0 01 1 9512- ● ●
220 BOLT; STRIKER TO BODY
(A) M8X19 		8-94131-124-0 04 1 9301-9506 ● ●
220 BOLT; STRIKER TO BODY
(A) M8X19 W/LK WASHER 		8-97131-441-0 04 1 9507- ● ●
220 BOLT; STRIKER TO BODY
(B) M10X30 		8-97010-129-0 06 1 9301- ● ●
269 BOLT; FLOOR LOCK
7/16"X31 UNF 		8-94371-938-0 04 1 9301- ● ●
286 COVER; HINGE
GRAY 		8-94378-004-2 02 1 9301-9504 ●
286 COVER; HINGE
GRAY 		8-97150-911-2 02 1 9505-9511 ●
286 COVER; HINGE
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-911-2 02 1 9512- ●
286 COVER; HINGE
GRAY 		8-94378-004-2 04 1 9301-9504 ●
286 COVER; HINGE
GRAY 		8-97150-911-2 04 1 9505-9511 ●
286 COVER; HINGE
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97150-911-2 04 1 9512- ●
286 COVER; HINGE
GRAY 		8-97150-911-2 04 1 9512- ●

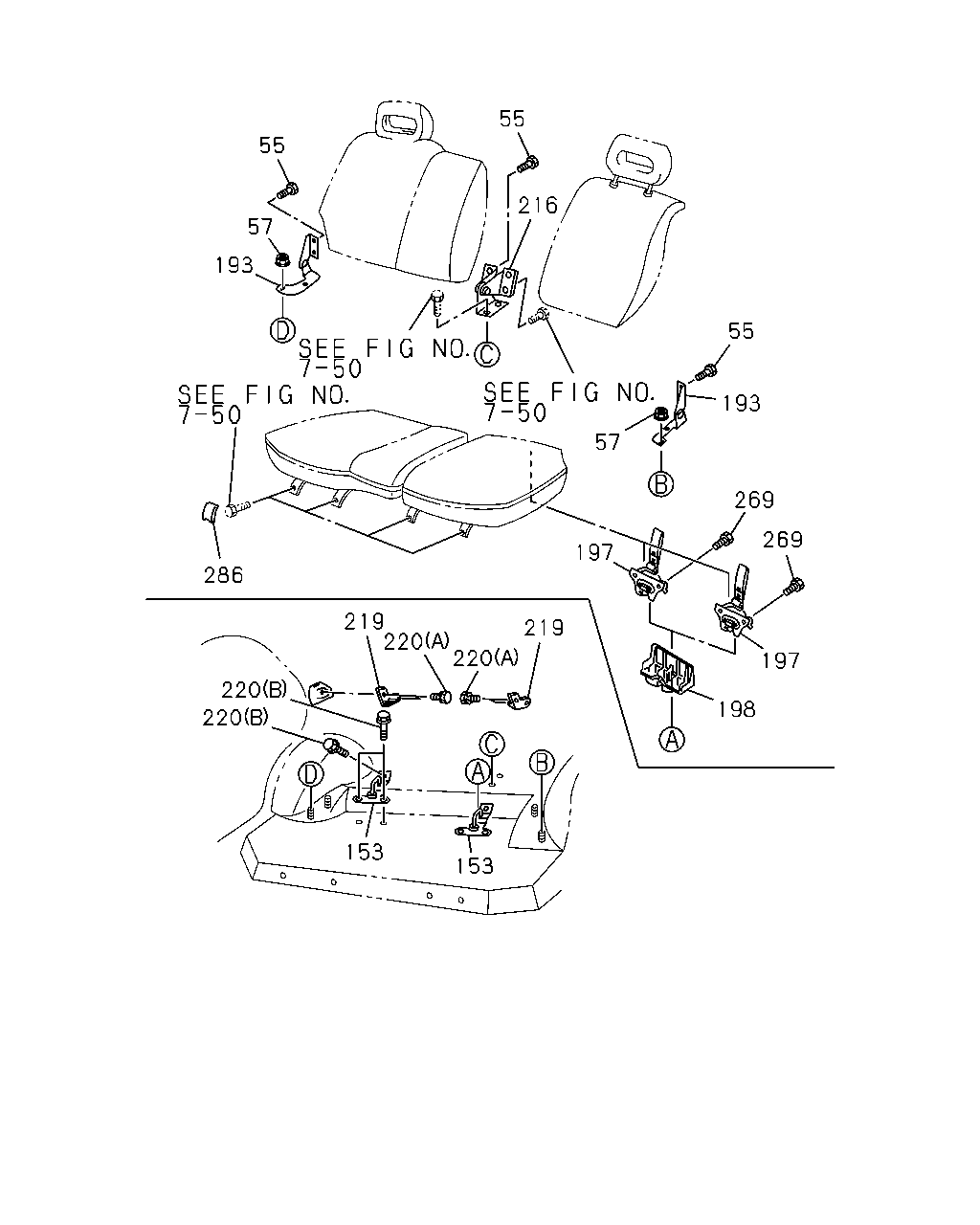

çizim 70939
55 216 55 193 57 269 269 197 197 198 219 220 220 219 220 220 153 153 286 193 57 55
BalonParca AdiParca NoAdetTipApplied Date A B
55 BOLT; HINGE,RR SEAT
M10X25 		8-97045-551-0 04 1 9301-9511 ●
55 BOLT; HINGE,RR SEAT
EXC. LEATHER SEAT<6TB> M10X25 		8-97045-551-0 04 1 9512- ●
55 BOLT; HINGE,RR SEAT
M10X25 		8-97045-551-0 06 1 9301-9511 ●
55 BOLT; HINGE,RR SEAT
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> M10X25 		8-97045-551-0 06 1 9512- ●
55 BOLT; HINGE,RR SEAT
M10X25 		8-97045-551-0 06 1 9512- ●
57 NUT; RR SEAT STOPPER
M10 FLANGE 		0-91150-110-0 04 1 9301- ● ●
153 STRIKER; SEAT LOCK 8-94370-187-4 02 1 9301- ● ●
193 HINGE; RR BACK OUTER 8-97084-269-1 01 1 9301- ● ●
193 HINGE; RR BACK OUTER 8-97084-268-1 01 1 9301- ● ●
197 LOCK; FLOOR,RR CUSHION
GRAY 		8-97098-269-0 01 1 9312-9504 ● ●
197 LOCK; FLOOR,RR CUSHION
GRAY 		8-97150-887-0 01 1 9505- ● ●
197 LOCK; FLOOR,RR CUSHION
GRAY 		8-97098-268-0 01 1 9312-9504 ● ●
197 LOCK; FLOOR,RR CUSHION
GRAY 		8-97150-886-0 01 1 9505- ● ●
198 COVER; LOCK,RR CUSHION
GRAY 		8-97002-016-0 01 1 9301-9504 ● ●
198 COVER; LOCK,RR CUSHION
GRAY 		8-97150-889-0 01 1 9505- ● ●
198 COVER; LOCK,RR CUSHION
GRAY 		8-97002-013-0 01 1 9301-9504 ● ●
198 COVER; LOCK,RR CUSHION
GRAY 		8-97150-888-0 01 1 9505- ● ●
216 HINGE; RR CENTER 8-97084-270-0 01 1 9301-9511 ●
216 HINGE; RR CENTER
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97084-270-0 01 1 9512- ●
216 HINGE; RR CENTER 8-97084-270-0 01 1 9512- ●
219 STRIKER ASM; RR SEAT BACK 8-94370-186-2 01 1 9301-9512 ● ●
219 STRIKER ASM; RR SEAT BACK
951225- 		8-97128-277-0 01 1 9512- ● ●
219 STRIKER ASM; RR SEAT BACK 8-94370-185-2 01 1 9301-9512 ● ●
219 STRIKER ASM; RR SEAT BACK
951225- 		8-97128-276-0 01 1 9512- ● ●
220 BOLT; STRIKER TO BODY
(A) M8X19 		8-94131-124-0 04 1 9301-9506 ● ●
220 BOLT; STRIKER TO BODY
(A) M8X19 W/LK WASHER 		8-97131-441-0 04 1 9507- ● ●
220 BOLT; STRIKER TO BODY
(B) M10X30 		8-97010-129-0 06 1 9301- ● ●
269 BOLT; FLOOR LOCK
7/16"X31 UNF 		8-94371-938-0 04 1 9301- ● ●
286 COVER; HINGE
GRAY 		8-94378-004-2 02 1 9301-9504 ●
286 COVER; HINGE
GRAY 		8-97150-911-2 02 1 9505-9511 ●
286 COVER; HINGE
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-911-2 02 1 9512- ●
286 COVER; HINGE
GRAY 		8-94378-004-2 04 1 9301-9504 ●
286 COVER; HINGE
GRAY 		8-97150-911-2 04 1 9505-9511 ●
286 COVER; HINGE
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97150-911-2 04 1 9512- ●
286 COVER; HINGE
GRAY 		8-97150-911-2 04 1 9512- ●

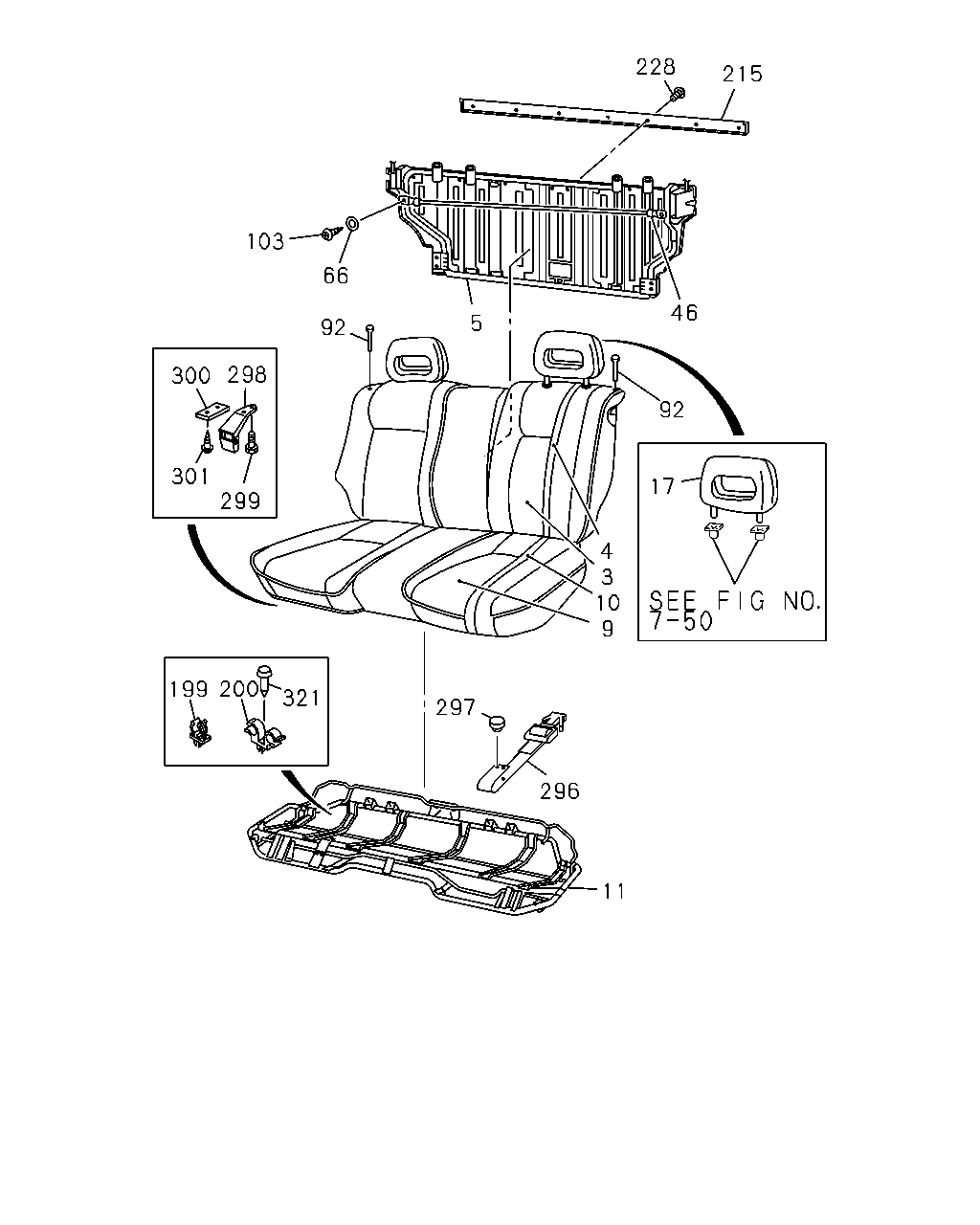

çizim 70980
228 215 46 92 17 4 3 10 9 297 296 11 321 200 199 299 301 300 298 103 66 92 5
BalonParca AdiParca NoAdetTipApplied Date A B
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97007-595-1 01 1 9301-9308 ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97097-397-1 01 1 9309-9504 ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97150-904-0 01 1 9505-9511 ●
3 COVER; TRIM,RR SEAT BACK
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-904-0 01 1 9512- ●
3 COVER; TRIM,RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-790-0 01 1 9512- ●
3 COVER; TRIM,RR SEAT BACK
LEATHER SEAT<6TB> GRAY 		8-97154-790-0 01 1 9512- ●
3 COVER; TRIM,RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-786-0 01 1 9512- ●
3 COVER; TRIM,RR SEAT BACK
LEATHER SEAT<6TB> GRAY 		8-97154-786-0 01 1 9512- ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97007-593-1 01 1 9301-9308 ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97097-396-1 01 1 9309-9504 ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97150-902-1 01 1 9505-9511 ●
3 COVER; TRIM,RR SEAT BACK
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-902-1 01 1 9512- ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97007-597-1 01 1 9301-9308 ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97097-398-1 01 1 9309-9504 ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97150-906-1 01 1 9505-9511 ●
3 COVER; TRIM,RR SEAT BACK
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-906-1 01 1 9512- ●
4 PAD; RR,SEAT BACK 8-94373-790-3 01 1 9301-9511 ●
4 PAD; RR,SEAT BACK
EXC. LEATHER SEAT<6TB> 		8-94373-790-3 01 1 9512- ●
4 PAD; RR,SEAT BACK 8-94373-836-4 01 1 9301-9511 ●
4 PAD; RR,SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94373-836-4 01 1 9512- ●
4 PAD; RR,SEAT BACK 8-94373-836-4 01 1 9512- ●
4 PAD; RR,SEAT BACK 8-94373-805-4 01 1 9301-9511 ●
4 PAD; RR,SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94373-805-4 01 1 9512- ●
4 PAD; RR,SEAT BACK 8-94373-805-4 01 1 9512- ●
5 FRAME ASM; RR SEAT BACK 8-97084-582-1 01 1 9301-9511 ●
5 FRAME ASM; RR SEAT BACK
EXC. LEATHER SEAT<6TB> 		8-97084-582-1 01 1 9512-9512 ●
5 FRAME ASM; RR SEAT BACK
EXC. LEATHER SEAT<6TB> 		8-97128-715-0 01 1 9512- ●
5 FRAME ASM; RR SEAT BACK 8-97084-585-1 01 1 9301-9511 ●
5 FRAME ASM; RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97084-585-1 01 1 9512-9512 ●
5 FRAME ASM; RR SEAT BACK 8-97084-585-1 01 1 9512-9512 ●
5 FRAME ASM; RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97128-719-0 01 1 9512- ●
5 FRAME ASM; RR SEAT BACK 8-97128-719-0 01 1 9512- ●
5 FRAME ASM; RR SEAT BACK 8-97084-584-1 01 1 9301-9511 ●
5 FRAME ASM; RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97084-584-1 01 1 9512-9512 ●
5 FRAME ASM; RR SEAT BACK 8-97084-584-1 01 1 9512-9512 ●
5 FRAME ASM; RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97128-717-0 01 1 9512- ●
5 FRAME ASM; RR SEAT BACK 8-97128-717-0 01 1 9512- ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97007-583-1 01 1 9301-9308 ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97097-389-0 01 1 9309-9504 ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97150-884-0 01 1 9505-9511 ●
9 COVER ASM; TRIM,RR,CUSHION
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-884-0 01 1 9512- ●
9 COVER ASM; TRIM,RR,CUSHION
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-792-0 01 1 9512- ●
9 COVER ASM; TRIM,RR,CUSHION
LEATHER SEAT<6TB> GRAY 		8-97154-792-0 01 1 9512- ●
9 COVER ASM; TRIM,RR,CUSHION
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-788-0 01 1 9512- ●
9 COVER ASM; TRIM,RR,CUSHION
LEATHER SEAT<6TB> GRAY 		8-97154-788-0 01 1 9512- ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97007-581-1 01 1 9301-9308 ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97097-388-0 01 1 9309-9504 ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97150-880-1 01 1 9505-9511 ●
9 COVER ASM; TRIM,RR,CUSHION
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-880-1 01 1 9512- ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97007-585-1 01 1 9301-9308 ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97097-390-0 01 1 9309-9504 ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97150-882-1 01 1 9505-9511 ●
9 COVER ASM; TRIM,RR,CUSHION
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-882-1 01 1 9512- ●
10 PAD; CUSHION,RR SEAT 8-94373-793-3 01 1 9301-9511 ●
10 PAD; CUSHION,RR SEAT
EXC. LEATHER SEAT<6TB> 		8-94373-793-3 01 1 9512- ●
10 PAD; CUSHION,RR SEAT 8-94373-839-3 01 1 9301-9511 ●
10 PAD; CUSHION,RR SEAT
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94373-839-3 01 1 9512- ●
10 PAD; CUSHION,RR SEAT 8-94373-839-3 01 1 9512- ●
10 PAD; CUSHION,RR SEAT 8-94373-808-3 01 1 9301-9511 ●
10 PAD; CUSHION,RR SEAT
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94373-808-3 01 1 9512- ●
10 PAD; CUSHION,RR SEAT 8-94373-808-3 01 1 9512- ●
11 FRAME ASM; CUSHION,RR SEAT 8-97084-257-0 01 1 9301-9511 ●
11 FRAME ASM; CUSHION,RR SEAT
EXC. LEATHER SEAT<6TB> 		8-97084-257-0 01 1 9512- ●
11 FRAME ASM; CUSHION,RR SEAT 8-94373-840-4 01 1 9301-9511 ●
11 FRAME ASM; CUSHION,RR SEAT
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94373-840-4 01 1 9512- ●
11 FRAME ASM; CUSHION,RR SEAT 8-94373-840-4 01 1 9512- ●
11 FRAME ASM; CUSHION,RR SEAT 8-94373-807-4 01 1 9301-9511 ●
11 FRAME ASM; CUSHION,RR SEAT
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94373-807-4 01 1 9512- ●
11 FRAME ASM; CUSHION,RR SEAT 8-94373-807-4 01 1 9512- ●
17 REST; HD,RR SEAT
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-779-0 02 1 9512- ●
17 REST; HD,RR SEAT
LEATHER SEAT<6TB> GRAY 		8-97154-779-0 02 1 9512- ●
17 REST; HD,RR SEAT
GRAY 		8-97008-835-0 02 1 9301-9504 ● ●
17 REST; HD,RR SEAT
GRAY 		8-97150-846-0 02 1 9505-9511 ● ●
17 REST; HD,RR SEAT
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-846-0 02 1 9512- ● ●
46 BRACKET; RR SEAT 8-97093-357-0 01 1 9312-9511 ●
46 BRACKET; RR SEAT
EXC. LEATHER SEAT<6TB> 		8-97093-357-0 01 1 9512- ●
66 WASHER; PL,RR SEAT
ID=5.3 		9-09164-505-0 02 1 9312-9511 ●
66 WASHER; PL,RR SEAT
EXC. LEATHER SEAT<6TB> ID=5.3 		9-09164-505-0 02 1 9512- ●
92 KNOB; RR SEAT BACK,LK
GRAY 		8-97005-753-0 02 1 9301-9504 ● ●
92 KNOB; RR SEAT BACK,LK
GRAY 		8-97150-912-0 02 1 9505- ● ●
103 SCREW; TRUNK THROUGH 8-97091-321-0 02 1 9312-9511 ●
103 SCREW; TRUNK THROUGH
EXC. LEATHER SEAT<6TB> 		8-97091-321-0 02 1 9512- ●
199 HOLDER; WHEEL WRENCH 8-97074-760-0 02 1 9301- ● ●
200 HOLDER; JACK 8-97074-761-0 02 1 9301- ● ●
215 RETAINER; RR SEAT BACK 8-94320-868-4 01 1 9301-9511 ●
215 RETAINER; RR SEAT BACK
EXC. LEATHER SEAT<6TB> 		8-94320-868-4 01 1 9512- ●
215 RETAINER; RR SEAT BACK 8-94320-870-4 01 1 9301-9511 ●
215 RETAINER; RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94320-870-4 01 1 9512- ●
215 RETAINER; RR SEAT BACK 8-94320-870-4 01 1 9512- ●
215 RETAINER; RR SEAT BACK 8-94320-869-4 01 1 9301-9511 ●
215 RETAINER; RR SEAT BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-94320-869-4 01 1 9512- ●
215 RETAINER; RR SEAT BACK 8-94320-869-4 01 1 9512- ●
228 SCREW; RET TO BODY
M5X20 TAPPING OVAL-HEAD 		0-70580-520-0 06 1 9301- ●
228 SCREW; RET TO BODY
M5X20 TAPPING OVAL-HEAD 		0-70580-520-0 07 1 9301- ●
296 BAND; RR SEAT CUSHION
GRAY 		8-97082-287-0 02 1 9301-9504 ● ●
296 BAND; RR SEAT CUSHION
GRAY 		8-97150-910-0 02 1 9505- ● ●
297 RIVET; BAND 8-97083-327-0 04 1 9301- ● ●
298 LEG ASM; RR SEAT CUSHION 8-97084-271-0 02 1 9301-9511 ●
298 LEG ASM; RR SEAT CUSHION
EXC. LEATHER SEAT<6TB> 		8-97084-271-0 02 1 9512- ●
298 LEG ASM; RR SEAT CUSHION 8-97083-581-0 01 1 9301-9511 ●
298 LEG ASM; RR SEAT CUSHION
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97083-581-0 01 1 9512-9706 ●
298 LEG ASM; RR SEAT CUSHION 8-97083-581-0 01 1 9512-9706 ●
298 LEG ASM; RR SEAT CUSHION 8-97084-271-0 01 1 9301-9511 ●
298 LEG ASM; RR SEAT CUSHION
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97084-271-0 01 1 9512-9706 ●
298 LEG ASM; RR SEAT CUSHION 8-97084-271-0 01 1 9512-9706 ●
298 LEG ASM; RR SEAT CUSHION
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97084-271-0 02 1 9707- ●
298 LEG ASM; RR SEAT CUSHION 8-97084-271-0 02 1 9707- ●
299 BOLT; LEG
EXC. LEATHER SEAT<6TB> 		8-97084-137-0 04 1 9707- ●
299 BOLT; LEG 8-97084-137-0 04 1 9301-9706 ● ●
299 BOLT; LEG
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> 		8-97084-137-0 04 1 9707- ●
299 BOLT; LEG 8-97084-137-0 04 1 9707- ●
300 RUBBER; RR SEAT CUSHION 8-97083-582-0 02 1 9301- ● ●
301 SCREW; RUBBER
M4X12 TAPPING 		0-71080-412-0 04 1 9301-9511 ●
301 SCREW; RUBBER
EXC. LEATHER SEAT<6TB> M4X12 TAPPING 		0-71080-412-0 04 1 9512- ●
301 SCREW; RUBBER
M4X12 TAPPING 		0-71080-412-0 02 1 9301-9511 ●
301 SCREW; RUBBER
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> M4X12 TAPPING 		0-71080-412-0 02 1 9512- ●
301 SCREW; RUBBER
M4X12 TAPPING 		0-71080-412-0 02 1 9512- ●
321 SCREW; W/WRENCH
M4X12 TAPPING 		0-71080-412-0 04 1 9603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
