◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#46952) — 95 parça
çizim 18224
67 67 67 67
BalonParca AdiParca NoAdetTipApplied Date A B
67 BOLT; FRT SEAT TO BODY
M10X19 		8-94427-095-2 12 1 9301- ●
67 BOLT; FRT SEAT TO BODY
M10X19 		8-94427-095-2 16 1 9301- ●

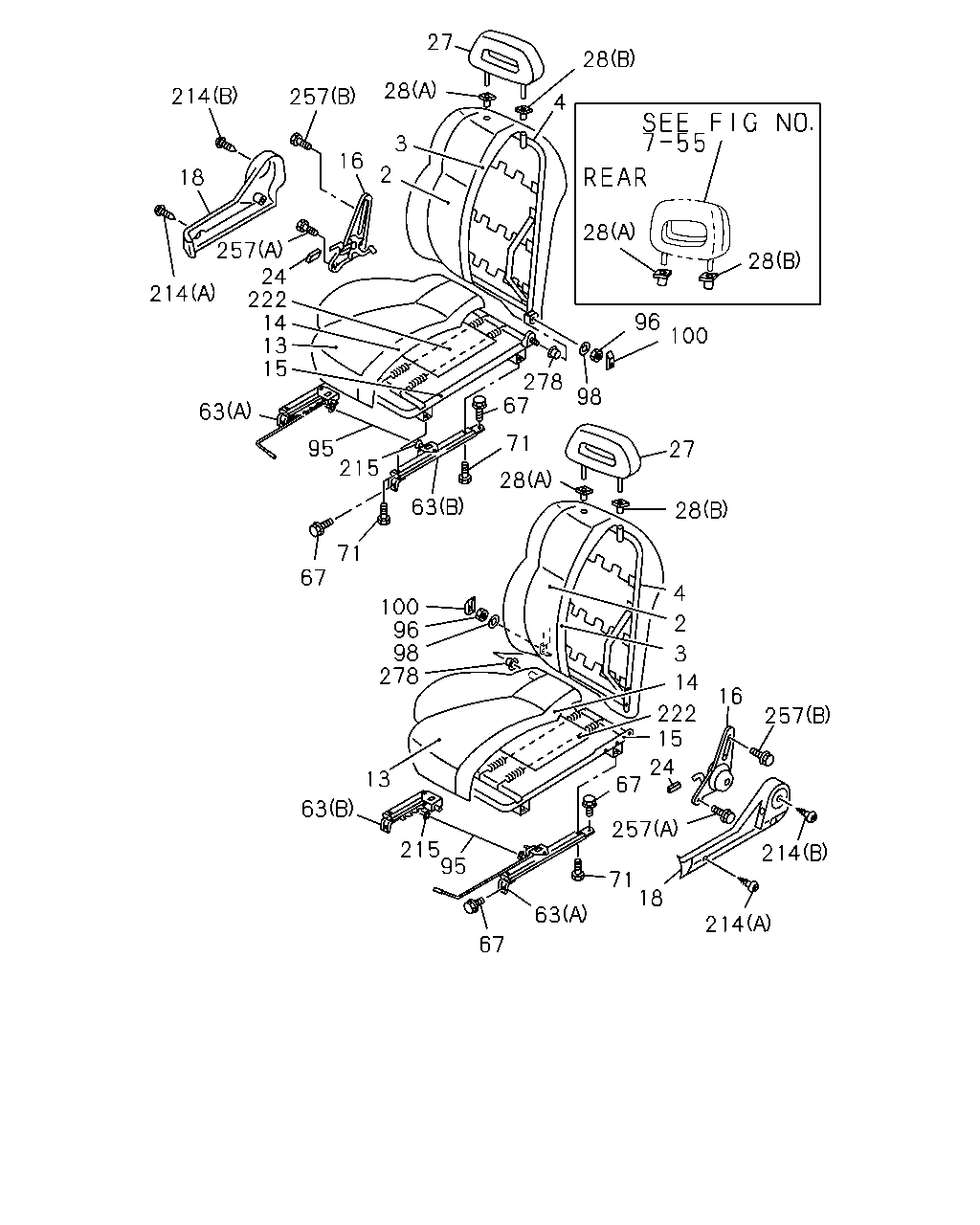

çizim 18227
214 257 28 27 28 28 28 96 100 278 98 27 28 4 2 3 14 16 257 222 15 24 67 257 71 18 214 214 63 67 95 215 63 13 278 98 96 100 67 71 63 28 71 67 215 95 63 15 13 14 222 24 257 214 18 16 2 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; TRIM,FRT SEAT,BACK
GRAY 		8-97007-549-1 01 1 9301-9308 ●
2 COVER; TRIM,FRT SEAT,BACK
GRAY 		8-97097-376-0 01 1 9309-9504 ●
2 COVER; TRIM,FRT SEAT,BACK
GRAY 		8-97150-856-0 01 1 9505-9511 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-856-0 01 1 9512- ●
2 COVER; TRIM,FRT SEAT,BACK
GRAY 		8-97007-547-1 01 1 9301-9308 ●
2 COVER; TRIM,FRT SEAT,BACK
GRAY 		8-97097-375-0 01 1 9309-9504 ●
2 COVER; TRIM,FRT SEAT,BACK
GRAY 		8-97150-855-0 01 1 9505-9511 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-855-0 01 1 9512- ●
2 COVER; TRIM,FRT SEAT,BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-782-0 01 1 9512- ●
2 COVER; TRIM,FRT SEAT,BACK
LEATHER SEAT<6TB> GRAY 		8-97154-782-0 01 1 9512- ●
2 COVER; TRIM,FRT SEAT,BACK
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-776-0 01 1 9512- ●
2 COVER; TRIM,FRT SEAT,BACK
LEATHER SEAT<6TB> GRAY 		8-97154-776-0 01 1 9512- ●
2 COVER; TRIM,FRT SEAT,BACK
GRAY 		8-97007-553-1 01 1 9301-9308 ●
2 COVER; TRIM,FRT SEAT,BACK
GRAY 		8-97097-378-0 01 1 9309-9504 ●
2 COVER; TRIM,FRT SEAT,BACK
GRAY 		8-97150-860-1 01 1 9505-9511 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-860-1 01 1 9512- ●
2 COVER; TRIM,FRT SEAT,BACK
GRAY 		8-97007-551-1 01 1 9301-9308 ●
2 COVER; TRIM,FRT SEAT,BACK
GRAY 		8-97097-377-0 01 1 9309-9504 ●
2 COVER; TRIM,FRT SEAT,BACK
GRAY 		8-97150-859-1 01 1 9505-9511 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-859-1 01 1 9512- ●
3 PAD; FRT SEAT BACK 8-94373-780-0 01 1 9301- ● ●
3 PAD; FRT SEAT BACK 8-94373-779-0 01 1 9301- ● ●
4 FRAME ASM; FRT SEAT 8-94373-778-1 01 1 9301- ● ●
4 FRAME ASM; FRT SEAT 8-94373-777-1 01 1 9301- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
GRAY 		8-97007-569-1 01 1 9301-9308 ●
13 COVER; TRIM,FRT SEAT,CUSHION
GRAY 		8-97097-371-0 01 1 9309-9504 ●
13 COVER; TRIM,FRT SEAT,CUSHION
GRAY 		8-97150-848-0 01 1 9505-9511 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-848-0 01 1 9512- ●
13 COVER; TRIM,FRT SEAT,CUSHION
GRAY 		8-97007-567-1 01 1 9301-9308 ●
13 COVER; TRIM,FRT SEAT,CUSHION
GRAY 		8-97097-370-0 01 1 9309-9504 ●
13 COVER; TRIM,FRT SEAT,CUSHION
GRAY 		8-97150-847-0 01 1 9505-9511 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-847-0 01 1 9512- ●
13 COVER; TRIM,FRT SEAT,CUSHION
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-784-0 01 1 9512- ●
13 COVER; TRIM,FRT SEAT,CUSHION
LEATHER SEAT<6TB> GRAY 		8-97154-784-0 01 1 9512- ●
13 COVER; TRIM,FRT SEAT,CUSHION
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-778-0 01 1 9512- ●
13 COVER; TRIM,FRT SEAT,CUSHION
LEATHER SEAT<6TB> GRAY 		8-97154-778-0 01 1 9512- ●
13 COVER; TRIM,FRT SEAT,CUSHION
GRAY 		8-97007-573-1 01 1 9301-9308 ●
13 COVER; TRIM,FRT SEAT,CUSHION
GRAY 		8-97097-373-0 01 1 9309-9504 ●
13 COVER; TRIM,FRT SEAT,CUSHION
GRAY 		8-97150-852-1 01 1 9505-9511 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-852-1 01 1 9512- ●
13 COVER; TRIM,FRT SEAT,CUSHION
GRAY 		8-97007-571-1 01 1 9301-9308 ●
13 COVER; TRIM,FRT SEAT,CUSHION
GRAY 		8-97097-372-0 01 1 9309-9504 ●
13 COVER; TRIM,FRT SEAT,CUSHION
GRAY 		8-97150-851-1 01 1 9505-9511 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-851-1 01 1 9512- ●
14 PAD; FRT SEAT CUSHION 8-94373-786-0 01 1 9301- ● ●
14 PAD; FRT SEAT CUSHION 8-94373-785-0 01 1 9301- ● ●
15 FRAME; CUSHION,FRT SEAT 8-94373-784-0 01 1 9301- ● ●
15 FRAME; CUSHION,FRT SEAT 8-94373-783-0 01 1 9301- ● ●
16 ADJUSTER ASM; RECLINING 8-94473-669-2 01 1 9301-9308 ● ●
16 ADJUSTER ASM; RECLINING 8-97064-830-1 01 1 9309- ● ●
16 ADJUSTER ASM; RECLINING 8-94473-497-2 01 1 9301-9308 ● ●
16 ADJUSTER ASM; RECLINING 8-97064-824-1 01 1 9309- ● ●
18 COVER; RECLINING
GRAY 		8-97009-899-1 01 1 9301-9504 ● ●
18 COVER; RECLINING
GRAY 		8-97150-844-1 01 1 9505- ● ●
18 COVER; RECLINING
GRAY 		8-97009-897-1 01 1 9301-9504 ● ●
18 COVER; RECLINING
GRAY 		8-97150-845-1 01 1 9505- ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97009-213-0 01 1 9301-9504 ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97150-872-0 01 1 9505- ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97009-211-0 01 1 9301-9504 ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97150-871-0 01 1 9505- ● ●
27 REST; HD,FRT SEAT
CONVENIENT PACKAGE<6QZ> LEATHER SEAT<6TB> GRAY 		8-97154-779-0 02 1 9512- ●
27 REST; HD,FRT SEAT
LEATHER SEAT<6TB> GRAY 		8-97154-779-0 02 1 9512- ●
27 REST; HD,FRT SEAT
GRAY 		8-97008-835-0 02 1 9301-9504 ● ●
27 REST; HD,FRT SEAT
GRAY 		8-97150-846-0 02 1 9505-9511 ● ●
27 REST; HD,FRT SEAT
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-846-0 02 1 9512- ● ●
28 HOLDER; GUIDE,HD REST
(B) GRAY 		8-97009-209-2 04 1 9301-9504 ● ●
28 HOLDER; GUIDE,HD REST
(B) GRAY 		8-97150-893-2 04 1 9505- ● ●
28 HOLDER; GUIDE,HD REST
(A) GRAY 		8-97009-207-2 04 1 9301-9504 ● ●
28 HOLDER; GUIDE,HD REST
(A) GRAY 		8-97150-892-2 04 1 9505- ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		8-94441-863-1 01 1 9301-9504 ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		8-97109-536-0 01 1 9505- ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		8-94441-864-1 01 1 9301-9504 ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		8-97109-534-0 01 1 9505- ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		8-94441-865-1 01 1 9301-9504 ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		8-97109-535-0 01 1 9505- ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		8-94441-866-1 01 1 9301-9504 ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		8-97109-521-0 01 1 9505- ● ●
67 BOLT; FRT SEAT TO BODY
M10X19 		8-94427-095-2 12 1 9301- ●
67 BOLT; FRT SEAT TO BODY
M10X19 		8-94427-095-2 16 1 9301- ●
71 BOLT; ADJ TO SEAT
M8X22 W/LK WASHER 		8-94171-739-0 08 1 9301- ● ●
95 WIRE; EXT,SEAT ADJ 8-94473-502-0 02 1 9301- ● ●
96 NUT; LK,HINGE
M8 FLANGE 		8-94152-886-0 02 1 9301- ● ●
98 WASHER; HINGE
ID=8.4 OD=20 		8-94408-413-0 02 1 9301- ● ●
100 COVER; HINGE
GRAY 		8-97009-215-0 02 1 9301-9504 ● ●
100 COVER; HINGE
GRAY 		8-97150-873-0 02 1 9505- ● ●
214 SCREW; SIDE COVER
(A) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9301- ● ●
214 SCREW; SIDE COVER
(B) 		8-94478-733-0 02 1 9301- ● ●
215 WASHER; PL,CONT CABLE
ID=4.3 OD=10 		9-09160-604-0 04 1 9301- ● ●
222 SUPPORT; PAD 8-94325-179-1 02 1 9301-9702 ● ●
257 BOLT; RECLINING DEVICE
(B) M10X20 W/LK WASHER 		0-50041-020-0 04 1 9301- ● ●
257 BOLT; RECLINING DEVICE
(A) M10X20 W/LK WASHER 		8-94317-654-0 04 1 9301- ● ●
278 COLLAR; FRT SEAT 8-94408-414-0 02 1 9301-9302 ● ●
278 COLLAR; FRT SEAT 8-97091-047-0 02 1 9303- ● ●
