◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#46951) — 63 parça

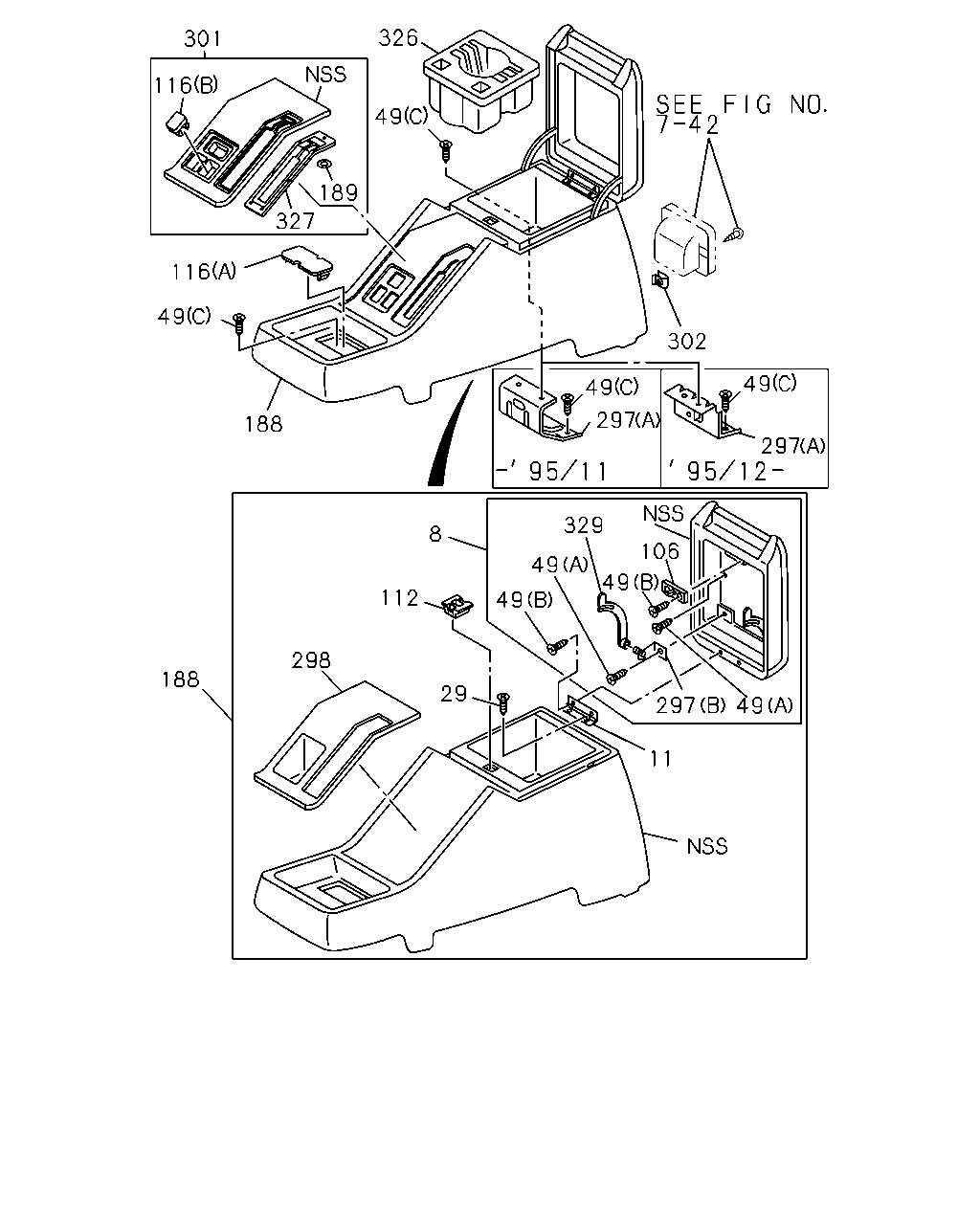

çizim 66576
301 116 326 49 189 327 116 49 188 49 297 297 49 302 329 49 49 49 106 297 49 11 29 112 8 298 188
BalonParca AdiParca NoAdetTipApplied Date A B
8 LID; CENTER CONSOLE
GRAY 		8-97007-718-1 01 1 9301-9504 ● ●
8 LID; CENTER CONSOLE
GRAY 		8-97151-972-1 01 1 9505- ● ●
11 HINGE; CONSOLE LID 8-97046-947-0 01 1 9301- ● ●
29 SCREW; HINGE
M4X12 TAPPING CK-HEAD 		0-70080-412-0 02 1 9301- ● ●
49 SCREW; CONSOLE
(A) M4X10 TAPPING CK-HEAD 		0-70080-410-0 04 1 9301- ● ●
49 SCREW; CONSOLE
(B) M4X12 TAPPING CK-HEAD 		0-70080-412-0 06 1 9301- ● ●
49 SCREW; CONSOLE
(C) M5X16 TAPPING 		9-09829-323-1 06 1 9301- ● ●
106 LOCK; CONSOLE LID 8-97046-948-1 01 1 9301- ● ●
112 LOCK; HOLE,RR CONSOLE 8-97046-949-0 01 1 9301- ● ●
116 COVER; HOLE,CONSOLE,RR
(A) GRAY 		8-94474-722-2 01 1 9301-9504 ● ●
116 COVER; HOLE,CONSOLE,RR
(A) GRAY 		8-97150-577-2 01 1 9505- ● ●
116 COVER; HOLE,CONSOLE,RR
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2> (B) 		8-97086-202-1 02 1 9309-9504 ● ●
116 COVER; HOLE,CONSOLE,RR
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>,DOOR MIRRORELEC FOLDING BRIGHT W/DEF<7EU> (B) 		8-97086-202-1 02 1 9309-9504 ● ●
116 COVER; HOLE,CONSOLE,RR
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2> (B) 		8-97086-202-1 01 1 9505- ● ●
116 COVER; HOLE,CONSOLE,RR
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>,DOOR MIRRORELEC FOLDING BRIGHT W/DEF<7EU> (B) 		8-97086-202-1 01 1 9505- ● ●
188 CONSOLE; RR
GRAY 		8-97007-451-2 01 1 9301-9308 ● ●
188 CONSOLE; RR
EXC. DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2> GRAY 		8-97007-451-2 01 1 9309-9408 ● ●
188 CONSOLE; RR
EXC. DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>,DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU> GRAY 		8-97007-451-2 01 1 9409-9504 ● ●
188 CONSOLE; RR
EXC. DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>,DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU> GRAY 		8-97151-969-0 01 1 9505-9510 ● ●
188 CONSOLE; RR
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2> GRAY 		8-97098-113-0 01 1 9309-9408 ● ●
188 CONSOLE; RR
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>,DOOR MIRRORELEC FOLDING BRIGHT W/DEF<7EU> GRAY 		8-97098-113-0 01 1 9409-9504 ● ●
188 CONSOLE; RR
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>,DOOR MIRRORELEC FOLDING BRIGHT W/DEF<7EU> GRAY 		8-97151-970-0 01 1 9505-9510 ● ●
188 CONSOLE; RR
GRAY 		8-97155-556-1 01 1 9511-9612 ● ●
188 CONSOLE; RR
GRAY 		8-97159-185-0 01 1 9701- ● ●
189 NUT; CONSOLE BOX
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>,DOOR MIRRORELEC FOLDING BRIGHT W/DEF<7EU> 		8-97068-762-0 07 1 9505- ● ●
297 BRACKET; RR CONSOLE
(A) 		8-97061-578-0 01 1 9301-9511 ● ●
297 BRACKET; RR CONSOLE
(A) 		8-97101-903-0 01 1 9512- ● ●
297 BRACKET; RR CONSOLE
(B) 		8-97066-035-1 01 1 9505- ● ●
298 BEZEL; HAND BRAKE,CONSOLE
BLACK 		8-97009-962-1 01 1 9301-9308 ● ●
298 BEZEL; HAND BRAKE,CONSOLE
EXC. DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>,DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU> BLACK 		8-97009-962-1 01 1 9309-9512 ● ●
301 BEZEL; CONSOLE
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>,DOOR MIRRORELEC FOLDING BRIGHT W/DEF<7EU> 		8-97100-681-0 01 1 9309- ● ●
301 BEZEL; CONSOLE
EXC. DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>,DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU> BLACK 		8-97156-063-0 01 1 9601- ● ●
302 RETAINER; ASH TRAY 8-94123-300-5 02 1 9505- ● ●
326 HOLDER; CUP 8-97115-864-0 01 1 9505- ● ●
327 STRIPE; HAND BRAKE
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>,DOOR MIRRORELEC FOLDING BRIGHT W/DEF<7EU> 		8-97046-946-1 01 1 9505- ● ●
329 STAY 8-97115-862-0 01 1 9505-9612 ● ●
329 STAY 8-97177-755-0 01 1 9701- ● ●
329 STAY 8-97115-863-0 01 1 9505-9612 ● ●
329 STAY 8-97177-753-0 01 1 9701- ● ●

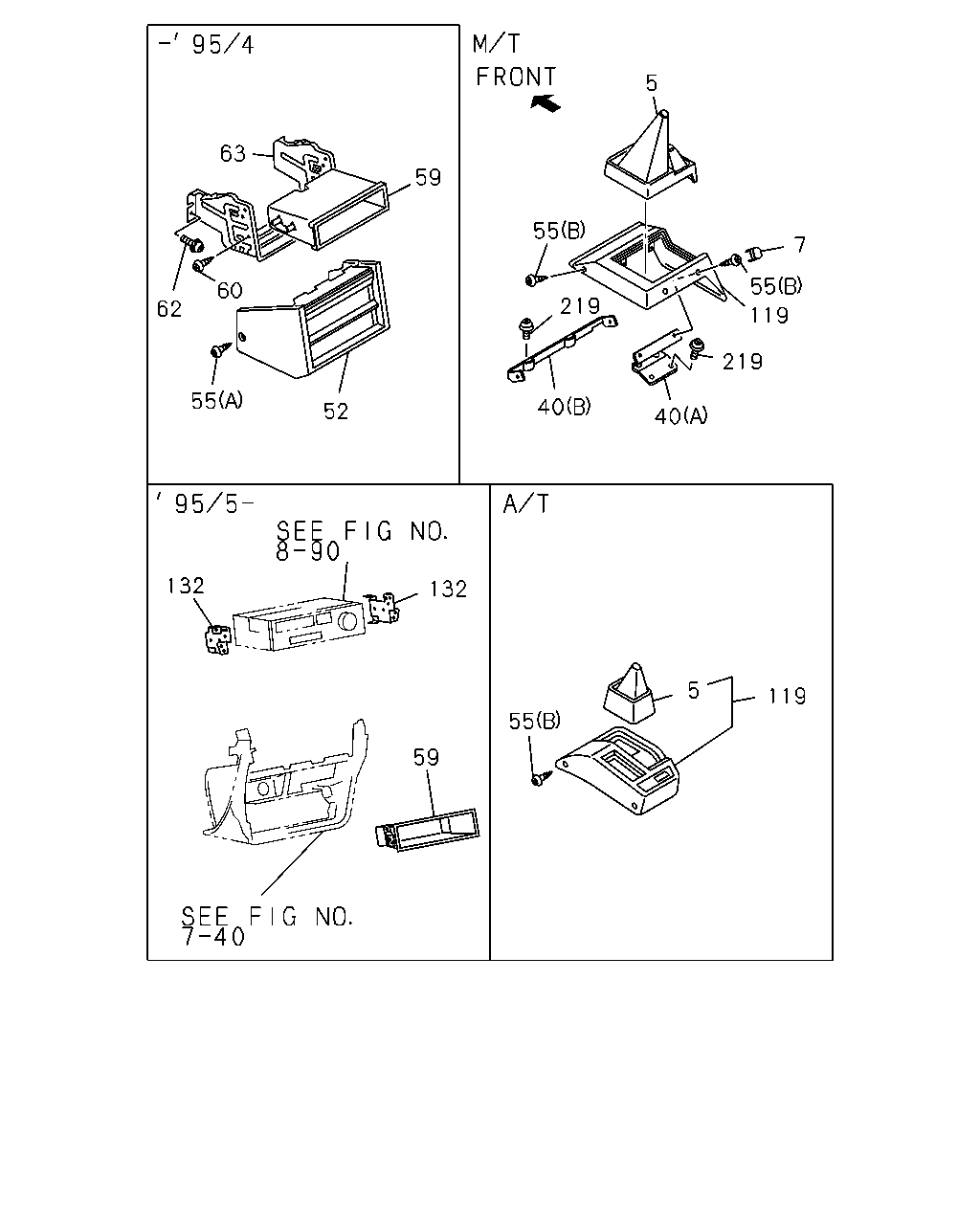

çizim 70905
5 55 219 40 40 219 119 55 7 119 5 55 59 132 132 52 55 62 60 59 63
BalonParca AdiParca NoAdetTipApplied Date A B
5 COVER; SHIFT LEVER
A/T THM(RMQ) GRAY 		8-97002-234-0 01 1 9301-9504 ● ●
5 COVER; SHIFT LEVER
A/T THM(RMQ) GRAY 		8-97154-032-0 01 1 9505- ● ●
5 COVER; SHIFT LEVER
M/T MUA 5 SPEED(RMN) 		8-94462-741-3 01 1 9301-9311 ● ●
5 COVER; SHIFT LEVER
M/T MUA 5 SPEED(RMN) 		8-97107-601-0 01 1 9312- ● ●
7 COVER; HOLE,FLOOR CONSOLE
M/T MUA 5 SPEED(RMN) GRAY 		8-94474-732-1 02 1 9301-9504 ● ●
7 COVER; HOLE,FLOOR CONSOLE
M/T MUA 5 SPEED(RMN) GRAY 		8-97150-582-1 02 1 9505- ● ●
40 BRACKET; SUPPORT,CENTER CONSOLE
M/T MUA 5 SPEED(RMN) (A) 		8-94463-384-0 01 1 9301- ● ●
40 BRACKET; SUPPORT,CENTER CONSOLE
M/T MUA 5 SPEED(RMN) (B) 		8-94479-072-1 01 1 9301- ● ●
52 CONSOLE; FRT
GRAY 		8-94373-550-0 01 1 9301-9504 ● ●
55 SCREW; FRT CONSOLE
(A),(B) M5X16 TAPPING 		9-09829-323-1 06 1 9301-9408 ● ●
55 SCREW; FRT CONSOLE
(A) M5X16 TAPPING 		9-09829-323-1 02 1 9409-9504 ● ●
55 SCREW; FRT CONSOLE
(B) M5X16 TAPPING 		9-09829-323-1 04 1 9409- ● ●
59 BOX; FRT CONSOLE 8-94331-193-1 02 1 9301-9504 ● ●
59 BOX; FRT CONSOLE 8-97114-757-0 01 1 9505- ● ●
60 SCREW; BOX
M5X12 TAPPING 		9-09829-321-1 08 1 9301-9504 ● ●
62 SCREW; BRKT
M6X16 		8-94206-784-0 04 1 9301-9504 ● ●
63 BRACKET; FRT CONSOLE 8-94435-485-3 01 1 9301-9504 ● ●
119 CONSOLE; SHIFT LEVER
A/T THM(RMQ) GRAY 		8-94376-794-2 01 1 9301-9504 ● ●
119 CONSOLE; SHIFT LEVER
A/T THM(RMQ) GRAY 		8-97150-579-2 01 1 9505- ● ●
119 CONSOLE; SHIFT LEVER
M/T MUA 5 SPEED(RMN) GRAY 		8-94478-246-2 01 1 9301-9504 ● ●
119 CONSOLE; SHIFT LEVER
M/T MUA 5 SPEED(RMN) GRAY 		8-97154-033-2 01 1 9505- ● ●
132 BRACKET; AUDIO BOX
AM/FM CASSETTE 4 SPEAKERS<UM6>,AM/FM CASSETE 6 SPEAKERS<7AK> 		8-97107-583-2 01 1 9505- ● ●
132 BRACKET; AUDIO BOX
AM/FM CASSETTE 4 SPEAKERS<UM6>,AM/FM CASSETE 6 SPEAKERS<7AK> 		8-97107-582-2 01 1 9505- ● ●
219 SCREW; BRKT TO CONSOLE
M/T MUA 5 SPEED(RMN) M8X20 		9-03900-820-0 04 1 9301- ● ●
