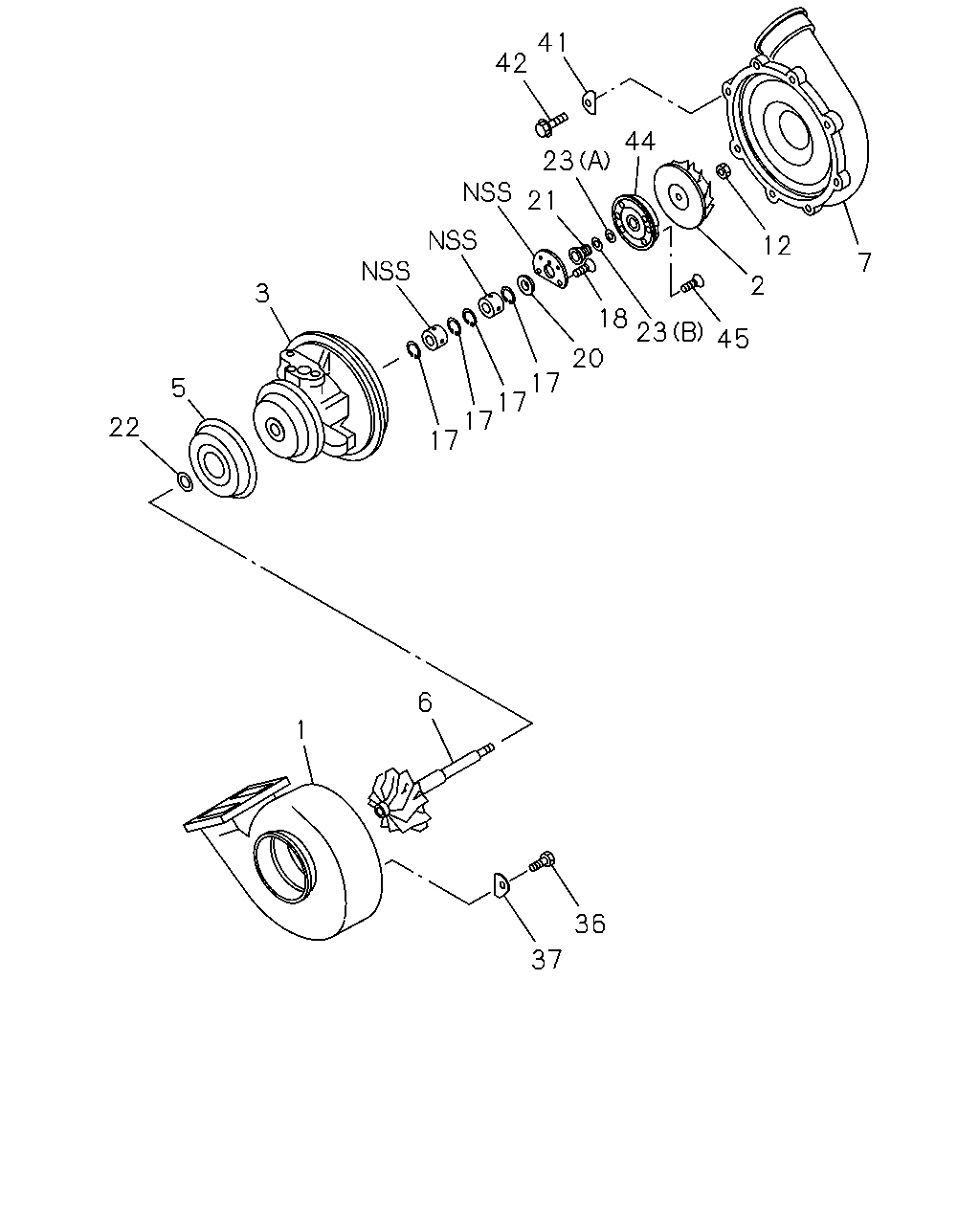

1 |
HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-290-2
|
1-14415-090-0 |
01 |
1 |
- |
| |
1 |
HOUSING; TURBINE,TURBOCHARGER
ASM PART: C = 1-14400-342-4
|
1-14415-101-0 |
01 |
1 |
- |
| |
1 |
HOUSING; TURBINE,TURBOCHARGER
ASM PART: D = 1-14400-346-2
|
1-14415-106-1 |
01 |
1 |
- |
| |
1 |
HOUSING; TURBINE,TURBOCHARGER
ASM PART: B = 1-14400-328-1
|
1-14415-107-0 |
01 |
1 |
- |
| |
2 |
IMPELLER; TURBOCHARGER
ASM PART: A = 1-14400-290-2
|
1-14451-044-0 |
01 |
1 |
-9904 |
| |
2 |
IMPELLER; TURBOCHARGER
ASM PART: C = 1-14400-342-4
|
1-14451-044-0 |
01 |
1 |
-9609 |
| |
2 |
IMPELLER; TURBOCHARGER
ASM PART: A = 1-14400-290-2
|
1-14451-059-0 |
01 |
1 |
9905- |
| |
2 |
IMPELLER; TURBOCHARGER
ASM PART: C = 1-14400-342-4
|
1-14451-059-0 |
01 |
1 |
9610- |
| |
2 |
IMPELLER; TURBOCHARGER
ASM PART: D = 1-14400-346-2
|
1-14451-060-0 |
01 |
1 |
- |
| |
2 |
IMPELLER; TURBOCHARGER
ASM PART: B = 1-14400-328-1
|
1-14451-061-0 |
01 |
1 |
- |
| |
3 |
HOUSING; BRG,TURBOCHARGER
ASM PART: A = 1-14400-290-2, C = 1-14400-342-4
|
1-14411-044-0 |
01 |
1 |
- |
| |
3 |
HOUSING; BRG,TURBOCHARGER
ASM PART: D = 1-14400-346-2
|
1-14411-058-0 |
01 |
1 |
- |
| |
3 |
HOUSING; BRG,TURBOCHARGER
ASM PART: B = 1-14400-328-1
|
1-14411-059-0 |
01 |
1 |
- |
| |
5 |
PROTECTOR; HEAT,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-328-1,
C = 1-14400-342-4, D = 1-14400-346-2
|
1-14425-017-0 |
01 |
1 |
- |
| |
6 |
SHAFT; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-290-2, C = 1-14400-342-4
|
1-14450-038-0 |
01 |
1 |
- |
| |
6 |
SHAFT; TURBINE,TURBOCHARGER
ASM PART: D = 1-14400-346-2
|
1-14450-055-0 |
01 |
1 |
- |
| |
6 |
SHAFT; TURBINE,TURBOCHARGER
ASM PART: B = 1-14400-328-1
|
1-14450-056-0 |
01 |
1 |
- |
| |
7 |
HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 1-14400-290-2, C = 1-14400-342-4
|
1-14414-066-0 |
01 |
1 |
- |
| |
7 |
HOUSING; BLOWER,TURBOCHARGER
ASM PART: D = 1-14400-346-2
|
1-14414-099-0 |
01 |
1 |
- |
| |
7 |
HOUSING; BLOWER,TURBOCHARGER
ASM PART: B = 1-14400-328-1
|
1-14414-101-0 |
01 |
1 |
- |
| |
12 |
NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 1-14400-290-2, C = 1-14400-342-4
|
1-09400-047-0 |
01 |
1 |
- |
| |
12 |
NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: B = 1-14400-328-1, D = 1-14400-346-2
|
1-09400-119-0 |
01 |
1 |
- |
| |
17 |
RING; JOURNAL BRG,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-328-1,
C = 1-14400-342-4, D = 1-14400-346-2
|
1-14455-026-0 |
04 |
1 |
- |
| |
18 |
SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-328-1,
C = 1-14400-342-4, D = 1-14400-346-2
|
1-09100-015-0 |
04 |
1 |
- |
| |
20 |
BUSHING; THRUST,TURBOCHARGER
ASM PART: A = 1-14400-290-2, C = 1-14400-342-4
|
1-14453-028-0 |
01 |
1 |
- |
| |
20 |
BUSHING; THRUST,TURBOCHARGER
ASM PART: B = 1-14400-328-1, D = 1-14400-346-2
|
1-14453-070-0 |
01 |
1 |
- |
| |
21 |
THROWER; OIL,TURBOCHARGER
ASM PART: A = 1-14400-290-2, C = 1-14400-342-4
|
1-14455-027-0 |
01 |
1 |
- |
| |
21 |
THROWER; OIL,TURBOCHARGER
ASM PART: B = 1-14400-328-1, D = 1-14400-346-2
|
1-14455-036-0 |
01 |
1 |
- |
| |
22 |
RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-328-1,
C = 1-14400-342-4, D = 1-14400-346-2
|
1-14453-027-0 |
01 |
1 |
- |
| |
23 |
RING; SEAL,BLOWER SIDE,TURBOCHARGER
(A) ASM PART: A = 1-14400-290-2, B = 1-14400-328-1,
C = 1-14400-342-4, D = 1-14400-346-2
|
1-14453-025-0 |
01 |
1 |
- |
| |
23 |
RING; SEAL,BLOWER SIDE,TURBOCHARGER
(B) ASM PART: A = 1-14400-290-2, B = 1-14400-328-1,
C = 1-14400-342-4, D = 1-14400-346-2
|
1-14453-026-0 |
01 |
1 |
- |
| |
36 |
BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 1-14400-290-2, B = 1-14400-328-1,
C = 1-14400-342-4, D = 1-14400-346-2
|
1-09000-405-0 |
10 |
1 |
- |
| |
37 |
PLATE; LK,TURBINE HSG,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-328-1,
C = 1-14400-342-4, D = 1-14400-346-2
|
1-14421-018-0 |
10 |
1 |
- |
| |
41 |
PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: B = 1-14400-328-1, D = 1-14400-346-2
|
1-14421-016-0 |
06 |
1 |
- |
| |
41 |
PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: A = 1-14400-290-2, C = 1-14400-342-4
|
1-14421-016-0 |
08 |
1 |
- |
| |
42 |
BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: A = 1-14400-290-2, C = 1-14400-342-4
|
1-09000-404-0 |
08 |
1 |
- |
| |
42 |
BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: B = 1-14400-328-1, D = 1-14400-346-2
|
1-09000-404-0 |
11 |
1 |
- |
| |
44 |
PLATE; SEAL,TURBOCHARGER
ASM PART: A = 1-14400-290-2, C = 1-14400-342-4
|
1-14425-007-0 |
01 |
1 |
- |
| |
44 |
PLATE; SEAL,TURBOCHARGER
ASM PART: B = 1-14400-328-1, D = 1-14400-346-2
|
1-14425-018-0 |
01 |
1 |
- |
| |
45 |
SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-328-1,
C = 1-14400-342-4, D = 1-14400-346-2
|
1-09100-014-0 |
04 |
1 |
- |
