◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11440 - FRR-L SPACE EU4 DOC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#46938) — 9 parça

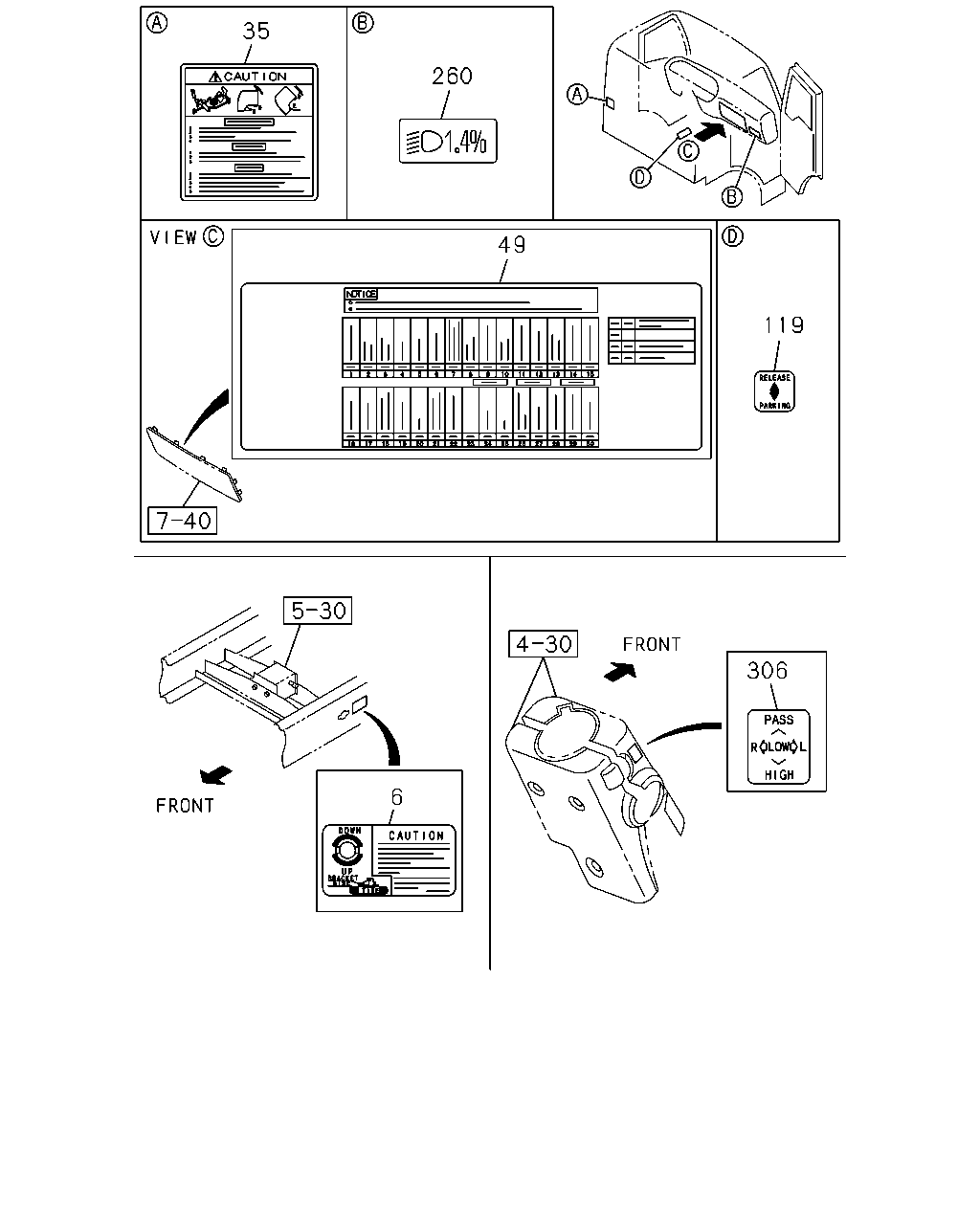

çizim 16743
35 260 49 119 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 1109-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS SPANISH<YN1> 		8-98082-437-0 01 1 1109-
35 PLATE; CAUTION,CAB
CAUTIONS SPANISH<YN1> 		8-98070-109-0 01 1 1109-
35 PLATE; CAUTION,CAB
EXC. CAUTIONS SPANISH<YN1> 		8-98065-363-0 01 1 1109-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		8-98069-841-0 01 1 1109-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS SPANISH<YN1> 		8-98122-354-0 01 1 1109-
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 1206-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1109-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1109-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
