6-20 — SIDE PANEL AND STEP (#46920) — 58 parça

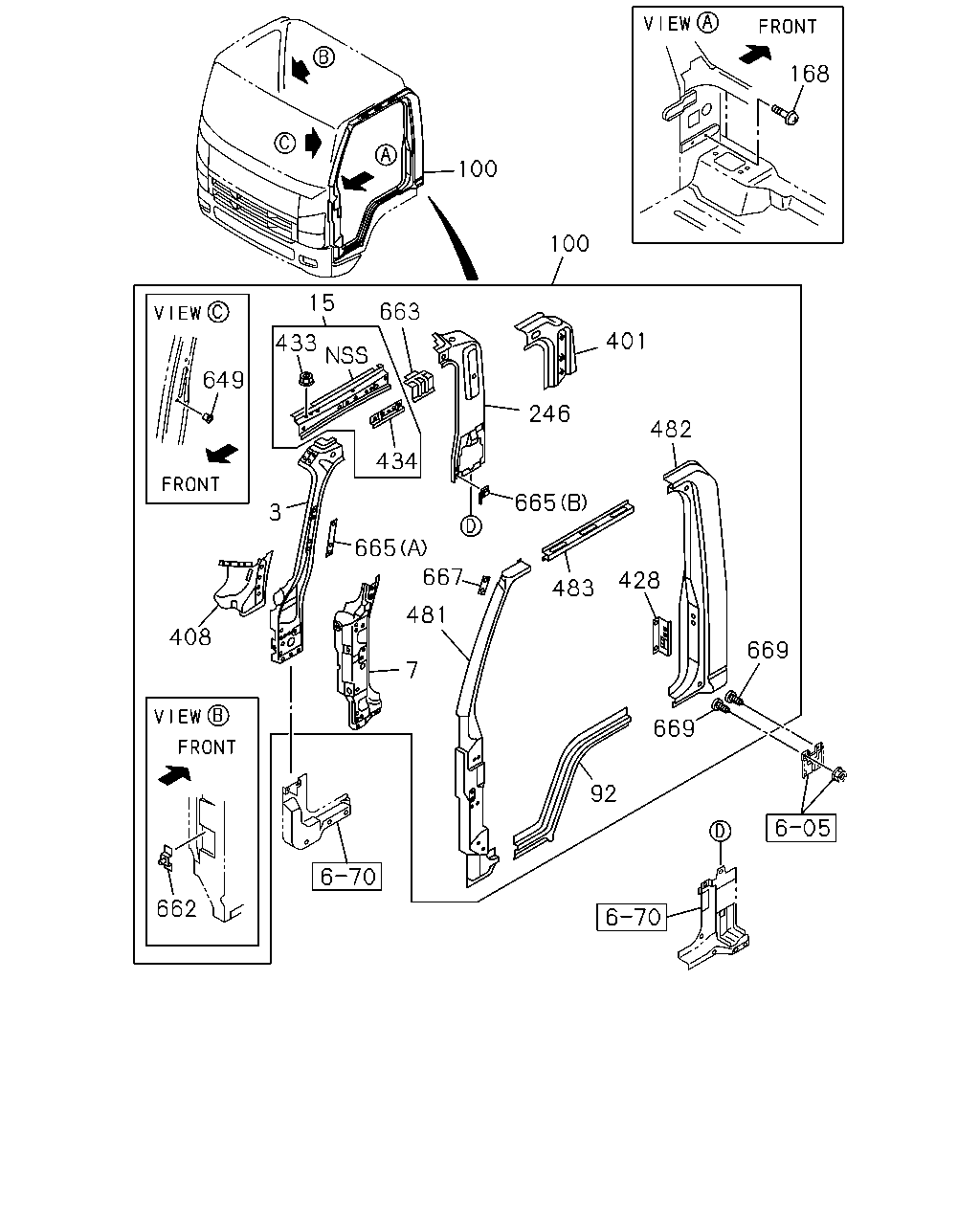

çizim 15914
168 100 100 15 663 401 433 649 246 482 434 665 3 665 667 428 483 481 408 669 7 669 92 662
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1109-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1109-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1109-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1109-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1109-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1109-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1109-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1109-
100 PANEL ASM; BODY SIDE 8-97586-050-4 01 1 1109-
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-98059-478-7 01 1 1109-
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-032-5 01 1 1109-
168 BOLT; BODY SIDE PANEL
SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1109-
246 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1109-
246 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1109-
401 PATCH; CLOSING,FRT PILLAR 8-97585-303-2 01 1 1109-
401 PATCH; CLOSING,FRT PILLAR 8-98065-791-0 01 1 1109-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1109-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1109-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1109-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1109-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1109-1205
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1206-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1206-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1109-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1109-
481 PANEL; SIDE FRT PILLAR 8-98072-802-0 01 1 1109-
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-912-0 01 1 1109-
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-787-0 01 1 1109-
482 PANEL; SIDE RR PILLAR 8-98055-467-1 01 1 1109-1205
482 PANEL; SIDE RR PILLAR
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		8-98055-467-1 01 1 1206-
482 PANEL; SIDE RR PILLAR 8-98055-466-1 01 1 1109-1205
482 PANEL; SIDE RR PILLAR
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		8-98055-466-1 01 1 1206-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1109-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1109-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1109-
662 BRACKET; DUCT 8-97584-611-1 01 1 1109-
663 BRACKET; AIR 8-97585-208-2 01 1 1109-
663 BRACKET; AIR 8-97585-207-2 01 1 1109-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1109-1205
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1206-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1206-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1109-1205
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1206-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1206-
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1109-
669 STUD; FENDER
M6X18 		8-98013-113-1 04 1 1109-1205
669 STUD; FENDER
M6X18 		8-98013-113-1 02 1 1206-
669 STUD; FENDER
M6X18 		8-98013-113-1 02 1 1206-

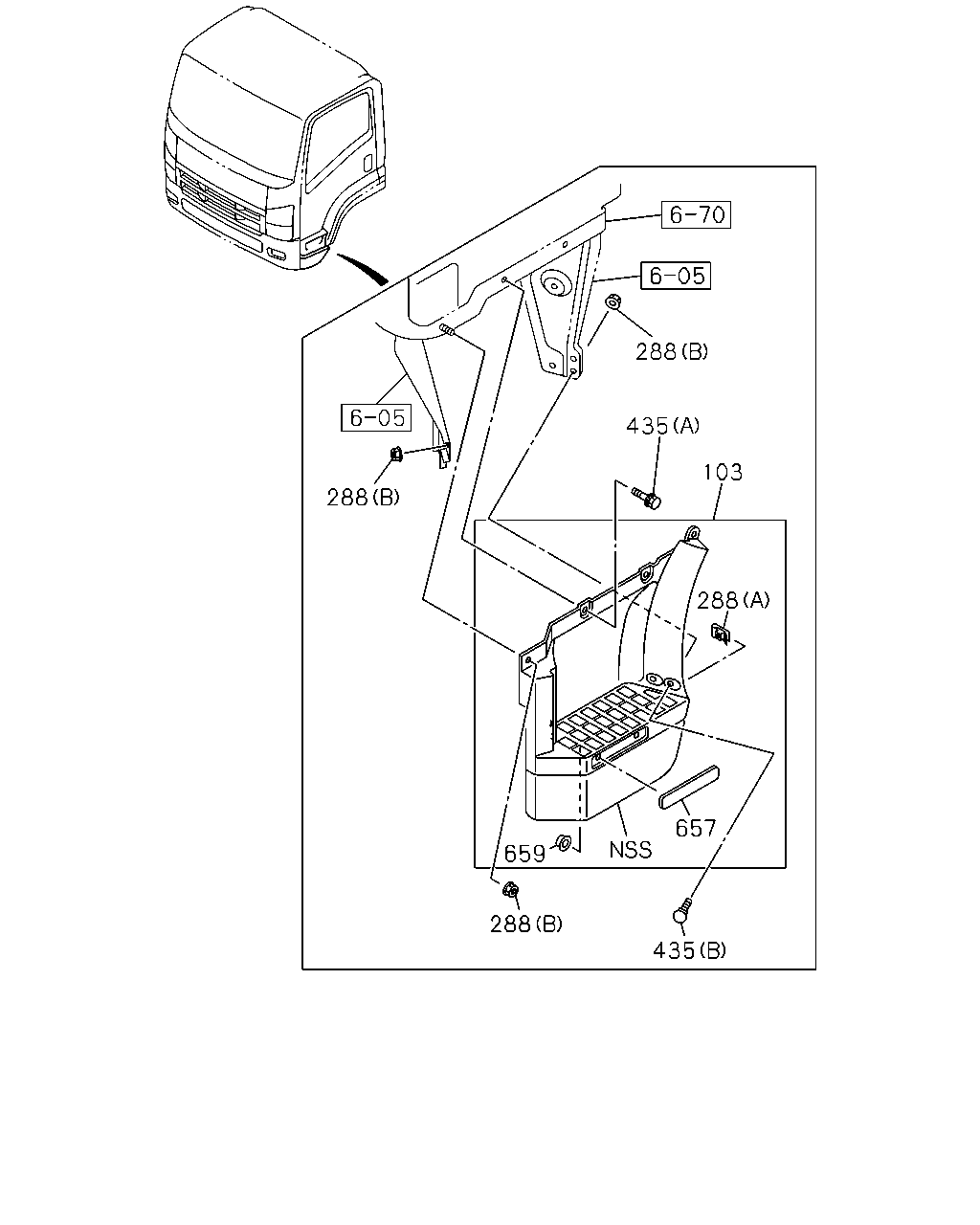

çizim 16680
288 435 103 288 288 657 659 288 435
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP
FRONT SPOILER<VP1> 		8-98037-326-3 01 1 1109-
103 PLATE; STEP
FRONT SPOILER<VP1> 		8-98037-325-3 01 1 1109-
103 PLATE; STEP
FRONT UNDER SPOILER DELETE<SGA> 		8-98037-329-3 01 1 1109-
103 PLATE; STEP
FRONT UNDER SPOILER DELETE<SGA> 		8-98037-327-3 01 1 1109-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1109-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1109-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1109-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1109-
657 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1109-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1109-
