◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35A - ENGINE CONTROL VALVE AND LEVER ▶
0-35A — ENGINE CONTROL VALVE AND LEVER (#4692) — 71 parça
çizim 8859
52 45 52 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
45 CLIP; FUEL CUT CABLE
SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) ID=13 L=20 		9-09525-235-0 02 1 9610-9904 ●
45 CLIP; FUEL CUT CABLE
SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) ID=11 L=20 		9-09525-035-0 02 1 9905- ● ●
45 CLIP; FUEL CUT CABLE
SHORT CHASSIS&LHD(EXZ6MC) ELECTRONIC GOV RED3(KG5) ID=11 L=20 		9-09525-035-0 01 1 9611-9904 ●
45 CLIP; FUEL CUT CABLE
SHORT CHASSIS&LHD(EXZ6MC) ELECTRONIC GOV RED3(KG5) ID=9 L=20 		9-09524-835-0 01 1 9905- ●
51 BOLT; CLIP,FUEL CUT CABLE
SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9610-9904 ●
51 BOLT; CLIP,FUEL CUT CABLE
SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9905- ● ●
51 BOLT; CLIP,FUEL CUT CABLE
SHORT CHASSIS&LHD(EXZ6MC) ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9611-9904 ●
51 BOLT; CLIP,FUEL CUT CABLE
SHORT CHASSIS&LHD(EXZ6MC) ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905- ●
52 CABLE; FUEL CUT
SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) L=3199 		1-73907-318-8 01 1 9610-9708 ●
52 CABLE; FUEL CUT
SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) EXC. CAB UP +50MM<W60> L=3199 		1-73907-318-8 01 1 9709-9904 ● ●
52 CABLE; FUEL CUT
SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> L=3334 		1-73907-534-0 01 1 9905- ● ●
52 CABLE; FUEL CUT
SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) CAB UP +50MM<W60> L=3259 		1-71907-454-0 01 1 9709-9904 ● ●
52 CABLE; FUEL CUT
SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> L=3199 		1-73907-528-0 01 1 9905- ● ●
52 CABLE; FUEL CUT
SHORT CHASSIS&LHD(EXZ6MC) ELECTRONIC GOV RED3(KG5) L=2400 		1-73907-521-0 01 1 9610-9904 ●
52 CABLE; FUEL CUT
SHORT CHASSIS&LHD(EXZ6MC) ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> L=2535 		1-73907-594-4 01 1 9905- ●
52 CABLE; FUEL CUT
SHORT CHASSIS&LHD(EXZ6MC) ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> L=2400 		1-73907-595-1 01 1 9905- ●

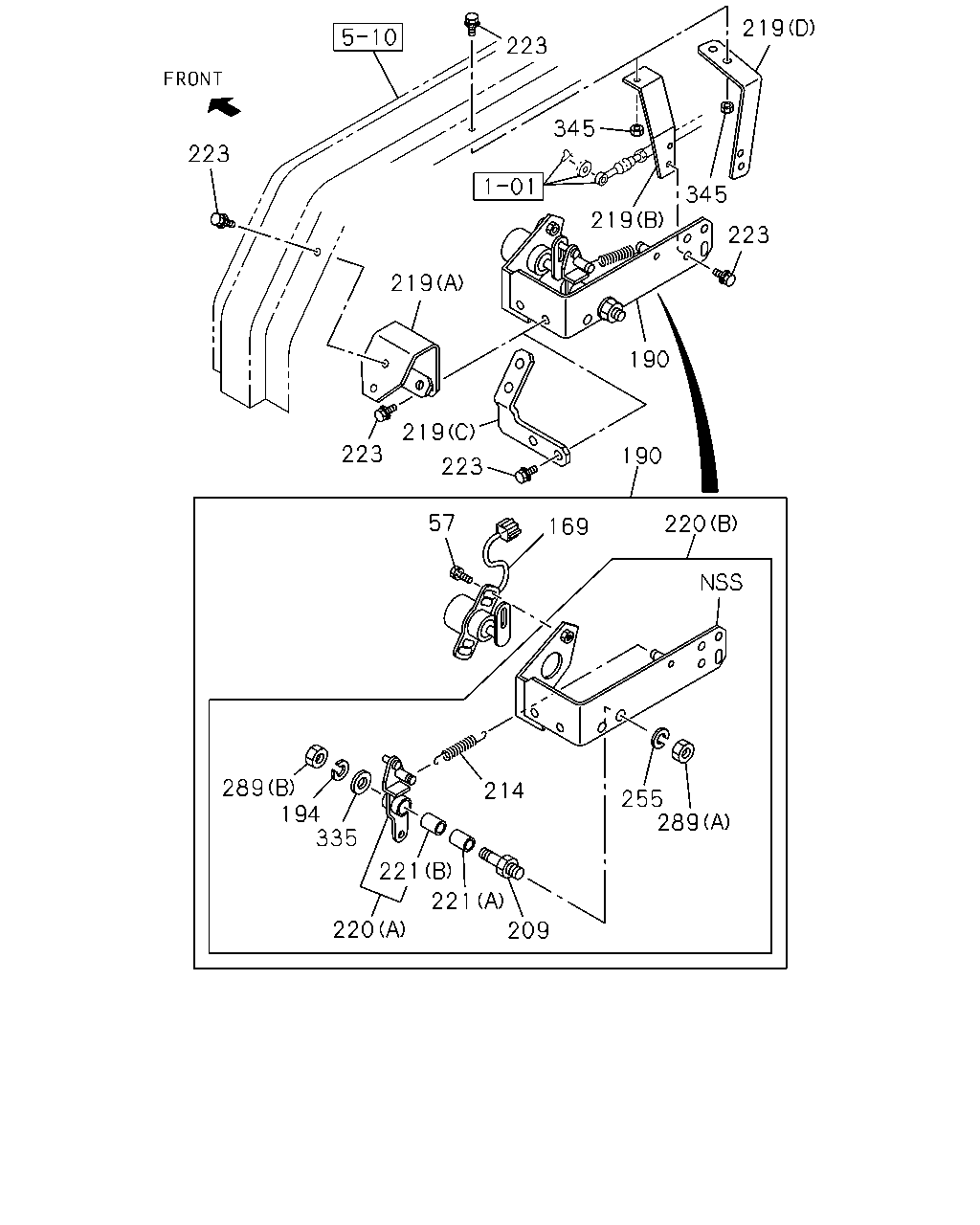

çizim 41817
219 223 345 223 345 219 223 219 190 219 223 190 223 57 220 169 289 194 335 214 255 289 221 221 220 209
BalonParca AdiParca NoAdetTipApplied Date A B C D
57 BOLT; BRKT
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9707-9904 ●
57 BOLT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9905-0002 ● ●
57 BOLT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0003- ● ●
169 SENSOR
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> 		1-81534-010-0 01 1 9707-9904 ●
169 SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-81534-010-0 01 1 9905-0002 ● ●
169 SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) 		1-81534-010-0 01 1 0003- ● ●
190 LEVER; ENG CONT
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> 		1-23335-504-0 01 1 9707-9904 ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-23335-504-0 01 1 9905-0002 ● ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) 		1-23335-504-0 01 1 0003-0004 ● ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> 		1-23335-504-0 01 1 0005- ● ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> 		1-23335-547-0 01 1 0005- ● ●
194 WASHER; LK,LEVER
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2 		9-09150-508-0 01 1 9707-9904 ●
194 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2 		9-09150-508-0 01 1 9905- ● ●
209 SHAFT; ENG CONT
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> 		1-14336-002-1 01 1 9707-9904 ●
209 SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-14336-002-1 01 1 9905- ● ●
214 SPRING; ENG CONT RETURN
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> 		8-94481-840-1 01 1 9707-9904 ●
214 SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-94481-840-1 01 1 9905- ● ●
219 BRACKET; ENG CONT
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23335-459-0 01 1 9707-9904 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23335-459-0 01 1 9905-9910 ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (A) 		1-23335-459-0 01 1 9911- ● ●
219 BRACKET; ENG CONT
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-460-2 01 1 9707-9904 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-460-2 01 1 9905-9910 ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (B) 		1-23335-460-2 01 1 9911- ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C) 		1-23335-511-0 01 1 9911-0004 ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C) 		1-23335-545-0 01 1 0005- ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D) 		1-23335-541-0 01 1 9911-0004 ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D) 		1-23335-546-0 01 1 0005- ● ●
220 LEVER ASM
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23311-357-0 01 1 9707-9904 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23311-357-0 01 1 9905-0002 ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) (A) 		1-23311-357-0 01 1 0003- ● ●
220 LEVER ASM
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-505-0 01 1 9707-9904 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-505-0 01 1 9905-0002 ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) (B) 		1-23335-505-0 01 1 0003-0004 ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> (B) 		1-23335-505-0 01 1 0005- ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> (B) 		1-23335-551-0 01 1 0005- ● ●
221 BUSHING; LEVER
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-09330-057-0 01 1 9707-9904 ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-09330-057-0 01 1 9905- ● ●
221 BUSHING; LEVER
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-09330-058-0 01 1 9707-9904 ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-09330-058-0 01 1 9905- ● ●
223 BOLT; BRKT FIX
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE 		0-28680-820-0 07 1 9707-9904 ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE 		0-28680-820-0 07 1 9905-0004 ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE 		0-28680-820-0 04 1 0005-0008 ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE 		0-28680-820-0 05 1 0009- ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X25 FLANGE 		0-28680-825-0 03 1 0005-0008 ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X25 FLANGE 		0-28680-825-0 02 1 0009- ● ●
255 WASHER; LK,LEVER
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2 		9-09150-510-0 01 1 9707-9904 ●
255 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2 		9-09150-510-0 01 1 9905- ● ●
289 NUT; LEVER
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10 		9-09110-410-0 01 1 9707-9904 ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10 		9-09110-410-0 01 1 9905- ● ●
289 NUT; LEVER
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8 		9-09111-408-0 01 1 9707-9904 ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8 		9-09111-408-0 01 1 9905- ● ●
335 WASHER; PL LEVER
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> 		5-09503-135-0 01 1 9707-9904 ●
335 WASHER; PL LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> 		5-09503-135-0 01 1 9905- ● ●
345 NUT; BRKT
SHORT CHASSIS&RHD(EXZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91150-108-0 01 1 9707-9904 ●
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
