Isuzu WW
▶
TRUCKS
▶
FRR
▶
11440 - FRR-L SPACE EU4 DOC
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

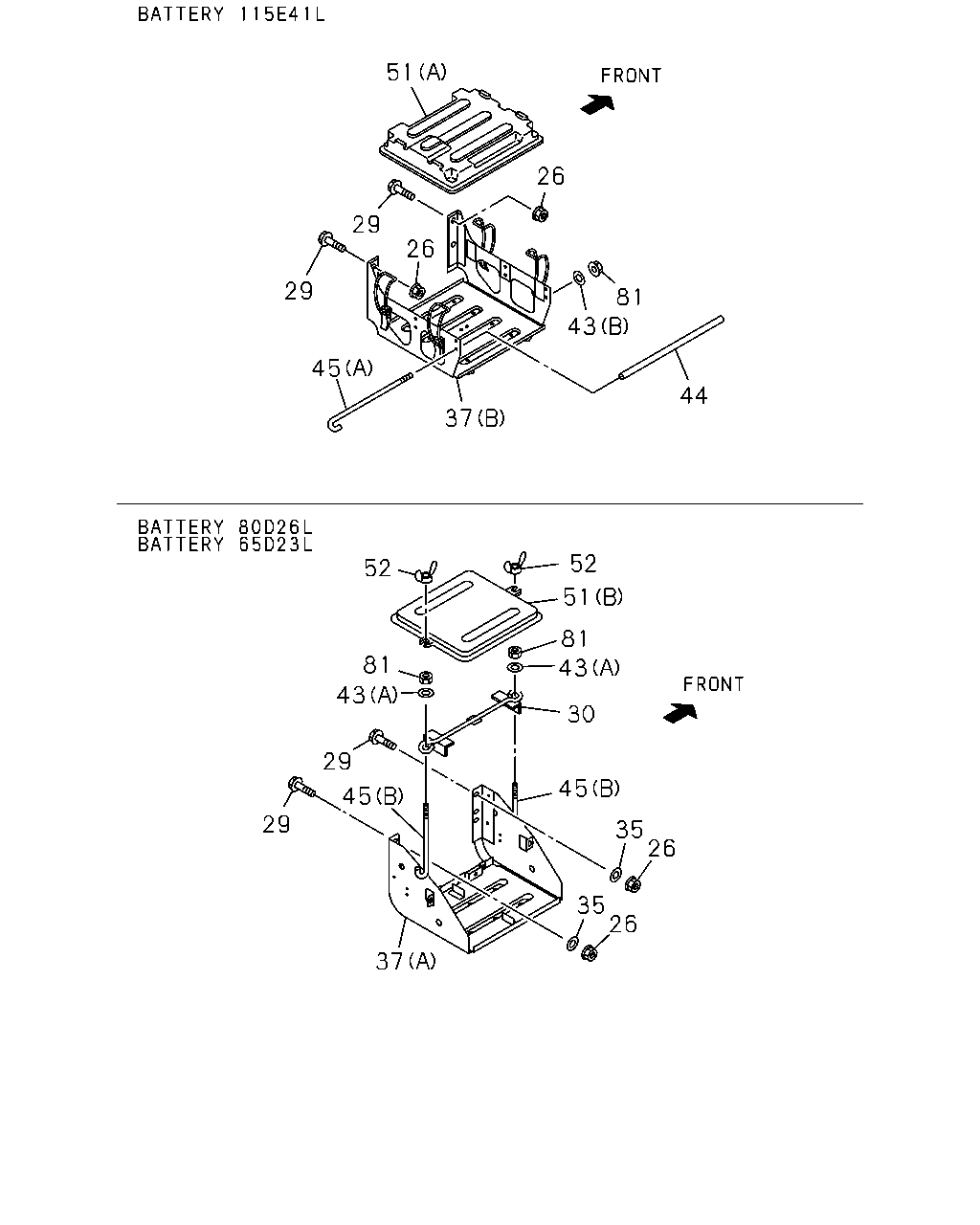

5-20 — BATTERY CARRIER
(#46913) — 17 parça
51
26
81
44
43
37
45
29
26
9
37
26
35
26
35
45
30
43
52
51
81
52
81
43
29
45
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1109-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
1109-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1109-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1109-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
1109-1405
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1406-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1109-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1109-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
1109-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
1109-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1109-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
1109-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1109-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1109-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1109-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1109-
