5-01 — FRAME AND OTHER PARTS (#46910) — 90 parça

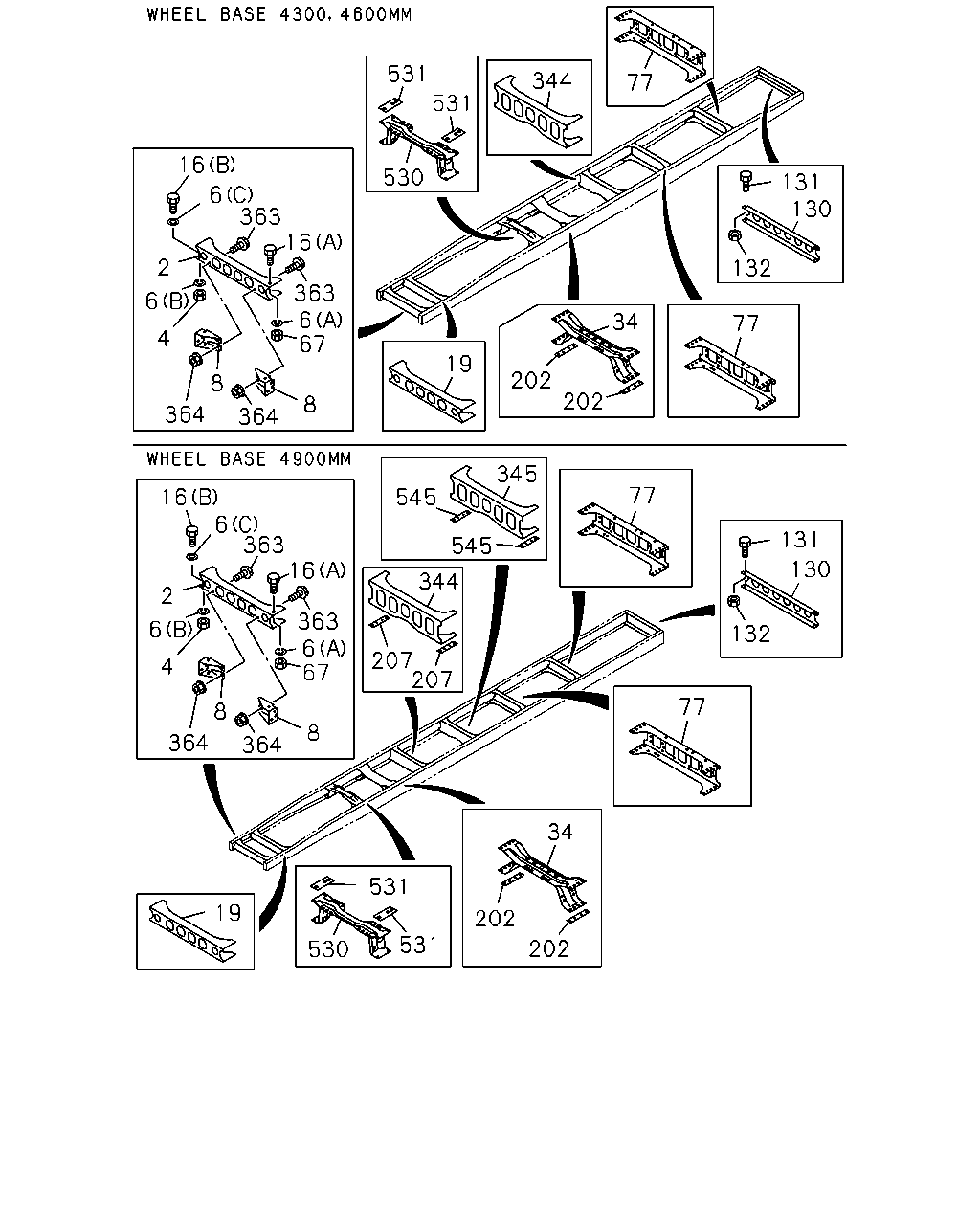

çizim 15987
531 344 77 531 16 530 131 130 6 363 16 2 132 363 6 67 6 34 77 4 19 202 8 202 8 364 364 345 77 16 6 363 16 545 131 545 130 344 2 363 6 67 6 132 207 207 4 77 8 8 364 364 34 531 19 202 531 202 530
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 1109-1205 ●
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1206- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1109-1205 ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1206- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1109-1205 ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1206- ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1109-1205 ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1206- ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1109-1205 ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1206- ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-1 01 1 1109-1205 ●
8 GUSSET; 1ST C/MBR 8-97617-910-2 01 1 1206- ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-2 01 1 1109-1205 ●
8 GUSSET; 1ST C/MBR 8-97617-911-3 01 1 1206- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1109-1205 ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1206- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1109-1205 ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1206- ● ● ●
19 MEMBER; CROSS,2ND 8-97620-866-5 01 1 1109-1205 ●
19 MEMBER; CROSS,2ND 8-97620-866-6 01 1 1206- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1109-1205 ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1206- ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1109-1205 ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1206- ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 1109-1205 ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 1206- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1109-1205 ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1206- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1109-1205 ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1206- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1109-1205 ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1206- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1109-1205 ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1206- ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1206- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1206- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1109-1205 ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1206- ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1206- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1109-1205 ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1206- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1109-1205 ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1206- ● ● ●
530 MEMBER; CROSS,T/M 8-97609-814-1 01 1 1109-1205 ●
530 MEMBER; CROSS,T/M 8-97609-814-1 01 1 1206- ● ● ●
531 SPACER; C/MBR,T/M 8-97637-078-0 02 1 1109-1205 ●
531 SPACER; C/MBR,T/M 8-97637-078-0 02 1 1206- ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1206- ●

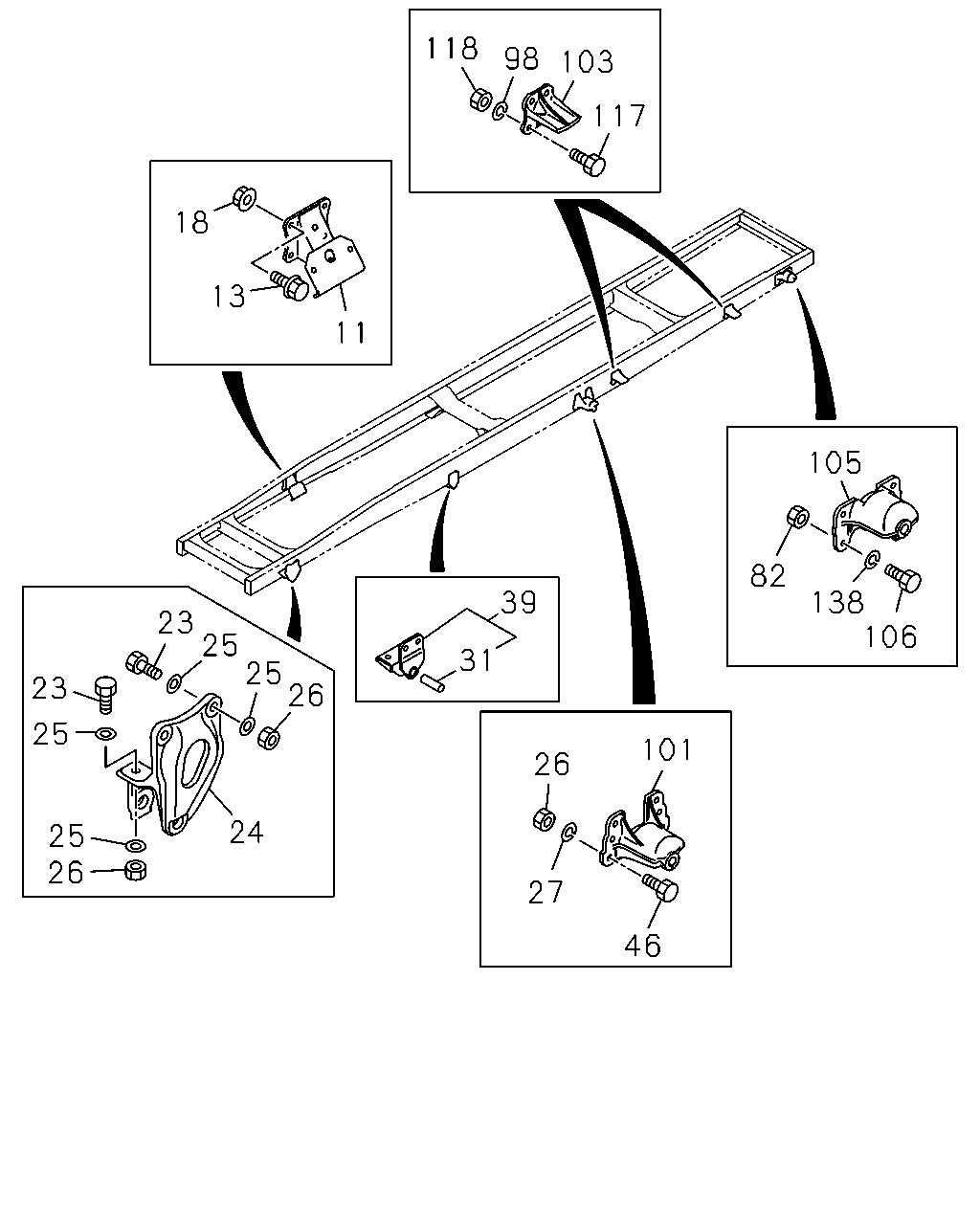

çizim 16681
118 98 103 117 18 13 11 105 82 138 106 39 23 25 25 26 31 23 25 101 26 24 25 26 27 46
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97604-129-0 02 1 1109-1205 ●
11 BRACKET; ENG MTG 8-97604-129-0 02 1 1206- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1109-1205 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1206- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1109-1205 ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1206- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1109-1205 ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1206- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1109-1205 ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1206- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1109-1205 ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1206- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1109-1205 ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1206- ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1109-1205 ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1206- ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1109-1205 ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1206- ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1109-1205 ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1206- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1109-1205 ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1206- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1109-1205 ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1206- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1109-1205 ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1206- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1109-1205 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1206- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1109-1205 ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1206- ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1109-1205 ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1206- ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1109-1205 ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1206- ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1109-1205 ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1206- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1109-1205 ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1206- ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1109-1205 ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1206- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1109-1205 ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1206- ● ● ●
