Isuzu WW
▶
TRUCKS
▶
FRR
▶
11440 - FRR-L SPACE EU4 DOC
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

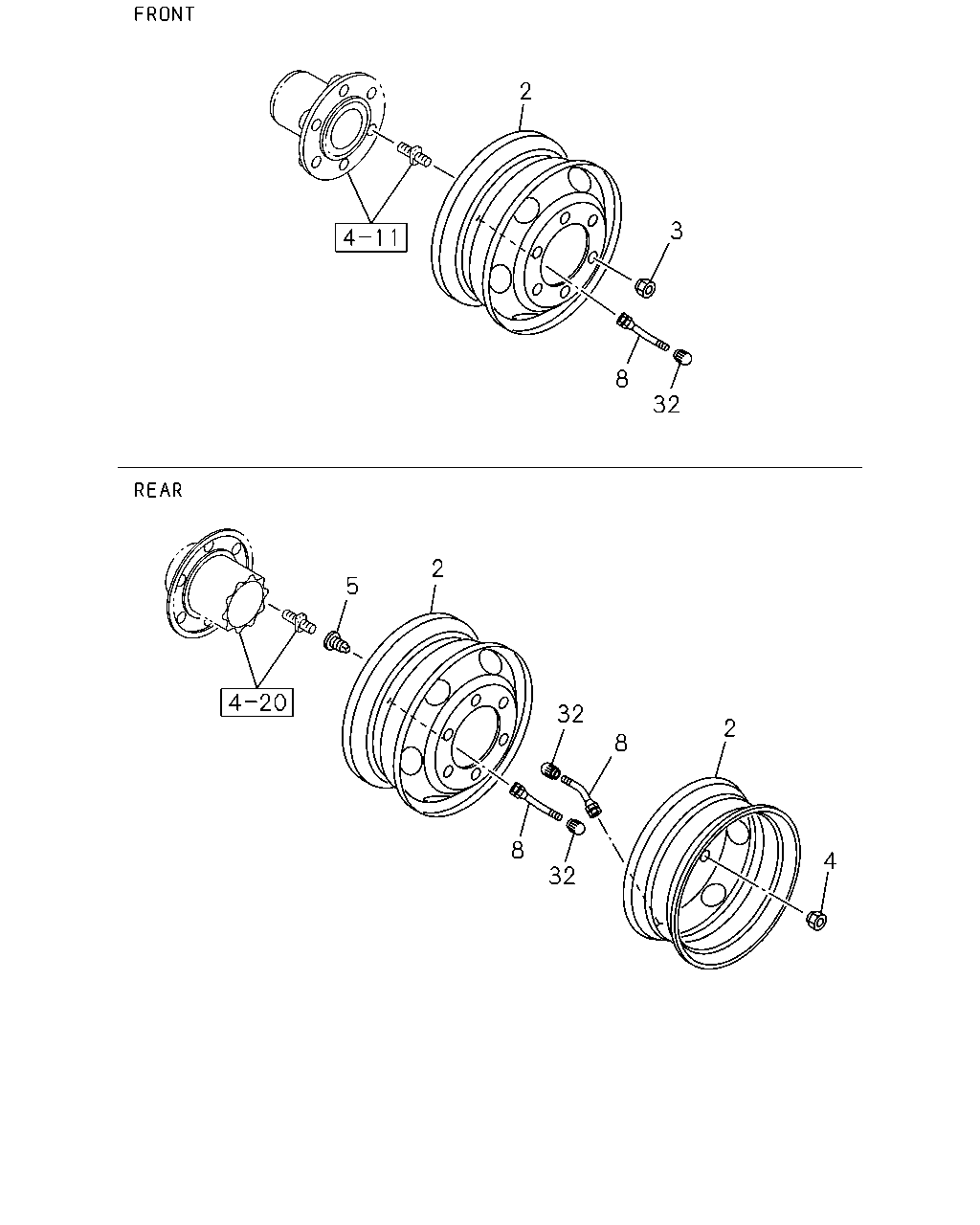

4-80 — ROAD WHEEL
(#46909) — 17 parça
2
3
8
32
2
5
32
2
8
8
4
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE
1-42350-767-0
01
1
1109-
2
WHEEL; DISC
FRONT,REAR
1-42350-767-0
06
1
1109-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
06
1
1109-
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
06
1
1109-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
1109-
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
1109-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
1109-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
1109-
8
VALVE; TIRE
FRONT,REAR
1-42370-007-1
06
1
1109-
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
1-42370-007-1
01
1
1109-1202
8
VALVE; TIRE
DISC WHEEL SPARE<N79> SPARE
1-42370-007-1
01
1
1203-
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE
1-42370-007-1
01
1
1203-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
1-42374-001-0
07
1
1109-1202
32
CAP; VALVE
DISC WHEEL SPARE<N79>
1-42374-001-0
07
1
1203-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>
1-42374-001-0
07
1
1203-
32
CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
1-42374-001-0
06
1
1109-1202
32
CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
1-42374-001-0
06
1
1203-
