4-65 — REAR LEAF SPRING (#46908) — 74 parça

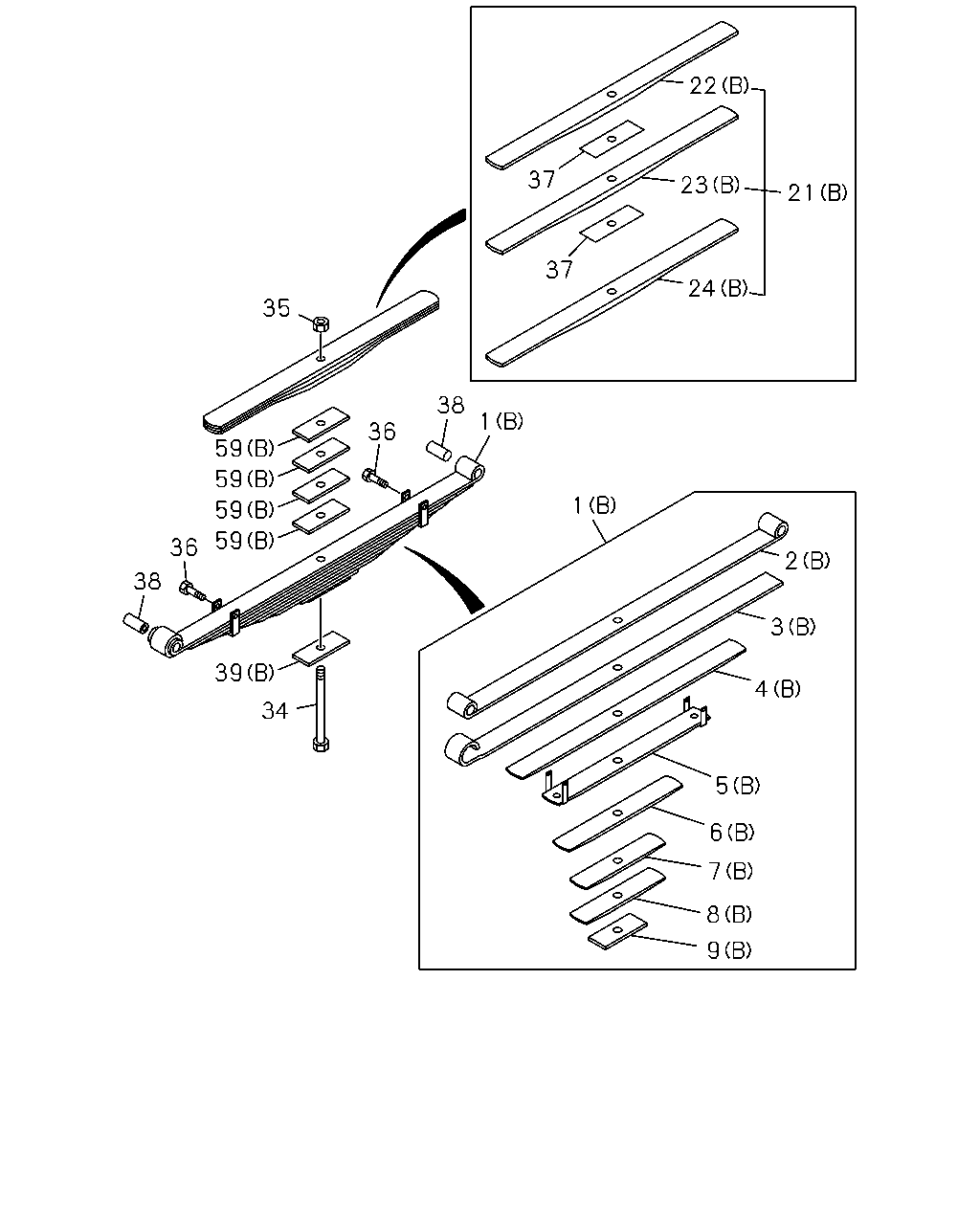

22 37 23 21 37 24 35 38 1 36 59 59 1 59 59 36 2 38 3 39 4 34 5 6 7 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-274-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-643-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-275-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-635-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-276-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-636-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-277-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-637-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-278-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-638-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-279-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-639-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-280-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-640-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-281-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-641-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-282-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-642-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (B) ASM PART: B = 8-98079-006-0	8-98031-283-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (A) ASM PART: A = 8-98064-449-0	8-98081-651-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (B) ASM PART: B = 8-98079-006-0	8-98031-284-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (A) ASM PART: A = 8-98064-449-0	8-98081-644-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (B) ASM PART: B = 8-98079-006-0	8-98031-285-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (A) ASM PART: A = 8-98064-449-0	8-98081-645-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (B) ASM PART: B = 8-98079-006-0	8-98031-286-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (A) ASM PART: A = 8-98064-449-0	8-98081-646-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=190 ASM PART: A = 8-98064-449-0, B = 8-98079-006-0	1-51356-352-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-98064-449-0, B = 8-98079-006-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X85 ASM PART: A = 8-98064-449-0, B = 8-98079-006-0	1-09000-366-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: B = 8-98079-006-0	1-51377-361-0	02	1	-
38	BUSHING; LEAF SPR,RR ID=25 ASM PART: A = 8-98064-449-0, B = 8-98079-006-0	9-51151-032-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=7 ASM PART: B = 8-98079-006-0	1-51377-356-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=6 ASM PART: A = 8-98064-449-0	1-51377-359-0	01	1	-
59	SEAT; RR SPRING,SUB (B), T=7 ASM PART: B = 8-98079-006-0	1-51377-356-0	04	1	-
59	SEAT; RR SPRING,SUB (A), T=6 ASM PART: A = 8-98064-449-0	1-51377-359-0	01	1	-

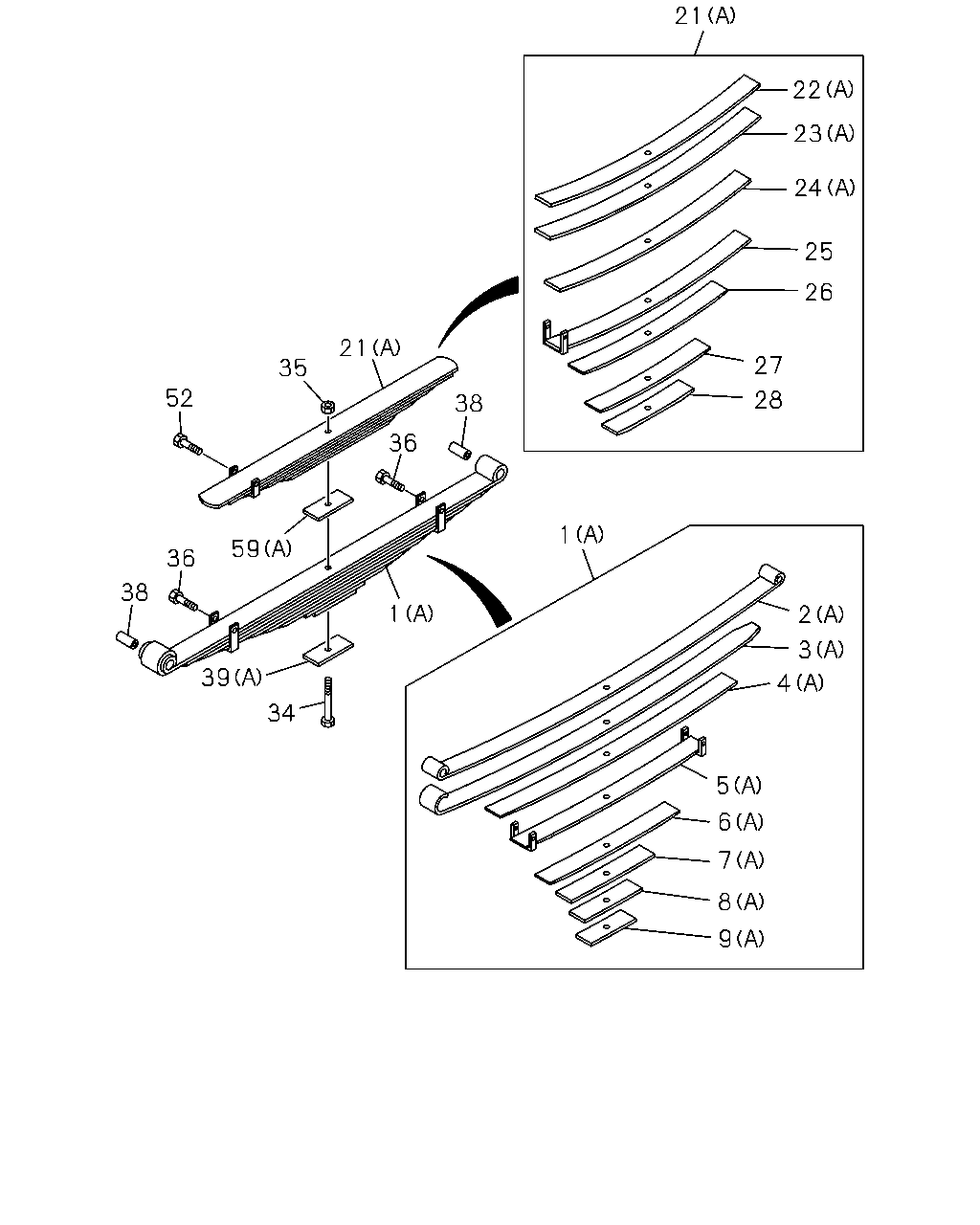

21 22 23 24 25 26 21 27 35 52 28 38 36 1 59 36 38 1 2 3 39 4 34 5 6 7 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-274-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-643-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-275-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-635-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-276-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-636-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-277-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-637-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-278-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-638-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-279-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-639-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-280-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-640-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-281-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-641-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (B) ASM PART: B = 8-98079-006-0	8-98031-282-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (A) ASM PART: A = 8-98064-449-0	8-98081-642-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (B) ASM PART: B = 8-98079-006-0	8-98031-283-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (A) ASM PART: A = 8-98064-449-0	8-98081-651-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (B) ASM PART: B = 8-98079-006-0	8-98031-284-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (A) ASM PART: A = 8-98064-449-0	8-98081-644-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (B) ASM PART: B = 8-98079-006-0	8-98031-285-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (A) ASM PART: A = 8-98064-449-0	8-98081-645-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (B) ASM PART: B = 8-98079-006-0	8-98031-286-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (A) ASM PART: A = 8-98064-449-0	8-98081-646-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 8-98064-449-0	8-98081-647-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 8-98064-449-0	8-98081-648-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB ASM PART: A = 8-98064-449-0	8-98081-649-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB ASM PART: A = 8-98064-449-0	8-98081-650-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=190 ASM PART: A = 8-98064-449-0, B = 8-98079-006-0	1-51356-352-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-98064-449-0, B = 8-98079-006-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X85 ASM PART: A = 8-98064-449-0, B = 8-98079-006-0	1-09000-366-0	02	1	-
38	BUSHING; LEAF SPR,RR ID=25 ASM PART: A = 8-98064-449-0, B = 8-98079-006-0	9-51151-032-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=7 ASM PART: B = 8-98079-006-0	1-51377-356-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=6 ASM PART: A = 8-98064-449-0	1-51377-359-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M8X85 ASM PART: A = 8-98064-449-0	1-09000-366-0	01	1	-
59	SEAT; RR SPRING,SUB (B), T=7 ASM PART: B = 8-98079-006-0	1-51377-356-0	04	1	-
59	SEAT; RR SPRING,SUB (A), T=6 ASM PART: A = 8-98064-449-0	1-51377-359-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
