4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#46901) — 53 parça

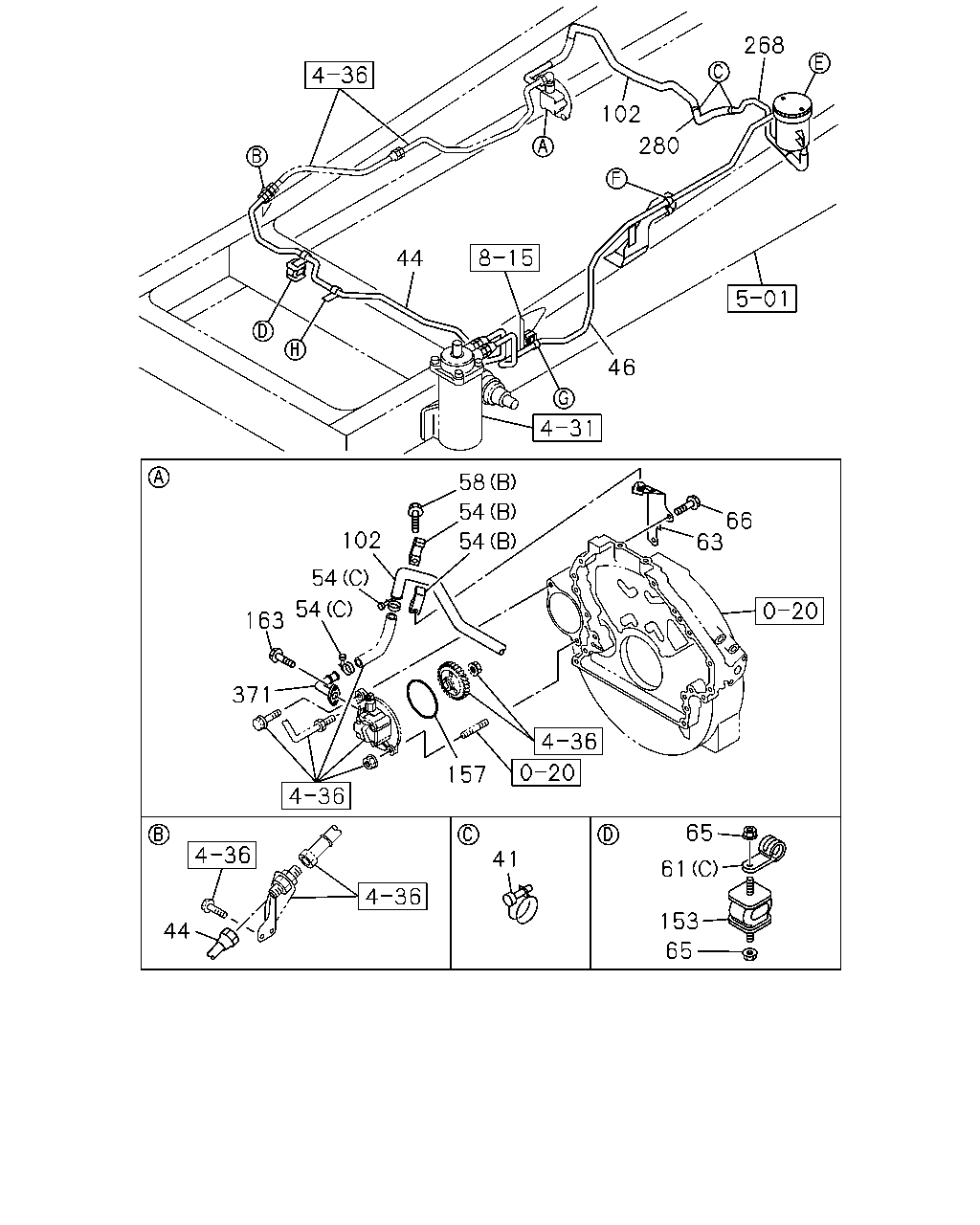

268 102 280 44 46 58 54 66 63 102 54 54 54 163 371 157 65 41 61 153 44 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1109-
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98179-618-0	01	1	1109-
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. GENERATOR 24V90A(K44)	8-98173-341-0	01	1	1109-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1530	8-98126-593-0	01	1	1109-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1109-
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	02	1	1109-
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1109-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1109-
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	01	1	1109-
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	1109-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1109-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1109-
61	CLIP; OIL PIPE (B) ID=13 H=18 L=20	1-09700-813-0	01	1	1109-
63	BRACKET; CLIP,P/S	8-98075-954-0	01	1	1109-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1109-
66	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1109-
102	PIPE; SUCTION,P/S	8-98057-017-4	01	1	1109-
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	02	1	1109-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1109-
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1109-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98077-739-2	01	1	1109-
280	HOSE; P/S OIL PUMP,INL	8-98053-040-1	01	1	1109-
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1109-

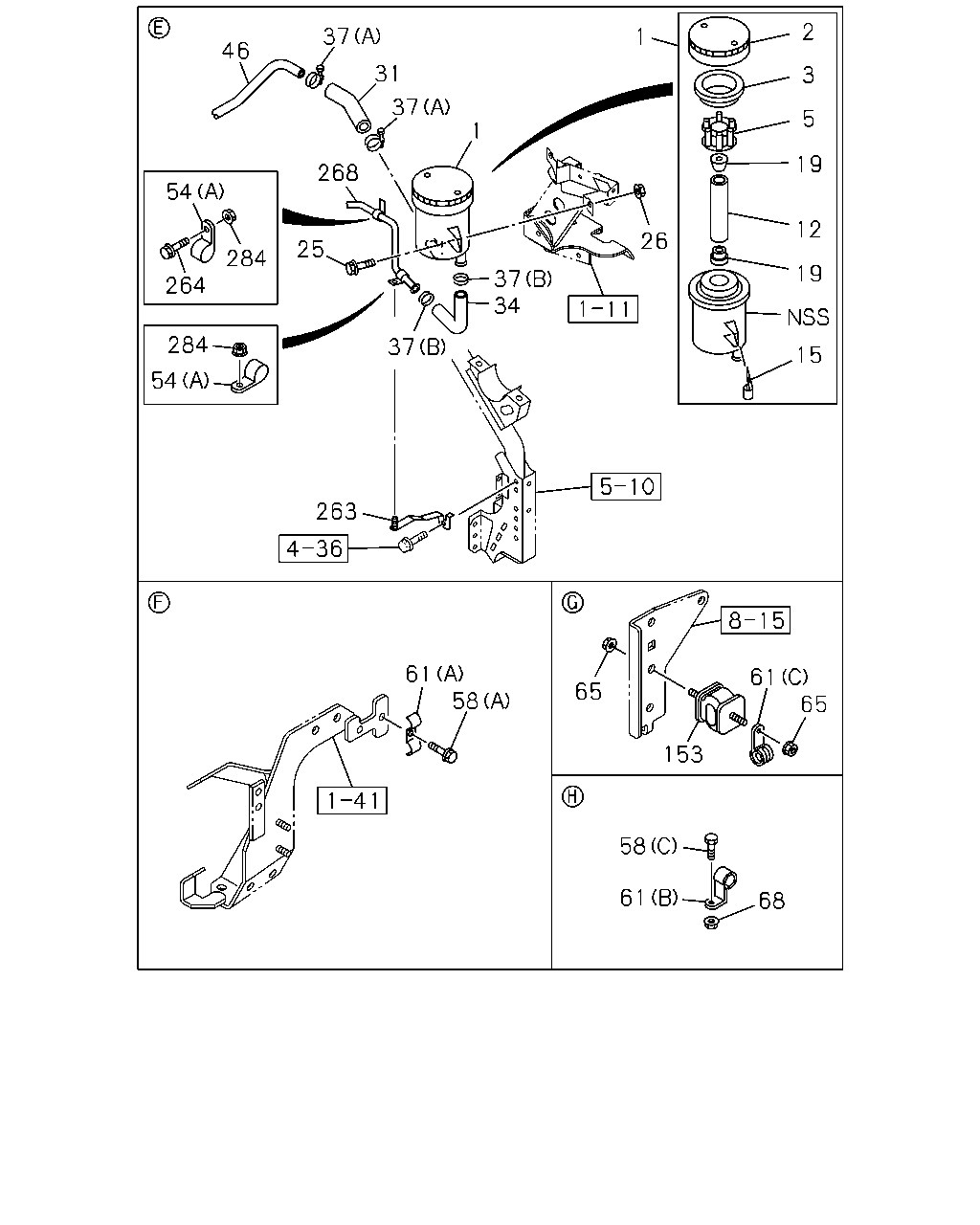

2 37 1 46 31 3 37 5 1 19 268 54 12 26 25 284 19 37 34 264 284 37 15 54 263 61 58 61 65 65 153 58 61 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1109-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1109-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1109-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1109-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1109-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1109-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1109-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1109-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1109-
31	HOSE; P/S OIL TANK,INL	8-98131-108-0	01	1	1109-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1109-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1109-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1109-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1530	8-98126-593-0	01	1	1109-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1109-
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	02	1	1109-
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1109-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1109-
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	01	1	1109-
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	1109-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1109-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1109-
61	CLIP; OIL PIPE (B) ID=13 H=18 L=20	1-09700-813-0	01	1	1109-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1109-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1109-
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	02	1	1109-
263	BRACKET; P/S PIPE	8-98130-274-0	01	1	1109-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1109-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98077-739-2	01	1	1109-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1109-
