Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

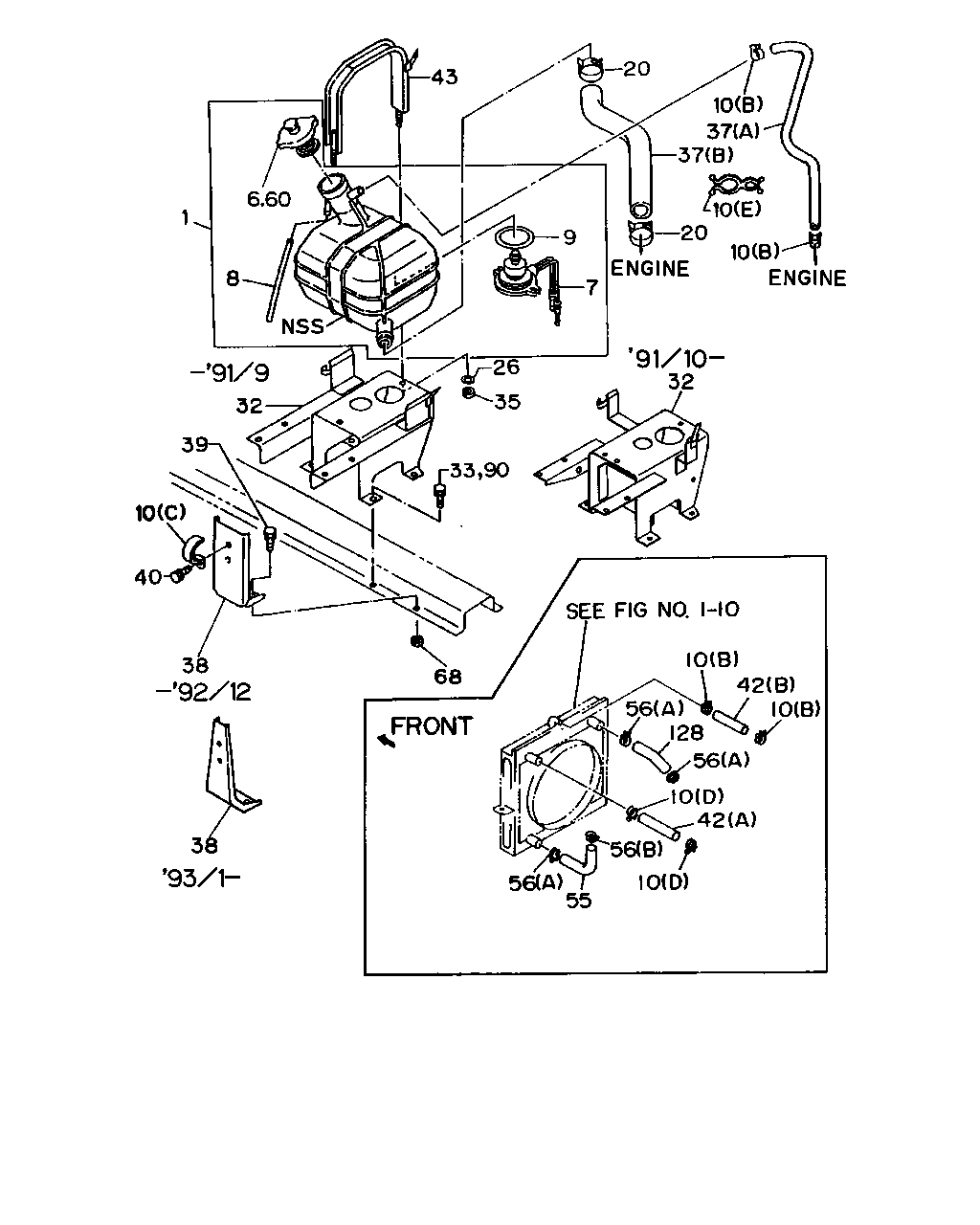

1-11B - RADIATOR HOSE AND SUB TANK
▶
1-11B — RADIATOR HOSE AND SUB TANK
(#469) — 48 parça
Tümü
A - 10PC1 STD ENG
B - 10PD1 STD ENG
10
42
10
56
128
56
10
42
56
10
55
56
68
38
38
40
10
39
32
33
90
35
26
8
1
6
60
43
9
7
32
20
37
37
10
10
10
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
1-21481-039-5
01
1
8712-9306
●
●
1
TANK; SURGE,RAD
1-21481-080-1
01
1
9307-
●
6
CAP; SUB TANK
1-21450-083-4
01
1
8712-9306
●
●
7
SWITCH ASM; TANK
1-82480-022-3
01
1
8712-9306
●
●
7
SWITCH ASM; TANK
1-82480-045-0
01
1
9307-
●
8
HOSE; VINYL
L=1000 SERVICED BY L=3000
0-03259-300-0
01
1
8712-9306
●
●
8
HOSE; VINYL
L=680 SERVICED BY L=3000
0-03259-300-0
01
1
9307-
●
9
GASKET; SWITCH
ID=28 OD=35
1-09630-101-0
01
1
8712-9306
●
●
9
GASKET; SWITCH
ID=27.7
9-09565-228-0
01
1
9307-
●
10
CLIP; RUBBER HOSE
(C)
1-09700-703-0
01
1
8712-
●
●
10
CLIP; RUBBER HOSE
(D)
1-09704-077-0
02
1
8712-
●
●
10
CLIP; RUBBER HOSE
(E)
1-09709-125-0
03
1
8712-
●
●
10
CLIP; RUBBER HOSE
(B)
8-94238-572-0
04
1
8712-8903
●
10
CLIP; RUBBER HOSE
(B)
1-09704-102-0
04
1
8904-
●
●
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
8712-
●
●
26
WASHER
ID=8.4
9-09160-508-0
02
1
8712-8904
●
26
WASHER
ID=8.4
9-09160-508-0
04
1
8905-
●
●
32
BRACKET; SUB TANK
1-21489-051-6
01
1
8712-8904
●
32
BRACKET; SUB TANK
1-21489-111-0
01
1
8905-9109
●
●
32
BRACKET; SUB TANK
1-21489-137-1
01
1
9110-
●
33
BOLT; BRKT
M10X25
9-01911-025-0
04
1
8712-9002
●
●
33
BOLT; BRKT
M10X25 W/LK WASHER
0-50041-025-0
04
1
9003-
●
35
NUT
M8
9-09110-408-0
04
1
8712-
●
●
37
HOSE; RUBBER
(A) L=1150 SERVICED BY L=3000
0-03259-300-0
01
1
8712-
●
●
37
HOSE; RUBBER
(B) ID=31
1-21437-161-1
01
1
8712-
●
●
38
BRACKET; RUBBER HOSE
1-21464-092-0
02
1
8712-9001
●
38
BRACKET; RUBBER HOSE
1-21464-092-0
01
1
9002-9212
●
38
BRACKET; RUBBER HOSE
1-21464-341-0
01
1
9301-
●
39
BOLT; BRKT FIX
M10X25
9-01911-025-0
02
1
8712-9002
●
●
39
BOLT; BRKT FIX
M10X25 W/LK WASHER
0-50041-025-0
02
1
9003-9506
●
39
BOLT; BRKT FIX
M10X20 FLANGE
0-28081-020-0
02
1
9507-
●
40
BOLT; CLIP
M10X25 W/LK WASHER
9-01901-025-0
01
1
8712-9001
●
●
40
BOLT; CLIP
M10X25
9-01911-025-0
01
1
9002-9002
●
40
BOLT; CLIP
M10X25 W/LK WASHER
0-50041-025-0
01
1
9003-9506
●
40
BOLT; CLIP
M10X20 FLANGE
0-28081-020-0
01
1
9507-
●
42
HOSE; RUBBER
(B) L=350
0-03209-350-0
01
1
8712-9306
●
●
42
HOSE; RUBBER
(B) L=350 SERVICED BY L=3000
0-03259-300-0
01
1
9307-
●
42
HOSE; RUBBER
(A) L=290
1-09360-536-0
01
1
8712-9306
●
●
42
HOSE; RUBBER
(A) L=290 SERVICED BY L=3000
5-09361-047-0
01
1
9307-
●
43
BAND ASM
1-21489-062-2
01
1
8712-9109
●
●
43
BAND ASM
1-21489-139-2
01
1
9110-
●
55
HOSE; WATER,RAD OUTLET
1-21437-199-2
01
1
8712-
●
●
56
CLIP; WATER HOSE,RAD
(A) ID=72
1-09704-068-0
03
1
8712-
●
●
56
CLIP; WATER HOSE,RAD
(B) ID=83
1-09704-075-0
01
1
8712-
●
●
60
CAP; SUB TANK
1-21450-083-4
01
1
9307-
●
68
NUT; BRKT
M10
9-09110-510-0
02
1
8712-
●
●
90
BOLT; SUB TANK TO BRKT
M10X25 W/LK WASHER
0-50041-025-0
04
1
9010-
●
128
HOSE; WATER,RAD INL
1-21437-025-1
01
1
8712-
●
●
