4-10 — FRONT AXLE (#46894) — 102 parça

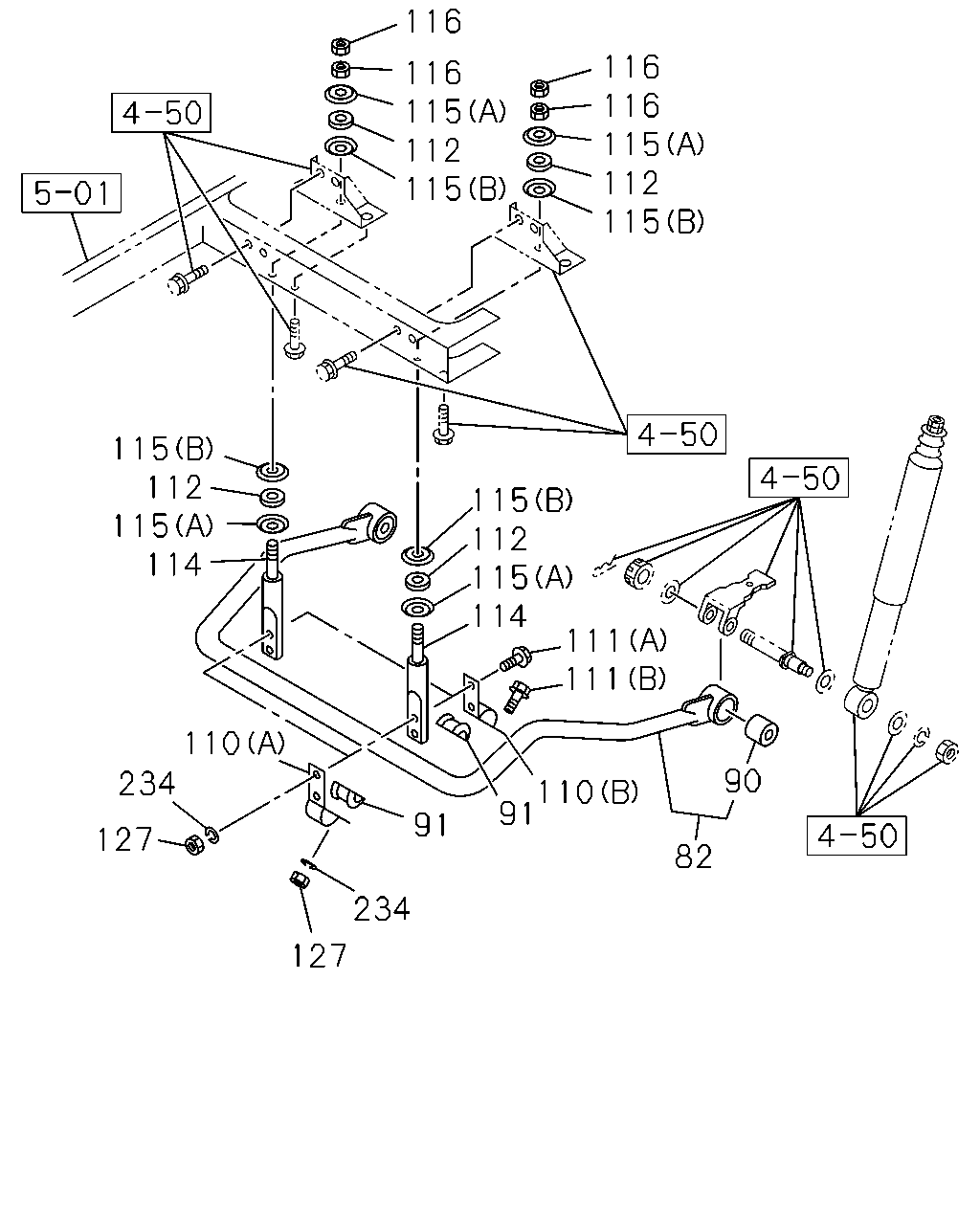

116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 111 111 110 90 234 110 91 91 127 82 234 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51770-114-0	01	1	1109-
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-066-0	02	1	1109-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1109-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1109-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1109-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE	0-28051-230-0	02	1	1109-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X50 FLANGE	0-28051-250-0	04	1	1109-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	1109-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-082-0	02	1	1109-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	1109-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	1109-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1109-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1109-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1109-

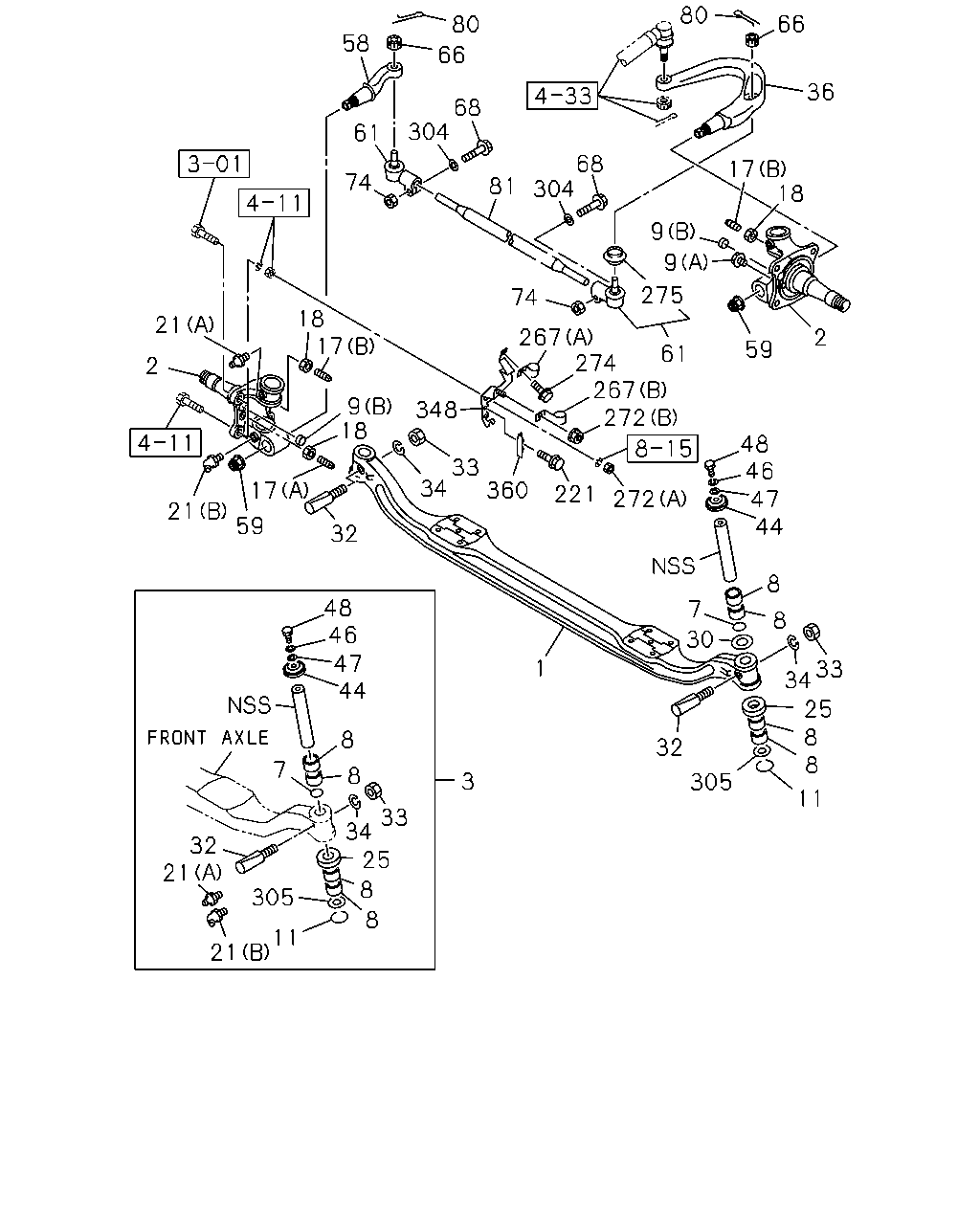

80 66 80 58 66 36 68 304 61 68 304 17 18 74 81 9 9 275 74 18 17 21 267 274 267 272 2 59 61 2 9 18 348 48 46 47 44 33 17 221 272 21 59 32 8 48 46 47 44 7 8 30 1 33 34 25 8 8 8 32 7 8 33 34 25 3 305 11 32 21 8 305 8 11 21 360 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	8-98057-479-2	01	1	1109-
2	KNUCKLE; FRT AXLE BRAKE ADJUSTER MANUAL<BJR>	8-98172-431-1	01	1	1109-
2	KNUCKLE; FRT AXLE BRAKE ADJUSTER MANUAL<BJR>	8-98172-432-1	01	1	1109-
2	KNUCKLE; FRT AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-43131-127-1	01	1	1109-
2	KNUCKLE; FRT AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-43132-127-1	01	1	1109-
3	KING PIN SET	1-87831-295-3	01	1	1109-
3	KING PIN SET	1-87831-296-3	01	1	1109-
7	SEAL; OIL,KING PIN	1-09625-005-1	02	1	1109-
8	BEARING; NEEDLE,KING PIN NSK	1-09811-339-0	08	1	1109-
9	PLUG; KNUCKLE (A) M14X14	8-97329-621-0	01	1	1109-
9	PLUG; KNUCKLE EXC. BRAKE ADJUSTER MANUAL<BJR> (B) OD=22	1-09600-011-2	02	1	1109-1205
9	PLUG; KNUCKLE EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) OD=22	1-09600-011-2	02	1	1206-
11	RING; SNAP,KNUCKLE PLUG	1-09589-017-1	02	1	1109-
17	BOLT; STOPPER KNUCKLE (A) M14X47	1-09009-191-0	01	1	1109-
17	BOLT; STOPPER KNUCKLE (B) M14X53	8-98065-261-0	02	1	1109-
18	NUT; STOPPER BOLT,KNUCKLE M14	0-91112-814-0	03	1	1109-
21	NIPPLE; GREASE,KING PIN (A) PT1/8 STRAIGHT	0-90301-410-0	02	1	1109-
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1109-
25	BEARING; THRUST,KING PIN NSK	1-09829-031-0	01	1	1109-
25	BEARING; THRUST,KING PIN NSK	1-09829-033-1	01	1	1109-
30	WASHER; THRUST,KING PIN T=3.900	1-43171-261-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=3.912	1-43171-262-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=3.925	1-43171-263-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=3.937	1-43171-264-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=3.950	1-43171-265-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=3.962	1-43171-266-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=3.975	1-43171-267-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=3.987	1-43171-268-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.000	1-43171-269-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.012	1-43171-270-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.025	1-43171-271-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.037	1-43171-272-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.050	1-43171-273-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.062	1-43171-274-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.075	1-43171-275-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.087	1-43171-276-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.100	1-43171-277-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.112	1-43171-278-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.125	1-43171-279-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.137	1-43171-280-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.150	1-43171-281-1	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.162	1-43171-311-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.175	1-43171-312-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.187	1-43171-313-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.200	1-43171-314-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.212	1-43171-315-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.225	1-43171-316-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.237	1-43171-317-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.250	1-43171-318-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.262	1-43171-319-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.275	1-43171-320-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.287	1-43171-321-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.300	1-43171-322-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.312	1-43171-323-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.325	1-43171-324-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.337	1-43171-325-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.350	1-43171-326-0	AR	1	1109-
32	BOLT; KEY,KING PIN	1-43116-013-1	02	1	1109-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1109-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1109-
36	ARM; KNUCKLE	8-98057-563-0	01	1	1109-
44	COVER; KING PIN	1-43175-031-0	02	1	1109-
46	WASHER; LK,COVER ID=12.2	0-91510-812-0	02	1	1109-
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	0-91614-712-0	02	1	1109-
48	BOLT; COVER M12X25	1-09009-081-0	02	1	1109-
58	ARM; TIE ROD	8-98057-564-2	01	1	1109-
59	NUT; TIE ROD ARM M27 FLANGE	1-09449-082-0	02	1	1109-
61	ROD END; TIE ROD	1-43150-748-1	01	1	1109-
61	ROD END; TIE ROD	1-43150-749-1	01	1	1109-
66	NUT; TIE ROD END M16 SLOTTED	1-09442-031-0	02	1	1109-
68	BOLT; TIE ROD END M12X45 FLANGE	0-28061-245-0	02	1	1109-
74	NUT; TIE ROD END M12	0-91110-512-0	02	1	1109-
80	PIN; SPLIT,ROD END OD=3.7 L=22	0-81124-022-0	02	1	1109-
81	ROD; TIE	8-98038-703-1	01	1	1109-
221	BOLT; BRKT,SENSOR ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 FLANGE	0-28050-816-0	04	1	1206-
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) ID=11 L=16	0-95235-025-0	02	1	1206-
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) ID=11 H=20 L=20	8-98033-780-0	02	1	1206-
272	NUT; CLIP ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M14	0-91110-514-0	02	1	1206-
272	NUT; CLIP ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) M8 FLANGE	0-91180-108-0	02	1	1206-
274	BOLT; CLIP ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 FLANGE	0-28050-816-0	02	1	1206-
275	BOOT; ROD END,TIE	1-85574-046-0	02	1	1109-
304	WASHER; PL ID=12.5	0-91614-512-0	02	1	1109-
305	COVER; KNUCKLE	1-43175-030-0	02	1	1109-
348	BRACKET; CLIP ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98055-137-1	01	1	1206-
348	BRACKET; CLIP ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98055-138-1	01	1	1206-
360	COVER; SENSOR ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98018-400-0	01	1	1206-
360	COVER; SENSOR ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98018-401-0	01	1	1206-

105

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	105	BOLT; BRKT FIX ANTI LOCK BRAKE(JE5) M8X12 FLANGE	0-28050-812-0	04	1	1206-
