Sayfa 0-33A - Isuzu EPC

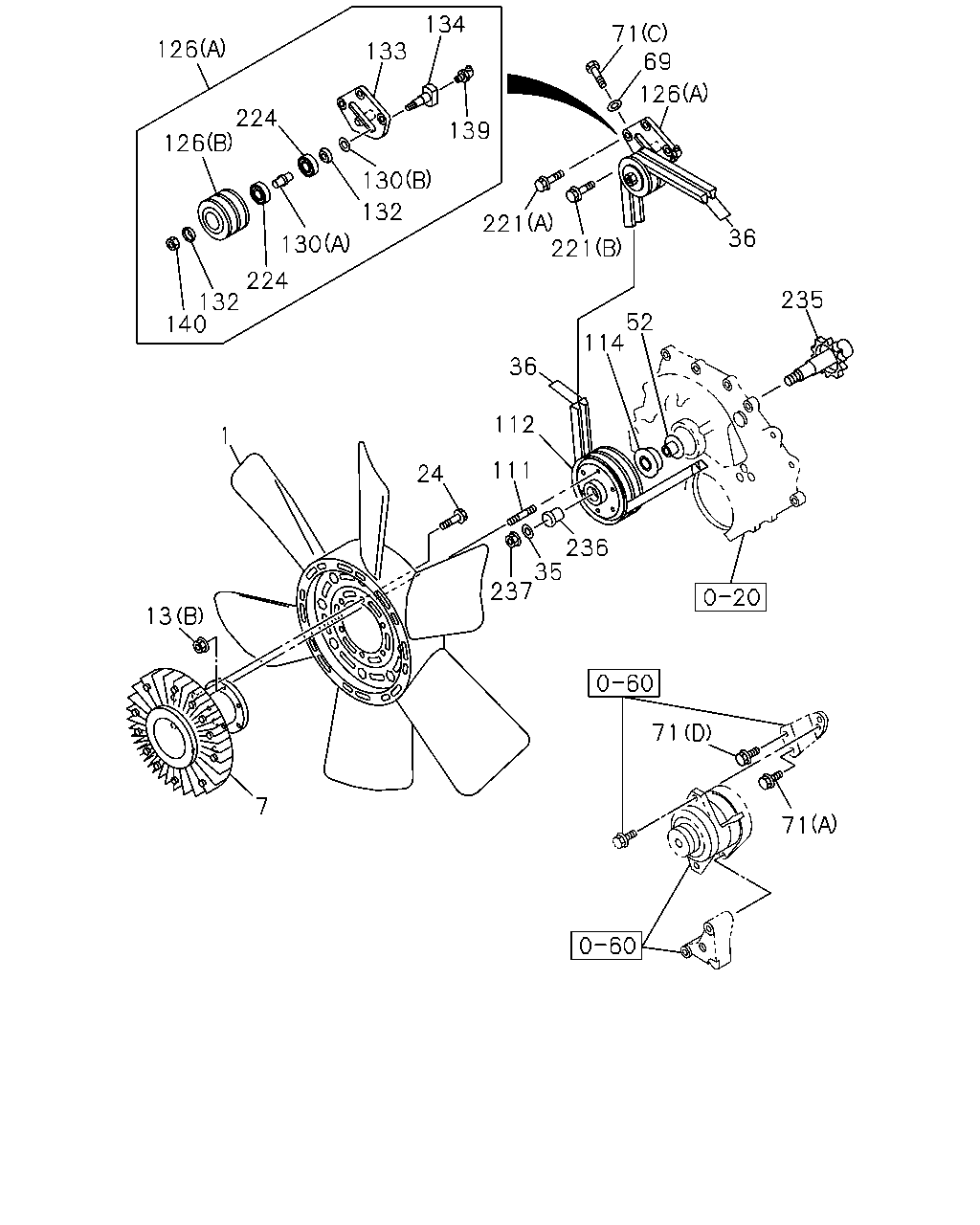

0-33A — FAN AND FAN BELT (#4689) — 217 parça

134 71 69 126 133 126 224 126 139 130 132 221 36 130 221 224 132 140 235 52 114 36 112 1 111 24 236 35 237 13 71 7 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	FAN; COOLING	1-13660-224-0	01	1	9603-9801	●
1	FAN; COOLING	1-13660-224-0	01	1	9802-9904	●	●
1	FAN; COOLING	1-13660-286-1	01	1	9707-9904			●
1	FAN; COOLING	1-13660-286-1	01	1	9905-				●
1	FAN; COOLING	1-13660-224-0	01	1	9905-	●	●			●
7	COUPLING; FAN EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-21650-192-0	01	1	9603-9609	●
7	COUPLING; FAN EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>, EURO2 SPECIFICATION<THN>	1-21650-192-0	01	1	9610-9804	●
7	COUPLING; FAN EURO2 SPECIFICATION<THN>	1-21650-192-1	01	1	9905-		●
7	COUPLING; FAN EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-21650-192-1	01	1	9905-					●
7	COUPLING; FAN EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,EURO2 SPECIFICATION<THN>	1-21650-178-0	01	1	9603-9804	●
7	COUPLING; FAN EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,EURO2 SPECIFICATION<THN>	1-21650-178-1	01	1	9805-9904	●
7	COUPLING; FAN	1-21650-178-1	01	1	9805-9904		●
7	COUPLING; FAN	1-21650-188-0	01	1	9707-9904			●
7	COUPLING; FAN	1-21650-188-1	01	1	9905-				●
7	COUPLING; FAN	1-21650-178-1	01	1	9905-	●
7	COUPLING; FAN EXC. EURO2 SPECIFICATION<THN>	1-21650-178-1	01	1	9905-		●
7	COUPLING; FAN EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-21650-178-1	01	1	9905-					●
13	NUT; COOLING FAN (A) M8 FLANGE	0-91150-208-0	06	1	9603-9804	●
13	NUT; COOLING FAN (A) M8 FLANGE	0-91150-208-0	06	1	9805-9904	●	●
13	NUT; COOLING FAN (B) M10 FLANGE	0-91150-210-0	06	1	9603-9706	●
13	NUT; COOLING FAN (B) M10 FLANGE	0-91150-210-0	06	1	9707-9804	●		●
13	NUT; COOLING FAN (B) M10 FLANGE	0-91150-210-0	06	1	9805-9904	●	●	●
13	NUT; COOLING FAN (A) M8 FLANGE	0-91150-208-0	06	1	9905-	●	●			●
13	NUT; COOLING FAN (B) M10 FLANGE	0-91150-210-0	06	1	9905-	●	●		●	●
24	BOLT; FAN M10X40 FLANGE	0-28791-040-0	06	1	9707-9904			●
24	BOLT; FAN M10X40 FLANGE	0-28791-040-0	06	1	9905-				●
35	WASHER; PL ID=28 T=4	1-09503-016-0	01	1	9603-9706	●
35	WASHER; PL ID=28 T=4	1-09503-016-0	01	1	9707-9804	●		●
35	WASHER; PL ID=28 T=4	1-09503-016-0	01	1	9805-9904	●	●	●
35	WASHER; PL ID=28 T=4	1-09503-016-0	01	1	9905-	●	●		●	●
36	BELT; COOLING FAN 1 SET=2 PIECE(1136714310) MITSUBOSHI	1-13671-430-0	01	1	9707-9904			●
36	BELT; COOLING FAN 1 SET=2 PIECE(1136714310) MITSUBOSHI	1-13671-430-0	01	1	9905-				●
52	SPACER; FAN DRIVE	1-13669-165-0	01	1	9603-9706	●
52	SPACER; FAN DRIVE	1-13669-165-0	01	1	9707-9804	●		●
52	SPACER; FAN DRIVE	1-13669-165-0	01	1	9805-9904	●	●	●
52	SPACER; FAN DRIVE	1-13669-165-0	01	1	9905-	●	●		●	●
69	WASHER; PL,ADJ PLATE,GEN ID=12.5 OD=32	9-09160-712-0	01	1	9603-9804	●
69	WASHER; PL,ADJ PLATE,GEN ID=12.5 OD=32	9-09160-712-0	01	1	9805-9904	●	●
69	WASHER; PL,ADJ PLATE,GEN ID=10.5 OD=18	9-09160-510-0	01	1	9707-9904			●
69	WASHER; PL,ADJ PLATE,GEN ID=10.5 OD=18	9-09160-510-0	01	1	9905-				●
69	WASHER; PL,ADJ PLATE,GEN ID=12.5 OD=32	9-09160-712-0	01	1	9905-	●	●			●
71	BOLT; ADJ PLATE,GEN (A) M10X60 FLANGE	0-28181-060-0	01	1	9603-9804	●
71	BOLT; ADJ PLATE,GEN (A) M10X60 FLANGE	0-28181-060-0	01	1	9805-9904	●	●
71	BOLT; ADJ PLATE,GEN (B) M10X135	1-09009-113-1	01	1	9603-9804	●
71	BOLT; ADJ PLATE,GEN (B) M10X135	1-09009-113-1	01	1	9805-9805	●	●
71	BOLT; ADJ PLATE,GEN (D) M10X25 FLANGE	0-28181-025-0	01	1	9608-9706	●
71	BOLT; ADJ PLATE,GEN (D) M10X25 FLANGE	0-28181-025-0	01	1	9707-9801	●		●
71	BOLT; ADJ PLATE,GEN (A) M10X110 FLANGE	0-28186-011-0	01	1	9608-9706	●
71	BOLT; ADJ PLATE,GEN (A) M10X110 FLANGE	0-28186-011-0	01	1	9707-9801	●		●
71	BOLT; ADJ PLATE,GEN (D) M10X25 FLANGE	0-28181-025-0	01	1	9802-9804	●		●
71	BOLT; ADJ PLATE,GEN (D) M10X25 FLANGE	0-28181-025-0	01	1	9805-9904	●	●	●
71	BOLT; ADJ PLATE,GEN (A) M10X110 FLANGE	0-28186-011-0	01	1	9802-9804	●		●
71	BOLT; ADJ PLATE,GEN (A) M10X110 FLANGE	0-28186-011-0	01	1	9805-9904	●	●	●
71	BOLT; ADJ PLATE,GEN (B) M10X135	1-09009-113-1	01	1	9806-9904	●	●
71	BOLT; ADJ PLATE,GEN (A) M10X60 FLANGE	0-28181-060-0	01	1	9905-	●	●			●
71	BOLT; ADJ PLATE,GEN (C) M10X140	1-09000-104-1	01	1	9707-9904			●
71	BOLT; ADJ PLATE,GEN (C) M10X140	1-09000-104-1	01	1	9905-				●
71	BOLT; ADJ PLATE,GEN (B) M10X135	1-09009-113-1	01	1	9905-	●	●			●
71	BOLT; ADJ PLATE,GEN (D) M10X25 FLANGE	0-28181-025-0	01	1	9905-	●	●		●	●
71	BOLT; ADJ PLATE,GEN (A) M10X110 FLANGE	0-28186-011-0	01	1	9905-	●	●		●	●
111	STUD; FAN DRIVE M10X25 L=45	9-04321-025-0	06	1	9603-9706	●
111	STUD; FAN DRIVE M10X25 L=45	9-04321-025-0	06	1	9707-9804	●		●
111	STUD; FAN DRIVE M10X25 L=45	9-04321-025-0	06	1	9805-9904	●	●	●
111	STUD; FAN DRIVE M10X25 L=45	9-04321-025-0	06	1	9905-	●	●		●	●
112	PULLEY; FAN CENTER	1-13663-087-0	01	1	9603-9804	●
112	PULLEY; FAN CENTER	1-13663-087-0	01	1	9805-9904	●	●
112	PULLEY; FAN CENTER	1-13663-088-0	01	1	9707-9904			●
112	PULLEY; FAN CENTER	1-13663-088-0	01	1	9905-0008				●
112	PULLEY; FAN CENTER	1-13663-124-1	01	1	0009-				●
112	PULLEY; FAN CENTER	1-13663-087-0	01	1	9905-0008	●	●			●
112	PULLEY; FAN CENTER	1-13663-123-2	01	1	0009-	●	●			●
114	SEAL; OIL	1-09625-570-0	01	1	9603-9706	●
114	SEAL; OIL	1-09625-570-0	01	1	9707-9804	●		●
114	SEAL; OIL	1-09625-570-0	01	1	9805-9904	●	●	●
114	SEAL; OIL	1-09625-570-0	01	1	9905-	●	●		●	●
126	PULLEY; IDLE (A)	1-13660-263-2	01	1	9707-9904			●
126	PULLEY; IDLE (A)	1-13660-263-2	01	1	9905-0008				●
126	PULLEY; IDLE (A)	1-13660-358-2	01	1	0009-				●
126	PULLEY; IDLE (B)	1-13663-067-0	01	1	9707-9904			●
126	PULLEY; IDLE (B)	1-13663-067-0	01	1	9905-0008				●
126	PULLEY; IDLE (B)	1-13663-111-2	01	1	0009-				●
130	SPACER; IDLE PULLEY BRG (A)	1-13666-007-0	01	1	9707-9904			●
130	SPACER; IDLE PULLEY BRG (A)	1-13666-007-0	01	1	9905-				●
130	SPACER; IDLE PULLEY BRG (B)	1-13666-032-0	01	1	9707-9904			●
130	SPACER; IDLE PULLEY BRG (B)	1-13666-032-0	01	1	9905-				●
132	COVER; DUST	1-13664-009-1	02	1	9707-9904			●
132	COVER; DUST	1-13664-009-2	02	1	9905-				●
133	BRACKET; IDLE PULLEY	1-13669-150-1	01	1	9707-9904			●
133	BRACKET; IDLE PULLEY	1-13669-150-1	01	1	9905-				●
134	SPINDLE; IDLE PULLEY	1-13665-035-0	01	1	9707-9904			●
134	SPINDLE; IDLE PULLEY	1-13665-035-0	01	1	9905-				●
139	NIPPLE; GREASE,IDLE PULLEY PT1/8 ELBOW	9-09031-210-0	01	1	9707-9904			●
139	NIPPLE; GREASE,IDLE PULLEY PT1/8 ELBOW	9-09031-210-0	01	1	9905-				●
140	NUT; IDLE PULLEY M18	9-99111-518-0	01	1	9707-9904			●
140	NUT; IDLE PULLEY M18	9-99111-518-0	01	1	9905-				●
221	BOLT; IDLE PULLEY (B) M10X80 FLANGE	0-28181-080-0	01	1	9707-9904			●
221	BOLT; IDLE PULLEY (B) M10X80 FLANGE	0-28181-080-0	01	1	9905-				●
221	BOLT; IDLE PULLEY (A) M10X90 FLANGE	0-28181-090-0	03	1	9707-9904			●
221	BOLT; IDLE PULLEY (A) M10X90 FLANGE	0-28181-090-0	03	1	9905-				●
224	BEARING; IDLE PULLEY	1-09800-176-0	02	1	9707-9904			●
224	BEARING; IDLE PULLEY	1-09800-176-0	02	1	9905-				●
235	SHAFT; FAN CENTER	1-13660-279-2	01	1	9603-9804	●
235	SHAFT; FAN CENTER	1-13660-279-2	01	1	9805-9904	●	●
235	SHAFT; FAN CENTER	1-13660-278-3	01	1	9707-9904			●
235	SHAFT; FAN CENTER	1-13660-278-3	01	1	9905-				●
235	SHAFT; FAN CENTER	1-13660-279-3	01	1	9905-	●	●			●
236	BUSHING; FAN CENTER	1-13669-160-2	01	1	9603-9706	●
236	BUSHING; FAN CENTER	1-13669-160-2	01	1	9707-9804	●		●
236	BUSHING; FAN CENTER	1-13669-160-2	01	1	9805-9904	●	●	●
236	BUSHING; FAN CENTER	1-13669-160-2	01	1	9905-	●	●		●	●
237	NUT; SHAFT M27 FLANGE	9-09844-662-1	01	1	9603-9706	●
237	NUT; SHAFT M27 FLANGE	9-09844-662-1	01	1	9707-9804	●		●
237	NUT; SHAFT M27 FLANGE	9-09844-662-1	01	1	9805-9808	●	●	●
237	NUT; SHAFT M27 FLANGE	1-09440-058-0	01	1	9809-9904	●	●	●
237	NUT; SHAFT M27 FLANGE	1-09440-058-0	01	1	9905-	●	●		●	●

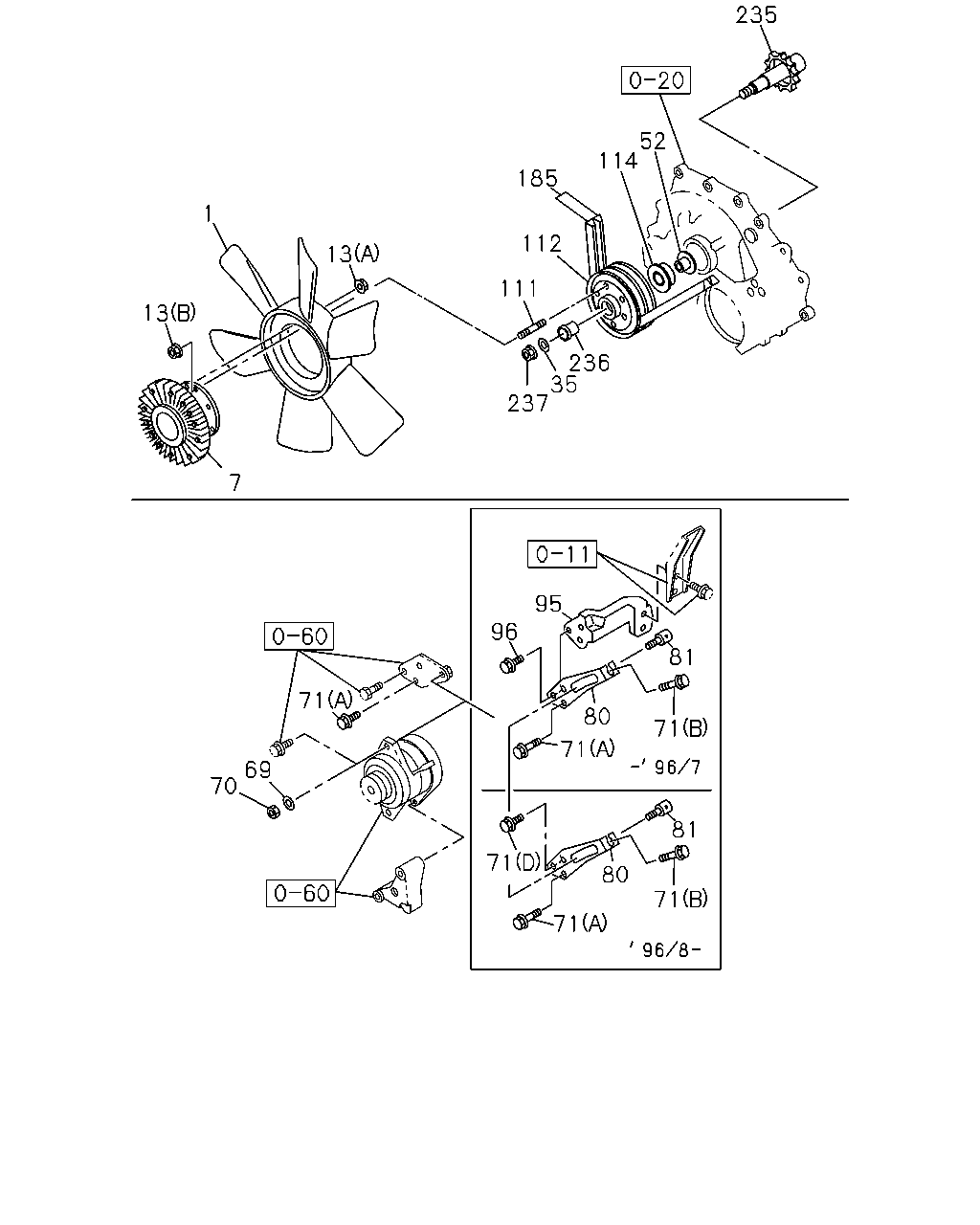

235 52 114 185 1 112 13 111 13 236 35 237 7 95 96 81 71 80 71 71 69 70 81 71 80 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	FAN; COOLING	1-13660-224-0	01	1	9603-9801	●
1	FAN; COOLING	1-13660-224-0	01	1	9802-9904	●	●
1	FAN; COOLING	1-13660-286-1	01	1	9707-9904			●
1	FAN; COOLING	1-13660-286-1	01	1	9905-				●
1	FAN; COOLING	1-13660-224-0	01	1	9905-	●	●			●
7	COUPLING; FAN EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-21650-192-0	01	1	9603-9609	●
7	COUPLING; FAN EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>, EURO2 SPECIFICATION<THN>	1-21650-192-0	01	1	9610-9804	●
7	COUPLING; FAN EURO2 SPECIFICATION<THN>	1-21650-192-1	01	1	9905-		●
7	COUPLING; FAN EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-21650-192-1	01	1	9905-					●
7	COUPLING; FAN EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,EURO2 SPECIFICATION<THN>	1-21650-178-0	01	1	9603-9804	●
7	COUPLING; FAN EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,EURO2 SPECIFICATION<THN>	1-21650-178-1	01	1	9805-9904	●
7	COUPLING; FAN	1-21650-178-1	01	1	9805-9904		●
7	COUPLING; FAN	1-21650-188-0	01	1	9707-9904			●
7	COUPLING; FAN	1-21650-188-1	01	1	9905-				●
7	COUPLING; FAN	1-21650-178-1	01	1	9905-	●
7	COUPLING; FAN EXC. EURO2 SPECIFICATION<THN>	1-21650-178-1	01	1	9905-		●
7	COUPLING; FAN EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-21650-178-1	01	1	9905-					●
13	NUT; COOLING FAN (A) M8 FLANGE	0-91150-208-0	06	1	9603-9804	●
13	NUT; COOLING FAN (A) M8 FLANGE	0-91150-208-0	06	1	9805-9904	●	●
13	NUT; COOLING FAN (B) M10 FLANGE	0-91150-210-0	06	1	9603-9706	●
13	NUT; COOLING FAN (B) M10 FLANGE	0-91150-210-0	06	1	9707-9804	●		●
13	NUT; COOLING FAN (B) M10 FLANGE	0-91150-210-0	06	1	9805-9904	●	●	●
13	NUT; COOLING FAN (A) M8 FLANGE	0-91150-208-0	06	1	9905-	●	●			●
13	NUT; COOLING FAN (B) M10 FLANGE	0-91150-210-0	06	1	9905-	●	●		●	●
35	WASHER; PL ID=28 T=4	1-09503-016-0	01	1	9603-9706	●
35	WASHER; PL ID=28 T=4	1-09503-016-0	01	1	9707-9804	●		●
35	WASHER; PL ID=28 T=4	1-09503-016-0	01	1	9805-9904	●	●	●
35	WASHER; PL ID=28 T=4	1-09503-016-0	01	1	9905-	●	●		●	●
52	SPACER; FAN DRIVE	1-13669-165-0	01	1	9603-9706	●
52	SPACER; FAN DRIVE	1-13669-165-0	01	1	9707-9804	●		●
52	SPACER; FAN DRIVE	1-13669-165-0	01	1	9805-9904	●	●	●
52	SPACER; FAN DRIVE	1-13669-165-0	01	1	9905-	●	●		●	●
69	WASHER; PL,ADJ PLATE,GEN ID=12.5 OD=32	9-09160-712-0	01	1	9603-9804	●
69	WASHER; PL,ADJ PLATE,GEN ID=12.5 OD=32	9-09160-712-0	01	1	9805-9904	●	●
69	WASHER; PL,ADJ PLATE,GEN ID=10.5 OD=18	9-09160-510-0	01	1	9707-9904			●
69	WASHER; PL,ADJ PLATE,GEN ID=10.5 OD=18	9-09160-510-0	01	1	9905-				●
69	WASHER; PL,ADJ PLATE,GEN ID=12.5 OD=32	9-09160-712-0	01	1	9905-	●	●			●
70	NUT; ADJ PLATE,GEN M12 FLANGE	0-91150-112-0	01	1	9603-9804	●
70	NUT; ADJ PLATE,GEN M12 FLANGE	0-91150-112-0	01	1	9805-9904	●	●
70	NUT; ADJ PLATE,GEN M12 FLANGE	0-91150-112-0	01	1	9905-	●	●			●
71	BOLT; ADJ PLATE,GEN (A) M10X60 FLANGE	0-28181-060-0	01	1	9603-9804	●
71	BOLT; ADJ PLATE,GEN (A) M10X60 FLANGE	0-28181-060-0	01	1	9805-9904	●	●
71	BOLT; ADJ PLATE,GEN (B) M10X135	1-09009-113-1	01	1	9603-9804	●
71	BOLT; ADJ PLATE,GEN (B) M10X135	1-09009-113-1	01	1	9805-9805	●	●
71	BOLT; ADJ PLATE,GEN (D) M10X25 FLANGE	0-28181-025-0	01	1	9608-9706	●
71	BOLT; ADJ PLATE,GEN (D) M10X25 FLANGE	0-28181-025-0	01	1	9707-9801	●		●
71	BOLT; ADJ PLATE,GEN (A) M10X110 FLANGE	0-28186-011-0	01	1	9608-9706	●
71	BOLT; ADJ PLATE,GEN (A) M10X110 FLANGE	0-28186-011-0	01	1	9707-9801	●		●
71	BOLT; ADJ PLATE,GEN (D) M10X25 FLANGE	0-28181-025-0	01	1	9802-9804	●		●
71	BOLT; ADJ PLATE,GEN (D) M10X25 FLANGE	0-28181-025-0	01	1	9805-9904	●	●	●
71	BOLT; ADJ PLATE,GEN (A) M10X110 FLANGE	0-28186-011-0	01	1	9802-9804	●		●
71	BOLT; ADJ PLATE,GEN (A) M10X110 FLANGE	0-28186-011-0	01	1	9805-9904	●	●	●
71	BOLT; ADJ PLATE,GEN (B) M10X135	1-09009-113-1	01	1	9806-9904	●	●
71	BOLT; ADJ PLATE,GEN (A) M10X60 FLANGE	0-28181-060-0	01	1	9905-	●	●			●
71	BOLT; ADJ PLATE,GEN (C) M10X140	1-09000-104-1	01	1	9707-9904			●
71	BOLT; ADJ PLATE,GEN (C) M10X140	1-09000-104-1	01	1	9905-				●
71	BOLT; ADJ PLATE,GEN (B) M10X135	1-09009-113-1	01	1	9905-	●	●			●
71	BOLT; ADJ PLATE,GEN (D) M10X25 FLANGE	0-28181-025-0	01	1	9905-	●	●		●	●
71	BOLT; ADJ PLATE,GEN (A) M10X110 FLANGE	0-28186-011-0	01	1	9905-	●	●		●	●
80	PLATE; ADJ	1-13674-240-0	01	1	9603-9607	●
80	PLATE; ADJ	1-13674-241-0	01	1	9608-9804	●
80	PLATE; ADJ	1-13674-241-0	01	1	9805-9904	●	●
80	PLATE; ADJ	1-13674-241-0	01	1	9905-	●	●			●
81	PIECE; SLIDING M12X45	1-13674-160-0	01	1	9603-9608	●
81	PIECE; SLIDING M12X45	1-13674-160-0	01	1	9609-9804	●
81	PIECE; SLIDING M12X45	1-13674-160-0	01	1	9805-9904	●	●
81	PIECE; SLIDING M12X45	1-13674-160-0	01	1	9905-	●	●			●
95	BRACKET; ADJ PLATE	1-19711-080-0	01	1	9603-9607	●
96	BOLT; ADJ PLATE M10X25 FLANGE	0-28781-025-0	02	1	9603-9607	●
111	STUD; FAN DRIVE M10X25 L=45	9-04321-025-0	06	1	9603-9706	●
111	STUD; FAN DRIVE M10X25 L=45	9-04321-025-0	06	1	9707-9804	●		●
111	STUD; FAN DRIVE M10X25 L=45	9-04321-025-0	06	1	9805-9904	●	●	●
111	STUD; FAN DRIVE M10X25 L=45	9-04321-025-0	06	1	9905-	●	●		●	●
112	PULLEY; FAN CENTER	1-13663-087-0	01	1	9603-9804	●
112	PULLEY; FAN CENTER	1-13663-087-0	01	1	9805-9904	●	●
112	PULLEY; FAN CENTER	1-13663-088-0	01	1	9707-9904			●
112	PULLEY; FAN CENTER	1-13663-088-0	01	1	9905-0008				●
112	PULLEY; FAN CENTER	1-13663-124-1	01	1	0009-				●
112	PULLEY; FAN CENTER	1-13663-087-0	01	1	9905-0008	●	●			●
112	PULLEY; FAN CENTER	1-13663-123-2	01	1	0009-	●	●			●
114	SEAL; OIL	1-09625-570-0	01	1	9603-9706	●
114	SEAL; OIL	1-09625-570-0	01	1	9707-9804	●		●
114	SEAL; OIL	1-09625-570-0	01	1	9805-9904	●	●	●
114	SEAL; OIL	1-09625-570-0	01	1	9905-	●	●		●	●
185	BELT; GEN DRIVE 1 SET=2 PIECE(1136713951) BANDO	1-13671-393-1	01	1	9603-9604	●
185	BELT; GEN DRIVE 1 SET=2 PIECE(1136714290) MITSUBOSHI	1-13671-428-0	01	1	9605-9804	●
185	BELT; GEN DRIVE 1 SET=2 PIECE(1136714290) MITSUBOSHI	1-13671-428-0	01	1	9805-9904	●	●
185	BELT; GEN DRIVE 1 SET=2 PIECE(1136714290) MITSUBOSHI	1-13671-428-0	01	1	9905-	●	●			●
235	SHAFT; FAN CENTER	1-13660-279-2	01	1	9603-9804	●
235	SHAFT; FAN CENTER	1-13660-279-2	01	1	9805-9904	●	●
235	SHAFT; FAN CENTER	1-13660-278-3	01	1	9707-9904			●
235	SHAFT; FAN CENTER	1-13660-278-3	01	1	9905-				●
235	SHAFT; FAN CENTER	1-13660-279-3	01	1	9905-	●	●			●
236	BUSHING; FAN CENTER	1-13669-160-2	01	1	9603-9706	●
236	BUSHING; FAN CENTER	1-13669-160-2	01	1	9707-9804	●		●
236	BUSHING; FAN CENTER	1-13669-160-2	01	1	9805-9904	●	●	●
236	BUSHING; FAN CENTER	1-13669-160-2	01	1	9905-	●	●		●	●
237	NUT; SHAFT M27 FLANGE	9-09844-662-1	01	1	9603-9706	●
237	NUT; SHAFT M27 FLANGE	9-09844-662-1	01	1	9707-9804	●		●
237	NUT; SHAFT M27 FLANGE	9-09844-662-1	01	1	9805-9808	●	●	●
237	NUT; SHAFT M27 FLANGE	1-09440-058-0	01	1	9809-9904	●	●	●
237	NUT; SHAFT M27 FLANGE	1-09440-058-0	01	1	9905-	●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
