◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11440 - FRR-L SPACE EU4 DOC ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#46889) — 208 parça

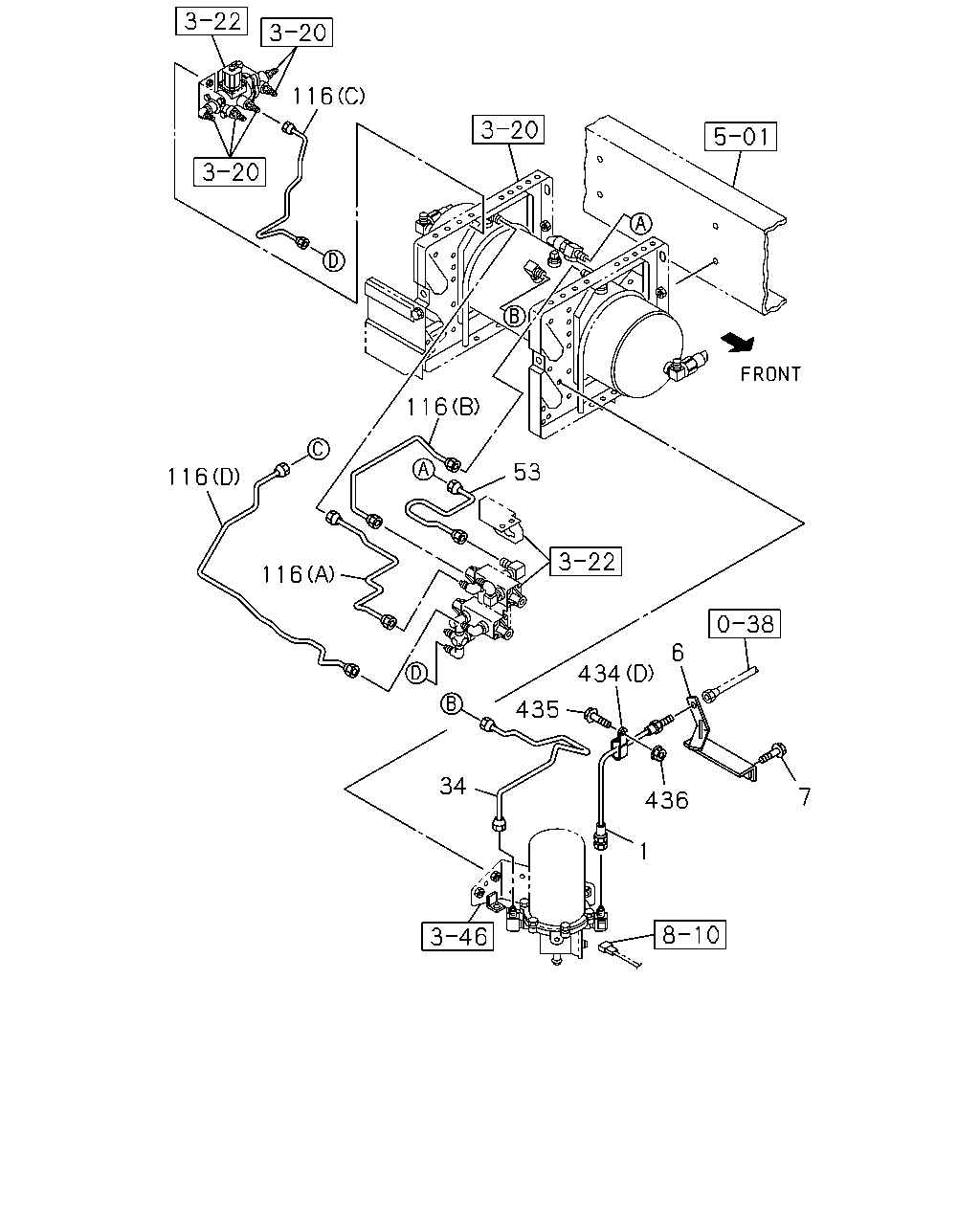

çizim 16079
116 116 53 116 116 6 434 435 34 7 436 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 8-98066-976-1 01 1 1109-
6 BRACKET; FLEX HOSE,AIR TANK 8-98066-733-1 01 1 1109-1205
6 BRACKET; FLEX HOSE,AIR TANK 8-98214-081-1 01 1 1206-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1109-
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1206-
34 PIPE; AIR
L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1109-1205
34 PIPE; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1206-
53 PIPE; AIR,AIR TANK TO VALVE 8-98061-086-0 01 1 1109-
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 1206-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (F) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 1206-
116 PIPE; AIR,PROTECTION VLV
(D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 1109-1205
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 1206-
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 1109-
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1109-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 1109-1205
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 1206-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1206-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 05 1 1206-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (E) ID=10 & 15 		1-09709-279-1 01 1 1206-
434 CLIP
BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 04 1 1206-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 1109-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1109-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 08 1 1109-1205
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 08 1 1206-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 08 1 1206-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1109-1205
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1206-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1206-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1109-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1109-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1109-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1109-

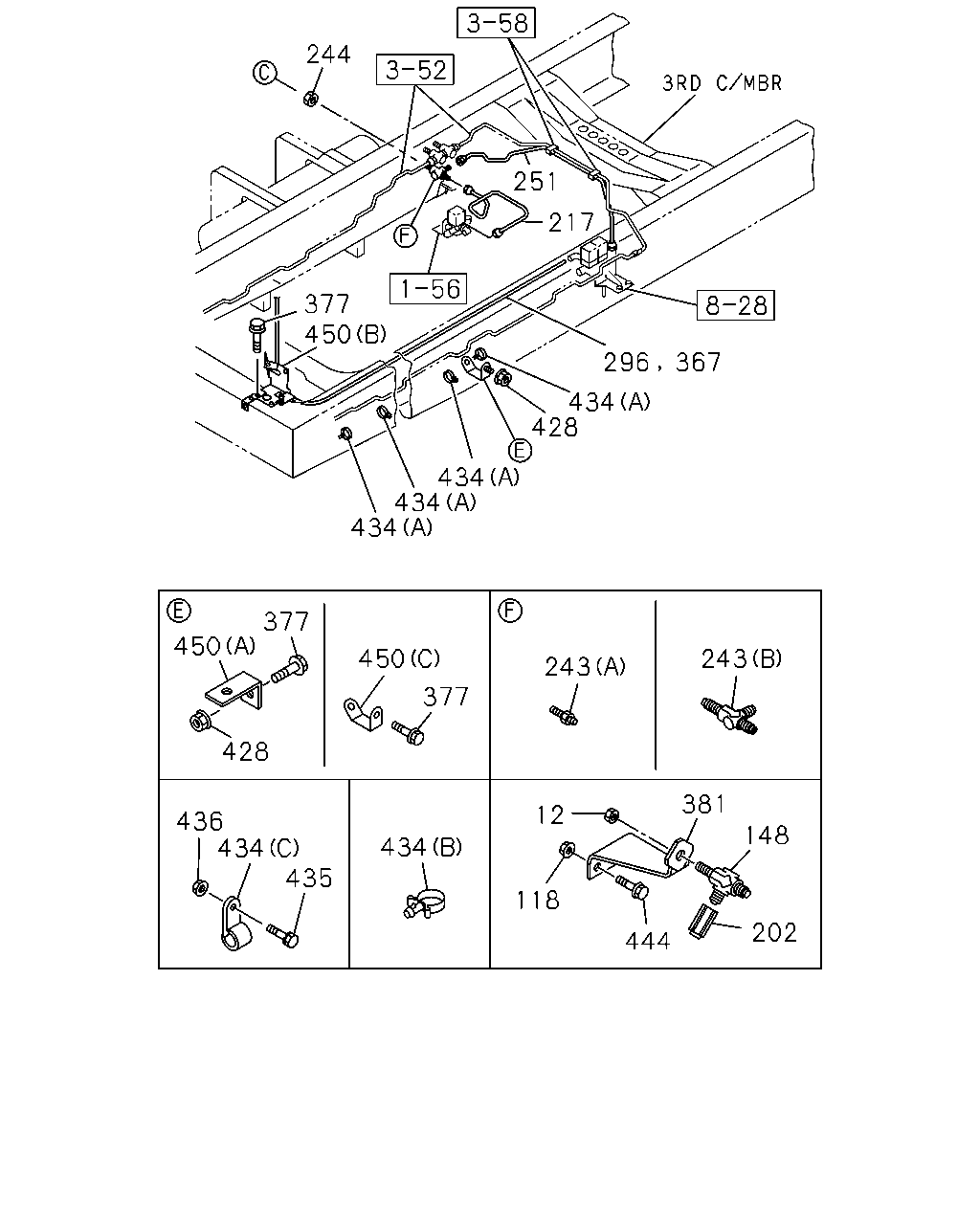

çizim 16627
244 251 217 377 450 296 367 434 428 434 434 434 377 450 243 450 243 377 428 381 12 436 434 435 148 434 118 202 444
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 		0-91111-512-0 01 1 1109-
118 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE 		0-91180-210-0 02 1 1109-
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY 		1-09654-059-2 01 1 1109-
202 ADAPTER
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1109-
217 PIPE; VAC,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=265 		8-98067-433-0 01 1 1109-1205
217 PIPE; VAC,UNION TO MAG VLV
PTO CONTROL<SV6> L=265 		8-98067-433-0 01 1 1109-1205
217 PIPE; VAC,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU) L=265 		8-98067-433-0 01 1 1206-
217 PIPE; VAC,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU) L=265 		8-98067-433-0 01 1 1206-
217 PIPE; VAC,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> L=289 		8-98120-102-0 01 1 1109-1205
217 PIPE; VAC,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) L=289 		8-98120-102-0 01 1 1206-
243 UNION; AIR PIPE
BRAKE REGULATION ADR(TDU) (C) M12 ELBOW 		0-92125-206-0 01 1 1206-
243 UNION; AIR PIPE
PTO CONTROL<SV6> (B) M12 3WAY 		0-92138-906-0 01 1 1109-1205
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 3WAY 		0-92138-906-0 01 1 1109-1205
243 UNION; AIR PIPE
PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU) (B) M12 3WAY 		0-92138-906-0 01 1 1206-
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU) (B) M12 3WAY 		0-92138-906-0 01 1 1206-
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 L=66.5 		0-92113-306-0 01 1 1109-1205
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (A) M12 L=66.5 		0-92113-306-0 01 1 1206-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1109-
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=941 SERVICED BY L=1000 		1-47428-814-0 01 1 1109-1205
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=941 SERVICED BY L=1000 		1-47428-814-0 01 1 1109-1205
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU) L=941 SERVICED BY L=1000 		1-47428-814-0 01 1 1206-
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU) L=941 SERVICED BY L=1000 		1-47428-814-0 01 1 1206-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1109-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 1109-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1109-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1109-
377 BOLT; BRKT FIX
BRAKE REGULATION ADR(TDU) M10X30 FLANGE 		0-28651-030-0 03 1 1206-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 01 1 1109-1205
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) M8X25 FLANGE 		0-28650-825-0 01 1 1206-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 1206-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 01 1 1206-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 1109-1205
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 1206-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 1109-1205
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 1206-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 1206-
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> 		8-98119-700-0 01 1 1109-
428 NUT; BRKT
BRAKE REGULATION ADR(TDU) M10 FLANGE 		0-91180-210-0 03 1 1206-
428 NUT; BRKT
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1109-1205
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) M8 FLANGE 		0-91180-108-0 01 1 1206-
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 1206-
428 NUT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1206-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1206-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 05 1 1206-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (E) ID=10 & 15 		1-09709-279-1 01 1 1206-
434 CLIP
BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 04 1 1206-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 1109-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1109-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 08 1 1109-1205
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 08 1 1206-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 08 1 1206-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1109-1205
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1206-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1206-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1109-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1109-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1109-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1109-
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 1109-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (D) 		1-47479-693-0 01 1 1206-
450 BRACKET; CLIP
BRAKE REGULATION ADR(TDU) (E) 		8-98100-216-1 03 1 1206-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) 		1-47477-694-0 01 1 1109-1205
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47477-694-0 01 1 1206-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) 		1-47477-694-0 01 1 1206-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98117-686-0 02 1 1109-1205
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98117-686-0 02 1 1206-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98117-686-0 02 1 1206-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98180-947-0 01 1 1109-1205
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98180-947-0 01 1 1206-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98180-947-0 01 1 1206-

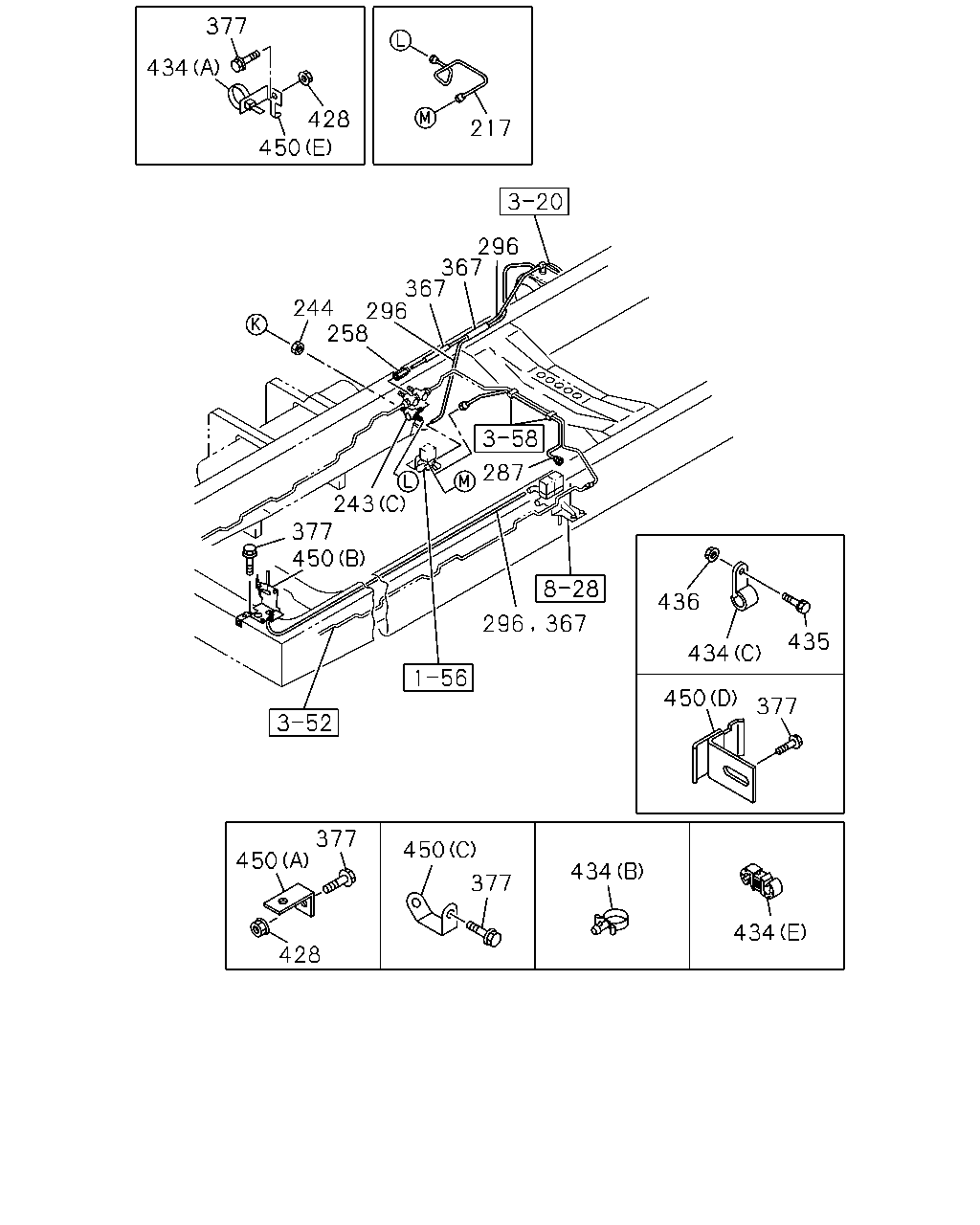

çizim 284140
377 434 428 217 450 296 367 367 244 296 258 287 243 377 450 436 296 367 435 434 450 377 377 450 450 434 377 434 428
BalonParca AdiParca NoAdetTipApplied Date
217 PIPE; VAC,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=265 		8-98067-433-0 01 1 1109-1205
217 PIPE; VAC,UNION TO MAG VLV
PTO CONTROL<SV6> L=265 		8-98067-433-0 01 1 1109-1205
217 PIPE; VAC,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU) L=265 		8-98067-433-0 01 1 1206-
217 PIPE; VAC,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU) L=265 		8-98067-433-0 01 1 1206-
217 PIPE; VAC,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> L=289 		8-98120-102-0 01 1 1109-1205
217 PIPE; VAC,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) L=289 		8-98120-102-0 01 1 1206-
243 UNION; AIR PIPE
BRAKE REGULATION ADR(TDU) (C) M12 ELBOW 		0-92125-206-0 01 1 1206-
243 UNION; AIR PIPE
PTO CONTROL<SV6> (B) M12 3WAY 		0-92138-906-0 01 1 1109-1205
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 3WAY 		0-92138-906-0 01 1 1109-1205
243 UNION; AIR PIPE
PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU) (B) M12 3WAY 		0-92138-906-0 01 1 1206-
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU) (B) M12 3WAY 		0-92138-906-0 01 1 1206-
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 L=66.5 		0-92113-306-0 01 1 1109-1205
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (A) M12 L=66.5 		0-92113-306-0 01 1 1206-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1109-
258 CONNECTOR; NYLON TUBE
BRAKE REGULATION ADR(TDU) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1206-
287 PIPE; AIR,MAG VLV
PTO CONTROL<SV6> BRAKE REGULATION ADR(TDU) L=830 SERVICED BY L=900 		1-47428-813-0 01 1 1206-
287 PIPE; AIR,MAG VLV
BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=830 SERVICED BY L=900 		1-47428-813-0 01 1 1206-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1109-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 1109-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1109-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1109-
377 BOLT; BRKT FIX
BRAKE REGULATION ADR(TDU) M10X30 FLANGE 		0-28651-030-0 03 1 1206-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 01 1 1109-1205
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) M8X25 FLANGE 		0-28650-825-0 01 1 1206-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 1206-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 01 1 1206-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 1109-1205
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 1206-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 1109-1205
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 1206-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 1206-
428 NUT; BRKT
BRAKE REGULATION ADR(TDU) M10 FLANGE 		0-91180-210-0 03 1 1206-
428 NUT; BRKT
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1109-1205
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) M8 FLANGE 		0-91180-108-0 01 1 1206-
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 1206-
428 NUT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1206-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1206-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 05 1 1206-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (E) ID=10 & 15 		1-09709-279-1 01 1 1206-
434 CLIP
BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 04 1 1206-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 1109-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1109-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 08 1 1109-1205
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 08 1 1206-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 08 1 1206-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1109-1205
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1206-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1206-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1109-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1109-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1109-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1109-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (D) 		1-47479-693-0 01 1 1206-
450 BRACKET; CLIP
BRAKE REGULATION ADR(TDU) (E) 		8-98100-216-1 03 1 1206-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) 		1-47477-694-0 01 1 1109-1205
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47477-694-0 01 1 1206-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) 		1-47477-694-0 01 1 1206-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98117-686-0 02 1 1109-1205
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98117-686-0 02 1 1206-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98117-686-0 02 1 1206-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98180-947-0 01 1 1109-1205
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98180-947-0 01 1 1206-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98180-947-0 01 1 1206-

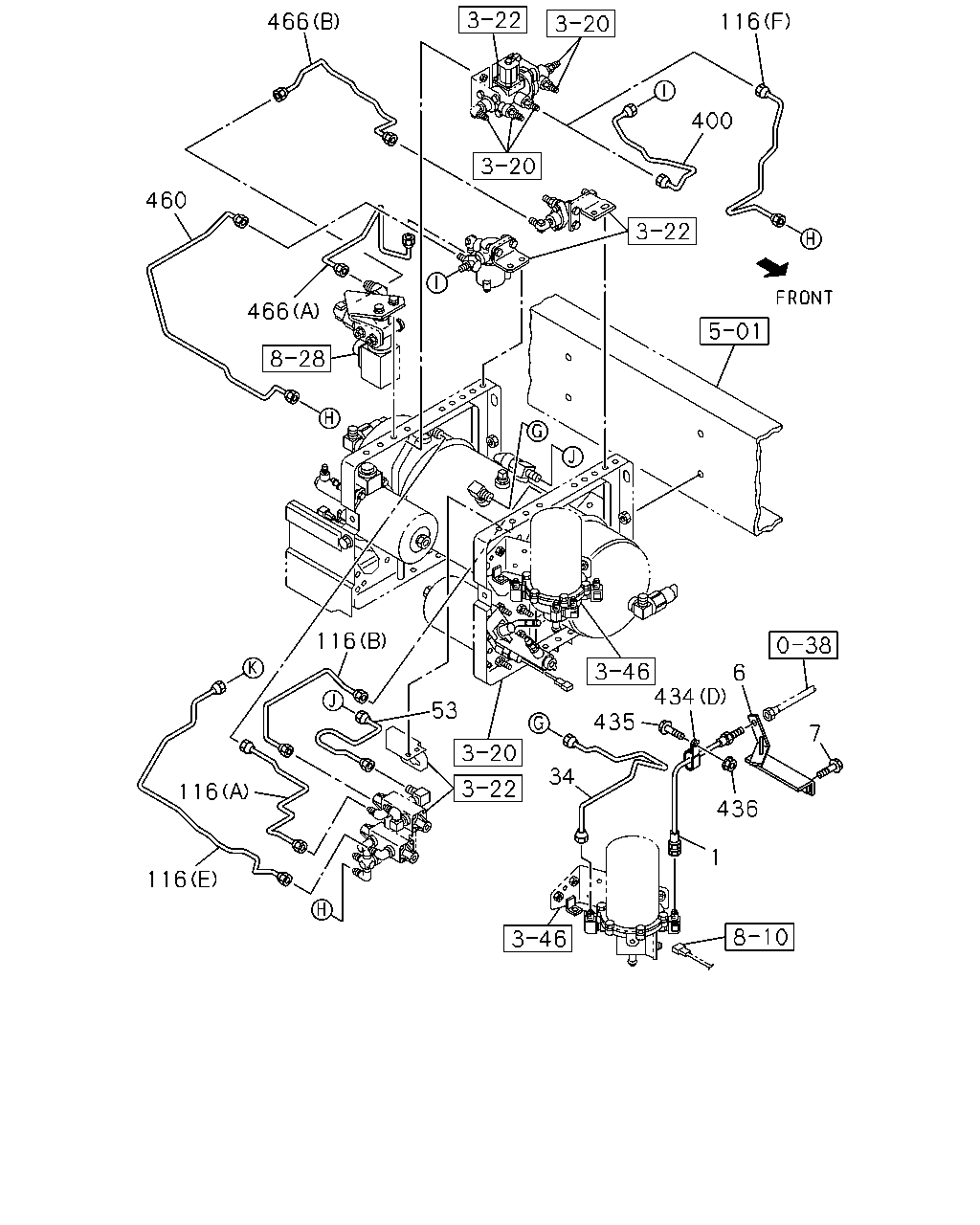

çizim 284141
116 466 400 460 466 116 6 434 435 7 116 436 1 116 53 34
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 8-98066-976-1 01 1 1109-
6 BRACKET; FLEX HOSE,AIR TANK 8-98066-733-1 01 1 1109-1205
6 BRACKET; FLEX HOSE,AIR TANK 8-98214-081-1 01 1 1206-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1109-
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1206-
34 PIPE; AIR
L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1109-1205
34 PIPE; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1206-
53 PIPE; AIR,AIR TANK TO VALVE 8-98061-086-0 01 1 1109-
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 1206-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (F) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 1206-
116 PIPE; AIR,PROTECTION VLV
(D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 1109-1205
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 1206-
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 1109-
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1109-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 1109-1205
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 1206-
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1206-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1206-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 05 1 1206-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (E) ID=10 & 15 		1-09709-279-1 01 1 1206-
434 CLIP
BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 04 1 1206-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 1109-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1109-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 08 1 1109-1205
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 08 1 1206-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 08 1 1206-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1109-1205
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1206-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1206-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1109-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1109-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1109-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1109-
460 PIPE; AIR,PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98066-846-0 01 1 1206-
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98066-847-0 01 1 1206-
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800 		1-47428-872-0 01 1 1206-
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1206-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
