Isuzu WW
▶
TRUCKS
▶
FRR
▶
11440 - FRR-L SPACE EU4 DOC
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#46888) — 28 parça
◀

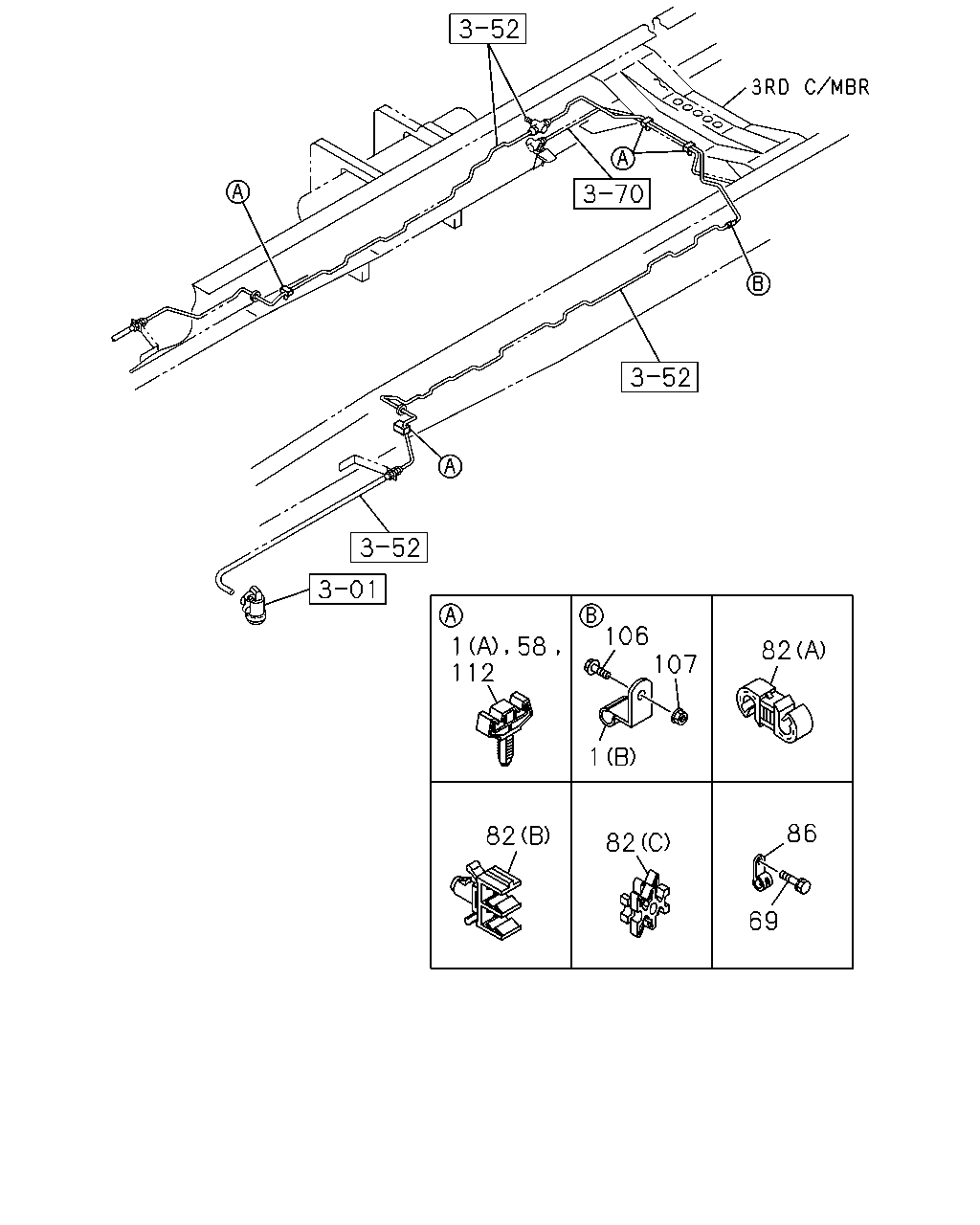

[358A] FRAME SIDE (19 parça)

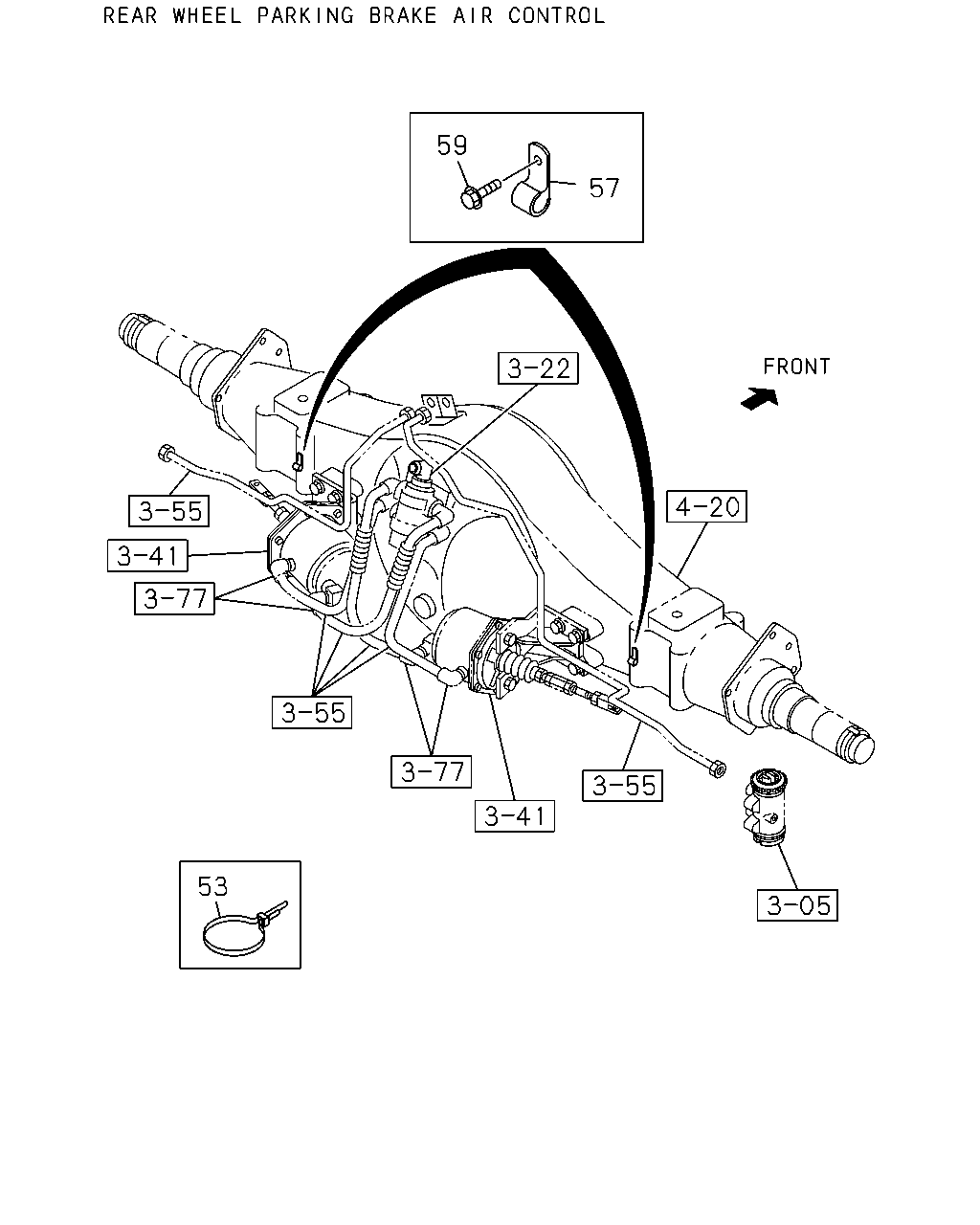

[358A] REAR AXLE SIDE NO.1 (4 parça)

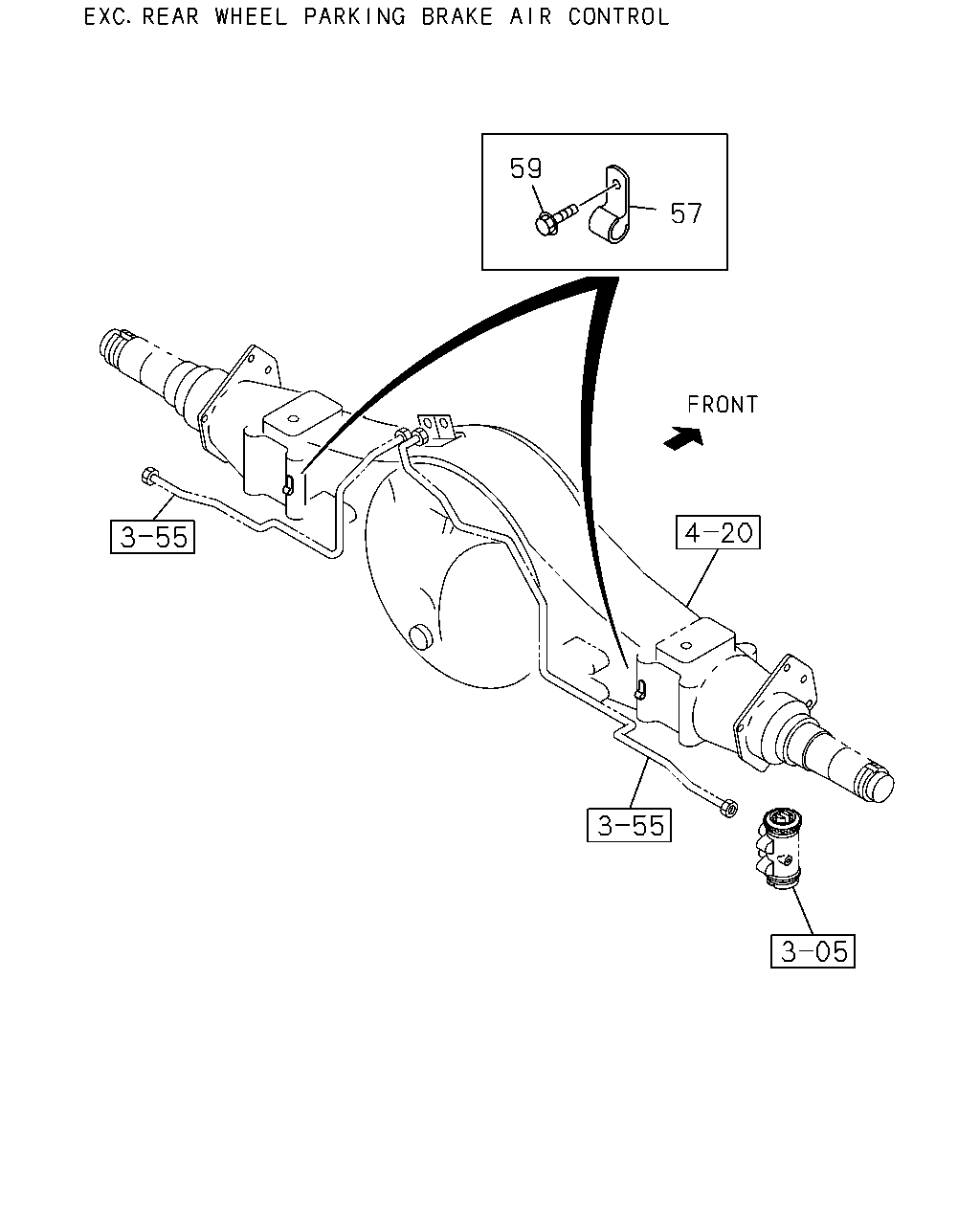

[358A] REAR AXLE SIDE NO.2 (5 parça)
▶
106
107
112
82
1
86
82
82
69
1
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
03
1
1109-
1
CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20
8-98040-714-0
04
1
1109-
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
04
1
1109-
58
CLIP; OIL PIPE
8-98012-254-1
05
1
1109-
69
BOLT; CLIP
EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 FLANGE
0-28050-816-0
02
1
1109-
82
CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) (C) ID=4.7X4
1-09701-304-0
03
1
1206-
82
CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35
1-09709-304-0
04
1
1206-
82
CLIP; OIL PIPE
(A) ID=4.76 & 4.76
1-09709-303-0
02
1
1109-1205
82
CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 4.76
1-09709-303-0
02
1
1206-
82
CLIP; OIL PIPE
(A) ID=4.76 & 6.35
1-09709-304-0
04
1
1109-1205
82
CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35
1-09709-304-0
03
1
1206-
82
CLIP; OIL PIPE
(A) ID=4.76 & 10.0
1-09709-305-0
01
1
1109-
82
CLIP; OIL PIPE
(B) ID=4.8X2
8-94316-410-0
01
1
1109-
86
CLIP; OIL PIPE
EXC. BRAKE ADJUSTER MANUAL<BJR>
8-98085-372-0
02
1
1109-
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
04
1
1109-
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
04
1
1109-
112
CLIP; OIL PIPE
WHEEL BASE 4300MM(43W)
8-98012-254-1
05
1
1206-
112
CLIP; OIL PIPE
WHEEL BASE 4900MM(49W)
8-98012-254-1
07
1
1206-
112
CLIP; OIL PIPE
WHEEL BASE 4600MM(46W)
8-98012-254-1
06
1
1109-
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
CLIP; BRK PIPE,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20
0-95234-635-0
04
1
1109-
57
CLIP; BRK PIPE,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20
0-95234-635-0
02
1
1109-
59
BOLT; BRK PIPE,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE
0-28050-810-0
04
1
1109-
59
BOLT; BRK PIPE,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE
0-28050-810-0
02
1
1109-
59
57
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
CLIP; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250
1-09707-126-0
05
1
1206-
57
CLIP; BRK PIPE,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20
0-95234-635-0
04
1
1109-
57
CLIP; BRK PIPE,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20
0-95234-635-0
02
1
1109-
59
BOLT; BRK PIPE,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE
0-28050-810-0
04
1
1109-
59
BOLT; BRK PIPE,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE
0-28050-810-0
02
1
1109-
