Sayfa 3-55 - Isuzu EPC

3-55 — BRAKE PIPING; OIL,REAR (#46887) — 204 parça

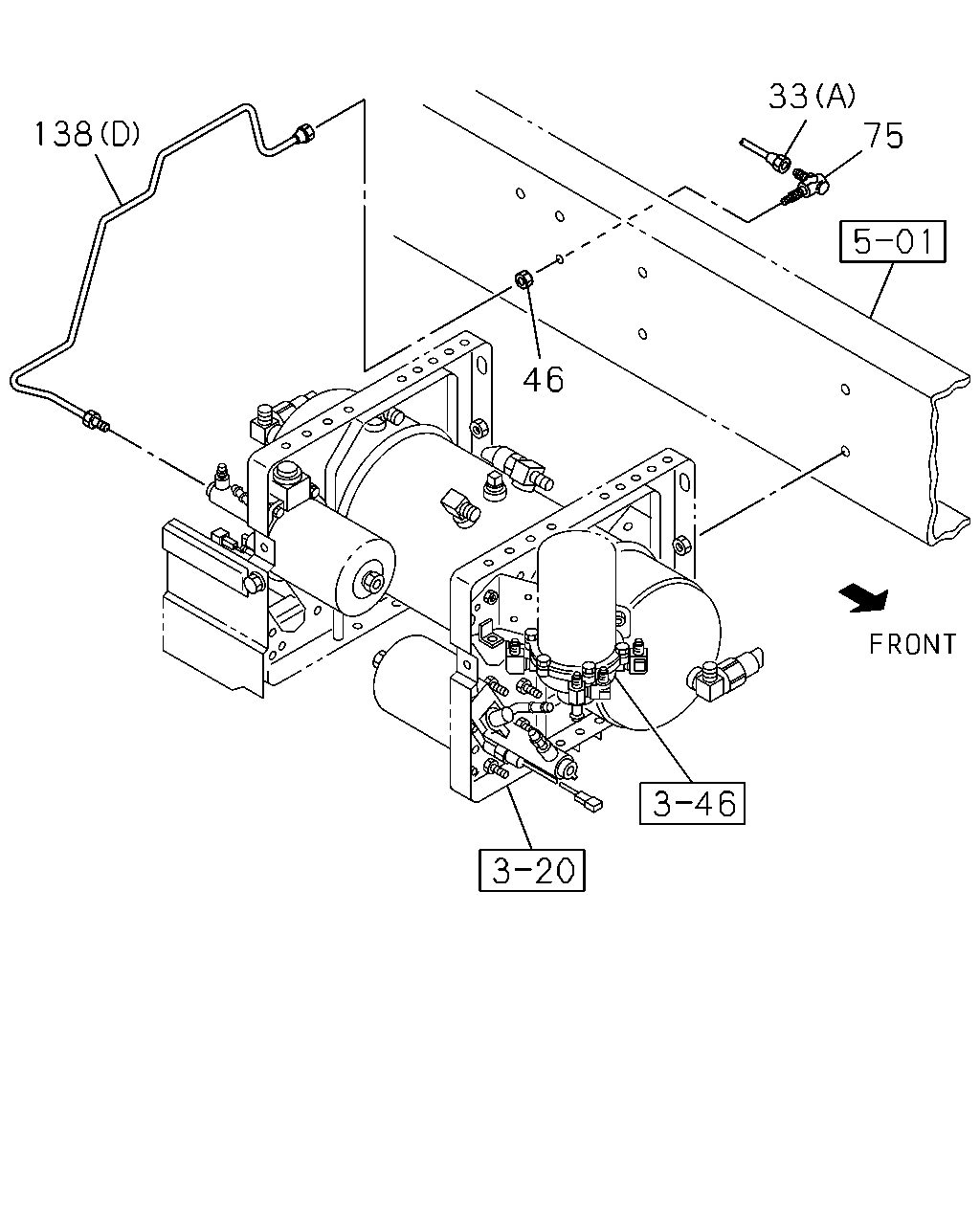

33 75 138 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1109-
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1206-
46	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	1109-1205
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1206-
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1206-
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	01	1	1109-1205
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1206-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=657	8-98012-129-0	01	1	1206-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=703	8-98012-146-0	01	1	1206-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (C) L=296	8-98066-107-0	01	1	1206-
138	PIPE; HYDRAULIC UNIT (D) L=497	8-98108-125-0	01	1	1109-1205
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE(JE5) (D) L=497	8-98108-125-0	01	1	1206-

32 33 46 75 39 5 39 126 3 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1206-
1	HOSE; FLEX,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=520	8-98175-918-0	01	1	1109-1205
1	HOSE; FLEX,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1206-
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=485	8-98057-386-1	01	1	1109-1205
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1206-
3	BRACKET; FLEX HOSE,RR BRK BRAKE ADJUSTER MANUAL<BJR>	8-98175-942-0	01	1	1109-1205
3	BRACKET; FLEX HOSE,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98175-942-0	01	1	1206-
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98065-999-2	01	1	1109-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1109-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1109-
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1206-
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	01	1	1109-1205
32	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	02	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1109-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) (B) L=1772	8-98106-486-0	01	1	1206-
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE ADJUSTER MANUAL<BJR> (A) L=2100	8-98175-941-0	01	1	1109-1205
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2100	8-98175-941-0	01	1	1206-
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=1710	8-98106-485-0	01	1	1109-
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1206-
46	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	1109-1205
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1206-
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1206-
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	01	1	1109-1205
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1206-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1206-
126	CLIP; FLEX HOSE	8-97360-054-0	01	1	1109-1205
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1206-

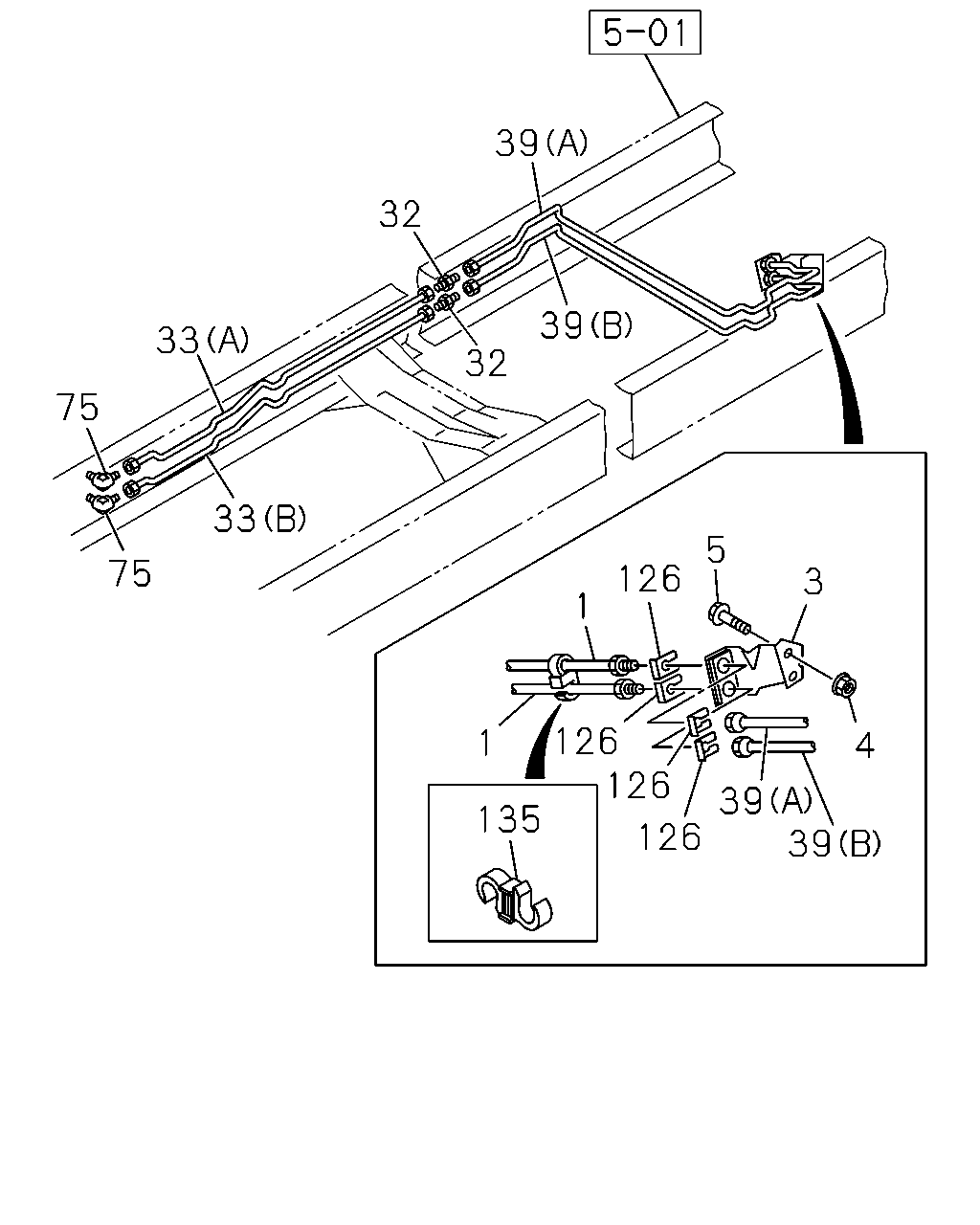

39 32 39 33 32 75 33 5 75 126 3 1 126 126 1 4 39 39 135 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1206-
1	HOSE; FLEX,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=520	8-98175-918-0	01	1	1109-1205
1	HOSE; FLEX,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1206-
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=485	8-98057-386-1	01	1	1109-1205
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1206-
3	BRACKET; FLEX HOSE,RR BRK BRAKE ADJUSTER MANUAL<BJR>	8-98175-942-0	01	1	1109-1205
3	BRACKET; FLEX HOSE,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98175-942-0	01	1	1206-
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98065-999-2	01	1	1109-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1109-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1109-
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1206-
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	01	1	1109-1205
32	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	02	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1109-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) (B) L=1772	8-98106-486-0	01	1	1206-
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE ADJUSTER MANUAL<BJR> (A) L=2100	8-98175-941-0	01	1	1109-1205
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2100	8-98175-941-0	01	1	1206-
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=1710	8-98106-485-0	01	1	1109-
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1206-
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	01	1	1109-1205
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1206-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1206-
126	CLIP; FLEX HOSE	8-97360-054-0	01	1	1109-1205
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1206-
135	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5) ID=10 & 10	1-09709-277-1	01	1	1206-

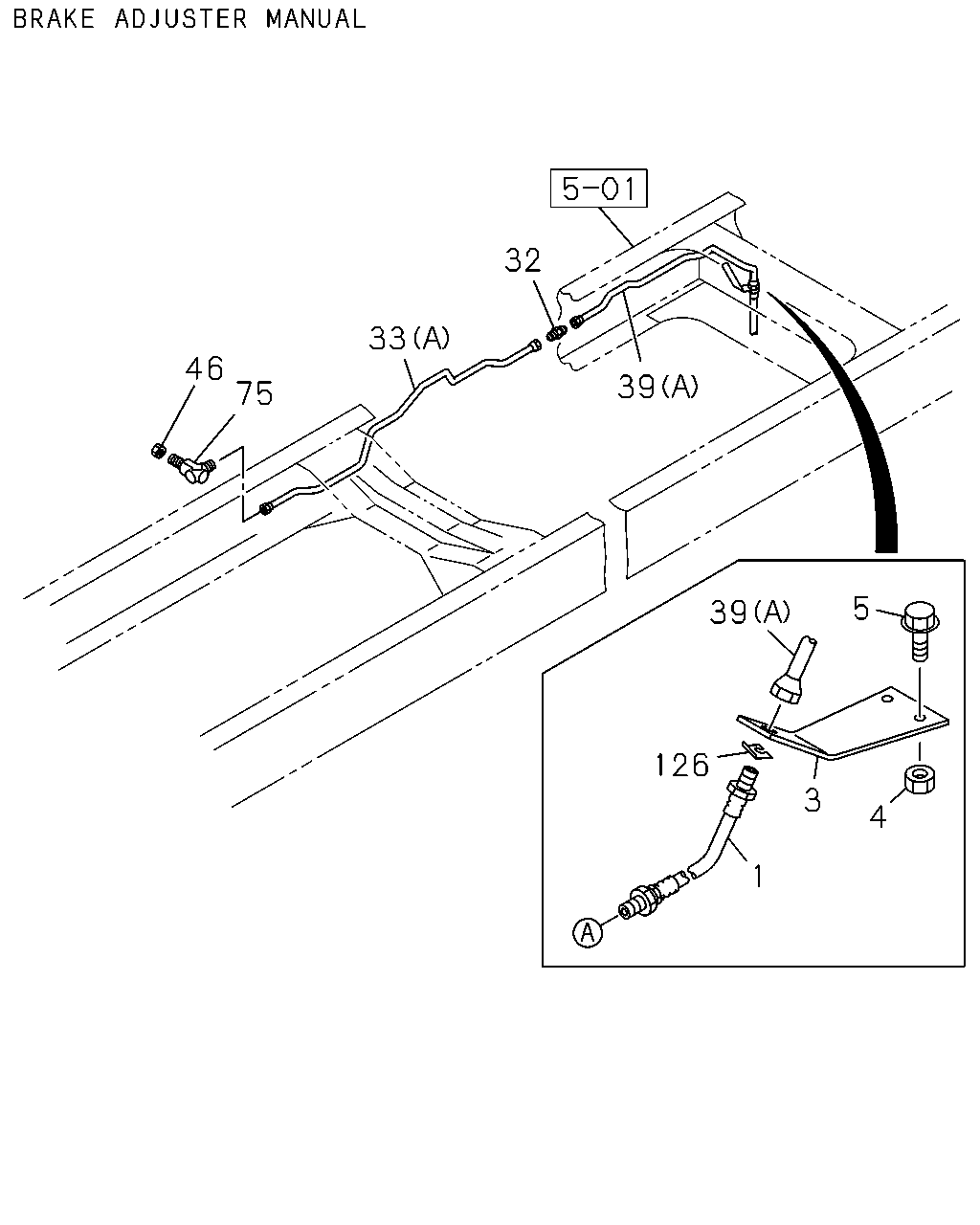

39 32 33 75 46 5 3 126 1 4 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1206-
1	HOSE; FLEX,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=520	8-98175-918-0	01	1	1109-1205
1	HOSE; FLEX,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1206-
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=485	8-98057-386-1	01	1	1109-1205
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1206-
3	BRACKET; FLEX HOSE,RR BRK BRAKE ADJUSTER MANUAL<BJR>	8-98175-942-0	01	1	1109-1205
3	BRACKET; FLEX HOSE,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98175-942-0	01	1	1206-
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98065-999-2	01	1	1109-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1109-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1109-
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1206-
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	01	1	1109-1205
32	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	02	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1109-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) (B) L=1772	8-98106-486-0	01	1	1206-
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE ADJUSTER MANUAL<BJR> (A) L=2100	8-98175-941-0	01	1	1109-1205
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2100	8-98175-941-0	01	1	1206-
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=1710	8-98106-485-0	01	1	1109-
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1206-
46	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	1109-1205
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1206-
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1206-
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	01	1	1109-1205
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1206-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1206-
126	CLIP; FLEX HOSE	8-97360-054-0	01	1	1109-1205
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1206-

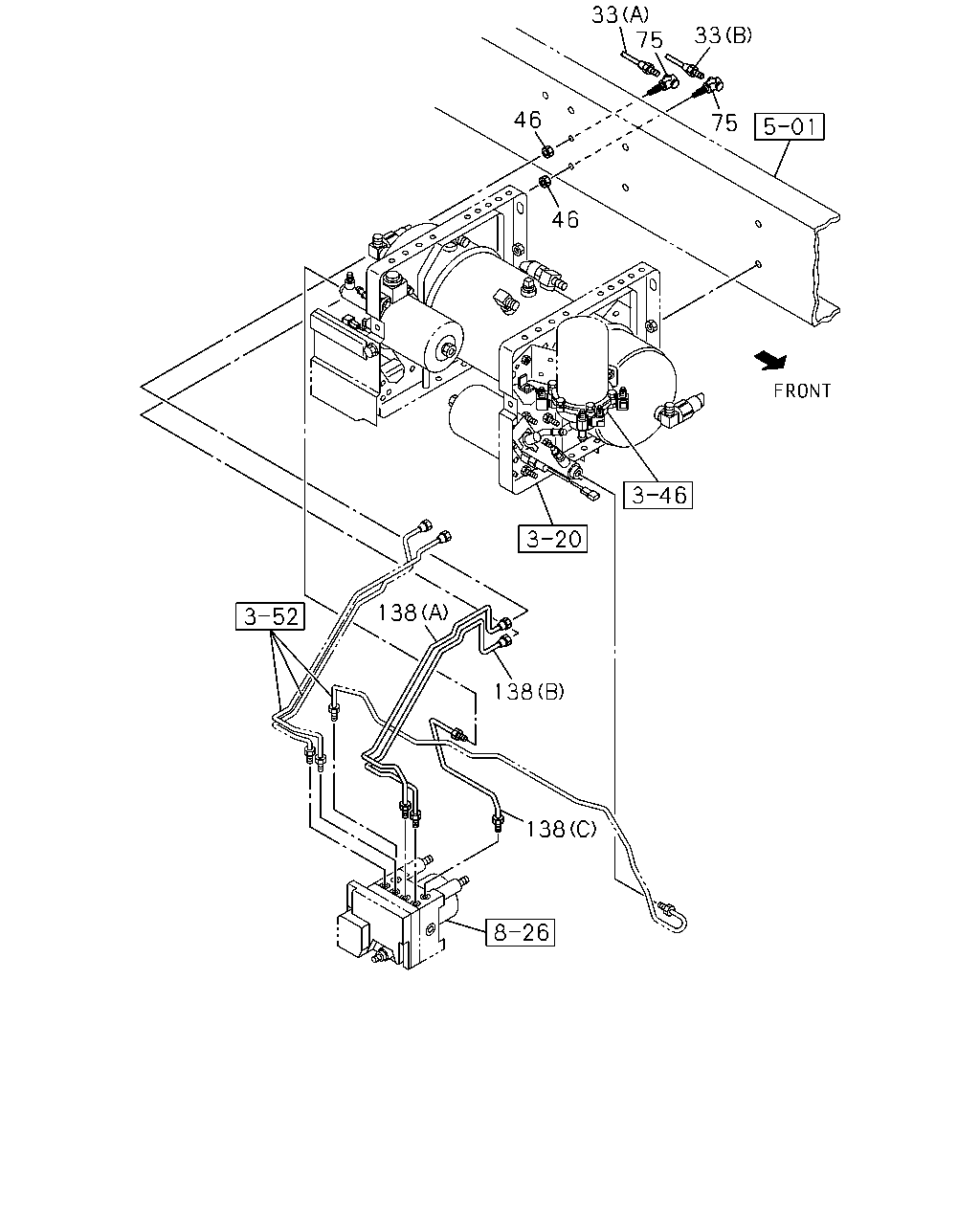

33 75 33 46 75 46 138 138 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1206-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1109-
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1206-
46	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	1109-1205
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1206-
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1206-
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	01	1	1109-1205
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1206-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=657	8-98012-129-0	01	1	1206-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=703	8-98012-146-0	01	1	1206-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (C) L=296	8-98066-107-0	01	1	1206-
138	PIPE; HYDRAULIC UNIT (D) L=497	8-98108-125-0	01	1	1109-1205
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE(JE5) (D) L=497	8-98108-125-0	01	1	1206-

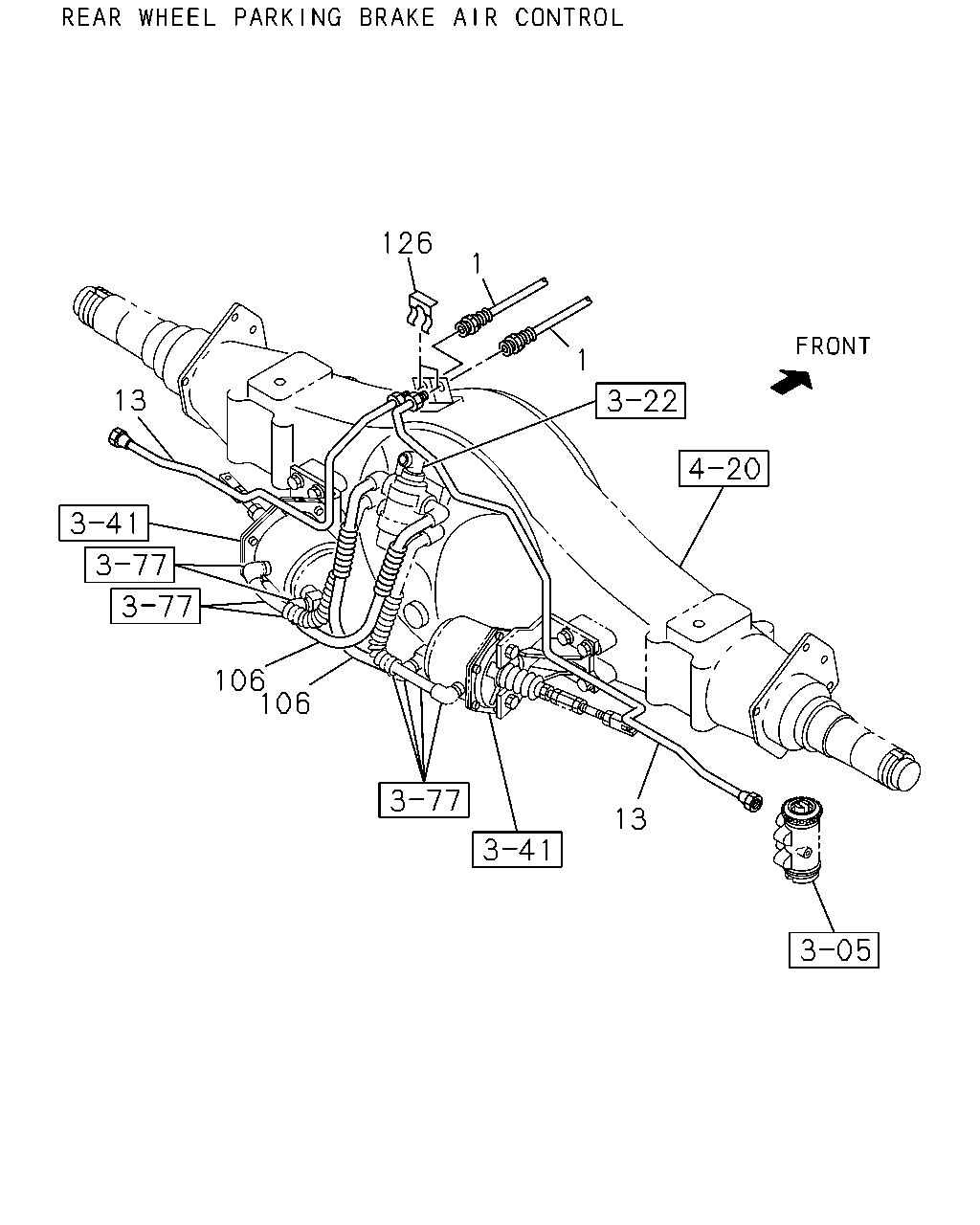

126 13 1 1 106 106 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1206-
1	HOSE; FLEX,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=520	8-98175-918-0	01	1	1109-1205
1	HOSE; FLEX,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1206-
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=485	8-98057-386-1	01	1	1109-1205
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1206-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98073-530-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98073-531-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) RH LINE	8-98029-679-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) LH LINE	8-98029-680-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) RH LINE	8-98107-930-0	01	1	1206-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) RH LINE L=1030	8-98281-559-0	01	1	1410-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) LH LINE	8-98107-931-0	01	1	1206-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) LH LINE L=645	8-98281-560-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE	8-98107-928-0	01	1	1206-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE	8-98281-557-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE	8-98107-929-0	01	1	1206-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE	8-98281-558-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98059-741-0	01	1	1206-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98059-742-0	01	1	1206-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> LH LINE L=847	1-47427-106-0	01	1	1109-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> RH LINE L=675	1-47427-105-0	01	1	1109-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE L=738	8-98071-762-0	01	1	1109-1205
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) LH LINE L=738	8-98071-762-0	01	1	1206-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE L=1115	8-98071-761-0	01	1	1109-1205
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) RH LINE L=1115	8-98071-761-0	01	1	1206-
106	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-971-0	02	1	1206-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1206-
126	CLIP; FLEX HOSE	8-97360-054-0	01	1	1109-1205
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1206-

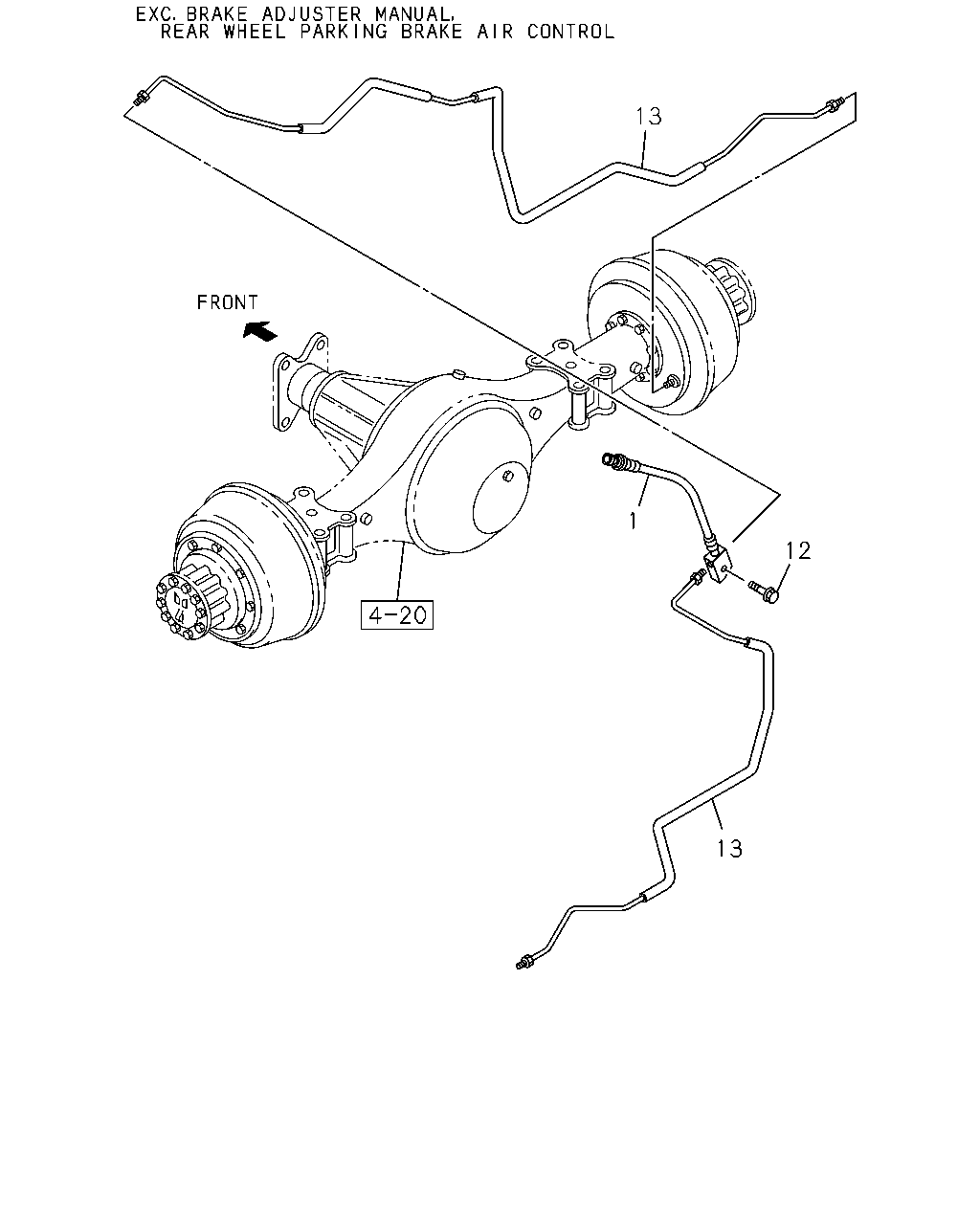

13 1 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1206-
1	HOSE; FLEX,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=520	8-98175-918-0	01	1	1109-1205
1	HOSE; FLEX,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1206-
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=485	8-98057-386-1	01	1	1109-1205
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1206-
12	BOLT; FLEX HOSE TO RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> M8X35 FLANGE	0-28650-835-0	01	1	1109-1205
12	BOLT; FLEX HOSE TO RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) M8X35 FLANGE	0-28650-835-0	01	1	1206-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98073-530-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98073-531-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) RH LINE	8-98029-679-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) LH LINE	8-98029-680-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) RH LINE	8-98107-930-0	01	1	1206-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) RH LINE L=1030	8-98281-559-0	01	1	1410-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) LH LINE	8-98107-931-0	01	1	1206-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) LH LINE L=645	8-98281-560-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE	8-98107-928-0	01	1	1206-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE	8-98281-557-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE	8-98107-929-0	01	1	1206-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE	8-98281-558-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98059-741-0	01	1	1206-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98059-742-0	01	1	1206-

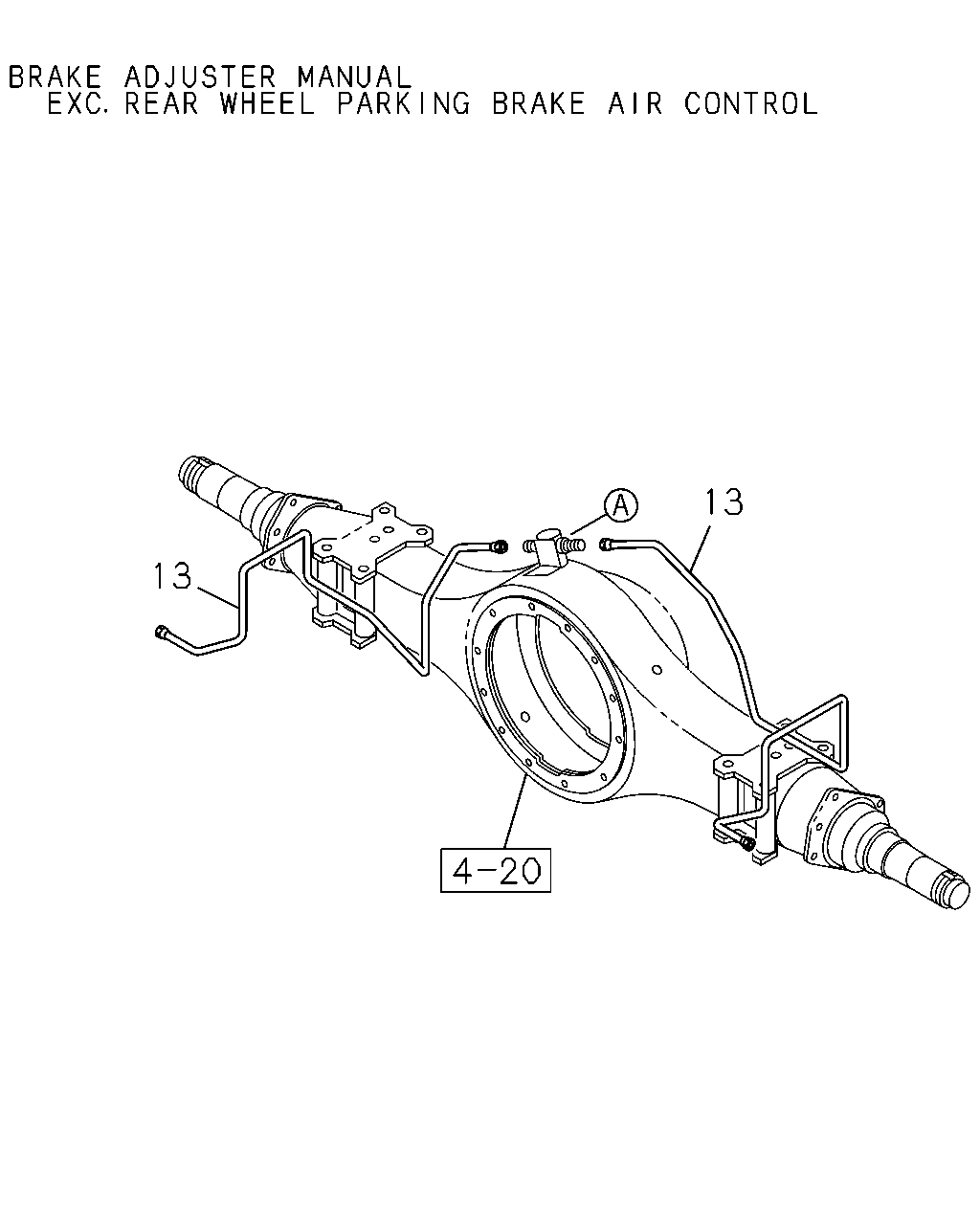

13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> LH LINE L=847	1-47427-106-0	01	1	1109-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> RH LINE L=675	1-47427-105-0	01	1	1109-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE L=738	8-98071-762-0	01	1	1109-1205
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) LH LINE L=738	8-98071-762-0	01	1	1206-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE L=1115	8-98071-761-0	01	1	1109-1205
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) RH LINE L=1115	8-98071-761-0	01	1	1206-

13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98073-530-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98073-531-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) RH LINE	8-98029-679-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) LH LINE	8-98029-680-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) RH LINE	8-98107-930-0	01	1	1206-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) RH LINE L=1030	8-98281-559-0	01	1	1410-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) LH LINE	8-98107-931-0	01	1	1206-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) LH LINE L=645	8-98281-560-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE	8-98107-928-0	01	1	1206-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE	8-98281-557-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE	8-98107-929-0	01	1	1206-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE	8-98281-558-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98059-741-0	01	1	1206-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98059-742-0	01	1	1206-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> LH LINE L=847	1-47427-106-0	01	1	1109-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> RH LINE L=675	1-47427-105-0	01	1	1109-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> LH LINE L=738	8-98071-762-0	01	1	1109-1205
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) LH LINE L=738	8-98071-762-0	01	1	1206-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> RH LINE L=1115	8-98071-761-0	01	1	1109-1205
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) RH LINE L=1115	8-98071-761-0	01	1	1206-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
